AC509773
1
7
AB

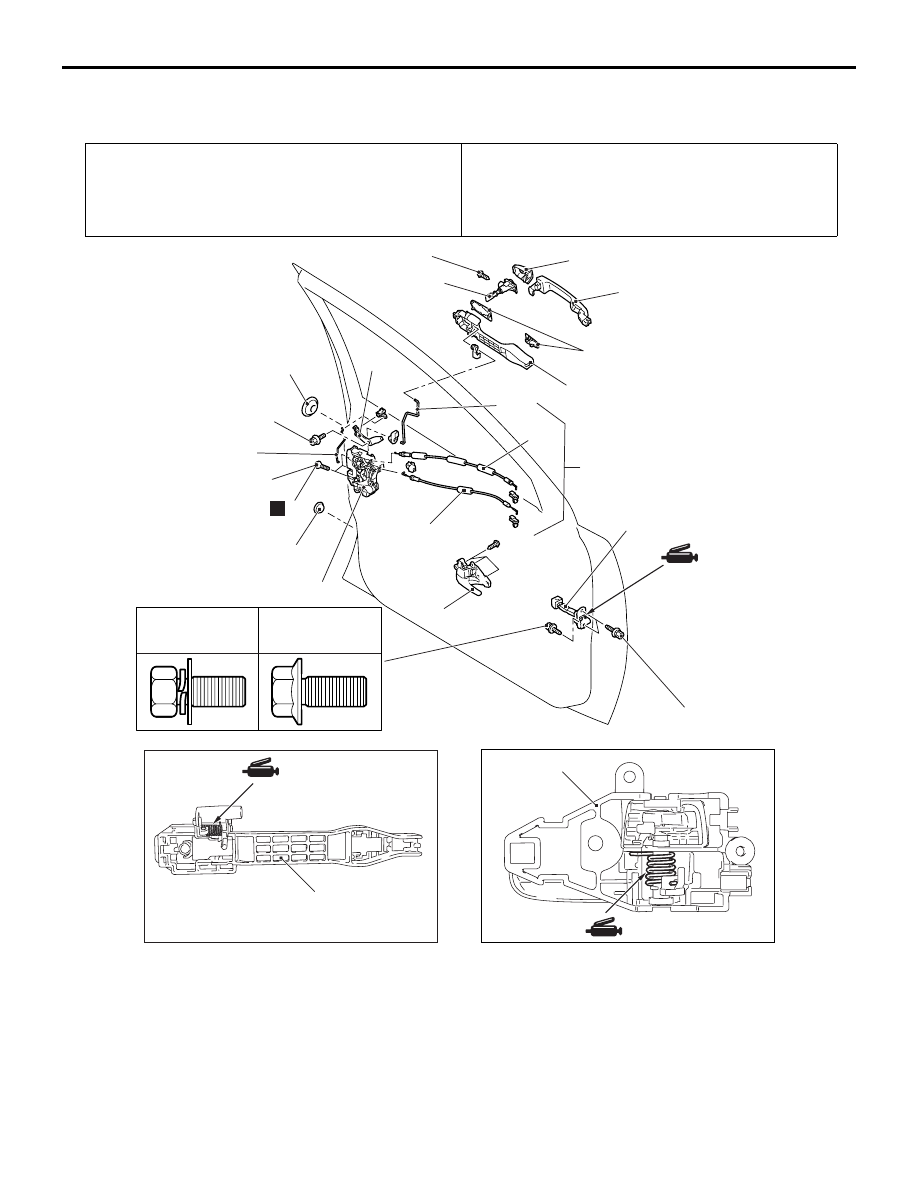

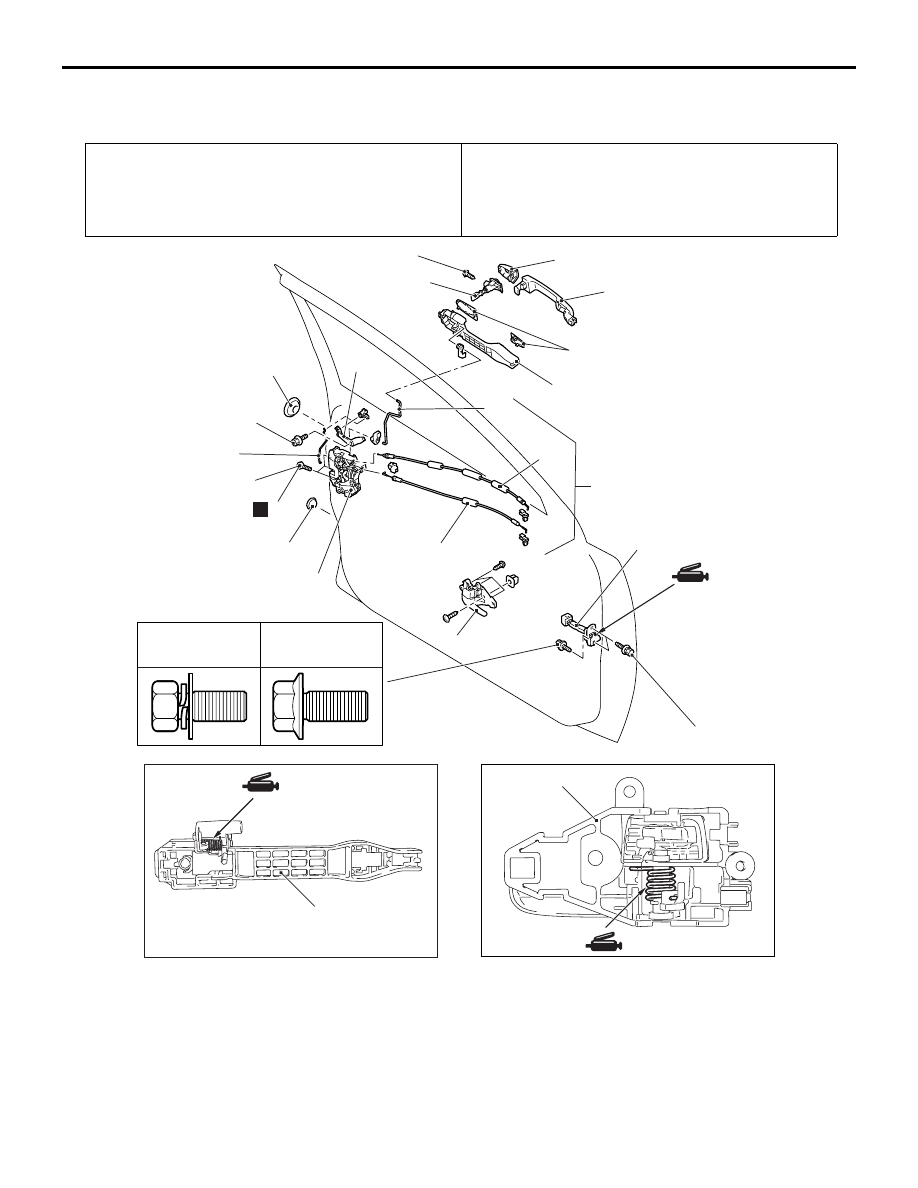

Door inside handle removal
>>
B
<<
1.
Door inside handle (built-in front
door trim) (Refer to GROUP 52A -
Door Trim .)
Door lock key cylinder and door
outside handle removal steps
•
Waterproof film and rear lower sash
(Refer to
.)
2.
Plug
3.
Door outside handle cover
4.
Door lock key cylinder <some
models for front passenger’s side>
5.
Door outside handle
6.
Door outside handle gasket
7.
Door outside handle base
Door latch assembly removal
steps
•
Waterproof film and rear lower sash
(Refer to
.)
8.
Door latch and cable assembly
9.
Screw
10. Door latch assembly
11. Door inside lock cable
12. Door inside handle cable
13. Door outside handle rod
14. Door outside lock rod
15. Door panel bracket
Door check removal steps
•
.)
>>
A
<<
16. Door check
DOOR
BODY
42-188

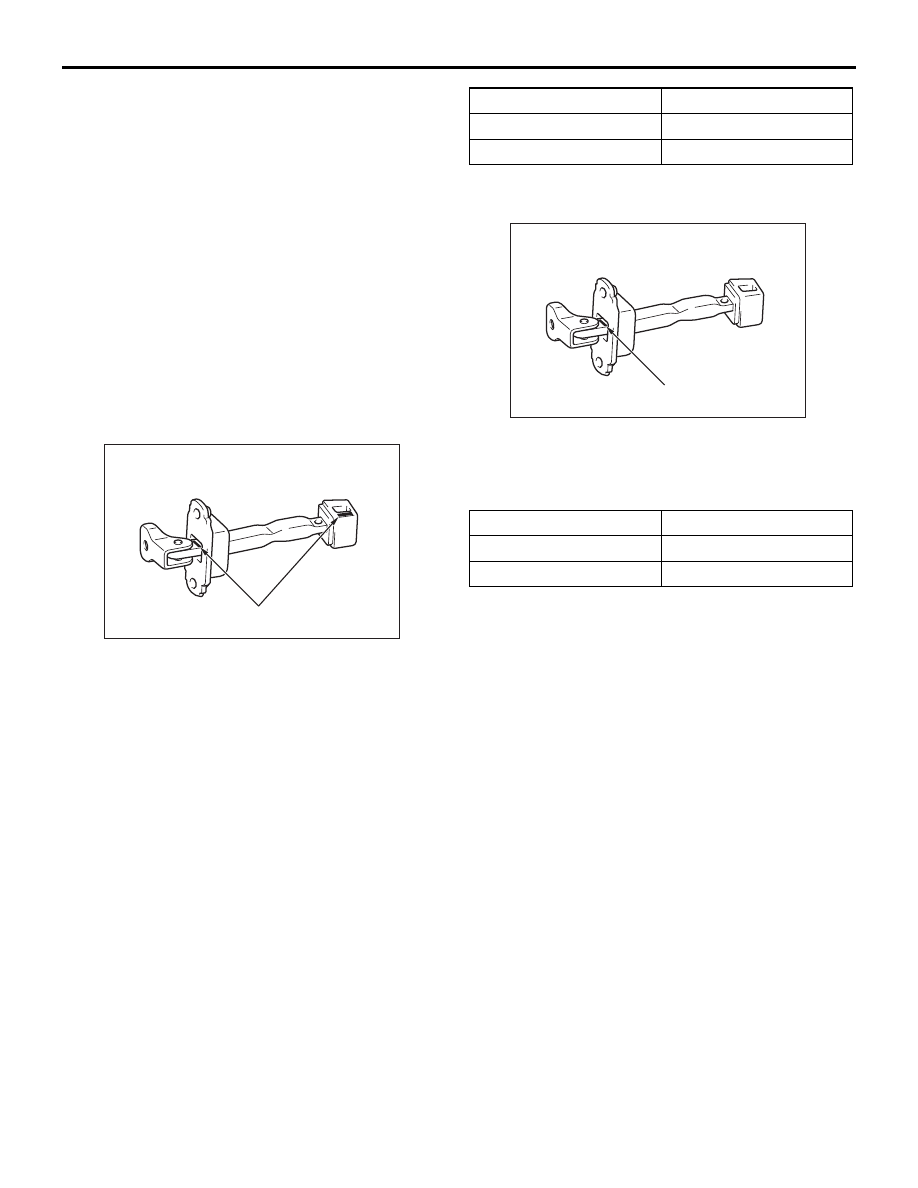

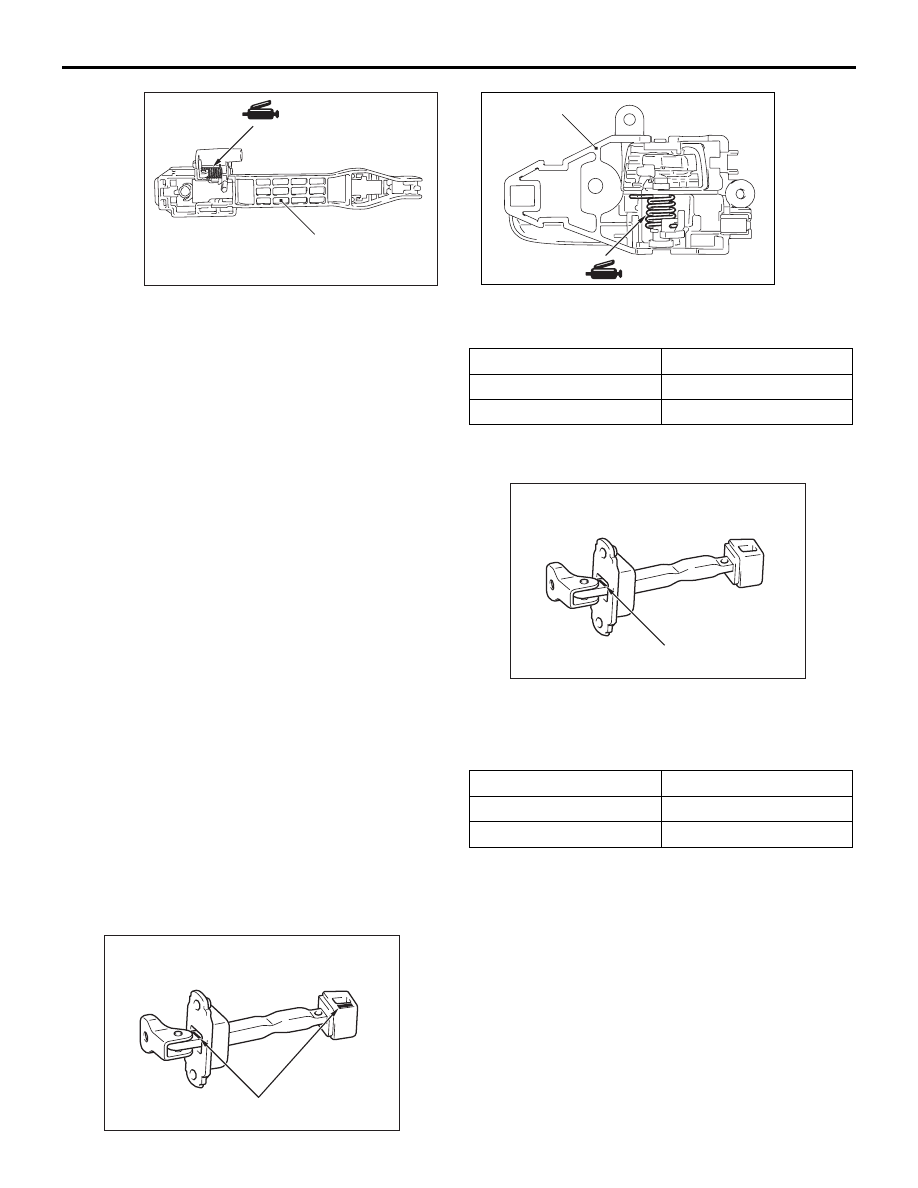

INSTALLATION SERVICE POINTS
>>A<< DOOR CHECK INSTALLATION <From to
2010 year July>
AC302892
AC504339
Identification mark
AB
Install the door check with the following identification
marks facing upward.
Application locations
Identification mark
Left side
57L
Right side
57R
>>A<< DOOR CHECK INSTALLATION <Up to
2010 year August>
AC302892
ACA03913
Identification mark
AB
When installing the door check to the front left door,
make sure that its identification mark faces up. When
installing the door check to the front right door, make
sure that its identification mark faces down.
Application locations
Identification mark
Left side
FR
Right side
FR
>>B<< DOOR INSIDE HANDLE INSTALLATION
When connecting the inside cable to the door inside
handle, ensure that the door latch and the inside
handle are unlocked.
