Door window glass assembly
removal steps

•

Beltline moulding, beltline
weatherstrip inner (Refer to

P.42-

196

.)

•

Waterproof film (Refer to

P.42-196

.)

5.

Door window glass assembly
Door window regulator assembly
removal steps

>>

A

<<

•

Post-installation operation check

•

Rear lower sash (Refer to

P.42-

196

.)

<<B>>

6.

Door window regulator assembly

7.

Power window motor <Vehicles
with power window>

DOOR

BODY

42-180

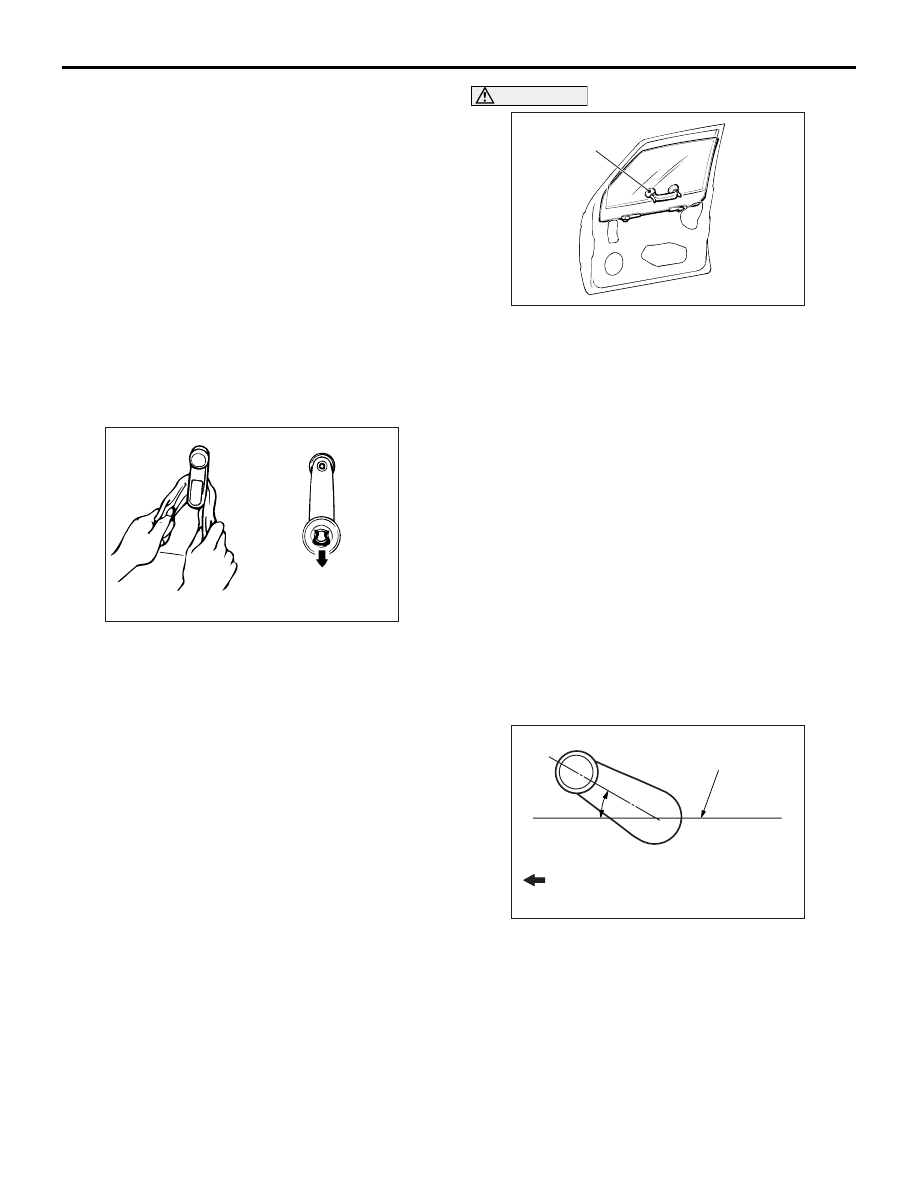

REMOVAL SERVICE POINTS

<<A>> CLIP REMOVAL

AC100005

Use a cloth to remove the clip as shown in the illus-
tration.

<<B>> DOOR WINDOW REGULATOR ASSEMBLY
REMOVAL
1. Remove the door window glass installation bolts.

AC100009AC

MB990480

CAUTION

If tinting film is adhered to the door window
glass, attach the special tool window glass
holder (MB990480) to the outside of the glass to
prevent the film from peeling off.
2. Lift the door window glass, and attach the special

tool window glass holder (MB990480) to the glass
as shown to prevent the glass from falling.

3. Remove the door window regulator assembly.

INSTALLATION SERVICE POINTS

>>A<< POST-INSTALLATION OPERATION
CHECK
When the following procedures are carried out, make
the power window switch learn the fully closed posi-
tion of the power window (Refer to

P.42-172

).

• Power window regulator removal or replacement

• Power window switch removal or replacement

>>B<< ESCUTCHEON/REGULATOR HANDLE/
CLIP INSTALLATION

AC100007AB

Front of vehicle

Horizontal line

30˚

1. Install the escutcheon and regulator handle to the

clip.

2. Close the door window glass fully, and then install

the regulator handle as shown in the illustration.

DOOR

BODY

42-181

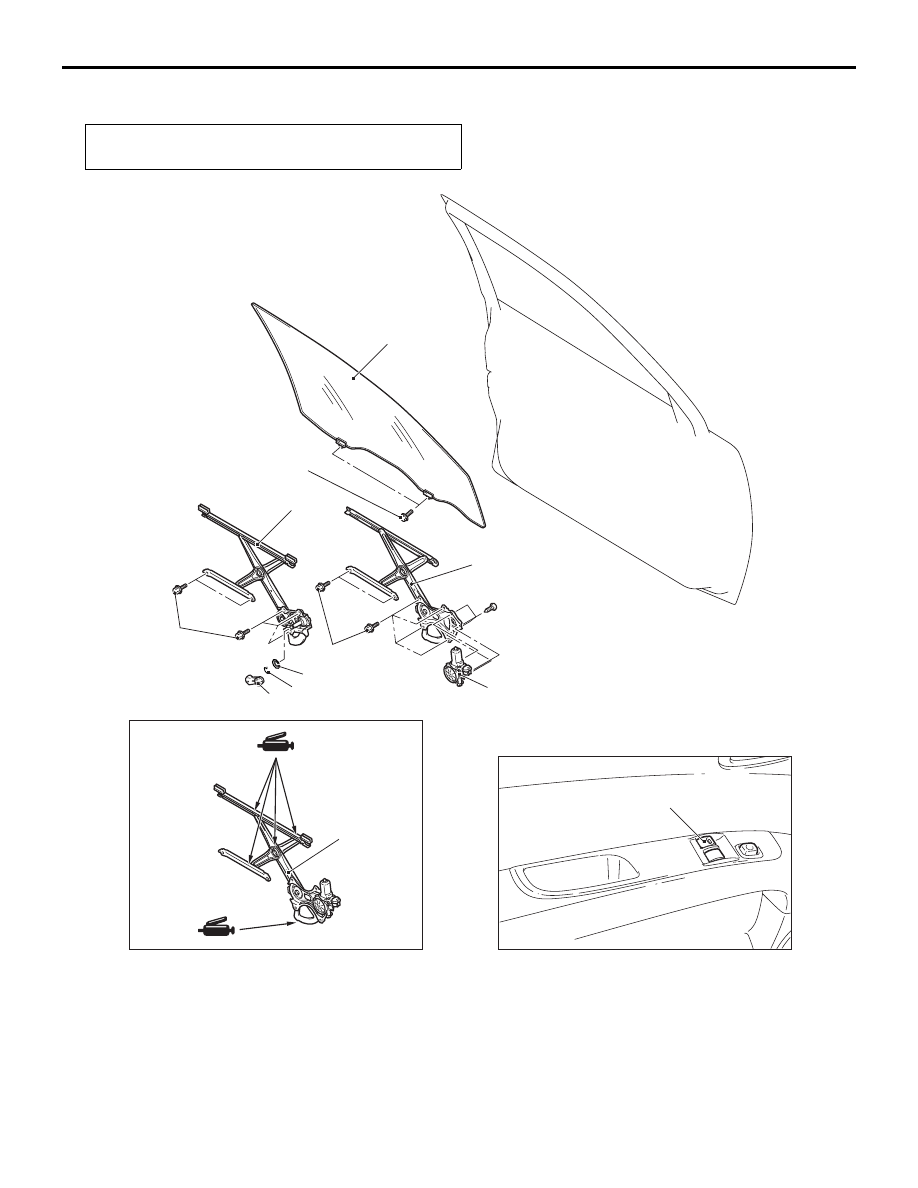

REMOVAL AND INSTALLATION <CLUB CAB>

M1429001301512

Post-installation Operation
• Door Window Glass Adjustment (Refer to

P.42-169

).

AC509765

2

3

4

5

6

6

7

AC

5.0 ± 1.0 N·m

5.0 ± 1.0 N·m

5.0 ± 1.0 N·m

<Vehicles with
power window>

<Vehicles without
power window>

AC509766

1

6

AB

Power window switch <Vehicles
with power window> removal

1.

Power window main switch (driver’s
side), power window sub switch
(passenger’s side) (Refer to
GROUP 52A, Door Trim .)

Regulator handle <Vehicles with
manual window> removal steps

<<A>>

>>

B

<<

2.

Clip

>>

B

<<

3.

Regulator handle

>>

B

<<

4.

Escutcheon

Door window glass assembly
removal steps

•

Beltline moulding, beltline
weatherstrip inner (Refer to

P.42-

198

.)

•

Waterproof film (Refer to

P.42-198

.)

5.

Door window glass assembly
Door window regulator assembly
removal steps

>>

A

<<

•

Post-installation operation check

•

Rear lower sash (Refer to

P.42-

198

.)

<<B>>

6.

Door window regulator assembly

7.

Power window motor <Vehicles
with power window>

DOOR

BODY

42-182

REMOVAL SERVICE POINTS

<<A>> CLIP REMOVAL

AC100005

Use a cloth to remove the clip as shown in the illus-
tration.

<<B>> DOOR WINDOW REGULATOR ASSEMBLY
REMOVAL
1. Remove the door window glass installation bolts.

AC100009AC

MB990480

CAUTION

If tinting film is adhered to the door window
glass, attach the special tool window glass
holder (MB990480) to the outside of the glass to
prevent the film from peeling off.
2. Lift the door window glass, and attach the special

tool window glass holder (MB990480) to the glass
as shown to prevent the glass from falling.

3. Remove the door window regulator assembly.

INSTALLATION SERVICE POINTS

>>A<< POST-INSTALLATION OPERATION
CHECK
When the following procedures are carried out, make
the power window switch learn the fully closed posi-
tion of the power window (Refer to

P.42-172

).

• Power window regulator removal or replacement

• Power window switch removal or replacement

>>B<< ESCUTCHEON/REGULATOR HANDLE/
CLIP INSTALLATION

AC100007AB

Front of vehicle

Horizontal line

30˚

1. Install the escutcheon and regulator handle to the

clip.

2. Close the door window glass fully, and then install

the regulator handle as shown in the illustration.

DOOR

BODY

42-183

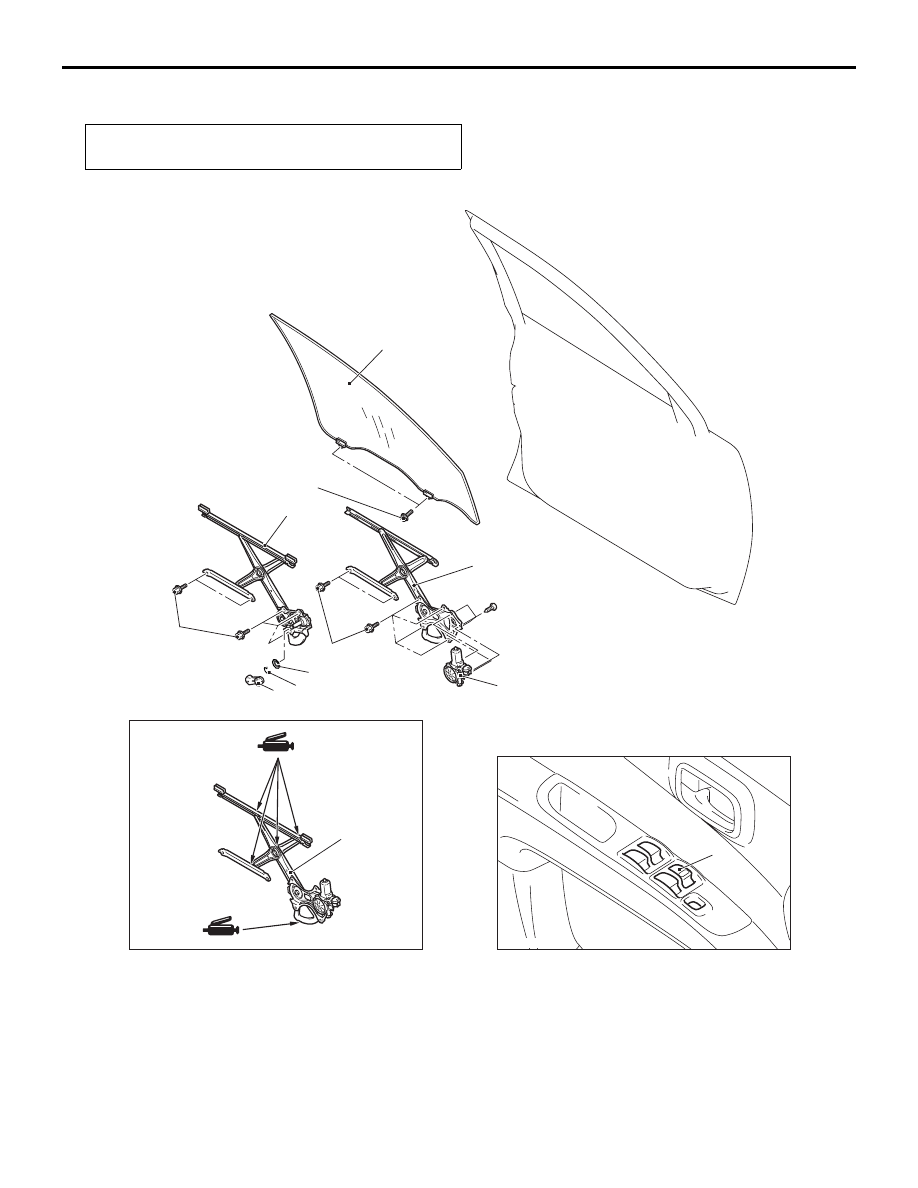

REMOVAL AND INSTALLATION <DOUBLE CAB>

M1429001301523

Post-installation Operation
• Door Window Glass Adjustment (Refer to

P.42-169

).

AC509764

2

3

4

5

6

6

7

AD

5.0 ± 1.0 N·m

<Vehicles with
power window>

<Vehicles without
power window>

<Front door>

5.0 ± 1.0 N·m

5.0 ± 1.0 N·m

AC509767

1

6

AB

Power window switch <Vehicles
with power window> removal

1.

Power window main switch (driver’s
side), power window sub switch
(passenger’s side) (Refer to
GROUP 52A, Door Trim ).

Regulator handle <Vehicles with
manual window> removal steps

<<A>>

>>

B

<<

2.

Clip

>>

B

<<

3.

Regulator handle

>>

B

<<

4.

Escutcheon
