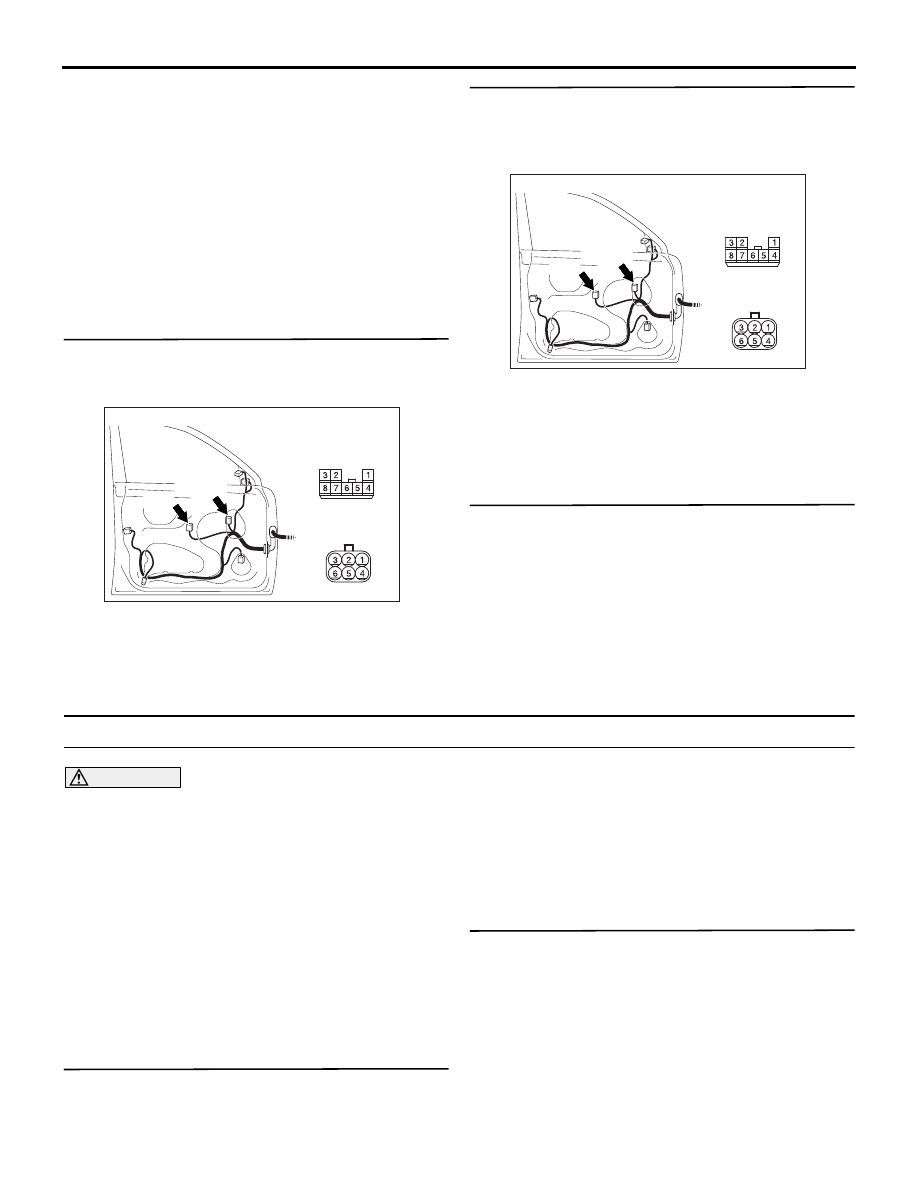

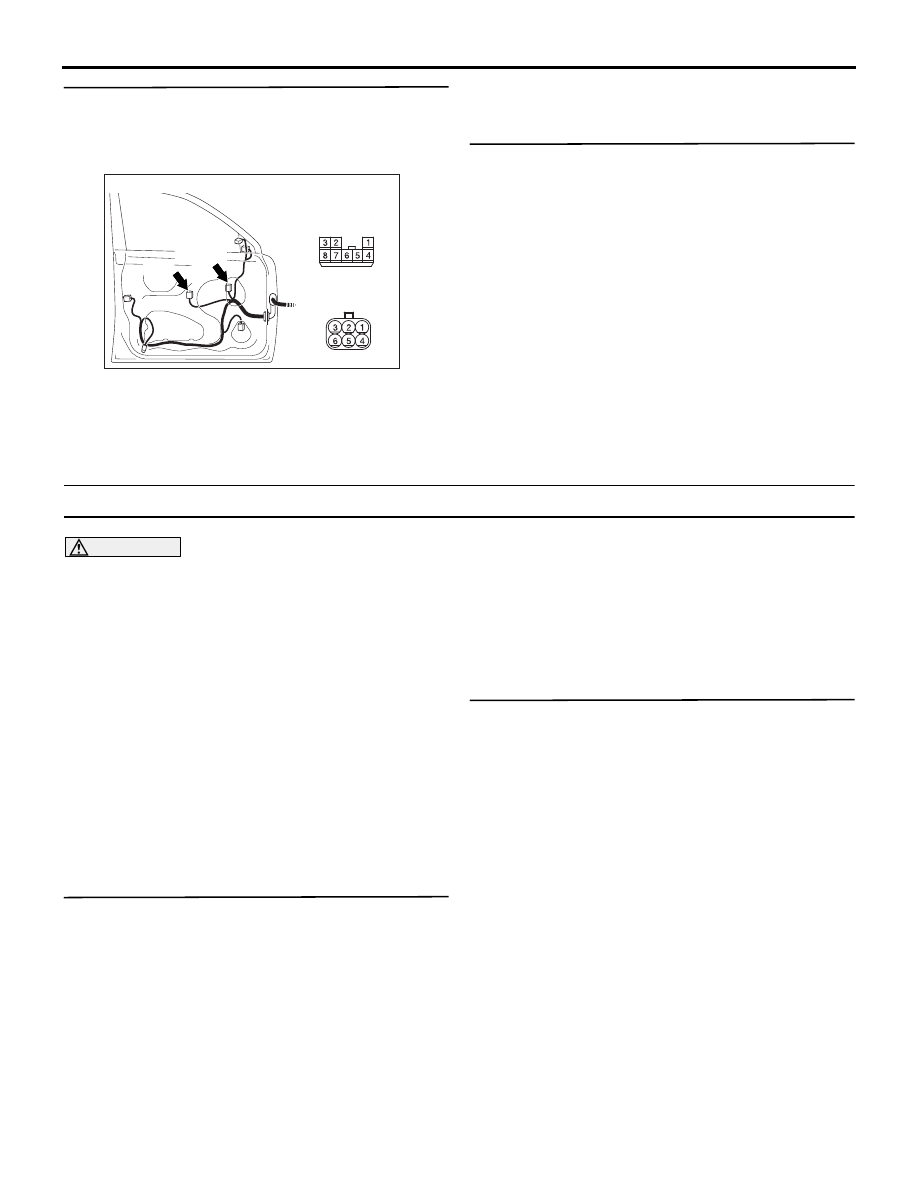

DOOR

BODY

42-100

STEP 2. Check the wiring harness between E-16
front power window sub switch connector
terminal Nos.2, 3 and E-18 front power window
motor (LH) connector terminal Nos.2, 5.

AC509952

Connectors: E-16, E-18 <RHD>

BA

E-16

Harness side

E-18 (B)

E-18 (B)

Harness side

E-16

• Check the input and output lines for open or short

circuit.

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Repair the wiring harness.

STEP 3. Check whether the diagnosis code is
reset.
(1) Replace the front power window motor (LH).
(2) Check that diagnosis code is not reset.

Q: Is diagnosis code set?

YES :

Replace the front power window sub switch.

NO :

The procedure is complete.

Code No.2003: P/W (AS) Above window position

CAUTION

Whenever the ECU is replaced, ensure that the
input and output signal circuits are normal.
COMMENTS ON TROUBLE SYMPTOM
If the front passenger's door window glass exceeds
the fully closed position, power window sub switch
(front: RH) sets the diagnosis code No. 2003. And, if
the passenger’s door window glass is removed or
installed with the power is supplied to the power win-
dow sub switch (front: RH) sets this diagnosis code.

PROBABLE CAUSES

• Malfunction of the front power window motor

<passenger’s side>

• Malfunction of the front power window sub switch

DIAGNOSIS PROCEDURE

STEP 1. Confirm the front power window
<passenger’s side> learning function.
(1) Check that the front power window sub switch

has learned the fully closed position of the
window (Refer to

P.42-172

).

(2) On completion, check that diagnosis code

No.2003 is not reset.

Q: Is the check result normal?

YES :

The procedure is complete.

NO :

Go to Step 2.

STEP 2. Check whether the diagnosis code is
reset.
(1) Replace the front power window motor

<passenger’s side>.

(2) Check that diagnosis code is not reset.

Q: Is diagnosis code set?

YES :

Replace the front power window sub switch.

NO :

The procedure is complete.

DOOR

BODY

42-101

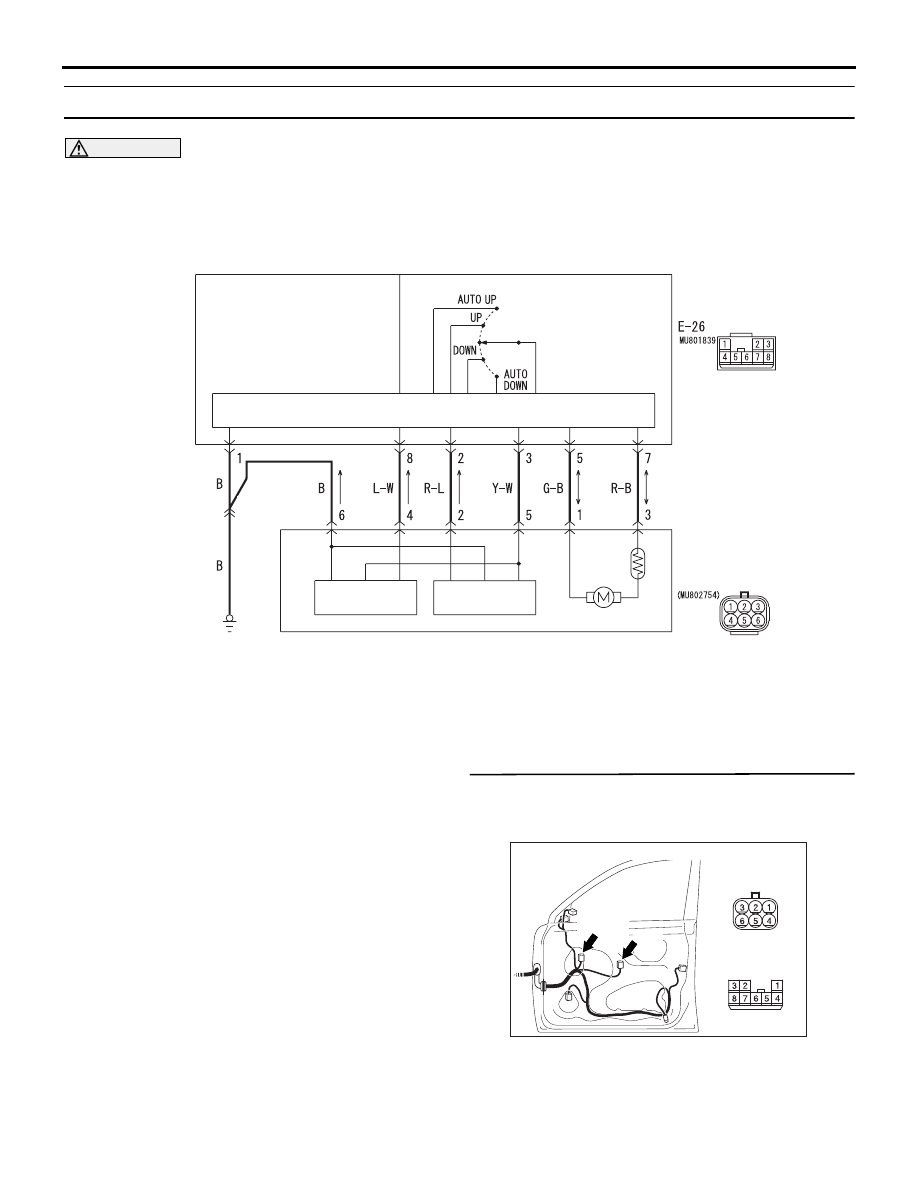

Code No.2004: P/W (AS) Sensor fail (earth) <LH drive vehicles>

CAUTION

Whenever the ECU is replaced, ensure that the
input and output signal circuits are normal.

Power Window (Front: RH) Circuit

CPU

HALL IC

HALL IC

FRONT
POWER WINDOW
SUB SWITCH

POWER WINDOW
MOTOR
(FRONT: RH)

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Grey     R : Red     P : Pink     V : Violet     PU : Purple

FRONT (RH)

AC903690

E-01

7  C-122

AB

COMMENTS ON TROUBLE SYMPTOM
If the earth fault of the power window motor (front:
RH) sensor power supply is detected, power window
sub switch (front: RH) sets the diagnosis code No.
2004.

PROBABLE CAUSES

• Malfunction of the front power window motor

(RH)

• Malfunction of the front power window sub switch

• Damaged harness wires and connectors

DIAGNOSIS PROCEDURE

STEP 1. Connector check: E-26 front power
window sub switch connector and E-01 front
power window motor (RH) connector

AC509954

Connectors: E-01, E-26 <LHD>

AH

Harness side

E-26

E-26

Harness side

E-01 (B)

E-01 (B)

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Repair the connector.

DOOR

BODY

42-102

STEP 2. Check the wiring harness between E-26
front power window sub switch connector
terminal No. 3 and E-01 front power window
motor (RH) connector terminal No. 5.

AC509954

Connectors: E-01, E-26 <LHD>

AH

Harness side

E-26

E-26

Harness side

E-01 (B)

E-01 (B)

• Check the power supply line for open or short cir-

cuit.

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Repair the wiring harness.

STEP 3. Check whether the diagnosis code is
reset.
(1) Replace the front power window motor (RH).
(2) Check that diagnosis code is not reset.

Q: Is diagnosis code set?

YES :

Replace the front power window sub switch.

NO :

The procedure is complete.

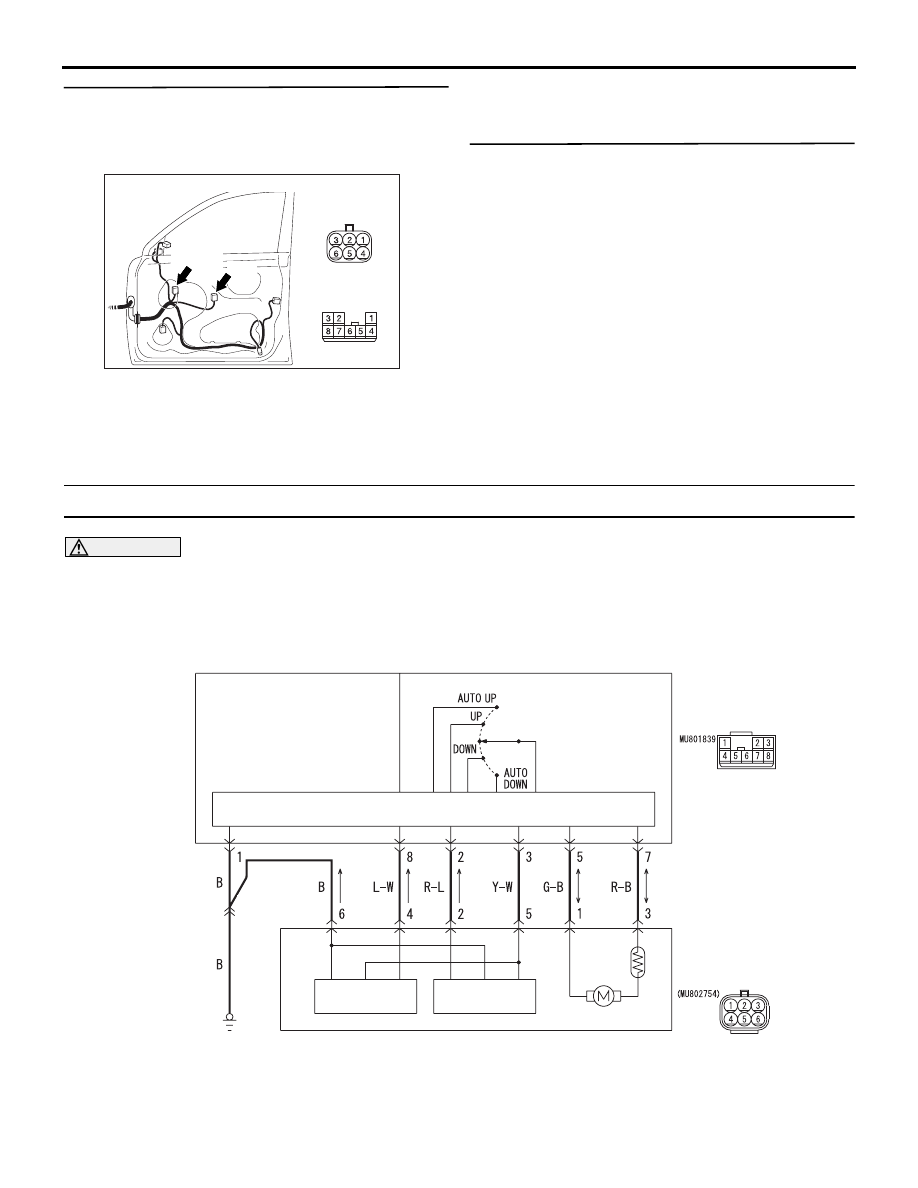

Code No.2004: P/W (AS) Sensor fail (earth) <RH drive vehicles>

CAUTION

Whenever the ECU is replaced, ensure that the
input and output signal circuits are normal.

Power Window (Front: LH) Circuit

CPU

HALL IC

HALL IC

FRONT
POWER WINDOW
SUB SWITCH

POWER WINDOW
MOTOR
(FRONT: LH)

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Grey     R : Red     P : Pink     V : Violet     PU : Purple

FRONT (LH)

AC903692

E-18

7  C-134

E-16

AB

DOOR

BODY

42-103

COMMENTS ON TROUBLE SYMPTOM
If the earth fault of the power window motor (front:
LH) sensor power supply is detected, power window
sub switch (front: LH) sets the diagnosis code No.
2004.

PROBABLE CAUSES

• Malfunction of the front power window motor (LH)

• Malfunction of the front power window sub switch

• Damaged harness wires and connectors

DIAGNOSIS PROCEDURE

STEP 1. Connector check: E-16 front power
window sub switch connector and E-18 front
power window motor (LH) connector

AC509952

Connectors: E-16, E-18 <RHD>

BA

E-16

Harness side

E-18 (B)

E-18 (B)

Harness side

E-16

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Repair the connector.

STEP 2. Check the wiring harness between E-16
front power window sub switch connector
terminal No. 3 and E-18 front power window
motor (LH) connector terminal No. 5.

AC509952

Connectors: E-16, E-18 <RHD>

BA

E-16

Harness side

E-18 (B)

E-18 (B)

Harness side

E-16

• Check the power supply line for open or short cir-

cuit.

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Repair the wiring harness.

STEP 3. Check whether the diagnosis code is
reset.
(1) Replace the front power window motor (LH).
(2) Check that diagnosis code is not reset.

Q: Is diagnosis code set?

YES :

Replace the front power window sub switch.

NO :

The procedure is complete.

Code No.2005: P/W (AS) 3 Times jam-protection

CAUTION

Whenever the ECU is replaced, ensure that the
input and output signal circuits are normal.
COMMENTS ON TROUBLE SYMPTOM
If the anti-trap function is activated consecutively
three times or more, power window sub switch (pas-
senger’s side) sets the diagnosis code No. 2005.

PROBABLE CAUSES

• Malfunction of the front power window motor

<passenger’s side>

• Malfunction of the front power window sub switch

DIAGNOSIS PROCEDURE

STEP 1. Confirm the front power window
<passenger’s side> learning function.
(1) Check that the front power window sub switch

has learned the fully closed position of the
window (Refer to

P.42-172

).

(2) On completion, check that diagnosis code

No.2005 is not reset.

Q: Is the check result normal?

YES :

The procedure is complete.

NO :

Go to Step 2.

STEP 2. Check whether the diagnosis code is
reset.
(1) Replace the front power window motor

<passenger’s side>.

(2) Check that diagnosis code is not reset.

Q: Is diagnosis code set?

YES :

Replace the front power window sub switch.

NO :

The procedure is complete.
