DOOR

BODY

42-92

STEP 2. Check the wiring harness between E-03
power window main switch connector terminal
No. 12 and E-18 front power window motor (LH)
connector terminal No. 5.

AC509952

Connectors: E-03, E-18 <LHD>

Harness side

E-03

Harness side

E-18 (B)

• Check the power supply line for open or short cir-

cuit.

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Repair the wiring harness.

STEP 3. Check whether the diagnosis code is
reset.
(1) Replace the front power window motor (LH).
(2) Check that diagnosis code is not reset.

Q: Is diagnosis code set?

YES :

Replace the power window main switch.

NO :

The procedure is complete.

Code No.1004: P/W (DR) Sensor fail (earth) <RH drive vehicles>

CAUTION

Whenever the ECU is replaced, ensure that the
input and output signal circuits are normal.

AC903671

7 C-122

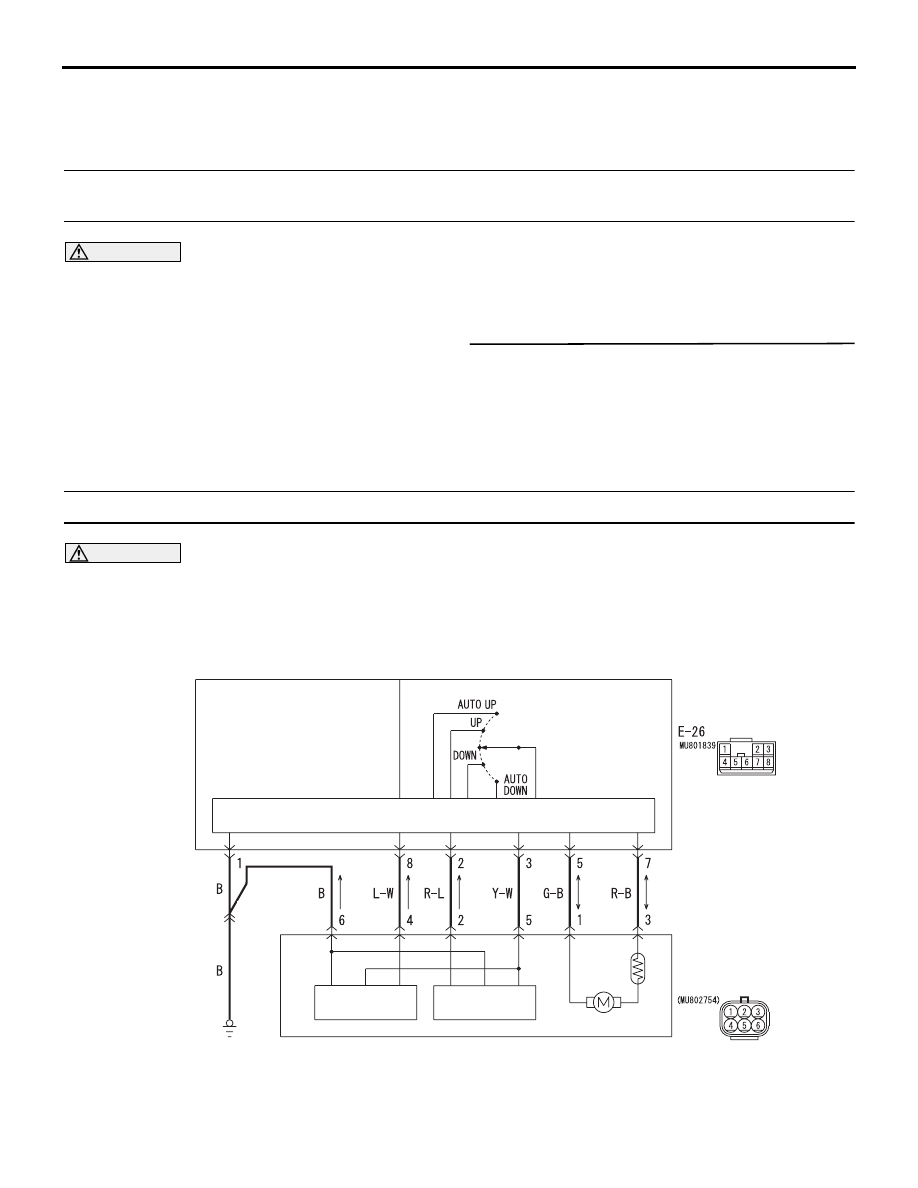

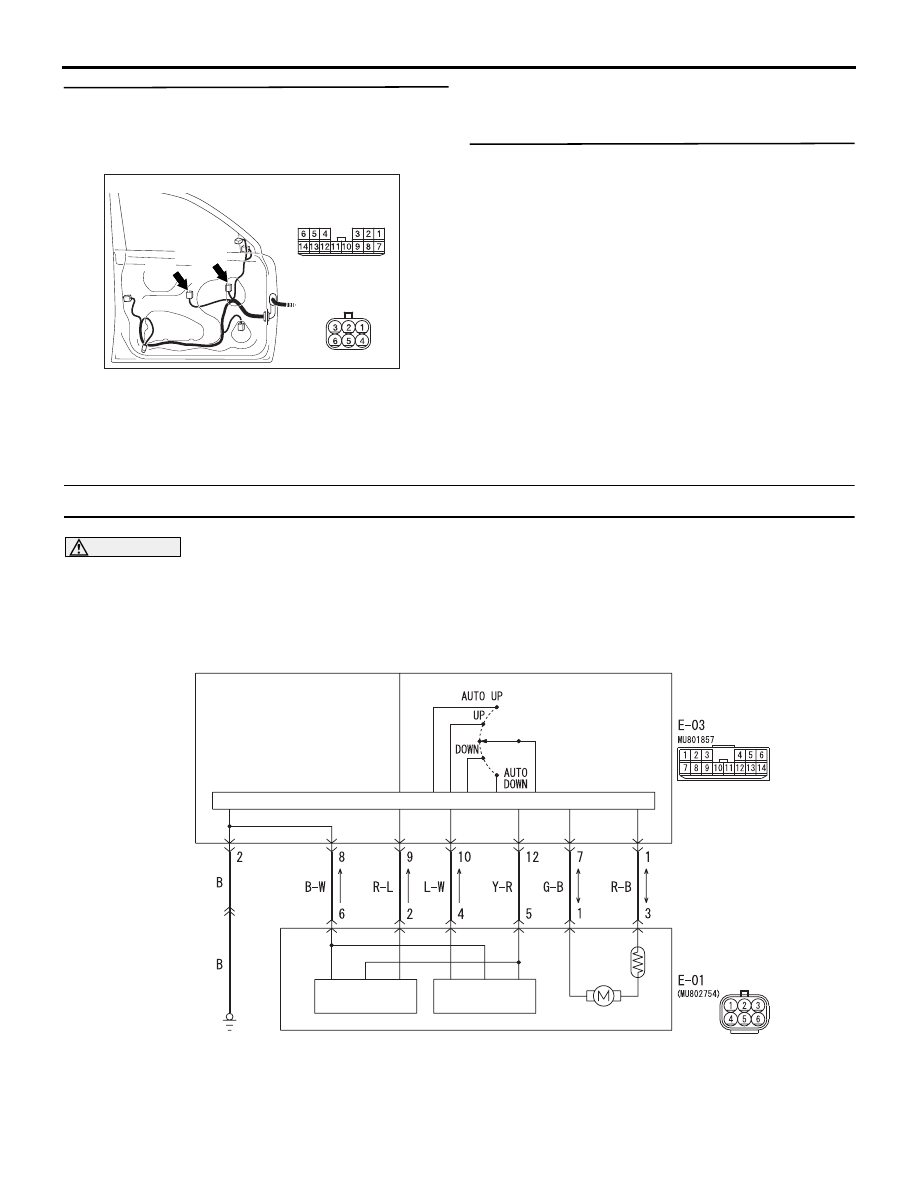

Power Window (Front: RH) Circuit

CPU

HALL IC

POWER
WINDOW
MAIN SWITCH

POWER WINDOW
MOTOR
(FRONT: RH)

Wire colour code
B : Black LG : Light green G : Green L : Blue W : White Y : Yellow SB : Sky blue
BR : Brown O : Orange GR : Grey R : Red P : Pink V : Violet PU : Purple

FRONT (RH)

DOOR

BODY

42-93

COMMENTS ON TROUBLE SYMPTOM
If the earth fault of the power window motor (front:
RH) sensor power supply is detected, power window
main switch sets the diagnosis trouble code No.
1004.

PROBABLE CAUSES

• Malfunction of the front power window motor

(RH)

• Malfunction of the power window main switch

• Damaged harness wires and connectors

DIAGNOSIS PROCEDURE

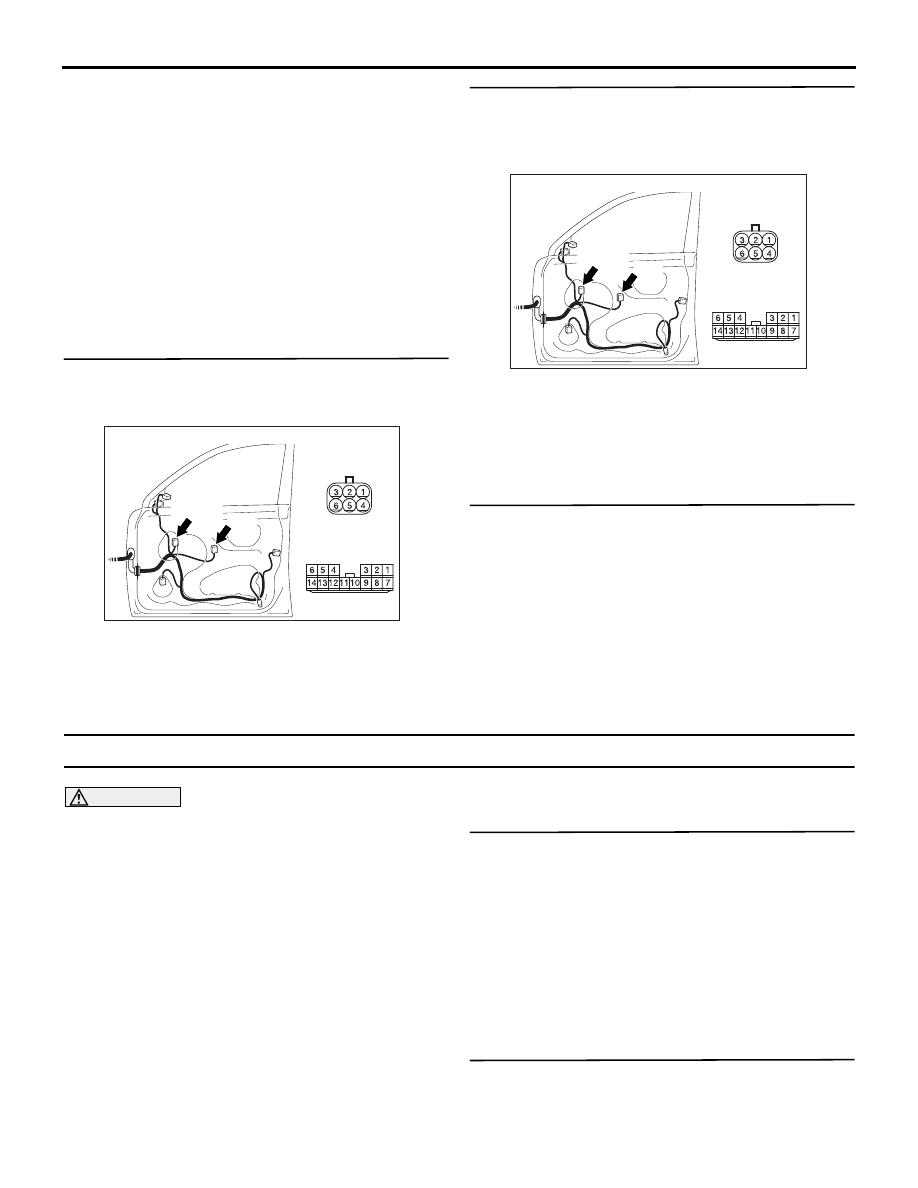

STEP 1. Connector check: E-03 power window
main switch connector and E-01 front power
window motor (RH) connector

AC509954

Connectors: E-01, E-03 <RHD>

Harness side

E-03

Harness side

E-01 (B)

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Repair the connector.

STEP 2. Check the wiring harness between E-03
power window main switch connector terminal
No. 12 and E-01 front power window motor (RH)
connector terminal No. 5.

AC509954

Connectors: E-01, E-03 <RHD>

Harness side

E-03

Harness side

E-01 (B)

• Check the power supply line for open or short cir-

cuit.

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Repair the wiring harness.

STEP 3. Check whether the diagnosis code is
reset.
(1) Replace the front power window motor (RH).
(2) Check that diagnosis code is not reset.

Q: Is diagnosis code set?

YES :

Replace the power window main switch.

NO :

The procedure is complete.

Code No.1005: P/W (DR) 3 Times jam-protection

CAUTION

Whenever the ECU is replaced, ensure that the
input and output signal circuits are normal.
COMMENTS ON TROUBLE SYMPTOM
If the anti-trap function is activated consecutively
three times or more, power window main switch sets
the diagnosis code No. 1005.

PROBABLE CAUSES

• Malfunction of the front power window motor

<driver’s side>

• Malfunction of the power window main switch

DIAGNOSIS PROCEDURE

STEP 1. Confirm the front power window
<driver’s side> learning function.
(1) Check that the power window main switch has

learned the fully closed position of the window
(Refer to

P.42-172

(2) On completion, check that diagnosis code

No.1005 is not reset.

Q: Is the check result normal?

YES :

The procedure is complete.

NO :

Go to Step 2.

STEP 2. Check whether the diagnosis code is
reset.
(1) Replace the front power window motor <driver’s

side>.

DOOR

BODY

42-94

(2) Check that diagnosis code is not reset.

Q: Is diagnosis code set?

YES :

Replace the power window main switch.

NO :

The procedure is complete.

Code No.1008: P/W (DR) Parameter read fail

Code No.1009: P/W (DR) Position read fail

CAUTION

Whenever the ECU is replaced, ensure that the
input and output signal circuits are normal.
COMMENTS ON TROUBLE SYMPTOM

• If the power window main switch information sig-

nals cannot be read, power window main switch
sets the diagnosis code No. 1008.

• If the driver's door window glass position cannot

be read, power window main switch sets the
diagnosis code No. 1009.

PROBABLE CAUSES

• Malfunction of the power window main switch

DIAGNOSIS PROCEDURE

Check whether the diagnosis code is reset.
Check that the diagnosis code is not reset.

Q: Is diagnosis code set?

YES :

Replace the power window main switch.

NO :

The procedure is complete.

Code No.2001: P/W (AS) SW pulse1 disconnection <LH drive vehicles>

CAUTION

Whenever the ECU is replaced, ensure that the
input and output signal circuits are normal.

Power Window (Front: RH) Circuit

CPU

HALL IC

FRONT
POWER WINDOW
SUB SWITCH

POWER WINDOW
MOTOR
(FRONT: RH)

Wire colour code
B : Black LG : Light green G : Green L : Blue W : White Y : Yellow SB : Sky blue
BR : Brown O : Orange GR : Grey R : Red P : Pink V : Violet PU : Purple

FRONT (RH)

AC903690

E-01

7 C-122

DOOR

BODY

42-95

COMMENTS ON TROUBLE SYMPTOM
If the pulse 1 signal from the power window motor
(front: RH) cannot be received, power window sub
switch (front: RH) sets the diagnosis code No. 2001.

PROBABLE CAUSES

• Malfunction of the front power window motor

(RH)

• Malfunction of the front power window sub switch

• Damaged harness wires and connectors

DIAGNOSIS PROCEDURE

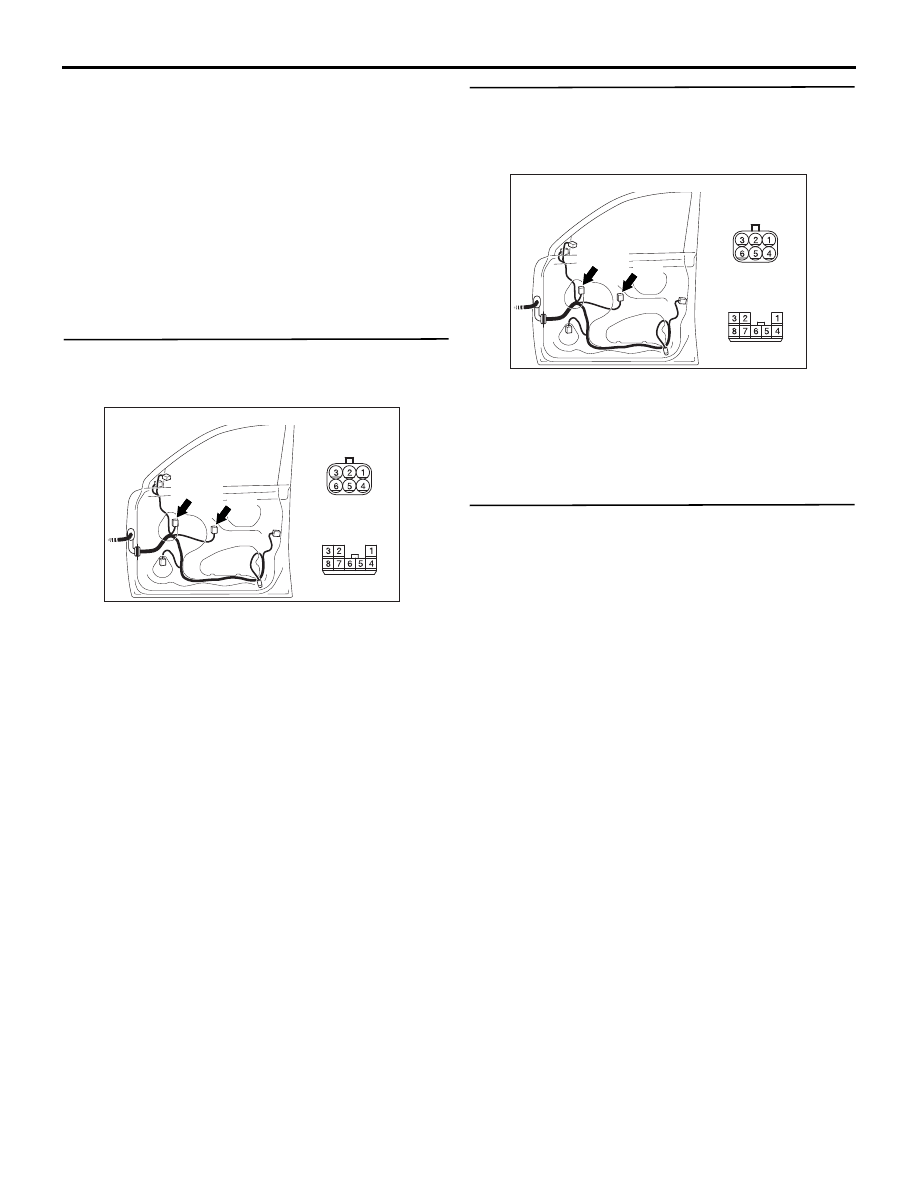

STEP 1. Connector check: E-26 front power
window sub switch connector and E-01 front
power window motor (RH) connector

AC509954

Connectors: E-01, E-26 <LHD>

Harness side

E-26

Harness side

E-01 (B)

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Repair the connector.

STEP 2. Check the wiring harness between E-26
front power window sub switch connector
terminal Nos.8, 3 and E-01 front power window
motor (RH) connector terminal Nos.4, 5.

AC509954

Connectors: E-01, E-26 <LHD>

Harness side

E-26

Harness side

E-01 (B)

• Check the input and output lines for open or short

circuit.

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Repair the wiring harness.

STEP 3. Check whether the diagnosis code is
reset.
(1) Replace the front power window motor (RH).
(2) Check that diagnosis code is not reset.

Q: Is diagnosis code set?

YES :

Replace the front power window sub switch.

NO :

The procedure is complete.
