DIAGNOSIS CODE PROCEDURES
<POWER WINDOWS>

Code No.1001: P/W (DR) SW pulse1 disconnection <LH drive vehicles>

CAUTION

Whenever the ECU is replaced, ensure that the
input and output signal circuits are normal.

AC806142

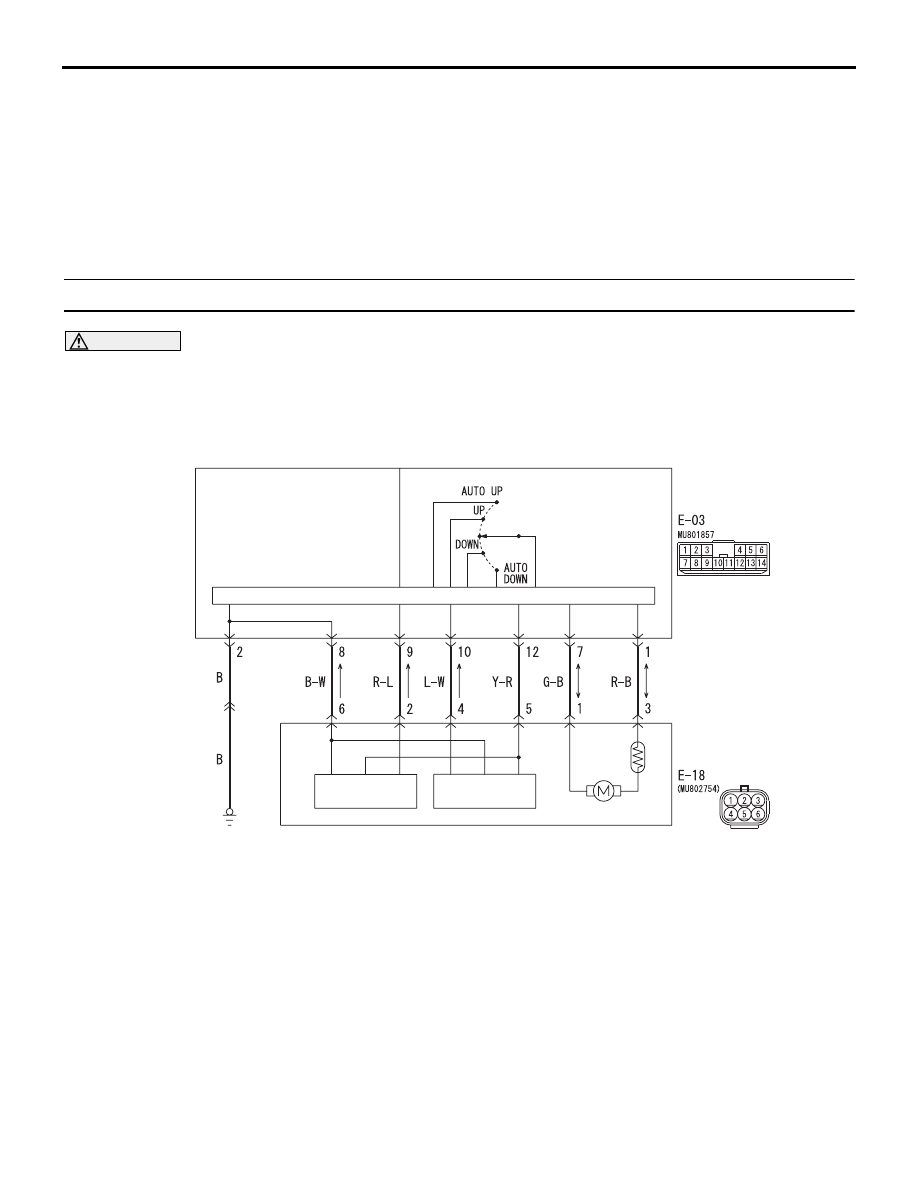

Power Window (Front: LH) Circuit

CPU

HALL IC

HALL IC

POWER
WINDOW
MAIN SWITCH

POWER WINDOW
MOTOR
(FRONT: LH)

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Grey     R : Red     P : Pink     V : Violet     PU : Purple

FRONT (LH)

AC

7  C-134

COMMENTS ON TROUBLE SYMPTOM
If the pulse 1 signal from the power window motor
(front: LH) cannot be received, the power window
main switch sets the diagnosis trouble code No.
1001.

PROBABLE CAUSES

• Malfunction of the front power window motor (LH)

• Malfunction of the power window main switch

• Damaged harness wires and connectors

DOOR

BODY

42-85

DIAGNOSIS PROCEDURE

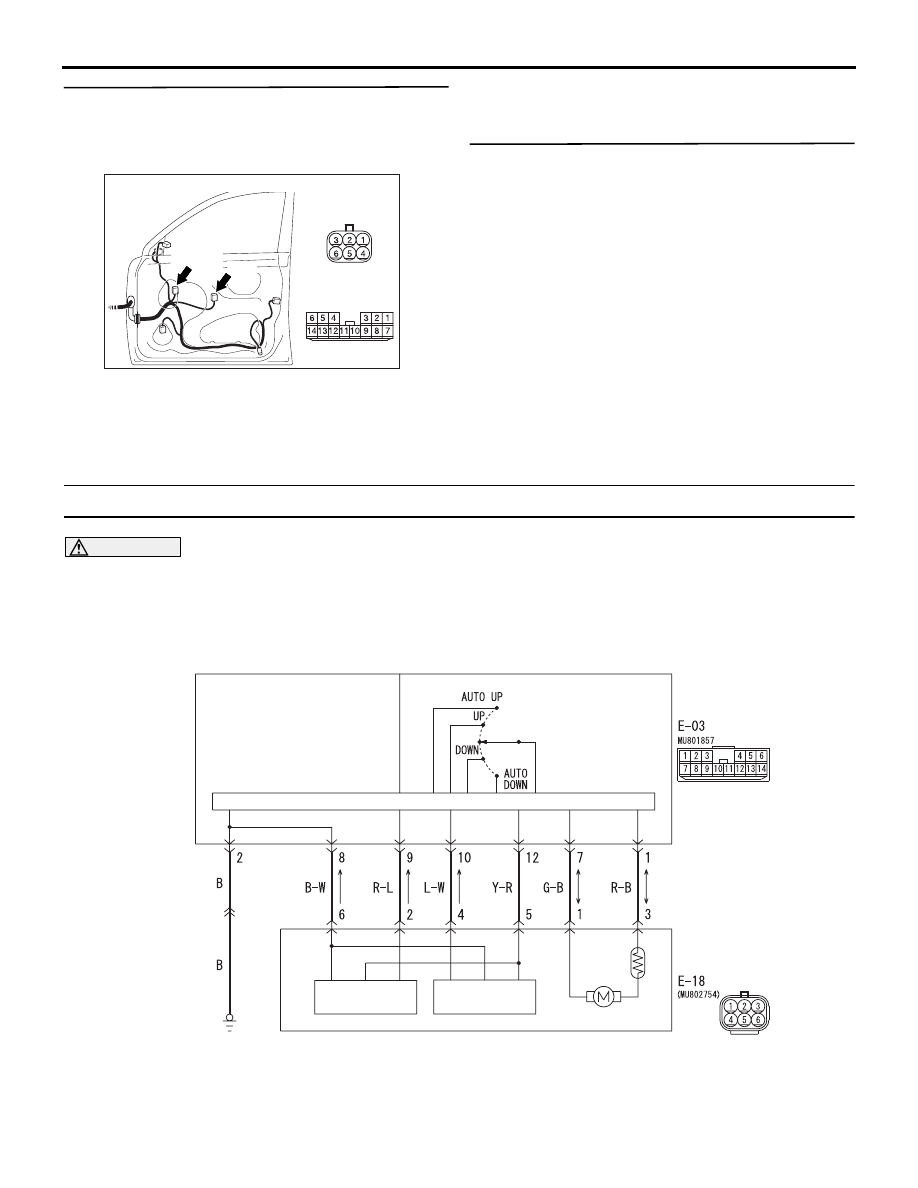

STEP 1. Connector check: E-03 power window
main switch connector and E-18 front power
window motor (LH) connector

AC509952

Connectors: E-03, E-18 <LHD>

AG

Harness side

E-03

E-03

Harness side

E-18 (B)

E-18 (B)

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Repair the connector.

STEP 2. Check the wiring harness between E-03
power window main switch connector terminal
Nos.8, 1, 12 and E-18 front power window motor
(LH) connector terminal Nos.6, 3, 5.

AC509952

Connectors: E-03, E-18 <LHD>

AG

Harness side

E-03

E-03

Harness side

E-18 (B)

E-18 (B)

• Check the input and output lines for open or short

circuit.

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Repair the wiring harness.

STEP 3. Check whether the diagnosis code is
reset.
(1) Replace the front power window motor (LH).
(2) Check that diagnosis code is not reset.

Q: Is diagnosis code set?

YES :

Replace the power window main switch.

NO :

The procedure is complete.

DOOR

BODY

42-86

Code No.1001: P/W (DR) SW pulse1 disconnection <RH drive vehicles>

CAUTION

Whenever the ECU is replaced, ensure that the
input and output signal circuits are normal.

AC903671

7  C-122

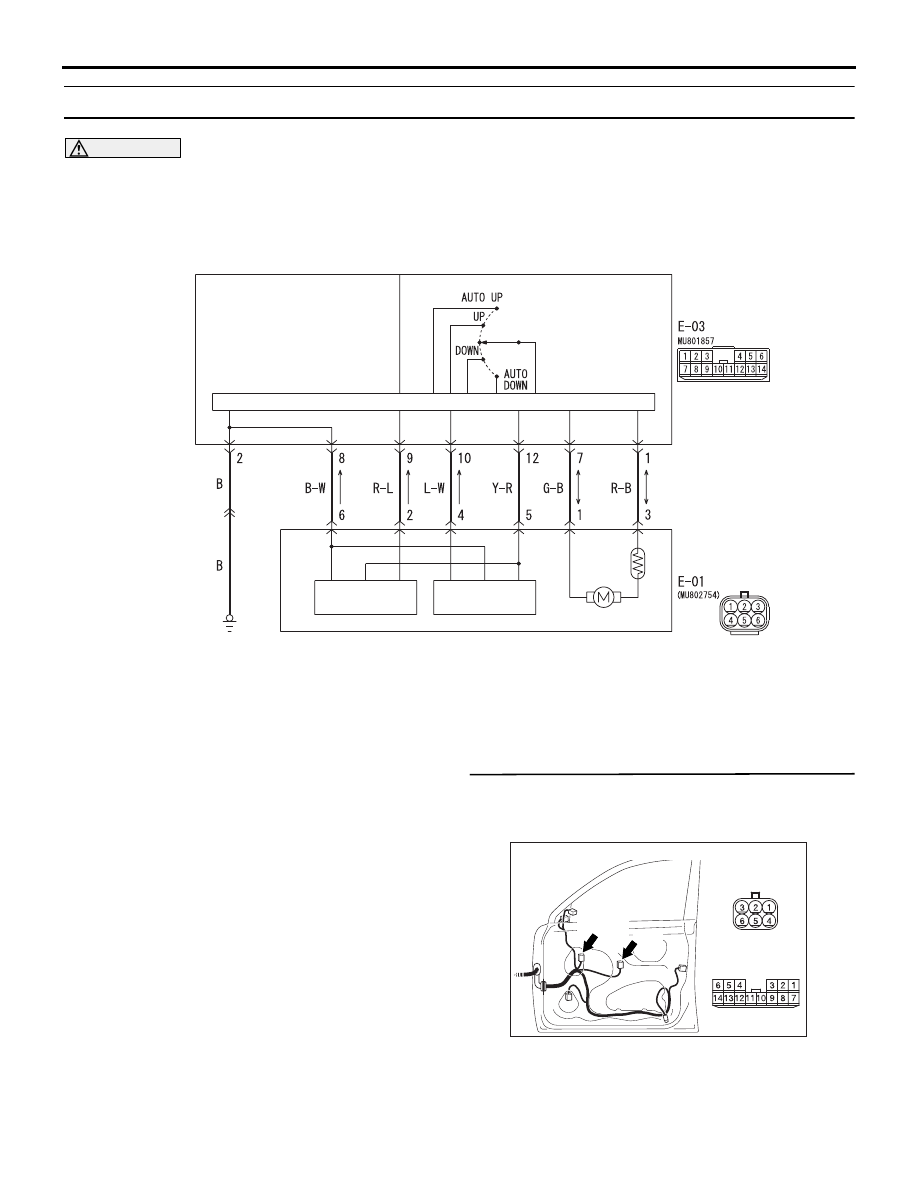

Power Window (Front: RH) Circuit

CPU

HALL IC

HALL IC

POWER
WINDOW
MAIN SWITCH

POWER WINDOW
MOTOR
(FRONT: RH)

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Grey     R : Red     P : Pink     V : Violet     PU : Purple

FRONT (RH)

AB

COMMENTS ON TROUBLE SYMPTOM
If the pulse 1 signal from the power window motor
(front: RH) cannot be received, the power window
main switch sets the diagnosis trouble code No.
1001.

PROBABLE CAUSES

• Malfunction of the front power window motor

(RH)

• Malfunction of the power window main switch

• Damaged harness wires and connectors

DIAGNOSIS PROCEDURE

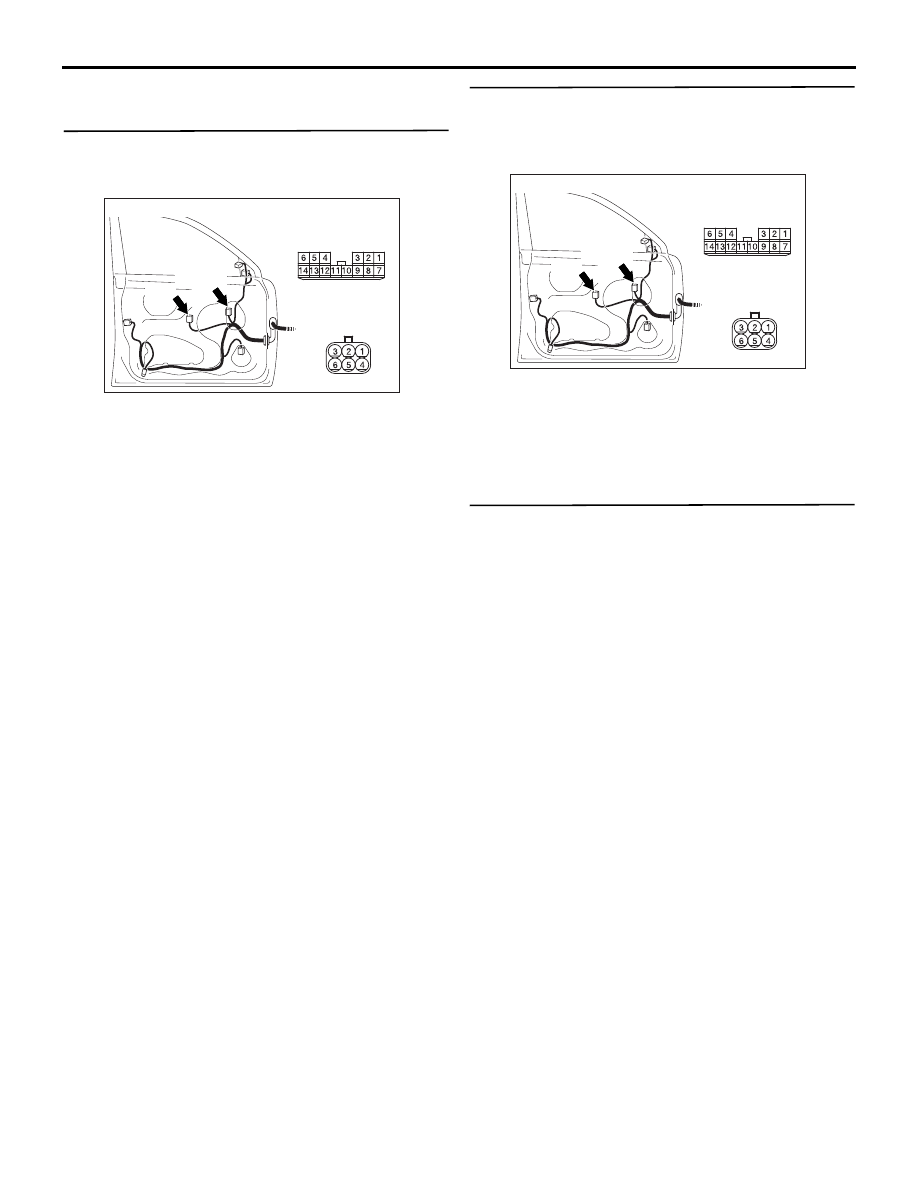

STEP 1. Connector check: E-03 power window
main switch connector and E-01 front power
window motor (RH) connector

AC509954

Connectors: E-01, E-03 <RHD>

AG

Harness side

E-03

E-03

Harness side

E-01 (B)

E-01 (B)

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Repair the connector.

DOOR

BODY

42-87

STEP 2. Check the wiring harness between E-03
power window main switch connector terminal
Nos.8, 10, 12 and E-01 front power window motor
(RH) connector terminal Nos.6, 4, 5.

AC509954

Connectors: E-01, E-03 <RHD>

AG

Harness side

E-03

E-03

Harness side

E-01 (B)

E-01 (B)

• Check the input and output lines for open or short

circuit.

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Repair the wiring harness.

STEP 3. Check whether the diagnosis code is
reset.
(1) Replace the front power window motor (RH).
(2) Check that diagnosis code is not reset.

Q: Is diagnosis code set?

YES :

Replace the power window main switch.

NO :

The procedure is complete.

Code No.1002: P/W (DR) SW pulse2 disconnection <LH drive vehicles>

CAUTION

Whenever the ECU is replaced, ensure that the
input and output signal circuits are normal.

AC806142

Power Window (Front: LH) Circuit

CPU

HALL IC

HALL IC

POWER
WINDOW
MAIN SWITCH

POWER WINDOW
MOTOR
(FRONT: LH)

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Grey     R : Red     P : Pink     V : Violet     PU : Purple

FRONT (LH)

AC

7  C-134
