Mitsubishi L200. Manual - part 509





DOOR

BODY

42-96

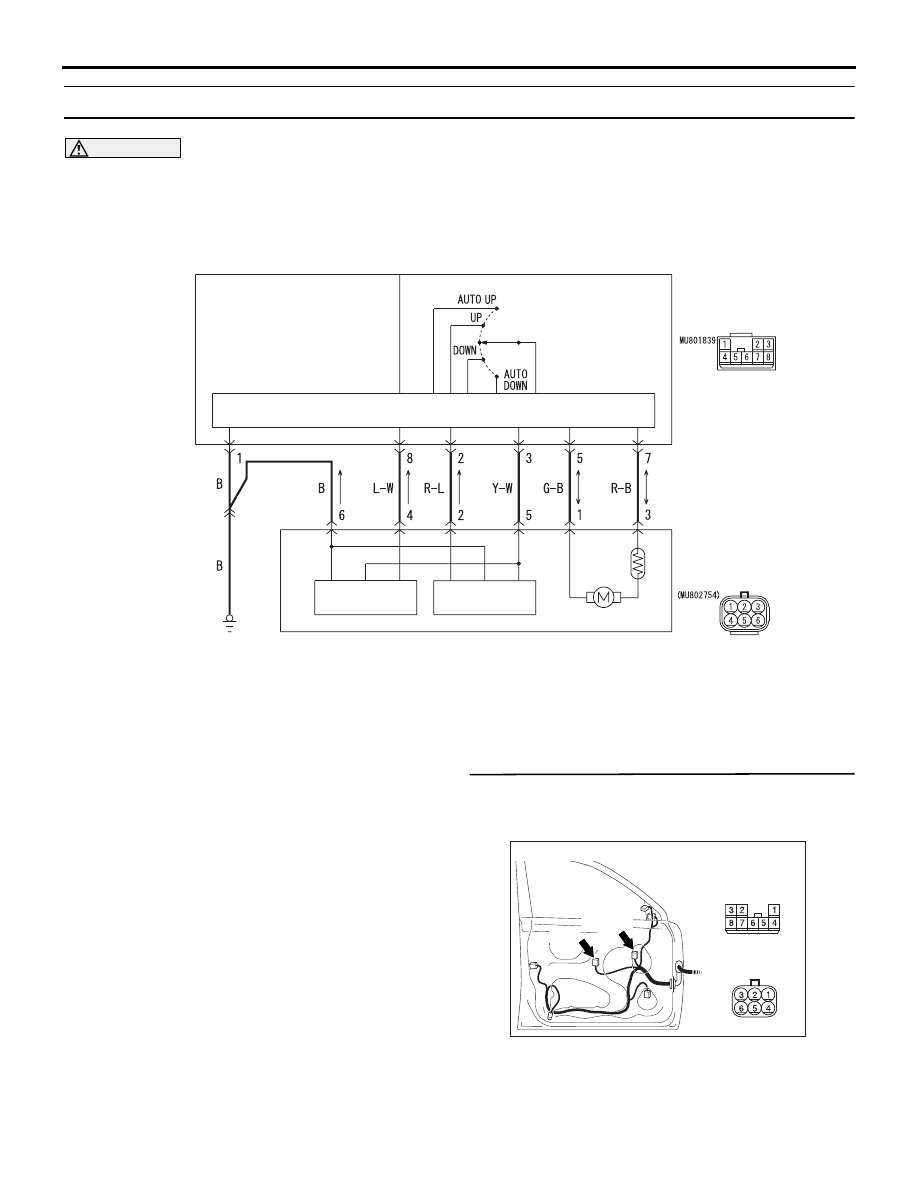

Code No.2001: P/W (AS) SW pulse1 disconnection <RH drive vehicles>

CAUTION

Whenever the ECU is replaced, ensure that the
input and output signal circuits are normal.

Power Window (Front: LH) Circuit

CPU

HALL IC

HALL IC

FRONT
POWER WINDOW
SUB SWITCH

POWER WINDOW
MOTOR
(FRONT: LH)

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Grey     R : Red     P : Pink     V : Violet     PU : Purple

FRONT (LH)

AC903692

E-18

7  C-134

E-16

AB

COMMENTS ON TROUBLE SYMPTOM
If the pulse 1 signal from the power window motor
(front: LH) cannot be received, power window sub
switch (front: LH) sets the diagnosis code No. 2001.

PROBABLE CAUSES

• Malfunction of the front power window motor (LH)

• Malfunction of the front power window sub switch

• Damaged harness wires and connectors

DIAGNOSIS PROCEDURE

STEP 1. Connector check: E-16 front power
window sub switch connector and E-18 front
power window motor (LH) connector

AC509952

Connectors: E-16, E-18 <RHD>

BA

E-16

Harness side

E-18 (B)

E-18 (B)

Harness side

E-16

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Repair the connector.

DOOR

BODY

42-97

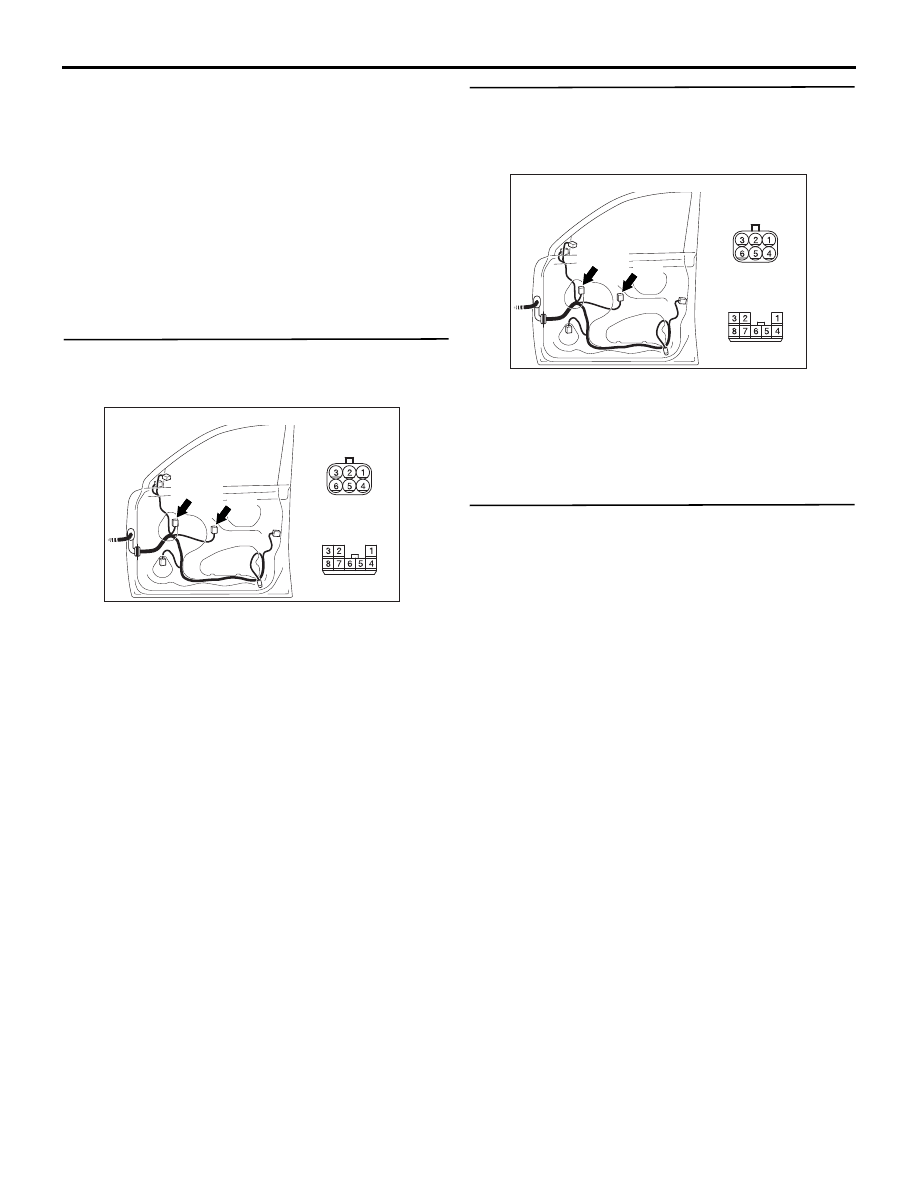

STEP 2. Check the wiring harness between E-16
front power window sub switch connector
terminal Nos.8, 3 and E-18 front power window
motor (LH) connector terminal Nos.4, 5.

AC509952

Connectors: E-16, E-18 <RHD>

BA

E-16

Harness side

E-18 (B)

E-18 (B)

Harness side

E-16

• Check the input and output lines for open or short

circuit.

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Repair the wiring harness.

STEP 3. Check whether the diagnosis code is
reset.
(1) Replace the front power window motor (LH).
(2) Check that diagnosis code is not reset.

Q: Is diagnosis code set?

YES :

Replace the front power window sub switch.

NO :

The procedure is complete.

Code No.2002 P/W (AS) SW pulse 2 disconnection <LH drive vehicles>

CAUTION

Whenever the ECU is replaced, ensure that the
input and output signal circuits are normal.

Power Window (Front: RH) Circuit

CPU

HALL IC

HALL IC

FRONT
POWER WINDOW
SUB SWITCH

POWER WINDOW
MOTOR
(FRONT: RH)

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Grey     R : Red     P : Pink     V : Violet     PU : Purple

FRONT (RH)

AC903690

E-01

7  C-122

AB

DOOR

BODY

42-98

COMMENTS ON TROUBLE SYMPTOM
If the pulse 2 signal from the power window motor
(front: RH) cannot be received, power window sub
switch (front: RH) sets the diagnosis code No. 2002.

PROBABLE CAUSES

• Malfunction of the front power window motor

(RH)

• Malfunction of the front power window sub switch

• Damaged harness wires and connectors

DIAGNOSIS PROCEDURE

STEP 1. Connector check: E-26 front power
window sub switch connector and E-01 front
power window motor (RH) connector

AC509954

Connectors: E-01, E-26 <LHD>

AH

Harness side

E-26

E-26

Harness side

E-01 (B)

E-01 (B)

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Repair the connector.

STEP 2. Check the wiring harness between E-26
front power window sub switch connector
terminal Nos.2, 3 and E-01 front power window
motor (RH) connector terminal Nos.2, 5.

AC509954

Connectors: E-01, E-26 <LHD>

AH

Harness side

E-26

E-26

Harness side

E-01 (B)

E-01 (B)

• Check the input and output lines for open or short

circuit.

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Repair the wiring harness.

STEP 3. Check whether the diagnosis code is
reset.
(1) Replace the front power window motor (RH).
(2) Check that diagnosis code is not reset.

Q: Is diagnosis code set?

YES :

Replace the front power window sub switch.

NO :

The procedure is complete.

DOOR

BODY

42-99

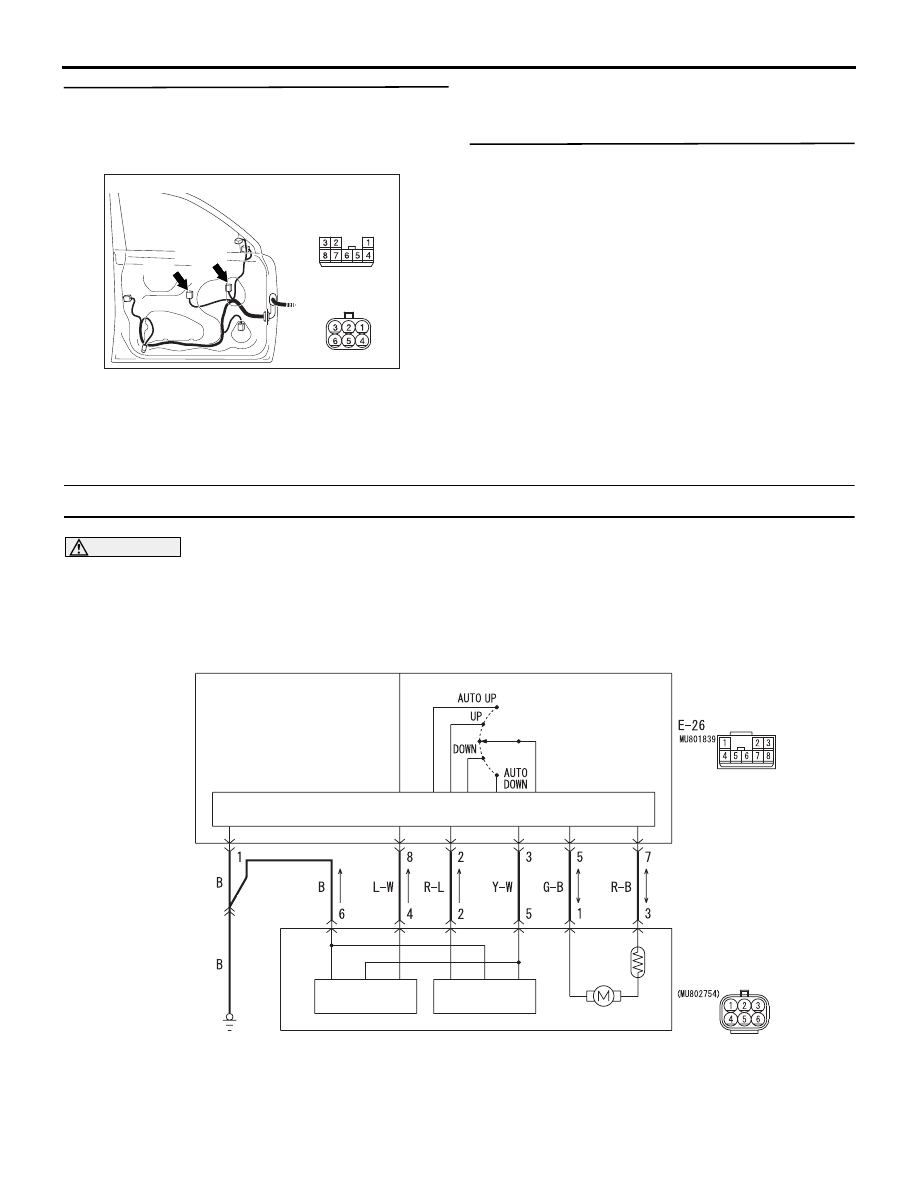

Code No.2002 P/W (AS) SW pulse 2 disconnection <RH drive vehicles>

CAUTION

Whenever the ECU is replaced, ensure that the
input and output signal circuits are normal.

Power Window (Front: LH) Circuit

CPU

HALL IC

HALL IC

FRONT
POWER WINDOW
SUB SWITCH

POWER WINDOW
MOTOR
(FRONT: LH)

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Grey     R : Red     P : Pink     V : Violet     PU : Purple

FRONT (LH)

AC903692

E-18

7  C-134

E-16

AB

COMMENTS ON TROUBLE SYMPTOM
If the pulse 2 signal from the power window motor
(front: LH) cannot be received, power window sub
switch (front: LH) sets the diagnosis code No. 2002.

PROBABLE CAUSES

• Malfunction of the front power window motor (LH)

• Malfunction of the front power window sub switch

• Damaged harness wires and connectors

DIAGNOSIS PROCEDURE

STEP 1. Connector check: E-16 front power
window sub switch connector and E-18 front
power window motor (LH) connector

AC509952

Connectors: E-16, E-18 <RHD>

BA

E-16

Harness side

E-18 (B)

E-18 (B)

Harness side

E-16

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Repair the connector.
