ON-VEHICLE SERVICE

PARKING BRAKES

36-5

(2) Turn the ignition switch to "ON" position, and

start the engine.

(3) Repeatedly depress the brake pedal until the

pedal stroke no longer changes with the
engine running.

NOTE: Depressing the brake pedal repeatedly
adjusts shoe clearance correctly.

(4) Turn the ignition switch to "OFF" position, and

stop the engine.

CAUTION

If the parking brake pull rod stroke is below the
standard value and the braking is too firm, the
rear brakes may drag.

(5) Adjust with the adjusting nut so that the joint

and the equalizer are vertical as shown in the
figure.

(6) After adjusting the parking brake pull rod

stroke, jack up the rear end of the vehicle, and
then release the parking brake and turn the
rear wheels to check that the rear brakes are
not dragging.

PARKING BRAKE SWITCH CHECK
<VEHICLES WITH FRONT SEPARATE
SEAT>

M1361003300745

CAUTION

Do not apply grease or lubricant to the switch
and the switch installation section to avoid mal-
function of the switch. In addition, do not use
gloves which have grease on them.
1. Remove the rear floor console assembly (Refer to

GROUP 52A

− Rear Floor Console Assembly ).

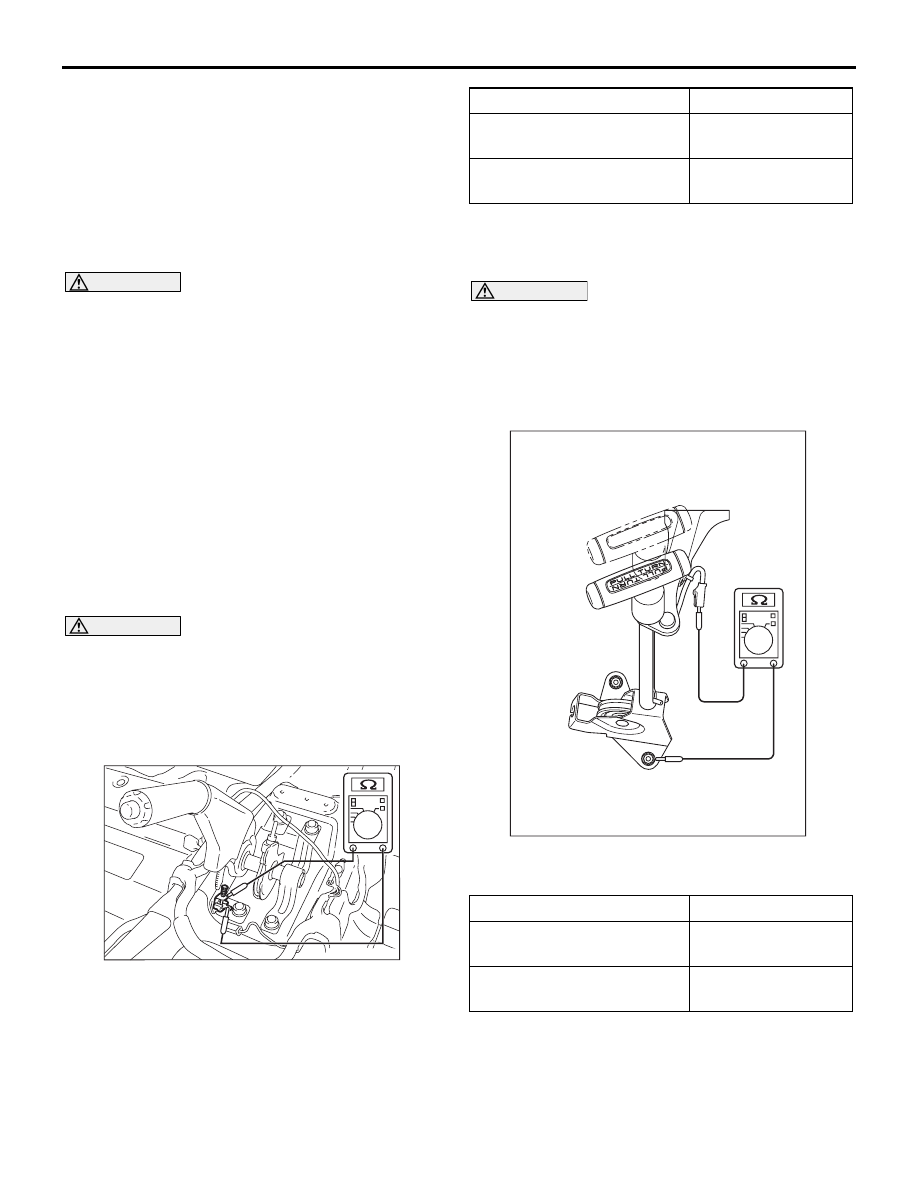

AC502267AB

2. Check for continuity between the parking brake

switch terminal and the switch mounting bolt.

Check condition

Normal condition

When parking brake lever is
pulled.

Continuity exists



(2

Ω or less)

When parking brake lever is
released.

Open circuit

PARKING BRAKE SWITCH CHECK
<VEHICLES WITH FRONT BENCH SEAT>

M1361003300734

CAUTION

Do not apply grease or lubricant to the switch
and the switch installation section to avoid mal-
function of the switch. In addition, do not use
gloves which have grease on them.
1. Remove the lower panel assembly (Refer to

GROUP 52A

− Instrument Panel Assembly ).

AC505761AB

2. Check for continuity between the parking brake

switch terminal and the switch mounting nut.

Check condition

Normal condition

When parking brake pull rod
is pulled.

Continuity exists



(2

Ω or less)

When parking brake pull rod
is released.

Open circuit

PARKING BRAKE LEVER <Vehicles with front separate seat>

PARKING BRAKES

36-6

PARKING BRAKE LEVER <Vehicles with front separate

seat>

REMOVAL AND INSTALLATION

M1361001300556

CAUTION

Do not apply grease or lubricant to the switch and the switch installation section to avoid malfunction
of the switch. In addition, do not use gloves which have grease on them.

Pre-removal Operation
Rear floor console assembly removal (Refer to GROUP 52A
− Rear Floor Console Assembly ).

Post-installation Operation
• Parking brake lever stroke adjustment (Refer to

P.36-4

).

• Rear floor console assembly installation (Refer to

GROUP 52A

− Rear Floor Console Assembly ).

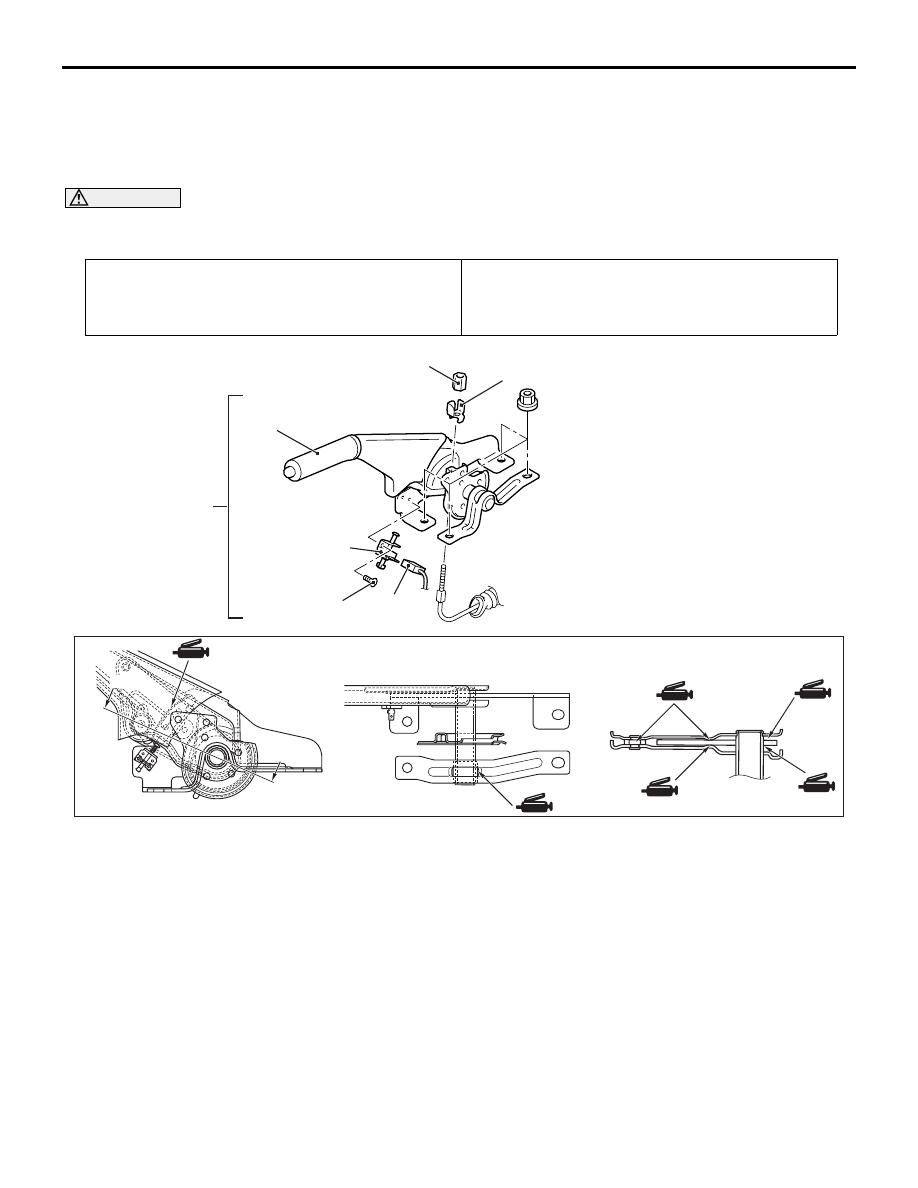

AC805172 AB

A

Section A - A

Upper view

1

2

3

4

5

6

1.4 ± 0.2 N·m

A

Removal steps

1.

Adjuster

2.

Adjuster holder

3.

Parking brake switch connector
connection

4.

Parking brake lever assembly
(including parking brake switch)

5.

Parking brake switch

6.

Parking brake lever assembly

Removal steps (Continued)

PARKING BRAKE PULL ROD AND PARKING BRAKE FRONT CABLE <Vehicles with front bench seat>

PARKING BRAKES

36-7

PARKING BRAKE PULL ROD AND PARKING BRAKE

FRONT CABLE <Vehicles with front bench seat>

REMOVAL AND INSTALLATION

M1361002800060

CAUTION

Do not apply grease or lubricant to the switch and the switch installation section to avoid malfunction
of the switch. In addition, do not use gloves which have grease on them.

Pre-removal Operation
Lower panel assembly removal (Refer to GROUP 52A

−

Instrument Panel Assembly ).

Post-installation Operation
• Parking brake pull rod stroke adjustment (Refer to

P.36-

4

).

• Lower panel assembly installation (Refer to GROUP 52A

− Instrument Panel Assembly ).

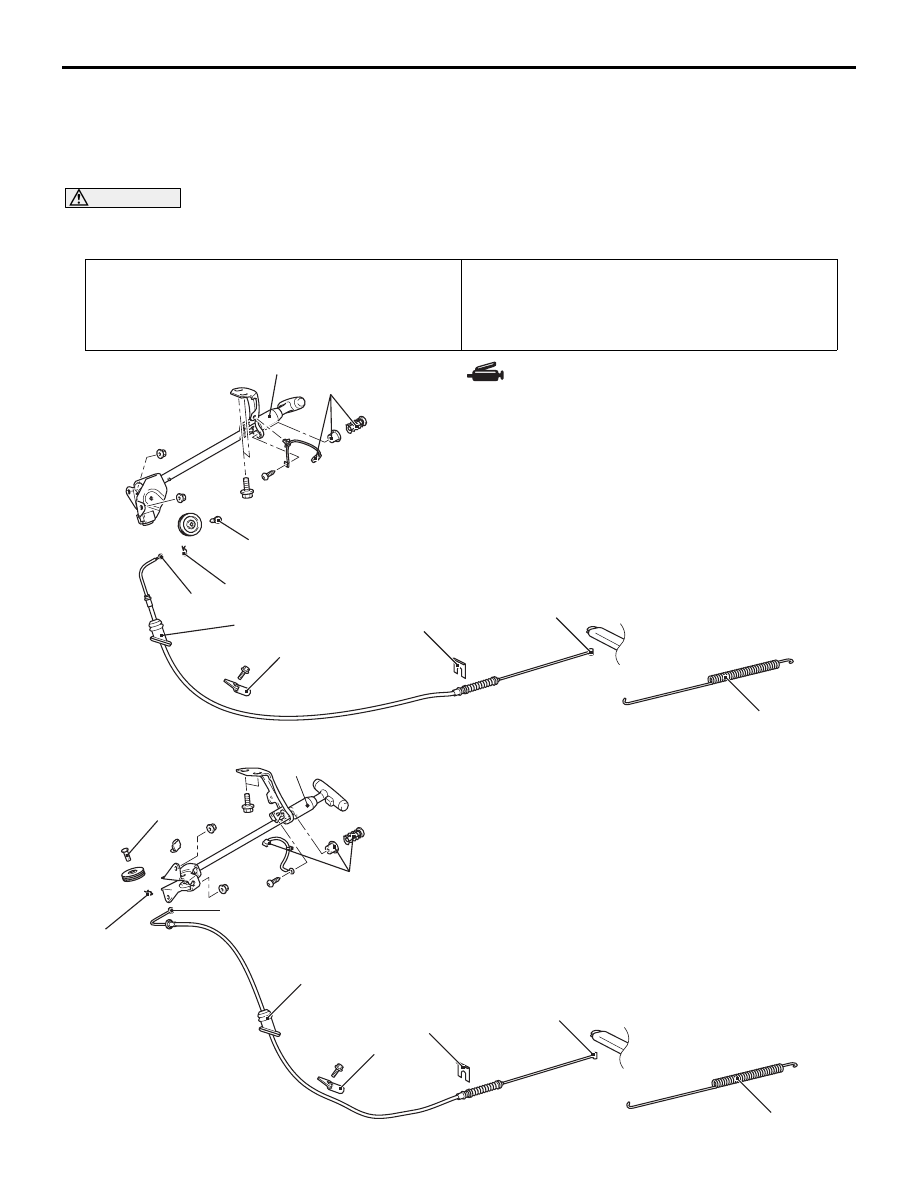

AC510141

2

3

2

1

4

5

6

9

10

7

8

<LHD>

<RHD>

AC

3

1

4

5

6

9

10

7

8

:Ratchet of parking brake pull rod and rod groove

Removal steps

1.

Parking brake switch

2.

Return spring

3.

Parking brake front cable
connection (lever side)

4.

Clip

5.

Clip

6.

Pin

7.

Pin

8.

Parking brake front cable
connection (parking brake pull rod
side)

<<

A

>>

9.

Parking brake front cable
assembly

10. Parking brake pull rod assembly

PARKING BRAKE CABLE <Vehicles with front separate seat>

PARKING BRAKES

36-8

REMOVAL SERVICE POINT

<<A>> PARKING BRAKE FRONT CABLE AND
PARKING BRAKE PULL ROD ASSEMBLY CON-
NECTION

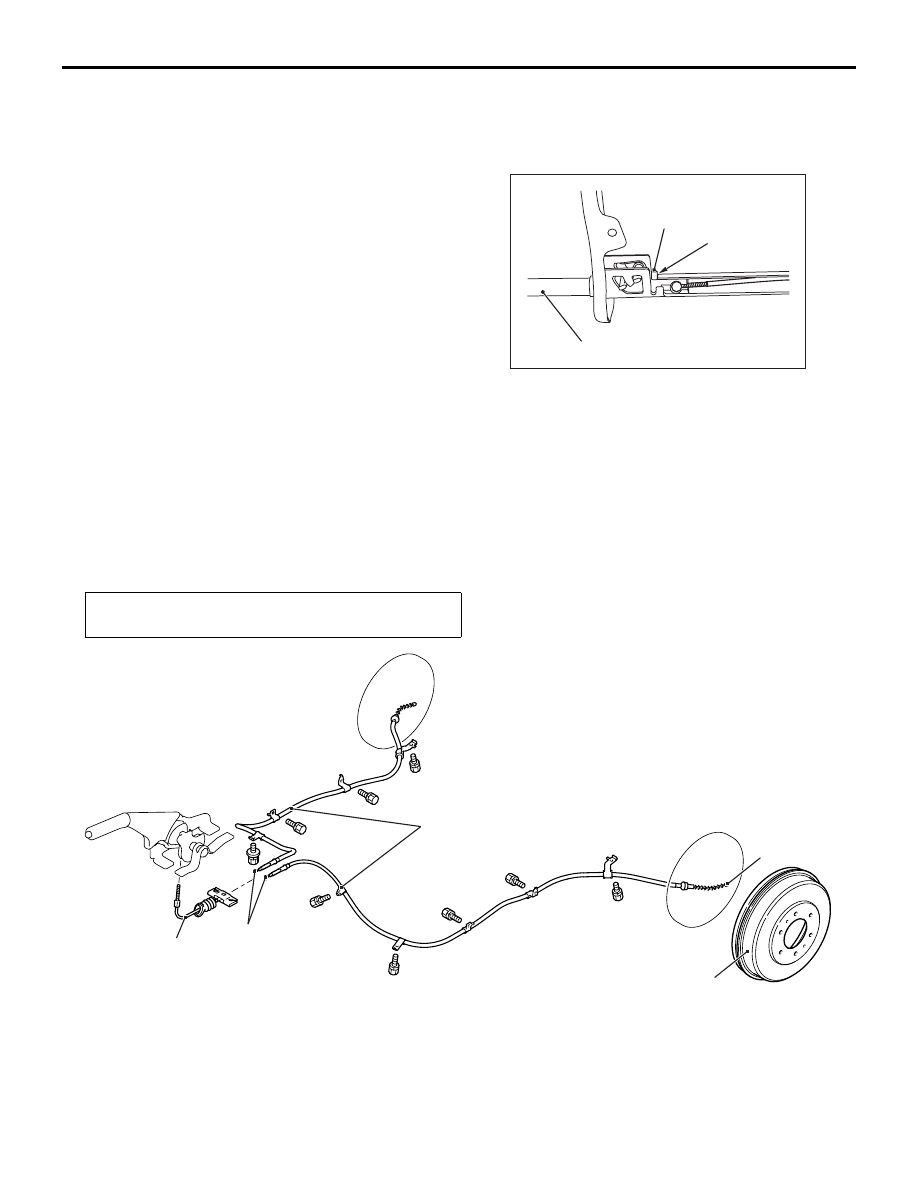

AC506381AB

Pin

Groove

Parking brake pull rod assembly

Pull the parking brake pull rod to the position shown
in the figure. Then, fit the pin to the groove and
remove the parking brake front cable.

PARKING BRAKE CABLE <Vehicles with front separate

seat>

REMOVAL AND INSTALLATION

M1361001900989

Post-installation Operation
Parking brake lever stroke adjustment (Refer to

P.36-4

).

AC508552AC

3

1

2

4

5
