GENERAL INFORMATION

PARKING BRAKES

36-2

GENERAL INFORMATION

M1361000100612

• The parking brake is a mechanical rear-wheel

acting type, and its operation utilizes a parking
brake lever. <Vehicles with front separate seat>

• The parking brake is a mechanical rear-wheel

acting type, and its operation utilizes a parking
brake pull rod. <Vehicles with front bench seat>

SERVICE SPECIFICATIONS

PARKING BRAKES

36-3

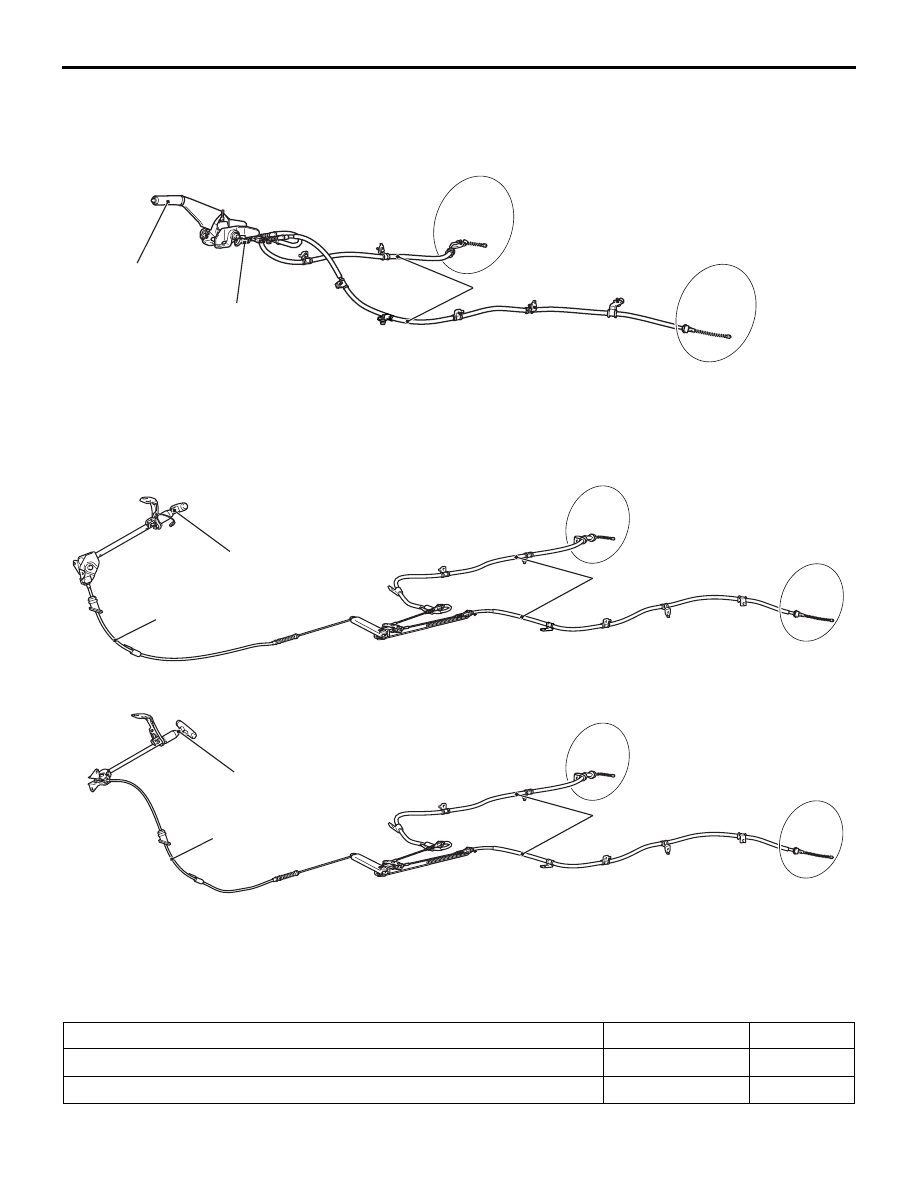

CONSTRUCTION DIAGRAM

Vehicles with front separate seat

AC500579

Parking brake rear cable

AI

Parking brake lever

Parking brake front cable

Vehicles with front bench seat

AC805326

Parking brake rear cable

AB

Parking brake pull rod

Parking brake front cable

<LHD>

AC805327

Parking brake rear cable

AB

Parking brake pull rod

Parking brake front cable

<RHD>

SERVICE SPECIFICATIONS

M1361000300939

Item

Standard value

Limit

Parking brake lever stroke (Operation force: approximately 200 N)

8

− 9 notches

−

Parking brake pull rod stroke (Operation force: approximately 200 N)

11

− 13 notches

−

ON-VEHICLE SERVICE

PARKING BRAKES

36-4

ON-VEHICLE SERVICE

PARKING BRAKE LEVER STROKE
CHECK AND ADJUSTMENT <VEHICLES
WITH FRONT SEPARATE SEAT>

M1361000901127

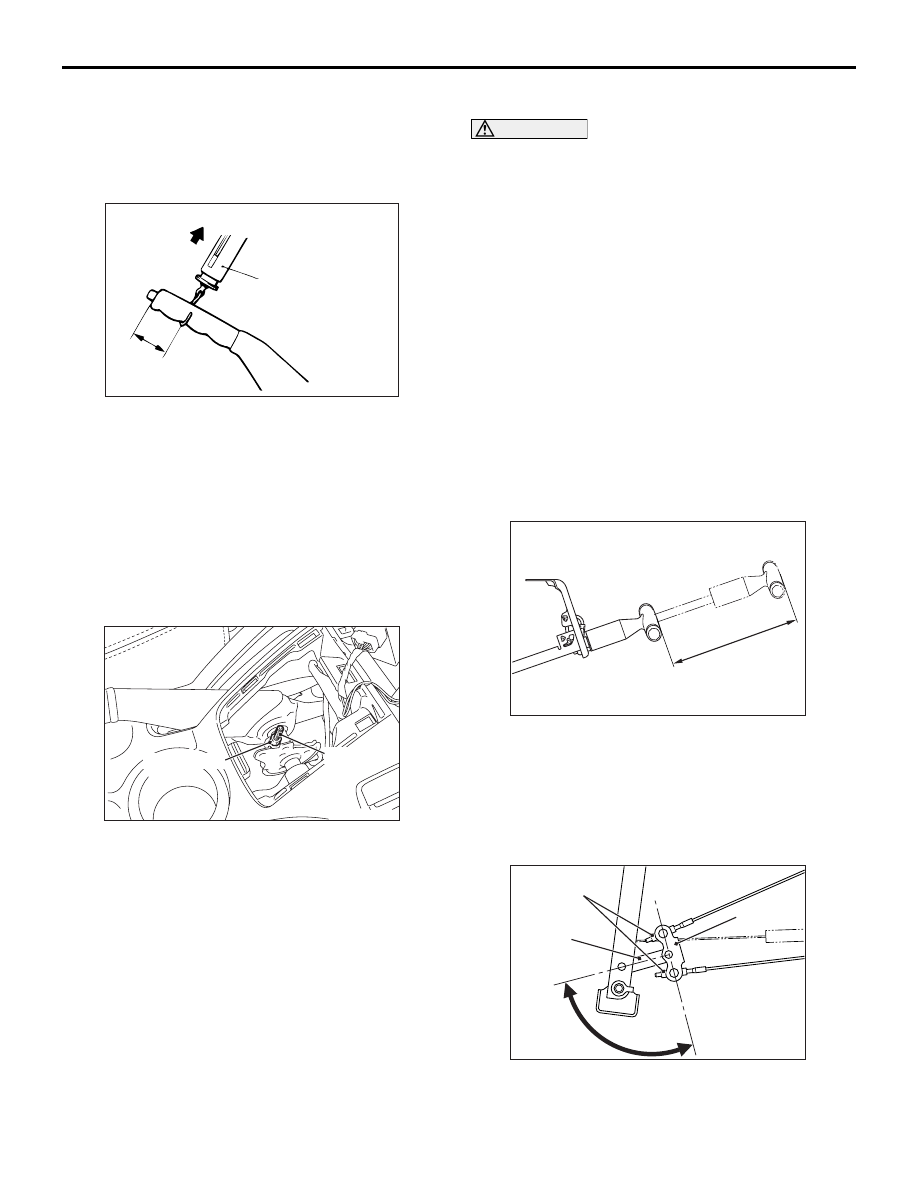

ACX00701AF

Approximately
40 mm

Spring balance

Pull

1. Attach the spring scale to the centre of the parking

brake lever grip. Then, check that the stroke is
within the standard value when the parking brake
lever is pulled to the vertical direction of the lever
with a force of approximately 200 N.

Standard value: 8

− 9 notches

2. If the parking brake lever stroke is not the

standard value, adjust as described below.
(1) Remove the service panel (Refer to GROUP

52A

− Rear Floor Console Assembly ).

AC502285

Cable rod

Adjusting nut

AB

(2) Loosen the adjuster to move it to the cable rod

end so that the cable will be free.

(3) Turn the ignition switch to "ON" position, and

start the engine.

(4) Repeatedly depress the brake pedal until the

pedal stroke no longer changes with the
engine running.

NOTE: If the pedal stroke stops changing, the
automatic-adjustment mechanism is function-
ing normally, and the clearance between the
shoe and drum is correct.

(5) Turn the ignition switch to "OFF" position, and

stop the engine.

CAUTION

If the parking brake lever stroke is below the
standard value and the braking is too firm, the
rear brakes may drag.

(6) Turn the adjuster to adjust the parking brake

lever stroke to the standard value. After
adjusting, check that there is no space
between the adjuster and the parking brake
lever. Check that the adjuster is secured with
the adjuster holder.

(7) After adjusting the parking brake lever stroke,

jack up the rear end of the vehicle, and then
release the parking brake and turn the rear
wheels to check that the rear brakes are not
dragging.

PARKING BRAKE PULL ROD STROKE
ADJUSTMENT <VEHICLES WITH FRONT
BENCH SEAT>

M1361005700040

AC505749AB

1. Pull the parking brake pull rod with a force of

approximately 200 N and count the number of
notches.

Standard value: 11

− 13 notches

2. If the parking brake pull rod stroke is not the

standard value, adjust as described below.

AC505750

Joint

Equalizer

90˚

AB

Adjusting nut

(1) Loosen the adjusting nut to move it to the

cable rod end so that the cable will be free.
