LUBRICANTS

AUTOMATIC TRANSMISSION OVERHAUL <V5A5>

23D-15

LUBRICANTS

M1233000400374

Transmission

Item

Specified lubricant

Transmission oil

DiaQueen ATF SP III

Vaseline application parts

White vaseline or Blue petrolatum

Oil seal

Mitsubishi Part No. 0101011 or equivalent

Transfer

Item

Specified lubricant

Transfer oil

Gear oil API classification GL-4 SAE 75W-85W

Oil seal

Mitsubishi Part No. 0101011 or equivalent

O-ring
Shift fork and shift rail

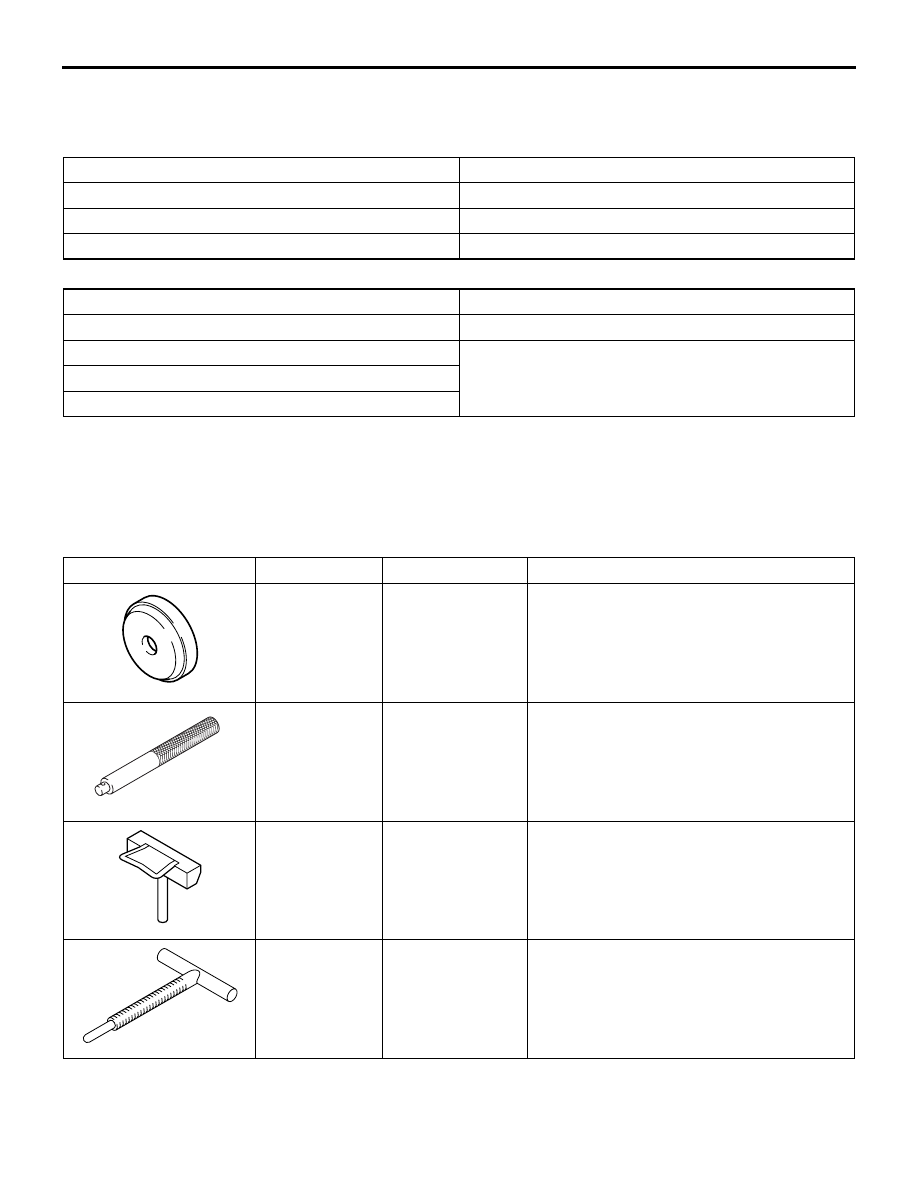

SPECIAL TOOLS

M1233000601122

Transmission

Tool

Number

Name

Use

MB990929

Installer adapter

Installation of transfer case adapter oil seal

MB990938

Installer bar

Use with installer adapter

D998727

MD998727

Oil pan FIPG
cutter

Removal of oil pan

MD998333

Oil pump remover Removal of oil pump

SPECIAL TOOLS

AUTOMATIC TRANSMISSION OVERHAUL <V5A5>

23D-16

MB991693

Reduction brake
stopper

Adjustment reduction brake piston

MB991635

Socket

Adjustment reduction brake piston

MB991634

Wrench

Adjustment reduction brake piston

MB991603

Bearing installer
stopper

Measurement of direct planetary carrier and
center support end plays

MD998304

Oil seal installer

Measurement of direct planetary carrier end
play

MB991632

Clearance dummy
plate

Measurement of brake reaction plate,
second brake and low/reverse brake end
plays

MD998913

Dial gauge
extension

Measurement of brake reaction plate,
second brake and low/reverse brake end
plays

MD998412

Guide

Installation of oil pump

Tool

Number

Name

Use

SPECIAL TOOLS

AUTOMATIC TRANSMISSION OVERHAUL <V5A5>

23D-17

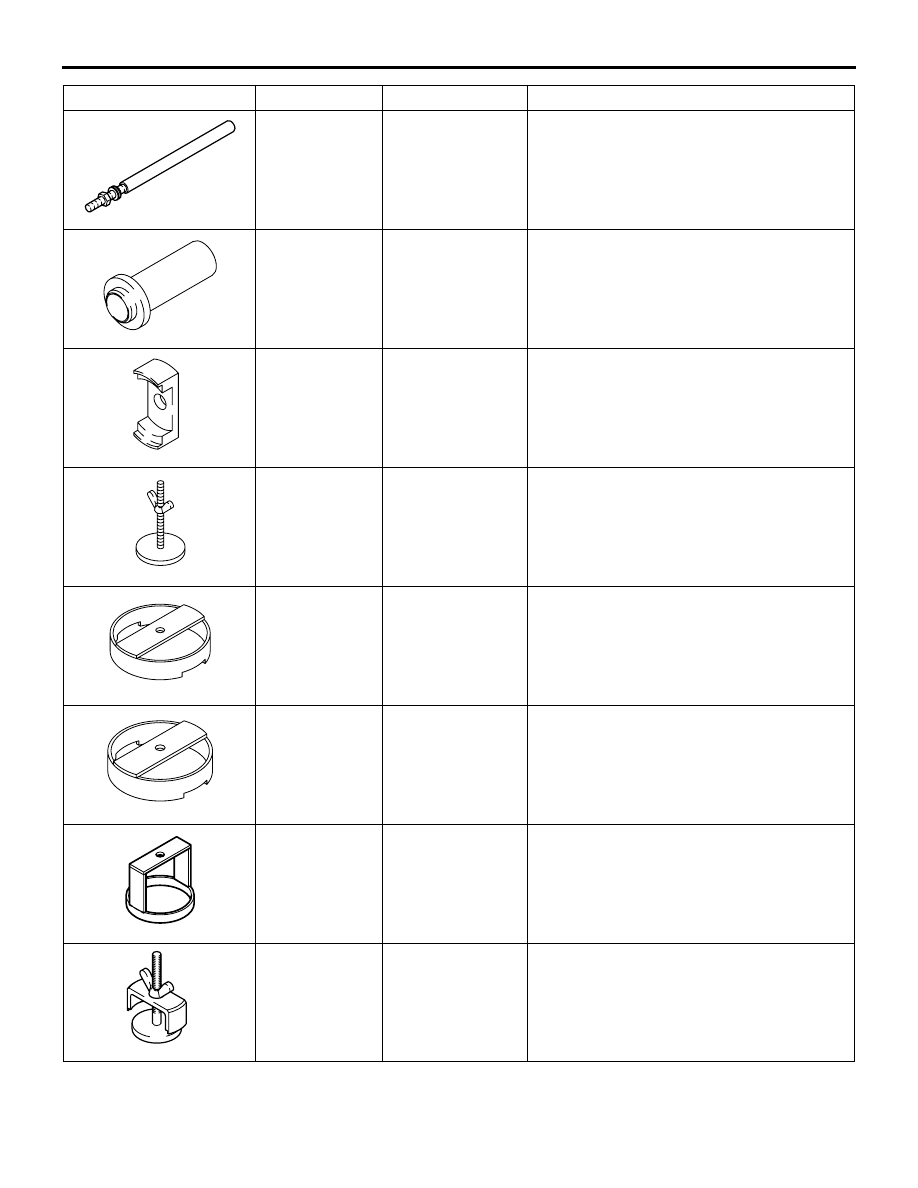

MD998316

Dial gauge
support

Measurement of input shaft end play

MD998334

Oil pump oil seal
installer

Installation of oil pump oil seal

MD999590

Spring
compressor

Removal and installation of reverse and
overdrive clutch spring retainer snap ring

MD998924

Spring
compressor
retainer

Use with spring compressor

MB991629

Spring
compressor

Measurement of overdrive clutch and
underdrive clutch end plays

MB991789

Spring
compressor

Adjustment reverse clutch end play

MB991630

Spring
compressor

Removal and installation of center support
snap ring and direct clutch snap ring

MD998337

Spring
compressor

Removal and installation of underdrive
clutch spring retainer snap ring

Tool

Number

Name

Use

SPECIAL TOOLS

AUTOMATIC TRANSMISSION OVERHAUL <V5A5>

23D-18

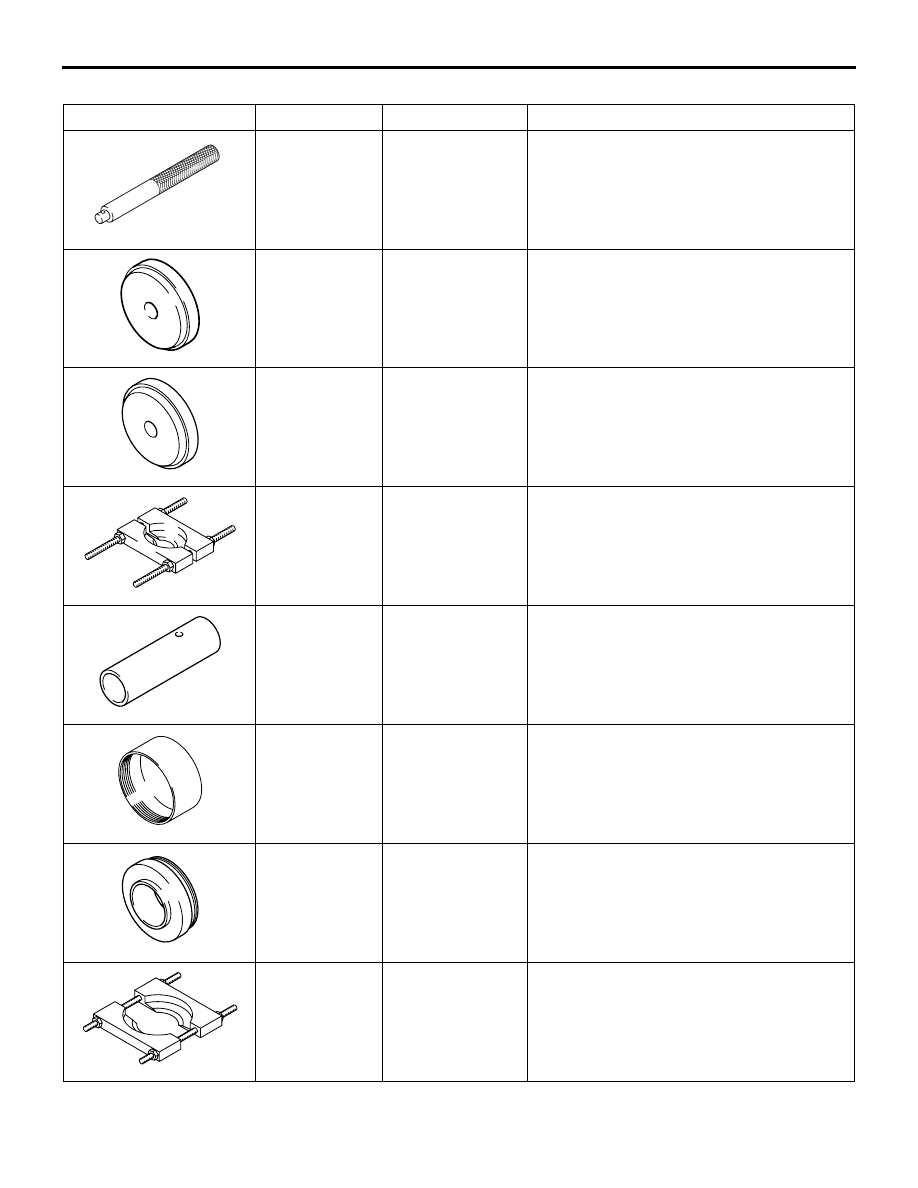

Transfer

Tool

Number

Name

Use

MB990938

Installer bar

Use with installer adapter

MB990932

Installer adapter

Installation of oil seal

MB990933

Installer adapter

Installation of oil seal

MD998801

Bearing remover

Removal and installation of bearing

MD998368

Bearing installer

Installation of bearing

MD998812

Installer cap

Use with installer and installer adapter

MD998818

Installer adapter
(38)

Installation of countershaft gear bearing,
front output shaft bearing

MD998917

Bearing remover

Removal and installation of bearing
