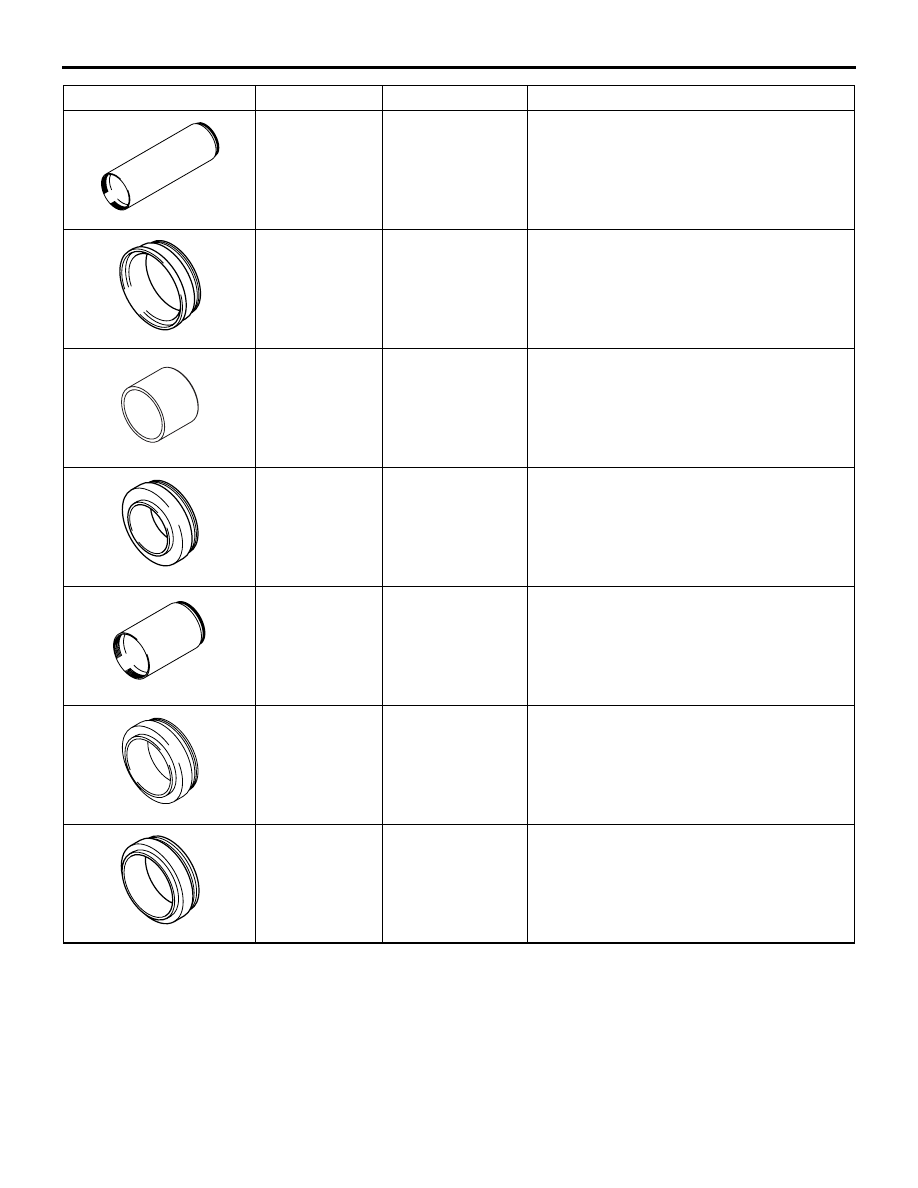

SPECIAL TOOLS

AUTOMATIC TRANSMISSION OVERHAUL <V5A5>

23D-19

MD998814

Installer-200

Use with installer cap and installer adapter

MD998830

Installer adapter
(66)

Installation of transfer drive shaft bearing

MD998198

Puller

Installation of transfer drive shaft bearing

MD998821

Installer adapter
(44)

Installation of front output shaft bearing

MD998813

Installer-100

Use with installer cap and installer adapter

MD998824

Installer adapter
(50)

Installation of rear output shaft bearing

MD998826

Installer adapter
(54)

Installation of transfer input gear bearing

Tool

Number

Name

Use

TRANSMISSION AND TRANSFER

AUTOMATIC TRANSMISSION OVERHAUL <V5A5>

23D-20

TRANSMISSION AND TRANSFER

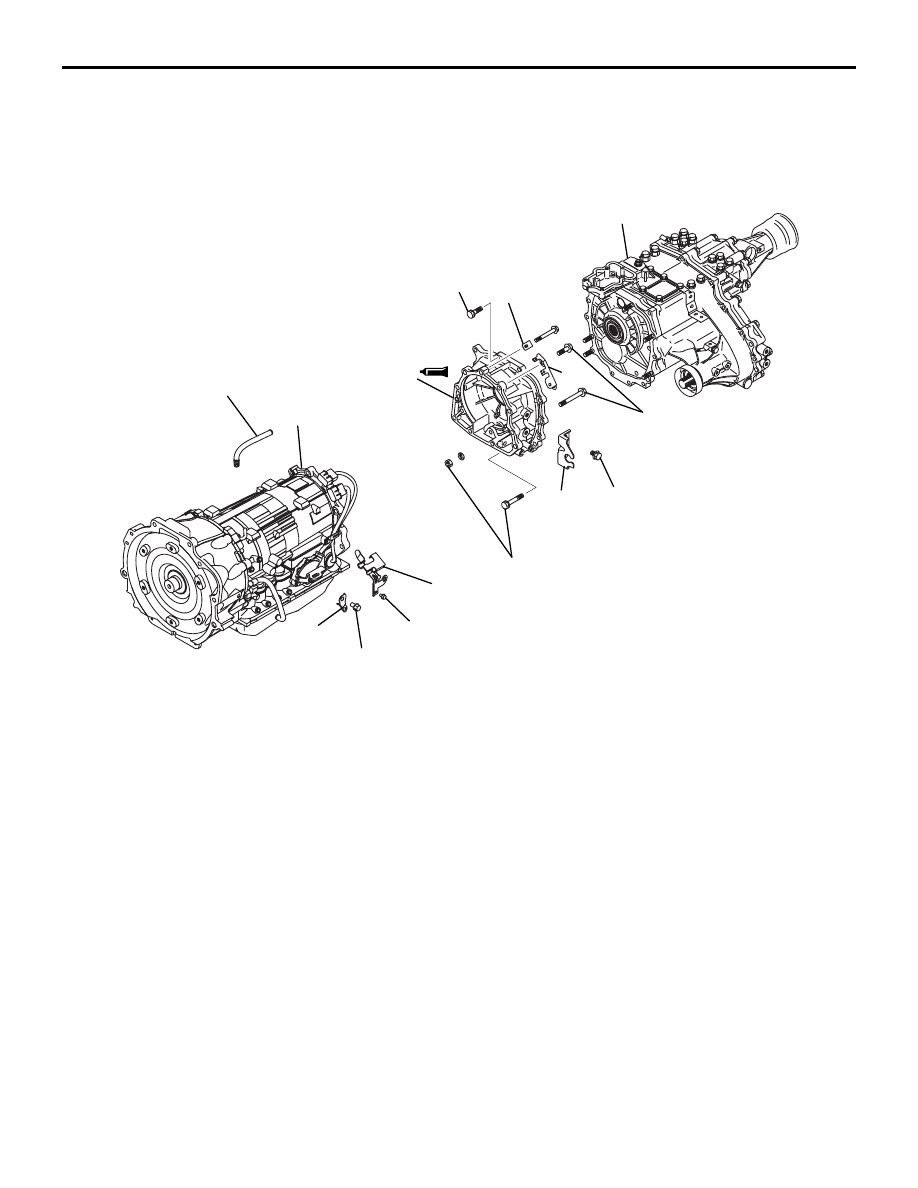

DISASSEMBLY AND REASSEMBLY

M1233123300018

AK900862

7

3

5

6

2

4

1

AB

35 ± 6 N·m

48 ± 6 N·m

48 ± 6 N·m

35 ± 6 N·m

9

8

11 ± 1 N·m

26 ± 5 N·m

Disassembly steps

1.

Transfer

2.

Cable end bracket

3.

Harness bracket

4.

Harness bracket

>>

A

<<

5.

Transfer case adapter

6.

Harness bracket

7.

Air breather hose

8.

Air breather hose bracket

9.

Transmission

Disassembly steps (Continued)

TRANSMISSION AND TRANSFER

AUTOMATIC TRANSMISSION OVERHAUL <V5A5>

23D-21

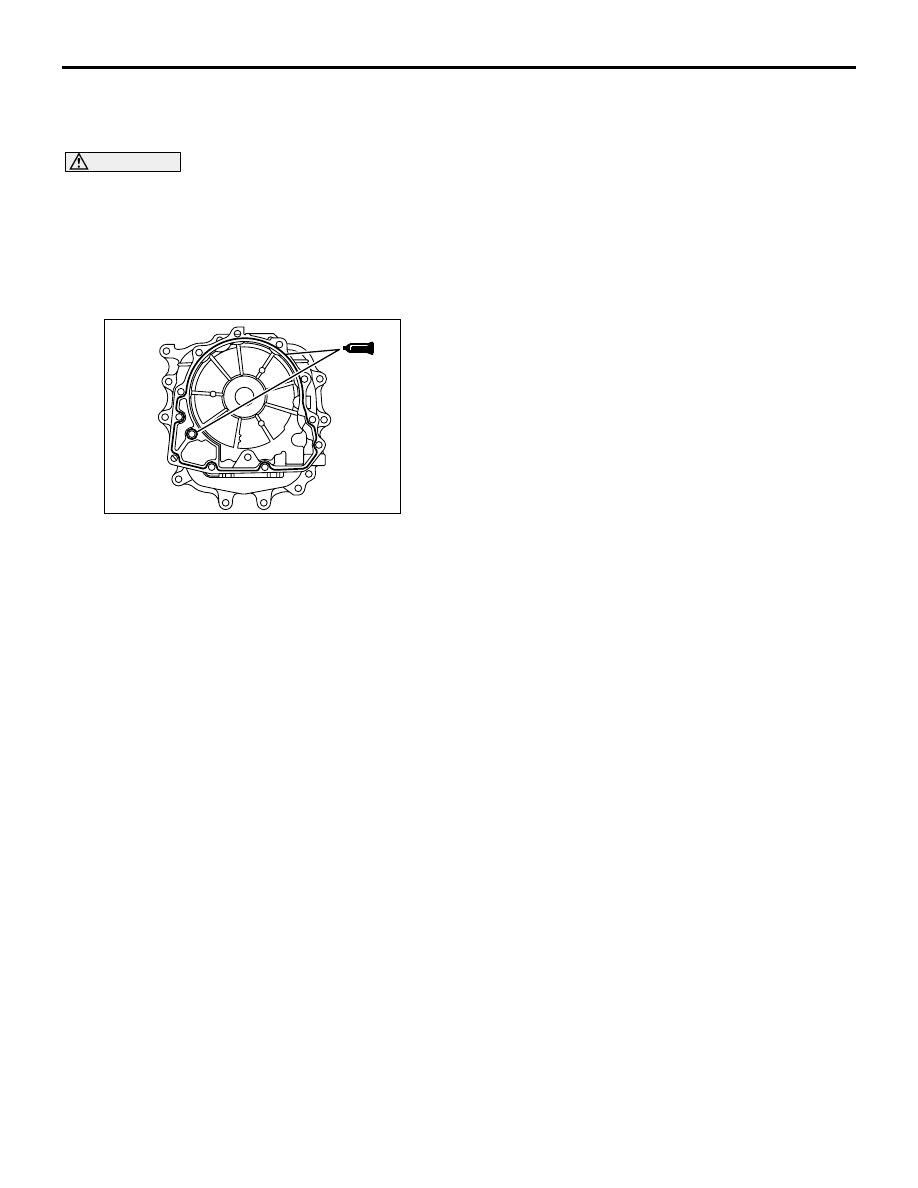

REASSEMBLY SERVICE POINT

>>A<< TRANSFER CASE ADAPTER INSTALLA-
TION

CAUTION

• Completely degrease the FIPG-applied sur-

face so that water and oil including the old
sealant cannot adhere to the surface coated
with the sealant. Never touch the degreased
surface by hand.

•

AK403460AD

1.6 mm
diameter

Evenly squeeze out and apply the sealant so
that it is not excessive and dose not ooze out.

After squeezing out and applying the sealant on the
transfer case adapter at the section indicated in the
illustration, install onto the transmission case.

Specified sealant:
Mitsubishi Part No.MD997740 or equivalent

TRANSFER CASE ADAPTER

AUTOMATIC TRANSMISSION OVERHAUL <V5A5>

23D-22

TRANSFER CASE ADAPTER

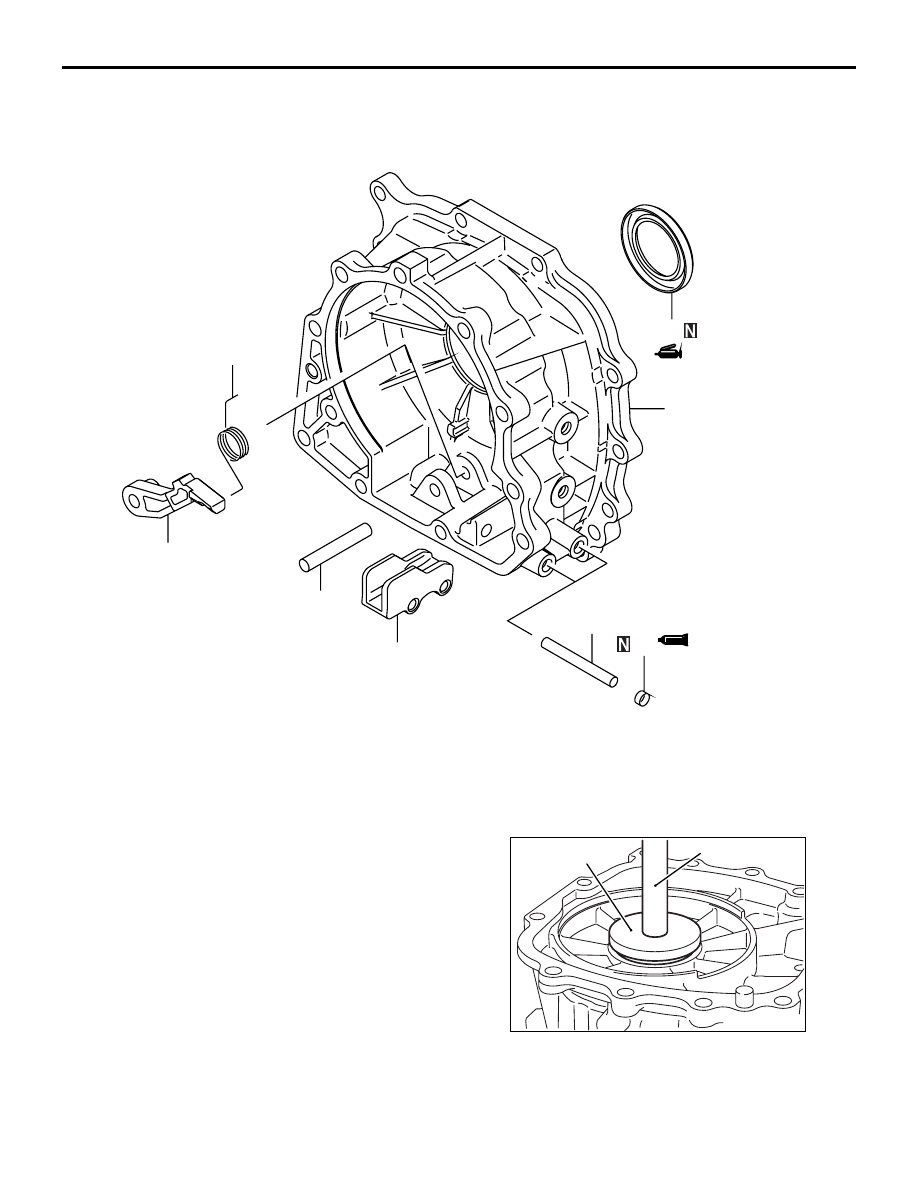

DISASSEMBLY AND REASSEMBLY

M1233007000258

A K X 0 0 0 1 4

7

8

3

5

6

2

4

1

AC

Disassembly steps

1.

Parking sprag shaft

>>

C

<<



2.

Parking sprag spring

3.

Parking sprag

>>

B

<<



4.

Sealing cap

5.

Parking roller support shaft

6.

Parking roller support

>>

A

<<



7.

Oil seal

8.

Transfer case adapter

REASSEMBLY SERVICE POINTS

>>A<< OIL SEAL INSTALLATION

AK403339AB

MB990936

MB990938

1. Use special tools to install the oil seal.

• Installer adapter (MB990936)

• Handle (MB990938)

2. Apply the specified grease to the lip of oil seal.
