TRANSMISSION ASSEMBLY

AUTOMATIC TRANSMISSION

23A-139

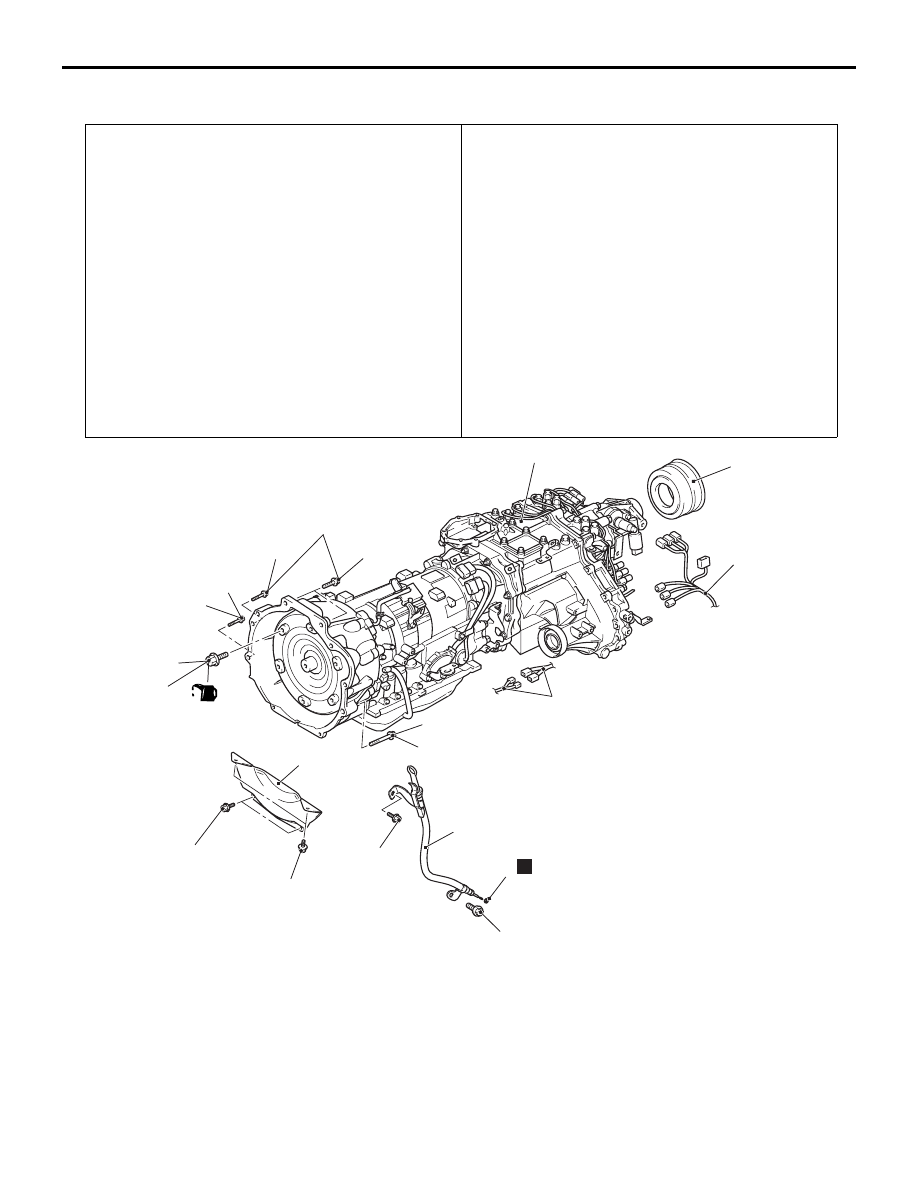

REMOVAL AND INSTALLATION <5A/T>

M1231117000551

Pre-removal Operation
• Under Skid Plate and Engine Room Under Cover

Removal (Refer to GROUP 51

− Under Cover .)

• A/T Fluid Draining (Refer to

P.23A-112

.)

• Transfer Oil Draining (Refer to

P.23A-115

).

• Front and Rear Propeller Shaft Removal (Refer to

GROUP 25

− Propeller Shaft .)

• Front Exhaust Pipe and Front Exhaust Pipe Bracket

Removal (Refer to GROUP 15

− Exhaust Pipe and Main

Muffler .)

• Transmission Control Cable Connection Removal (Refer

to

P.23A-133

.)

• Pipe Assembly Removal (Refer to

P.23A-141

.)

• Starter Assembly Removal (Refer to GROUP 16 − Starter

Motor Assembly .)

• Transfer Control Lever Assembly Removal (Refer to

P.23A-133

 .)

• No.2 Crossmember Assembly Removal (Refer to GROUP

32

− Rear Engine Mounting  .)

Post-installation Operation
• No.2 Crossmember Assembly Installation (Refer to

GROUP 32

− Rear Engine Mounting .)

• Transfer Control Lever Assembly Installation (Refer to

P.23A-133

.)

• Starter Assembly Installation (Refer to GROUP 16 −

Starter Motor Assembly .)

• Pipe Assembly Installation (Refer to

P.23A-141

.)

• Transmission Control Cable Connection Installation

(Refer to

P.23A-133

.)

• Front Exhaust Pipe and Front Exhaust Pipe Bracket

Installation (Refer to GROUP 15

−Exhaust Pipe and Main

Muffler .)

• Front and Rear Propeller Shaft Installation (Refer to

GROUP 25

− Propeller Shaft .)

• Transfer Oil Supplying (Refer to

P.23A-115

).

• A/T Fluid Supplying (Refer to

P.23A-112

.)

• Under Skid Plate and Engine Room Under Cover Installa-

tion (Refer to GROUP 51

− Under Cover .)

AC903384

1

N

22 ± 4 N·m

50 ± 7 N·m

5

9.0 ± 1.0 N·m

7

49 ± 3 N·m

AD

8

9

7

48 ± 6 N·m

48 ± 6 N·m

11 ± 1 N·m

3

10

6

4

8

48 ± 6 N·m

2

REMOVAL STEPS

1.

Oil level gauge assembly

2.

O-ring

3.

Harness connector connection

4.

A/T control harness connector
connection

5.

Bell housing cover

6.

Dust seal guard

7.

Drive plate connecting bolts

8.

Transmission assembly lower part
coupling bolts

•

Support the transmission with a
transmission jack

9.

Transmission assembly upper part
coupling bolts

>>

A

<< 10.

Transmission assembly

REMOVAL STEPS (Continued)

TRANSMISSION ASSEMBLY

AUTOMATIC TRANSMISSION

23A-140

INSTALLATION SERVICE POINT

>>A<< TRANSMISSION ASSEMBLY INSTALLA-
TION

AC004836AI

Approx. 21.0 mm

Press the torque converter into the transmission
properly, and then assembly into the engine.

A/T FLUID COOLER

AUTOMATIC TRANSMISSION

23A-141

A/T FLUID COOLER

REMOVAL AND INSTALLATION

M1231128700372

Pre-removal and Post-installation Operation
• Under Skid Plate and Engine Room Under Cover

Removal and Installation.

• A/T Fluid Draining and Refilling (Refer to

P.23A-112

).

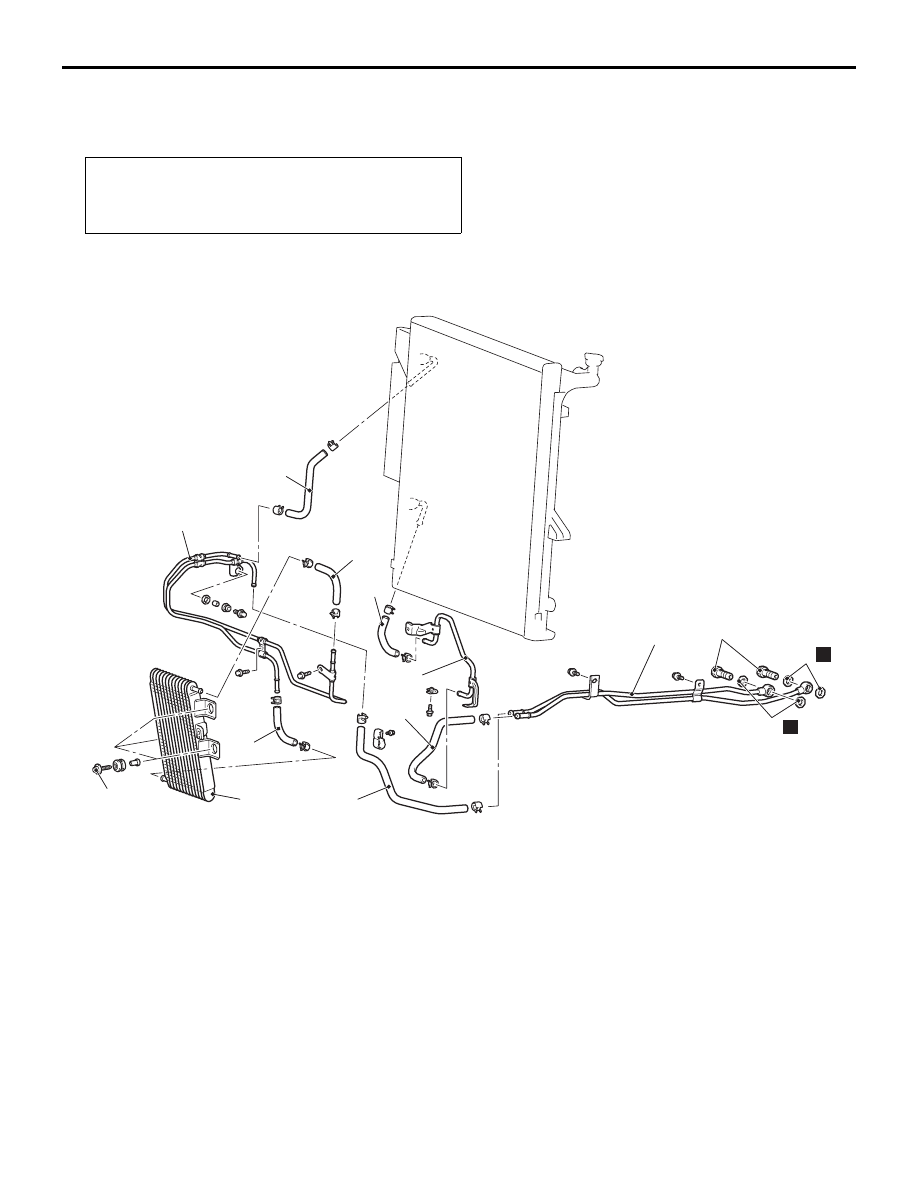

<Vehicles with air cooled A/T fluid
cooler>

AC509593

1

3

4

9

6

7

10

8

11

12 ± 2 N·m

48 ± 7 N·m

5

2

2

N

N

AE

Removal steps

1.

Cooler hose

2.

Gasket

3.

Hose

4.

A/T fluid cooler assembly

5.

Pipe assembly

6.

Return hose

7.

Return pipe

8.

Hose

9.

Feed hose

10. Cooler hose
11. Cooler pipe assembly

Removal steps (Continued)

A/T FLUID COOLER

AUTOMATIC TRANSMISSION

23A-142

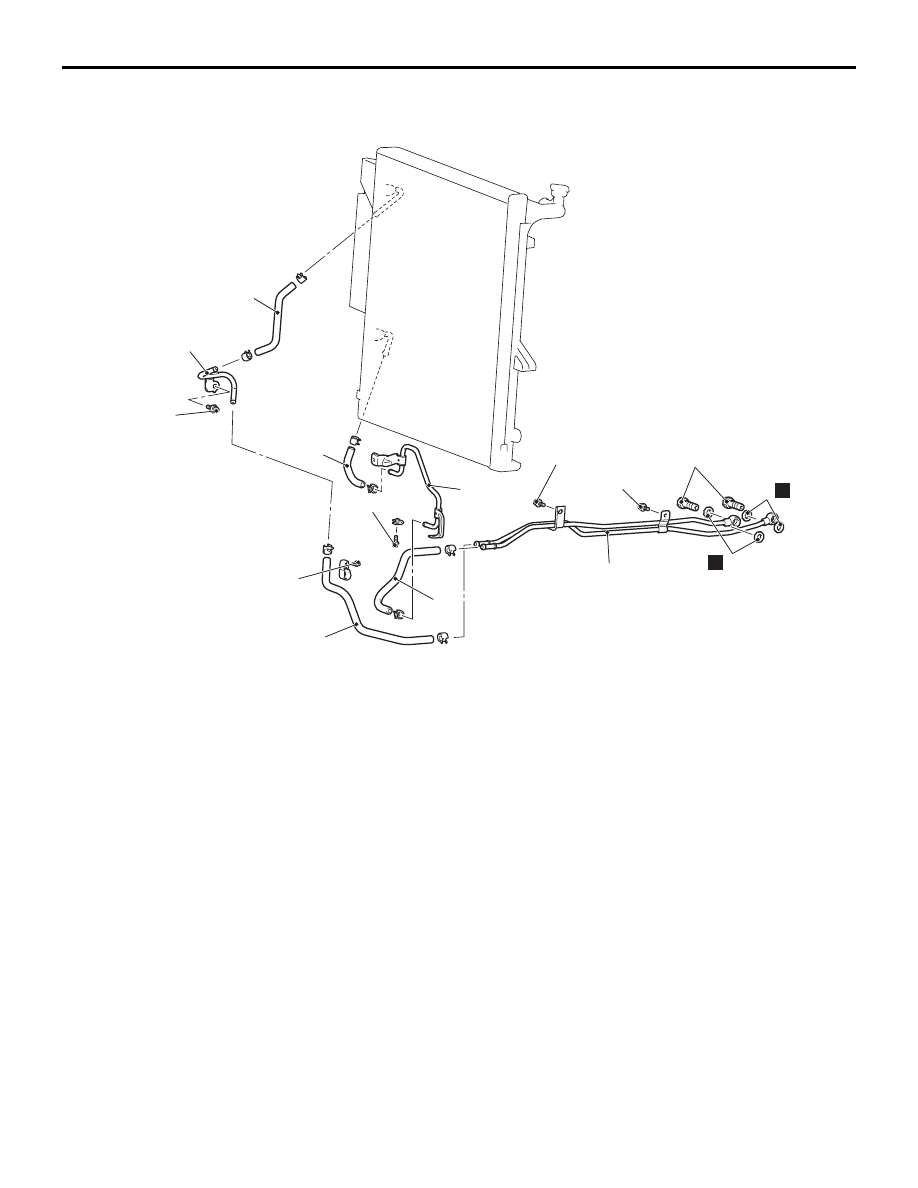

<Vehicles without air cooled A/T fluid
cooler>

AC807090

6

3

4

7

5

8

48 ± 7 N·m

1

N

N

AC

11 ± 2 N·m

11 ± 2 N·m

5.0 ± 1.0 N·m

5.0 ± 1.0 N·m

5.0 ± 1.0 N·m

2

2

Removal steps

1.

Pipe assembly

2.

Gasket

3.

Return hose

4.

Return pipe

5.

Hose

6.

Feed hose

7.

Cooler hose

8.

Cooler pipe assembly

Removal steps (Continued)
