TRANSMISSION ASSEMBLY

AUTOMATIC TRANSMISSION

23A-135

TRANSMISSION ASSEMBLY

REMOVAL AND INSTALLATION <4A/T>

M1231117000562

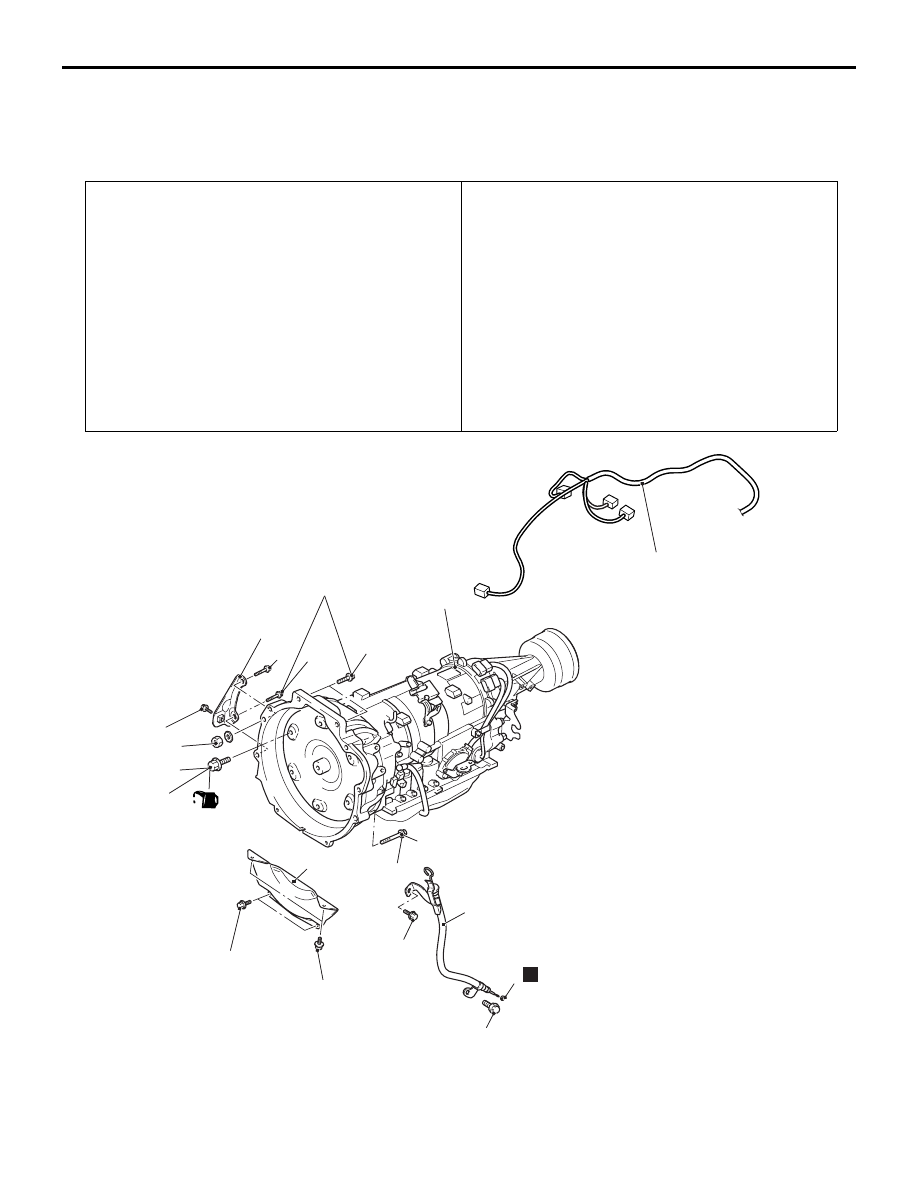

<2WD>

Pre-removal Operation
• Under Skid Plate and Engine Room Under Cover

Removal (Refer to GROUP 51

− Under Cover .)

• A/T Fluid Draining (Refer to

P.23A-112

.)

• Propeller Shaft Removal (Refer to GROUP 25 − Propeller

Shaft .)

• Front Exhaust Pipe Removal (Refer to GROUP 15 − Front

Exhaust Pipe Main Muffler .)

• Transmission Control Cable Connection Removal (Refer

to

P.23A-131

.)

• Pipe Assembly Removal (Refer to

P.23A-141

.)

• Starter Assembly Removal (Refer to GROUP 16 − Starter

Motor Assembly  ).

• No.2 Crossmember Assembly Removal (Refer to GROUP

32

− Rear Engine Mounting  .)

Post-installation Operation
• No.2 Crossmember Assembly Installation (Refer to

GROUP 32

− Rear Engine Mounting .)

• Starter Assembly Installation (Refer to GROUP 16 −

Starter Motor Assembly  ).

• Pipe Assembly Installation (Refer to

P.23A-141

.)

• Transmission Control Cable Connection Installation

(Refer to

P.23A-131

.)

• Front Exhaust Pipe Installation (Refer to GROUP 15 −

Front Exhaust Pipe Main Muffler .)

• Propeller Shaft Installation (Refer to GROUP 25 − Propel-

ler Shaft .)

• A/T Fluid Supplying (Refer to

P.23A-112

.)

• Under Skid Plate and Engine Room Under Cover Installa-

tion (Refer to GROUP 51

− Under Cover .)

AC904029

1

N

22 ± 4 N·m

50 ± 7 N·m

3

8

4

8.9 ± 0.9 N·m

5

49 ± 3 N·m

AB

6

8

48 ± 6 N·m

48 ± 6 N·m

7

25 ± 4 N·m

24 ± 3 N·m

6

9

11 ± 1 N·m

2

Removal steps (Cont.)

1.

Oil level gauge assembly

2.

O-ring

3.

Harness connector connection

4.

Bell housing cover

Removal steps (Cont.)

TRANSMISSION ASSEMBLY

AUTOMATIC TRANSMISSION

23A-136

5.

Drive plate connecting bolts

•

Support the transmission with a
transmission jack

6.

Transmission assembly lower part
coupling bolts

7.

Front exhaust pipe bracket

8.

Transmission assembly upper part
coupling bolts

>>

A

<< 9.

Transmission assembly

Removal steps (Cont.)

TRANSMISSION ASSEMBLY

AUTOMATIC TRANSMISSION

23A-137

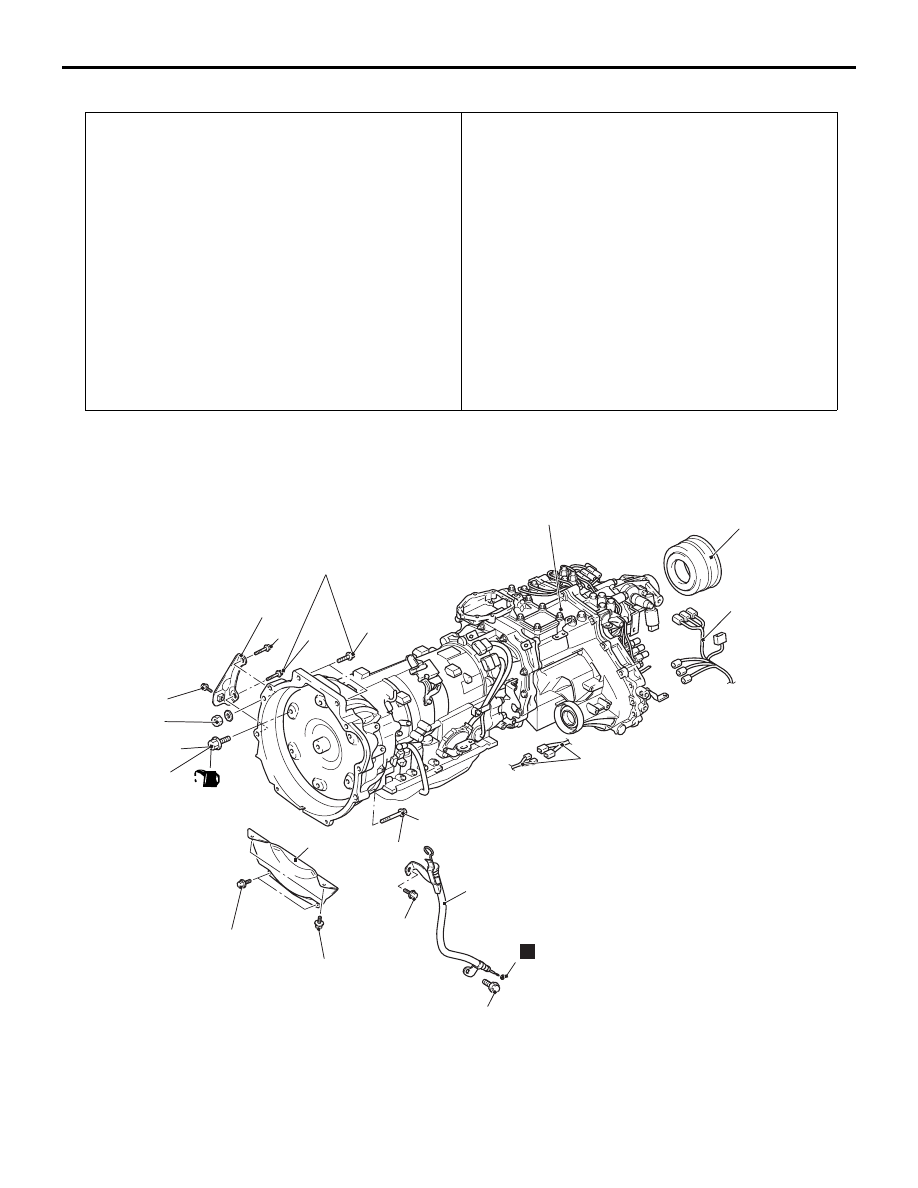

<4WD>

Pre-removal Operation
• Under Skid Plate and Engine Room Under Cover

Removal (Refer to GROUP 51

− Under Cover .)

• A/T Fluid Draining (Refer to

P.23A-112

.)

• Transfer Oil Draining (Refer to

P.23A-115

).

• Front and Rear Propeller Shaft Removal (Refer to

GROUP 25

− Propeller Shaft .)

• Front Exhaust Pipe Removal (Refer to GROUP 15 − Front

Exhaust Pipe Main Muffler .)

• Transmission Control Cable Connection Removal (Refer

to

P.23A-131

.)

• Pipe Assembly Removal (Refer to

P.23A-141

.)

• Starter Assembly Removal (Refer to GROUP 16 − Starter

Motor Assembly  ).

• Transfer Control Lever Assembly Removal (Refer to

P.23A-131

.)

• No.2 Crossmember Assembly Removal (Refer to GROUP

32

− Rear Engine Mounting  .)

Post-installation Operation
• No.2 Crossmember Assembly Installation (Refer to

GROUP 32

− Rear Engine Mounting .)

• Transfer Control Lever Assembly Installation (Refer to

P.23A-131

.)

• Starter Assembly Installation (Refer to GROUP 16 −

Starter Motor Assembly  ).

• Pipe Assembly Installation (Refer to

P.23A-141

.)

• Transmission Control Cable Connection Installation

(Refer to

P.23A-131

.)

• Front Exhaust Pipe Installation (Refer to GROUP 15 −

Front Exhaust Pipe Main Muffler .)

• Front and Rear Propeller Shaft Installation (Refer to

GROUP 25

− Propeller Shaft .)

• Transfer Oil Supplying (Refer to

P.23A-115

).

• A/T Fluid Supplying (Refer to

P.23A-112

.)

• Under Skid Plate and Engine Room Under Cover Installa-

tion (Refer to GROUP 51

− Under Cover .)

AC904030

1

N

22 ± 4 N·m

50 ± 7 N·m

5

8.9 ± 0.9 N·m

7

49 ± 3 N·m

AB

8

10

8

48 ± 6 N·m

48 ± 6 N·m

9

25 ± 4 N·m

24 ± 3 N·m

8

11 ± 1 N·m

3

11

6

4

2

Removal steps (Cont.)

1.

Oil level gauge assembly

2.

O-ring

3.

Harness connector connection

4.

A/T control harness connector
connection

5.

Bell housing cover

Removal steps (Cont.)

TRANSMISSION ASSEMBLY

AUTOMATIC TRANSMISSION

23A-138

INSTALLATION SERVICE POINT

>>A<< TRANSMISSION ASSEMBLY INSTALLA-
TION

AC004836AG

20.9 mm

Press the torque converter into the transmission
properly, and then assembly into the engine.

6.

Dust seal guard

7.

Drive plate connecting bolts

•

Support the transmission with a
transmission jack

8.

Transmission assembly lower part
coupling bolts

9.

Front exhaust pipe bracket

10.

Transmission assembly upper part
coupling bolts

>>

A

<< 11.

Transmission assembly

Removal steps (Cont.)
