TRANSMISSION

MANUAL TRANSMISSION OVERHAUL <V5MB1>

22C-21

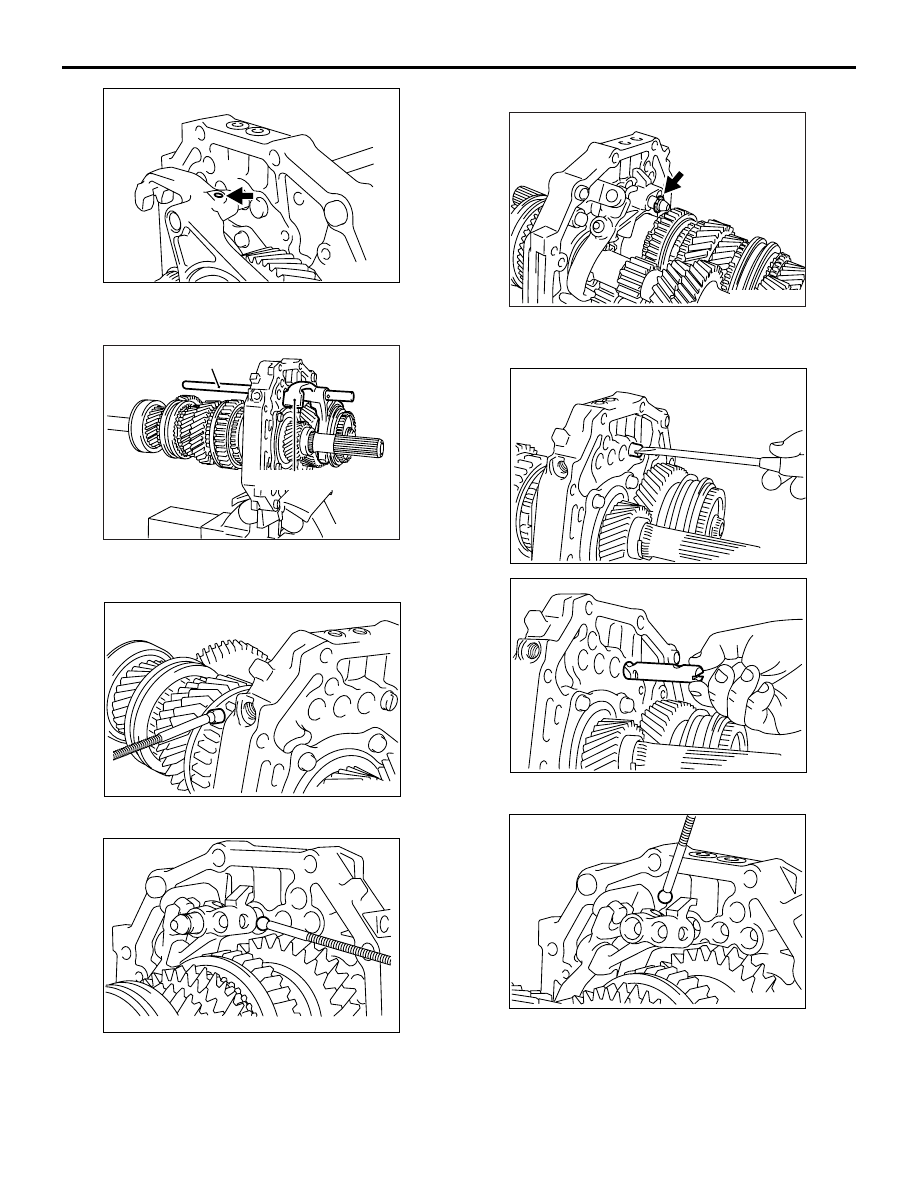

27.Remove the gear shift fork No.2.

AK500261

28.Remove the roller A.

AK500262

AB

29.Remove the shaft snap ring of the gear shift fork

shaft No.1 and the washer based hexagon bolt of
the gear shift fork No.1.

AK500263

30.Remove the gear shift fork shaft No.1.

AK500270

31.Remove the straight pin of the gear shift fork shaft

No.1.

AK500264

32.Remove the roller A.

AK500265

33.Remove the gear shift fork No.1.

AK500266

AB

34.Remove the shaft snap ring of the gear shift fork

shaft No.3.

AK403790

AB

TRANSMISSION

MANUAL TRANSMISSION OVERHAUL <V5MB1>

22C-22

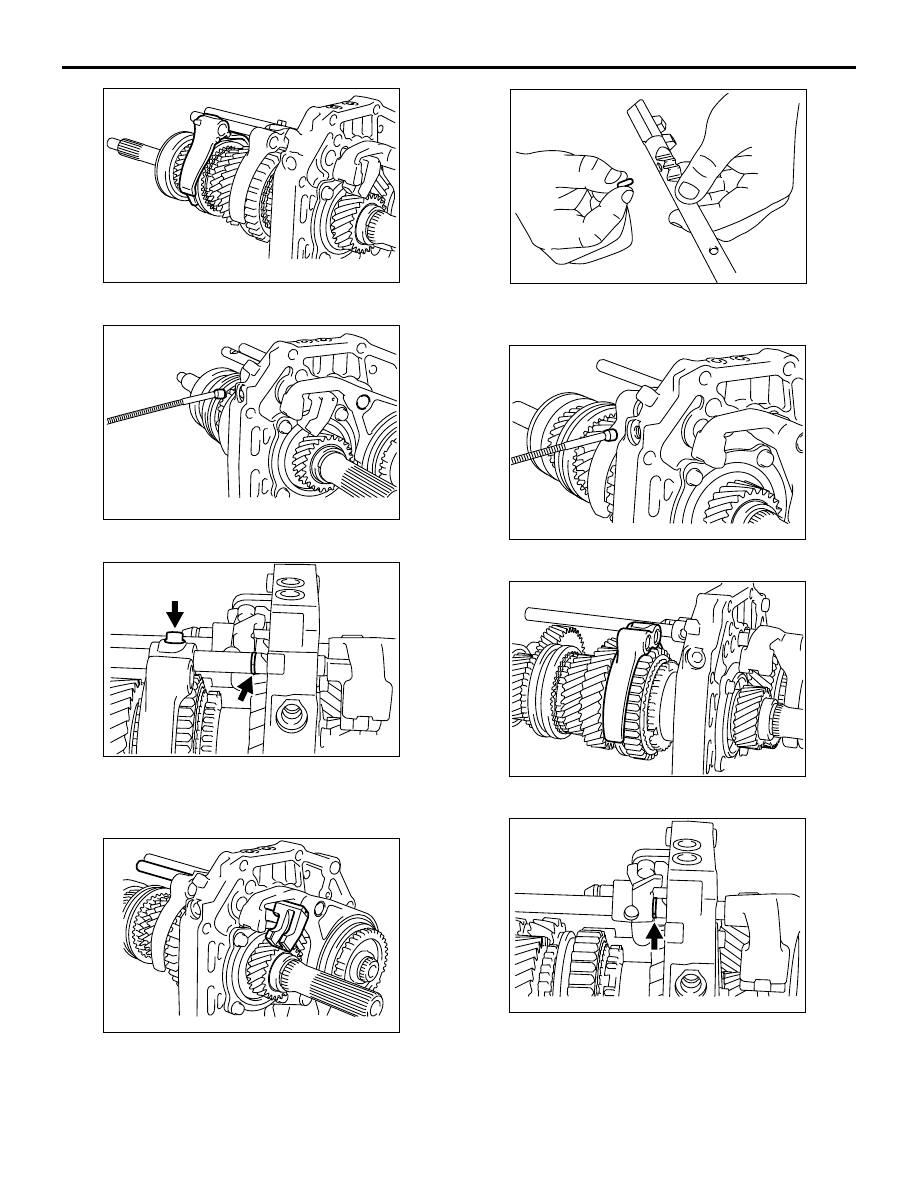

35.Remove the slotted spring pin of the gear shift

fork No.3 assembly.

AK500461AB

Gear shift fork shaft No.3

Gear shift fork No.3

36.Remove the gear shift fork No.3 assembly and

the gear shift fork shaft No.3.

AK403800

37.Remove the roller A.

AK403801

38.Remove the ball.

AK500453AB

39.Remove the shaft snap ring of the gear shift fork

shaft No.4.

AK403802

AK403803

40.Remove the gear shift fork shaft No.4.

AK403804

41.Remove the ball.

AK403805

TRANSMISSION

MANUAL TRANSMISSION OVERHAUL <V5MB1>

22C-23

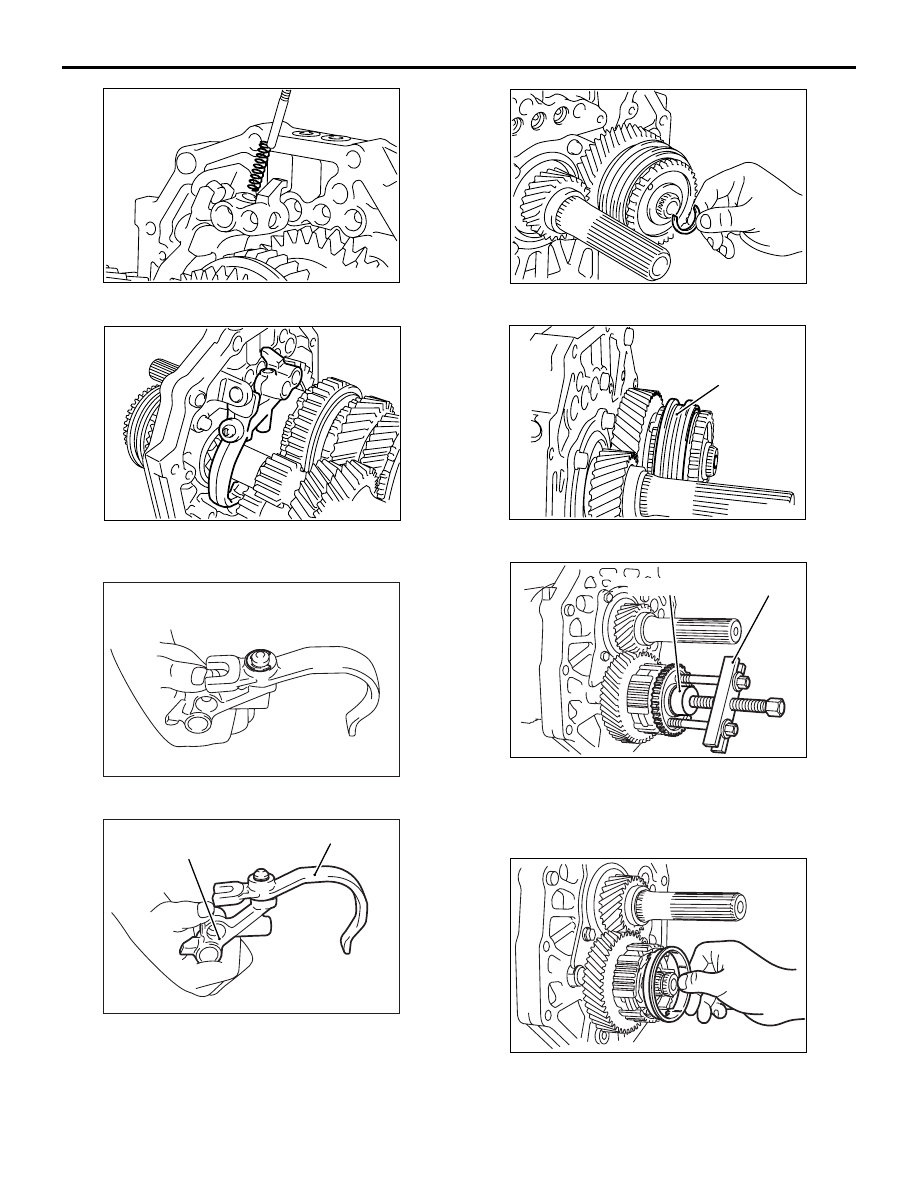

42.Remove the compression spring.

AK403806

43.Remove the reverse shift fork and the reverse

shift arm.

AK500455

44.Remove the E ring.

AK500454AB

Reverse shift fork

Reverse shift arm

45.Remove the reverse shift arm.

AK403807

46.Remove the shaft snap ring.

AK500269

AB

Transmission
hub sleeve No.3

47.Remove the transmission hub sleeve No.3.

AK403982

MB990803

AC

MB990811

48.Use special tools to remove the gear spline piece

No.5.

• Steering wheel puller (MB990803)

•

AK403983

Side bearing puller cup (MB990811)

49.Remove the synchronizer outer race No.3.

AK403984

TRANSMISSION

MANUAL TRANSMISSION OVERHAUL <V5MB1>

22C-24

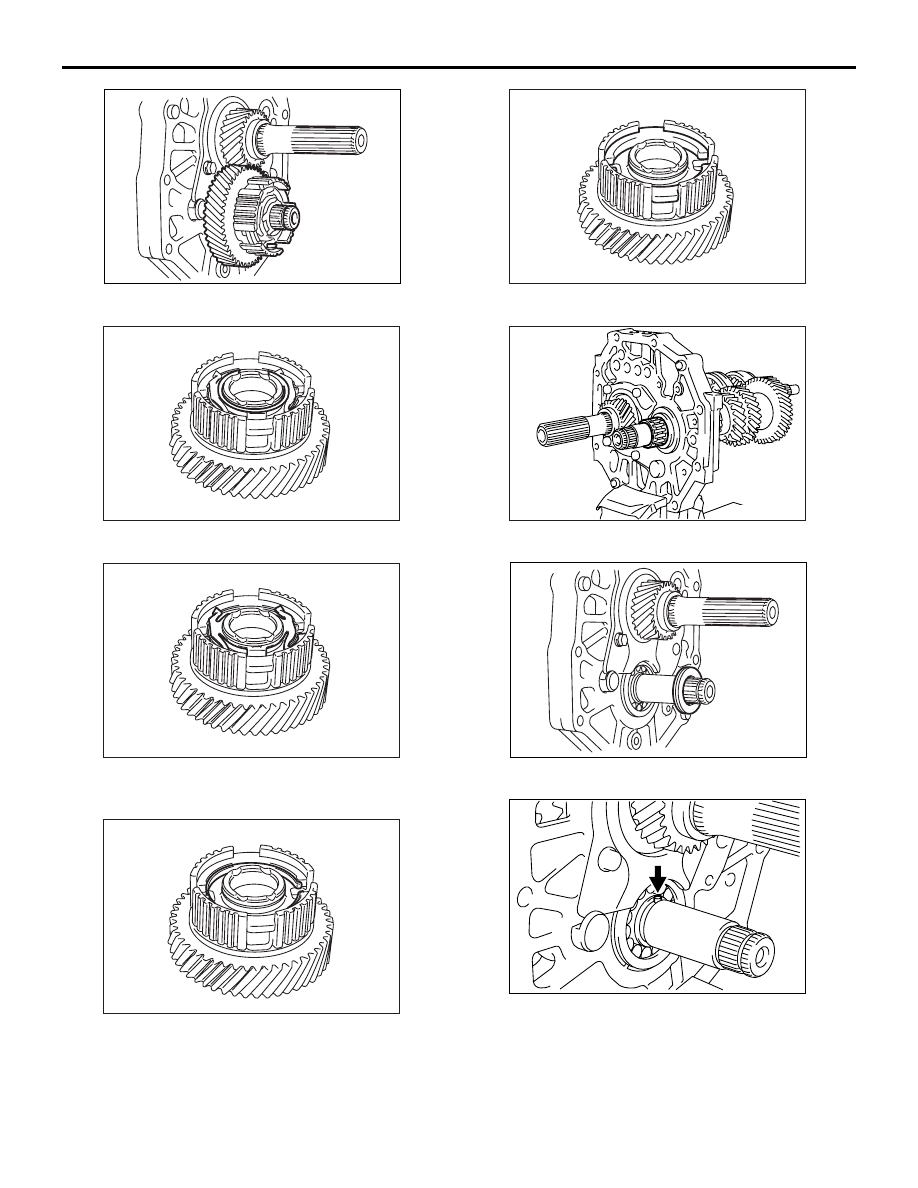

50.Remove the counter shaft gear No.5.

AK500526

51.Remove the shaft snap ring.

AK500456

52.Remove the synchromesh shifting key spring

No.3.

AK500457

53.Remove the synchromesh shifting key spring

No.3.

AK500458

54.Remove the synchromesh shifting key No.3.

AK500459

55.Remove the needle roller bearing.

AK403985

56.Remove the 5th gear thrust washer.

AK403785

AB

57.Remove the straight pin.
