D998713

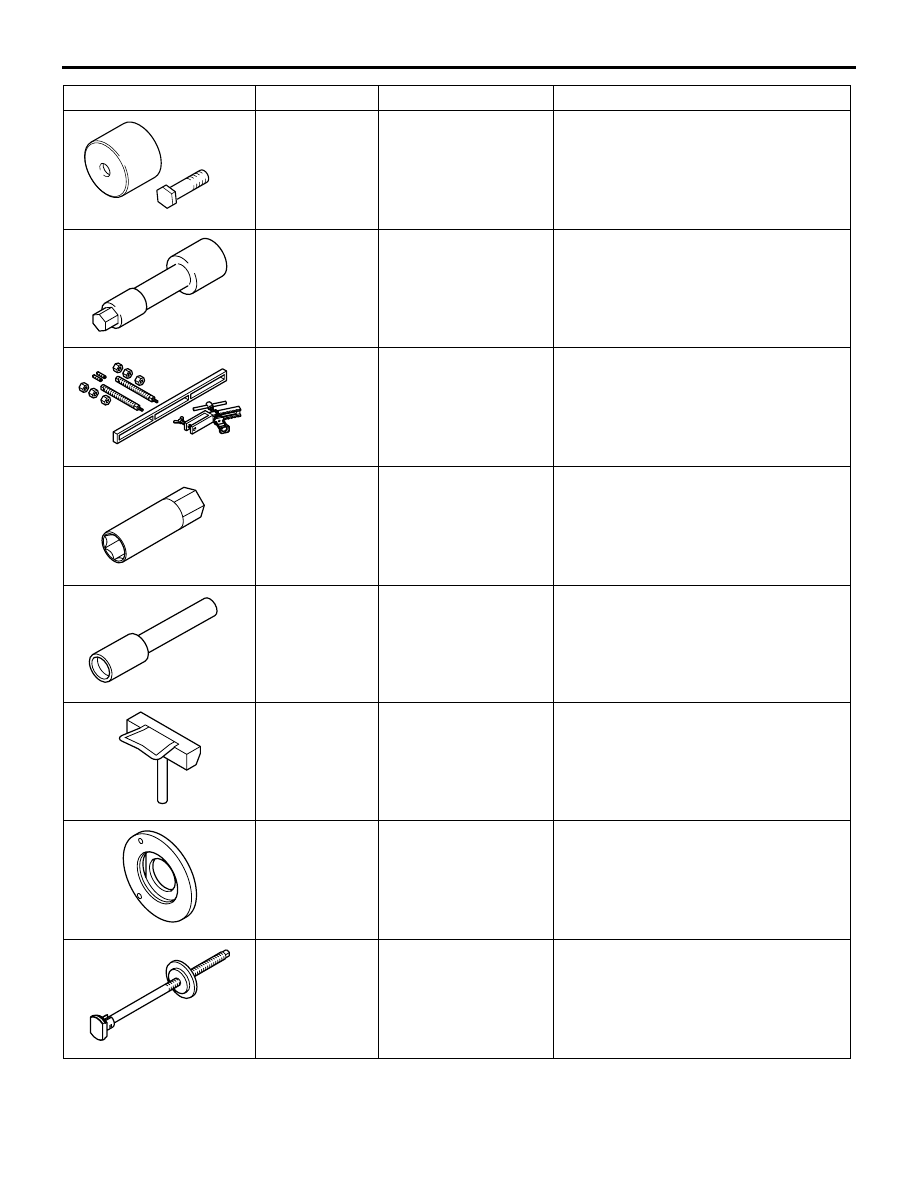

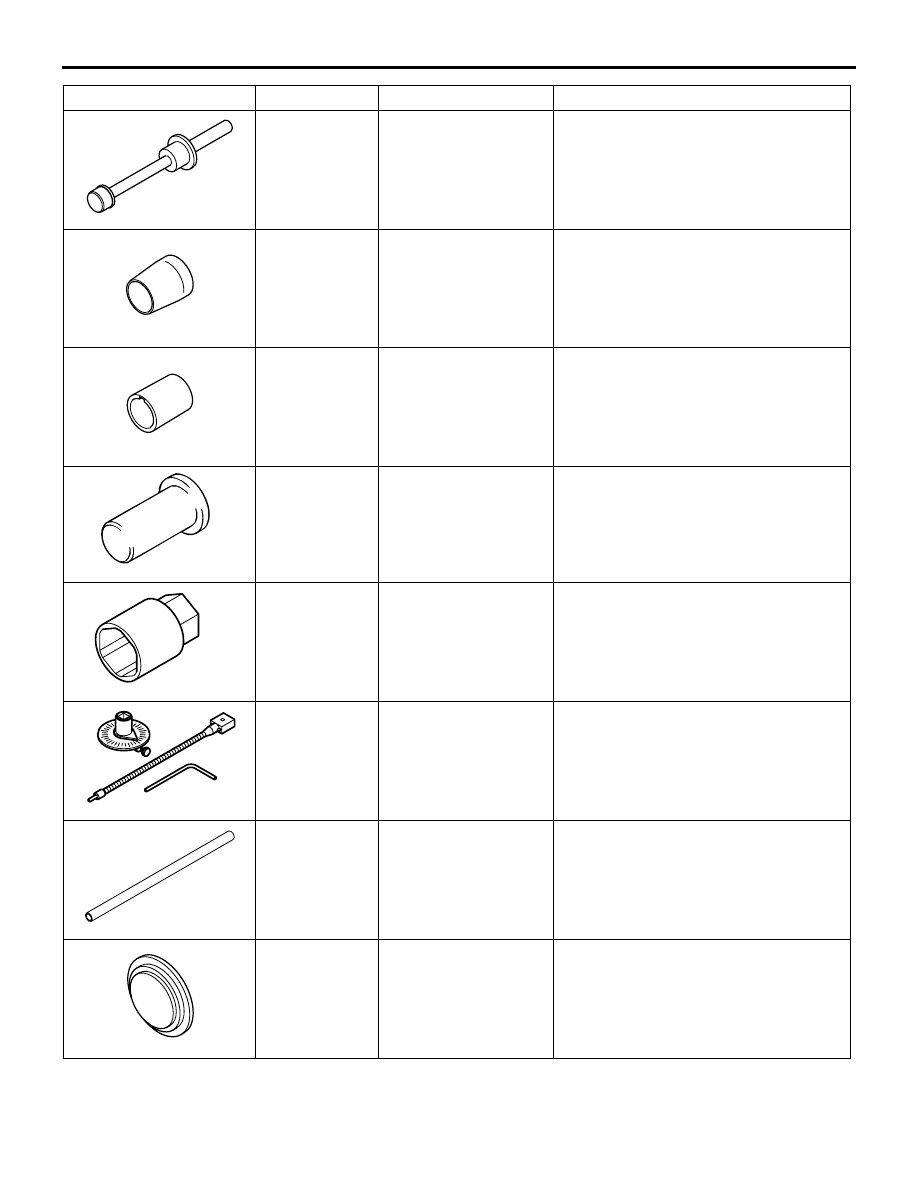

SPECIAL TOOLS

ENGINE OVERHAUL

11B-10

MD998713

Camshaft oil seal
installer

Installation of camshaft oil seal

MD998051

Cylinder head bolt
wrench

Removal and installation of cylinder
head bolt

MD998772

Valve spring
compressor

Compression of valve spring

MB992046

MB992046

Valve adjusting socket Adjustment of valve clearance

D998775

MD998775

Valve stem seal
installer

Installation of valve stem seal

D998727

MD998727

Oil pan sealer cutter

Removal of oil pan

D998380

MD998380

Bearing installer
stopper

Guide for removal and installation of
silent shaft right rear bearing

D998251

MD998251

Balancer shaft bearing
puller

Removal of silent shaft rear bearing

Tool

Number

Name

Use

D998250

SPECIAL TOOLS

ENGINE OVERHAUL

11B-11

MD998250

Balancer shaft bearing
installer

Installation of silent shaft rear bearing

D998385

MD998385

Balancer shaft drive
gear oil seal guide

Installation of silent shaft drive oil seal

D998383

MD998383

Crankshaft front oil
seal guide

Installation of crankshaft front oil seal

D998382

MD998382

Crankshaft front oil
seal installer

Guide for installation of crankshaft front
oil seal

MD998012

Oil pressure switch
wrench

Removal and installation of oil pressure
switch

MB991614

MB991614

Angle gauge

Installation of bearing cap bolt and
injector holder bolt and connecting rod
cap nut

MB992010

Bolt guide

Removal and installation of piston and
connecting rod assembly

MB992147

Oil seal installer

Removal and installation of rear oil seal

Tool

Number

Name

Use

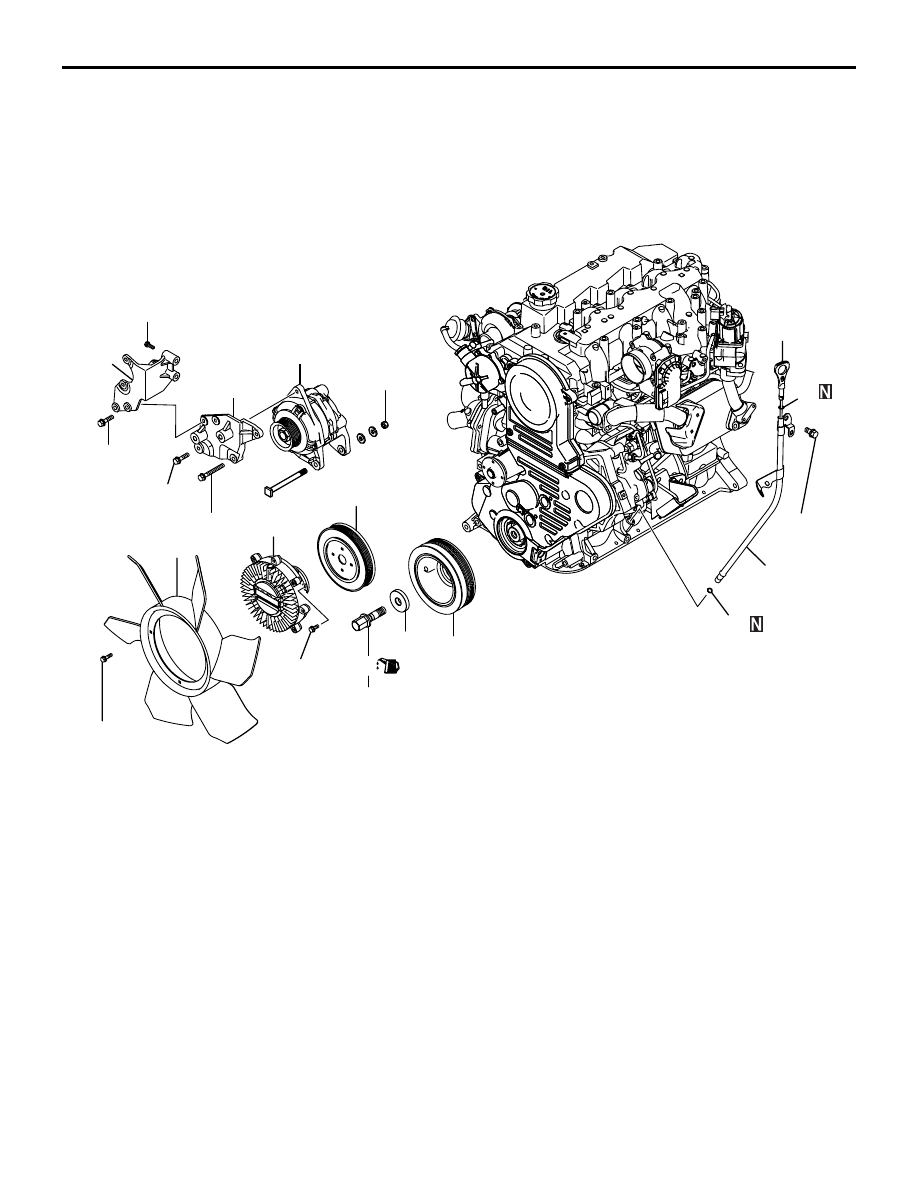

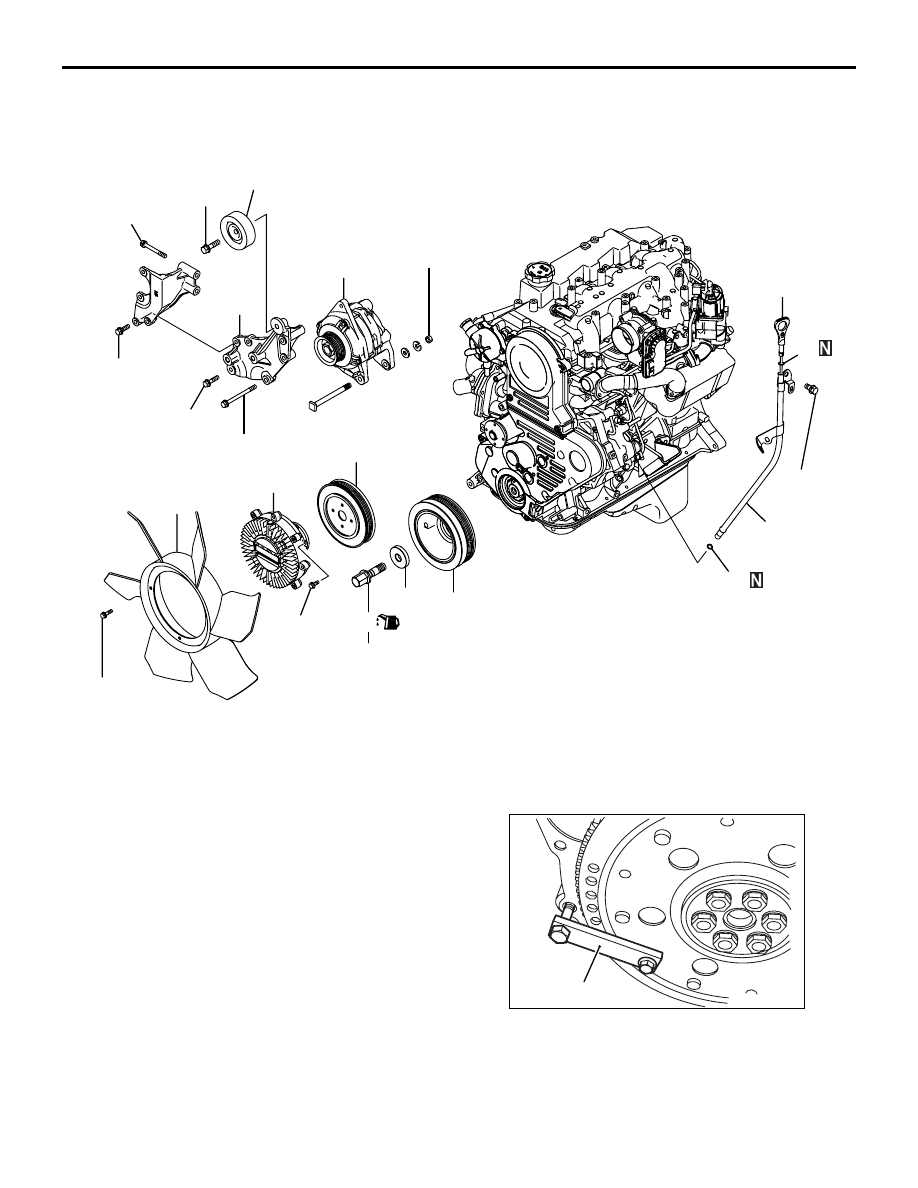

ALTERNATOR

ENGINE OVERHAUL

11B-12

ALTERNATOR

REMOVAL AND INSTALLATION

M1113027600684

<Except Euro5>

AK502994AC

1

2

3

4

5

6

7

8

9

10

11

12

13

48 ± 6 N·m

11 ± 1 N·m

44 ± 10 N·m

265 N·m

0 N·m

275 N·m

23 ± 2 N·m

11 ± 1 N·m

20 ± 4 N·m

24 ± 4 N·m

24 ± 4 N·m

Removal steps

1. Cooling fan
2. Fan clutch
3. Water pump pulley

<<

A

>> >>

A

<< 4. Crankshaft bolt

<<

A

>> >>

A

<< 5. Crankshaft pulley washer

<<

B

>> >>

A

<< 6. Crankshaft pulley

7. Power steering pump bracket "A"

8. Power steering pump bracket "B"
9. Alternator
10. Oil level gauge
11. O-ring
12. Oil level gauge guide
13. O-ring

Removal steps (Continued)

ALTERNATOR

ENGINE OVERHAUL

11B-13

<Euro5>

AKB00328AB

1

2

3

4

5

6

9

10

11

12

13

14

48 ± 6 N·m

11 ± 1 N·m

44 ± 10 N·m

265 N·m

0 N·m

275 N·m

23 ± 2 N·m

11 ± 1 N·m

20 ± 4 N·m

24 ± 4 N·m

24 ± 4 N·m

50 ± 5 N·m

7

Removal steps

1. Cooling fan
2. Fan clutch
3. Water pump pulley

<<

A

>> >>

A

<< 4. Crankshaft bolt

<<

A

>> >>

A

<< 5. Crankshaft pulley washer

<<

B

>> >>

A

<< 6. Crankshaft pulley

7. Idler pulley
8. Power steering pump bracket "A"
9. Power steering pump bracket "B"
10. Alternator
11. Oil level gauge
12. O-ring
13. Oil level gauge guide
14. O-ring

REMOVAL SERVICE POINTS

<<A>> CRANKSHAFT BOLT / CRANKSHAFT
PULLEY WASHER REMOVAL

AK402854AB

MD998781

1. Use the special tool Flywheel stopper

(MD998781), hold the flywheel.

2. Remove the crankshaft bolt and washer.
