Interior Features
Mazda Connect
No.
Item
Explanation
Volume knob:
Volume adjustment
Adjust the volume by turning the volume knob.
If you adjust the volume during voice guidance, the volume of the
voice guidance will change.
If you adjust the volume during a hands-free call, the conversation vol-
ume will change.
Press the volume knob to mute/pause the audio. Press the knob again
to resume.
Power off/on
Press and hold to turn off the Mazda Connect power and turn off the
screen.
Press and hold again to turn on the Mazda Connect power.
NOTE
If you press the volume knob to mute an audio source which can be
paused, such as Apple CarPlay™, USB audio, or Bluetooth® audio,
while it is playing, the song playback pauses. Press the volume knob
4
again to cancel the mute and the pause at the same time.
Selecting a radio station
Radio stations saved to your Favorites can be selected by sliding the
volume knob left (SEEK DOWN)/right (SEEK UP) while listening to
FM/AM/SiriusXM®*. The station will change each time you slide the
volume knob.
If you want to manually tune to the next available station before or af-
ter the currently selected station, slide and hold the volume knob left
(SEEK DOWN) or right (SEEK UP) until you hear a beep and the tuner
will select the next available station.
Playback Control
Music and video files can be cued when listening to stored content via
USB, Bluetooth®, and SiriusXM®*, audio, or video.
Slide the volume knob right to skip to the next track or slide it to the
left to go back to the previous track. You can also slide and hold the
volume knob to fast forward or rewind the track.
*Some models.
5-21
Interior Features
Mazda Connect
No.
Item
Explanation

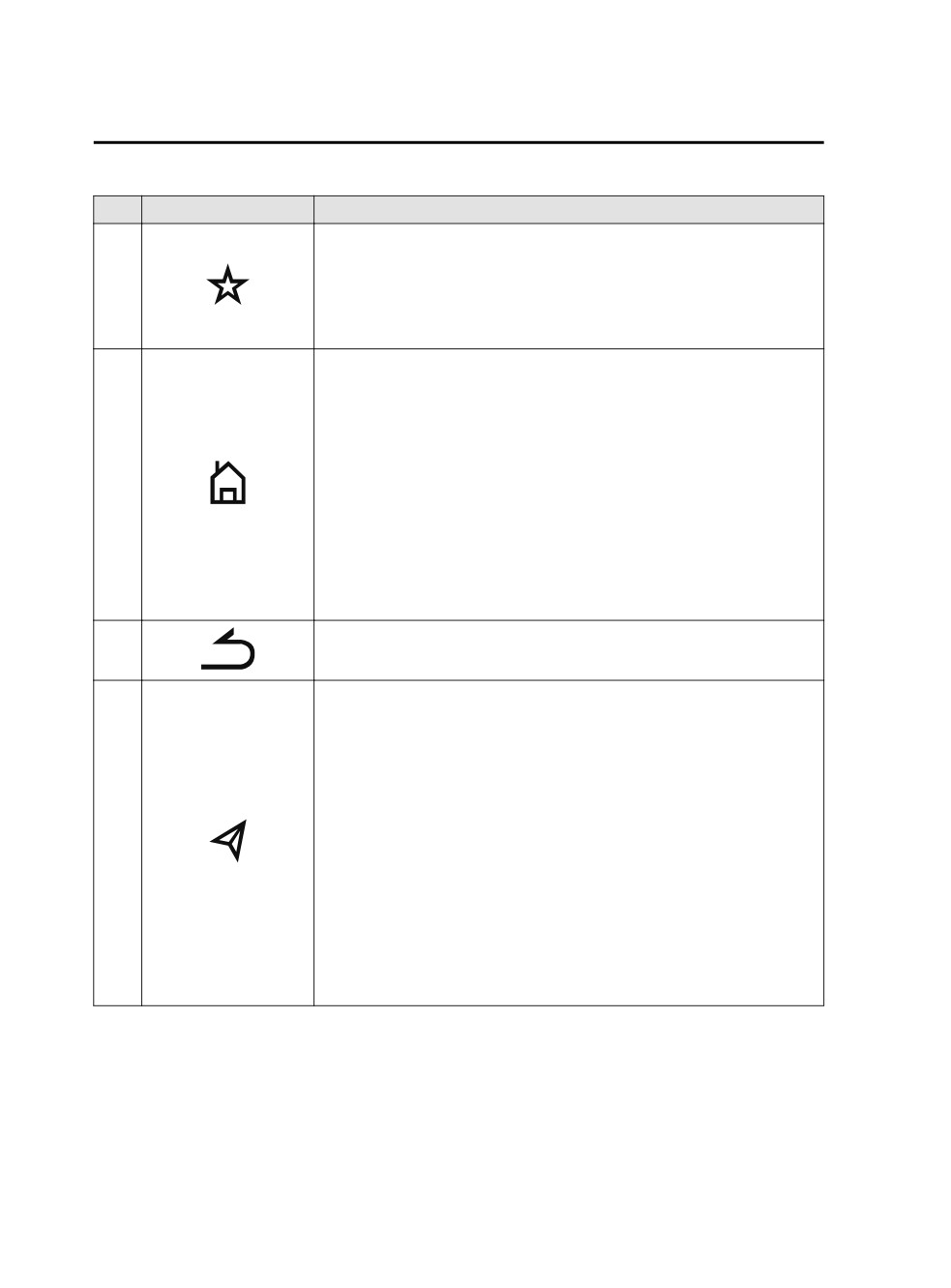

Favorites button:
Displays the favorites screen.
5
Press and hold to register AM/FM/SiriusXM®* stations, contacts, navi-
gation destinations, or any highlighted menu items to create easily ac-
cessible shortcuts.
Home button:
Displays the home screen.
(While Apple CarPlay™ or Android Auto™ is displayed)
Displays the Apple CarPlay™ or Android Auto™ home screen.
6
(While Apple CarPlay™ or Android Auto™ is connected)
Press and hold while the Mazda Connect screen is displayed to switch
the screen from Mazda Connect to Apple CarPlay™ or Mazda Connect
to Android Auto™. In addition, press and hold while the Apple
CarPlay™ or Android Auto™ screen is displayed to switch to the Mazda
Connect screen.
Back button:
7
Returns to previous screen.
Map button:
Displays the navigation screen (vehicles with navigation system).
In order for the navigation system to function, the SD card for the navi-
gation system is required.
If the SD card for the navigation system is not inserted, the compass in-
dicating the direction in which the vehicle is moving is displayed.
For the navigation system operation, refer to the navigation system
8
manual.
(During Apple CarPlay™ or Android Auto™ route guidance)
Displays the Apple CarPlay™ or Android Auto™ map screen.
NOTE
With an active Mazda Navigation route, pressing the Map button will
repeat the navigation voice guidance.
5-22
*Some models.
Interior Features
Mazda Connect

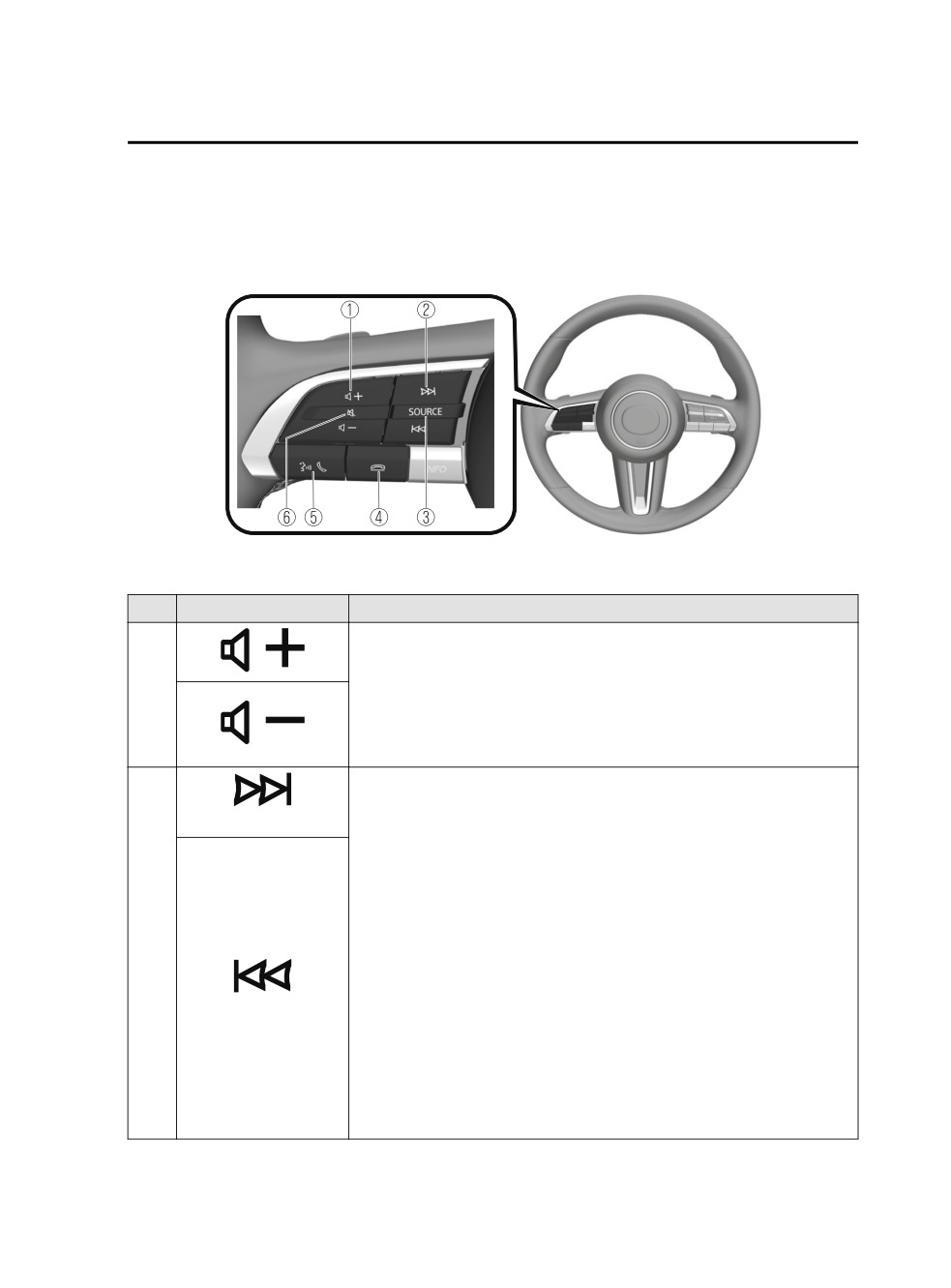

▼ Audio Remote Control Switch Operation
The audio remote control switch is on the left side of the steering wheel. You can
operate basic audio functions, pick up/hang up the phone, or activate voice
control using the switch.
The shape of the switches may differ depending on the specifications.
No.
Item
Explanation
Volume adjustment button:
Press the (+) or (-) button to adjust the volume.
If you adjust the volume during voice guidance, the volume of the
1
voice guidance will change.
If you adjust the volume during a hands-free call, the conversation vol-
ume will change.
Seek Switch:
Selecting a radio station
(SEEK UP)
Radio stations saved to your Favorites can be selected by pressing the
seek switch while listening to FM/AM/SiriusXM®*. The station will
change to the previous or next favorite station each time you press the
seek switch. If you want to manually tune to the next available station
before or after the currently selected station, press and hold the seek
2
switch until it beeps and the tuner will select the next available station.
(SEEK DOWN)
Playback Control
Music and video files can be cued when listening to stored content via
USB, Bluetooth®, and SiriusXM®*, audio, or video.
Slide the volume knob right to skip to the next track or slide it to the
left to go back to the previous track. You can also slide and hold the
volume knob to fast forward or rewind the track.
*Some models.
5-23
Interior Features
Mazda Connect
No.
Item
Explanation
SOURCE button:
The audio source can be switched each time the button is pressed.
In addition, when the button is pressed and held, the current au-
3
SOURCE
dio source is muted and the audio source selection screen is displayed.
(During Apple CarPlay™ or Android Auto™ playback)
Press and hold the SOURCE button to mute the current audio source.

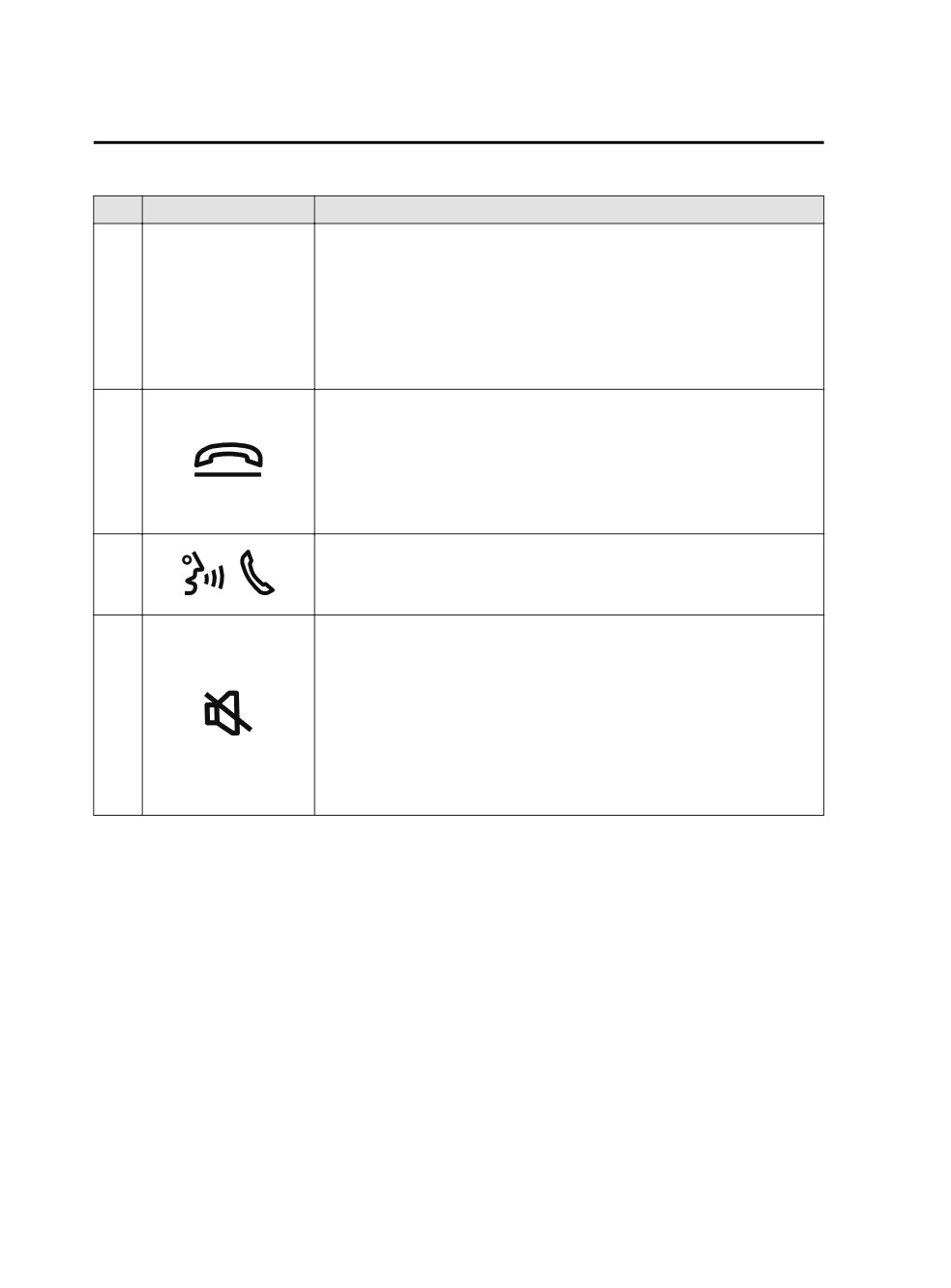

Hang-up button:
(During a call)
Press the button to end the call.
4
(While receiving a call)
Press the button to refuse a call.
Talk/Pick-up button:
5
(While receiving a call)
Press the button to answer the call.
Mute button:
Press the button to mute.
Press it again to cancel the mute.
6
NOTE
If you press the mute button to mute an audio source which can be
paused, such as Apple CarPlay™, USB audio, or Bluetooth® audio,
while it is playing, the song playback pauses. Press the mute button
again to cancel the mute and the pause at the same time.
5-24
Interior Features
Mazda Connect

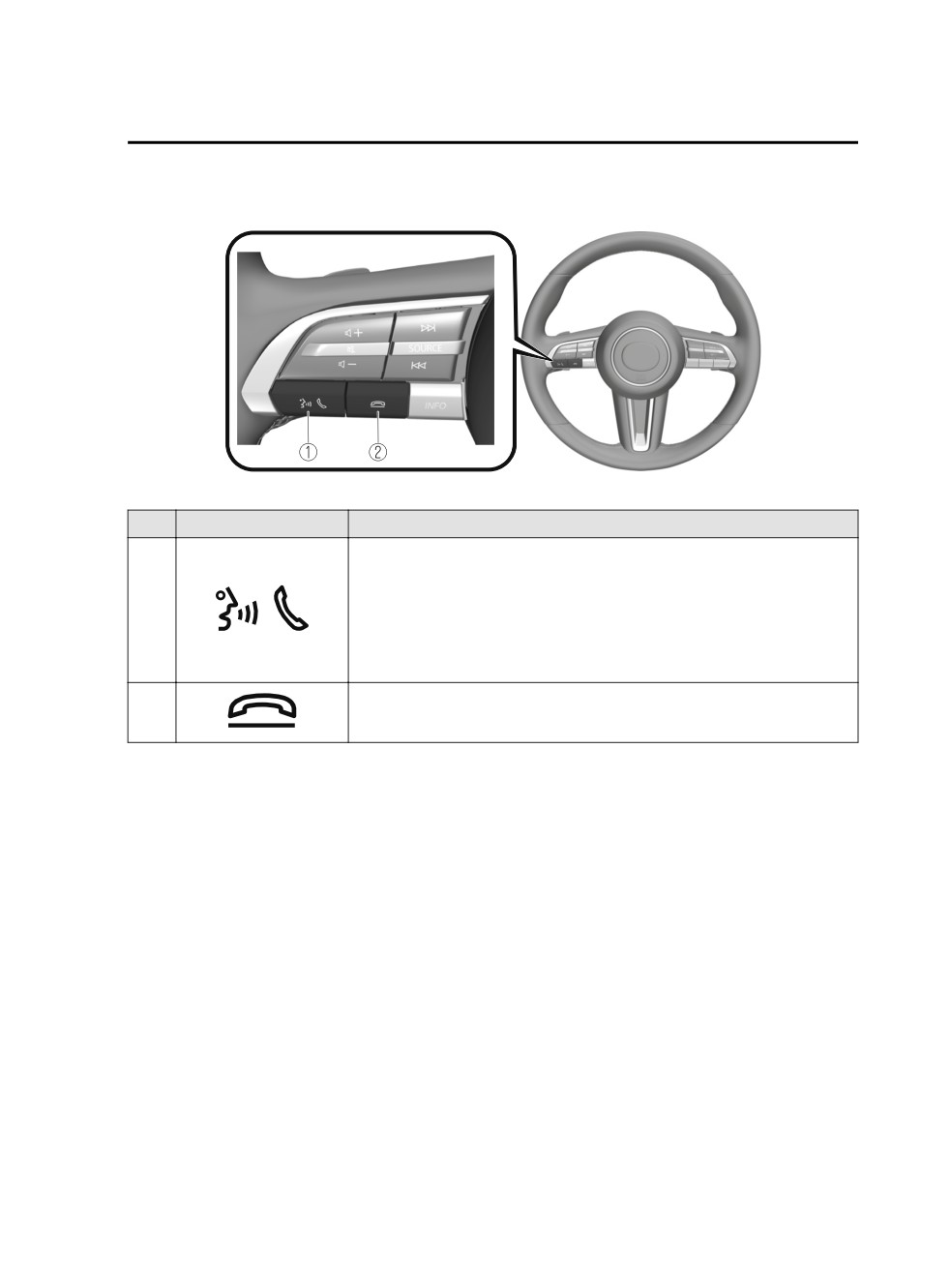

▼ Operation Using Voice Recognition Function
The shape of the switches may differ depending on the specifications.
No.
Item
Explanation
Talk/Pick-up button:
When the button is pressed, the voice recognition top screen is dis-
played and the voice recognition is activated.
1
(While voice guidance is being announced)
Press the button to skip the voice guidance.
Hang-up button:
2
Press the button to end the voice recognition.
Voice recognition activation
When the talk/pick-up button on the audio remote control switch is pressed, top
screen of the voice recognition will be displayed.
NOTE
When an Apple CarPlay™ or Android Auto™ compatible device is connected, the
Mazda Connect voice recognition system is disabled to allow the use of Siri® or
Android Auto™ voice recognition at any time with the talk/pick-up button.
Commands usable at any time
“Help” - Can be used to check for usable voice commands.
“Back” - Returns to the previous screen. When a voice command is spoken while on
the telephone number input screen, the content that was previously input is deleted.
“Cancel”- The voice recognition is ended.
To learn more on how to operate Mazda Connect
“Owner's Manual” - The operation guide screen is displayed.
5-25
Interior Features
Mazda Connect
Ending voice recognition
Do any one of the following operations:
Press the hang-up button.
Press and hold the talk/Pick-up button.
Say the word, “Cancel”.
Convenient operating tips for using the voice recognition function

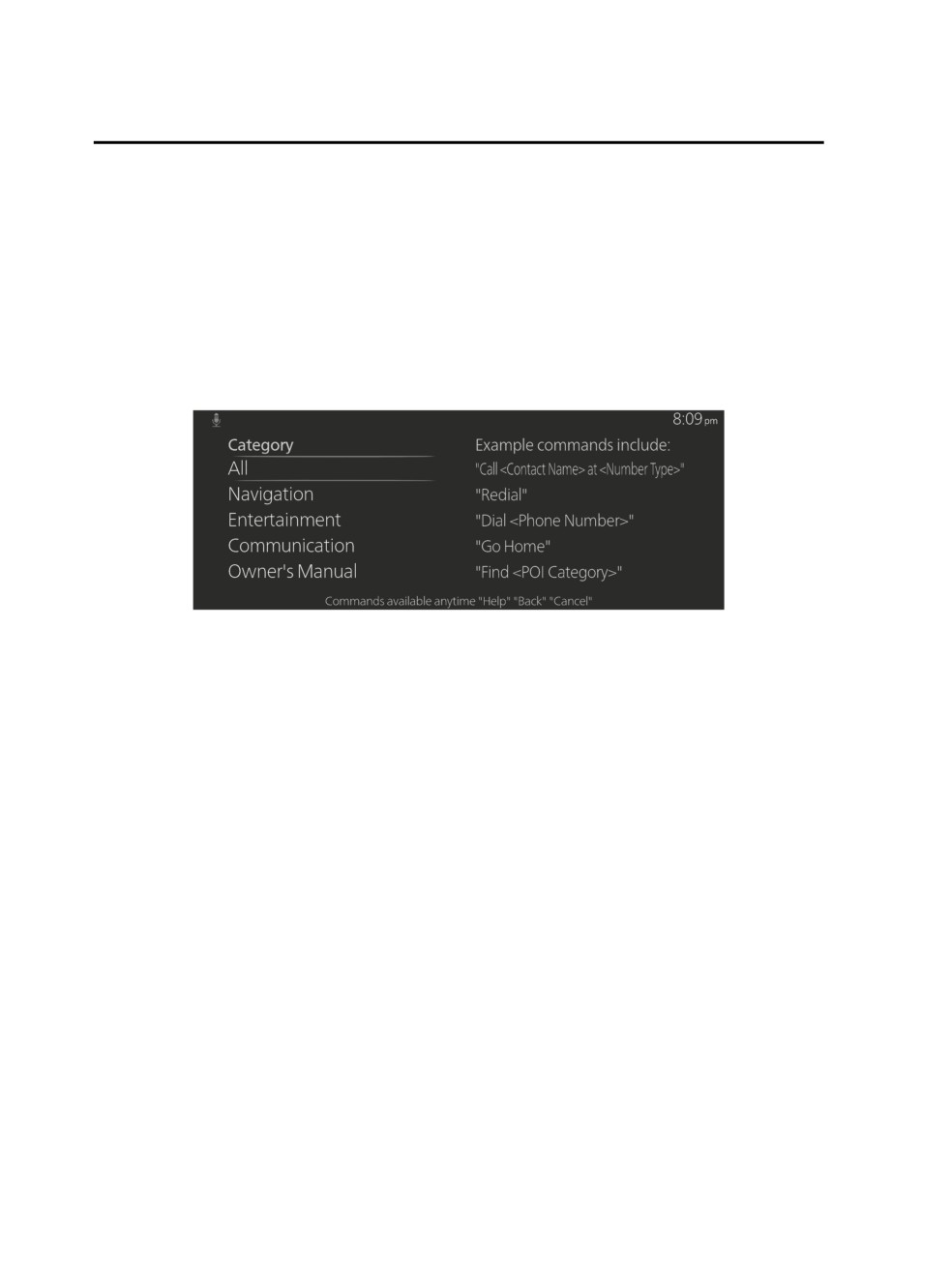

Examples of effective voice commands in various categories are displayed on top
screen of the voice recognition.
NOTE
The voice command examples shown in this manual are only a partial list of the
available commands. Some commands may be unusable depending on the
specifications.
Some commands cannot be used depending on the device connection conditions
and the use conditions.
When the Barge-In setting is on, voice commands can be made even while the
voice guidance is being announced. For details on Barge-In, refer to the System
Settings section in the Mazda Connect Owner's Manual.
For details on voice commands which can be used on the navigation screen, refer
to the navigation system manual.
5-26
Interior Features
Mazda Connect
To prevent misunderstood voice commands, be aware of the following points:
Connect your mobile phone to Bluetooth® before operating the mobile phone
using voice recognition.
After pressing the talk/pick-up button, wait for the beep before speaking a
command.
Speaking in a slightly louder voice will improve voice recognition, but an
excessively loud voice is unnecessary. Try to speak in a slightly louder voice than
when talking to other passengers in the vehicle.
You do not need to speak slowly. Speak at a normal speed.
When calling a person in the device's phone book, the recognition rate increases
the longer the name is. Errors may occur with names that are short such as
“Mama”, “Home”, or “wife”.
Speak clearly, without pausing between words or numbers.
Voice commands other than those specified, cannot be recognized. Speak in the
wording specified by the voice commands.
It is not necessary to face the microphone or approach it. Speak the voice
commands while maintaining a safe driving position.
Close the windows and the moonroof* to reduce loud noises from outside the
vehicle and to prevent the airflow of the air-conditioning system from being a
disturbance when using Bluetooth® Hands-Free.
Make sure that the air flow from the air conditioner is not blowing on the
microphone.
If the voice recognition is poor with the guidance volume set to high, set the
Barge-In to OFF.
Examples of available voice commands
The specified name and number are put into the {}.
Common
Back
Help (You can listen to help guidance at each screen.)
{Line Number} (You can select the line number on the screen.)
Next Page
Previous Page
Cancel
Menu
All
Navigation
Entertainment
*Some models.
5-27
Interior Features
Mazda Connect
Communication
Owner's Manual (the In-vehicle Digital Owner's Manual voice recognition can be
displayed.)
Setting
Voice Recognition Settings
Owner's Manual (the In-vehicle Digital Owner's Manual voice recognition can be
displayed.)
Display Off
Music
Play Artist (You can also use “Play Artist {Artist name}”.)
Play Album (You can also use “Play Album {Album Name}”.)
Play Playlist (You can also use “Play Playlist {Playlist Name}”.)
Play Song (You can also use “Play Song {Song Name}”.)
Play Audiobook (You can also use “Play Audiobook {Audiobook Name}”.)
Play Podcast (You can also use “Play Podcast {Podcast Name}”.)
Radio
Tune to {Frequency} AM
Tune to {Frequency} FM
Tune to {Frequency} HD {Sub Channel}
SiriusXM Channel {Channel Number}
SiriusXM {Station Name}
SiriusXM Genre (You can also use “SiriusXM {Genre Name}”.)
Source
Change Source (You can also use “Change Source to USB”*1 and “USB”*1.)
Audio OFF (You can also use “Change Source to Audio OFF”.)
Phone
Dial Phone Number (You can also use “Dial {Phone Number}”.)
Call History
Call a Contact (You can also use “Call {Contact Name}” and “Call {Contact Name}
at {Number Type}”.)
Redial
*1
: Audio source names other than “USB” can also be used as follows:
Bluetooth/AM/FM/SiriusXM/Pandora/USB1 Audio/USB2 Audio/USB1 Video/
USB2 Video
5-28
Interior Features
Mazda Connect
▼ Appendix
Gracenote® Database
When connecting a USB audio device or Bluetooth® audio device to this unit and
playing audio, the unit searches the database stored in the vehicle for the album art.
If there is a match in the vehicle's database compilation to the music being played,
the album art is displayed. The database information stored in this device uses
database information in the Gracenote® music recognitions service.
SiriusXM Travel Link®*
CAUTION
ADVISORY ONLY
The weather information is subject to service interruptions and may contain errors or
inaccuracies and consequently should not be relied upon exclusively. You are urged
to check alternate weather information sources prior to making safety related
decisions. You acknowledge and agree that you shall be solely responsible for use of
the information and all decisions taken with respect thereto. By using this weather
service, you release and waive any claims against Sirius XM Radio Inc. and Mazda
Motor Corporation and all of their respective affiliates with regard to this service.
SiriusXM® Satellite Radio*
Products/applications shall display “Call [Appropriate Phone Number] to Enable
Services” for any unsubscribed SiriusXM Data Service(s).
This shall be shown on the same screen as the Radio ID and the service subscription
status:
Contact your SiriusXM Representative for the appropriate call center phone number.
U.S.A.: 1-877-447-0011
Canada: 1-877-438-9677
*Some models.
5-29
Interior Features
Mazda Connect
SiriusXM® All Access Subscription
Hopefully, you're already loving SiriusXM in your new Mazda. But don't stop there
— you can also listen on the app and online. All Access is the very best subscription
package - with the most channels and the most flexibility. With All Access, you get
every channel available on your vehicle, plus you can listen on the app, online, and
in your home on a variety of connected devices. — so you can enjoy SiriusXM
wherever you are. Here's what's included:
Over 150 satellite channels to enjoy in your car, coast-to-coast, 24/7.
All kinds of commercial-free music, plus every major sport, world-class news and
the biggest names in talk & entertainment.
All of our premium programming, including Howard Stern, every NFL, MLB®, and
NBA game, NHL® games, every NASCAR® race, 24/7 talk channels dedicated to
the biggest leagues, and much more.
All SiriusXM services require a subscription, sold separately or as a package by
SiriusXM Radio Inc. (or, in Canada, SiriusXM Canada Inc.), after any trial
subscription which may be included with your vehicle purchase or lease. To
subscribe after your trial subscription, call 1-877-447-0011 (U.S.A.) or
1-877-438-9677 (Canada).
CAUTION
It is prohibited to copy, decompile, disassemble, reverse engineer, hack,
manipulate, or otherwise make available any technology or software incorporated in
receivers compatible with the SiriusXM satellite radio service or that support the
SiriusXM website, the online service or any of its content. Furthermore, the AMBE®
voice compression software included in this product is protected by intellectual
property rights including patent rights, copyrights, and trade secrets of Digital Voice
Systems, Inc. The SiriusXM Service may include traffic, weather and other content
and emergency alert information and data. Such information and data is not for
“safety for life”, but is merely supplemental and advisory in nature and, therefore,
cannot be relied upon as safety critical. Neither SiriusXM nor Mazda is responsible
for any errors in accuracies in the SiriusXM data services or its use in applications.
The SiriusXM content is subject to change without notice.
NOTE
SiriusXM Satellite Radio Service is available in the 48 contiguous United States and
the District of Columbia. The service is not available in Alaska, Hawaii or Puerto
Rico.
5-30
Interior Features
Mazda Connect
HD Radio™
What is HD Radio™ Technology and how does it work?
HD Radio™ Technology is the digital evolution of analog AM/FM radio.
Your radio product has a special receiver which allows it to receive digital broadcasts
(where available) in addition to the analog broadcasts it already receives.
Digital broadcasts have better sound quality than analog broadcasts as digital
broadcasts provide free, crystal clear audio.
For more information, and a guide to available radio stations and programming,
please visit www.hdradio.com.
Benefits of HD Radio™ Technology
(Information)
The song title, artist name, album name will appear on the screen when available by
the radio station.
(Multicast)
On the FM radio frequency most digital stations have “multiple” or supplemental
programs on each FM station.
HD Radio Technology manufactured under license from iBiquity Digital Corporation.
U.S. and Foreign Patents.
For patents see http://dts.com/patents.
Apple CarPlay™
CAUTION
¾ YOU EXPRESSLY ACKNOWLEDGE AND AGREE THAT USE OF APPLE CARPLAY™
(“THE APPLICATION”) IS AT YOUR SOLE RISK AND THAT THE ENTIRE RISK AS TO
SATISFACTORY QUALITY, PERFORMANCE, ACCURACY AND EFFORT IS WITH
YOU TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, AND THAT
THE APPLICATION AND INFORMATION ON THE APPLICATION IS PROVIDED “AS
IS” AND “AS AVAILABLE”, WITH ALL FAULTS AND WITHOUT WARRANTY OF ANY
KIND, AND MAZDA HEREBY DISCLAIMS ALL WARRANTIES AND CONDITIONS
WITH RESPECT TO THE APPLICATION AND INFORMATION ON THE
APPLICATION, EITHER EXPRESS, IMPLIED OR STATUTORY, INCLUDING, BUT NOT
LIMITED TO, THE IMPLIED WARRANTIES AND/OR CONDITIONS OF
MERCHANTABILITY, SATISFACTORY QUALITY, FITNESS FOR A PARTICULAR
PURPOSE, ACCURACY, QUIET ENJOYMENT, AND NONINFRINGEMENT OF
THIRD PARTY RIGHTS.
5-31
Interior Features
Mazda Connect
AS EXAMPLES, AND WITHOUT LIMITATION, MAZDA DISCLAIMS ANY
WARRANTY REGARDING THE ACCURACY OF DATA PROVIDED BY THE
APPLICATION, SUCH AS THE ACCURACY OF DIRECTIONS, ESTIMATED TRAVEL
TIME, SPEED LIMITS, ROAD CONDITIONS, NEWS, WEATHER, TRAFFIC, OR
OTHER CONTENT PROVIDED BY APPLE, ITS AFFILIATES, OR THIRD PARTY
PROVIDERS; MAZDA DOES NOT GUARANTEE AGAINST LOSS OF APPLICATION
DATA, WHICH MAY BE LOST AT ANY TIME; MAZDA DOES NOT GUARANTEE
THAT THE APPLICATION OR ANY SERVICES PROVIDED THROUGH THEM WILL
BE PROVIDED AT ALL TIMES OR THAT ANY OR ALL SERVICES WILL BE AVAILABLE
AT ANY PARTICULAR TIME OR LOCATION. FOR EXAMPLE, SERVICES MAY BE
SUSPENDED OR INTERRUPTED WITHOUT NOTICE FOR REPAIR, MAINTENANCE,
SECURITY FIXES, UPDATES, ETC., SERVICES MAY BE UNAVAILABLE IN YOUR AREA
OR LOCATION, ETC.
IN ADDITION, YOU UNDERSTAND THAT CHANGES IN THIRD PARTY
TECHNOLOGY OR GOVERNMENT REGULATION MAY RENDER THE SERVICES
AND/OR APPLICATIONS OBSOLETE AND/OR UNUSABLE. TO THE EXTENT NOT
PROHIBITED BY LAW, IN NO EVENT SHALL MAZDA OR ITS AFFILIATES BE LIABLE
FOR PERSONAL INJURY, OR ANY INCIDENTAL, SPECIAL, INDIRECT OR
CONSEQUENTIAL DAMAGES WHATSOEVER, INCLUDING, WITHOUT
LIMITATION, DAMAGES FOR LOSS OF PROFITS, CORRUPTION OR LOSS OF
DATA, FAILURE TO TRANSMIT OR RECEIVE ANY DATA, BUSINESS INTERRUPTION
OR ANY OTHER COMMERCIAL DAMAGES OR LOSSES, ARISING OUT OF OR
RELATED TO THE APPLICATION OR YOUR USE OF OR INABILITY TO USE THE
APPLICATION OR INFORMATION ON THE APPLICATION.
¾ When using Apple CarPlay™, please avoid distraction and use Apple CarPlay™
responsibly.
Stay fully aware of driving conditions and always obey applicable laws.
NOTE
Apple CarPlay™ is provided by Apple® and its use is subject to your agreement to
the Apple CarPlay™ terms of use, which are included as part of the Apple iOS
terms of use.
When using Apple CarPlay™, location, speed, and other vehicle data is transferred
to your iPhone®. For further details, refer to Apple®’s Privacy Policy.
5-32
Interior Features
Mazda Connect
Android Auto™
CAUTION
¾ YOU EXPRESSLY ACKNOWLEDGE AND AGREE THAT USE OF ANDROID AUTO™
(“THE APPLICATION”) IS AT YOUR SOLE RISK AND THAT THE ENTIRE RISK AS TO
SATISFACTORY QUALITY, PERFORMANCE, ACCURACY AND EFFORT IS WITH
YOU TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, AND THAT
THE APPLICATION AND INFORMATION ON THE APPLICATION IS PROVIDED “AS
IS” AND “AS AVAILABLE,” WITH ALL FAULTS AND WITHOUT WARRANTY OF ANY
KIND, AND MAZDA HEREBY DISCLAIMS ALL WARRANTIES AND CONDITIONS
WITH RESPECT TO THE APPLICATION AND INFORMATION ON THE
APPLICATION, EITHER EXPRESS, IMPLIED OR STATUTORY, INCLUDING, BUT NOT
LIMITED TO, THE IMPLIED WARRANTIES AND/OR CONDITIONS OF
MERCHANTABILITY, SATISFACTORY QUALITY, FITNESS FOR A PARTICULAR
PURPOSE, ACCURACY, QUIET ENJOYMENT, AND NONINFRINGEMENT OF
THIRD PARTY RIGHTS.
AS EXAMPLES, AND WITHOUT LIMITATION, MAZDA DISCLAIMS ANY
WARRANTY REGARDING THE ACCURACY OF DATA PROVIDED BY THE
APPLICATION, SUCH AS THE ACCURACY OF DIRECTIONS, ESTIMATED TRAVEL
TIME, SPEED LIMITS, ROAD CONDITIONS, NEWS, WEATHER, TRAFFIC, OR
OTHER CONTENT PROVIDED BY GOOGLE, ITS AFFILIATES, OR THIRD PARTY
PROVIDERS; MAZDA DOES NOT GUARANTEE AGAINST LOSS OF APPLICATION
DATA, WHICH MAY BE LOST AT ANY TIME; MAZDA DOES NOT GUARANTEE
THAT THE APPLICATION OR ANY SERVICES PROVIDED THROUGH THEM WILL
BE PROVIDED AT ALL TIMES OR THAT ANY OR ALL SERVICES WILL BE AVAILABLE
AT ANY PARTICULAR TIME OR LOCATION. FOR EXAMPLE, SERVICES MAY BE
SUSPENDED OR INTERRUPTED WITHOUT NOTICE FOR REPAIR, MAINTENANCE,
SECURITY FIXES, UPDATES, ETC., SERVICES MAY BE UNAVAILABLE IN YOUR AREA
OR LOCATION, ETC.
IN ADDITION, YOU UNDERSTAND THAT CHANGES IN THIRD PARTY
TECHNOLOGY OR GOVERNMENT REGULATION MAY RENDER THE SERVICES
AND/OR APPLICATIONS OBSOLETE AND/OR UNUSABLE. TO THE EXTENT NOT
PROHIBITED BY LAW, IN NO EVENT SHALL MAZDA OR ITS AFFILIATES BE LIABLE
FOR PERSONAL INJURY, OR ANY INCIDENTAL, SPECIAL, INDIRECT OR
CONSEQUENTIAL DAMAGES WHATSOEVER, INCLUDING, WITHOUT
LIMITATION, DAMAGES FOR LOSS OF PROFITS, CORRUPTION OR LOSS OF
DATA, FAILURE TO TRANSMIT OR RECEIVE ANY DATA, BUSINESS INTERRUPTION
OR ANY OTHER COMMERCIAL DAMAGES OR LOSSES, ARISING OUT OF OR
RELATED TO THE APPLICATION OR YOUR USE OF OR INABILITY TO USE THE
APPLICATION OR INFORMATION ON THE APPLICATION.
¾ When using Android Auto™, please avoid distraction and use Android Auto™
responsibly.
Stay fully aware of driving conditions and always obey applicable laws.
5-33
Interior Features
Mazda Connect
NOTE
Android Auto™ is provided by Google and its use is subject to your agreement to
the Android Auto™ terms of use.
When using Android Auto™, location, speed, and other vehicle data is transferred
to your smart phone. For further details, refer to Google Privacy Policy.
Trademark
Pandora®, the Pandora® logo, and the Pandora® trade dress are trademarks or
registered trademarks of Pandora Media, Inc., used with permission.
HD Radio™ and the HD, HD Radio, and “Arc” logos are proprietary trademarks of
iBiquity Digital Corp.
iPhone, iPod touch, iPod nano, Siri and Apple Music are registered trademarks of
Apple Inc.
Apple CarPlay is trademarks of Apple Inc.
iOS is a trademark or registered trademark of Cisco in the U.S. and other countries
and is used under license.
“Made for iPhone” and “Made for iPod” mean that an accessory has been
designed to connect specifically to iPhone or iPod, and has been certified by the
developer to meet Apple performance standards. Apple is not responsible for the
operation of this device or its compliance with safety and regulatory standards.
Please note that the use of this accessory with iPhone or iPod may affect wireless
performance.
Made for
iPhone 7 Plus
iPhone 7
iPhone SE
iPhone 6s Plus
iPhone 6s
iPhone 6 Plus
iPhone 6
iPhone 5s
iPhone 5c
iPhone 5
iPhone 4s
iPod touch (6th generation)
iPod touch (5th generation)
5-34
Interior Features
Mazda Connect
iPod nano (7th generation)
Google, Android, Android Auto and other related marks are trademarks of Google
LLC.
AudioPilot is a registered trademark of Bose Corporation.
Centerpoint is a registered trademark of Bose Corporation.
Windows Media and Microsoft are registered trademarks of Microsoft Corporation
U.S. in the United States and other countries.
This product is protected by certain intellectual property rights of Microsoft
Corporation and third parties.
Use or distribution of such technology outside of this product is prohibited
without a license from Microsoft or an authorized Microsoft subsidiary and third
parties.
The Bluetooth® word mark and logos are registered trademarks owned by
Bluetooth SIG, Inc. and any use of such marks by Panasonic Corporation is under
license. Other trademarks and trade names are those of their respective owners.
SDHC Logo is a trademark of SD-3C, LLC.
Gracenote, the Gracenote logo and logotype are either a registered trademark or a
trademark of Gracenote, Inc. in the United States and/or other countries.
5-35
Interior Features
Mazda Connect
Regarding the license for the audio amplifier (except vehicles with Bose audio)
License for CMSIS-RTOS RTX Implementation
Copyright (c) 1999-2009 KEIL, 2009-2015 ARM Germany GmbH, 2013-2016 ARM
Ltd All rights reserved.
Redistribution and use in source and binary forms, with or without modification, are
permitted provided that the following conditions are met:
Redistributions of source code must retain the above copyright notice, this list of
conditions and the following disclaimer
Redistributions in binary form must reproduce the above copyright notice, this list
of conditions and the following disclaimer in the documentation and/or other
materials provided with the distribution.
Neither the name of ARM nor the names of its contributors may be used to
endorse or promote products derived from this software without specific prior
written permission.
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND
CONTRIBUTORS “AS IS” AND ANY EXPRESS OR IMPLIED WARRANTIES,
INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED.
IN NO EVENT SHALL COPYRIGHT HOLDERS AND CONTRIBUTORS BE LIABLE FOR
ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL
DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE
GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS
INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY,
WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE
OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE,
EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
5-36
Interior Features
Mazda Connect
Connected Service (U.S.A only)
▼ Connected Service Overview
There are several types of connected services available via Mazda Connect. Some
services may require you to download the MyMazda app to your smartphone and
subscribe to the services, while others may require you to pair your smartphone to
the vehicle via Bluetooth®. In addition, on a regular basis and unless you opt-out,
your vehicle will automatically transmit certain geo-location, driving behavior data,
and vehicle health information to Mazda for product quality, data analysis, research,
and product development. Using the QR codes or URLs below, refer to the
Connected Service Owner's Manual and Privacy Policy for more details and opt-out
options.
Connected Service Owner's Manual
index.html
Privacy
Mazda maintains a Privacy Statement which describes how we collect, use, share,
store and secure data from your vehicle equipped with connected services.
We provide you with connected services by collecting and using your personal
information and vehicle location, health and driving data.
To learn more about our Privacy Statement, please visit: https://
5-37
Interior Features
Interior Equipment
▼ Vanity Mirrors
Sunvisors

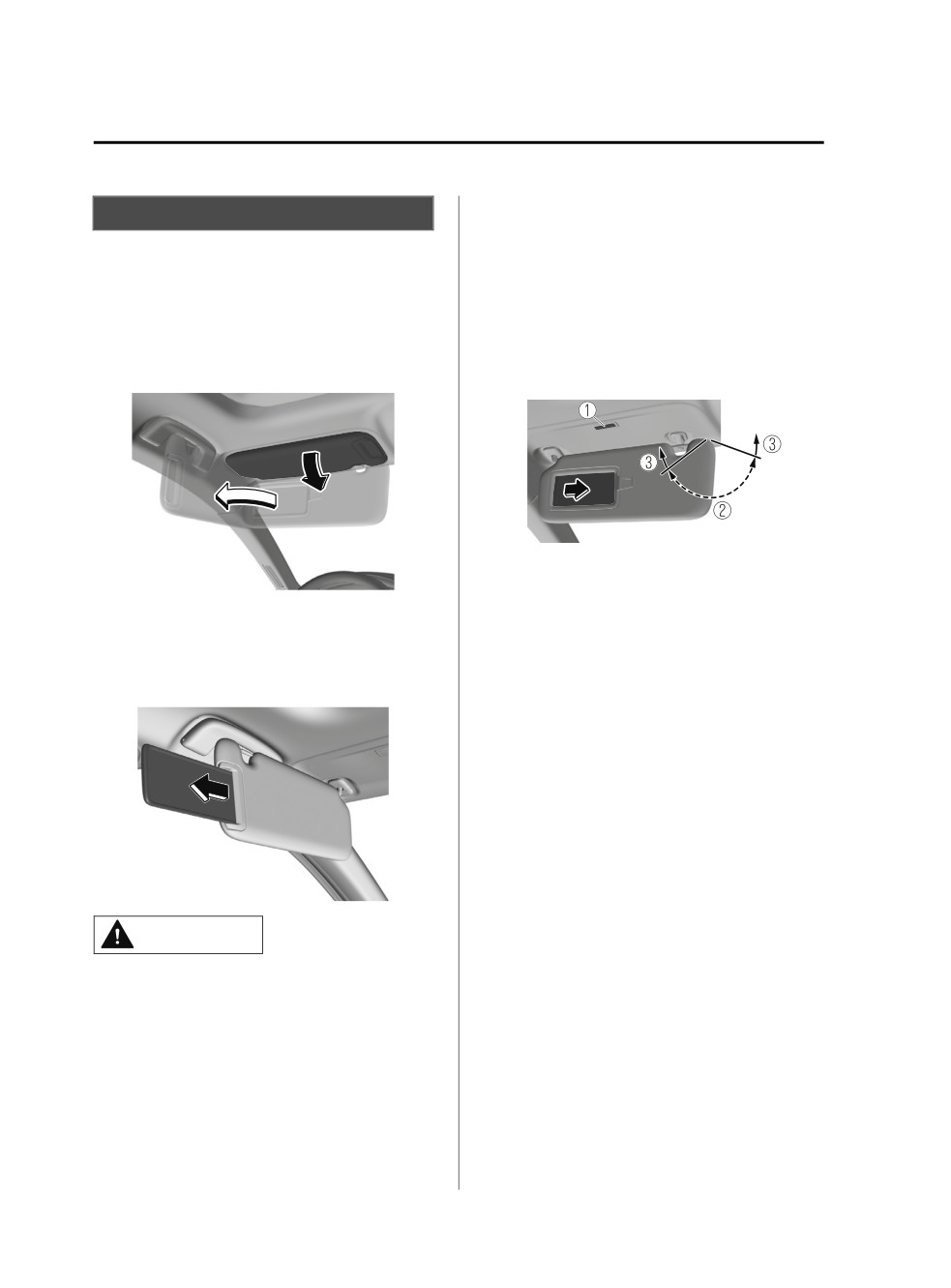

To use the vanity mirror, lower the
▼ Sunvisors
sunvisor.
If your vehicle is equipped with a
Lower the sunvisor to block sunlight
vanity mirror light, it will illuminate
from the front.
when you open the cover.
To block sunlight from the side, lower
The vanity mirror will only illuminate in
and unhook the sunvisor, and then
the tilt range shown in the figure.
swing it to the side.
1. Vanity mirror light
2. On
3. Off
▼ Side Extension Sunvisors*
The visor extender extends the
NOTE
sunvisor's range of sun shading.
If a vanity mirror light is left on with the
To use, pull it out.
ignition switched OFF, the light is
turned off automatically to prevent the
battery from being discharged.
The vanity mirror light can be turned
on again by doing any of the following
operations:
Opening/closing any door.
Unlocking any door.
Switching the ignition to ACC or ON.
Switching an overhead light/front
CAUTION
map light on.
When moving the sunvisor, retract the
visor extender to its original position.
Otherwise, the visor extender could hit
the rearview mirror.
5-38
*Some models.
Interior Features
Interior Equipment
Switch
Overhead Lights
Interior Lights

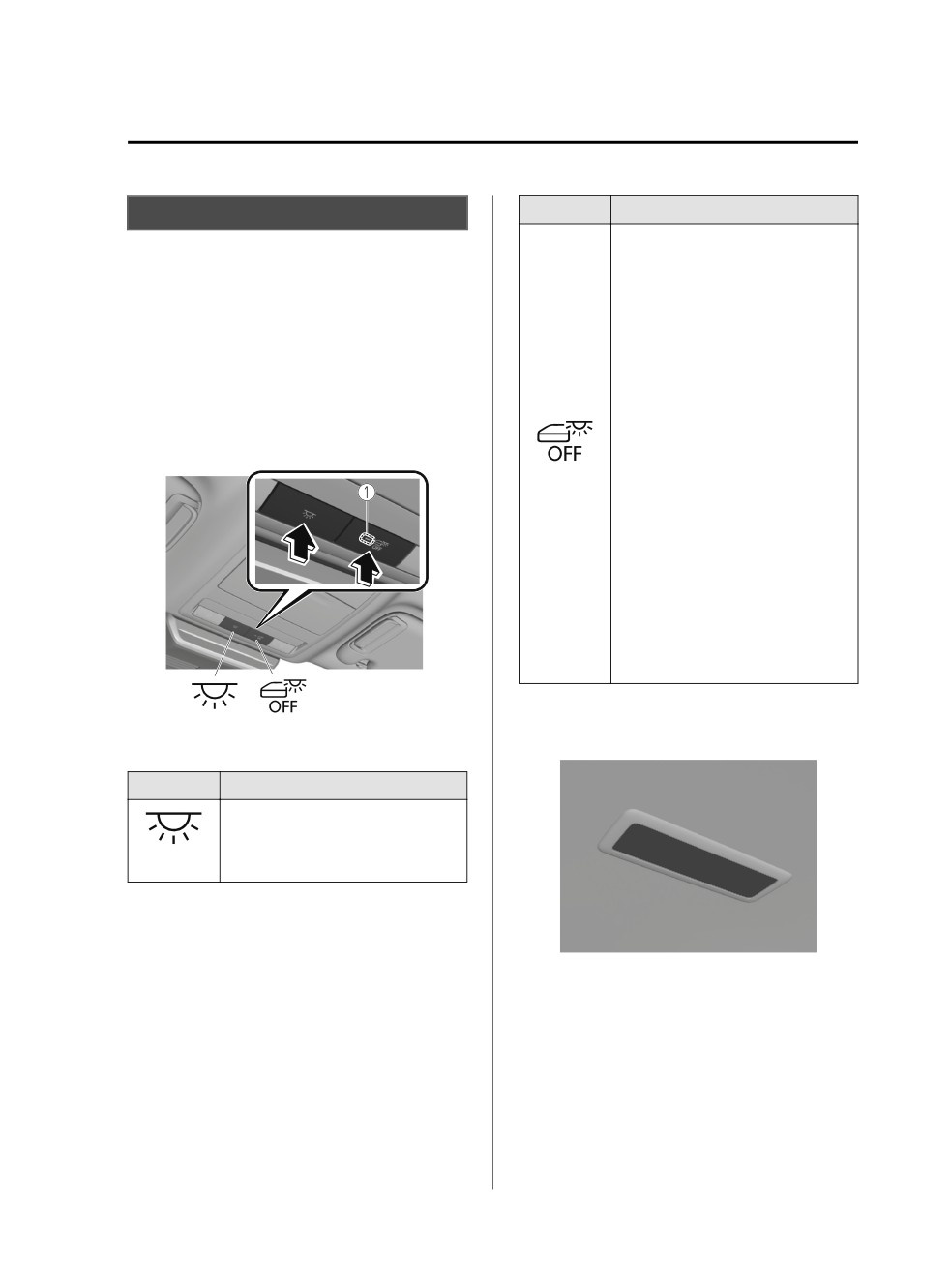

The door interlock can be switch-
▼ Interior Lights
ed ON/OFF.
When the door interlock is OFF,
NOTE
the indicator light in the switch
Do not leave the lights on for long
turns on.
periods while the engine is turned off.
Otherwise the battery power could be
Door interlock ON (indicator
depleted.
light in switch is off)
Overhead lights
The lights turn on when any of
the doors is opened.
Front
The lights turn on/off in con-
DOOR OFF
junction with the illuminated
entry system.
Door interlock OFF (indicator
light in switch is on)
The lights do not turn on even
if any of the doors is opened.
The lights do not turn on/off in
conjunction with the illuminat-
ed entry system.
1. Indicator light
Rear
Switch
Overhead Lights
Press the switch to turn it on.
Press the switch again to turn off
the lights.
ON/OFF
NOTE
The rear overhead light also turn on
and off when the front overhead light
switch is operated.
5-39
Interior Features
Interior Equipment

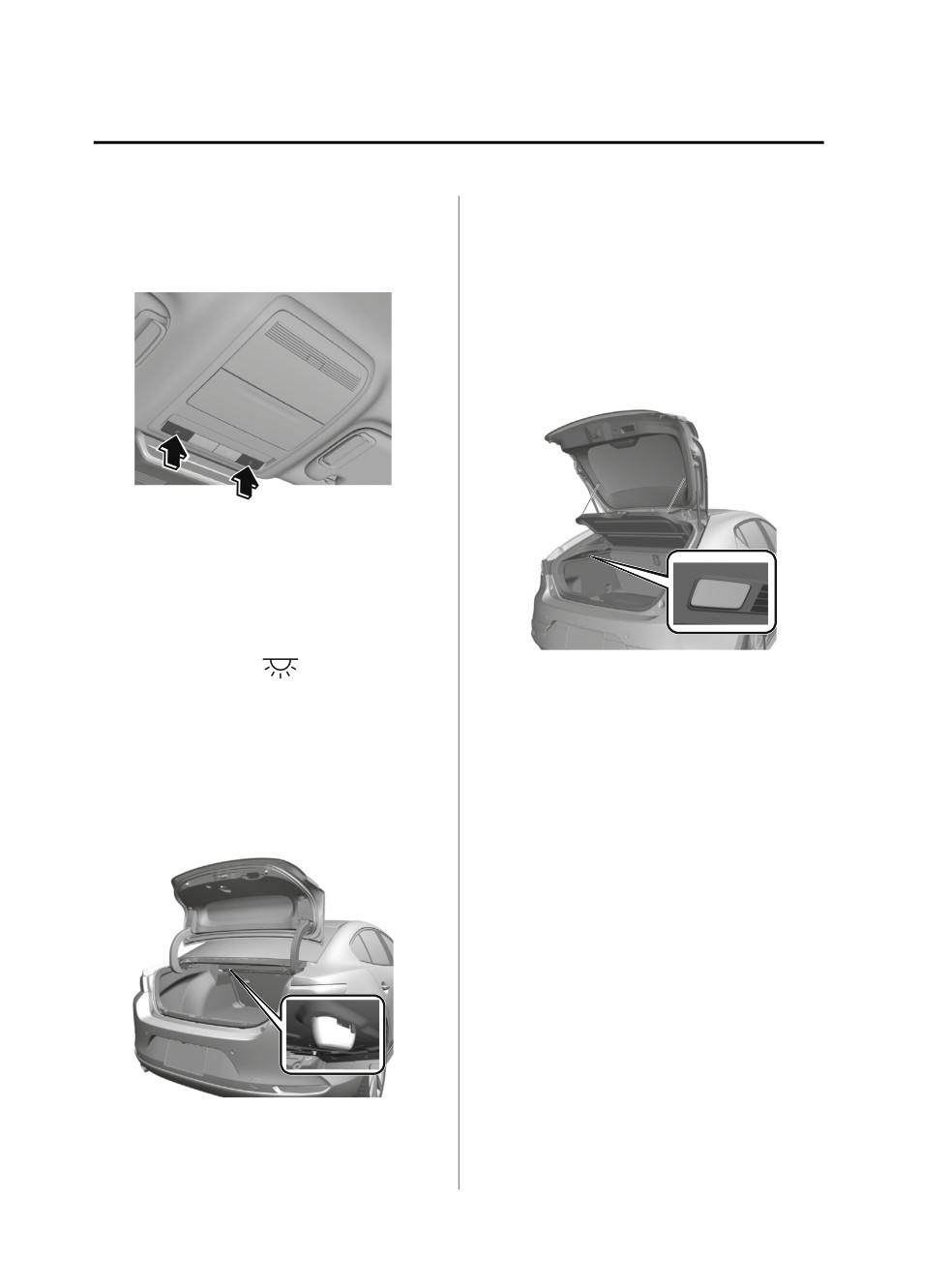

Map lights
NOTE
Do not leave the trunk open for long
Press the switch to illuminate the map
periods while the engine is turned off.
lights, and then press the switch again
Otherwise the battery power could be
to turn them off.
depleted.
Luggage compartment light (5-door)
The luggage compartment light is on
when the liftgate is open and off when
it is closed.
NOTE
The map lights will not turn off even if
the switch is pressed in the following
cases:
The overhead lights turn on by
operating the overhead light
ON/OFF switch (
).
NOTE
The overhead lights turn on in
Do not leave the liftgate open for long
conjunction with a door opening/
periods while the engine is turned off.
closing.
Otherwise the battery power could be
The illuminated entry system is on.
depleted.
Trunk light (4-door)
The trunk light is on when the trunk is
open and off when it is closed.
5-40
Interior Features
Interior Equipment
▼ Illuminated Entry System
Accessory Socket
The overhead lights turn on when any
▼ Accessory Socket
of the following operations is done
with the overhead light switch in the
Only use genuine Mazda accessories
DOOR position.
or the equivalent requiring no greater
The driver's door is unlocked with
than 120 W (DC 12 V, 10 A).
The accessory socket can be used
the ignition is switched OFF.
regardless of whether the ignition is on
The ignition is switched OFF with all
or off.
doors closed.
NOTE
The illumination time differs
depending on the operation.
The vehicle is equipped with a
battery saver. If an interior light is left
on with the ignition switched OFF,
the light turns off automatically after
a certain period of time has passed
to prevent battery depletion.
The operation of the illuminated
entry system can be changed.
CAUTION
Refer to the Settings section in the
Mazda Connect Owner's Manual.
¾ To prevent accessory socket damage
The illuminated entry system does
or electrical failure, pay attention to
not operate in conjunction with the
the following:
overhead lights when the overhead
lights are turned on using the
¾ Do not use accessories that require
overhead light ON/OFF switch.
more than 120 W (DC 12 V, 10 A).
¾ Do not use accessories that are not
genuine Mazda accessories or the
equivalent.
¾ Close the cover when the
accessory socket is not in use to
prevent foreign objects and liquids
from getting into the accessory
socket.
¾ Correctly insert the plug into the
accessory socket.
¾ Do not insert the cigarette lighter
into the accessory socket.
¾ Noise may occur on the audio
playback depending on the device
connected to the accessory socket.
5-41
Interior Features
Interior Equipment
¾ Depending on the device connected
Cup Holder
to the accessory socket, the vehicle's
electrical system may be affected,
▼ Cup Holder
which could cause the warning light
to illuminate. Disconnect the
WARNING
connected device and make sure
that the problem is resolved. If the
problem is resolved, disconnect the
Never use a cup holder to hold hot
device from the socket and switch
liquids while the vehicle is moving:
the ignition off. If the problem is not
Using a cup holder to hold hot liquids
resolved, consult an Authorized
while the vehicle is moving is
Mazda Dealer.
dangerous. If the contents spill, you
could be scalded.
NOTE
To prevent discharging of the battery,
Do not put anything other than cups
do not use the socket for long periods
or drink cans in cup holders:
with the engine off or idling.
Putting objects other than cups or
drink cans in a cup holder is
Connecting the accessory socket
dangerous.

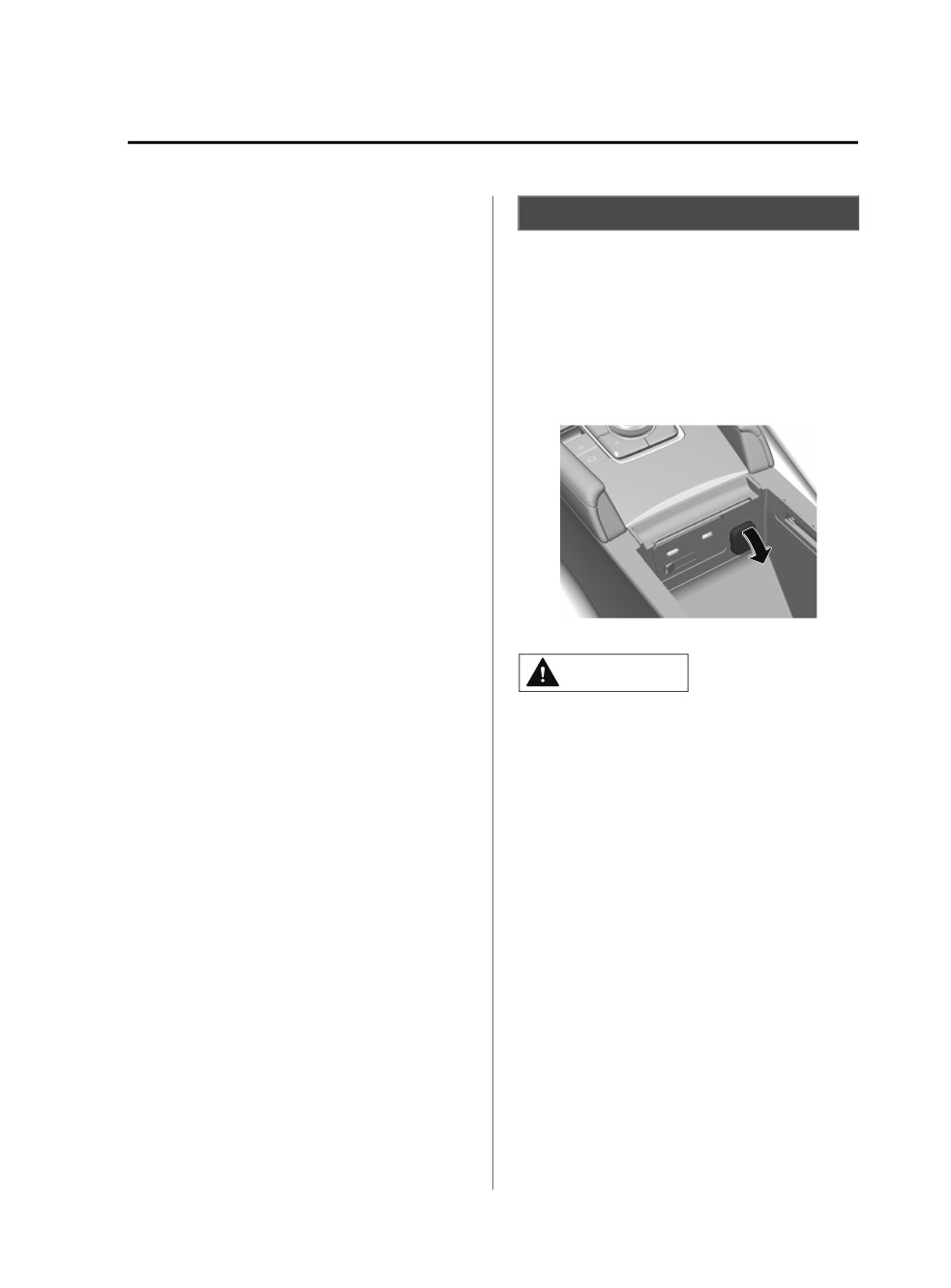

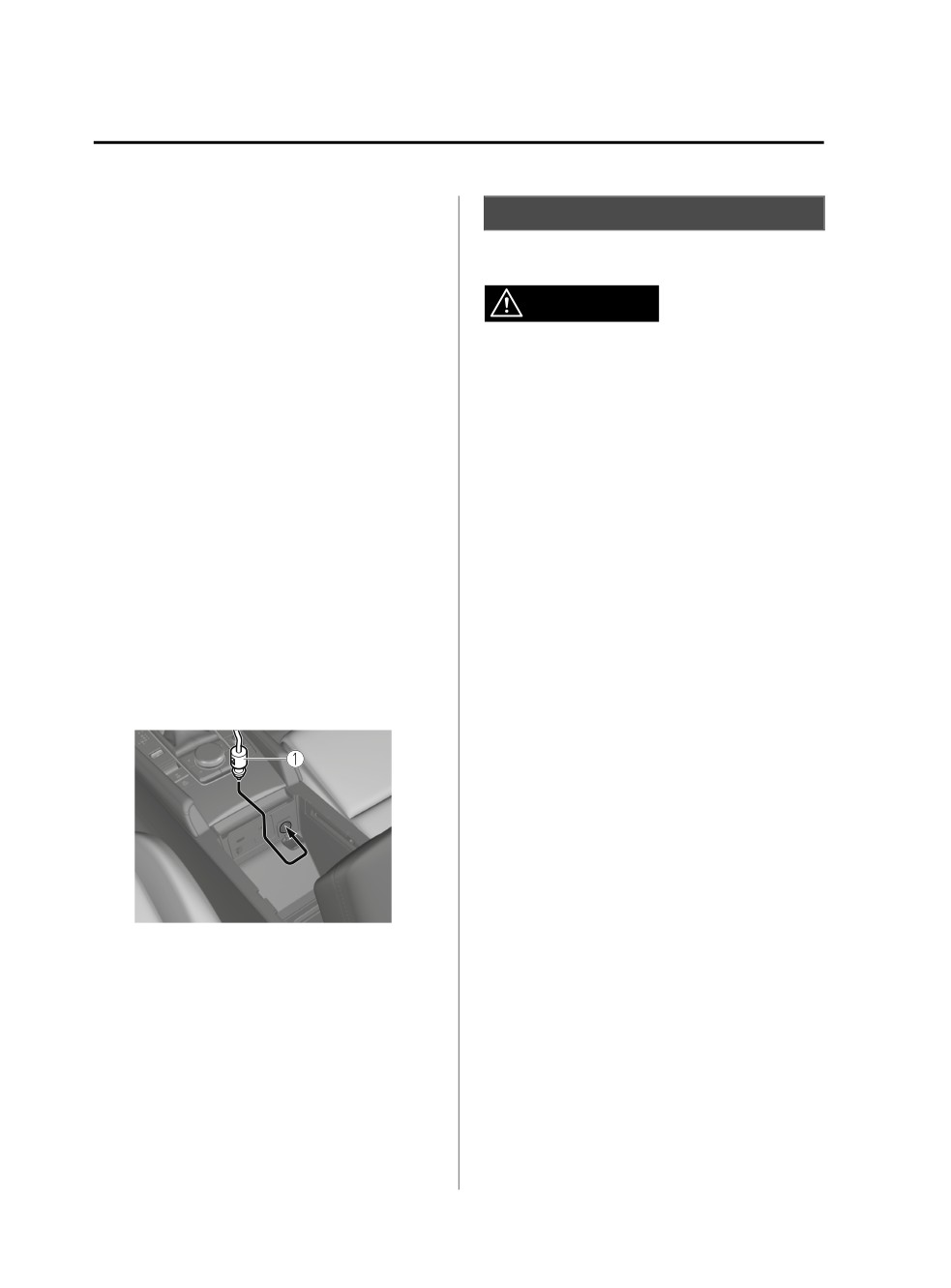

1. Open the lid.
During sudden braking or
maneuvering, occupants could be hit
2. Pass the connection plug cord
through the cutout of the console
and injured, or objects could be
thrown around the vehicle, causing
and insert the plug into the
accessory socket.
interference with the driver and the
possibility of an accident. Only use a
cup holder for cups or drink cans.
1. Plug
5-42
Interior Features
Interior Equipment
▼ Front
▼ Rear*

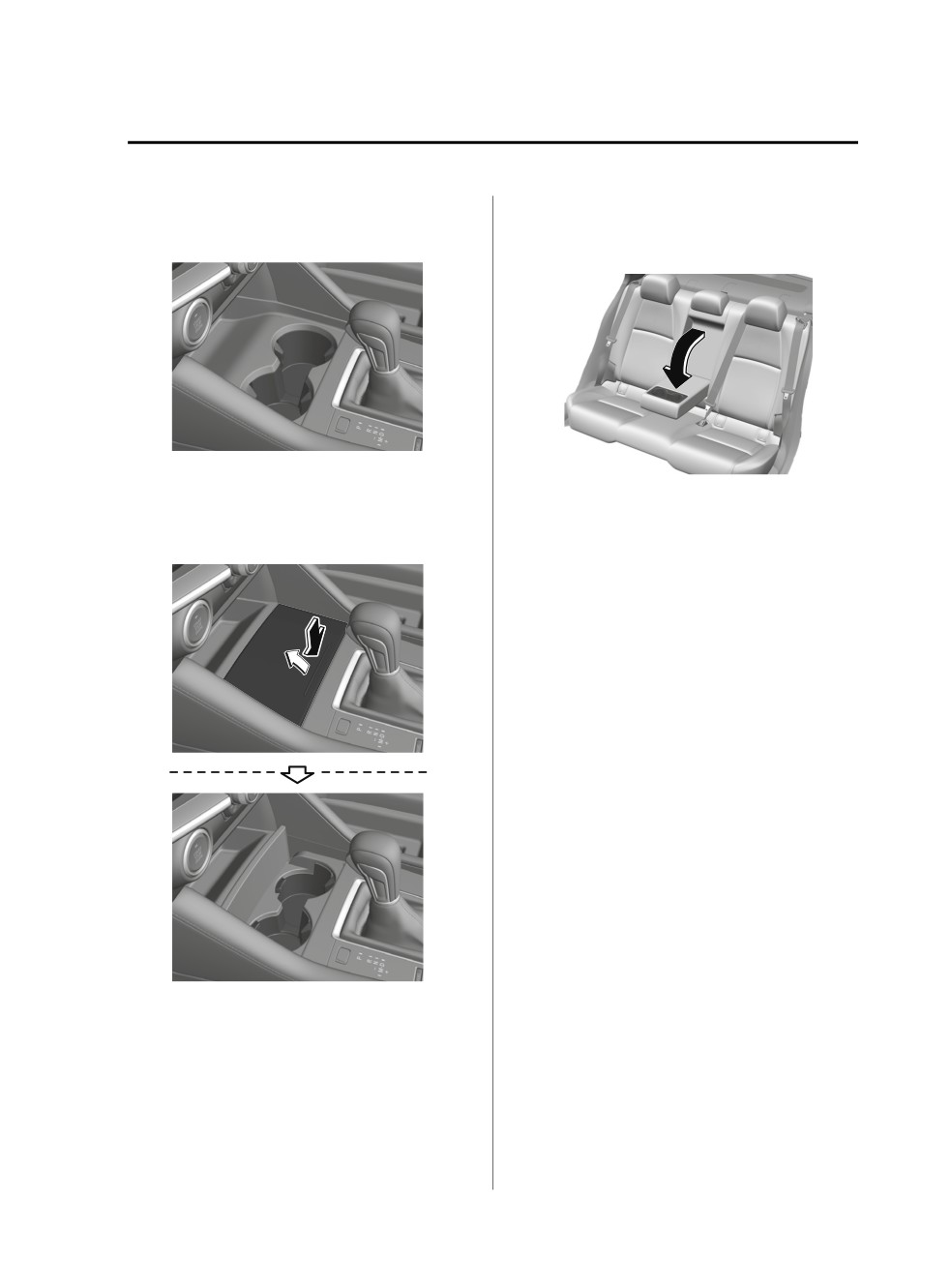

Type A
The rear cup holder is on the rear
center armrest.
Type B
To use the cup holder, push the release
button.
*Some models.
5-43
Interior Features
Interior Equipment
Bottle Holder
Assist Grips

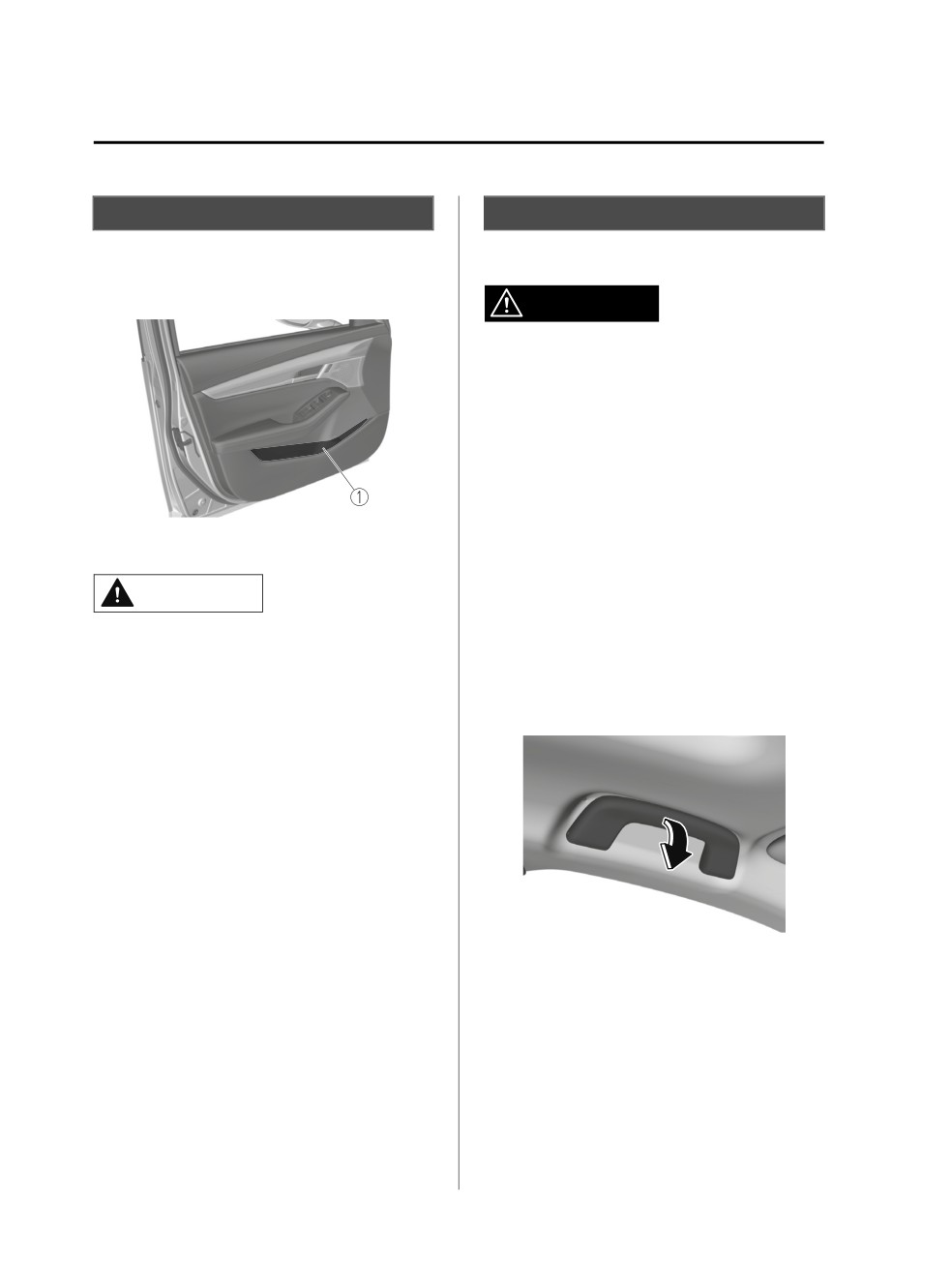

▼ Bottle Holder

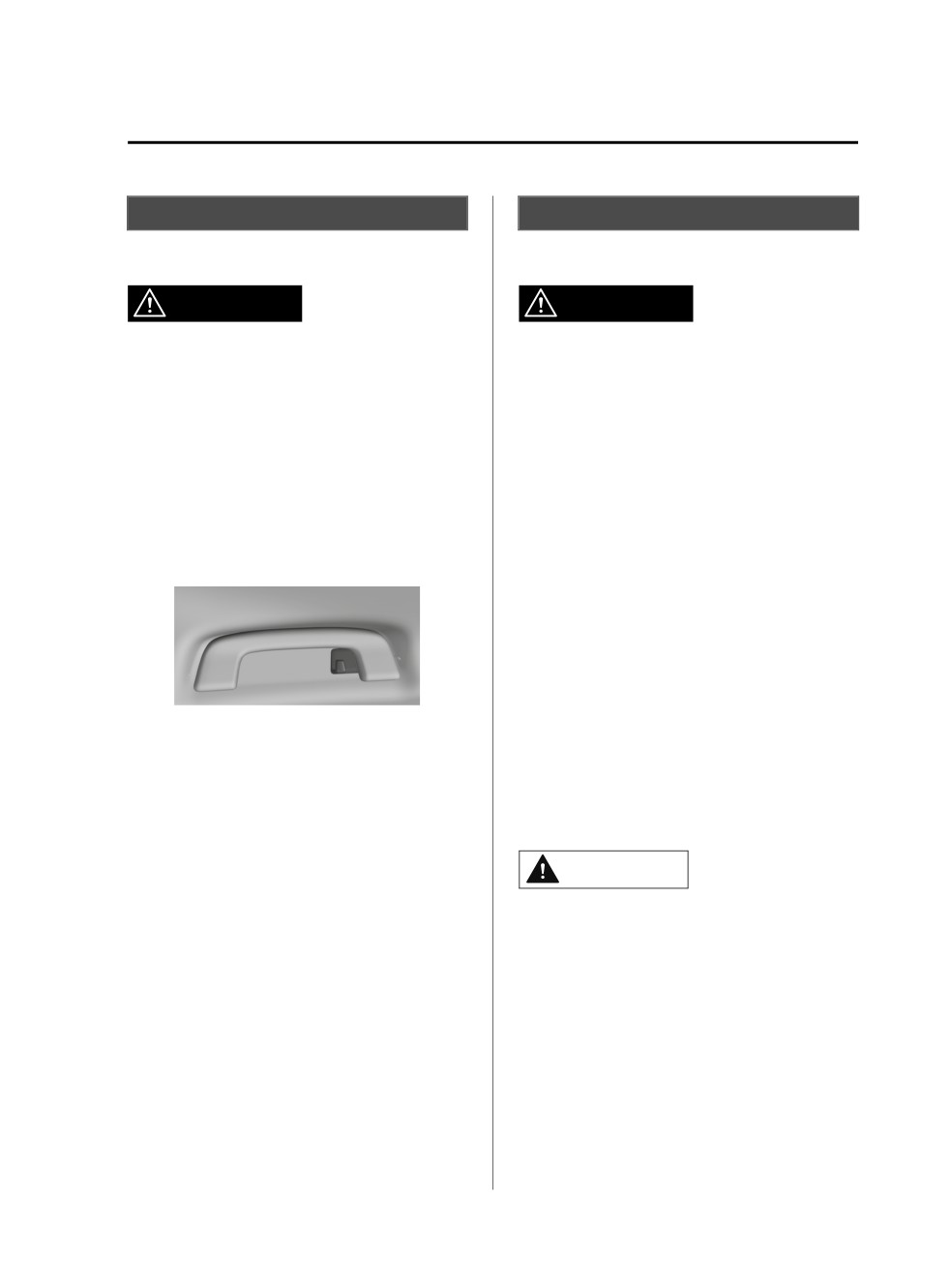

▼ Assist Grips
Bottle holders are on the inside of the
doors.
WARNING
Never hang heavy or sharp objects on
the assist grips and coat hooks:
Hanging heavy or sharp-ended objects
such as a coat hanger from the assist
grips or coat hooks is dangerous as
they can fly off and hit an occupant in
the cabin if a curtain air bag was to
deploy, which could result in serious
injury or death.
1. Bottle holder
Do not use the assist grips when
getting in and out of the vehicle or
CAUTION
getting out of a seat:
Do not use the bottle holders for
An assist grip could break under a
containers without caps. The contents
heavy load resulting in injury.
may spill when opening/closing the
Use the assist grips to support your
door or while driving the vehicle.
body while seated in the vehicle and
while the vehicle is moving.
5-44
Interior Features
Interior Equipment
Rear Coat Hooks
Storage Compartments
▼ Rear Coat Hooks
▼ Storage Compartments
WARNING
WARNING
Never hang heavy or sharp objects on
Keep storage boxes closed when
the assist grips and coat hooks:
driving:
Hanging heavy or sharp-ended objects
Driving with the storage boxes open is
such as a coat hanger from the assist
dangerous. To reduce the possibility of
grips or coat hooks is dangerous as
injury in an accident or a sudden stop,
they can fly off and hit an occupant in
keep the storage boxes closed when
the cabin if a curtain air bag was to
driving.
deploy, which could result in serious
injury or death.
When loading cargo, make sure that it
is completely secured:
Always hang clothes on the coat hooks
If the cargo is not completely secured,
and the assist grips without hangers.
it may move or collapse while driving
or during sudden braking, resulting in
injury or an accident.
Do not put articles in storage spaces
with no lid:
Putting articles in storage spaces with
no lid is dangerous as they could be
thrown around the cabin during
sudden braking, maneuvering, or
acceleration and cause an accident
depending on how the article is stored.
CAUTION
Do not leave lighters or eyeglasses in
the storage boxes while parked under
the sun. A lighter could explode or the
plastic material in eyeglasses could
deform and crack from high
temperature.
5-45
Interior Features
Interior Equipment

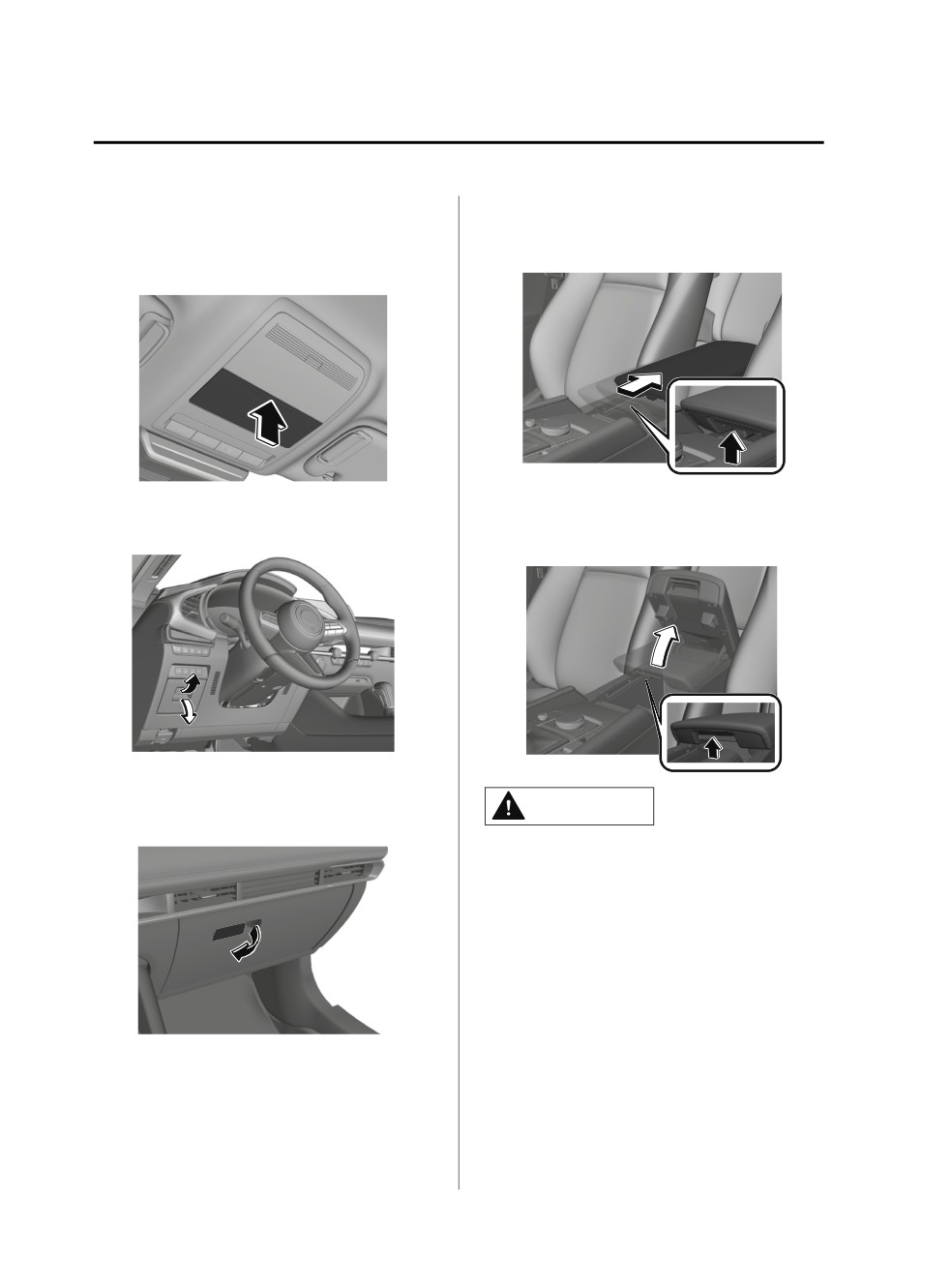

▼ Overhead Console*
▼ Center Console
This console box is designed to store
To slide the console lid, pull the knob
eyeglasses or other accessories.
and slide it rearward.
Push and release to open.
▼ Storage Pocket
To open the lid, pull the knob, slide
the lid rearward, and then lift up the
To use, open the lid.
lid.
▼ Glove Compartment
To open the glove compartment, pull
CAUTION
the knob toward you.
Do not put your hands or fingers
around the moving parts of the lid
when using the lid. Otherwise, your
hand or finger could get caught,
resulting in an injury.
To close the glove compartment, firmly
press in the center of the glove
compartment lid.
5-46
*Some models.
Interior Features
Interior Equipment
NOTE
Second golf bag: Place the golf bag in
The lid can be opened/closed while it
the luggage compartment with its
is slid to the 1st and 2nd stages, but if
bottom pointed to the left and fit it
the rear seatback is folded, the lid
into the back of the compartment.
cannot be opened/closed while it is
slid to the 2nd stage because the rear
seat (head restraint) will contact it.
Center console divider
Small items can be placed using the
center console divider.

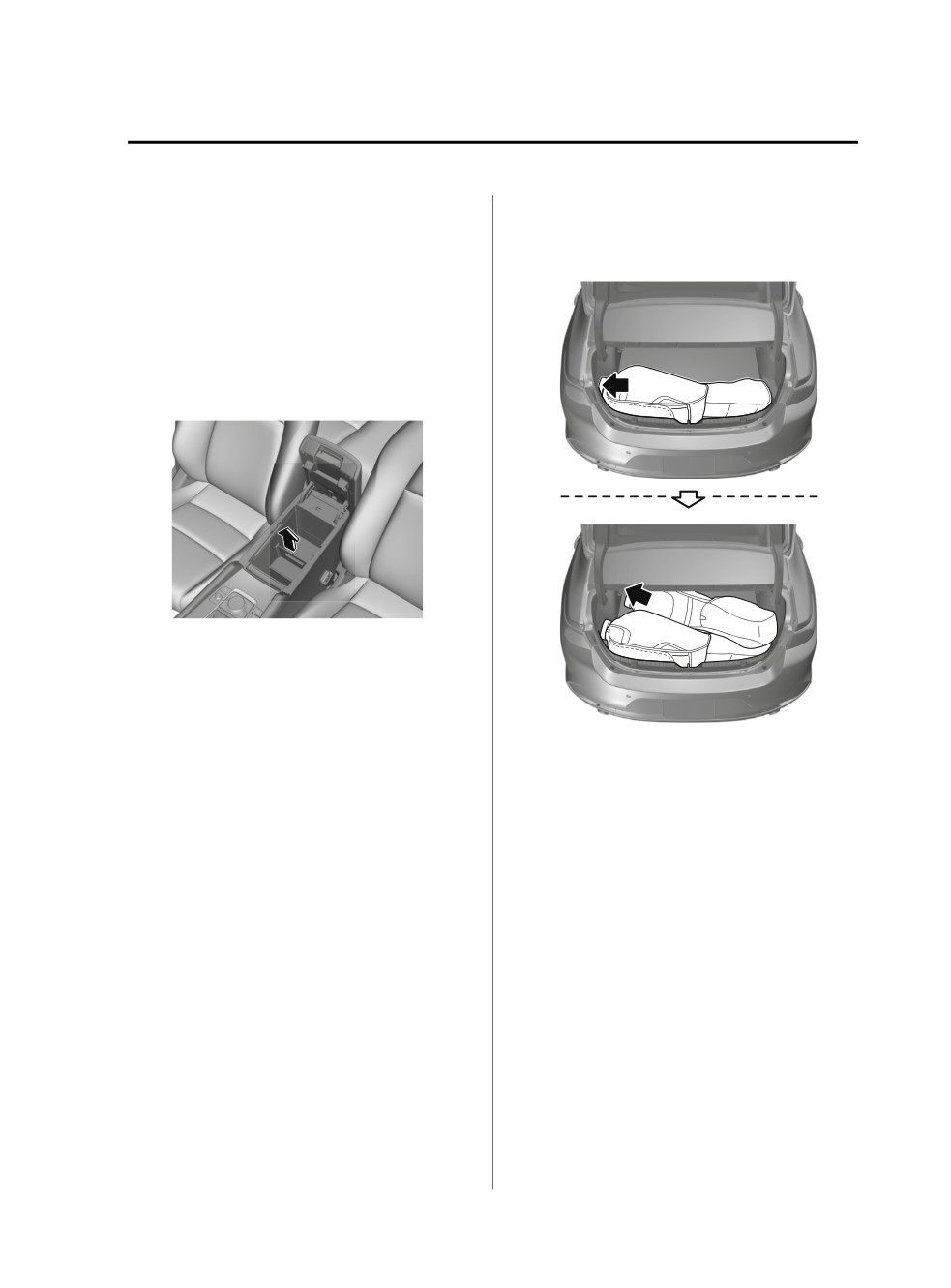

▼ Luggage Compartment
NOTE
The arrows indicate the bottoms of
Loading golf bags (4-door)
the golf bags.
(Some golf bags may not fit using the
following methods depending on their
sizes.)
Up to two golf bags can be carried in
the trunk.
First golf bag: Place the golf bag in the
luggage compartment with its bottom
pointed to the left and fit it into the
front of the compartment.
5-47
Maintenance and Care
6
How to keep your Mazda in top condition.
Essential Information
6-2
Brake/Clutch Fluid
6-21
Introduction
6-2
Washer Fluid
6-22
Body Lubrication
6-23
Wiper Blades
6-23
Scheduled Maintenance
6-4
Battery
6-29
Scheduled Maintenance
6-4
Key Battery Replacement
6-31
Tires
6-33
Owner Maintenance
6-12
Light Bulbs
6-37
Owner Maintenance
Fuses
6-40
Precautions
6-12
Hood
6-13
Appearance Care
6-48
Engine Compartment
Exterior Care
6-48
Overview
6-15
Interior Care
6-54
Engine Oil
6-17
Engine Coolant
6-20
6-1
Maintenance and Care
Essential Information
To continue warranty eligibility and to
Introduction
protect your investment, it is your
responsibility to properly maintain your
▼ Introduction
vehicle according to factory
Be careful not to hurt yourself when
recommended schedules outlined in
inspecting your vehicle, replacing a
this manual. As part of this you must
tire, or doing some kind of
keep your maintenance records,
maintenance such as changing the oil
receipts, repair orders and any other
and filter. In particular, wear thick work
documents as evidence this
gloves such as cotton gloves when
maintenance was performed. You must
touching areas that are difficult to see
present these documents, should any
while inspecting or working on your
warranty coverage disagreement occur.
vehicle. Doing inspections or
Failure to do so can result in your
procedures with your bare hands could
warranty being voided either in whole
cause injury.
or in part.
If you are unsure about any procedure
This evidence may consist of the
this manual describes, we strongly urge
following:
you to have a reliable and qualified
The Mazda Scheduled Maintenance
service shop perform the work,
Record, refer to the Warranty
preferably an Authorized Mazda
Booklet, must be completely filled
Dealer.
out showing mileage, repair order
number, date for each service, and
Factory-trained Mazda technicians and
signed by a qualified automotive
genuine Mazda parts are best for your
service technician who service
vehicle. Without this expertise and the
vehicles.
parts that have been designed and
Original copies of repair orders or
made especially for your Mazda,
other receipts that include the
inadequate, incomplete, and
mileage and date the vehicle was
insufficient servicing may result in
serviced. Each receipt should be
problems. This could lead to vehicle
signed by a qualified automotive
damage or an accident and injuries.
service technician.
For self maintenance, a statement
For expert advice and quality service,
that you completed the maintenance
consult an Authorized Mazda Dealer.
yourself, displaying mileage and the
date the work was performed. Also,
receipts for the replacement parts
(fluid, filters, etc.) indicating the date
and mileage must accompany this
statement.
6-2
Maintenance and Care
Essential Information
NOTE
The malfunction diagnosis connector is
If you elect to perform maintenance
designed exclusively for connecting the
yourself or have your vehicle serviced
specially designed device to perform
at a location other than an Authorized
on-board diagnosis.
Mazda Dealer, Mazda requires that all
Do not connect any devices other than
fluids, parts and materials must meet
the specially designed malfunction
Mazda standards for durability and
diagnosis devices for servicing. If any
performance as described in this
device other than the malfunction
manual.
diagnosis device is connected, it may
affect the vehicle's electrical devices or
lead to damage such as battery
Claims against the warranty resulting
depletion.
from lack of maintenance, as opposed
to defective materials or authorized
Mazda workmanship, will not be
honored.
Any auto repair shop using parts
equivalent to your Mazda's original
equipment may perform maintenance.
But we recommend that it always be
done by an Authorized Mazda Dealer
using genuine Mazda parts.
Selecting “Vehicle Status Monitor”
enables the system to notify you of

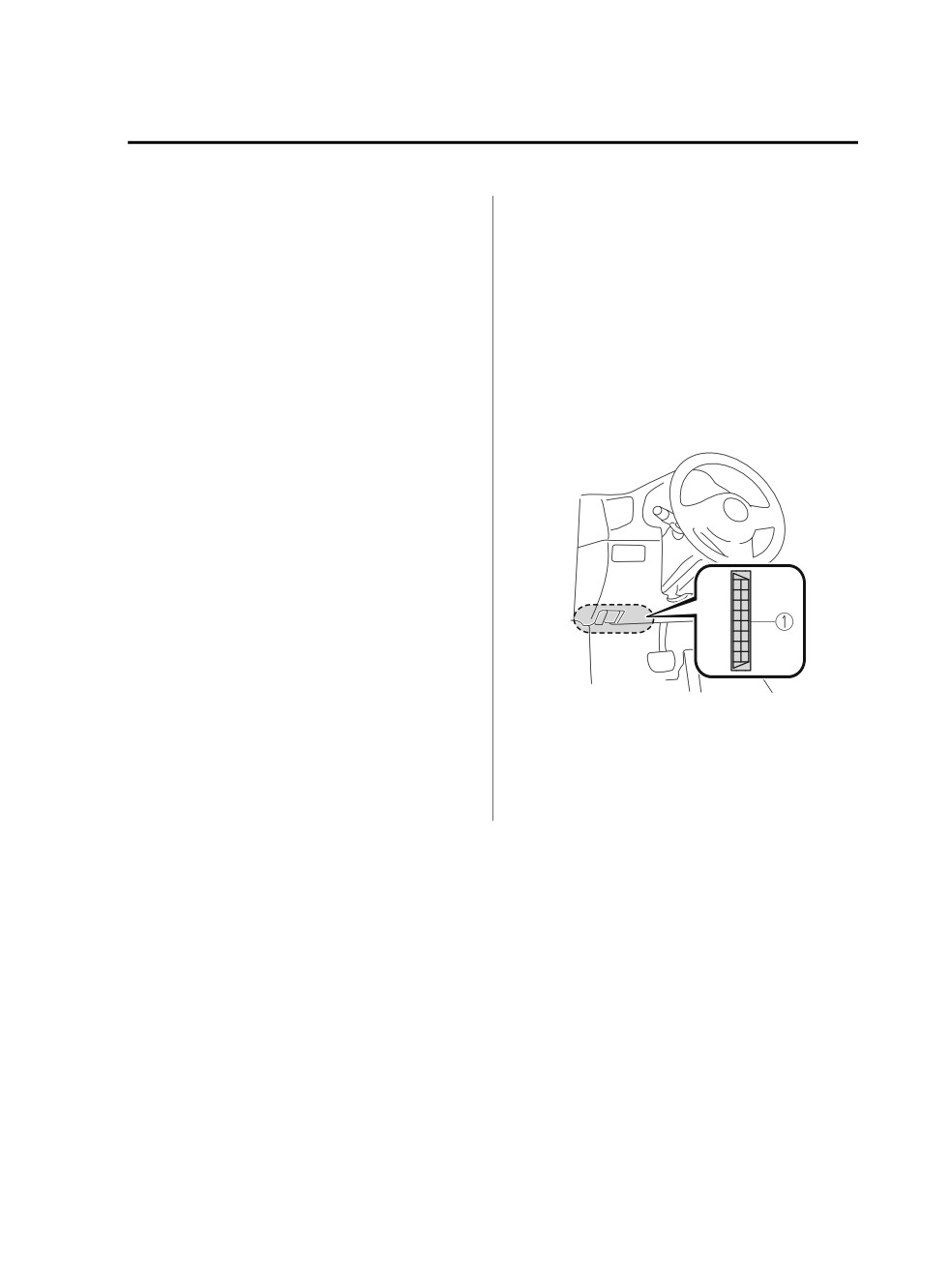

1. Malfunction diagnosis connector
your vehicle's approaching inspection/
servicing period. Refer to the
Information section in the Mazda
Connect Owner's Manual.
6-3
Maintenance and Care
Scheduled Maintenance
Scheduled Maintenance
▼ Scheduled Maintenance (U.S.A. and Puerto Rico)
Vehicles utilizing the vehicle status monitor feature:
The vehicle status monitor feature alerts you of maintenance needs by turning on the
wrench indicator light or displaying a message in the instrument panel, or both.
Every maintenance must be done when the display/wrench indication comes on.
The display/wrench indication will come on before reaching the maximum interval
of 16,000 km (10,000 miles), or 12 months (after the previous maintenance).
If you drive your vehicle under any of the following conditions, follow the Severe
Driving Scheduled Maintenance and replace the engine oil and filter every 8,000 km
(5,000 miles) or 6 months, whichever comes first.
Otherwise, follow the Normal Driving Scheduled Maintenance intervals.
1. The vehicle is idled for long periods or driven at low speeds, such as with police
cars, taxis, or driver's education school car.
2. Driving under dusty conditions.
3. Driving for long periods in cold temperatures or driving regularly for short distan-
ces only.
4. Driving under extremely high temperature conditions.
5. Driving continuously in mountainous regions.
If you are following the Severe Driving Scheduled Maintenance (8,000 km (5,000
miles) or 6 months oil replacement interval), set the vehicle status monitor manually.
Refer to the Information section in the Mazda Connect Owner's Manual. Please
contact an Authorized Mazda Dealer if necessary.
USA and Puerto Rico Residents (Normal Driving Scheduled Maintenance):
Number of times, maintenance was performed.
Maintenance Item
1
2
3
4
5
6
7
8
Engine oil & filter*1
R
R
R
R
R
R
R
R
SKYACTIV-G
Replace every 64,000 km (40,000 miles).
2.5T
Spark plugs
Except SKY-
ACTIV-G
Replace every 120,000 km (75,000 miles).
2.5T
Air filter
R
R
Drive belts
I
I
I
I
I
I
I
I
Engine coolant level
I
I
I
I
I
I
I
I
Replace at first 192,000 km (120,000 miles) or 120
Engine coolant*2
months; after that, every 96,000 km (60,000 miles) or
60 months.
Fuel lines & hoses*3
I
I
I
I
Hoses and tubes for emission*3
I
I
6-4
