Mazda 3 Hatchback (2021 year). Manual in english

When Driving

Rear View Monitor

(Predicted vehicle path assist lines display type)

When reversing near a three-dimensional object

When reversing near an overhanging object, the vehicle may hit the object even if

the anticipated course line does not contact the object on the screen. The position

of the object displayed on the screen is different from the actual position because

the anticipated course lines on the screen are displayed based on a horizontal road

surface. When backing up near an overhanging object, confirm the rear and

surrounding conditions directly with your eyes.

(Screen display)

(Actual view)

4-237

When Driving

Parking Sensor System

Parking Sensor System*

▼ Parking Sensor System

The parking sensors use ultrasonic sensors which detect obstructions around the

vehicle when the vehicle is driven at low speeds, such as during garage or parallel

parking, and a buzzer sound and detection indicator notify the driver of the

approximate distance from the vehicle to the surrounding obstruction.

1. Front ultrasonic sensor*

2. Front corner ultrasonic sensor*

3. Rear ultrasonic sensor

4. Rear corner ultrasonic sensor

5. Rear side ultrasonic sensor*

WARNING

Do not rely completely on the parking sensor system and be sure to confirm the

safety around your vehicle visually when driving:

This system can assist the driver in operating the vehicle in the forward and

backward directions while parking. The detection ranges of the sensors are limited,

therefore, driving the vehicle while relying only on the system may cause an

accident. Always confirm the safety around your vehicle visually when driving.

4-238 *Some models.

When Driving

Parking Sensor System

CAUTION

¾ Do not install any accessories within the detection ranges of the sensors. It may

affect the system operation.

¾ Depending on the type of obstruction and the surrounding conditions, the

detection range of a sensor may narrow, or the sensors may not be able to detect

obstructions.

NOTE

^ When the ignition is switched OFF, the system status before it was turned off is

maintained. For example, if the ignition is switched OFF while the parking sensor

is activated, the system will be activated when the ignition is switched ON the

next time.

^ The system may not operate normally under the following conditions:

^ Mud, ice, or snow is adhering to the sensor area (Returns to normal operation

when removed).

^ The sensor area is frozen (Returns to normal operation when the ice is thawed).

^ The sensor is covered by a hand.

^ The sensor is excessively shocked.

^ The vehicle is excessively tilted.

^ Under extremely hot or cold weather conditions.

^ The vehicle is driven on bumps, inclines, gravel, grating, or grass covered roads.

^ Anything which generates ultrasonic waves such as another vehicle's horn, the

engine sound of a motorcycle, the air brake sound of a large-sized vehicle, or

another vehicle's sensors approaches the vehicle.

^ The vehicle is driven in heavy rain or in road conditions causing water-splash.

^ A commercially-available fender pole or an antenna for a radio transmitter is

installed to the vehicle.

^ The vehicle is moving towards a tall or square curbstone, or a steep grade.

^ An obstruction is too close to the sensor.

^ The vehicle is moving towards an uneven wall or stairs.

^ There are multiple obstructions.

^ The vehicle is driven in a place with low ceilings.

^ Obstructions under the bumper cannot be detected. Obstructions which are

lower than the sensor or thin may not be detected even though they were

detected once.

^ The following types of obstructions may not be detected:

^ Thin objects such as wire, rope or poles

^ Things which absorb sonic waves easily such as cotton or snow

^ Angular shaped objects

^ Very tall objects, and those which are wide at the top

^ Small, short objects

^ Always have the system inspected at an Authorized Mazda Dealer if any shock is

applied to the bumpers, even in a minor accident. If the sensors are deviated, they

cannot detect obstructions.

4-239

When Driving

Parking Sensor System



The system may have a malfunction if a sound is not activated or the detection

indication is not displayed even when the parking sensor OFF switch is pressed

and the parking sensor is operable. Have your vehicle inspected by an Authorized

Mazda Dealer.

^ The system may have a malfunction if the indicator light does not turn on even

when the parking sensor OFF switch is turned on. Have your vehicle inspected by

an Authorized Mazda Dealer.

^ The system may have a malfunction if a message indicating a system malfunction is

displayed. Have your vehicle inspected by an Authorized Mazda Dealer.

^ A message may be displayed even when the ambient temperature is extremely

cold, or mud, ice, or snow adheres to the sensor area. Remove any foreign matter

from the sensor area.

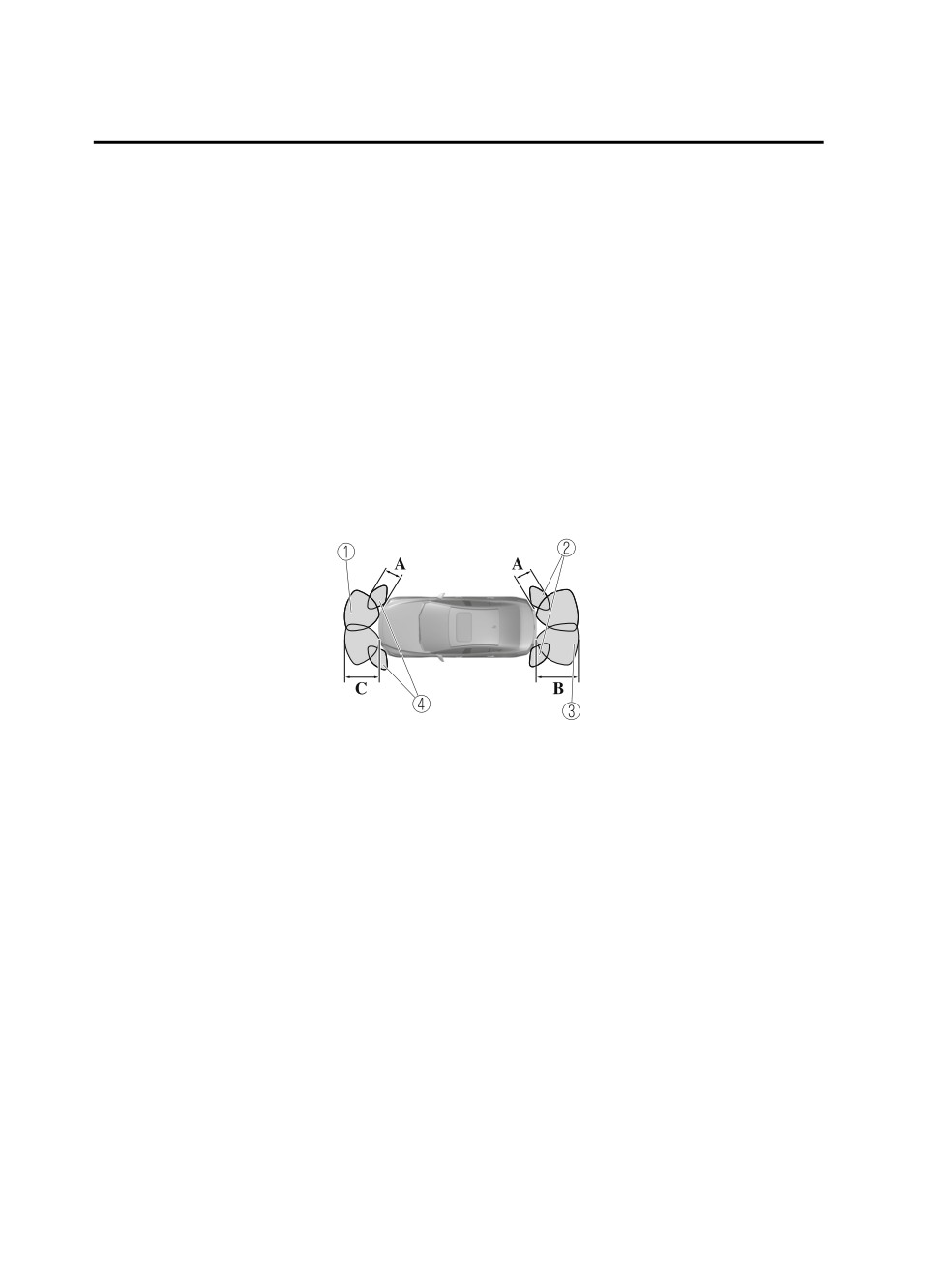

▼ Sensor Detection Range

The sensors detect obstructions within the following range.

1. Front ultrasonic sensor detection range

2. Rear corner/Rear side ultrasonic sensor detection range

3. Rear ultrasonic sensor detection range

4. Front corner ultrasonic sensor detection range

A: About 55.0 cm (About 21.6 in)

B: About 150 cm (About 59.0 in)

C: About 100 cm (About 39.3 in)

4-240

When Driving

Parking Sensor System

Viewing distance display

Distance between vehicle and obstruc-

Display

tion

Without 360° view monitor

Rear ultrasonic sen-

Front ultrasonic

Without front ul-

With front ultra-

sor/Rear corner ul-

With 360° view

sensor^*/Front cor-

trasonic sensor

sonic sensor and

trasonic sensor/

monitor

ner ultrasonic sen-

and front corner

front corner ultra-

Rear side ultrasonic

sor^*

ultrasonic sensor

sonic sensor

sensor^*

Green

Front ultrasonic sen-

Rear ultrasonic sen-

sor:

Approx. 100―60.0

Approx. 150―60.0

cm (39.3―23.6 in)

cm (59.0―23.6 in)

Yellow

Rear ultrasonic sen-

Front ultrasonic sen-

sor:

Approx. 60.0―45.0

cm (23.6―17.7 in)

Rear corner ultra-

Front corner ultra-

sonic sensor/Rear

sonic sensor:

side ultrasonic sen-

Approx. 55.0―38.0

sor:

cm (21.6―14.9 in)

Approx. 55.0―38.0

cm (21.6―14.9 in)

Amber

Rear ultrasonic sen-

Front ultrasonic sen-

sor:

Approx. 45.0―35.0

cm (17.7―13.7 in)

Rear corner ultra-

Front corner ultra-

sonic sensor/Rear

sonic sensor:

side ultrasonic sen-

Approx. 38.0―25

sor:

cm (14.9―9.8 in)

Approx. 38.0―25

cm (14.9―9.8 in)

*Some models.

4-241

When Driving

Parking Sensor System

Distance between vehicle and obstruc-

Display

tion

Without 360° view monitor

Rear ultrasonic sen-

Front ultrasonic

Without front ul-

With front ultra-

sor/Rear corner ul-

With 360° view

sensor^*/Front cor-

trasonic sensor

sonic sensor and

trasonic sensor/

monitor

ner ultrasonic sen-

and front corner

front corner ultra-

Rear side ultrasonic

sor^*

ultrasonic sensor

sonic sensor

sensor^*

Red

Rear ultrasonic sen-

Front ultrasonic sen-

sor:

Within approx. 35.0

cm (13.7 in)

Rear corner ultra-

Front corner ultra-

sonic sensor/Rear

sonic sensor:

side ultrasonic sen-

Within approx. 25

sor:

cm (9.8 in)

Within approx. 25

cm (9.8 in)

▼ Parking Sensor OFF Switch

NOTE



(Automatic vehicle)

When the switch is pressed, the

parking sensor is stopped and the

The detection indicator and buzzer

indicator light turns on.

of the front ultrasonic sensors/front

If the switch is pressed again, the

corner ultrasonic sensors do not

parking sensor becomes operational

operate when the selector lever is in

and the indicator light turns off.

the P position.

^ The detection indicator and buzzer

sound do not activate when the

parking brake is applied.

1. Indicator light

4-242 *Some models.

When Driving

Parking Sensor System

▼ Obstruction Detection Indication

With 360°view monitor

The position of a sensor which has

detected an obstruction is indicated.

The gauge illuminates in different areas

depending on the distance to an

obstruction detected by the sensor.

As the vehicle approaches closer to an

obstruction, the zone in the gauge

closer to the vehicle illuminates.

Without 360°view monitor

1. Front ultrasonic sensor gauge

2. Right front corner ultrasonic sensor

gauge

3. Right rear corner ultrasonic sensor

gauge/Right rear side ultrasonic

sensor gauge*

4. Rear ultrasonic sensor gauge

5. Left rear corner ultrasonic sensor

gauge/Left rear side ultrasonic

sensor gauge

Front ultrasonic sensor gauge*

6. Left front corner ultrasonic sensor

Right front corner ultrasonic sensor

gauge

gauge*

Right rear corner ultrasonic sensor

NOTE

gauge/Right rear side ultrasonic

The detection indicator can be

sensor gauge*

switched between display and

Rear ultrasonic sensor gauge

non-display and the buzzer volume

Left rear corner ultrasonic sensor

can be changed.

gauge/Left rear side ultrasonic

Refer to the Settings section in the

sensor gauge*

Mazda Connect Owner's Manual.

Left front corner ultrasonic sensor

(Vehicles with 360° View Monitor)

When the detection indicator is set to

gauge*

“Display”, even with the 360° view

monitor not displayed, if a front sensor

or a front corner sensor detects an

obstruction, the 360° view monitor

switches automatically to display.

When an obstruction is no longer

detected, the display switches to the

display before the obstruction was

detected. However, while the 360°

view monitor is displayed, it continues

to display no matter if an obstruction is

detected or not.

*Some models.

4-243

When Driving

Parking Sensor System

▼ Parking Sensor Warning Beep

Informs the driver of the approximate distance from the vehicle to the obstruction

using warning beeps depending on the distance. If multiple obstructions are

detected at the same time, warning beeps are activated according to the distance to

the nearest obstruction. The warning beeps are activated as follows while the system

is operating. However, the warning beeps are not activated while the seat belt

reminder is operating.

Front ultrasonic sensor*, Rear ultrasonic sensor

Distance De-

Distance between vehicle and obstruction

Beeper sound^*1

tection area

Front ultrasonic sensor

Rear ultrasonic sensor

Approx. 100―60.0 cm

Approx. 150―60.0 cm

(39.3―23.6 in)

(59.0―23.6 in)

Farthest dis-

Slow intermittent

tance

sound

Approx. 60.0―45.0 cm

(23.6―17.7 in)

Medium intermit-

Far distance

tent sound

Approx. 45.0―35.0 cm

(17.7―13.7 in)

Middle dis-

Fast intermittent

tance

sound

*Some models.

4-245

When Driving

Parking Sensor System

Distance De-

Distance between vehicle and obstruction

Beeper sound

tection area

Front ultrasonic sensor

Rear ultrasonic sensor

Within approx. 35.0 cm (13.7

in)

Continuous

Close distance

sound

^*1

The rate at which the intermittent sound beeps increases as the vehicle approaches the obstruction.

Front corner ultrasonic sensor*, Rear corner/Rear side* ultrasonic sensor

Distance between vehicle and obstruction

Distance Detection

Front corner ultrasonic sensor/Rear corner,

Beeper sound^*1

area

Rear side ultrasonic sensor

Approx. 55.0―38.0 cm (21.6―14.9 in)

Medium intermittent

Far distance

sound

Approx. 38.0―25 cm (14.9―9.8 in)

Middle distance

Fast intermittent sound

4-246 *Some models.

When Driving

Parking Sensor System

Distance between vehicle and obstruction

Distance Detection

Front corner ultrasonic sensor/Rear corner,

Beeper sound^*1

area

Rear side ultrasonic sensor

Within approx. 25 cm (9.8 in)

Close distance

Continuous sound

^*1

The rate at which the intermittent sound beeps increases as the vehicle approaches the obstruction.

NOTE

^ If an obstruction in the same area excluding the close area is detected

continuously for 6 seconds or longer, only the warning beeps stop activating.

(Detection is indicated) If the detection area changes to the close side, the

warning beeps resumes. (If the detection area changes to the far side, the warning

beeps remain off)

^ The sound volume (each of front and rear) can be changed.

Refer to the Settings section in the Mazda Connect Owner's Manual.

▼ When Warning Indicator/Beep is Activated

The system notifies the driver of an abnormality by activating the beep sound and

the indicator light.

Indicator/Beep

How to check

A message indicating a sys-

There may be a problem with the system. Have your vehicle inspected

tem malfunction or sensor

by an Authorized Mazda Dealer as soon as possible.

malfunction is displayed.

A message indicating that the

Remove any foreign matter from the sensor area. If the system does not

sensor is dirty is displayed.

recover, have the vehicle inspected by an Authorized Mazda Dealer.

A certain obstruction detec-

Foreign matter may have gotten on the sensor area corresponding to

tion indication is continuous-

the detection indicator. If the system does not recover, have the vehicle

ly displayed.

inspected by an Authorized Mazda Dealer.

4-247

Interior Features

Use of various features for ride comfort, including air-

conditioning system and audio system.

Climate Control System

5-2

Interior Equipment

5-38

Operating Tips

5-2

Sunvisors

5-38

Vent Operation

5-3

Interior Lights

5-39

Manual Type

5-5

Accessory Socket

5-41

Fully Automatic Type

5-10

Cup Holder

5-42

Bottle Holder

5-44

Assist Grips

5-44

Mazda Connect

5-15

Rear Coat Hooks

5-45

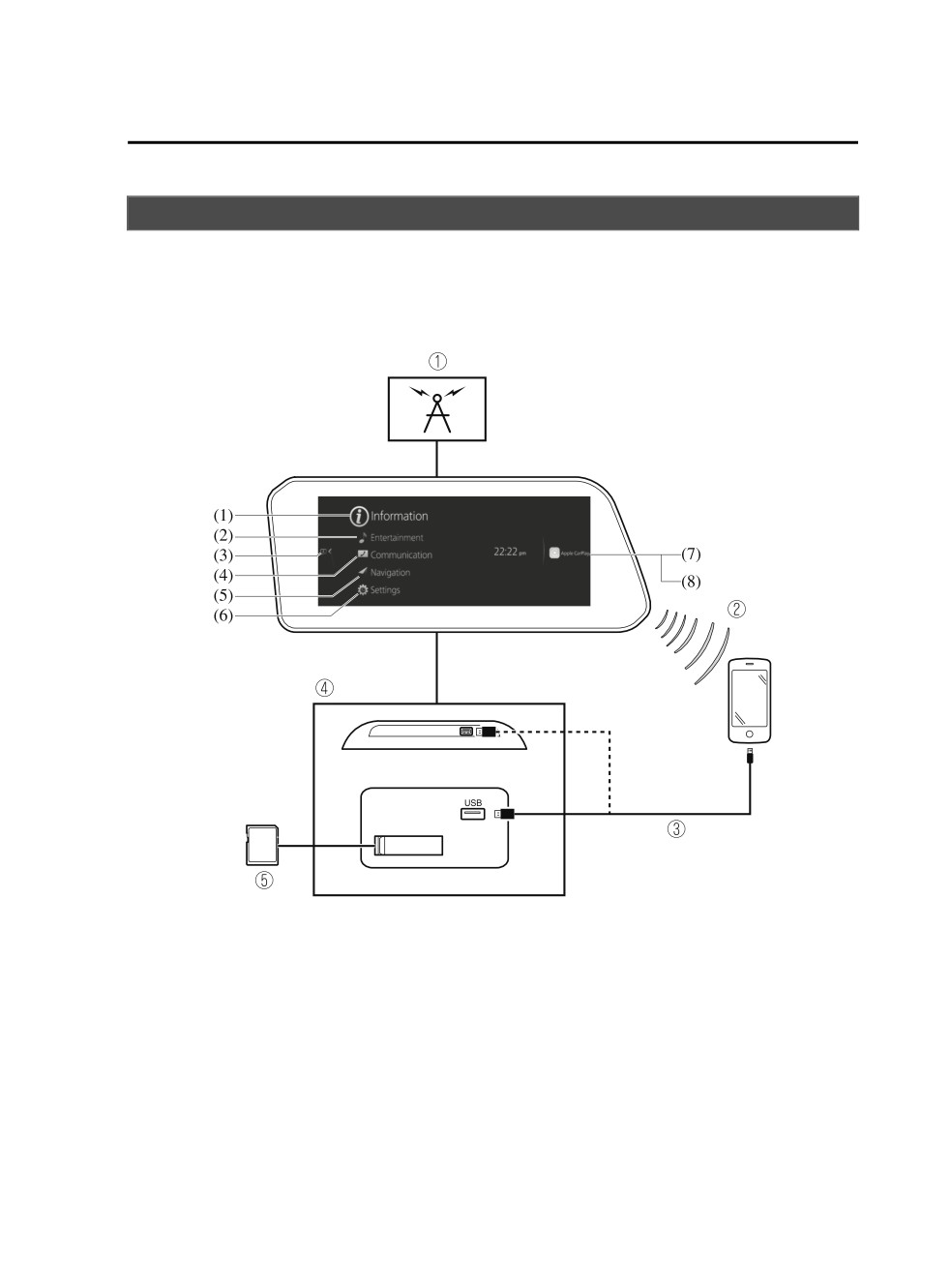

What is Mazda Connect ?

5-15

Storage Compartments

5-45

Mazda Connect Basic

Operations

5-19

Connected Service (U.S.A

only)

5-37

5-1

Interior Features

Climate Control System

(With A/C switch)

Operating Tips

^ Run the air conditioner about 10

▼ Operating Tips

minutes at least once a month to

keep internal parts lubricated.

^ Operate the climate control system

^ Have the air conditioner checked

with the engine running.

before the weather gets hot. Lack of

^ To prevent the battery from being

refrigerant may make the air

discharged, do not leave the fan

conditioner less efficient.

control switch on for a long period of

The refrigerant specifications are

time with the ignition switched ON

indicated on a label attached to the

when the engine is not running.

inside of the engine compartment. If

^ Clear all obstructions such as leaves,

the wrong type of refrigerant is used,

snow and ice from the hood and the

it could result in a serious

air inlet in the cowl grille to improve

malfunction of the air conditioner.

the system efficiency.

Consult a professional, government

^ Use the climate control system to

certified repairer for the inspection

defog the windows and dehumidify

or repair because a special device is

the air.

required for the air conditioner

^ The recirculate mode should be used

maintenance.

when driving through tunnels or

For details, consult an Authorized

while in a traffic jam, or when you

Mazda Dealer.

would like to shut off outside air for

quick cooling of the interior.

^ Use the outside air position for

ventilation or windshield defrosting.

^ If the vehicle has been parked in

direct sunlight during hot weather,

open the windows to let warm air

escape, then run the climate control

system.

1. Label

5-2

Interior Features

Climate Control System

Airflow direction adjustment

Vent Operation

▼ Adjusting the Vents

Directing airflow

To adjust the direction of airflow, move

the adjustment knob.

NOTE

^ When using the air conditioner

1. Knob

under humid ambient temperature

conditions, the system may blow fog

from the vents. This is not a sign of

Passenger's Side Vents

trouble but a result of humid air

Air vent open/close

being suddenly cooled.

^ The air vents can be fully opened and

closed by operating the knob.

Driver's Side Vents

Air vent open/close

1. Knob

2. Open

3. Close

Airflow direction adjustment

1. Knob

2. Open

3. Close

NOTE

The figure indicates the air vent on the

left side of the instrument cluster. The

operation direction for the air vent on

the right side of the instrument cluster

is symmetrical with the air vent on the

1. Knob

left side.

5-3

Interior Features

Climate Control System

Without A/C switch

1. Mode selector switch

2. Air intake selector switch

3. Fan control dial

4. Rear window defogger switch

5. Windshield defroster switch

6. Temperature control dial

▼ Control Switches

Fan control dial

Temperature control dial

This dial allows variable fan speeds.

The fan has seven speeds.

This dial controls temperature. Turn it

clockwise for hot and

Mode selector switches

counterclockwise for cold.

The desired airflow mode can be

MAX A/C (With A/C switch)

selected (page 5-4).

Fully turn the temperature control dial

A/C switch*

counterclockwise for MAX A/C

Press the A/C switch to turn the air

(maximum cooling).

conditioner on. The indicator light on

NOTE

the switch will illuminate when the fan

When the mode is set to or

with

control dial is in any position except

the fan control dial in a position other

OFF.

than 0 and the temperature control

dial in the MAX A/C position, the air

Press the switch once again to turn the

intake selector switches to the

air conditioner off.

recirculated air position and the A/C

NOTE

turns on automatically.

The air conditioner may not function

If A/C is not desired, press the A/C

when the outside temperature

switch to turn it off.

approaches 0 °C (32 °F).

5-6

*Some models.

Interior Features

Climate Control System

Air intake selector switch

Rear window defogger switch

This switch controls the source of air

Press the rear window defogger switch

entering the vehicle.

to defrost the rear window.

Refer to Rear Window Defogger on

Outside or recirculated air positions

page 4-58.

can be selected. Press the switch to

▼ Heating

select outside/recirculated air

positions.

1. Press the

switch.

Recirculated air position (indicator

2. Set the air intake selector to the

light illuminated)

outside air position (indicator light

turns off).

Outside air is shut off. Use this position

3. Set the temperature control dial to

when going through tunnels, driving in

the hot position.

congested traffic (high engine exhaust

4. Set the fan control dial to the

areas) or when quick cooling is

desired speed.

desired.

5. If dehumidified heating is desired,

Outside air position (indicator light

turn on the air conditioner.

turned off)

NOTE

Outside air is allowed to enter the

^ If the windshield fogs up easily, press

cabin. Use this mode for ventilation or

the

switch.

windshield defrosting.



(With A/C switch)

If cooler air is desired at face level,

WARNING

press the

switch and adjust the

temperature control dial to maintain

Do not use the

position (indicator

maximum comfort.

light turns on) in cold or rainy

^ The air to the floor is warmer than air

weather:

to the face (except when the

Using the

position (indicator light

temperature control dial is set at the

turns on) in cold or rainy weather is

extreme hot or cold position).

dangerous as it will cause the windows

to fog up. Your vision will be

hampered, which could lead to a

serious accident.

Windshield defroster switch

Press the switch to defrost the

windshield and front door windows.

Refer to Windshield Defrosting and

Defogging on page 5-8.

5-7

Interior Features

Climate Control System

▼ Cooling (With A/C switch)

▼ Ventilation

1. Press the switch.

2. Set the temperature control dial to

2. Set the air intake selector to the

the cold position.

outside air position (indicator light

3. Set the fan control dial to the

turns off).

desired speed.

3. Set the temperature control dial to

4. Turn on the air conditioner by

the desired position.

pressing the A/C switch.

4. Set the fan control dial to the

5. After cooling begins, adjust the fan

desired speed.

control dial and temperature

▼ Windshield Defrosting and

control dial as needed to maintain

Defogging

maximum comfort.

1. Press the

switch.

CAUTION

2. Set the temperature control dial to

the desired position.

If the air conditioner is used while

driving up long hills or in heavy traffic,

3. Set the fan control dial to the

desired speed.

monitor the high engine coolant

temperature warning indication to see

4. If dehumidified heating is desired,

turn on the air conditioner.

if it is displayed (page 7-29).

The air conditioner may cause engine

WARNING

overheating. If the warning indication

is displayed, turn the air conditioner

off (page 7-21).

Do not defog the windshield using the

switch with the temperature

NOTE

control set to the cold position:

Using the

switch with the

^ When maximum cooling is desired,

temperature control set to the cold

set the temperature control dial to

position is dangerous as it will cause

the extreme cold position and set

the outside of the windshield to fog

the air intake selector to the

up. Your vision will be hampered,

recirculated air position, then turn

which could lead to a serious accident.

the fan control dial fully clockwise.

Set the temperature control to the hot

^ If warmer air is desired at floor level,

or warm position when using the

press the

switch and adjust the

switch.

temperature control dial to maintain

maximum comfort.

NOTE

^ The air to the floor is warmer than air

to the face (except when the



(With A/C switch)

temperature control dial is set at the

Fogging on the windows clears up

extreme hot or cold position).

more easily while the air conditioner

is on, but they will fog up more easily

if the air conditioner is turned off.

5-8

Interior Features

Climate Control System



(With A/C switch)

NOTE

Be careful that the windows do not

One of the functions of the air

fog up when doing any of the

conditioner is dehumidifying the air

following:

and, to use this function, the

temperature does not have to be set to

^ Switching to recirculate mode

cold. Therefore, set the temperature

^ Turning off the air conditioner

control dial to the desired position



(With A/C switch)

(hot or cold) and turn on the air

For maximum defrosting, turn on the

conditioner when you want to

air conditioner, set the temperature

dehumidify the cabin air.

control dial to the extreme hot

position, and turn the fan control

dial fully clockwise.

^ If warm air is desired at the floor,

press the

switch.

^ With the

*1 switch, the air

conditioner is automatically turned

on and the outside air position is

automatically selected to defrost the

windshield. In the

switch, the

outside air position cannot be

changed to the recirculated air

position.

Depending on the market.

▼ Dehumidifying (With A/C switch)

Operate the air conditioner in cool or

cold weather to help defog the

windshield and side windows.

1. Press the desired mode switch you

want to set.

2. Set the air intake selector to the

outside air position (indicator light

turns off).

3. Set the temperature control dial to

the desired position.

4. Set the fan control dial to the

desired speed.

5. Turn on the air conditioner by

pressing the A/C switch.

5-9

Interior Features

Climate Control System

Fully Automatic Type

▼ Fully Automatic Type

Climate control system information is displayed on the display.

1. Driver temperature control dial

2. AUTO switch

3. Temperature setting display (driver’s side)

4. Air intake display

5. Airflow display

6. Mode selector display

7. Temperature setting display (passenger’s side)

8. SYNC (synchronized temperature) switch

9. Passenger temperature control dial

10.A/C switch

11.Rear window defogger switch

12.Mode selector switch

13.Fan control switch

14.Air intake selector switch

15.Windshield defroster switch

16.Power switch

▼ Control Switches

^ Seat warmer level selection*

^ Heated steering wheel operation*

AUTO switch

By pressing the AUTO switch the

following functions will be

automatically controlled in accordance

with the selected set temperature:

^ Airflow temperature

^ Amount of airflow

^ Selection of airflow mode

^ Outside/Recirculated air selection

^ Air conditioner operation

5-10

*Some models.

Interior Features

Climate Control System

NOTE

AUTO switch indicator light

^ The climate control system changes

^ When the AUTO switch indicator

to the individual operation mode

light is on, it indicates auto

(SYNC switch indicator light turns

operation, and the system will

off) by turning the front passenger

function automatically.

temperature control dial even when

^ If any of the following switches are

the SYNC switch is on, which allows

operated while in auto control, the

individual control of the set

AUTO switch indicator turns off.

temperature for the driver and front

passenger.

^ Mode selector switch

^ When you set the temperature to the

^ Fan control switch

lower or upper limit, “Lo” or “Hi” is

^ Windshield defroster switch

displayed.

The functions for switches other

^ The temperature units for the

than those operated continue to

temperature setting display can be

operate in auto control.

changed in conjunction with the

Power switch (System On/Off)

temperature units for the outside

temperature display.

The climate control system turns on or

Refer to Outside Temperature

off by pressing the power switch.

Display on page 4-19.

Temperature control dial

Fan control switch

This dial controls temperature. Turn it

The fan has 7 speeds. The selected

clockwise for hot and

speed will be displayed.

counterclockwise for cold.

Turn the temperature control dial to

Mode selector switch

adjust the temperature between 15 °C

The desired airflow mode can be

(60 °F) and 29 °C (84 °F).

selected (page 5-4).

^ When the SYNC switch is on:

NOTE

Turn the driver temperature control

dial to control the temperature

^ With the airflow mode set to the

throughout the entire cabin.

position and the temperature control

^ When the SYNC switch is off:

dial set at a medium temperature,

Turn the driver or front passenger

heated air is directed to the feet and

temperature control dial to

air at a comparably lower

independently control the

temperature will flow through the

temperature on each side of the

central, left and right vents.

cabin.

^ To set the air vent to

, press the

windshield defroster switch.

^ In the

position, the outside air

position is automatically selected.

5-11

Interior Features

Climate Control System

A/C switch

SYNC (Synchronized Temperature)

switch

Pressing the A/C switch while the

AUTO switch is turned on will turn off

Use the SYNC switch to change the

the air conditioner (cooling/

mode between the individual

dehumidifying functions).

operation (driver and passenger) and

The on/off of the air conditioner

interconnection (simultaneous)

switches each time the A/C switch is

modes.

pressed.

Interconnection mode (indicator light

NOTE

turns on)

^ The air conditioner operates when

The set temperature for the driver and

the A/C switch is pressed while the

front passenger is controlled

air conditioner is turned off.

simultaneously.

^ The air conditioner may not function

Individual operation mode (indicator

when the outside temperature

light turns off)

approaches 0 °C (32 °F).

The set temperature can be controlled

Air intake selector switch

individually for the driver and front

Outside or recirculated air positions

passenger.

can be selected. Press the switch to

Windshield defroster switch

select outside/recirculated air

positions.

Press the switch to defrost the

windshield and front door windows.

Recirculated air position (

)

Refer to Windshield Defrosting and

Outside air is shut off. Use this position

Defogging on page 5-13.

when going through tunnels, driving in

Rear window defogger switch

congested traffic (high engine exhaust

areas) or when quick cooling is

Press the rear window defogger switch

desired.

to defrost the rear window.

Refer to Rear Window Defogger on

Outside air position (

)

page 4-58.

Outside air is allowed to enter the

cabin. Use this mode for ventilation or

windshield defrosting.

WARNING

Do not recirculate the air in the cabin

during cold or rainy weather:

Recirculating the air in the cabin during

cold and rainy weather is dangerous as

it will cause the windows to fog up.

Your vision will be hampered, which

could lead to a serious accident.

5-12

Interior Features

Climate Control System

▼ Operation of Automatic Air

▼

Windshield Defrosting and

Conditioner

Defogging

1. Press the AUTO switch. Selection of

Press the windshield defroster switch.

the airflow mode, air intake

In this position, the outside air position

selector and amount of airflow will

is automatically selected, and the air

be automatically controlled.

conditioner automatically turns on.

2. Use the temperature control dial to

The air conditioner will directly

select a desired temperature.

dehumidify the air to the front

If you want to set the temperature

windshield and side windows on page

on the front passenger's side

5-4.

separately from the driver's side,

Airflow amount will be increased.

turn the front passenger

temperature control dial to switch

WARNING

the mode automatically to the

individual operation mode and set

Set the temperature control to the hot

the temperature for the front

or warm position when defogging

passenger's side.

(

position):

To turn off the system, press the power

Using the

position with the

switch.

temperature control set to the cold

NOTE

position is dangerous as it will cause

the outside of the windshield to fog

^ Set the control dial to the

up. Your vision will be hampered,

recommended temperature of 22 °C

which could lead to a serious accident.

(72 °F), and then adjust it as desired.

^ Setting the temperature to maximum

NOTE

hot or cold will not provide the

desired temperature at a faster rate.

^ Fogging on the windows clears up

^ When selecting heat, the system will

more easily while the air conditioner

restrict airflow until the engine has

is on, but they will fog up more easily

warmed to prevent cold air from

if the air conditioner is turned off.

blowing out of the vents.

^ Be careful that the windows do not

fog up when doing any of the

following:

^ Switching to recirculate mode

^ Turning off the air conditioner

^ Use the temperature control dial to

increase the air flow temperature

and defog the windshield more

quickly.

5-13

Interior Features

Mazda Connect

What is Mazda Connect ?

▼ What is Mazda Connect ?

This manual only indicates a part of the information for Mazda Connect. For details,

check the Web owner's manual at the Mazda site for each country and region.

1. Radio

2. Bluetooth® Audio/Hands-Free Call/SMS (Short Message Service)

3. USB Audio/USB Video

4. USB port*1/SD card slot*2

5. SD card (Navigation system)*

The location of the USB slot differs depending on the specifications.

The SD card slot is for the navigation system only. For vehicles with the

navigation system, the SD card (Mazda genuine) with stored map data is

inserted into the SD card slot and used.

*Some models.

5-15

Interior Features

Mazda Connect

No.

Explanation

Fuel Efficiency Monitor:

Monitor fuel efficiency in real time and view fuel efficiency history.

SiriusXM Travel Link^*:

Access traffic information, weather, fuel prices, parking information

and sports scores.

(1)

Information

Vehicle Status Monitor:

View important vehicle maintenance messages, information, and inter-

vals.

Owner's Manual:

Learn about Mazda features, safety information, maintenance, and

more.

SiriusXM^*

(2)

Entertainment

Pandora^*

Bluetooth

USB1 Audio/USB2 Audio

USB1 Video/USB2 Video

Displays text messages received by the mobile device paired to Mazda

(3)

Notifications

Connect and notifications from the vehicle.

By connecting your mobile device, such as a Smartphone, to Mazda

(4)

Communication

Connect via Bluetooth^®, you can use the hands-free call and short mes-

sage functions.

The navigation system (vehicles with navigation system) can be used

when the SD card for the navigation system is inserted.

If the SD card for the navigation system is not inserted, the compass in-

(5)

Navigation

dicating the direction in which the vehicle is moving is displayed. The

compass may not indicate the correct bearing when the vehicle is stop-

ped or traveling at a slow speed.

For the navigation system operation, refer to the navigation system

manual.

5-16

*Some models.

Interior Features

Mazda Connect

No.

Explanation

You can change the settings for the Mazda Connect screen, sound set-

tings, and the vehicle functions.

In-Vehicle Displays:

Configures settings and content for all in-vehicle displays.

Sound Settings:

Configures the in-vehicle listening experience.

Safety Settings:

(6)

Settings

Configures safety and driver assistance features.

Vehicle Settings:

Configures vehicle convenience features.

Connectivity Settings:

Configures Bluetooth and other device connectivity settings.

System Settings:

Configures language, time, and other general settings.

You can use Apple CarPlay™ by connecting an iPhone^® compatible

(7)

Apple CarPlay

with Apple CarPlay™ to the USB slot.

You can use Android Auto™ by connecting an Android™ Smartphone

(8)

Android Auto

compatible with Android Auto™ to the USB port.

WARNING

Always adjust Mazda Connect while the vehicle is stopped:

Do not adjust Mazda Connect with the Commander switch while driving the

vehicle. Adjusting Mazda Connect with the Commander switch while driving the

vehicle is dangerous as it could distract your attention from the vehicle operation

which could lead to a serious accident.

Even if the audio remote control switches are equipped on the steering wheel, learn

to use the switches without looking down at them so that you can keep your

maximum attention on the road while driving the vehicle.

Do not allow the connection plug cord to get tangled with the shift lever (manual

transmission)/selector lever (automatic transmission):

Allowing the plug cord to become tangled with the shift lever (manual

transmission)/selector lever (automatic transmission) is dangerous as it could

interfere with driving, resulting in an accident.

5-17

Interior Features

Mazda Connect

Do not adjust a mobile device or a similar product while driving the vehicle:

Adjusting a mobile device or a similar product while driving the vehicle is dangerous

as it could distract your attention from the vehicle operation which could lead to a

serious accident. Always adjust a mobile device or a similar product while the

vehicle is stopped.

CAUTION

For the purposes of safe driving, adjust the audio volume to a level that allows you

to hear sounds outside of the vehicle including car horns and particularly emergency

vehicle sirens.

NOTE

^ Do not use Mazda Connect for a long time with the engine stopped. Otherwise,

the battery power could be depleted.

^ If a mobile phone or CB radio is used in or near the vehicle, it could cause noise to

occur from the audio system. However, this does not indicate a problem.

5-18

Interior Features

Mazda Connect

Mazda Connect Basic Operations

▼ Mazda Connect Basic Operations

NOTE

The explanation of functions described in this manual may differ from the actual

operation, and the shapes of screens and buttons and the letters and characters

displayed may also differ from the actual appearance.

Additionally, depending on future software updates, the content may successively

change without notice.

▼ Commander Switch Operation

The commander switch can be used to switch to each function and to operate each

function.

Set the palm of your hand on the commander knob so that your fingers can touch

each of the switches.

You can switch the screens without having to look down at your hand.

NOTE

For safety reasons, some operations are disabled while driving the vehicle.

5-19

Interior Features

Mazda Connect

The shape of the switches varies depending on the specifications.

No.

Item

Explanation

Commander knob (selection):

Rotate or slide the commander knob to highlight/select the on-screen

functions you want to use.

Commander knob (select):

Depress the commander knob to select the desired on-screen function

you want to use.

Entertainment button:

The audio source screen last used is displayed.

(During Apple CarPlay™ or Android Auto™ music playback)

Displays the Apple CarPlay™ or Android Auto™ now playing screen.

5-20

Mazda 3 Hatchback (2021 year). Manual in english - page 13
