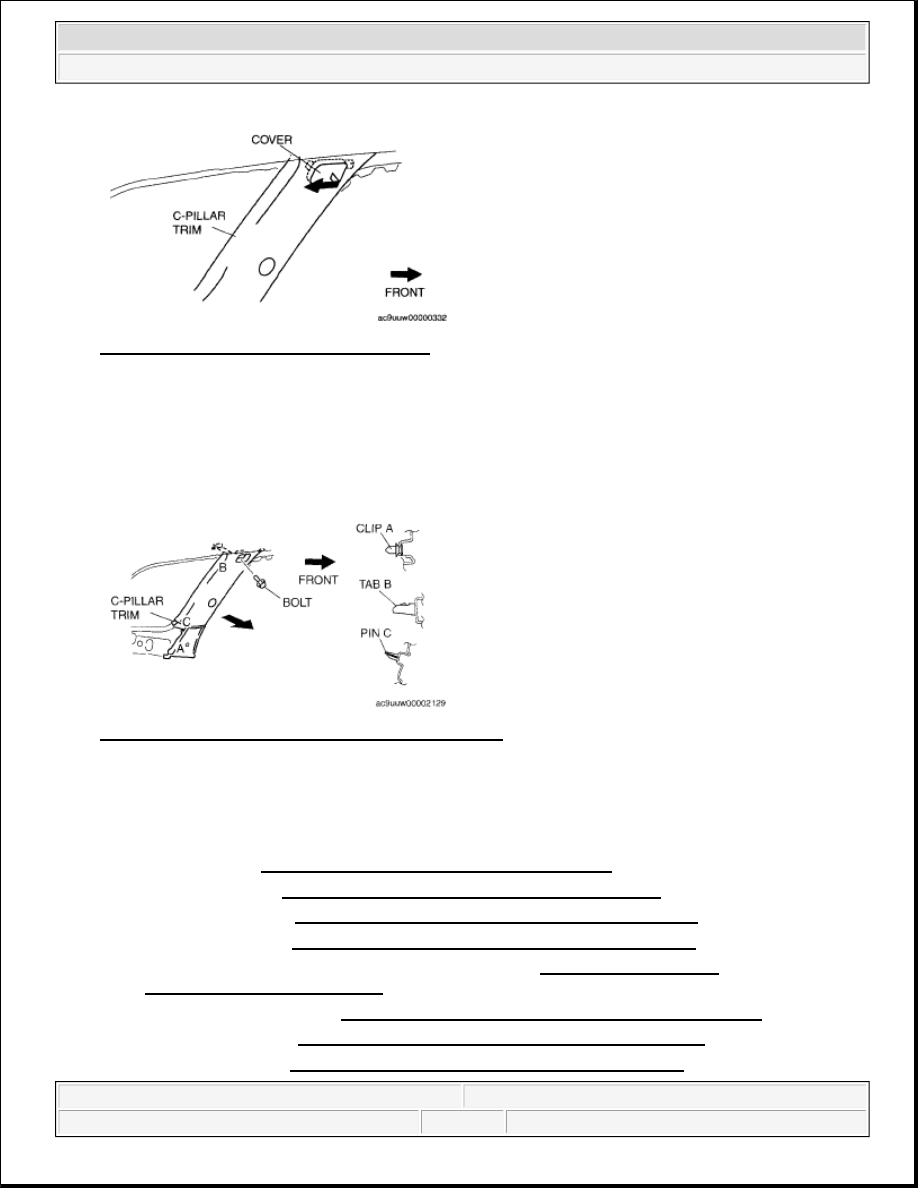

Fig. 50: Identifying C-Pillar Trim & Cover
Courtesy of MAZDA MOTORS CORP.

5. Remove the bolt.

6. Detach clip A and tab B, and pin C by pulling them in the direction of the arrow.

7. Remove the C-pillar trim.

8. Install in the reverse order of removal.

Fig. 51: Identifying C-Pillar Trim With Bolt & Clips
Courtesy of MAZDA MOTORS CORP.

D-PILLAR TRIM REMOVAL/INSTALLATION

1. Remove the following parts:

1. Trunk box (See TRUNK BOX REMOVAL/INSTALLATION.)

2. Seat side box (See SEAT SIDE BOX REMOVAL/INSTALLATION.)

3. Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

4. Third-row seat (See THIRD-ROW SEAT REMOVAL/INSTALLATION .)

5. Third-row seat belt lower anchor installation bolt (See REAR SCUFF PLATE

REMOVAL/INSTALLATION.)

6. Rear scuff plate inner (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

7. Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

8. Roof side trim (See ROOF SIDE TRIM REMOVAL/INSTALLATION.)



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Interior Trim - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:43:26 AM

Page 33

© 2005 Mitchell Repair Information Company, LLC.

9. Third-row seat belt upper anchor installation bolt (See THIRD-ROW SEAT BELT

REMOVAL/INSTALLATION .)

2. Remove the PLG arm band. (Vehicles with PLG)

3. Partially peel back the seaming welt.

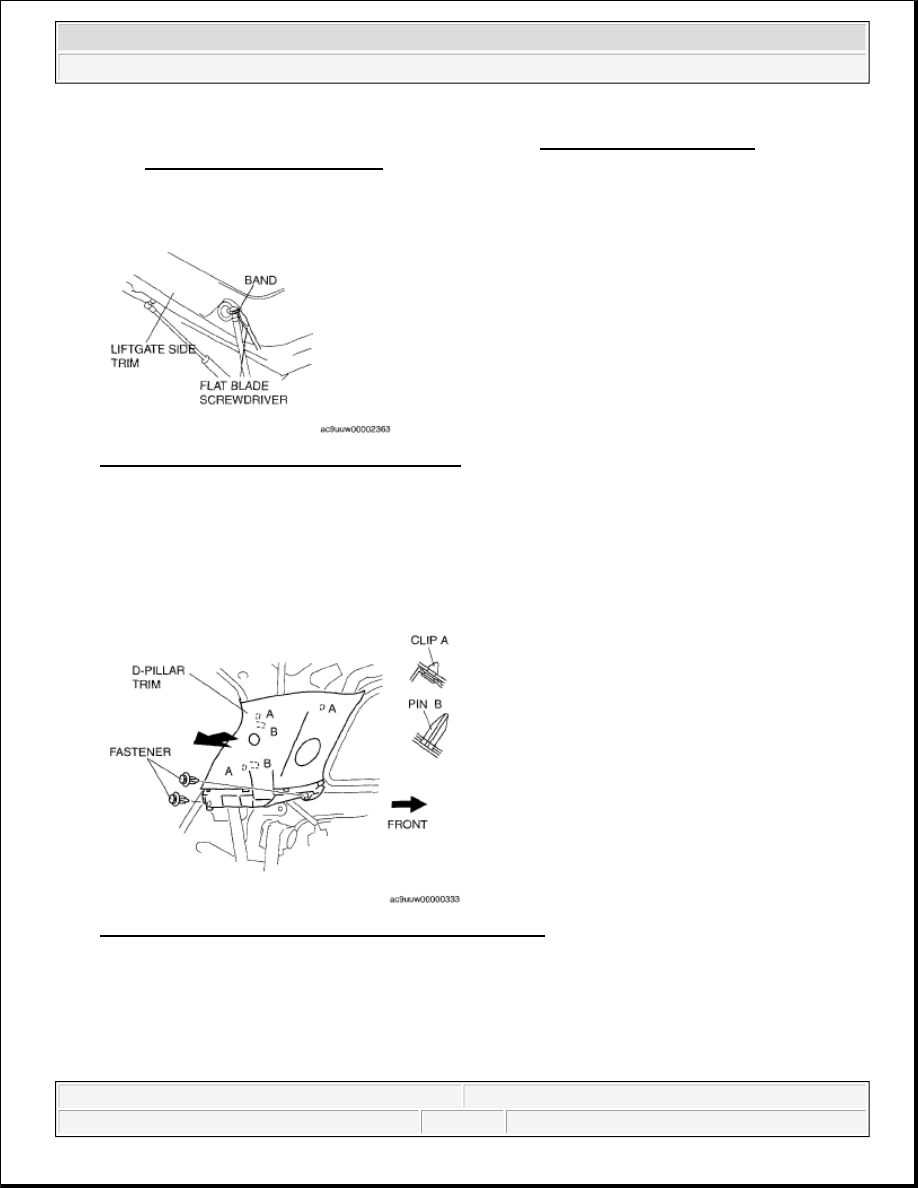

Fig. 52: Identifying Liftgate Side Trim & Band
Courtesy of MAZDA MOTORS CORP.

4. Remove the fasteners.

5. Detach clips A and pins B by pulling them in the direction of the arrow.

6. Remove the D-pillar trim.

7. Install in the reverse order of removal.

Fig. 53: Identifying D-Pillar Trim With Fasteners & Clips
Courtesy of MAZDA MOTORS CORP.

FRONT SCUFF PLATE REMOVAL/INSTALLATION

FRONT SCUFF PLATE INNER

1. Pull the front scuff plate inner upward while detaching tab A, detach clips B, pins C, and tab D, from the



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Interior Trim - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:43:26 AM

Page 34

© 2005 Mitchell Repair Information Company, LLC.

body, and then remove the front scuff plate inner.

2. Install in the reverse order of removal.

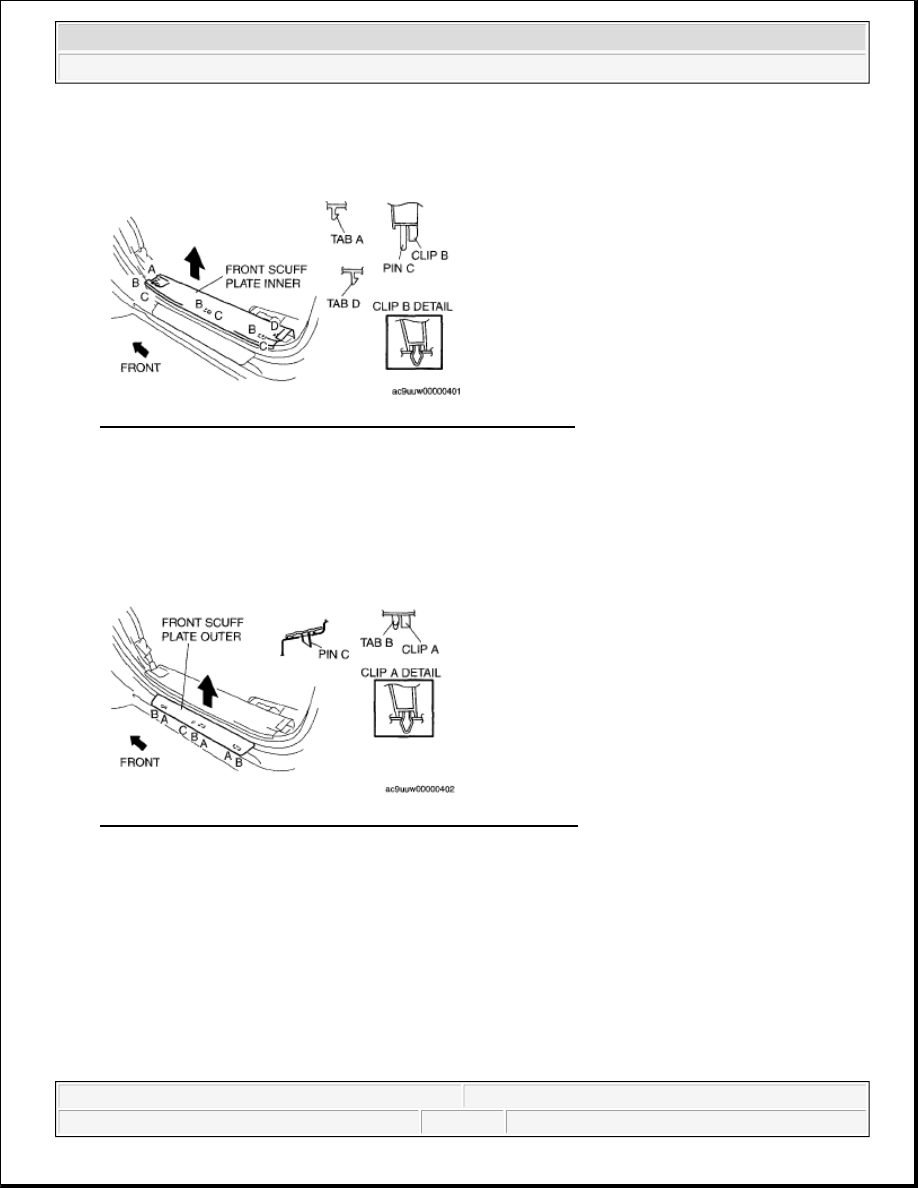

Fig. 54: Identifying Front Scuff Plate Inner With Clips & Tab
Courtesy of MAZDA MOTORS CORP.

FRONT SCUFF PLATE OUTER

1. Pull the front scuff plate outer upward, detach clips A, tabs B, and pin C, from the body, and then remove

the front scuff plate outer.

2. Install in the reverse order of removal.

Fig. 55: Identifying Front Scuff Plate Outer With Clips & Tab
Courtesy of MAZDA MOTORS CORP.

REAR SCUFF PLATE REMOVAL/INSTALLATION

REAR SCUFF PLATE INNER

1. Pull the rear scuff plate inner upward while detaching tab A, detach clips B, pins C, and tab D, from the

body, and then remove the rear scuff plate inner.

2. Install in the reverse order of removal.



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Interior Trim - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:43:26 AM

Page 35

© 2005 Mitchell Repair Information Company, LLC.

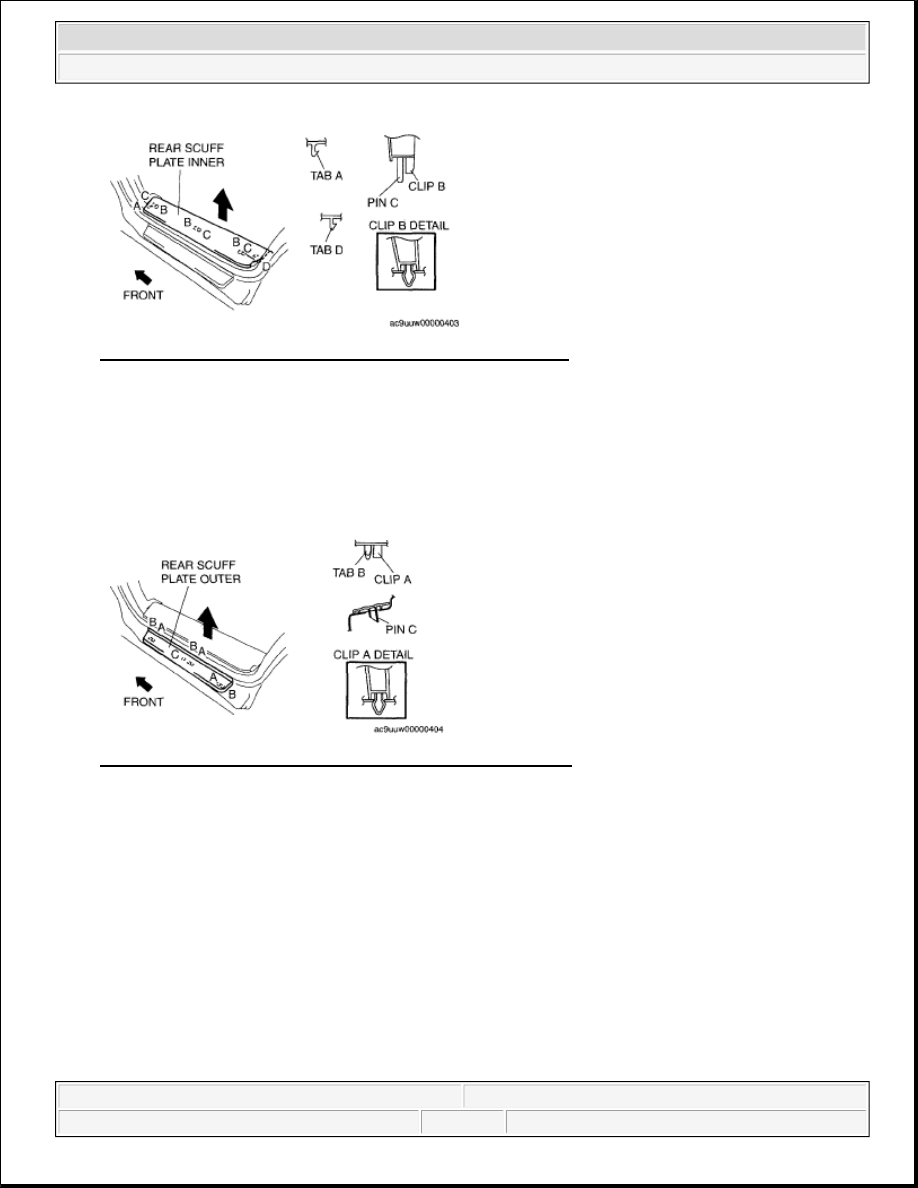

Fig. 56: Identifying Rear Scuff Plate Inner With Tab & Clips
Courtesy of MAZDA MOTORS CORP.

REAR SCUFF PLATE OUTER

1. Pull the rear scuff plate outer upward, detach clips A, tabs B, and pin C, from the body, and then remove

the rear scuff plate outer.

2. Install in the reverse order of removal.

Fig. 57: Identifying Rear Scuff Plate Outer With Tab & Clips
Courtesy of MAZDA MOTORS CORP.

INNER GARNISH REMOVAL/INSTALLATION

1. Detach clips A and hook B by pulling them in the direction of the arrow.

2. Remove the inner garnish.

3. Install in the reverse order of removal.
