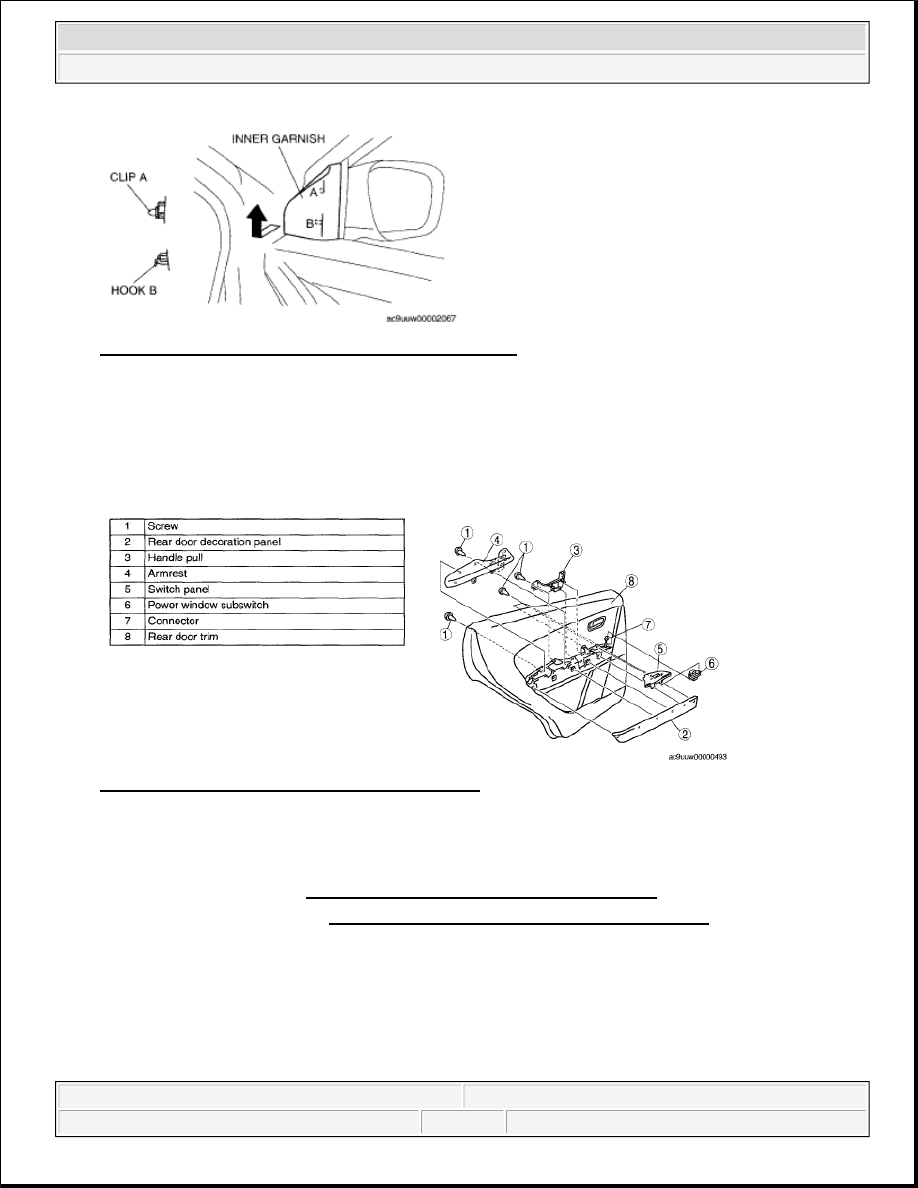

Fig. 58: Identifying Inner Garnish With Hook & Clips
Courtesy of MAZDA MOTORS CORP.

REAR DOOR TRIM DISASSEMBLY/ASSEMBLY

1. Disassemble in the order indicated in the table.

2. Assemble in the reverse order of disassembly.

Fig. 59: Identifying Rear Door Trim Components
Courtesy of MAZDA MOTORS CORP.

TRUNK END TRIM REMOVAL/INSTALLATION

1. Remove the trunk box. (See TRUNK BOX REMOVAL/INSTALLATION.)

2. Remove the seat side box. (See SEAT SIDE BOX REMOVAL/INSTALLATION.)

3. Detach clips A and pin B by pulling them in the direction of the arrow.

4. Remove the trunk end trim.

5. Install in the reverse order of removal.



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Interior Trim - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:43:26 AM

Page 37

© 2005 Mitchell Repair Information Company, LLC.

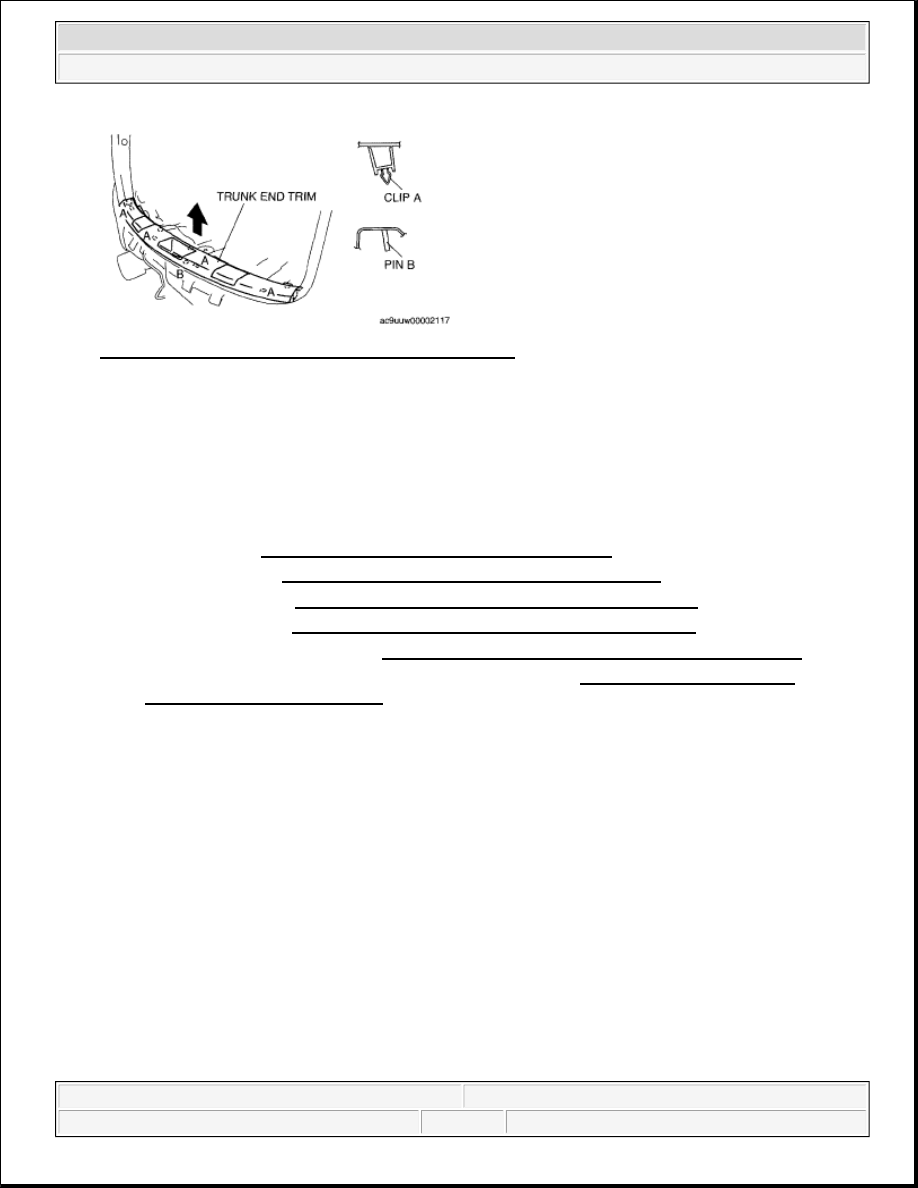

Fig. 60: Identifying Trunk End Trim With Pin & Clip
Courtesy of MAZDA MOTORS CORP.

TRUNK SIDE TRIM REMOVAL/INSTALLATION

DRIVER SIDE

1. Disconnect the negative battery cable.

2. Remove the following parts:

1. Trunk box (See TRUNK BOX REMOVAL/INSTALLATION.)

2. Seat side box (See SEAT SIDE BOX REMOVAL/INSTALLATION.)

3. Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

4. Third-row seat (See THIRD-ROW SEAT REMOVAL/INSTALLATION .)

5. Rear scuff plate inner (LH) (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

6. Third-row seat belt lower anchor installation bolt (LH) (See THIRD-ROW SEAT BELT

REMOVAL/INSTALLATION .)

3. Pull the cup holder upward and detach clips A, pins B, and tabs C. (Vehicles without RES)

4. Pull the auxiliary terminal unit panel upward and detach clips A, pins B, and tabs C. (Vehicles with RES)

5. Disconnect the power supply socket connector and external input connector. (Vehicles with RES)

6. Remove the cup holder. (Vehicles without RES)

7. Remove the external input panel. (Vehicles with RES)

8. Remove the bolts, and remove the cargo net hook.

9. Remove the cover.

10. Remove the screw.

11. Remove the bolts.

12. Pull the trunk side trim outward and detach clips D, tabs E, and pin F.

13. Remove the trunk side trim.

14. Install in the reverse order of removal.



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Interior Trim - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:43:26 AM

Page 38

© 2005 Mitchell Repair Information Company, LLC.

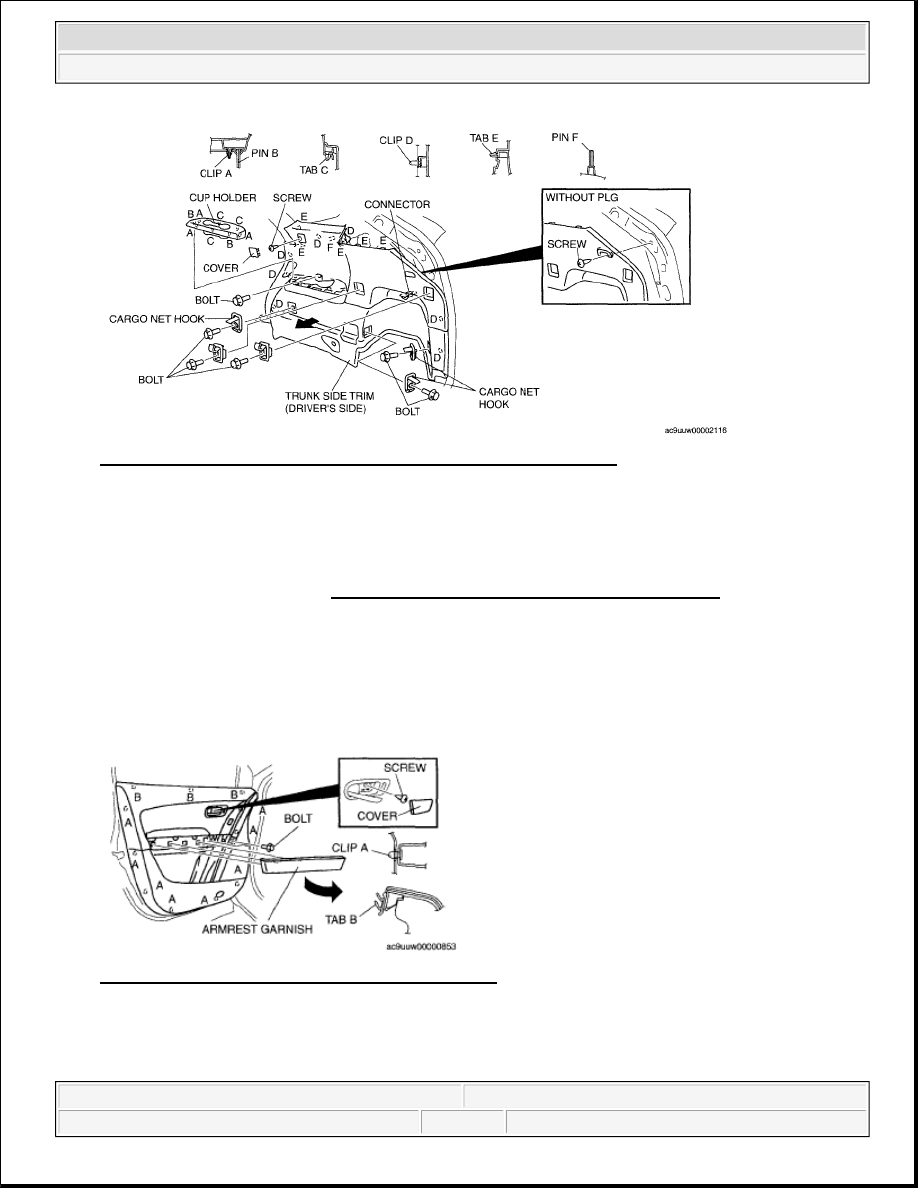

Fig. 61: Identifying Trunk Side Trim Remove/Install Components (Driver Side)
Courtesy of MAZDA MOTORS CORP.

PASSENGER SIDE

1. Disconnect the negative battery cable.

2. Remove the following parts:

1. Trunk box (See TRUNK BOX REMOVAL/INSTALLATION.)

2. Seat side box (See SEAT SIDE BOX REMOVAL/INSTALLATION.)

3. Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

4. Third-row seat (See THIRD-ROW SEAT REMOVAL/INSTALLATION .)

5. Rear scuff plate inner (RH) (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

6. Third-row seat belt lower anchor installation bolt (RH) (See THIRD-ROW SEAT BELT

REMOVAL/INSTALLATION .)

3. Pull the cup holder upward and detach clips A, pins B, and tabs C.

4. Remove the cup holder.

5. Remove the bolts, and remove the cargo net hook.

6. Remove the cover.

7. Remove the screw.

8. Remove the bolts.

9. Pull the trunk side trim outward and detach clips D, tabs E, and pin F.

10. Disconnect the accessory socket connector.

11. Remove the trunk side trim.

12. Install in the reverse order of removal.



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Interior Trim - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:43:26 AM

Page 39

© 2005 Mitchell Repair Information Company, LLC.

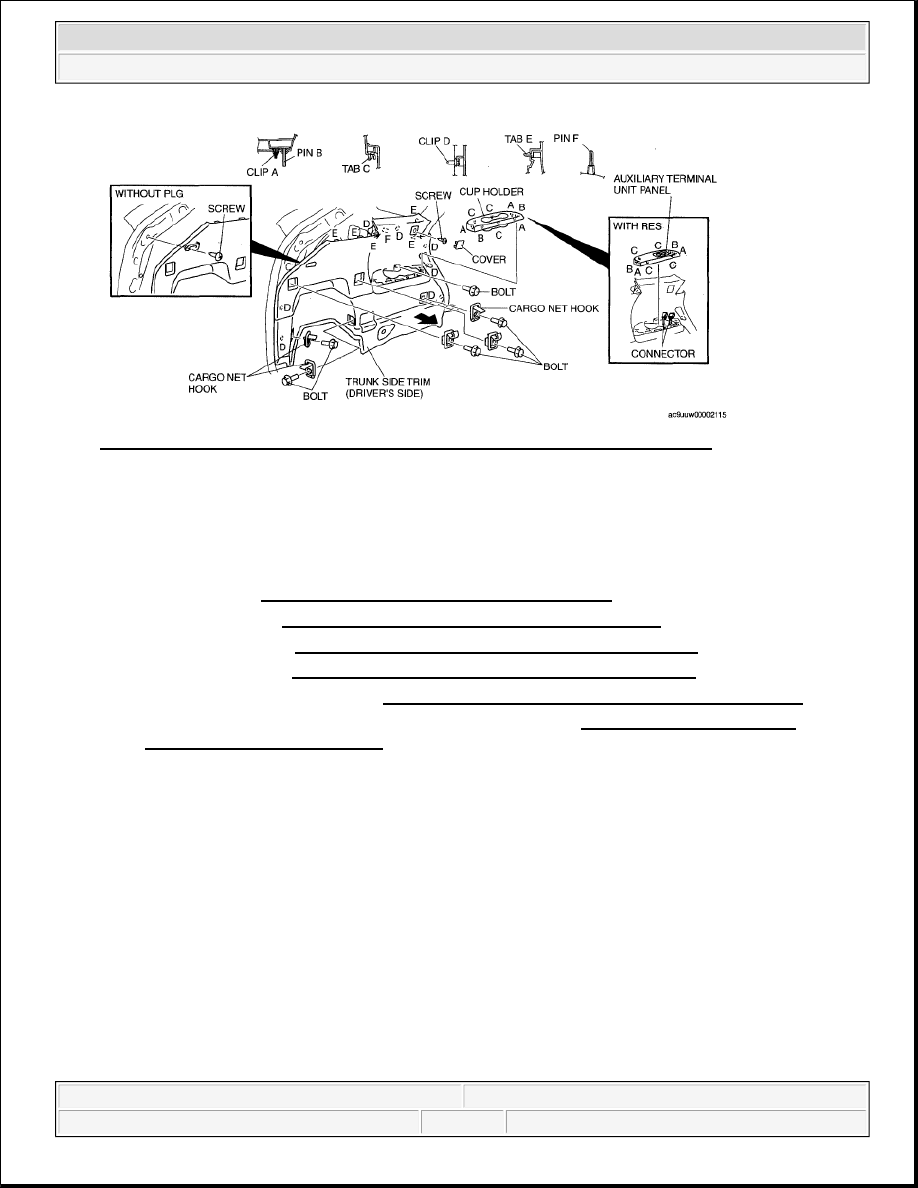

Fig. 62: Identifying Trunk Side Trim Components (Passenger Side)
Courtesy of MAZDA MOTORS CORP.

FRONT DOOR TRIM REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the inner garnish. (See INNER GARNISH REMOVAL/INSTALLATION.)

3. Open the cover using a small flathead screwdriver and remove the screw.

4. Remove the armrest garnish in the direction of the arrow.

5. Remove the bolt.

6. Detach clips A from the front door using a fastener remover.

7. Pull the front door trim upward and detach tabs B from the front door.

Fig. 63: Identifying Armrest Garnish, Clips & Bolts
Courtesy of MAZDA MOTORS CORP.

8. Remove tab A, and move the front door trim in the direction of the arrow.
