Mazda CX-9 Grand Touring. Manual - part 473





Fig. 35: Identifying Console With Accessory Socket Connector, Auxiliary Jack Connector &
Torque Specifications

Courtesy of MAZDA MOTORS CORP.

CONSOLE DISASSEMBLY/ASSEMBLY

1. Disassemble in the order indicated in the table.

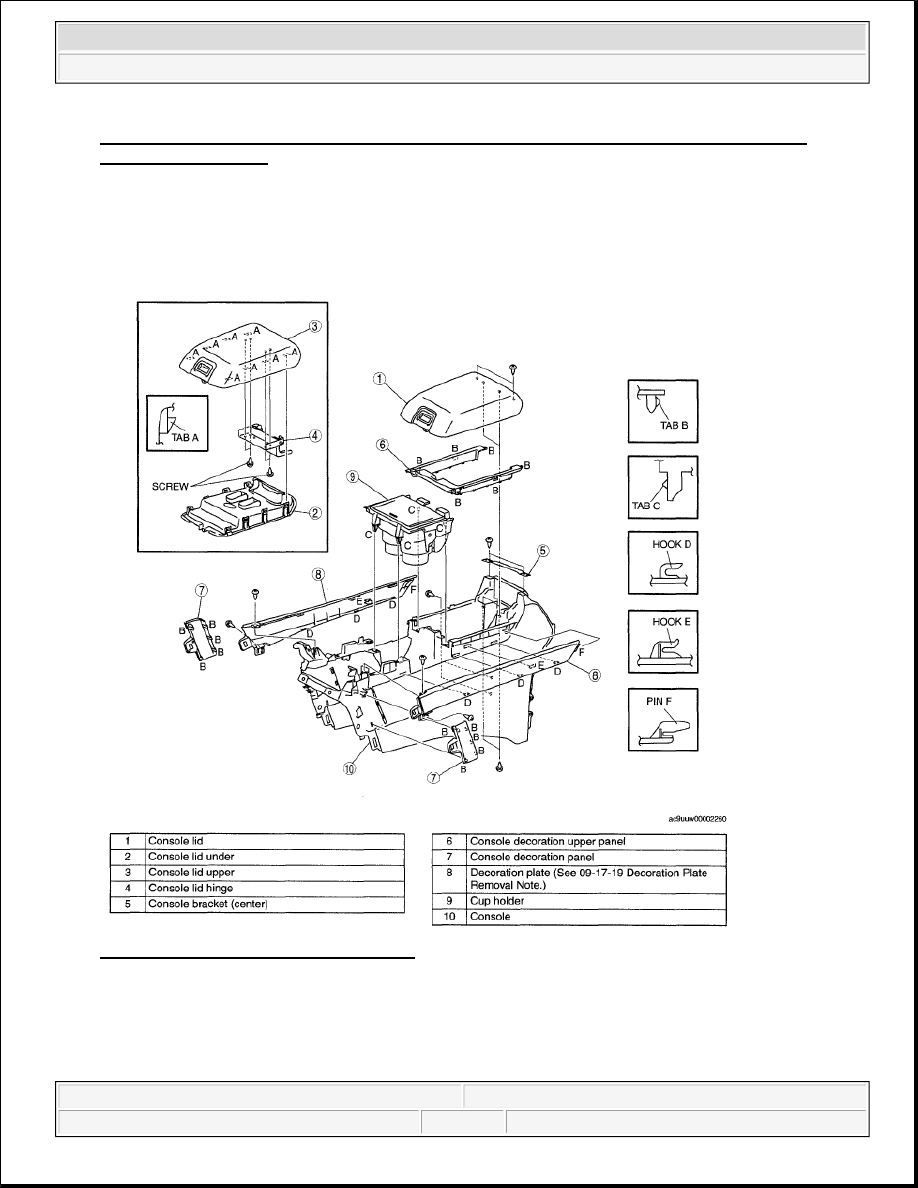

Fig. 36: Identifying Console Components
Courtesy of MAZDA MOTORS CORP.

2. Assemble in the reverse order of disassembly.

DECORATION PLATE REMOVAL NOTE



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Interior Trim - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:43:26 AM

Page 25

© 2005 Mitchell Repair Information Company, LLC.

1. Slide the decoration plate towards the vehicle front as shown in the figure, then pull out the pin and hooks

and remove the decoration plate.

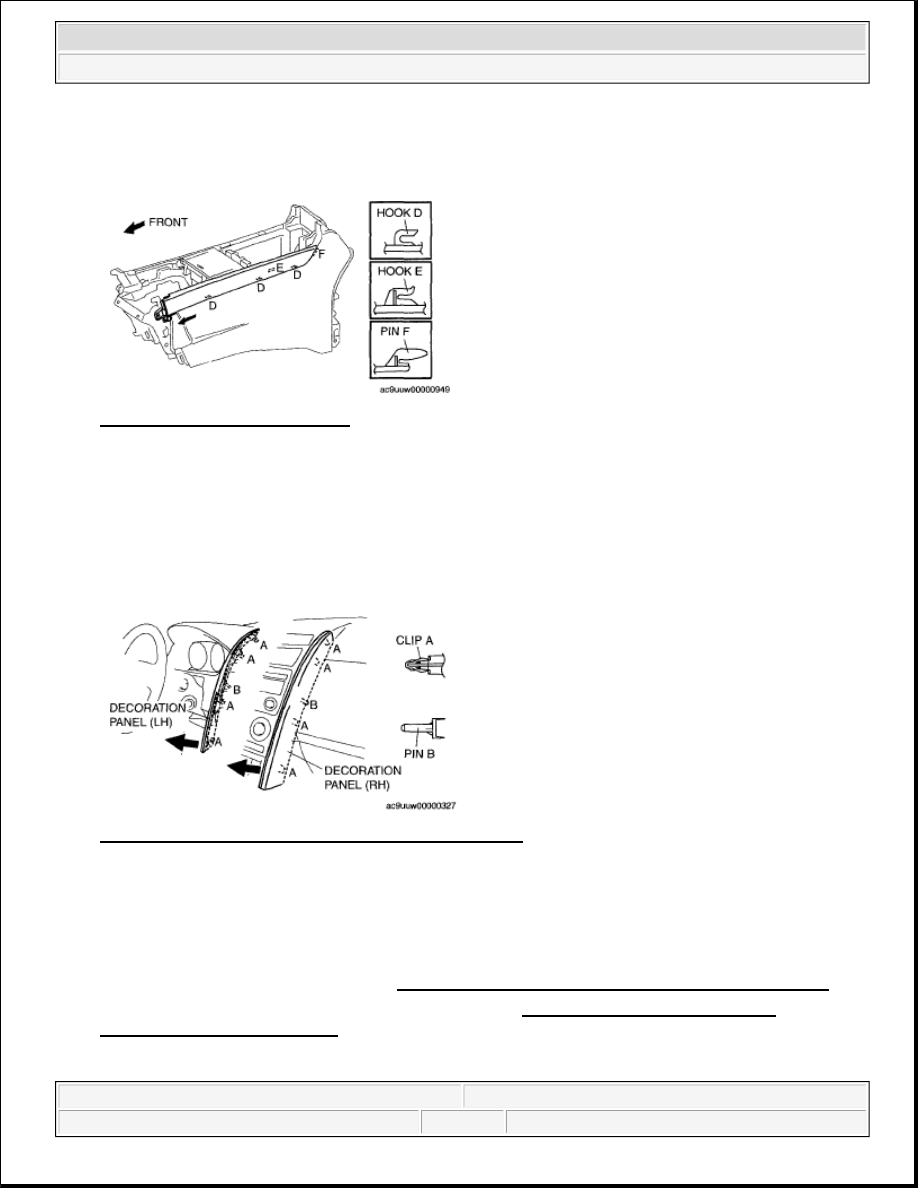

Fig. 37: Sliding Decoration Plate
Courtesy of MAZDA MOTORS CORP.

DECORATION PANEL REMOVAL/INSTALLATION

1. Detach clips A and pin B by pulling them in the direction of the arrow.

2. Remove the decoration panel.

3. Install in the reverse order of removal.

Fig. 38: Identifying Decoration Panel With Pin & Clips
Courtesy of MAZDA MOTORS CORP.

CONSOLE PANEL REMOVAL/INSTALLATION

RH

1. Remove the decoration panel (RH). (See DECORATION PANEL REMOVAL/INSTALLATION.)

2. Remove the dashboard under cover (Passenger side). (See DASHBOARD UNDER COVER

REMOVAL/INSTALLATION.)

3. Detach clips A and B, and hooks by pulling them in the direction of the arrow.



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Interior Trim - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:43:26 AM

Page 26

© 2005 Mitchell Repair Information Company, LLC.

4. Remove the console panel.

5. Install in the reverse order of removal.

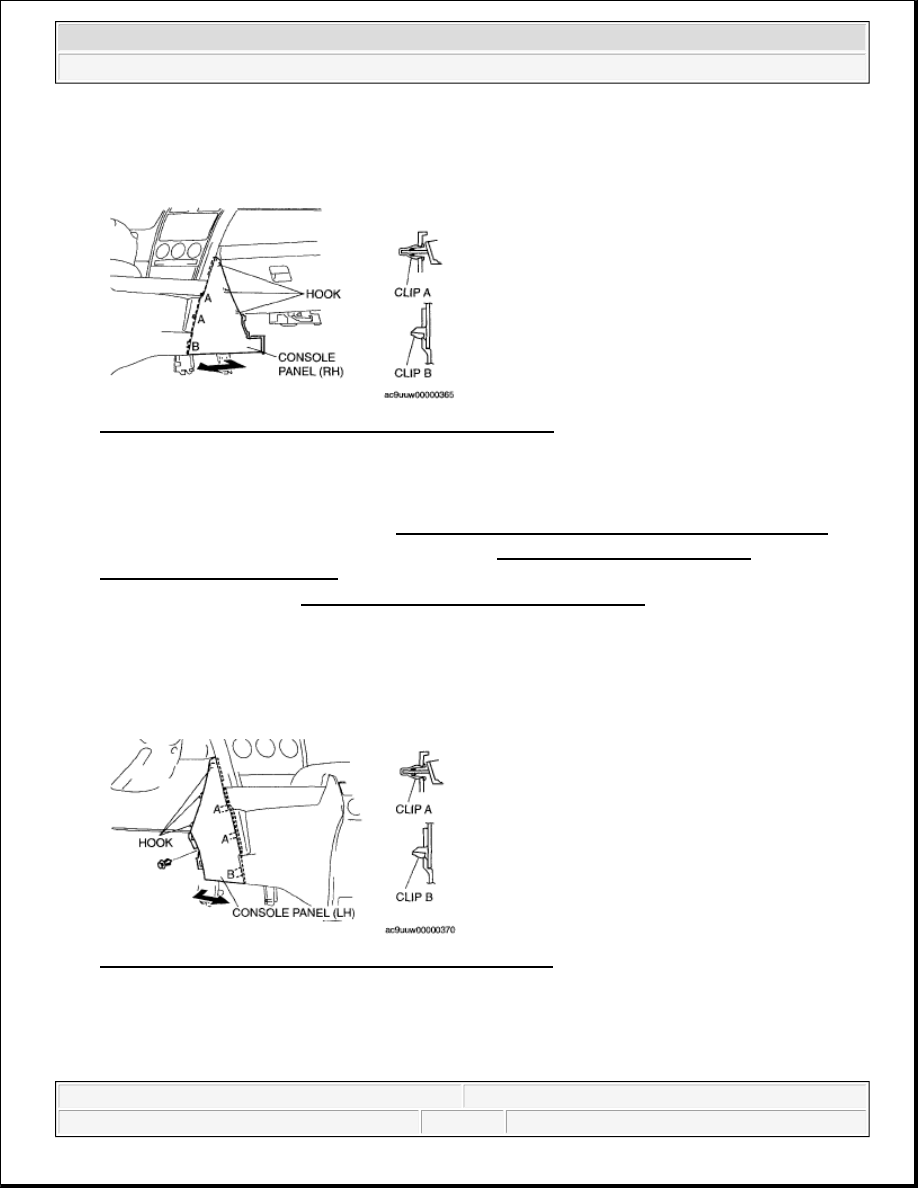

Fig. 39: Identifying RH Console Panel With Clips & Hooks
Courtesy of MAZDA MOTORS CORP.

LH

1. Remove the decoration panel (LH). (See DECORATION PANEL REMOVAL/INSTALLATION.)

2. Remove the dashboard under cover (Driver side). (See DASHBOARD UNDER COVER

REMOVAL/INSTALLATION.)

3. Remove the side wall. (See SIDE WALL REMOVAL/INSTALLATION.)

4. Remove the fastener.

5. Detach clips A and B, and hooks by pulling them in the direction of the arrow.

6. Remove the console panel.

7. Install in the reverse order of removal.

Fig. 40: Identifying LH Console Panel With Clips & Hooks
Courtesy of MAZDA MOTORS CORP.

A-PILLAR TRIM REMOVAL/INSTALLATION

1. Partially peel back the seaming welt.



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Interior Trim - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:43:26 AM

Page 27

© 2005 Mitchell Repair Information Company, LLC.

2. Pull the A-pillar trim shown in the figure in the direction of the arrow, raise clip B from its grommet

together with the A-pillar trim, and remove clips A at the same time.

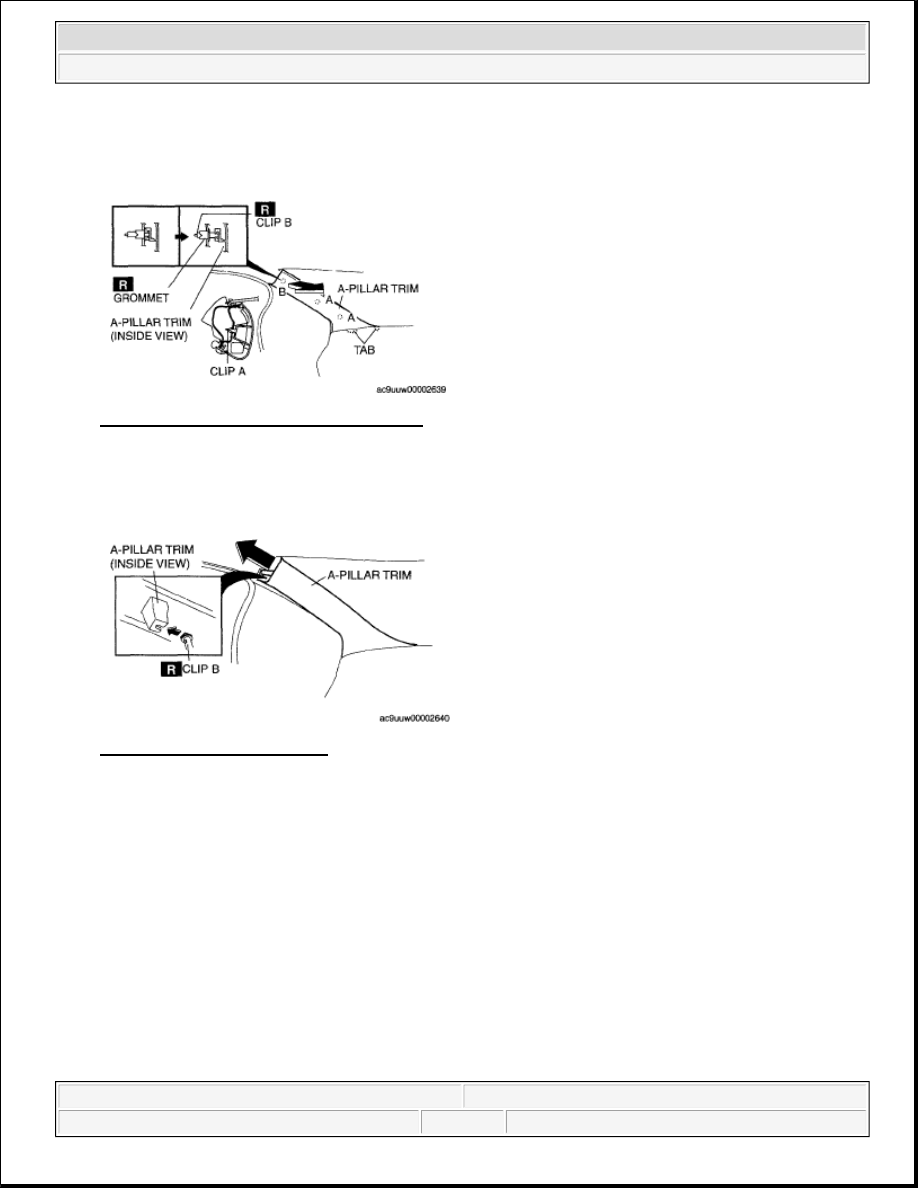

Fig. 41: Identifying A-Pillar Trim & Clips
Courtesy of MAZDA MOTORS CORP.

3. Slide the A-pillar trim in the direction of the arrow shown in the figure and remove the A-pillar trim from

clip B.

Fig. 42: Sliding A-Pillar Trim
Courtesy of MAZDA MOTORS CORP.

4. Rotate and pull clip B in the direction of the arrow shown in the figure until it is no longer loose, and

feels tight.

5. Pull clip B and remove it from the grommet.



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Interior Trim - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:43:26 AM

Page 28

© 2005 Mitchell Repair Information Company, LLC.
