Mazda MX-5 Miata (1997+). Manual - part 72





COOLING SYSTEM SPECIFICATIONS (1997-98 MILLENIA)

COOLING SYSTEM SPECIFICATIONS (1997-98 MPV)

Months

Coolant Capacity

6.3 Qts. (6.0L)

Pressure Cap

10.7-14.9 psi

Thermostat Open Temperature

Starts

Main Valve

188-193°F (86.5-89.5°C)

Sub Valve

183-188°F (83.5-86.5°C)

Fully Open

212°F (100°C)

Thermostat Open Lift

Main Valve

.31" (8 mm)

Sub Valve

.06" (1.5 mm)

(1)

Every 30,000 miles, and every 24 months thereafter.

Model

Specification

Millenia

Coolant Replacement

Interval

(1)

 45,000 Miles Or 36

Months

Coolant Capacity

7.9 Qts. (7.5L)

Pressure Cap

13.5-17.7 psi

Thermostat Open Temperature

Starts

176-183°F (80-84°C)

Fully Open

203°F (95°C)

Thermostat Open Lift

.33" (8.5 mm)

(1)

Every 30,000 miles, and every 24 months thereafter.

Model

Specification

MPV

Coolant Replacement

Interval

(1)

 45,000 Miles Or 36

Months

Coolant Capacity

10.3 Qts. (9.7L)

Pressure Cap

10.7-14.9 psi

Thermostat Open Temperature (1997)

Starts

179-184°F (81.5-84.5°C)

Fully Open

205°F (96°C)

Thermostat Open Lift (1997)

.35" (9.0 mm)

Thermostat Open Temperature (1998)



1997 Mazda MX-5 Miata

1994-98 ENGINE COOLING Specifications & Drive Belt Routing - B2300, B2500, B3000, B4000, Millenia, MPV, MX-5

Miata & Protege



COOLING SYSTEM SPECIFICATIONS (1995-98 PROTEGE)

TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS (MILLENIA, 2.5L)

TORQUE SPECIFICATIONS (MPV)

Starts

176-183°F (80-84°C)

Fully Open

203°F (95°C)

Thermostat Open Lift (1998)

.33" (8.5 mm)

(1)

Every 30,000 miles, and every 24 months thereafter.

Model

Specification

Protege

Coolant Replacement

1995

Interval

24,000 Miles Or 30 Months

1996-98

Interval

(1)

 45,000 Miles Or 36

Months

Coolant Capacity

6.3 Qts. (6.0L)

Pressure Cap

10.7-14.9 psi

Thermostat Open Temperature (1995)

Starts

Main Valve

188-193°F (86.5-89.5°C)

Sub Valve

183-188°F (83.5-86.5°C)

Fully Open

212°F (100°C)

Thermostat Open Lift (1995)

Main Valve

.31" (8 mm)

Sub Valve

.06" (1.5 mm)

Thermostat Open Temperature (1996-98)

Starts

183-193°F (83.5-89.5°C)

Fully Open

212°F (100°C)

Thermostat Open Lift (1996-98)

.33" (8.5 mm)

(1)

Every 30,000 miles, and every 24 months thereafter.

Application

Ft. Lbs. (N.m)

Alternator Locknut

24-33 (32-46)

Power Steering Pump Locknut

24-33 (32-46)

Application

Ft. Lbs. (N.m)

Alternator Adjusting Bolt



1997 Mazda MX-5 Miata

1994-98 ENGINE COOLING Specifications & Drive Belt Routing - B2300, B2500, B3000, B4000, Millenia, MPV, MX-5

Miata & Protege



TORQUE SPECIFICATIONS (MX-3 MIATA)

TORQUE SPECIFICATIONS (PROTEGE)

"A"

14-18 (19-25)

"B"

28-38 (38-51)

A/C Compressor Locknut

28-38 (38-51)

Power Steering Pump Locknut

28-38 (38-51)

Application

Ft. Lbs. (N.m)

Alternator Adjusting Bolt

"A"

14-18 (19-25)

"B"

28-38 (38-51)

A/C Compressor Locknut

28-38 (38-51)

Power Steering Pump Bolt

"A"

24-33 (32-46)

"B"

27-39 (37-53)

"C"

14-18 (19-25)

Application

Ft. Lbs. (N.m)

Alternator Adjusting Bolt

"A"

28-38 (38-51)

"B"

14-18 (19-25)

Power Steering Pump Bolt

"A"

32-44 (44-60)

"B"

28-38 (38-51)

"C"

28-38 (38-51)



1997 Mazda MX-5 Miata

1994-98 ENGINE COOLING Specifications & Drive Belt Routing - B2300, B2500, B3000, B4000, Millenia, MPV, MX-5

Miata & Protege



1997-2000 SUSPENSION

Front - Miata

DESCRIPTION

Front suspension is an independent, double wishbone design using upper and lower control arms. A spring over
shock is mounted between lower control arm and upper fender panel. Upper and lower control arms pivot at
crossmember and are connected by ball joints to steering knuckle. A stabilizer bar attaches to each lower control
arm and frame. See Fig. 1 . Upper coil over shock mount plate has been redesigned for 1999-2000. New design
incorporates a urethane bumper and improves ride and cornering.

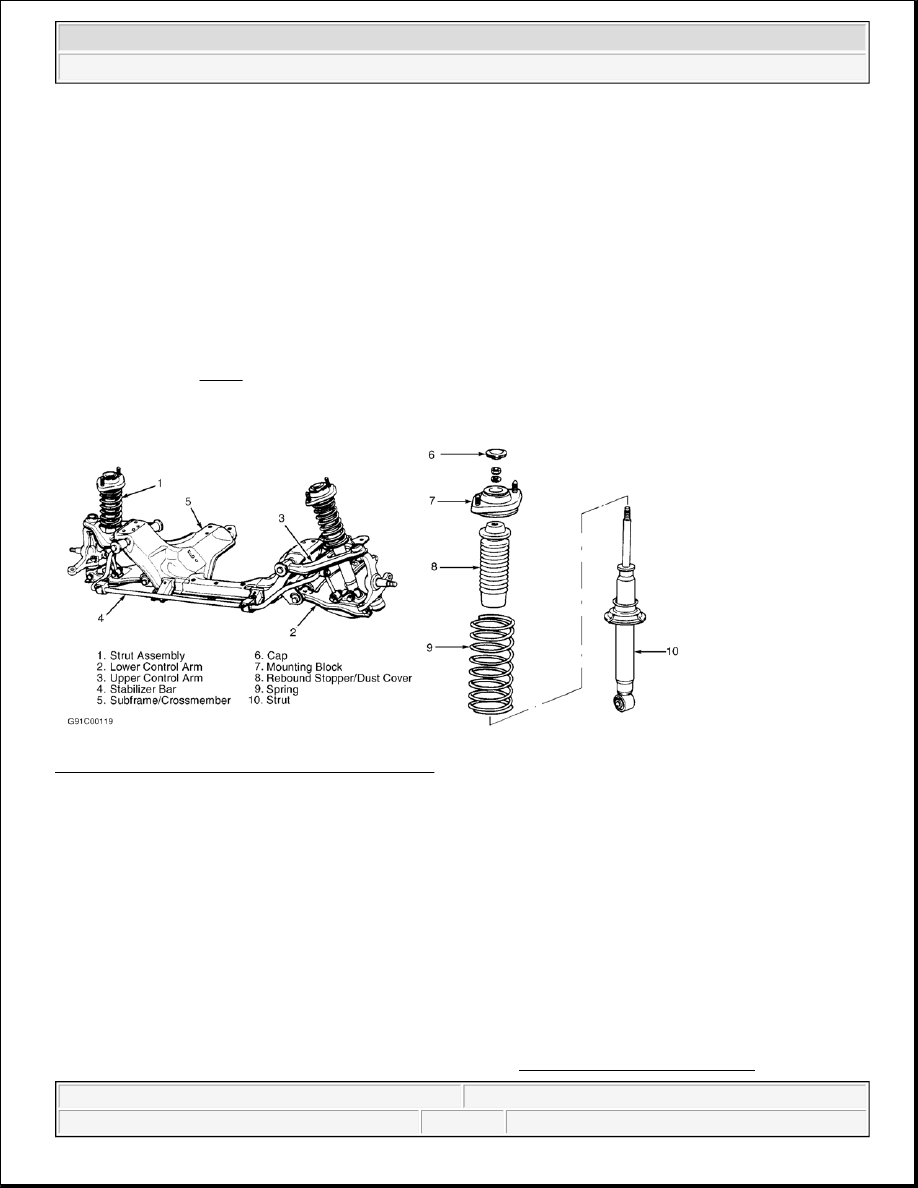

Fig. 1: Identifying Front Suspension Components
Courtesy of MAZDA MOTORS CORP.

ADJUSTMENTS

WHEEL ALIGNMENT SPECIFICATIONS & PROCEDURES

WHEEL BEARING ADJUSTMENT

Raise and support vehicle. Remove wheel assembly. Remove brake caliper and ABS wheel speed sensor.
Remove rotor. Attach dial indicator to axle hub, and measure bearing play. Check bearing axial play by rocking
hub assembly by hand. Maximum axial play should be .002" (.05 mm). If play exceeds specification, check and
adjust lock nut torque or replace hub and bearing assembly. See TORQUE SPECIFICATIONS .

NOTE:

Mazda did not produce 1998 Miata models.

NOTE:

See SPECIFICATIONS & PROCEDURES article in WHEEL ALIGNMENT.



1997 Mazda MX-5 Miata

1997-2000 SUSPENSION Front - Miata
