TENSION SPECIFICATIONS (MX-5 MIATA)

TENSION SPECIFICATIONS (PROTEGE)

TROUBLE SHOOTING

Application

(1)

 Specification - Lbs. (kg)

New Belt

(2)



Alternator

110-167 (50-76)

A/C Compressor

110-132 (50-60)

Power Steering Pump

110-132 (50-60)

Used Belt

Alternator

110-158 (50-72)

A/C Compressor

95-110 (43-50)

Power Steering Pump

95-110 (43-50)

Wear Limit

Alternator

77 (35)

A/C Compressor

55 (25)

Power Steering Pump

55 (25)

(1)

Measure tension using Tension Gauge (49 9200 020), or equivalent.

(2)

Used on for less than 5 minutes.

Application

(1)

 Specification - Lbs. (kg)

New Belt

(2)



Alternator

110-160 (50-76)

Power Steering Pump

110-130 (50-60)

Used Belt

Alternator

110-150 (50-72)

Power Steering Pump

95-110 (43-50)

Wear Limit

Alternator

77 (35)

Power Steering Pump

55 (25)

(1)

Measure tension using Tension Gauge (49 9200 020), or equivalent.

(2)

Used on for less than 5 minutes.

NOTE:

Ensure drive belts are not worn, cracked or frayed and are correctly mounted
on pulleys. See Fig. 29 .



1997 Mazda MX-5 Miata

1994-98 ENGINE COOLING Specifications & Drive Belt Routing - B2300, B2500, B3000, B4000, Millenia, MPV, MX-5

Miata & Protege



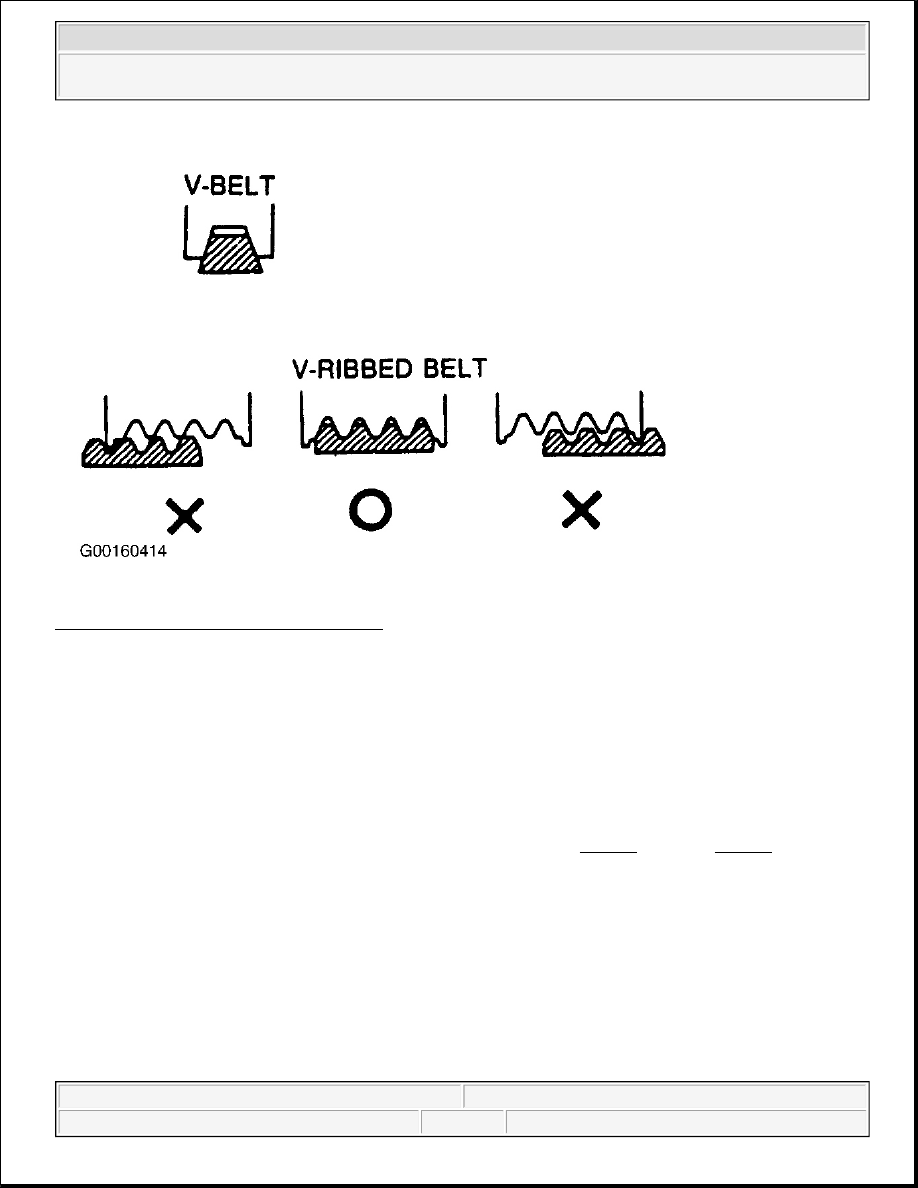

Fig. 29: Identifying Correct Belt Mounting
Courtesy of MAZDA MOTORS CORP.

B2500, B3000 & B4000

To check drive belt for proper operation, with engine running, check drive belt tracking (position of drive belt
on one of the grooveless pulleys, idlers or drive belt tensioner). If edge of drive belt rides beyond edge of
pulley, noise and premature wear may result. If a drive belt tracking condition exists, visually check drive belt
tensioner for damage, especially mounting pad surface. If drive belt tensioner is not installed correctly with
locating pins in locating holes, mounting surface pad will be out of position. This will result in abnormal drive
belt tension and chirp and squeal noises.

If above procedures do not correct drive belt noise, try replacing drive belt with a known good drive belt.
However, drive belt noise may return, with mileage, if one of above conditions still exists uncorrected.

CAUTION: Incorrect drive belt installation will cause excessive drive belt wear and

may cause drive belt to come off drive pulleys.

NOTE:

Replace belts if tensioner indicates belt is out of adjustment range. DO NOT
apply belt dressing to serpentine belt. Use illustration to help align serpentine
belt and to check belt routing and tension. See Fig. 15 through Fig. 17 .



1997 Mazda MX-5 Miata

1994-98 ENGINE COOLING Specifications & Drive Belt Routing - B2300, B2500, B3000, B4000, Millenia, MPV, MX-5

Miata & Protege



With engine running, visually observe grooves in pulleys (not pulley flanges) for excessive wobble. Replace
components as required. Check all accessories, mounting brackets and drive belt tensioner, for any interference
that would prevent component from mounting properly. Correct any interference conditions and recheck belt
tracking. Tighten all accessories, mounting brackets and drive belt tensioner retaining hardware to specification.

Replace drive belt is excessive cracking or wear, severe glazing or frayed cords are present. Minor cracks in
back of drive belt are considered acceptable.

SPECIFICATIONS

COOLING SYSTEM SPECIFICATIONS

COOLING SYSTEM SPECIFICATIONS (1997 2300)

COOLING SYSTEM SPECIFICATIONS (1998 B2500, B3000 & B4000)

Model

Specification

B2300

Coolant Replacement

Interval

(1)

 50,000 Miles Or 48

Months

Coolant Capacity

With A/C

7.2 Qts. (6.8L)

Without A/C

6.5 Qts. (6.2L)

Pressure Cap

12 psi

Thermostat Open Temperature

Starts

192°F (89°C)

Fully Open

212°F (100°C)

Thermostat Open Lift

.13" (3.2 mm)

(1)

Every 30,000 miles, and every 36 months thereafter.

Model

Specification

B2500

Coolant Replacement

Interval

(1)

 50,000 Miles Or 48

Months

Coolant Capacity

With A/C

7.2 Qts. (6.8L)

Without A/C

6.5 Qts. (6.2L)

Pressure Cap

14.4-17.6 psi

Thermostat Open Temperature

Starts

183-190°F (84-88°C)

Fully Open

212°F (100°C)

Thermostat Open Lift

.13" (3.2 mm)



1997 Mazda MX-5 Miata

1994-98 ENGINE COOLING Specifications & Drive Belt Routing - B2300, B2500, B3000, B4000, Millenia, MPV, MX-5

Miata & Protege



COOLING SYSTEM SPECIFICATIONS (1994-97 MIATA)

B3000

Coolant Replacement

Interval

(1)

 50,000 Miles Or 48

Months

Coolant Capacity

With A/C

10.2 Qts. (9.6L)

Without A/C

9.5 Qts. (9.0L)

Pressure Cap

14.4-17.6 psi

Thermostat Open Temperature

Starts

183-190°F (84-88°C)

Fully Open

212°F (100°C)

Thermostat Open Lift

.13" (3.2 mm)

B4000

Coolant Replacement

Interval

(1)

 50,000 Miles Or 48

Months

Coolant Capacity

With A/C

8.6 Qts. (8.1L)

Without A/C

7.8 Qts. (7.4L)

Pressure Cap

1997

12 psi

1998

14.4-17.6 psi

Thermostat Open Temperature (1997)

Starts

192°F (89°C)

Fully Open

212°F (100°C)

Thermostat Open Lift (1997)

.13" (3.2 mm)

Thermostat Open Temperature (1998)

Starts

183-190°F (84-88°C)

Fully Open

212°F (100°C)

Thermostat Open Lift (1998)

.13" (3.2 mm)

(1)

Every 30,000 miles, and every 36 months thereafter.

Model

Specification

Miata

Coolant Replacement

1994-95

Interval

24,000 Miles Or 30 Months

1996-97

Interval

(1)

 45,000 Miles Or 36
