INSPECTION

BALL JOINT CHECKING

Lower Ball Joint

Remove lower control arm. See LOWER CONTROL ARM & BALL JOINT under REMOVAL &
INSTALLATION. Rotate ball joint stud 4-5 times. Install Preload Attachment (49-0180-510B) to ball joint
stud. Measure ball joint preload using spring scale. See LOWER BALL JOINT PRELOAD
SPECIFICATIONS table. If preload is not as specified, replace lower ball joint.

LOWER BALL JOINT PRELOAD SPECIFICATIONS

Upper Ball Joint

Remove upper control arm. See UPPER CONTROL ARM & BALL JOINT under REMOVAL &
INSTALLATION. Rotate ball joint stud 4-5 times. Install Preload Attachment (49-0180-510B) to ball joint
stud. Measure ball joint preload using spring scale. See UPPER BALL JOINT PRELOAD
SPECIFICATIONS table. If preload is not as specified, replace upper control arm.

UPPER BALL JOINT PRELOAD SPECIFICATIONS

REMOVAL & INSTALLATION

WHEEL BEARING

Removal

Raise and support vehicle. Remove wheel assembly. Remove brake caliper and ABS wheel speed sensor, and
wire aside. Remove grease cap and axle lock nut. Remove brake rotor. Remove hub and bearing assembly.
Remove wheel speed sensor rotor from hub.

Inspection

Application

Lbs. (kg)

1997

1.1-3.3 (0.5-1.5)

1999 & 2000

0.78-4.29 (0.35-1.95)

Application

Lbs. (kg)

1997

0.9-3.9 (0.4-1.8)

1999 & 2000

0.7-5.0 (0.3-2.3)

NOTE:

Refer to illustration during removal and installation. See Fig. 1 .

NOTE:

Wheel bearing is not serviceable. If bearing is defective, replace hub and
bearing assembly as a unit.



1997 Mazda MX-5 Miata

1997-2000 SUSPENSION Front - Miata



Check for damage, excessive wear and signs of bearing seizure. Inspect steering knuckle and hub for cracks,
scoring and rust. Check for damaged dust cover and poor fit with steering knuckle. Replace components as
necessary.

Installation

To install, reverse removal procedure. Adjust wheel bearing preload. See WHEEL BEARING
ADJUSTMENT under ADJUSTMENTS. Stake axle nut.

LOWER CONTROL ARM & BALL JOINT

Removal

1. Raise and support vehicle. Remove wheel assembly. Remove engine splash shield (if equipped). Separate

tie rod end from steering knuckle (as necessary). Remove stabilizer bar from lower control arm.

2. Remove shock lower mounting bolt and separate lower shock from lower control arm. Remove lower

control arm ball joint cotter pin and nut. Separate lower control arm ball joint stud from knuckle using
Puller (49 T028 3A0). Remove lower control arm pivot bolts and remove lower control arm.

Inspection

Check lower control arm for damage or cracks. Check bushings for deterioration and excessive wear. Check
ball joint for excessive wear. Examine dust boot for damage. Replace components as necessary.

Bushing Replacement

Cut or press old bushing from control arm. Coat NEW bushing with paraffin-based oil. Press new bushing into
control arm.

Installation (All Models)

To install, reverse removal procedure. Tighten lower control arm-to-frame bolts to specification with vehicle
resting on ground and suspension unloaded. See TORQUE SPECIFICATIONS .

UPPER CONTROL ARM & BALL JOINT

Removal

Raise and support vehicle. Remove wheel assembly. Remove engine splash shield. Remove wheel speed sensor
harness band. Remove shock lower mounting bolt, and separate lower shock from lower control arm. Remove
upper control arm ball joint cotter pin and nut. Separate upper control arm ball joint stud from knuckle using
Puller (49-0118-850C). Remove upper control arm pivot bolts and remove upper control arm.

Inspection

Check upper control arm for damage or cracks. Check bushings for deterioration and excessive wear. Check
ball joint for excessive wear. Examine dust boot for damage. Replace components as necessary.



1997 Mazda MX-5 Miata

1997-2000 SUSPENSION Front - Miata



Bushing Replacement

Cut or press old bushing from control arm. Coat new bushing with paraffin-based oil. Press new bushing into
control arm.

Installation (All Models)

To install, reverse removal procedure. Tighten upper control arm pivot bolts to specification with vehicle
resting on ground and suspension unloaded. See TORQUE SPECIFICATIONS .

SHOCK ASSEMBLY

Removal (1997)

Raise and support vehicle. Remove wheel assembly. Remove engine splash shield. Remove wheel speed sensor
harness band. Remove stabilizer link bolt. Remove upper control arm ball joint cotter pin and nut. Separate
upper control arm ball joint stud from knuckle using Puller (49-0118-850C). Loosen lower control arm pivot
bolts. Remove shock upper mount nuts and lower bolt. Move lower control arm just enough to remove shock
assembly. DO NOT damage brake line.

Removal (1999 & 2000)

Raise and support vehicle. Remove wheel assembly. Remove engine splash shield. Remove wheel speed sensor.
Remove stabilizer link bolt. Separate lower control arm ball joint stud from knuckle using Puller (49-T028-
3A0). Loosen lower control arm pivot bolts. Inside engine compartment, on 1999 models, remove strut bar. See
FRONT STRUT BAR (1999) . On 2000 models, remove shock upper mount nuts. On all models, under car,
remove lower bolt. Move lower control arm just enough to remove shock assembly. DO NOT damage brake
line.

Disassembly

Clamp upper shock mount in vise. Loosen piston lock nut 2 turns only. Compress coil spring using coil spring
compressor. Remove piston lock nut. Slowly release compressor tension. Remove components. Remove coil
spring. Remove shock from vise.

Inspection

Check shock tube for damage, oil leakage and abnormal noise. Check rubber components for deterioration or
damage. Inspect coil spring for signs of fatigue or damage. Replace components as necessary.

Reassembly (1997)

Clamp shock in vise. Install coil spring and components in reverse order of disassembly. Ensure coil spring is
well seated in upper and lower spring seats. See Fig. 2 . Tighten piston rod nut. See TORQUE
SPECIFICATIONS .



1997 Mazda MX-5 Miata

1997-2000 SUSPENSION Front - Miata

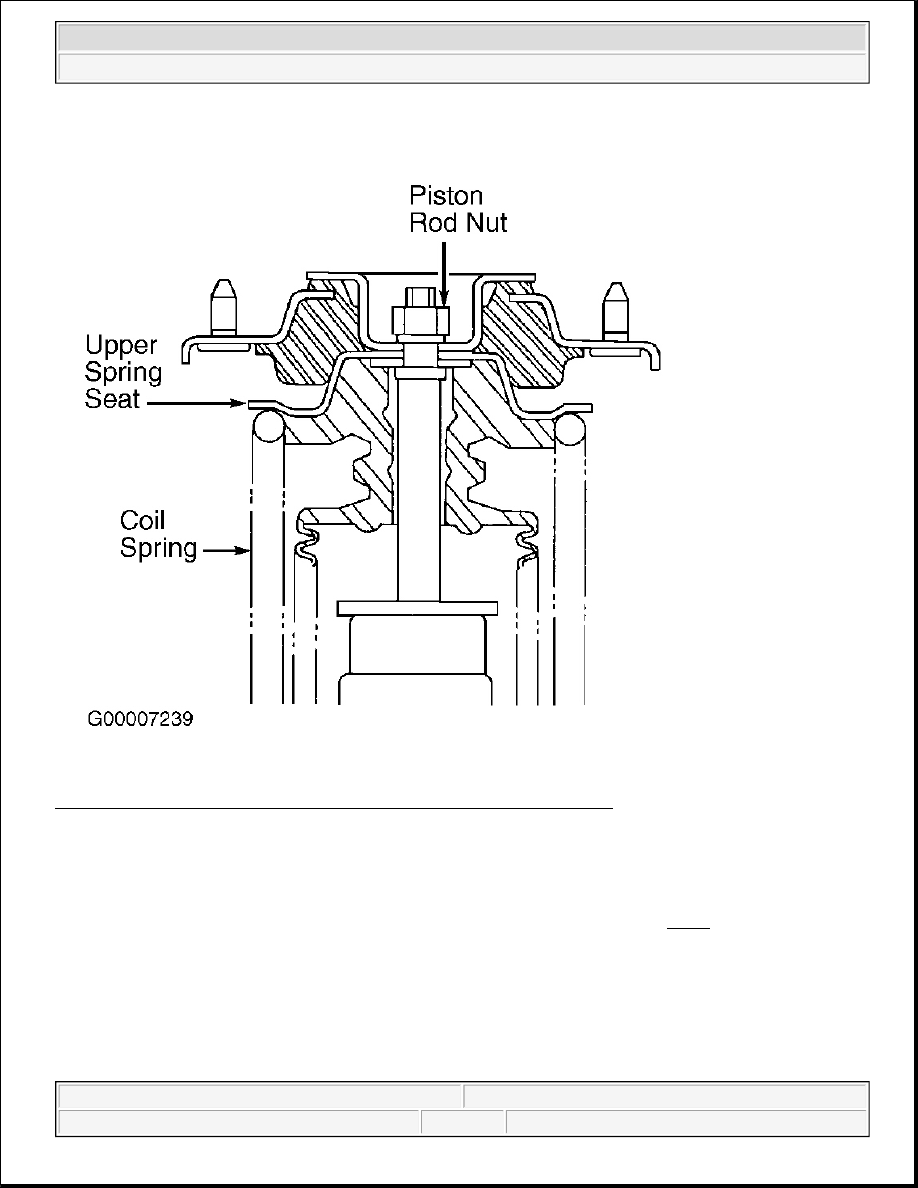

Fig. 2: Cross-Sectional View Of Upper Coil Over Shock Assembly (1997)
Courtesy of MAZDA MOTORS CORP.

Reassembly (1999 & 2000)

Clamp shock in vise. Install spring and upper spring retainer in original orientation to shock. Tighten lower
piston rod nut so that exposed thread of piston rod is 0.62-0.69" (15.7-17.7mm). See Fig. 3 . Tighten upper nut
to 12-17 ft. lbs. (16-23 N.m).

CAUTION: Using air tool will damage piston rod thread. DO NOT use air tool.
