PANEL REPAIRS

REPLACEMENT PANELS

77-2-9

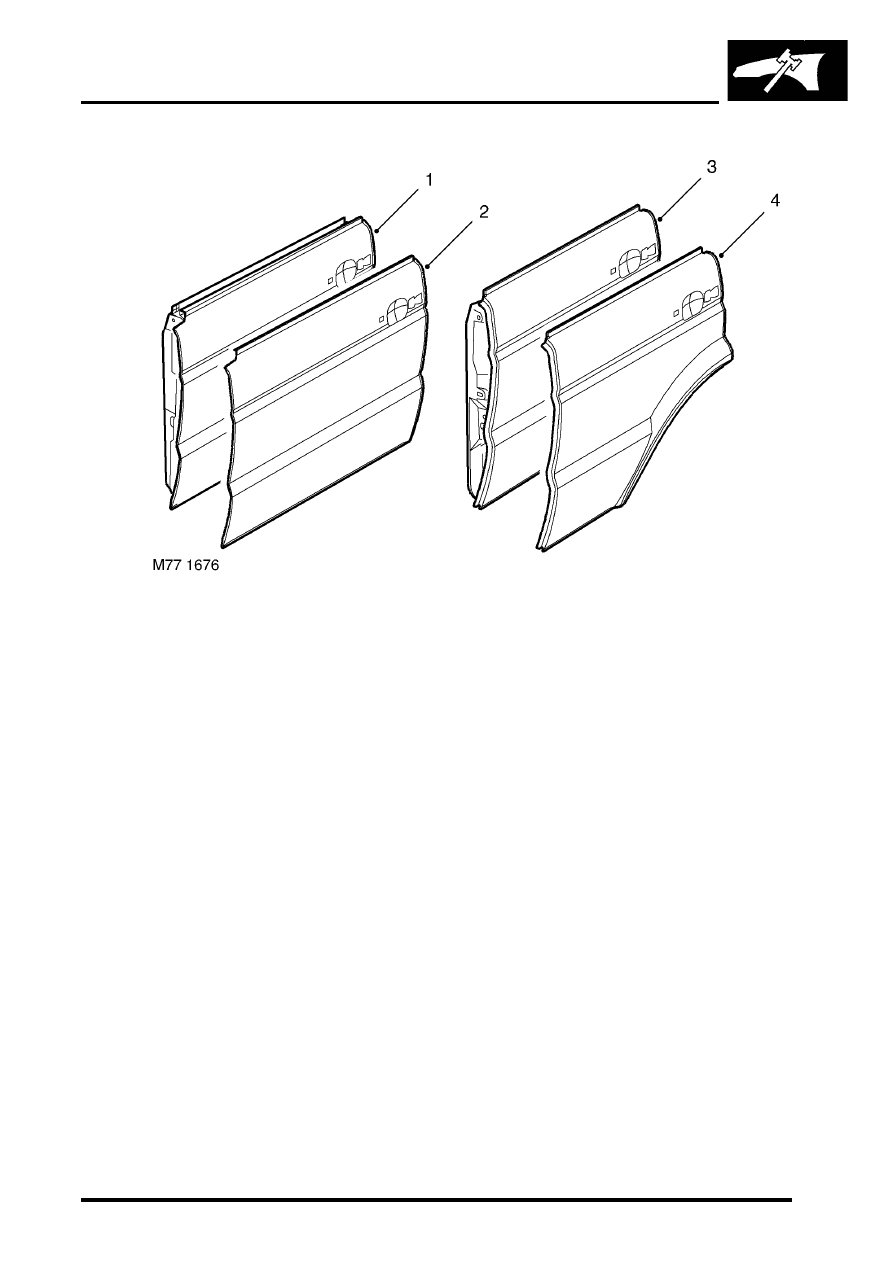

Front and rear doors

1 Front door assembly
2 Front door skin panel

3 Rear door assembly
4 Rear door skin panel

PANEL REPAIRS

77-2-10 REPLACEMENT PANELS

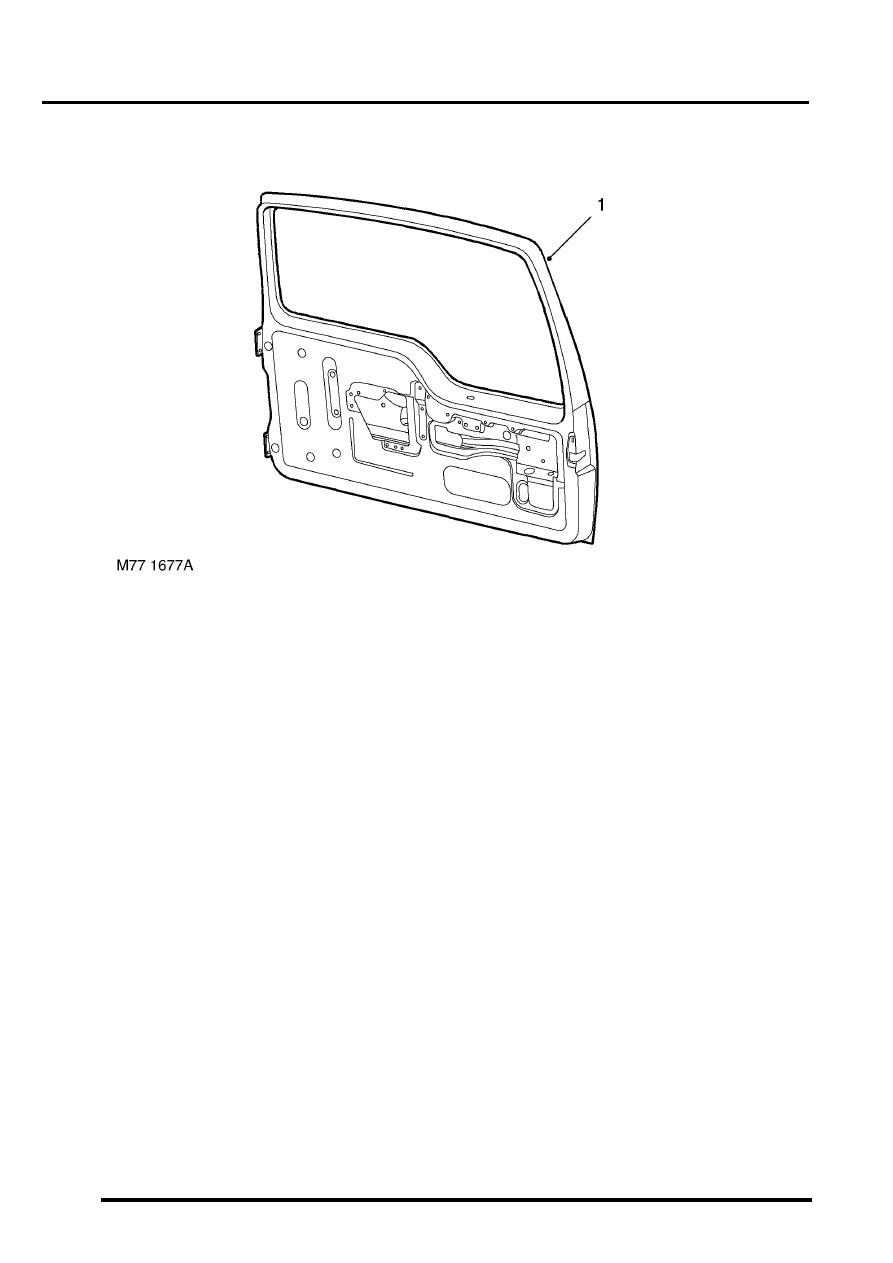

Taildoor

1 Taildoor complete assembly

PANEL REPAIRS

REPLACEMENT PANELS 77-2-11

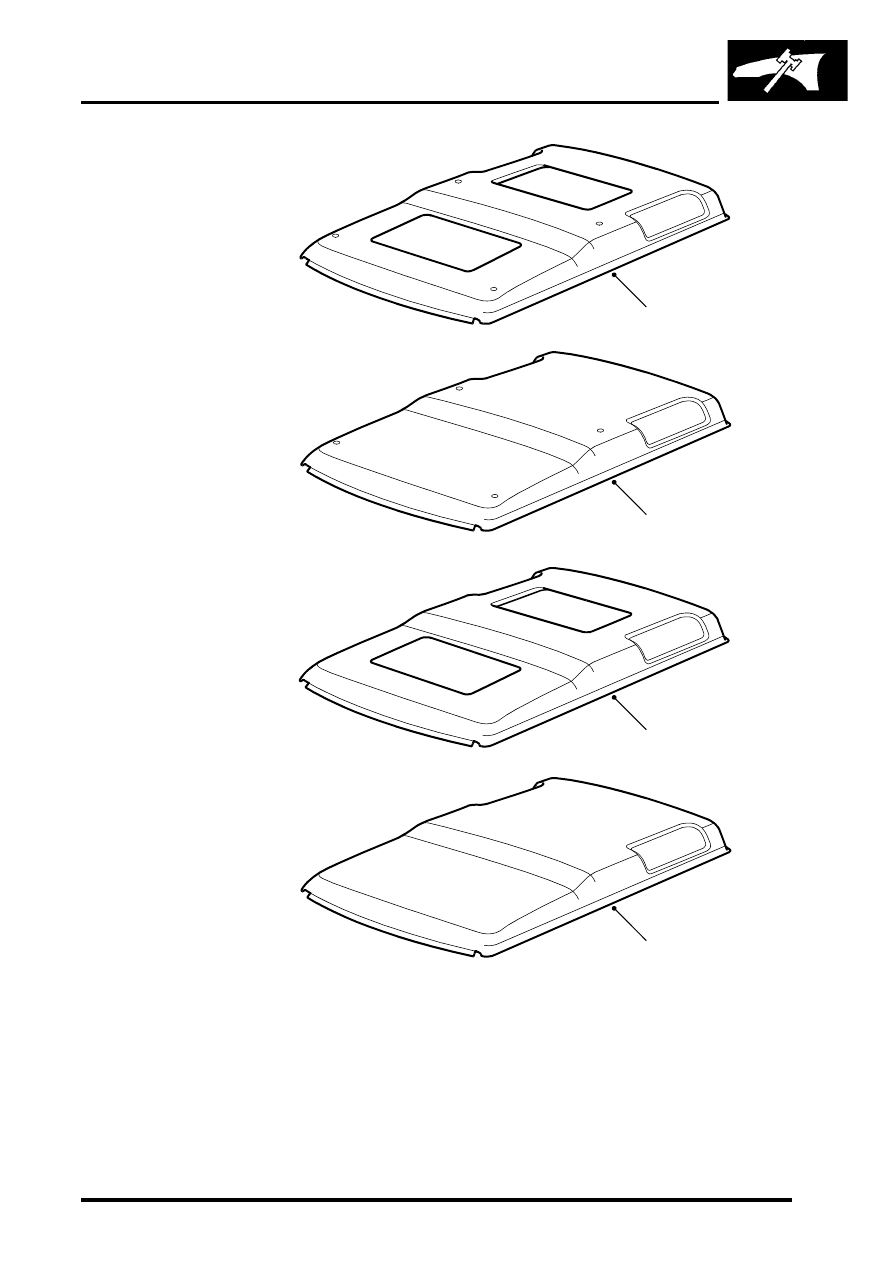

Roof panels

1 Roof panel with sunroofs and roof bar holes
2 Roof panel with roof bar holes only

3 Roof panel with sunroofs only
4 Roof panel

M77 1674A

1

2

3

4

PANEL REPAIRS

77-2-12 REPLACEMENT PANELS

Replacement panels

The previous illustrations show some of the service panels which feature in the Body Repairs procedures. Additional
panels and full body shells are also available. See Parts Fiche for details.
