Discovery 2. Manual - part 261

PANEL REPAIRS

REPLACEMENT PANELS

77-2-5

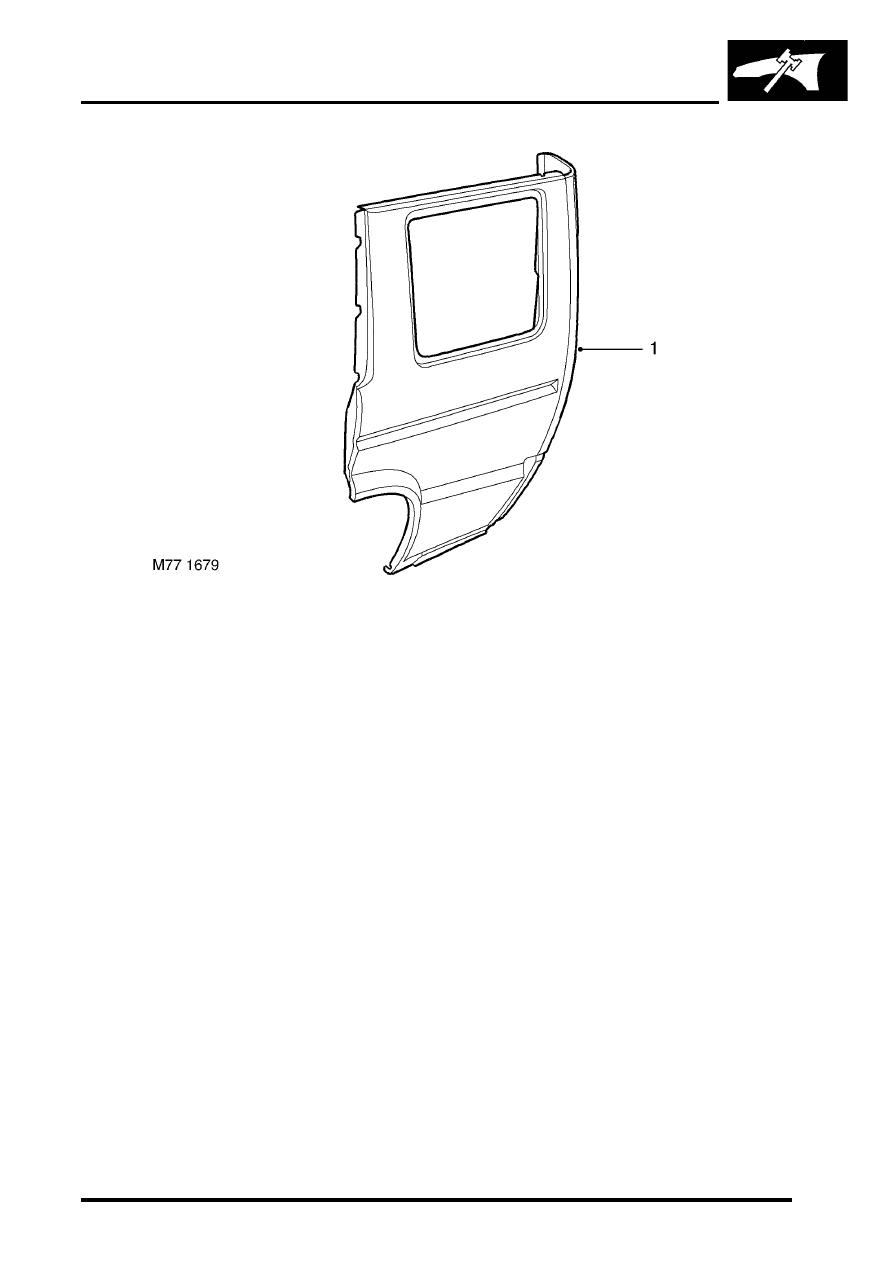

Body side assembly

1 Panel body side assembly

PANEL REPAIRS

77-2-6

REPLACEMENT PANELS

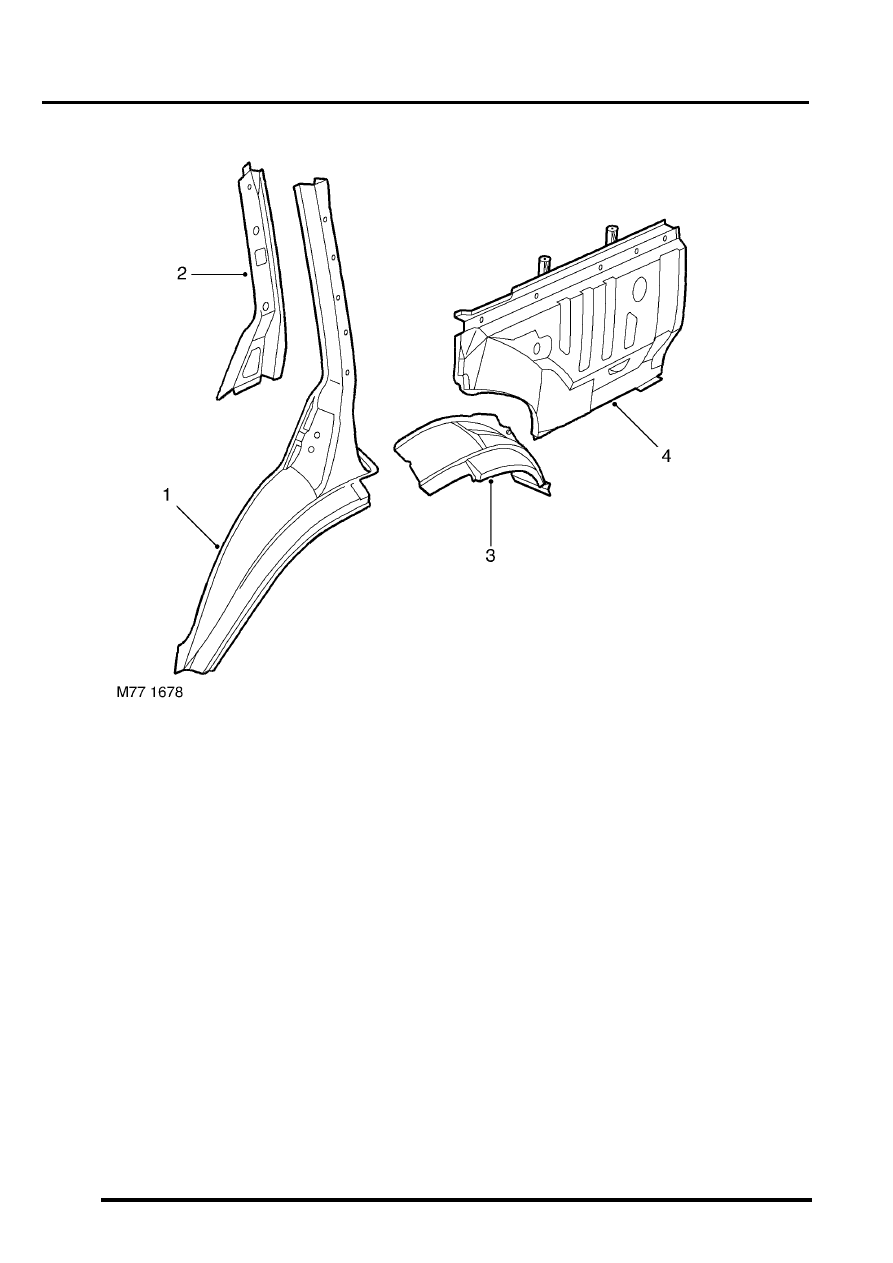

'D'-post assembly

1 'D' post outer assembly
2 'D' post closing assembly

3 Wheelarch rear outer assembly
4 Bodyside inner rear assembly

PANEL REPAIRS

REPLACEMENT PANELS

77-2-7

Rear floor assembly.

1 Rear floor assembly

M77 1673C

 1

PANEL REPAIRS

77-2-8

REPLACEMENT PANELS

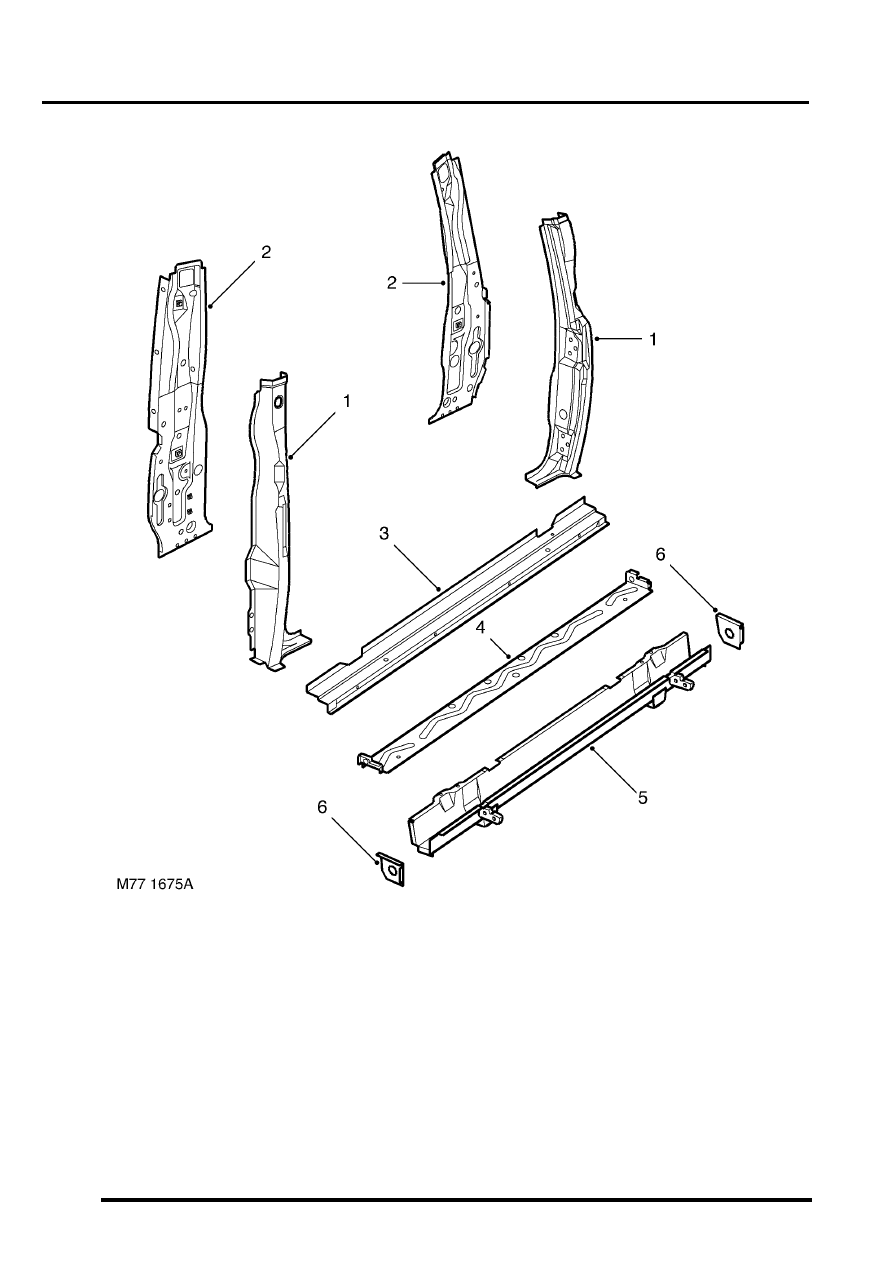

Rear end panels

1 'E' post assemblies
2 'E' post closing assemblies
3 Crossmember outer rear panel

4 Crossmember closing rear panel
5 Crossmember rear assembly
6 Crossmember closing rear brackets
