Replacement panels

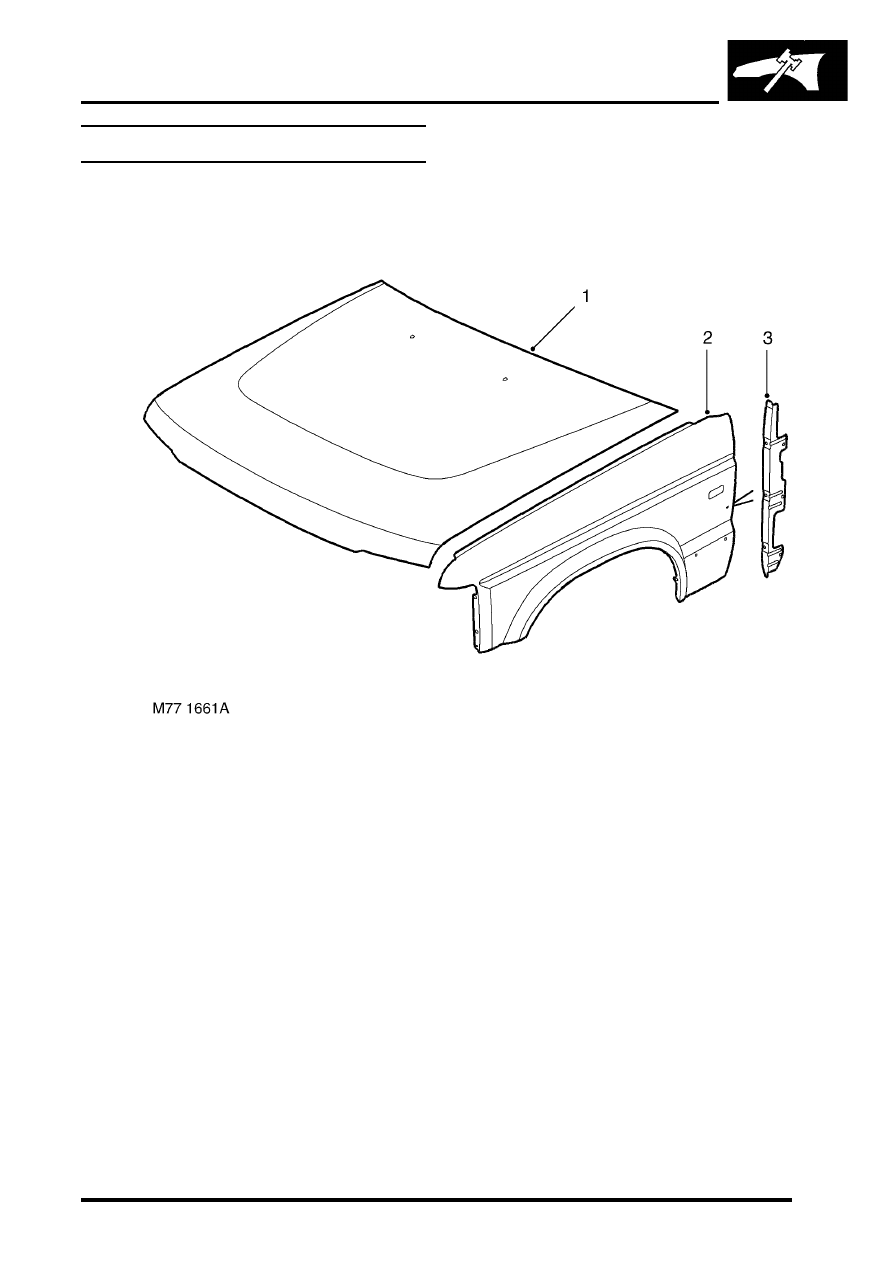

Front end outer panels

1 Bonnet assembly
2 Front wing

3 Wing support bracket

PANEL REPAIRS

77-2-2

REPLACEMENT PANELS

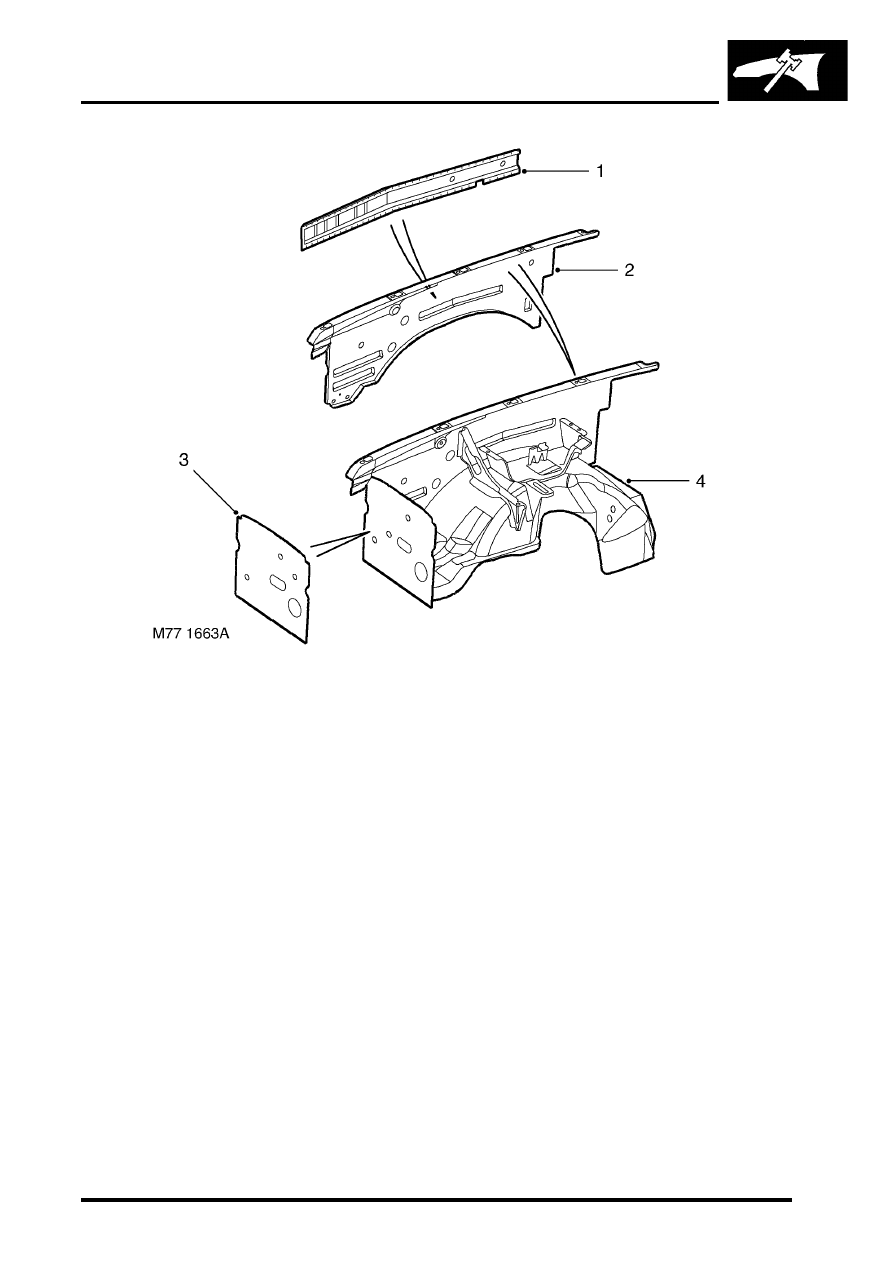

Front end inner panels

1 Bonnet locking platform
2 Headlamp mounting panels

3 Front crossmember
4 Front bulkhead assembly

PANEL REPAIRS

REPLACEMENT PANELS

77-2-3

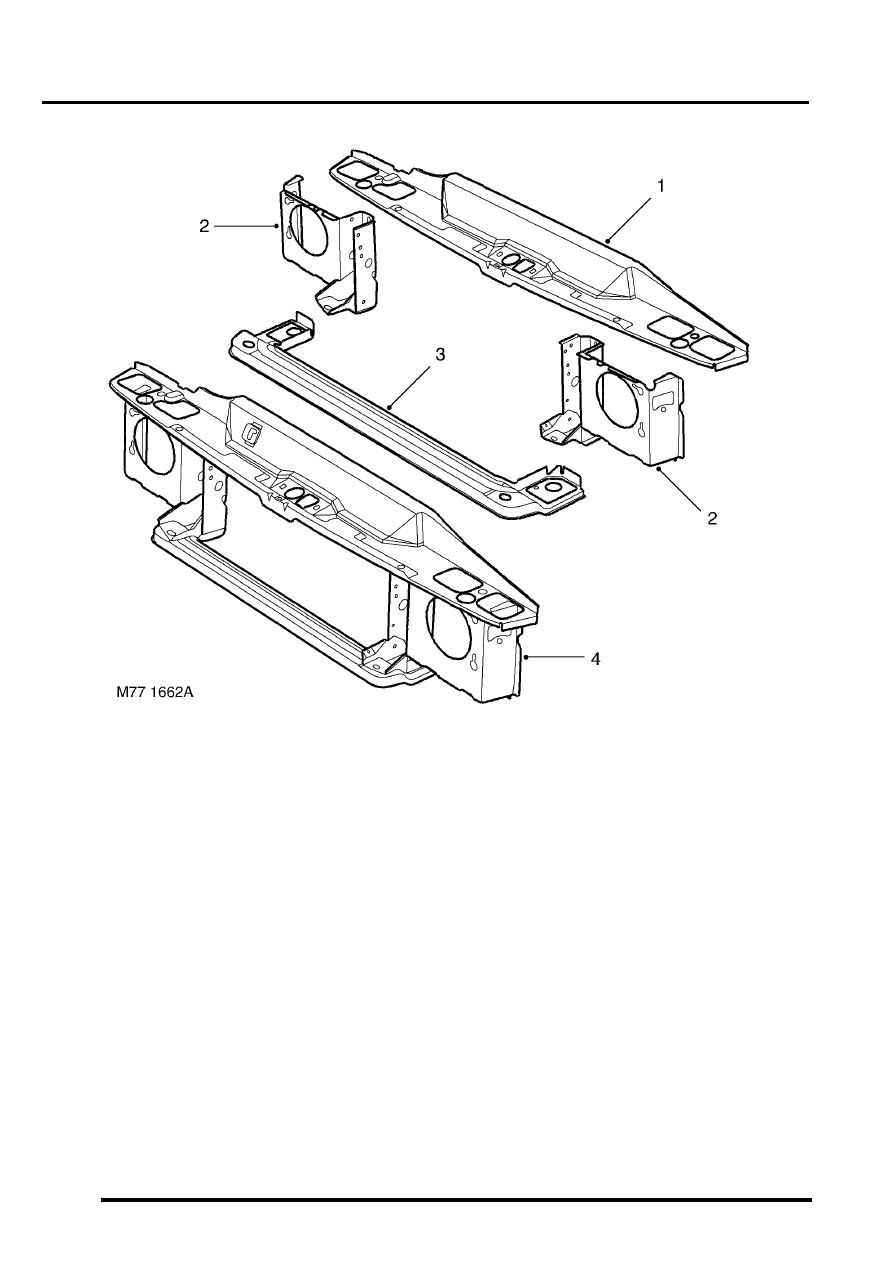

Valance panels

1 Reinforcement valance outer
2 Valance upper assembly

3 Headlamp closing panel
4 Front valance assembly

PANEL REPAIRS

77-2-4

REPLACEMENT PANELS

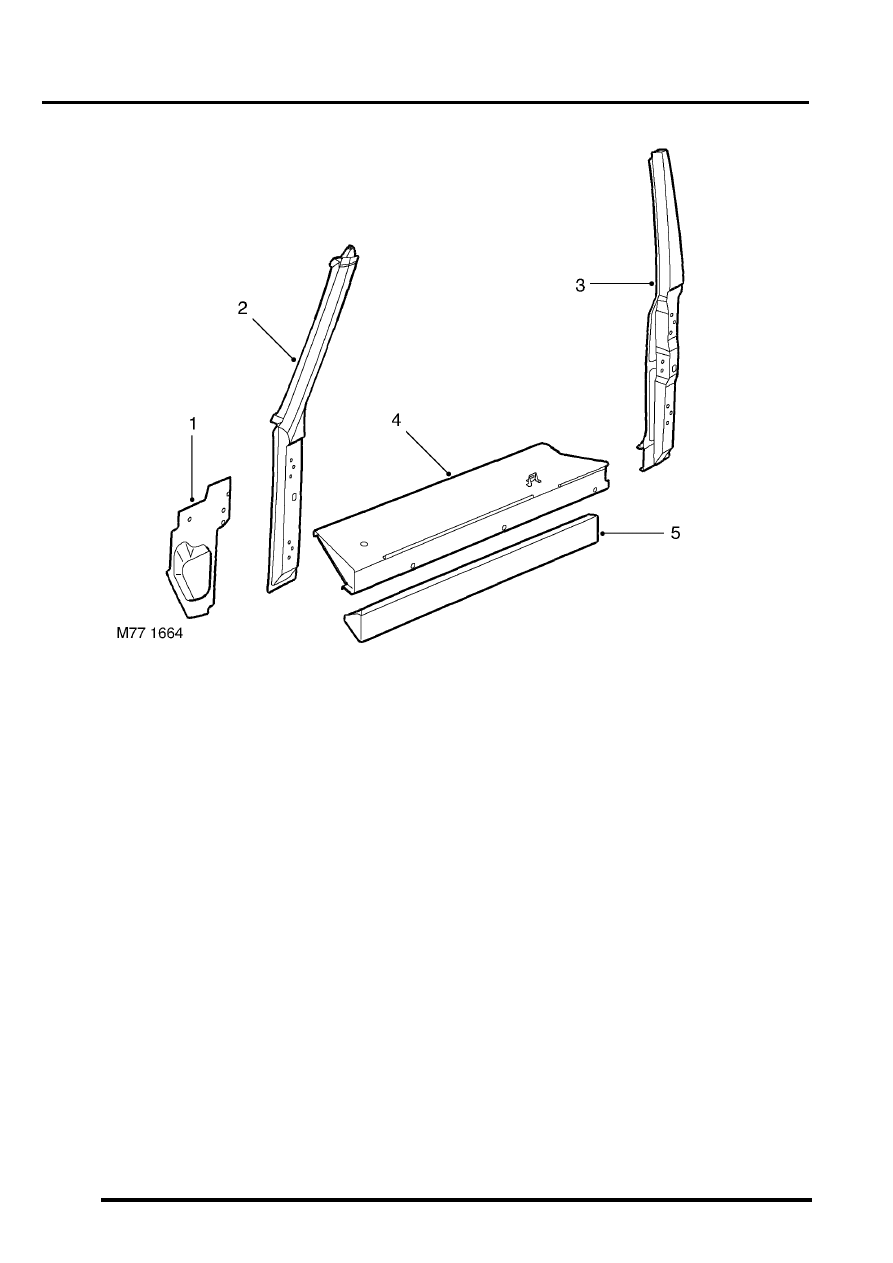

Body side panels

1 Dash side assembly
2 'A' post assembly
3 'B/C' post assembly

4 Sill inner assembly
5 Sill outer assembly
