(45) Use special tool 6597 and handle C-4171 and

C-4171-2 to press the rear output shaft bearing cup
rearward (Fig. 67).

(46) Remove the rear carrier front bearing cone

(Fig. 68).

(47) Install and load compressor (Fig. 69) as shown

in (Fig. 70).

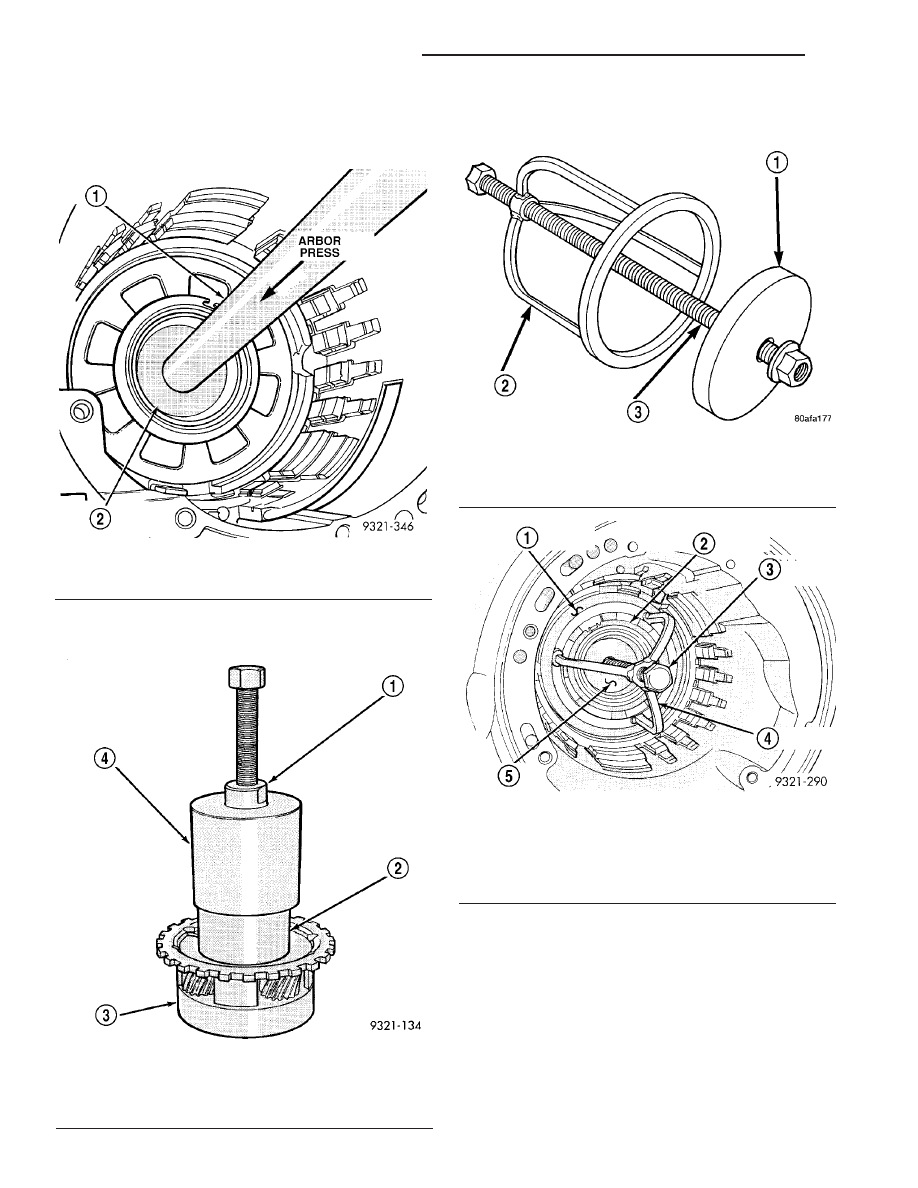

Fig. 68 Remove Rear Carrier Front Bearing Cone

1 - SPECIAL TOOL 5048-1
2 - SPECIAL TOOL 6545
3 - REAR CARRIER
4 - SPECIAL TOOL 5048

Fig. 67 Remove Rear Bearing Cup

1 - SPECIAL TOOL 4171 AND 4171-2
2 - SPECIAL TOOL 6597

Fig. 69 Low/Reverse Spring Compressor Tool

1 - TOOL 6057
2 - TOOL 5059
3 - TOOL 5058-3

Fig. 70 Compressor Tool in Use

1 - LOW/REVERSE CLUTCH RETURN SPRING
2 - SNAP RING (INSTALL AS SHOWN)
3 - TOOL 5058A-3
4 - TOOL 5059A
5 - SPECIAL TOOL 6057

21 - 66

AUTOMATIC TRANSMISSION - 42RLE

TJ

AUTOMATIC TRANSMISSION - 42RLE (Continued)

(48) Remove the low/reverse belleville spring snap

ring (Fig. 71).

(49) Remove

the

low/reverse

piston

belleville

spring (Fig. 72).

(50) Remove the park sprag pivot retaining screw.
(51) Drive out the anchor shaft using suitable

punch (Fig. 73).

(52) Remove the guide bracket pivot shaft (Fig.

74). Inspect all components (Fig. 75) for wear and
replace if necessary.

Fig. 71 Remove Snap Ring

1 - SNAP RING OPENING MUST BE BETWEEN SPRING LEVERS
(AS SHOWN)
2 - SNAP RING PLIERS
3 - SPECIAL TOOL 5059A

Fig. 72 Low/Reverse Piston Belleville Spring

1 - LOW/REVERSE PISTON RETURN SPRING
2 - PISTON

Fig. 73 Anchor Shaft Removal

1 - PIN PUNCH
2 - GUIDE BRACKET ASSEMBLY

Fig. 74 Remove Guide Bracket Pivot Shaft

1 - PIVOT PIN
2 - GUIDE BRACKET ASSEMBLY

TJ

AUTOMATIC TRANSMISSION - 42RLE

21 - 67

AUTOMATIC TRANSMISSION - 42RLE (Continued)

NOTE: The Low/Reverse Clutch Piston has bonded
seals which are not individually serviceable. Seal
replacement requires replacement of the piston
assembly.

(53) Remove the low/reverse clutch piston (Fig.

76).

(54) Remove

the

low/reverse

piston

retainer

screws.

(55) Remove low/reverse piston retainer (Fig. 77).

(56) Remove the low/reverse piston retainer gasket

(Fig. 78).

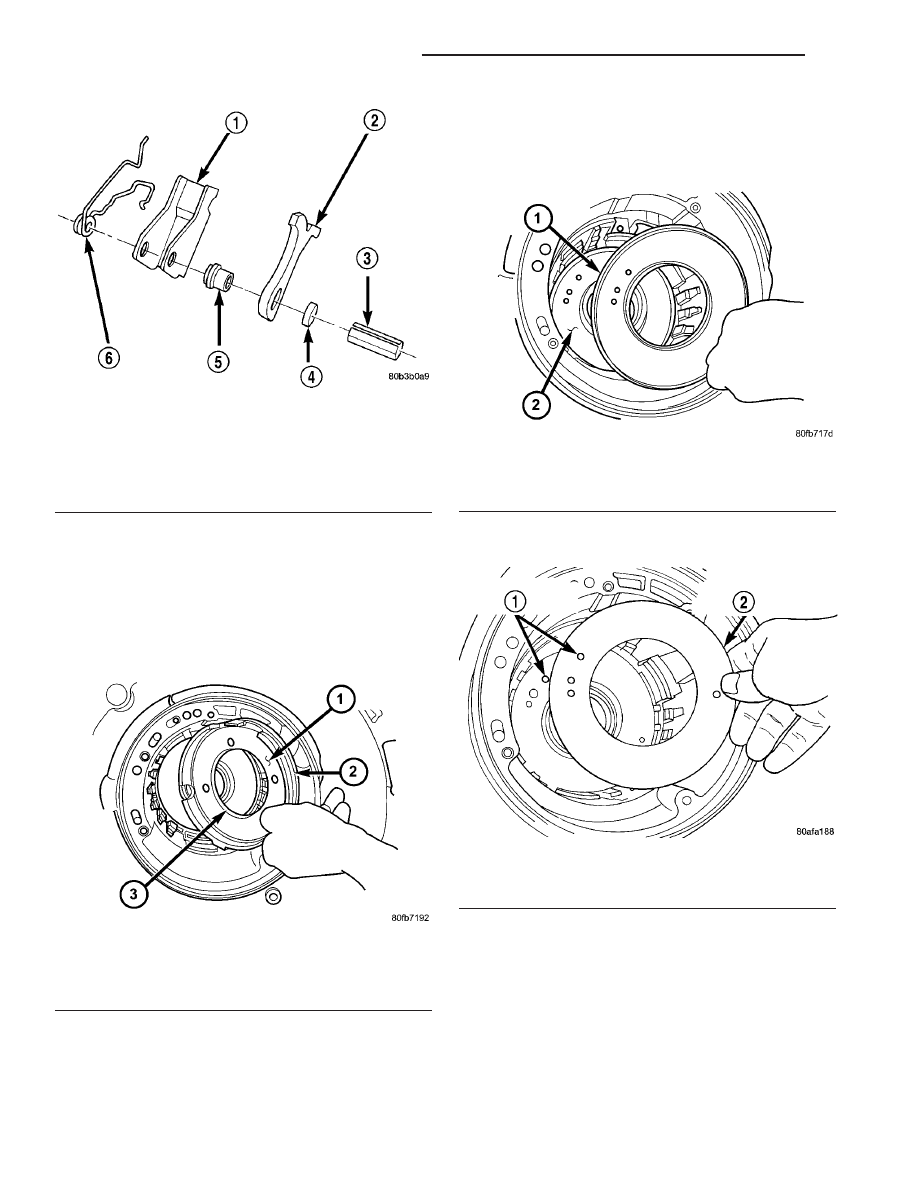

Fig. 75 Guide Bracket Disassembled

1 - GUIDE BRACKET
2 - PAWL
3 - SPLIT SLEEVE
4 - SPACER
5 - STEPPED SPACER
6 - ANTIRATCHET SPRING

Fig. 76 Remove Low/Reverse Clutch Piston

1 - LOW/REVERSE CLUTCH PISTON
2 - BONDED SEAL
3 - BONDED SEAL

Fig. 77 Remove Piston Retainer

1 - LOW/REVERSE CLUTCH PISTON RETAINER
2 - GASKET

Fig. 78 Remove Piston Retainer Gasket

1 - GASKET HOLES MUST LINE UP
2 - LOW/REVERSE CLUTCH PISTON RETAINER GASKET

21 - 68

AUTOMATIC TRANSMISSION - 42RLE

TJ

AUTOMATIC TRANSMISSION - 42RLE (Continued)

ASSEMBLY

NOTE: If the transmission assembly is being recon-
ditioned (clutch/seal replacement) or replaced, it is
necessary to perform the Quick Learn Procedure
using the DRBIII

T

Scan Tool (Refer to 8 - ELECTRI-

CAL/ELECTRONIC

CONTROL

MODULES/TRANS-

MISSION

CONTROL

MODULE

-

STANDARD

PROCEDURE).

(1) Install the output bearing cups using Special

Tool - 5050A (Fig. 79).

(2) Install low/reverse piston retainer gasket (Fig.

80).

(3) Install low/reverse piston retainer (Fig. 81).

(4) Install

low/reverse

piston

retainer-to-case

screws (Fig. 82) and torque to 5 N·m (45 in. lbs.).

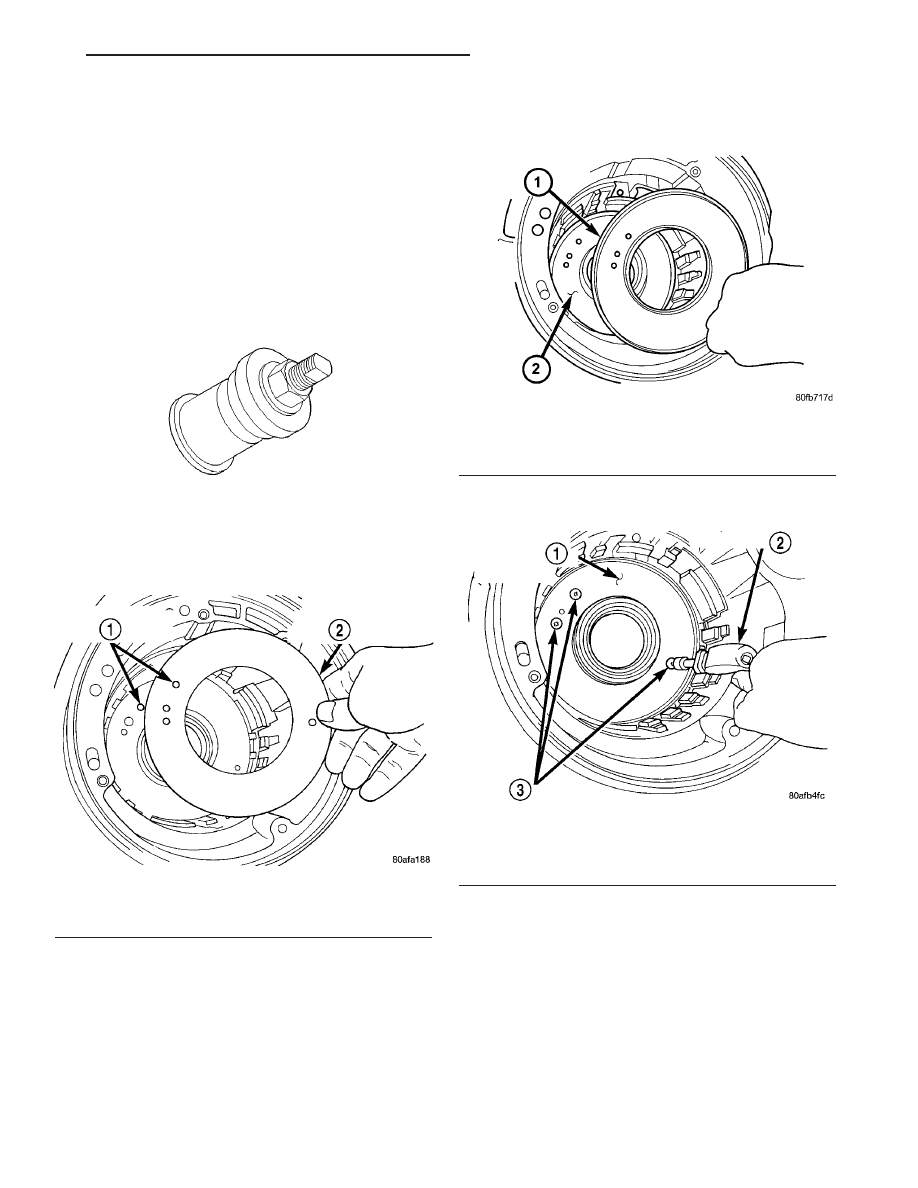

Fig. 79 Bearing Cup Installation Special Tool -

5050A

Fig. 80 Install Piston Retainer Gasket

1 - GASKET HOLES MUST LINE UP
2 - LOW/REVERSE CLUTCH PISTON RETAINER GASKET

Fig. 81 Install Piston Retainer

1 - LOW/REVERSE CLUTCH PISTON RETAINER
2 - GASKET

Fig. 82 Install Retainer Attaching Screws

1 - LOW/REVERSE CLUTCH PISTON RETAINER
2 - SCREWDRIVER
3 - TORX-LOC SCREWS

TJ

AUTOMATIC TRANSMISSION - 42RLE

21 - 69

AUTOMATIC TRANSMISSION - 42RLE (Continued)
