Jeep Wrangler TJ. Manual - part 492





(18) Remove the low/reverse accumulator snap

ring (Fig. 35).

(19) Remove the low/reverse accumulator plug

(Fig. 36).

(20) Remove low/reverse accumulator piston using

suitable pliers (Fig. 37). Remove piston and springs
(Fig. 38).

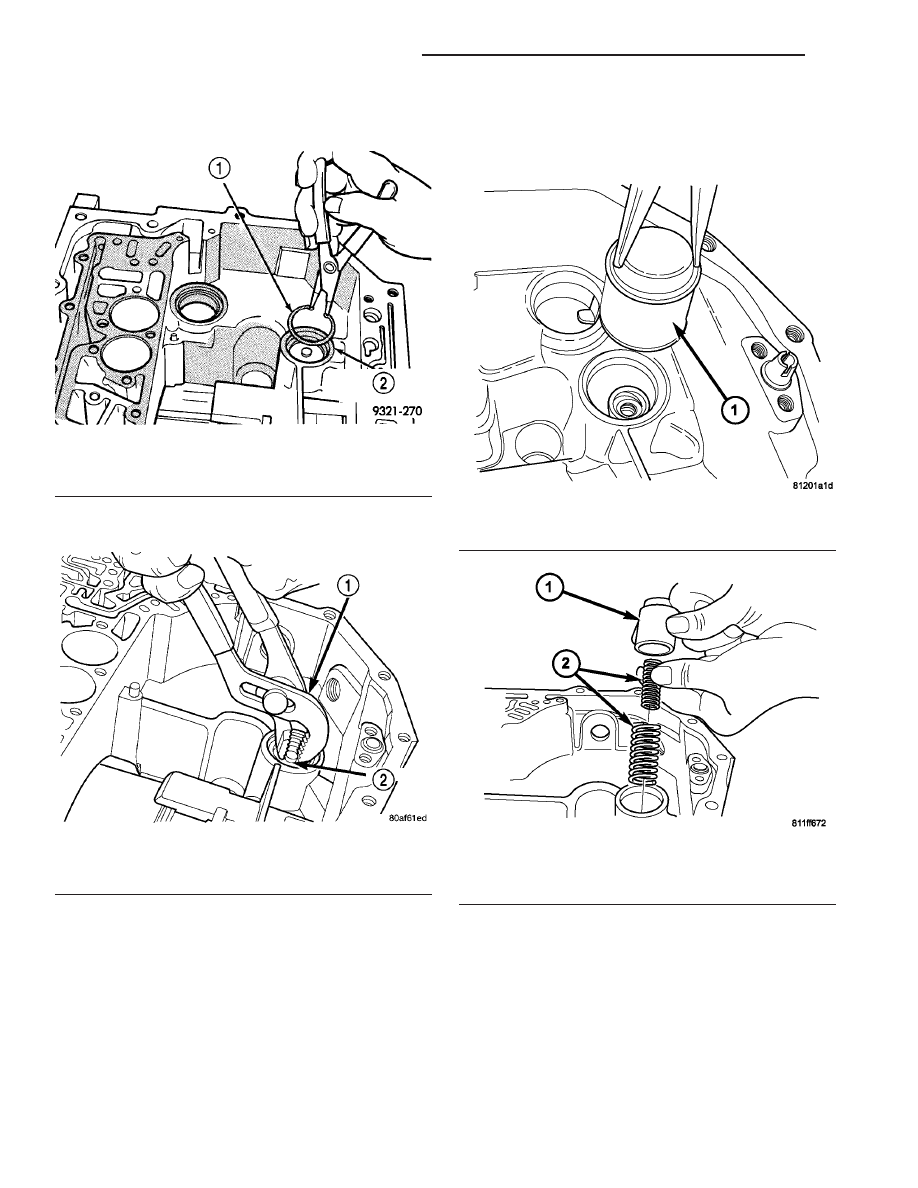

Fig. 35 Remove Low/Reverse Accumulator

1 - SNAP RING
2 - LOW/REVERSE ACCUMULATOR

Fig. 36 Remove Low/Reverse Accumulator Plug

1 - ADJUSTABLE PLIERS
2 - PLUG

Fig. 37 Low/Reverse Accumulator Piston

1 - ACCUMULATOR PISTON

Fig. 38 Low/Reverse Accumulator

1 - PISTON
2 - RETURN SPRINGS

21 - 58

AUTOMATIC TRANSMISSION - 42RLE

TJ

AUTOMATIC TRANSMISSION - 42RLE (Continued)

(21) Remove and discard the oil pump-to-case bolts

(Fig. 39). The oil pump bolts are not to be reused.

(22) Remove oil pump using C-3752 Pullers (Fig.

40).

(23) Remove oil pump while pushing in on input

shaft (Fig. 41).

(24) Remove oil pump gasket (Fig. 42).

CAUTION: By-pass valve must be replaced if trans-
mission failure occurs.

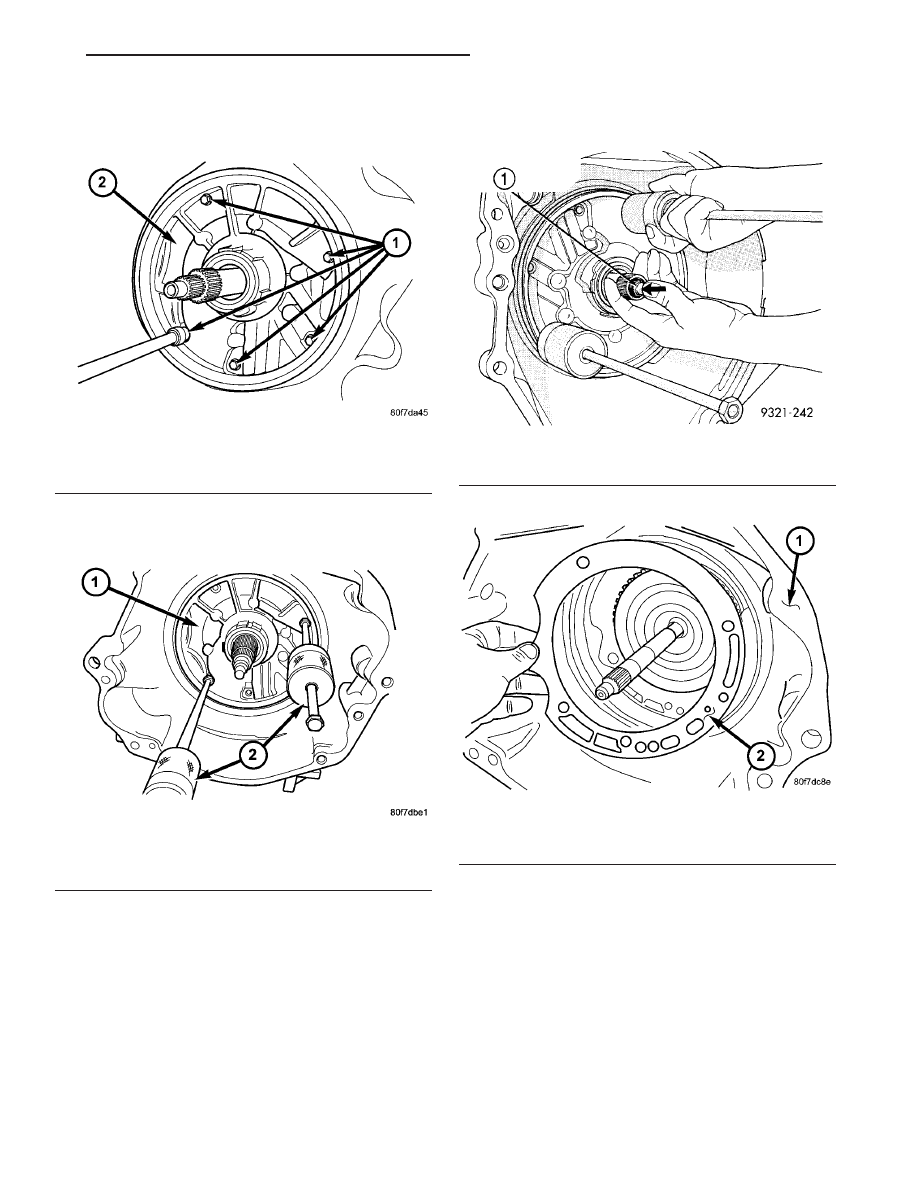

Fig. 39 Remove Oil Pump Attaching Bolts

1 - BOLTS
2 - OIL PUMP

Fig. 40 Oil Pump Pullers

1 - OIL PUMP
2 - PULLERS

Fig. 41 Remove Oil Pump

1 - “PUSH IN” ON INPUT SHAFT WHILE REMOVING PUMP

Fig. 42 Remove Oil Pump Gasket

1 - BELLHOUSING
2 - OIL PUMP GASKET

TJ

AUTOMATIC TRANSMISSION - 42RLE

21 - 59

AUTOMATIC TRANSMISSION - 42RLE (Continued)

(25) Remove the cooler by-pass valve (Fig. 43).

(26) Remove the #1 caged needle bearing (Fig. 44).

(27) Remove the input clutch assembly (Fig. 45).

(28) Remove the #4 thrust plate (Fig. 46).

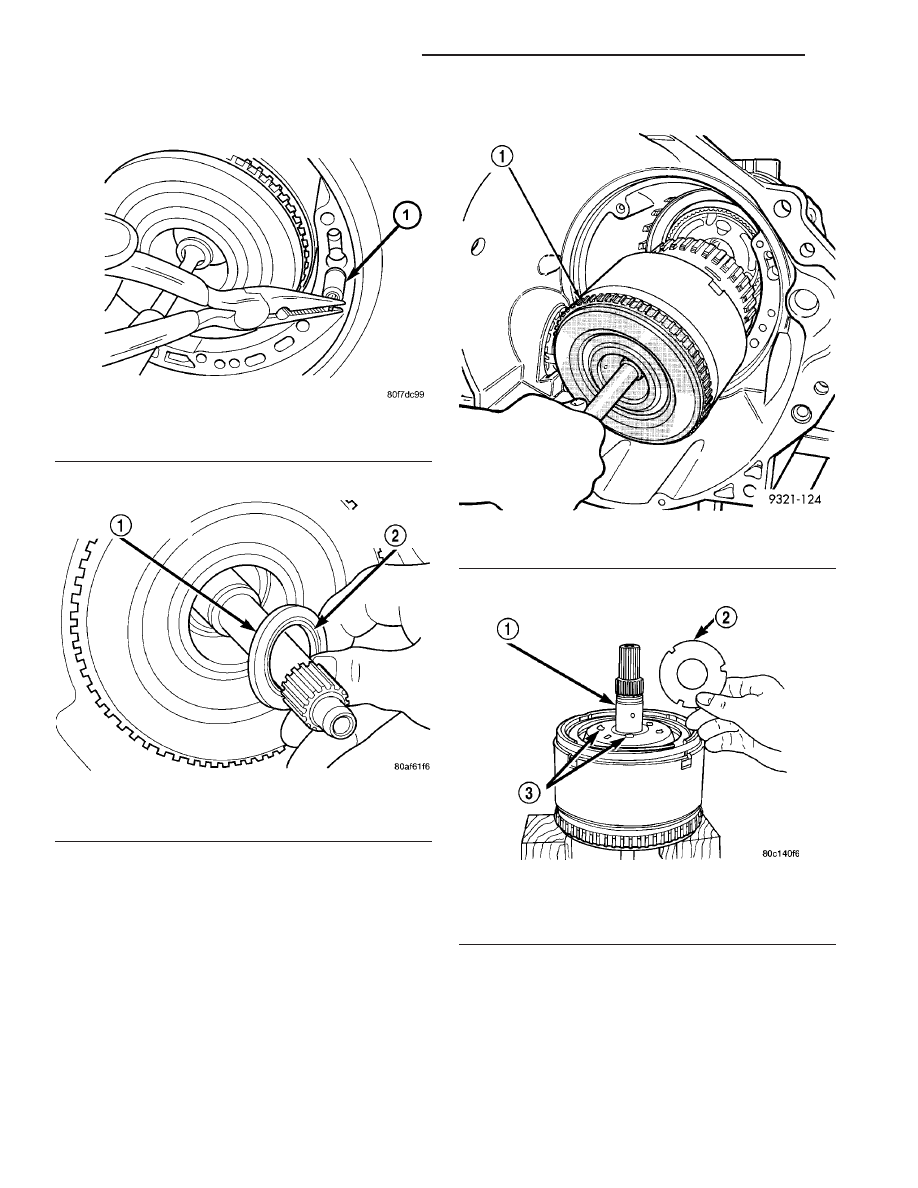

Fig. 43 Remove By-Pass Valve

1 - BYPASS VALVE

Fig. 44 Remove No. 1 Caged Needle Bearing

1 - #1 CAGED NEEDLE BEARING
2 - NOTE: TANGED SIDE OUT

Fig. 45 Remove Input Clutch Assembly

1 - INPUT CLUTCH ASSEMBLY

Fig. 46 Remove #4 Thrust Plate

1 - OVERDRIVE SHAFT ASSEMBLY
2 - #4 THRUST PLATE (SELECT)
3 - PETROLATUM FOR RETENTION

21 - 60

AUTOMATIC TRANSMISSION - 42RLE

TJ

AUTOMATIC TRANSMISSION - 42RLE (Continued)

(29) Remove the front sun gear assembly and #4

thrust washer (if still in place) (Fig. 47).

(30) Remove the front carrier/rear annulus and #6

needle bearing (Fig. 48).

(31) Remove the rear sun gear and #7 needle bear-

ing (Fig. 49) and (Fig. 50).

NOTE: The number seven needle bearing has three
antireversal tabs and is common with the number
five and number two position. The orientation
should allow the bearing to seat flat against the
rear sun gear (Fig. 50).

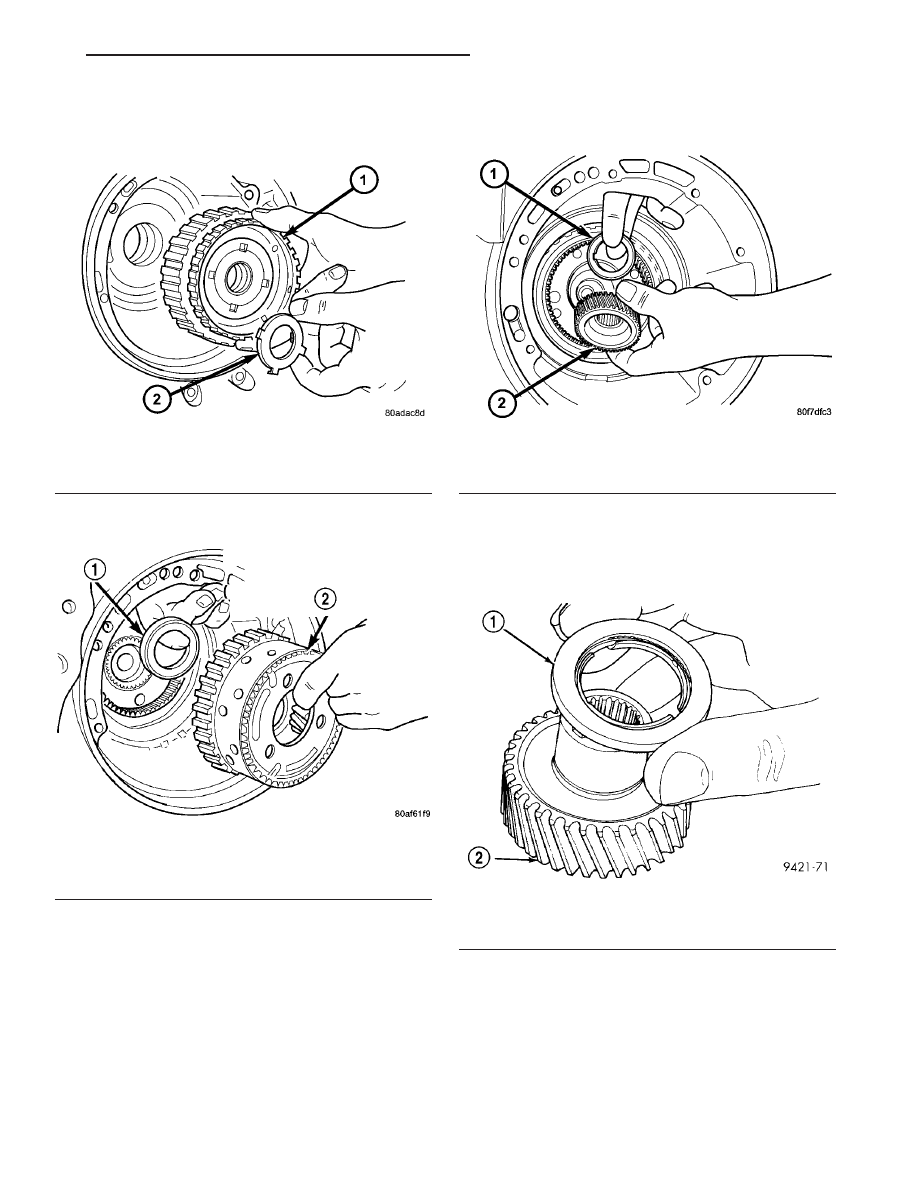

Fig. 47 Remove Front Sun Gear Assembly

1 - FRONT SUN GEAR ASSEMBLY
2 - #4 THRUST WASHER (FOUR TABS)

Fig. 48 Remove Front Carrier/Rear Annulus

1 - #6 NEEDLE BEARING
2 - FRONT CARRIER AND REAR ANNULUS ASSEMBLY (TWIST
AND PULL OR PUSH TO REMOVE OR INSTALL).

Fig. 49 Remove Rear Sun Gear

1 - #7 NEEDLE BEARING
2 - REAR SUN GEAR

Fig. 50 Number 7 Bearing

1 - #7 BEARING
2 - REAR SUN GEAR

TJ

AUTOMATIC TRANSMISSION - 42RLE

21 - 61

AUTOMATIC TRANSMISSION - 42RLE (Continued)
