Jeep Wrangler TJ. Manual - part 493





NOTE: Verify that Tool 5058A is centered properly
over the 2/4 clutch retainer before compressing. If
necessary, fasten the 5058A bar to the bellhousing
flange with any combination of locking pliers and
bolts to center the tool properly.

(32) Install and load Tool 5058A to remove the 2/4

clutch retainer snap ring (Fig. 51).

NOTE: The 2/4 Clutch Piston has bonded seals
which are not individually serviceable. Seal replace-
ment requires replacement of the piston assembly.

(33) Remove the 2/4 clutch retainer (Fig. 52) and

(Fig. 53).

(34) Remove the 2/4 clutch return spring (Fig. 54).

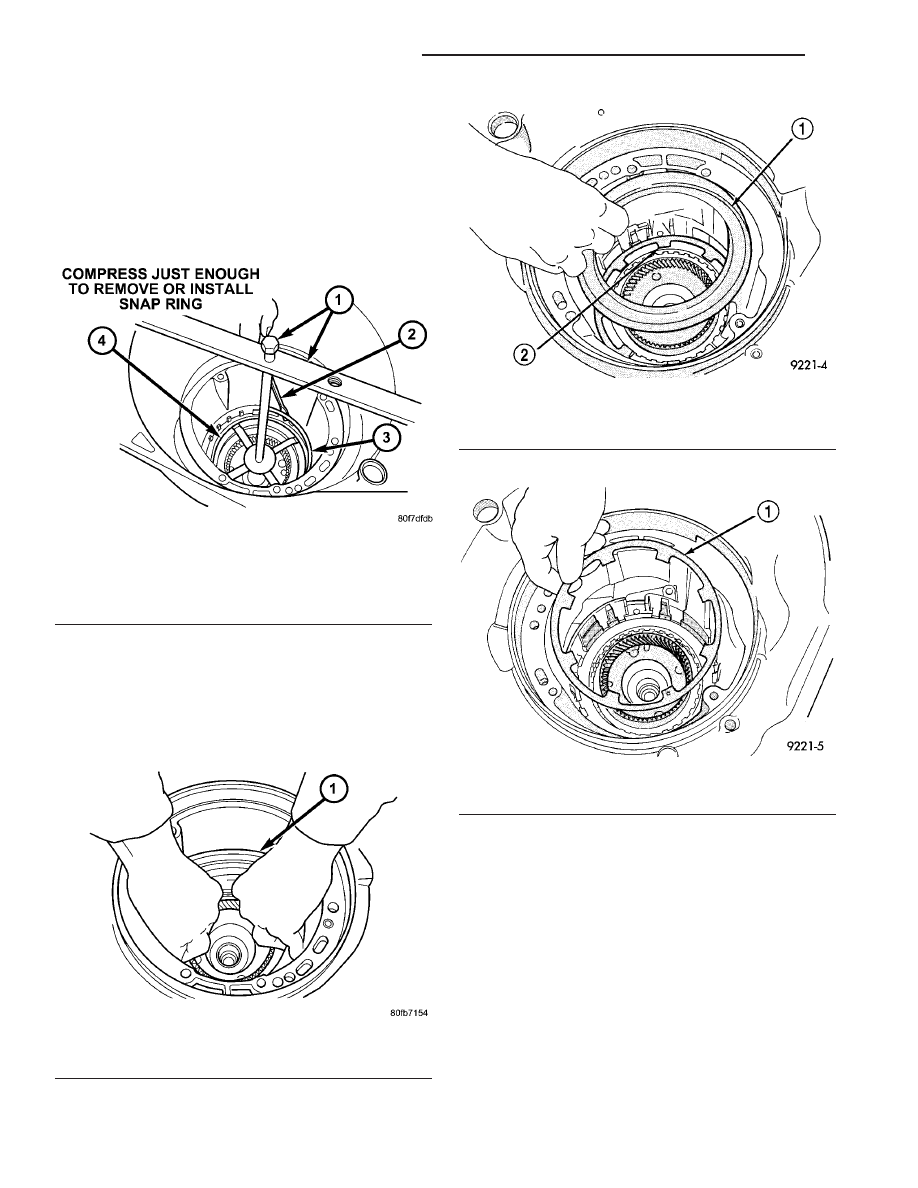

Fig. 51 Remove 2/4 Clutch Retainer Snap Ring

1 - TOOL 5058
2 - SCREWDRIVER
3 - SNAP RING
4 - 2/4 CLUTCH RETAINER

Fig. 52 Remove 2/4 Clutch Retainer

1 - 2/4 CLUTCH RETAINER

Fig. 53 2/4 Clutch Retainer

1 - 2/4 CLUTCH RETAINER
2 - 2/4 CLUTCH RETURN SPRING

Fig. 54 Remove 2/4 Clutch Return Spring

1 - 2/4 CLUTCH RETURN SPRING

21 - 62

AUTOMATIC TRANSMISSION - 42RLE

TJ

AUTOMATIC TRANSMISSION - 42RLE (Continued)

(35) Remove the 2/4 clutch pack (Fig. 55).

(36) Remove the tapered snap ring (Fig. 56).

(37) Remove the low/reverse reaction plate (Fig.

57).

(38) Remove one (1) low/reverse clutch disc to facil-

itate snap ring removal (Fig. 58).

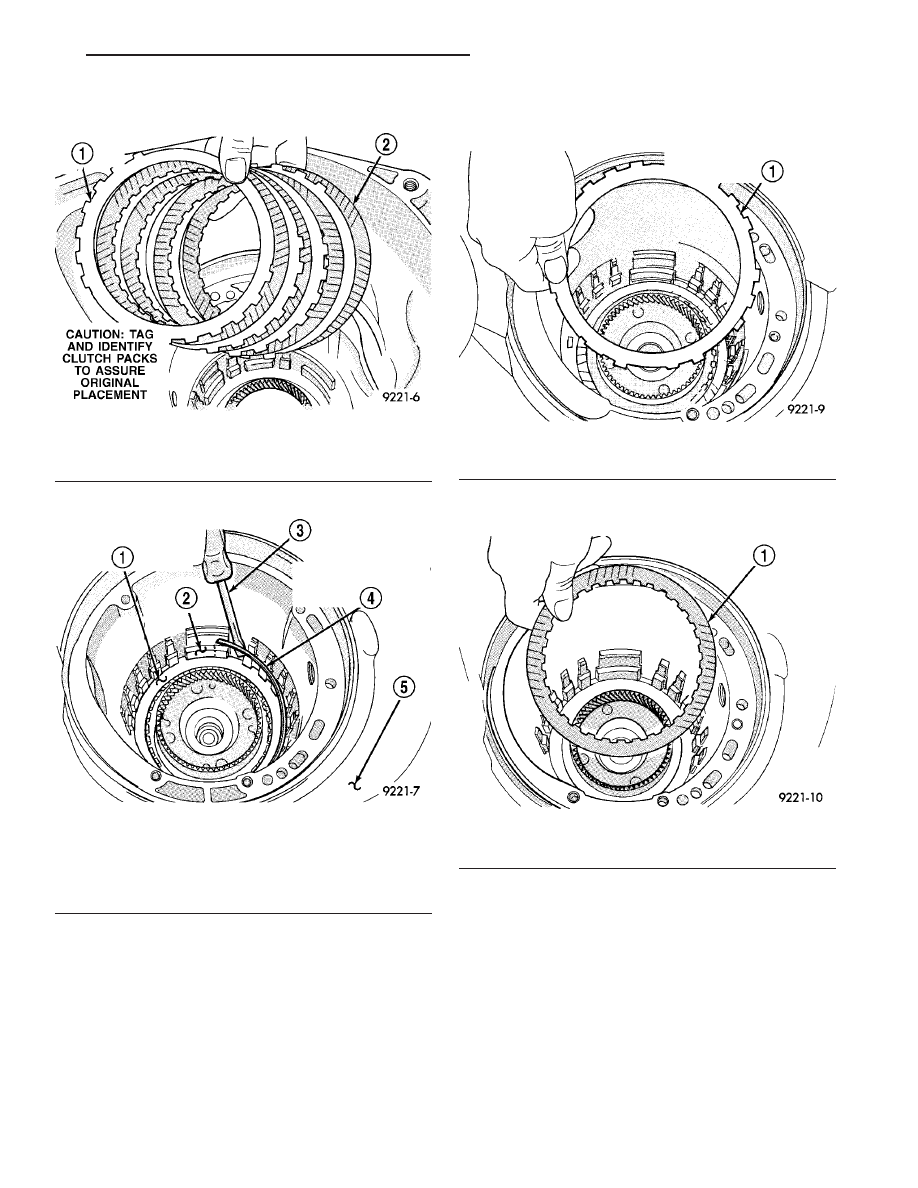

Fig. 55 Remove 2/4 Clutch Pack

1 - CLUTCH PLATE (4)
2 - CLUTCH DISC (4)

Fig. 56 Remove Tapered Snap Ring

1 - LOW/REVERSE CLUTCH REACTION PLATE
2 - LONG TAB
3 - SCREWDRIVER
4 - LOW/REVERSE TAPERED SNAP RING (TAPERED SIDE UP)
5 - OIL PAN FACE

Fig. 57 Remove Low/Reverse Reaction Plate

1 - LOW/REVERSE REACTION PLATE (FLAT SIDE UP)

Fig. 58 Remove One Disc

1 - ONE DISC FROM LOW/REVERSE CLUTCH

TJ

AUTOMATIC TRANSMISSION - 42RLE

21 - 63

AUTOMATIC TRANSMISSION - 42RLE (Continued)

(39) Remove the low/reverse reaction plate snap

ring (Fig. 59).

(40) Remove the low/reverse clutch pack (Fig. 60).

CAUTION: Failure to grind and open stakes of the
output shaft nut will result in thread damage to the
shaft during nut removal.

WARNING:

WEAR

SAFETY

GOGGLES

WHILE

GRINDING STAKE NUTS.

(41) Using a die grinder or equivalent, grind the

stakes in the shoulder of the shaft nuts as shown in
(Fig. 61) (Fig. 62). Do not grind all the way through
the nut and into the shaft. There are two stakes on
each nut.

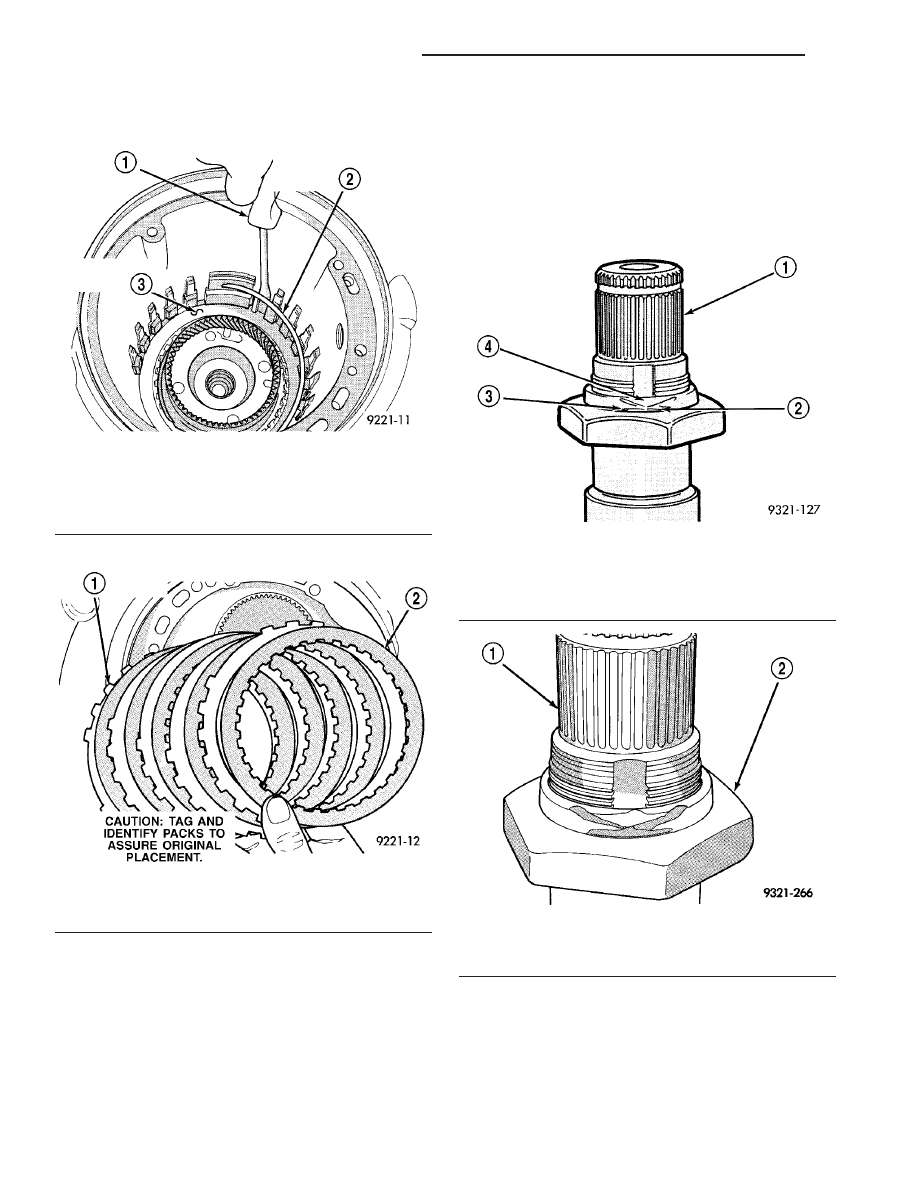

Fig. 59 Remove Low/Reverse Reaction Plate Snap

Ring

1 - SCREWDRIVER
2 - LOW/REVERSE REACTION PLATE FLAT SNAP RING
3 - DO NOT SCRATCH CLUTCH PLATE

Fig. 60 Remove Low/Reverse Clutch Pack

1 - CLUTCH PLATES (5)
2 - CLUTCH DISCS (5)

Fig. 61 Grinding Stakes

1 - TRANSFER SHAFT
2 - GRIND HERE
3 - GRIND HERE
4 - NUT STAKE

Fig. 62 Stake Grinding Pattern

1 - TRANSFER SHAFT
2 - TRANSFER SHAFT NUT

21 - 64

AUTOMATIC TRANSMISSION - 42RLE

TJ

AUTOMATIC TRANSMISSION - 42RLE (Continued)

(42) Using a small chisel, carefully open the stakes

on nut (Fig. 63).

(43) Use special tool 6497 and 6498A to remove

the transfer shaft nut or the output shaft nut (Fig.
64).

(44) Remove the output shaft from case using a

shop press (Fig. 65).

Use special tool 6596 with a shop press to remove

the front output shaft bearing cup (Fig. 66).

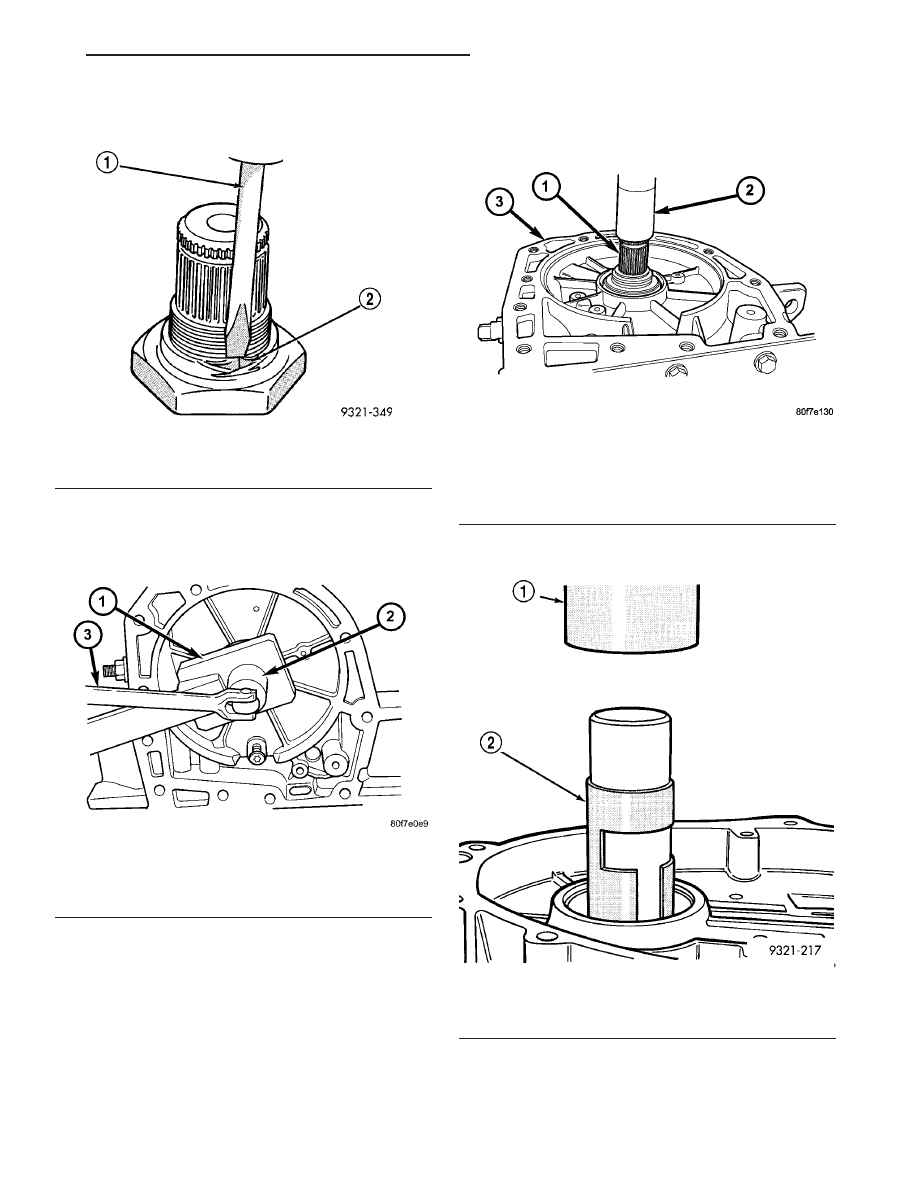

Fig. 63 Opening Nut Stakes

1 - CHISEL
2 - NUT STAKE

Fig. 64 Remove Output Shaft Nut

1 - SPECIAL TOOL 6497
2 - SPECIAL TOOL 6498A
3 - BREAKER BAR

Fig. 65 Use Arbor Press to Remove Output Shaft

from Case

1 - OUTPUT SHAFT
2 - ARBOR PRESS
3 - TRANSMISSION CASE

Fig. 66 Remove Front Bearing Cup - Typical

1 - ARBOR PRESS
2 - SPECIAL TOOL 6596

TJ

AUTOMATIC TRANSMISSION - 42RLE

21 - 65

AUTOMATIC TRANSMISSION - 42RLE (Continued)
