Jeep Wrangler TJ. Manual - part 495





NOTE: The Low/Reverse Clutch Piston has bonded
seals which are not individually serviceable. Seal
replacement requires replacement of the piston
assembly.

(5) Install low/reverse clutch piston (Fig. 83).

(6) Assemble guide bracket assembly as shown in

(Fig. 84) (Fig. 85).

(7) Install guide bracket pivot shaft (Fig. 86).

CAUTION: When installing, be sure guide bracket
and split sleeve touch the rear of the transmission
case.

(8) Install park sprag pivot retaining screw and

torque to 4.5 N·m (40 in. lbs.).

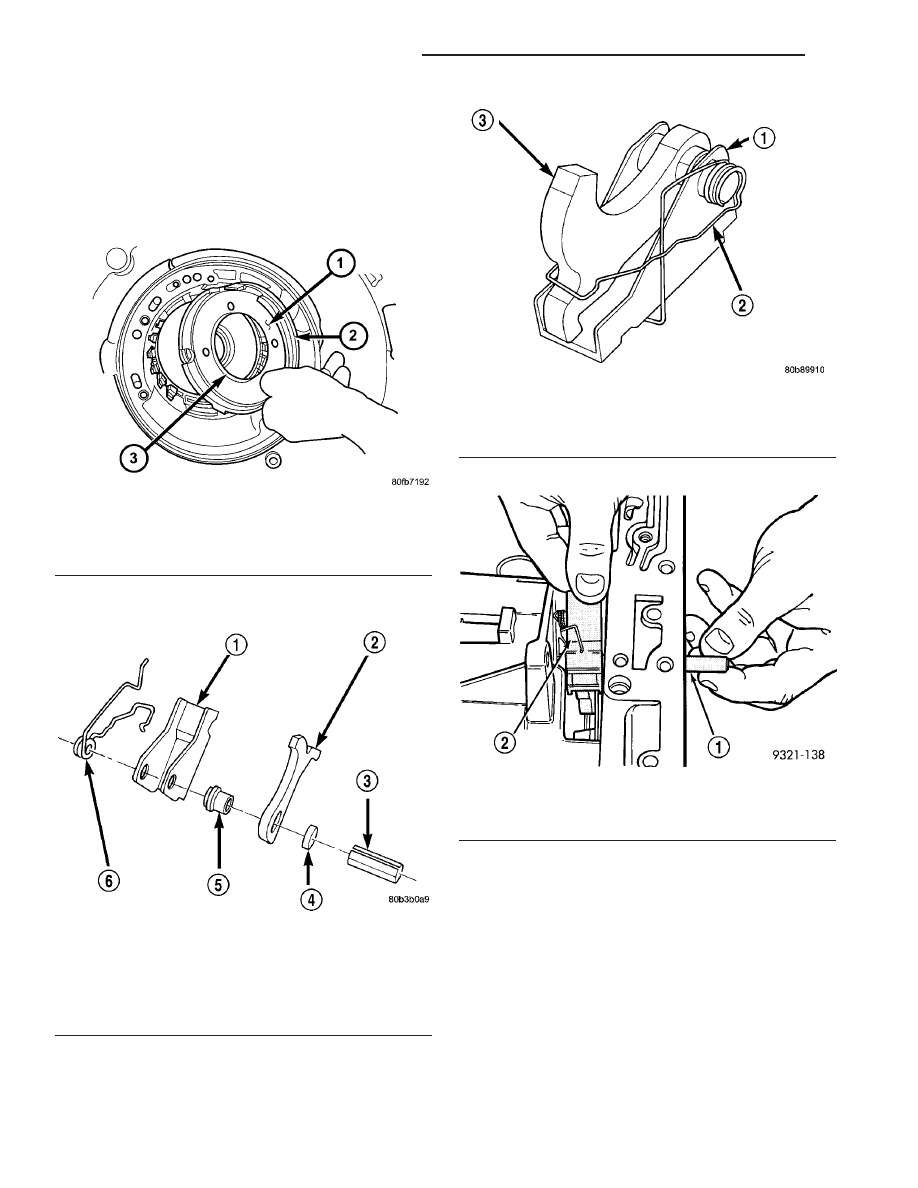

Fig. 83 Install Low/Reverse Clutch Piston

1 - LOW/REVERSE CLUTCH PISTON
2 - BONDED SEAL
3 - BONDED SEAL

Fig. 84 Guide Bracket Assembly

1 - GUIDE BRACKET
2 - PAWL
3 - SPLIT SLEEVE
4 - SPACER
5 - STEPPED SPACER
6 - ANTIRATCHET SPRING

Fig. 85 Guide Bracket

1 - GUIDE BRACKET
2 - ANTIRATCHET SPRING (MUST BE ASSEMBLED AS SHOWN)
3 - PAWL

Fig. 86 Install Guide Bracket Pivot Pin

1 - PIVOT PIN
2 - GUIDE BRACKET ASSEMBLY

21 - 70

AUTOMATIC TRANSMISSION - 42RLE

TJ

AUTOMATIC TRANSMISSION - 42RLE (Continued)

(9) Install low/reverse piston belleville spring into

position (Fig. 87).

(10) Install and load low/reverse spring compressor

tool as shown in (Fig. 88) (Fig. 89) to facilitate snap
ring installation.

(11) Install snap ring and remove compressor tool

(Fig. 90).

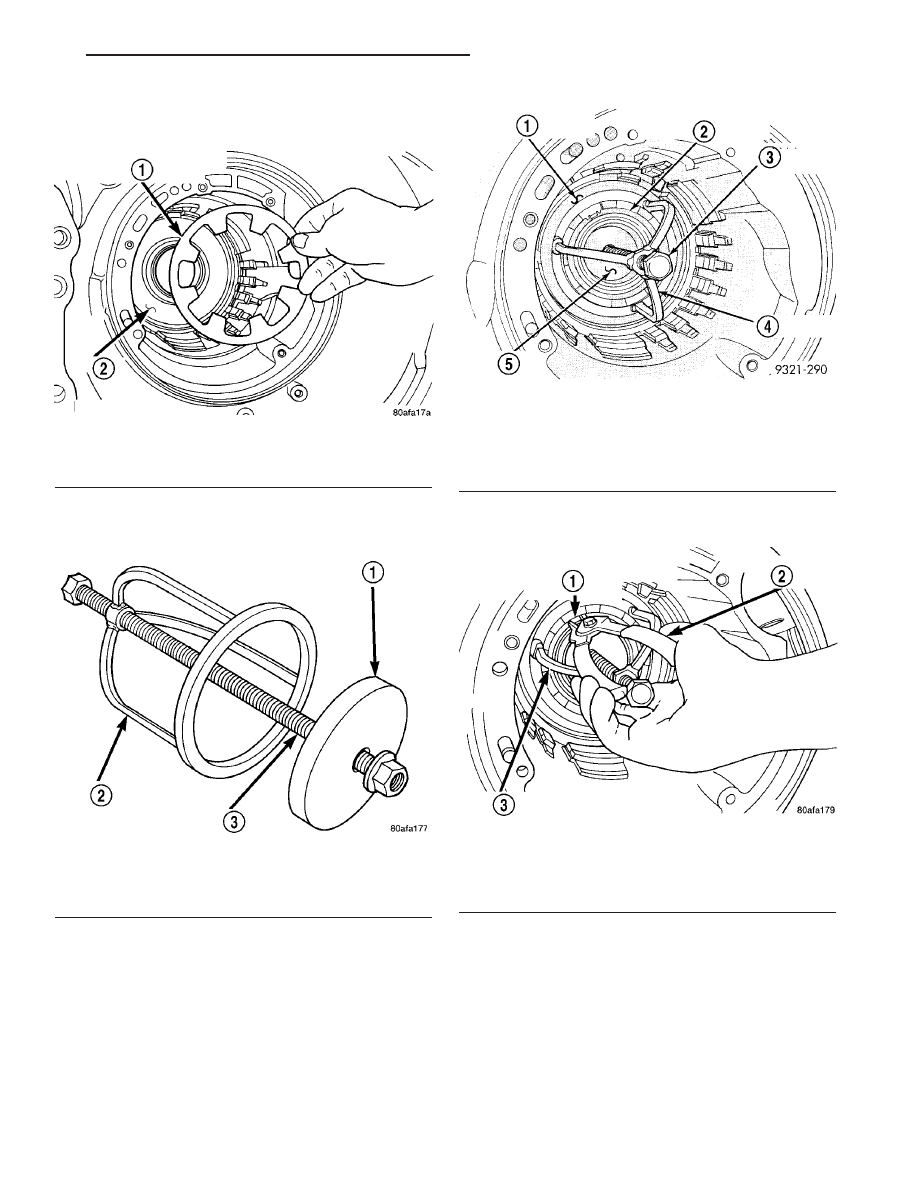

Fig. 87 Install Low/Reverse Piston Return Spring

1 - LOW/REVERSE PISTON RETURN SPRING
2 - PISTON

Fig. 88 Low/Reverse Spring Compressor Tool

1 - TOOL 6057
2 - TOOL 5059
3 - TOOL 5058-3

Fig. 89 Compressor Tool in Use

1 - LOW/REVERSE CLUTCH RETURN SPRING
2 - SNAP RING (INSTALL AS SHOWN)
3 - TOOL 5058A-3
4 - TOOL 5059A
5 - SPECIAL TOOL 6057

Fig. 90 Install Snap Ring

1 - SNAP RING OPENING MUST BE BETWEEN SPRING LEVERS
(AS SHOWN)
2 - SNAP RING PLIERS
3 - TOOL 6057

TJ

AUTOMATIC TRANSMISSION - 42RLE

21 - 71

AUTOMATIC TRANSMISSION - 42RLE (Continued)

(12) Install rear carrier front bearing cone (Fig.

91).

(13) Check output bearing preload. Output bear-

ing preload must be checked and/or adjusted if
any of the following items have been replaced:

• Output shaft (rear carrier assembly)

• Output shaft bearings

• Transmission case

(a) PRELOAD

CHECK/SHIM

SELECTION:

Install rear output shaft bearing cone and special
tool 6618A (Fig. 92).

(b) Install special tool 6618A (Fig. 93). Lightly

tighten retaining screws. Screws should be below
the plate surface, but do not snug screws.

(c) Turn case over on arbor press so that the

plate is resting on the press base. CAUTION: The
output shaft will extend through the hole of
tool 6618A. Ensure your press table has clear-
ance for the output shaft.

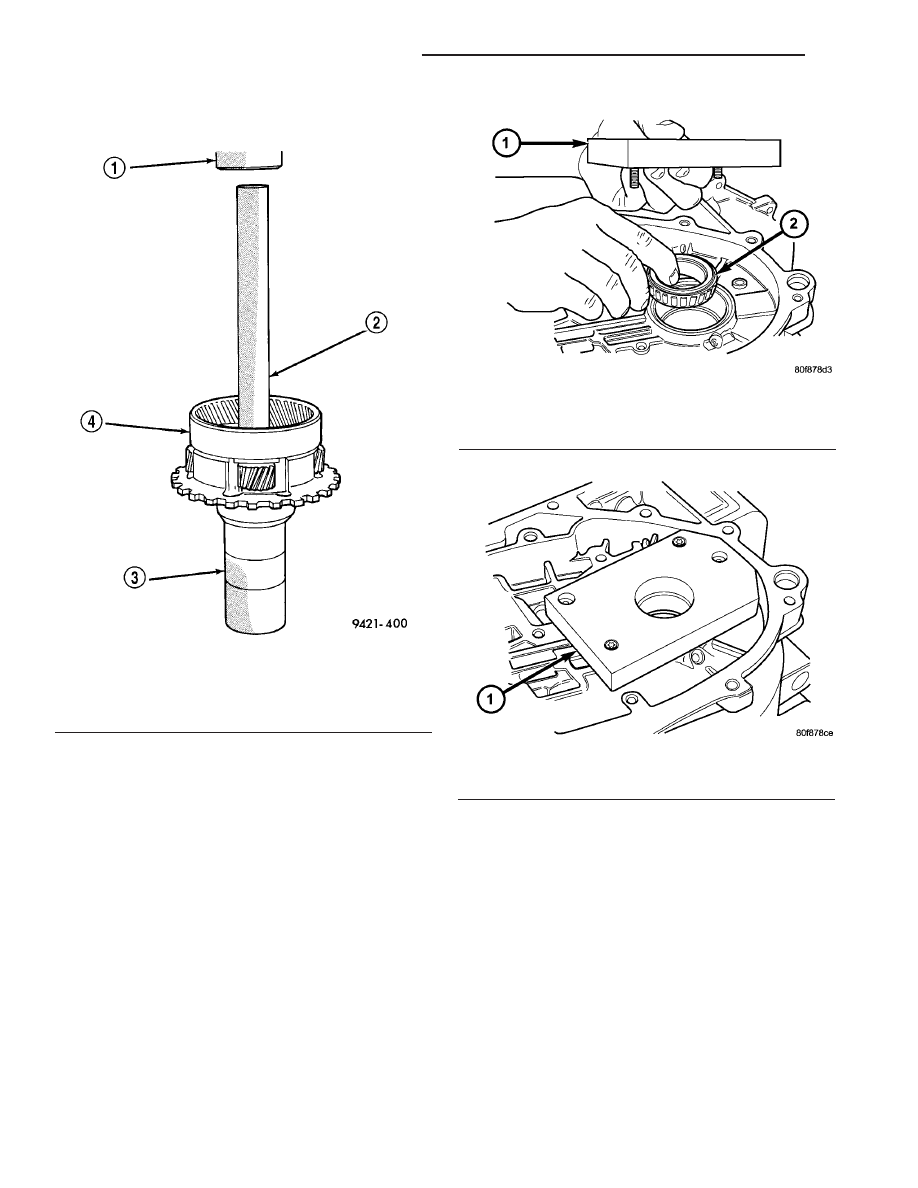

Fig. 92 Bearing Installation

1 - SPECIAL TOOL 6618-A
2 - REAR OUTPUT SHAFT BEARING

Fig. 93 Special Tool Installed

1 - SPECIAL TOOL 6618-A

Fig. 91 Install Rear Carrier Front Bearing Cone

1 - ARBOR PRESS
2 - SPECIAL TOOL C-4171
3 - SPECIAL TOOL 6052
4 - REAR CARRIER

21 - 72

AUTOMATIC TRANSMISSION - 42RLE

TJ

AUTOMATIC TRANSMISSION - 42RLE (Continued)

(d) Install shim on output shaft (Fig. 94). Apply

small amount of petrolatum onto the shim to hold
it in place. Use the original shim as a starting
point. If original shim is not available, use the
thickest shim available.

(e) Install output shaft/rear carrier into rear

bearing. The shaft must be pressed into position.

Use special tool MD-998911 (Disc) and C- 4171 and
C4171-2 (Handle) to press shaft into rear bearing
(Fig. 95).

(f) Do

not

re-use

old

output

shaft

nut

because the removed stake weakens the nut
flange.
Using special tools 6497 and 6498-A,
install new output shaft nut. Do not reuse old out-
put shaft nut. Tighten new output shaft nut to 271
N·m (200 ft. lbs.).

(g) Check the turning torque of the output shaft

(Fig. 96). The shaft should have 1 to 8 in. lbs. of
turning torque. If the turning torque is higher
than
8 in. lbs., install a thicker shim. If turning
torque is less than 1 in. lb., install a thinner shim.
Make sure there is no end play.

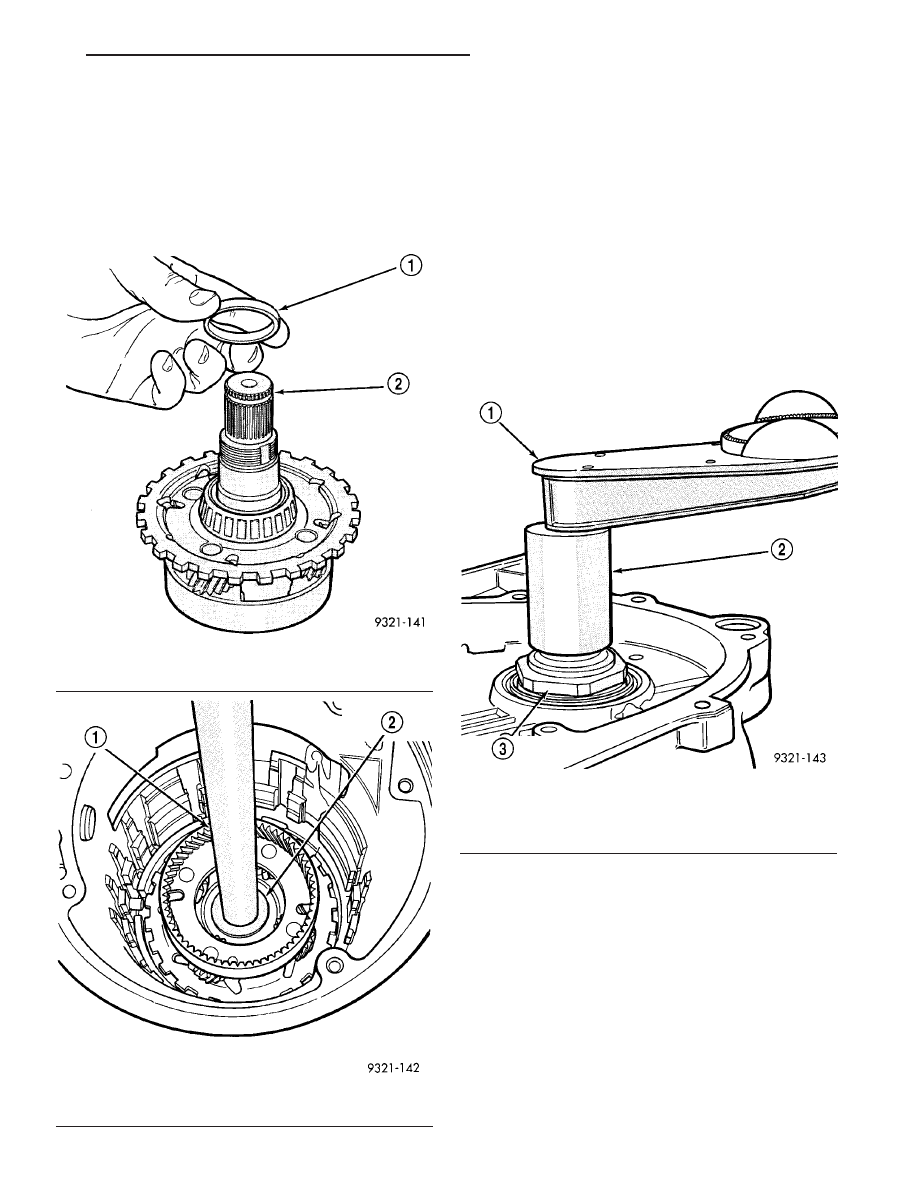

Fig. 94 Shim Installation

1 - SHIM
2 - OUTPUT SHAFT

Fig. 95 Press Shaft Into Case

1 - SPECIAL TOOL C-4171 AND C-4171-2
2 - SPECIAL TOOL MD-998911

Fig. 96 Checking Turning Torque

1 - TORQUE WRENCH
2 - SPECIAL TOOL 6498-A
3 - OUTPUT SHAFT NUT

TJ

AUTOMATIC TRANSMISSION - 42RLE

21 - 73

AUTOMATIC TRANSMISSION - 42RLE (Continued)
