Jeep Wrangler TJ. Manual - part 327





(3) Reinstall the passenger airbag on/off switch

and accessory switch bezel unit to the instrument
panel. (Refer to 23 - BODY/INSTRUMENT PANEL/
ACCESSORY SWITCH BEZEL - INSTALLATION).

(4) Do not reconnect the battery negative cable at

this time. The supplemental restraint system verifi-
cation test procedure should be performed following
service of any supplemental restraint system compo-
nent. (Refer to 8 - ELECTRICAL/RESTRAINTS -
STANDARD PROCEDURE - VERIFICATION TEST).

REAR SEAT BELT &
RETRACTOR

REMOVAL

WARNING:

TO

AVOID

PERSONAL

INJURY

OR

DEATH, DURING AND FOLLOWING ANY SEAT BELT
OR CHILD RESTRAINT ANCHOR SERVICE, CARE-
FULLY INSPECT ALL SEAT

BELTS,

BUCKLES,

MOUNTING HARDWARE, RETRACTORS, TETHER
STRAPS, AND ANCHORS FOR PROPER INSTALLA-
TION, OPERATION, OR DAMAGE. REPLACE ANY
BELT

THAT

IS

CUT,

FRAYED,

OR

TORN.

STRAIGHTEN

ANY

BELT

THAT

IS

TWISTED.

TIGHTEN ANY LOOSE FASTENERS. REPLACE ANY
BELT THAT HAS A DAMAGED OR INOPERATIVE
BUCKLE OR RETRACTOR. REPLACE ANY BELT
THAT HAS A BENT OR DAMAGED LATCH PLATE
OR

ANCHOR

PLATE.

REPLACE

ANY

CHILD

RESTRAINT ANCHOR OR THE UNIT TO WHICH THE
ANCHOR IS INTEGRAL THAT HAS BEEN BENT OR
DAMAGED. NEVER ATTEMPT TO REPAIR A SEAT
BELT

OR

CHILD

RESTRAINT

COMPONENT.

ALWAYS REPLACE DAMAGED OR FAULTY SEAT
BELT AND CHILD RESTRAINT COMPONENTS WITH
THE CORRECT, NEW AND UNUSED REPLACEMENT
PARTS LISTED IN THE DAIMLERCHRYSLER MOPAR
PARTS CATALOG.

(1) Slide both rear seat belt buckle units between

the seat cushion and seat back into the cargo area.

(2) Lift the rear seat back release lever and fold

the rear seat back forward, then tumble the folded
rear seat cushion and back unit forward against the
backs of the two front bucket seats.

(3) Remove the screw that secures the lower sear

belt anchor to the inner rear wheel house panel
(Fig. 38).

(4) Remove the rear seat belt lower anchor from

the inner rear wheel house panel.

(5) Unsnap and lift the trim cover from the rear

seat belt turning loop to access the screw that
secures the turning loop to the upper sport bar
(Fig. 39).

(6) Remove the screw that secures the seat belt

turning loop to the upper sport bar.

(7) Remove the seat belt turning loop from the

upper sport bar.

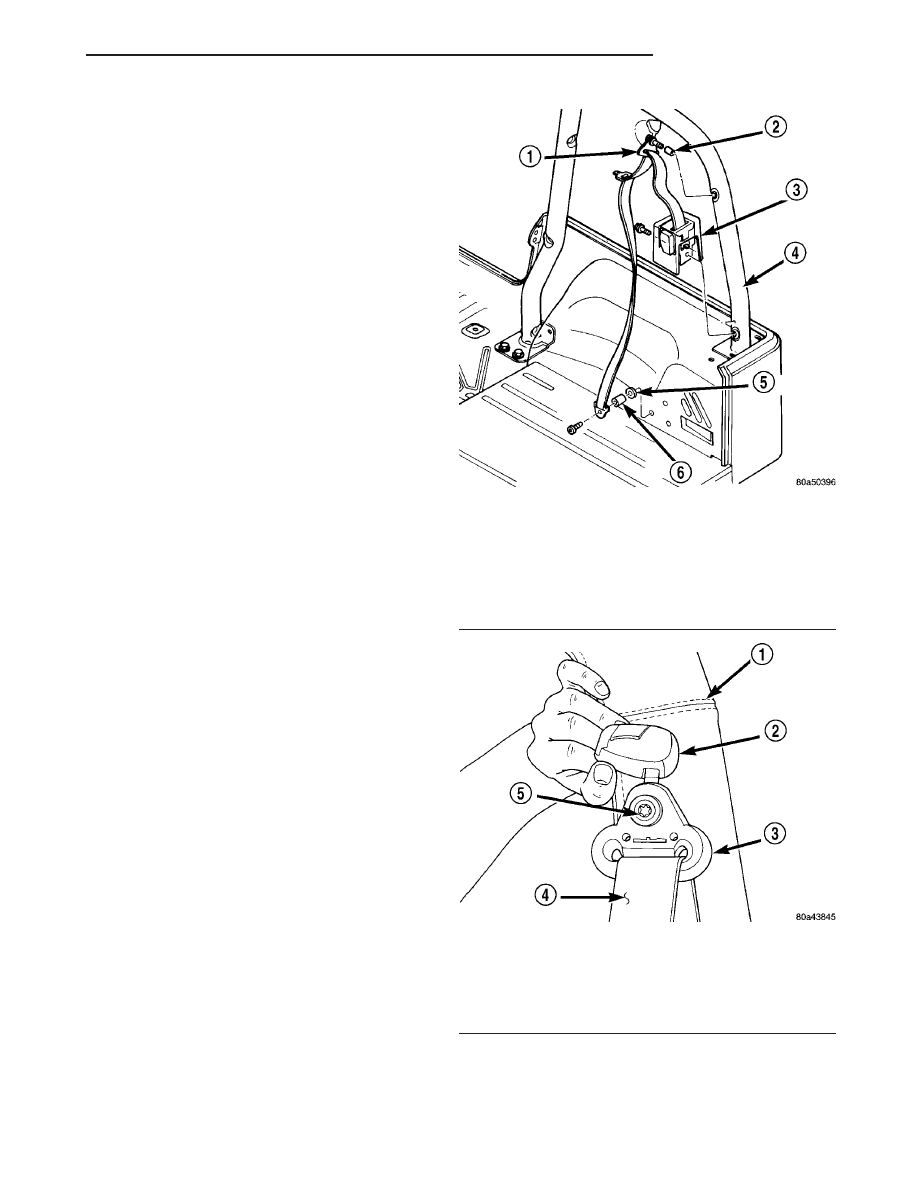

Fig. 38 Rear Seat Shoulder Belt & Retractor

Remove/Install

1 - TURNING LOOP
2 - SPACER
3 - BELT & RETRACTOR
4 - SPORT BAR
5 - WASHER
6 - SPACER

Fig. 39 Turning Loop

1 - SPORT BAR
2 - TURNING LOOP COVER
3 - TURNING LOOP
4 - REAR SEAT BELT
5 - SCREW

TJ

RESTRAINTS

8O - 33

PASSENGER AIRBAG ON/OFF SWITCH (Continued)

(8) Remove the screw that secures the rear seat

belt retractor to the lower sport bar near the top of
the inner rear wheel house panel.

(9) Remove the rear seat belt and retractor from

the lower sport bar.

INSTALLATION

WARNING:

TO

AVOID

PERSONAL

INJURY

OR

DEATH, DURING AND FOLLOWING ANY SEAT BELT
OR CHILD RESTRAINT ANCHOR SERVICE, CARE-
FULLY INSPECT ALL SEAT

BELTS,

BUCKLES,

MOUNTING HARDWARE, RETRACTORS, TETHER
STRAPS, AND ANCHORS FOR PROPER INSTALLA-
TION, OPERATION, OR DAMAGE. REPLACE ANY
BELT

THAT

IS

CUT,

FRAYED,

OR

TORN.

STRAIGHTEN

ANY

BELT

THAT

IS

TWISTED.

TIGHTEN ANY LOOSE FASTENERS. REPLACE ANY
BELT THAT HAS A DAMAGED OR INOPERATIVE
BUCKLE OR RETRACTOR. REPLACE ANY BELT
THAT HAS A BENT OR DAMAGED LATCH PLATE
OR

ANCHOR

PLATE.

REPLACE

ANY

CHILD

RESTRAINT ANCHOR OR THE UNIT TO WHICH THE
ANCHOR IS INTEGRAL THAT HAS BEEN BENT OR
DAMAGED. NEVER ATTEMPT TO REPAIR A SEAT
BELT

OR

CHILD

RESTRAINT

COMPONENT.

ALWAYS REPLACE DAMAGED OR FAULTY SEAT
BELT AND CHILD RESTRAINT COMPONENTS WITH
THE CORRECT, NEW AND UNUSED REPLACEMENT
PARTS LISTED IN THE DAIMLERCHRYSLER MOPAR
PARTS CATALOG.

(1) Position the rear seat belt and retractor to the

lower sport bar near the top of the inner rear wheel
house panel (Fig. 38). Be certain to engage the loca-
tor tab on the retractor in the locator hole on the
sport bar.

(2) Install and tighten the screw that secures the

rear seat belt retractor to the lower sport bar.
Tighten the screw to 43 N·m (32 ft. lbs.).

(3) Position the rear seat belt turning loop to the

upper sport bar (Fig. 39).

(4) Install and tighten the screw that secures the

rear seat belt turning loop to the upper sport bar.
Tighten the screw to 43 N·m (32 ft. lbs.).

(5) Fold and snap the trim cover for the rear seat

belt turning loop back into place over the screw that
secures the turning loop to the upper sport bar.

(6) Position the rear seat belt lower anchor to the

inner rear wheel house panel.

(7) Install and tighten the screw that secures the

rear seat belt lower anchor to the inner rear wheel
house panel. Tighten the screw to 43 N·m (32 ft.
lbs.).

(8) Tumble the folded rear seat cushion and back

unit rearward onto the rear floor panel.

(9) Slide both rear seat belt buckle units between

the seat cushion and the seat back.

(10) Unfold the rear seat back from the seat cush-

ion until the seat back latch is fully engaged.

REAR SEAT BELT BUCKLE

REMOVAL

WARNING:

TO

AVOID

PERSONAL

INJURY

OR

DEATH, DURING AND FOLLOWING ANY SEAT BELT
OR CHILD RESTRAINT ANCHOR SERVICE, CARE-
FULLY INSPECT ALL SEAT

BELTS,

BUCKLES,

MOUNTING HARDWARE, RETRACTORS, TETHER
STRAPS, AND ANCHORS FOR PROPER INSTALLA-
TION, OPERATION, OR DAMAGE. REPLACE ANY
BELT

THAT

IS

CUT,

FRAYED,

OR

TORN.

STRAIGHTEN

ANY

BELT

THAT

IS

TWISTED.

TIGHTEN ANY LOOSE FASTENERS. REPLACE ANY
BELT THAT HAS A DAMAGED OR INOPERATIVE
BUCKLE OR RETRACTOR. REPLACE ANY BELT
THAT HAS A BENT OR DAMAGED LATCH PLATE
OR

ANCHOR

PLATE.

REPLACE

ANY

CHILD

RESTRAINT ANCHOR OR THE UNIT TO WHICH THE
ANCHOR IS INTEGRAL THAT HAS BEEN BENT OR
DAMAGED. NEVER ATTEMPT TO REPAIR A SEAT
BELT

OR

CHILD

RESTRAINT

COMPONENT.

ALWAYS REPLACE DAMAGED OR FAULTY SEAT
BELT AND CHILD RESTRAINT COMPONENTS WITH
THE CORRECT, NEW AND UNUSED REPLACEMENT
PARTS LISTED IN THE DAIMLERCHRYSLER MOPAR
PARTS CATALOG.

(1) Slide both rear seat belt buckle units between

the seat cushion and seat back into the rear cargo
area.

(2) Lift the rear seat back release lever and fold

the rear seat back forward, then tumble the folded
rear seat cushion and back unit forward against the
backs of the two front bucket seats.

(3) Lift the rear cargo area carpet between the two

rear seat belt buckle units far enough to access and
remove the screw that secures the anchor of the rear
seat belt buckle units to the rear cargo floor panel
through one of the clearance slots in the carpet (Fig.
40).

(4) Remove the rear seat belt buckle unit from the

rear floor panel through one of the clearance slots in
the rear cargo area carpet.

8O - 34

RESTRAINTS

TJ

REAR SEAT BELT & RETRACTOR (Continued)

INSTALLATION

WARNING:

TO

AVOID

PERSONAL

INJURY

OR

DEATH, DURING AND FOLLOWING ANY SEAT BELT
OR CHILD RESTRAINT ANCHOR SERVICE, CARE-
FULLY INSPECT ALL SEAT

BELTS,

BUCKLES,

MOUNTING HARDWARE, RETRACTORS, TETHER
STRAPS, AND ANCHORS FOR PROPER INSTALLA-
TION, OPERATION, OR DAMAGE. REPLACE ANY
BELT

THAT

IS

CUT,

FRAYED,

OR

TORN.

STRAIGHTEN

ANY

BELT

THAT

IS

TWISTED.

TIGHTEN ANY LOOSE FASTENERS. REPLACE ANY
BELT THAT HAS A DAMAGED OR INOPERATIVE
BUCKLE OR RETRACTOR. REPLACE ANY BELT
THAT HAS A BENT OR DAMAGED LATCH PLATE
OR

ANCHOR

PLATE.

REPLACE

ANY

CHILD

RESTRAINT ANCHOR OR THE UNIT TO WHICH THE
ANCHOR IS INTEGRAL THAT HAS BEEN BENT OR
DAMAGED. NEVER ATTEMPT TO REPAIR A SEAT
BELT

OR

CHILD

RESTRAINT

COMPONENT.

ALWAYS REPLACE DAMAGED OR FAULTY SEAT
BELT AND CHILD RESTRAINT COMPONENTS WITH
THE CORRECT, NEW AND UNUSED REPLACEMENT
PARTS LISTED IN THE DAIMLERCHRYSLER MOPAR
PARTS CATALOG.

(1) Lift the rear cargo area carpet far enough to

position the rear seat belt buckle unit onto the rear
cargo floor panel through one of the clearance slots in
the carpet.

(2) Working through one of the clearance slots in

the rear cargo area carpet, install and tighten the
screw that secures the anchor of the rear seat belt
buckle unit to the rear cargo floor panel (Fig. 40).
Tighten the screw to 43 N·m (32 ft. lbs.).

(3) Tumble the folded rear seat cushion and back

unit rearward onto the rear cargo floor panel.

(4) Slide both rear seat belt buckle units between

the seat cushion and the seat back.

(5) Unfold the rear seat back from the seat cush-

ion until the seat back latch is fully engaged.

SEAT BELT SWITCH

DESCRIPTION

The seat belt switch is a small, normally closed,

single pole, single throw, leaf contact, momentary
switch. Only one seat belt switch is installed in the
vehicle, and it is integral to the buckle of the driver
side front seat belt buckle-half, located on the
inboard side of the driver side front seat track (Fig.
41). The seat belt switch is connected to the vehicle
electrical system through a two-wire pigtail wire and
connector on the seat belt buckle-half, which is con-
nected to a wire harness connector and take out of
the body wire harness routed along the left side of
the body sill in the passenger compartment.

The seat belt switch cannot be adjusted or repaired

and, if faulty or damaged, the entire driver side front
seat belt buckle-half unit must be replaced.

OPERATION

The seat belt switch is designed to control a path

to ground for the seat belt switch sense input of the
ElectroMechanical Instrument Cluster (EMIC). When

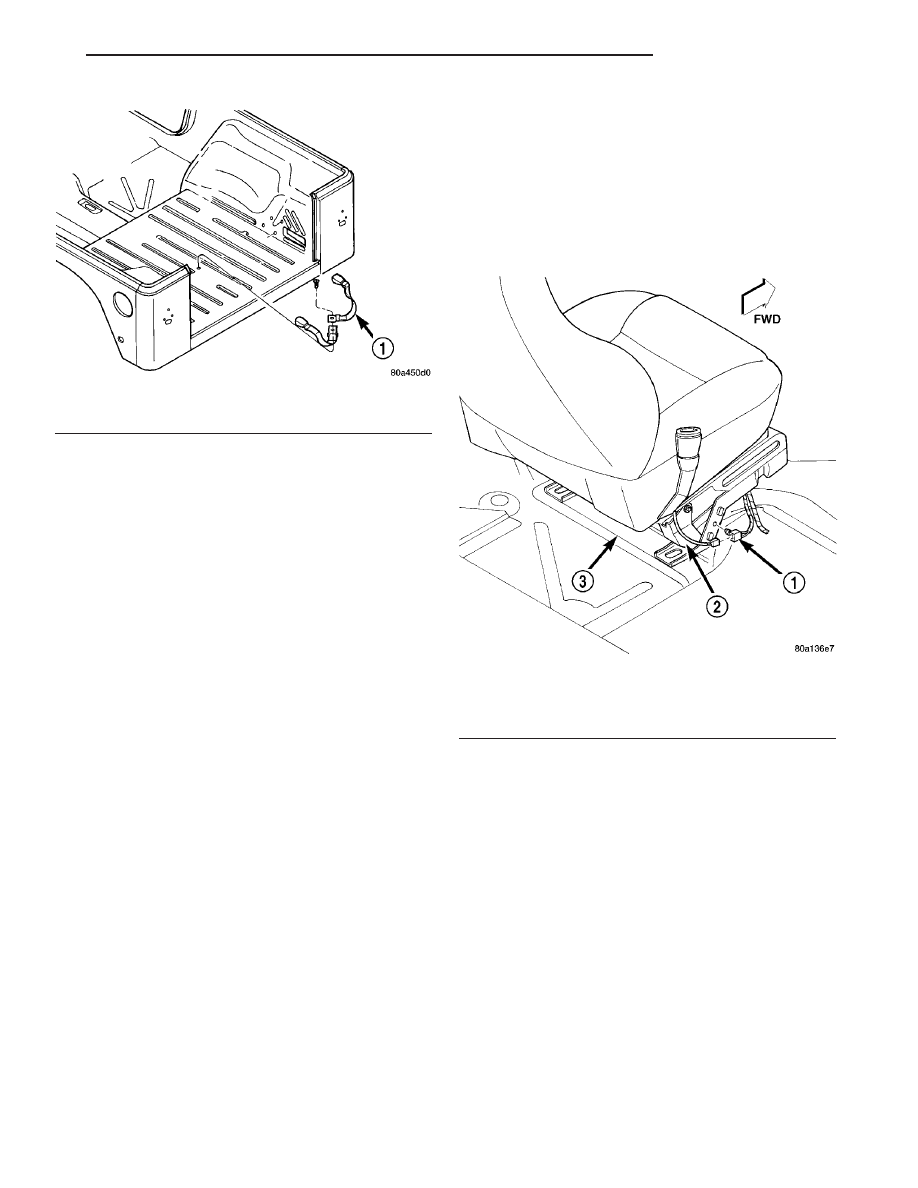

Fig. 40 Rear Seat Belt Buckles Remove/Install

1 - REAR SEAT BELT BUCKLE UNIT

Fig. 41 Seat Belt Switch

1 - WIRE HARNESS CONNECTOR
2 - DRIVER SEAT RISER
4 - FLOOR PANEL

TJ

RESTRAINTS

8O - 35

REAR SEAT BELT BUCKLE (Continued)

the driver side front seat belt tip-half is inserted into
the seat belt buckle, the switch opens the path to
ground; and, when the driver side front seat belt tip-
half is removed from the seat belt buckle, the switch
closes the ground path. The switch is actuated by the
latch mechanism within the seat belt buckle.

The seat belt switch is connected in series between

ground and the seat belt switch sense input of the
instrument cluster. The seat belt switch receives
ground at all times through its pigtail wire connec-
tion to the body wire harness from another take out
of the body wire harness. An eyelet terminal connec-
tor on that ground take out is secured beneath a
ground screw on the left cowl side inner panel,
beneath the instrument panel. The seat belt switch
may de diagnosed using conventional diagnostic tools
and methods.

DIAGNOSIS AND TESTING - SEAT BELT
SWITCH

Refer to the appropriate wiring information. The

wiring information includes wiring diagrams, proper
wire and connector repair procedures, details of wire
harness routing and retention, connector pin-out
information and location views for the various wire
harness connectors, splices and grounds.

WARNING:

TO

AVOID

PERSONAL

INJURY

OR

DEATH, ON VEHICLES EQUIPPED WITH AIRBAGS,
DISABLE THE SUPPLEMENTAL RESTRAINT SYS-
TEM

BEFORE

ATTEMPTING

ANY

STEERING

WHEEL, STEERING COLUMN, AIRBAG, OR INSTRU-
MENT PANEL COMPONENT DIAGNOSIS OR SER-
VICE. DISCONNECT AND ISOLATE THE BATTERY
NEGATIVE (GROUND) CABLE, THEN WAIT TWO
MINUTES FOR THE SYSTEM CAPACITOR TO DIS-
CHARGE BEFORE PERFORMING FURTHER DIAG-
NOSIS OR SERVICE. THIS IS THE ONLY SURE WAY
TO DISABLE THE SUPPLEMENTAL RESTRAINT
SYSTEM. FAILURE TO TAKE THE PROPER PRE-
CAUTIONS COULD RESULT IN ACCIDENTAL AIR-
BAG DEPLOYMENT.

(1) Disconnect and isolate the battery negative

cable. Disconnect the seat belt switch pigtail wire
connector from the body wire harness connector for
the seat belt switch on the floor near the driver side
front seat belt buckle-half anchor. Check for continu-
ity between the seat belt switch sense circuit and the
ground circuit cavities of the seat belt switch pigtail
wire connector. There should be continuity with the
seat belt unbuckled, and no continuity with the seat
belt buckled. If OK, go to Step 2. If not OK, replace
the faulty front seat belt buckle-half assembly.

(2) Check for continuity between the ground cir-

cuit cavity in the body wire harness connector for the

seat belt switch and a good ground. There should be
continuity. If OK, go to Step 3. If not OK, repair the
open ground circuit to ground (G302) as required.

(3) Remove the instrument cluster from the instru-

ment panel. Check for continuity between the seat
belt switch sense circuit cavity of the body wire har-
ness connector for the seat belt switch and a good
ground. There should be no continuity. If OK, go to
Step 4. If not OK, repair the shorted seat belt switch
sense circuit between the seat belt switch and the
instrument cluster as required.

(4) Check for continuity between the seat belt

switch sense circuit cavities of the body wire harness
connector for the seat belt switch and the instrument
panel wire harness connector (Connector C2) for the
instrument cluster. There should be continuity. If
OK, test and replace the faulty instrument cluster as
required. (Refer to 8 - ELECTRICAL/INSTRUMENT
CLUSTER - DIAGNOSIS AND TESTING). If not OK,
repair the open seat belt switch sense circuit between
the seat belt switch and the instrument cluster as
required.

SEAT BELT TURNING LOOP
ADJUSTER

REMOVAL

WARNING:

TO

AVOID

PERSONAL

INJURY

OR

DEATH, DURING AND FOLLOWING ANY SEAT BELT
OR CHILD RESTRAINT ANCHOR SERVICE, CARE-
FULLY INSPECT ALL SEAT

BELTS,

BUCKLES,

MOUNTING HARDWARE, RETRACTORS, TETHER
STRAPS, AND ANCHORS FOR PROPER INSTALLA-
TION, OPERATION, OR DAMAGE. REPLACE ANY
BELT

THAT

IS

CUT,

FRAYED,

OR

TORN.

STRAIGHTEN

ANY

BELT

THAT

IS

TWISTED.

TIGHTEN ANY LOOSE FASTENERS. REPLACE ANY
BELT THAT HAS A DAMAGED OR INOPERATIVE
BUCKLE OR RETRACTOR. REPLACE ANY BELT
THAT HAS A BENT OR DAMAGED LATCH PLATE
OR

ANCHOR

PLATE.

REPLACE

ANY

CHILD

RESTRAINT ANCHOR OR THE UNIT TO WHICH THE
ANCHOR IS INTEGRAL THAT HAS BEEN BENT OR
DAMAGED. NEVER ATTEMPT TO REPAIR A SEAT
BELT

OR

CHILD

RESTRAINT

COMPONENT.

ALWAYS REPLACE DAMAGED OR FAULTY SEAT
BELT AND CHILD RESTRAINT COMPONENTS WITH
THE CORRECT, NEW AND UNUSED REPLACEMENT
PARTS LISTED IN THE DAIMLERCHRYSLER MOPAR
PARTS CATALOG.

(1) Unsnap and lift the trim cover from the front

seat belt turning loop to access the screw that

8O - 36

RESTRAINTS

TJ

SEAT BELT SWITCH (Continued)















Content   ..  325  326  327  328   ..
