(6) Remove the front seat belt and retractor from

the lower sport bar.

INSTALLATION

WARNING:

TO

AVOID

PERSONAL

INJURY

OR

DEATH, DURING AND FOLLOWING ANY SEAT BELT
OR CHILD RESTRAINT ANCHOR SERVICE, CARE-
FULLY INSPECT ALL SEAT

BELTS,

BUCKLES,

MOUNTING HARDWARE, RETRACTORS, TETHER
STRAPS, AND ANCHORS FOR PROPER INSTALLA-
TION, OPERATION, OR DAMAGE. REPLACE ANY
BELT

THAT

IS

CUT,

FRAYED,

OR

TORN.

STRAIGHTEN

ANY

BELT

THAT

IS

TWISTED.

TIGHTEN ANY LOOSE FASTENERS. REPLACE ANY
BELT THAT HAS A DAMAGED OR INOPERATIVE
BUCKLE OR RETRACTOR. REPLACE ANY BELT
THAT HAS A BENT OR DAMAGED LATCH PLATE
OR

ANCHOR

PLATE.

REPLACE

ANY

CHILD

RESTRAINT ANCHOR OR THE UNIT TO WHICH THE
ANCHOR IS INTEGRAL THAT HAS BEEN BENT OR
DAMAGED. NEVER ATTEMPT TO REPAIR A SEAT
BELT

OR

CHILD

RESTRAINT

COMPONENT.

ALWAYS REPLACE DAMAGED OR FAULTY SEAT
BELT AND CHILD RESTRAINT COMPONENTS WITH
THE CORRECT, NEW AND UNUSED REPLACEMENT
PARTS LISTED IN THE DAIMLERCHRYSLER MOPAR
PARTS CATALOG.

(1) Position the front seat belt and retractor and

the lower seat belt anchor to the lower sport bar (Fig.
28). Be certain to engage the locator tab on the
retractor in the locator hole on the sport bar.

(2) Install and tighten the screw that secures the

front seat belt retractor and lower seat belt anchor to
the lower sport bar. Tighten the screw to 43 N·m (32
ft. lbs.).

(3) Position the support/guide washer and the

front seat belt turning loop onto the height adjuster
on the upper sport bar (Fig. 27).

(4) Install and tighten the screw that secures the

front seat belt turning loop to the height adjuster.
Tighten the screw to 43 N·m (32 ft. lbs.).

(5) Fold and snap the trim cover back into place

over the screw that secures the front seat belt turn-
ing loop to the adjuster.

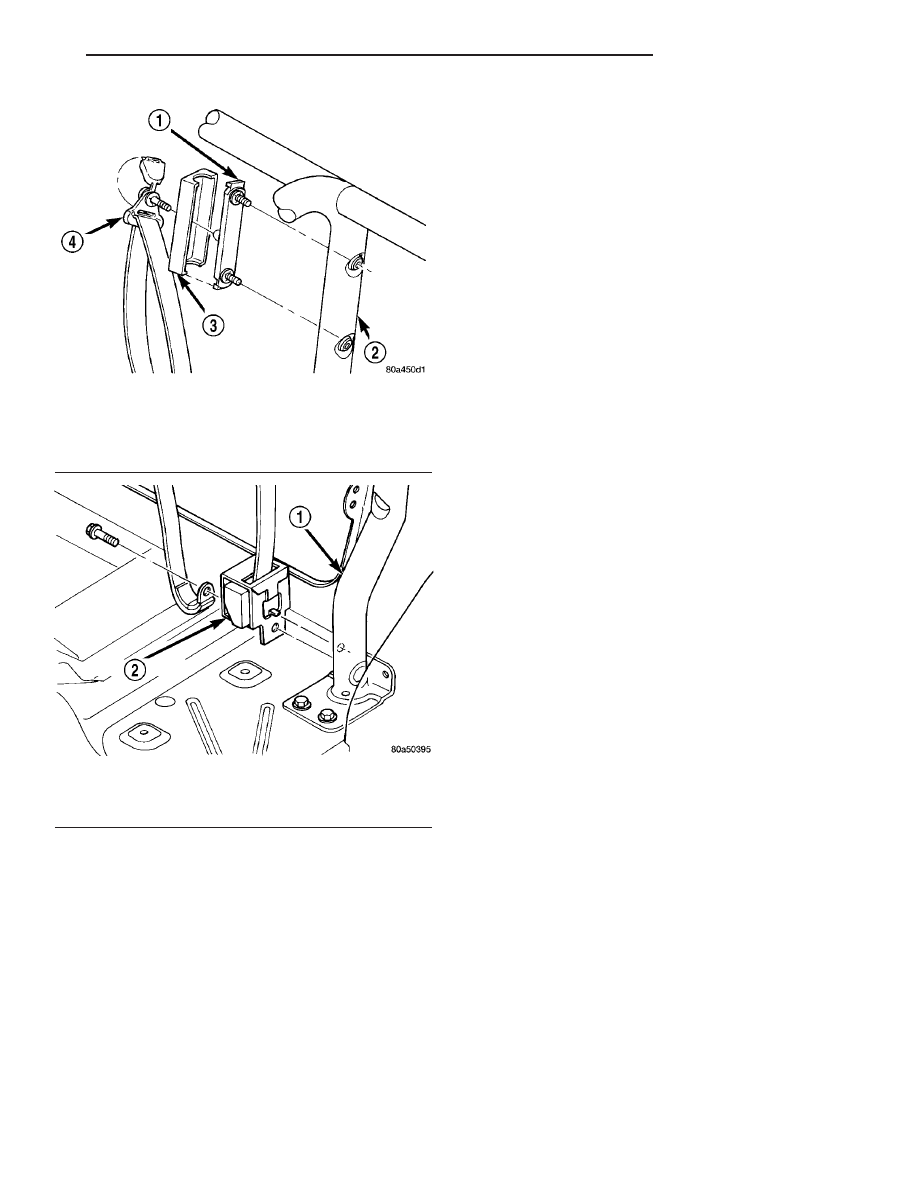

Fig. 27 Front Seat Belt Turning Loop

1 - ADJUSTER
2 - SPORT BAR
3 - TRIM COVER
4 - TURNING LOOP

Fig. 28 Front Seat Belt and Retractor - Typical

1 - SPORT BAR
2 - RETRACTOR

TJ

RESTRAINTS

8O - 25

FRONT SEAT BELT & RETRACTOR (Continued)

FRONT SEAT BELT BUCKLE

REMOVAL

The seat belt buckle on the driver’s side front seat

for all models also includes a seat belt switch. (Refer
to

8

-

ELECTRICAL/RESTRAINTS/SEAT

BELT

SWITCH - DESCRIPTION).

WARNING:

TO

AVOID

PERSONAL

INJURY

OR

DEATH, DURING AND FOLLOWING ANY SEAT BELT
OR CHILD RESTRAINT ANCHOR SERVICE, CARE-
FULLY INSPECT ALL SEAT

BELTS,

BUCKLES,

MOUNTING HARDWARE, RETRACTORS, TETHER
STRAPS, AND ANCHORS FOR PROPER INSTALLA-
TION, OPERATION, OR DAMAGE. REPLACE ANY
BELT

THAT

IS

CUT,

FRAYED,

OR

TORN.

STRAIGHTEN

ANY

BELT

THAT

IS

TWISTED.

TIGHTEN ANY LOOSE FASTENERS. REPLACE ANY
BELT THAT HAS A DAMAGED OR INOPERATIVE
BUCKLE OR RETRACTOR. REPLACE ANY BELT
THAT HAS A BENT OR DAMAGED LATCH PLATE
OR

ANCHOR

PLATE.

REPLACE

ANY

CHILD

RESTRAINT ANCHOR OR THE UNIT TO WHICH THE
ANCHOR IS INTEGRAL THAT HAS BEEN BENT OR
DAMAGED. NEVER ATTEMPT TO REPAIR A SEAT
BELT

OR

CHILD

RESTRAINT

COMPONENT.

ALWAYS REPLACE DAMAGED OR FAULTY SEAT
BELT AND CHILD RESTRAINT COMPONENTS WITH
THE CORRECT, NEW AND UNUSED REPLACEMENT
PARTS LISTED IN THE DAIMLERCHRYSLER MOPAR
PARTS CATALOG.

(1) On the driver side only, disconnect the seat belt

switch pigtail wire connector from the body wire har-
ness connector for the seat belt switch (Fig. 29).

(2) Remove the screw that secures the seat belt

buckle lower anchor to the bracket on the rear of the
upper inner front seat track (Fig. 30).

(3) Remove the front seat belt buckle from the

front seat track bracket.

INSTALLATION

The seat belt buckle on the driver’s side front seat

for all models also includes a seat belt switch. The
seat belt buckle on the driver’s side front seat for all
models also includes a seat belt switch. (Refer to 8 -
ELECTRICAL/RESTRAINTS/SEAT BELT SWITCH -
DESCRIPTION).

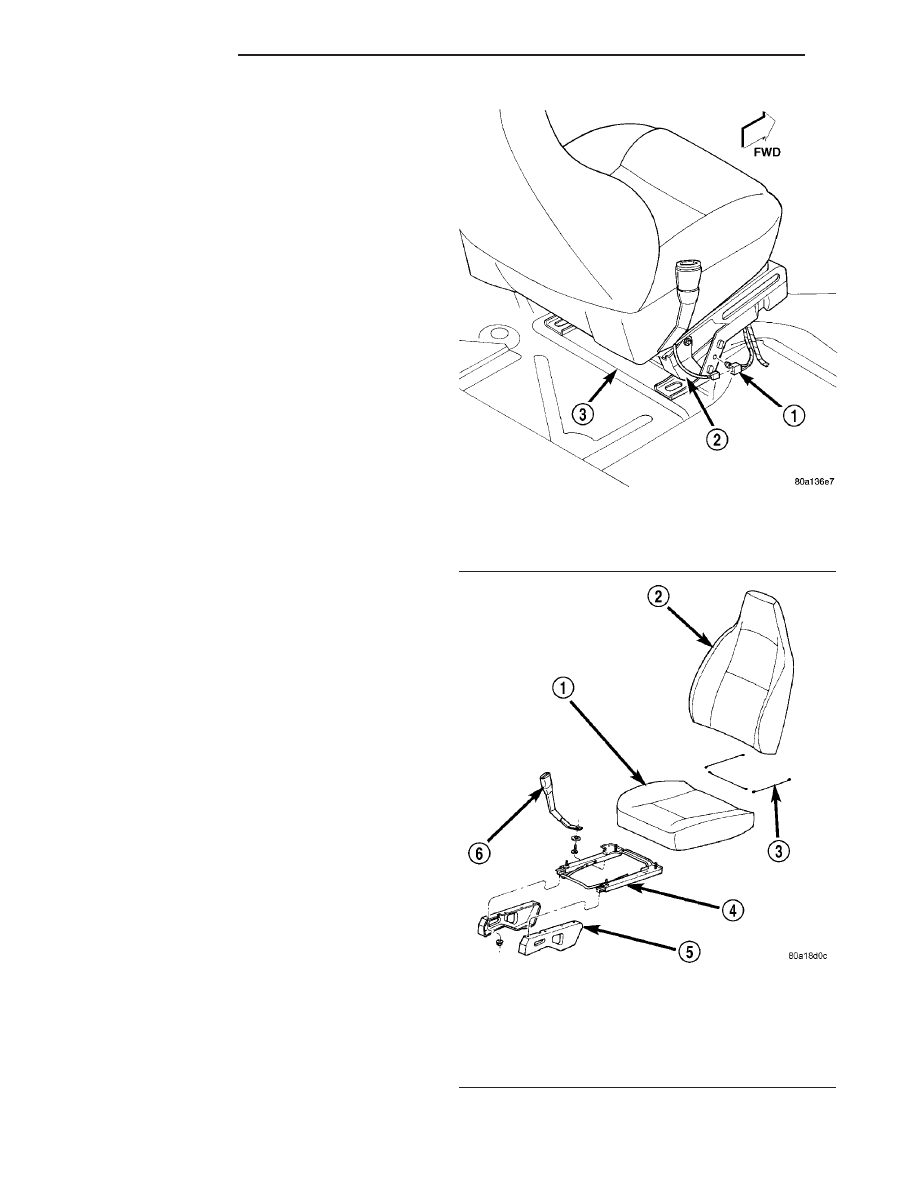

Fig. 29 Seat Belt Switch

1 - WIRE HARNESS CONNECTOR
2 - DRIVER SEAT RISER
4 - FLOOR PANEL

Fig. 30 Seat Belt Buckle

1 - SEAT CUSHION
2 - SEAT BACK
3 - TRIM ATTACHMENT WIRES
4 - SEAT TRACK
5 - SEAT RISER
6 - SEATBELT BUCKLE

8O - 26

RESTRAINTS

TJ

WARNING:

TO

AVOID

PERSONAL

INJURY

OR

DEATH, DURING AND FOLLOWING ANY SEAT BELT
OR CHILD RESTRAINT ANCHOR SERVICE, CARE-
FULLY INSPECT ALL SEAT

BELTS,

BUCKLES,

MOUNTING HARDWARE, RETRACTORS, TETHER
STRAPS, AND ANCHORS FOR PROPER INSTALLA-
TION, OPERATION, OR DAMAGE. REPLACE ANY
BELT

THAT

IS

CUT,

FRAYED,

OR

TORN.

STRAIGHTEN

ANY

BELT

THAT

IS

TWISTED.

TIGHTEN ANY LOOSE FASTENERS. REPLACE ANY
BELT THAT HAS A DAMAGED OR INOPERATIVE
BUCKLE OR RETRACTOR. REPLACE ANY BELT
THAT HAS A BENT OR DAMAGED LATCH PLATE
OR

ANCHOR

PLATE.

REPLACE

ANY

CHILD

RESTRAINT ANCHOR OR THE UNIT TO WHICH THE
ANCHOR IS INTEGRAL THAT HAS BEEN BENT OR
DAMAGED. NEVER ATTEMPT TO REPAIR A SEAT
BELT

OR

CHILD

RESTRAINT

COMPONENT.

ALWAYS REPLACE DAMAGED OR FAULTY SEAT
BELT AND CHILD RESTRAINT COMPONENTS WITH
THE CORRECT, NEW AND UNUSED REPLACEMENT
PARTS LISTED IN THE DAIMLERCHRYSLER MOPAR
PARTS CATALOG.

(1) Position the front seat belt buckle lower anchor

to the bracket on the rear of the upper inner front
seat track.

(2) Install and tighten the screw that secures the

front seat belt buckle lower anchor to the front seat
track bracket (Fig. 30). Tighten the screw to 43 N·m
(32 ft. lbs.).

(3) On the driver side only, reconnect the seat belt

switch pigtail wire connector to the body wire har-
ness connector for the seat belt switch (Fig. 29).

PASSENGER AIRBAG

DESCRIPTION

The

rearward

facing

surface

of

the

injection

molded, thermoplastic passenger airbag door is the
most visible part of the passenger airbag (Fig. 31).
The passenger airbag door is located above the glove
box opening on the instrument panel in front of the
front seat passenger seating position. The passenger
airbag door also serves as a trim cover and has two
flanges and a stamped metal bracket that secure it to
the instrument panel structural support. The upper
flange is secured with screws to the top of the instru-
ment panel structural support and the lower flange
to the upper glove box opening reinforcement. A
stamped metal passenger airbag door hinge bracket
is secured to the back of the instrument panel struc-
tural support with two screws.

Located behind the passenger airbag door within

the instrument panel is the passenger airbag unit.
The passenger airbag unit has an upper rear bracket

and a lower rear bracket that are secured by nuts to
three weld studs on the instrument panel structural
support, one stud at the top and two at the bottom.
Two nuts secure a front lower bracket on the passen-
ger airbag housing to two weld studs on the dash
panel above the heater and air conditioner housing.
The front lower bracket mounts are accessed through
the instrument panel glove box opening.

The passenger airbag unit used in this model is a

Next Generation-type that complies with revised fed-
eral airbag standards to deploy with less force than
those used in some prior models. The passenger air-
bag unit consists of a stamped and welded metal
housing or retainer, the airbag cushion, and the air-
bag inflator. The airbag housing contains the airbag
inflator and the folded airbag cushion. A rectangular
fabric cushion is used. The airbag inflator is a
hybrid-type unit that is secured to and sealed within
the stamped metal airbag housing beneath the folded
airbag cushion. The inflator initiator is connected to
the vehicle electrical system through a yellow connec-
tor on the end of a short, two-wire pigtail harness
and a take out of the body wire harness.

The passenger airbag and the passenger airbag

door are available as separate service items. The pas-
senger airbag cannot be repaired, and must be
replaced if deployed, faulty, or in any way damaged.
The passenger airbag door will be damaged and must
be replaced following an airbag deployment.

OPERATION

The passenger airbag is deployed by an electrical

signal generated by the Airbag Control Module
(ACM) through the passenger airbag squib circuits to
the initiator in the airbag inflator. The hybrid-type
inflator assembly includes a small canister of highly

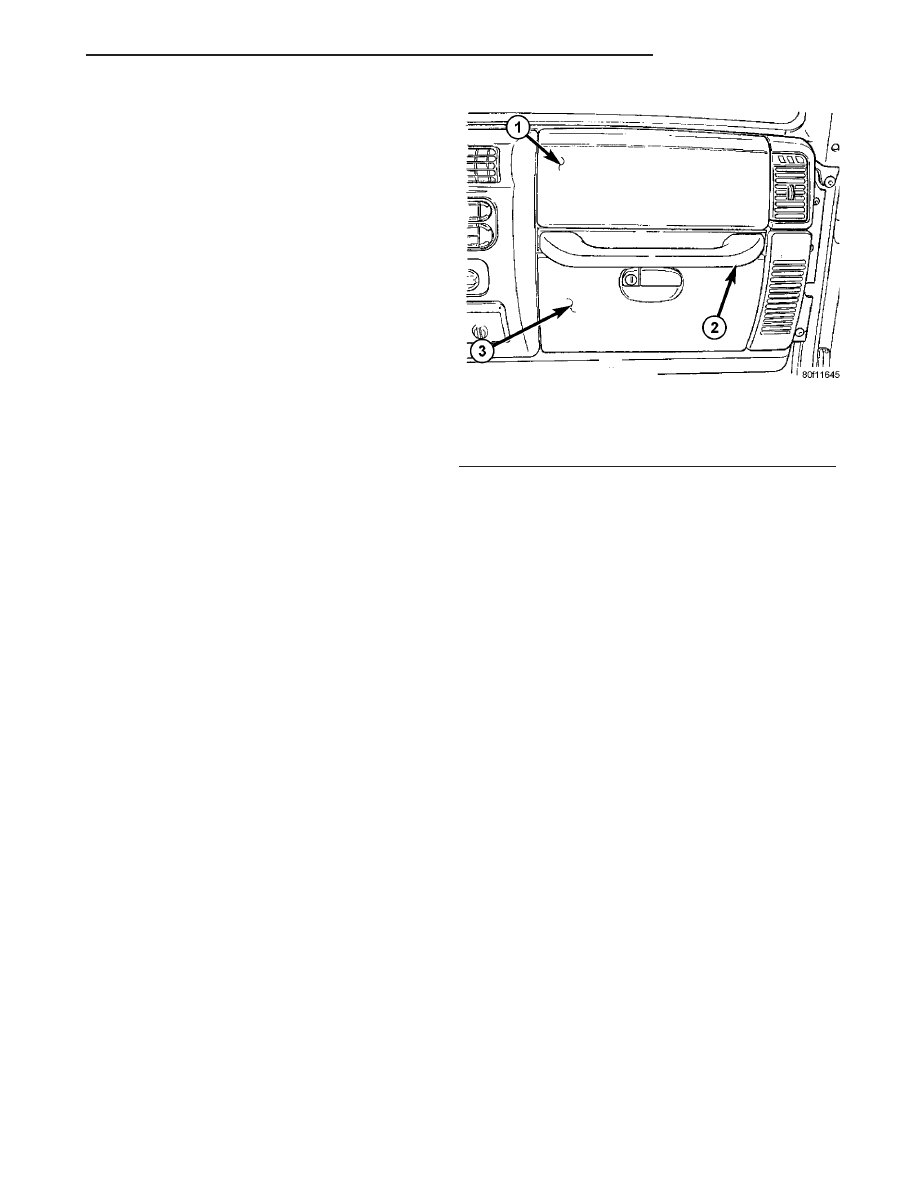

Fig. 31 Passenger Airbag Door

1 - PASSENGER AIRBAG DOOR
2 - GRAB HANDLE
3 - GLOVE BOX DOOR

TJ

RESTRAINTS

8O - 27

FRONT SEAT BELT BUCKLE (Continued)

compressed inert gas. When the ACM sends the
proper electrical signal to the airbag inflator, the
electrical energy generates enough heat to ignite
chemical pellets within the inflator. Once ignited,
these chemical pellets burn rapidly and produce the
pressure necessary to rupture a burst disk in the
inert gas canister.

The inflator is sealed to the airbag cushion so that

all of the released inert gas is directed into the air-
bag cushion, causing the cushion to inflate. As the
cushion inflates, the passenger airbag door will split
at predetermined tear seam lines integral to the door,
then the door will fold up over the top of the instru-
ment panel and out of the way. Following a passen-
ger airbag deployment, the airbag cushion quickly
deflates by venting the inert gas through the porous
fabric material used to construct each end panel of
the airbag cushion.

REMOVAL

The following procedure is for replacement of a

faulty or damaged passenger airbag. If the airbag is
faulty or damaged, but not deployed, review the rec-
ommended procedures for handling non-deployed
supplemental restraints. (Refer to 8 - ELECTRICAL/
RESTRAINTS - STANDARD PROCEDURE - HAN-
DLING

NON-DEPLOYED

SUPPLEMENTAL

RESTRAINTS). If the passenger airbag has been
deployed, review the recommended procedures for
service after a supplemental restraint deployment
before removing the airbag from the vehicle. (Refer to
8 - ELECTRICAL/RESTRAINTS - STANDARD PRO-
CEDURE - SERVICE AFTER A SUPPLEMENTAL
RESTRAINT DEPLOYMENT).

WARNING:

TO

AVOID

PERSONAL

INJURY

OR

DEATH, ON VEHICLES EQUIPPED WITH AIRBAGS,
DISABLE THE SUPPLEMENTAL RESTRAINT SYS-
TEM

BEFORE

ATTEMPTING

ANY

STEERING

WHEEL, STEERING COLUMN, AIRBAG, OR INSTRU-
MENT PANEL COMPONENT DIAGNOSIS OR SER-
VICE. DISCONNECT AND ISOLATE THE BATTERY
NEGATIVE (GROUND) CABLE, THEN WAIT TWO
MINUTES FOR THE SYSTEM CAPACITOR TO DIS-
CHARGE BEFORE PERFORMING FURTHER DIAG-
NOSIS OR SERVICE. THIS IS THE ONLY SURE WAY
TO DISABLE THE SUPPLEMENTAL RESTRAINT
SYSTEM. FAILURE TO TAKE THE PROPER PRE-
CAUTIONS COULD RESULT IN ACCIDENTAL AIR-
BAG DEPLOYMENT.

WARNING:

TO

AVOID

PERSONAL

INJURY

OR

DEATH, WHEN REMOVING A DEPLOYED AIRBAG,
RUBBER

GLOVES,

EYE

PROTECTION,

AND

A

LONG-SLEEVED SHIRT SHOULD BE WORN. THERE
MAY BE DEPOSITS ON THE AIRBAG UNIT AND

OTHER INTERIOR SURFACES. IN LARGE DOSES,
THESE DEPOSITS MAY CAUSE IRRITATION TO THE
SKIN AND EYES.

(1) Disconnect and isolate the battery negative

cable. Wait two minutes for the system capacitor to
discharge before further service.

(2) Remove the instrument panel from the passen-

ger compartment of the vehicle. (Refer to 23 - BODY/
INSTRUMENT PANEL - REMOVAL).

(3) Place the instrument panel on a suitable work

surface. Be certain to take the proper precautions to
protect the instrument panel from any possible cos-
metic damage.

(4) Remove the three nuts that secure the passen-

ger airbag to the weld studs on the instrument panel
structural support (Fig. 32).

(5) Remove the passenger airbag from the instru-

ment panel structural support.

INSTALLATION

The following procedure is for replacement of a

faulty or damaged passenger airbag. If the airbag is
faulty or damaged, but not deployed, review the rec-
ommended procedures for handling non-deployed
supplemental restraints. (Refer to 8 - ELECTRICAL/
RESTRAINTS - STANDARD PROCEDURE - HAN-
DLING

NON-DEPLOYED

SUPPLEMENTAL

RESTRAINTS). If the passenger airbag has been
deployed, review the recommended procedures for
service after a supplemental restraint deployment
before removing the airbag from the vehicle. (Refer to
8 - ELECTRICAL/RESTRAINTS - STANDARD PRO-
CEDURE - SERVICE AFTER A SUPPLEMENTAL
RESTRAINT DEPLOYMENT).

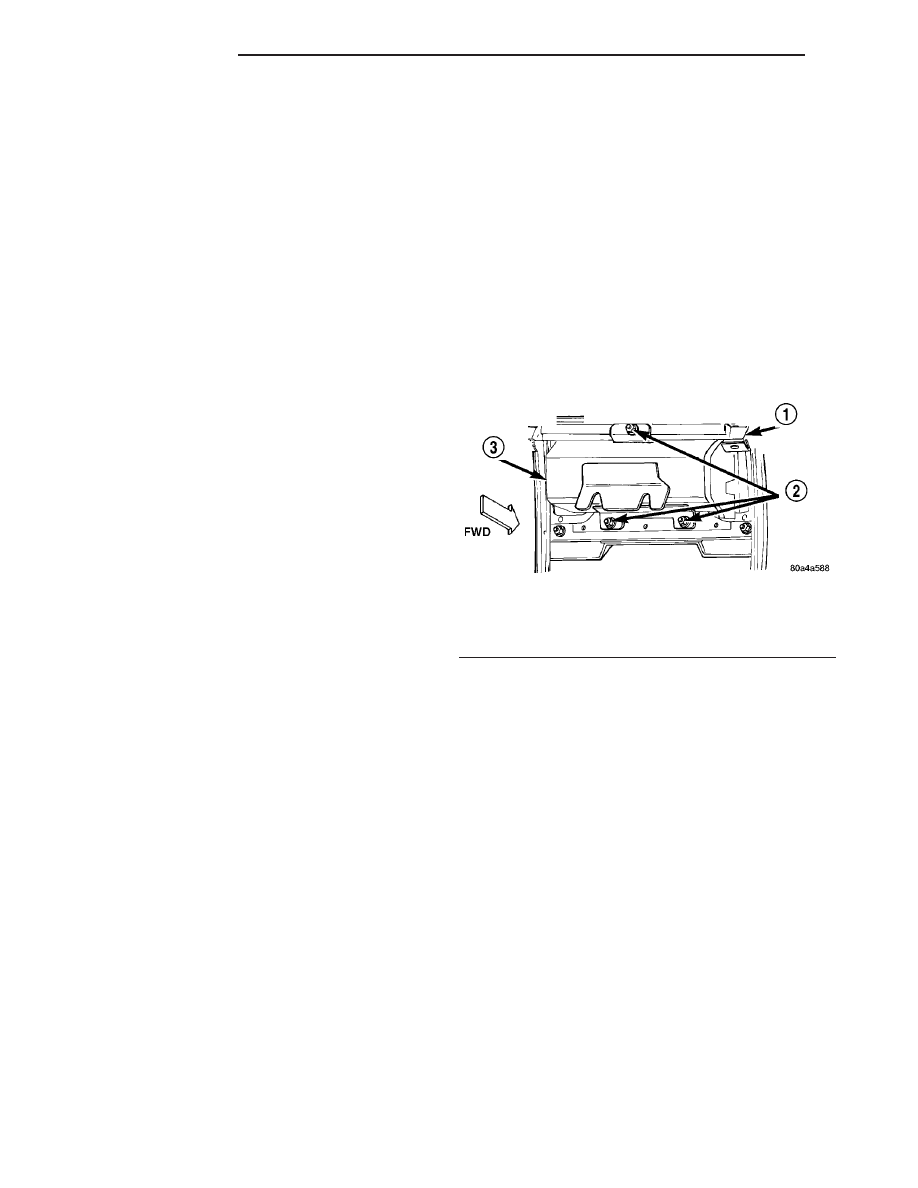

Fig. 32 Passenger Airbag Remove/Install

1 - STRUCTURAL SUPPORT
2 - NUT (3)
3 - PASSENGER AIRBAG

8O - 28

RESTRAINTS

TJ

PASSENGER AIRBAG (Continued)















Content   ..  323  324  325  326   ..
