Jeep Wrangler TJ. Manual - part 324

CAUTION: Do not pull on the clockspring pigtail
wires to disengage the connector from the driver
airbag

inflator

connector

receptacle.

Improper

removal of these pigtail wires and their connector
insulators can result in damage to the airbag cir-
cuits or connector insulators.

(5) The clockspring driver airbag pigtail wire con-

nector is secured by a tight snap fit into the airbag
inflator connector receptacle, which is located on the
back of the driver airbag housing. Firmly grasp and
pull or gently pry on the clockspring driver airbag
pigtail wire connector insulator and pull the insula-
tor straight out from the airbag inflator to disconnect
it from the connector receptacle.

(6) Remove the driver airbag from the steering

wheel.

(7) If the driver airbag has been deployed, the

clockspring must be replaced. (Refer to 8 - ELECTRI-
CAL/RESTRAINTS/CLOCKSPRING - REMOVAL).

DISASSEMBLY

The following procedures can be used to replace

the driver airbag trim cover and/or to access the horn
switch unit for service. If the driver airbag is faulty
or deployed, the entire driver airbag, trim cover, and
horn switch must be replaced as a unit.

WARNING:

AVOID

PERSONAL

INJURY

DEATH, ON VEHICLES EQUIPPED WITH AIRBAGS,
DISABLE THE SUPPLEMENTAL RESTRAINT SYS-
TEM

BEFORE

ATTEMPTING

ANY

STEERING

WHEEL, STEERING COLUMN, AIRBAG, OR INSTRU-
MENT PANEL COMPONENT DIAGNOSIS OR SER-
VICE. DISCONNECT AND ISOLATE THE BATTERY
NEGATIVE (GROUND) CABLE, THEN WAIT TWO
MINUTES FOR THE SYSTEM CAPACITOR TO DIS-
CHARGE BEFORE PERFORMING FURTHER DIAG-
NOSIS OR SERVICE. THIS IS THE ONLY SURE WAY
TO DISABLE THE SUPPLEMENTAL RESTRAINT
SYSTEM. FAILURE TO TAKE THE PROPER PRE-
CAUTIONS COULD RESULT IN ACCIDENTAL AIR-
BAG DEPLOYMENT.

WARNING:

AVOID

PERSONAL

INJURY

DEATH, SERVICE OF THIS UNIT SHOULD BE PER-
FORMED ONLY BY DAIMLERCHRYSLER-TRAINED
AND

AUTHORIZED

DEALER

SERVICE

TECHNI-

CIANS. FAILURE TO TAKE THE PROPER PRECAU-
TIONS

FOLLOW

THE

PROPER

PROCEDURES COULD RESULT IN ACCIDENTAL,
INCOMPLETE, OR IMPROPER AIRBAG DEPLOY-
MENT AND POSSIBLE OCCUPANT INJURIES.

WARNING:

AVOID

PERSONAL

INJURY

DEATH, USE EXTREME CARE TO PREVENT ANY
FOREIGN MATERIAL FROM ENTERING THE DRIVER
AIRBAG, OR BECOMING ENTRAPPED BETWEEN
THE DRIVER AIRBAG CUSHION AND THE DRIVER
AIRBAG TRIM COVER. FAILURE TO OBSERVE THIS
WARNING COULD RESULT IN OCCUPANT INJURIES
UPON AIRBAG DEPLOYMENT.

WARNING:

AVOID

PERSONAL

INJURY

DEATH, THE DRIVER AIRBAG TRIM COVER MUST
NEVER BE PAINTED. REPLACEMENT TRIM COV-
ERS ARE SERVICED IN THE ORIGINAL COLORS.
PAINT MAY CHANGE THE WAY IN WHICH THE
MATERIAL OF THE TRIM COVER RESPONDS TO AN
AIRBAG DEPLOYMENT. FAILURE TO OBSERVE
THIS WARNING COULD RESULT IN OCCUPANT
INJURIES UPON AIRBAG DEPLOYMENT.

(1) Disconnect and isolate the battery negative

cable. Wait two minutes for the system capacitor to
discharge before further service.

(2) Remove the driver airbag from the steering

wheel. (Refer to 8 - ELECTRICAL/RESTRAINTS/
DRIVER AIRBAG - REMOVAL).

(3) Place the driver airbag on a suitable work sur-

face with the trim cover facing down. If the trim
cover will be reused, be certain to take the proper
precautions to prevent the trim cover from receiving
cosmetic damage during the following procedures.

(4) Remove the four nuts that secure the upper

and lower trim cover retainers to the studs on the
back of the driver airbag housing (Fig. 23).

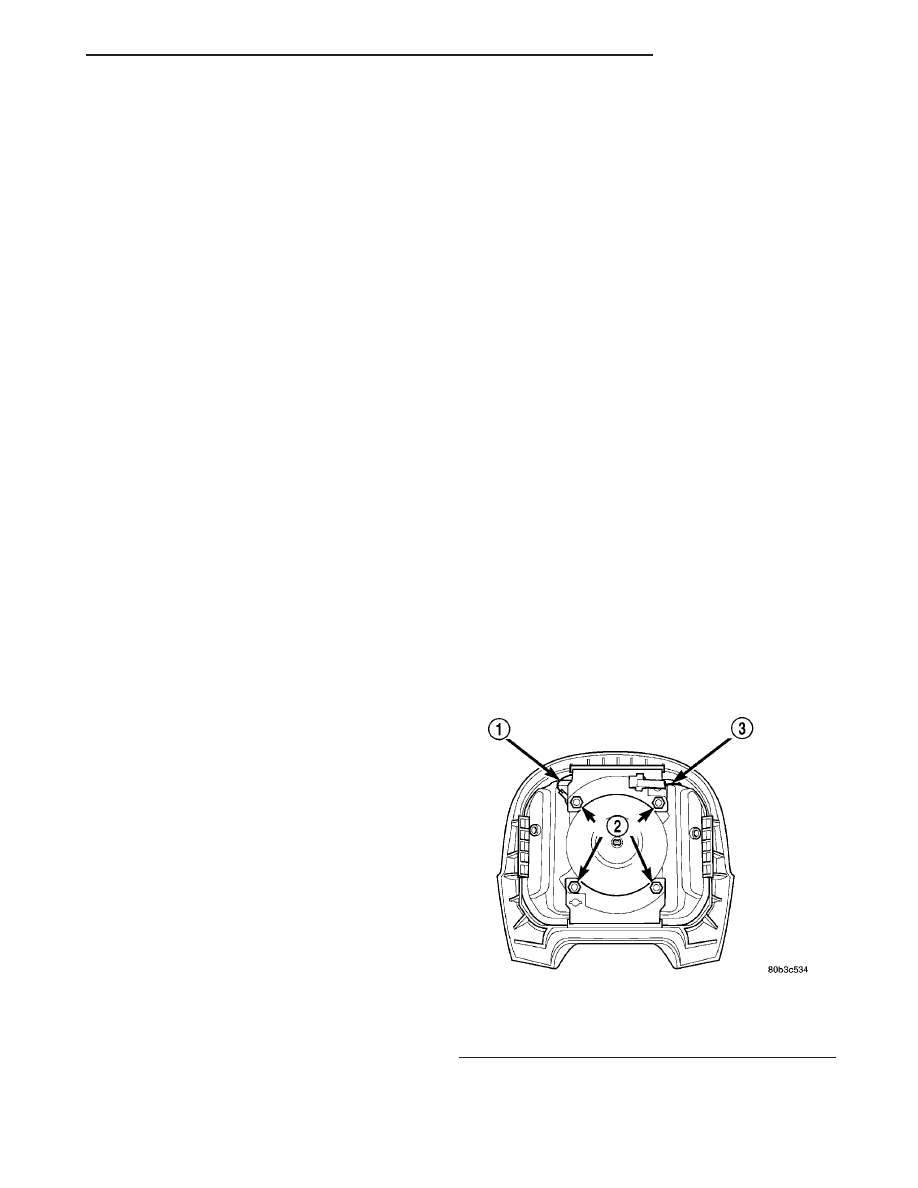

Fig. 23 Horn Switch Feed Wire Remove/Install

1 - HORN SWITCH GROUND PIGTAIL WIRE
2 - NUT (4)
3 - HORN SWITCH FEED PIGTAIL WIRE

RESTRAINTS

8O - 21

DRIVER AIRBAG (Continued)

(5) Remove the upper and lower trim cover retain-

ers from the airbag housing studs (Fig. 24).

(6) Disengage the horn switch feed pigtail wire

connector retainer from the mounting hole in the
upper trim cover retainer.

(7) Remove the horn switch ground pigtail wire

eyelet terminal from the upper right inflator stud on
the back of the driver airbag housing.

(8) Disengage the four trim cover locking blocks

from the lip around the outside edge of the driver
airbag housing and remove the housing from the
trim cover receptacle (Fig. 25).

ASSEMBLY

The following procedures can be used to replace

WARNING:

AVOID

PERSONAL

INJURY

DEATH, ON VEHICLES EQUIPPED WITH AIRBAGS,
DISABLE THE SUPPLEMENTAL RESTRAINT SYS-
TEM

BEFORE

ATTEMPTING

ANY

STEERING

CHARGE BEFORE PERFORMING FURTHER DIAG-
NOSIS OR SERVICE. THIS IS THE ONLY SURE WAY
TO DISABLE THE SUPPLEMENTAL RESTRAINT
SYSTEM. FAILURE TO TAKE THE PROPER PRE-
CAUTIONS COULD RESULT IN ACCIDENTAL AIR-
BAG DEPLOYMENT.

WARNING:

AVOID

PERSONAL

INJURY

DEATH, SERVICE OF THIS UNIT SHOULD BE PER-
FORMED ONLY BY DAIMLERCHRYSLER-TRAINED
AND

AUTHORIZED

DEALER

SERVICE

TECHNI-

CIANS. FAILURE TO TAKE THE PROPER PRECAU-
TIONS

FOLLOW

THE

PROPER

PROCEDURES COULD RESULT IN ACCIDENTAL,
INCOMPLETE, OR IMPROPER AIRBAG DEPLOY-
MENT AND POSSIBLE OCCUPANT INJURIES.

WARNING:

AVOID

PERSONAL

INJURY

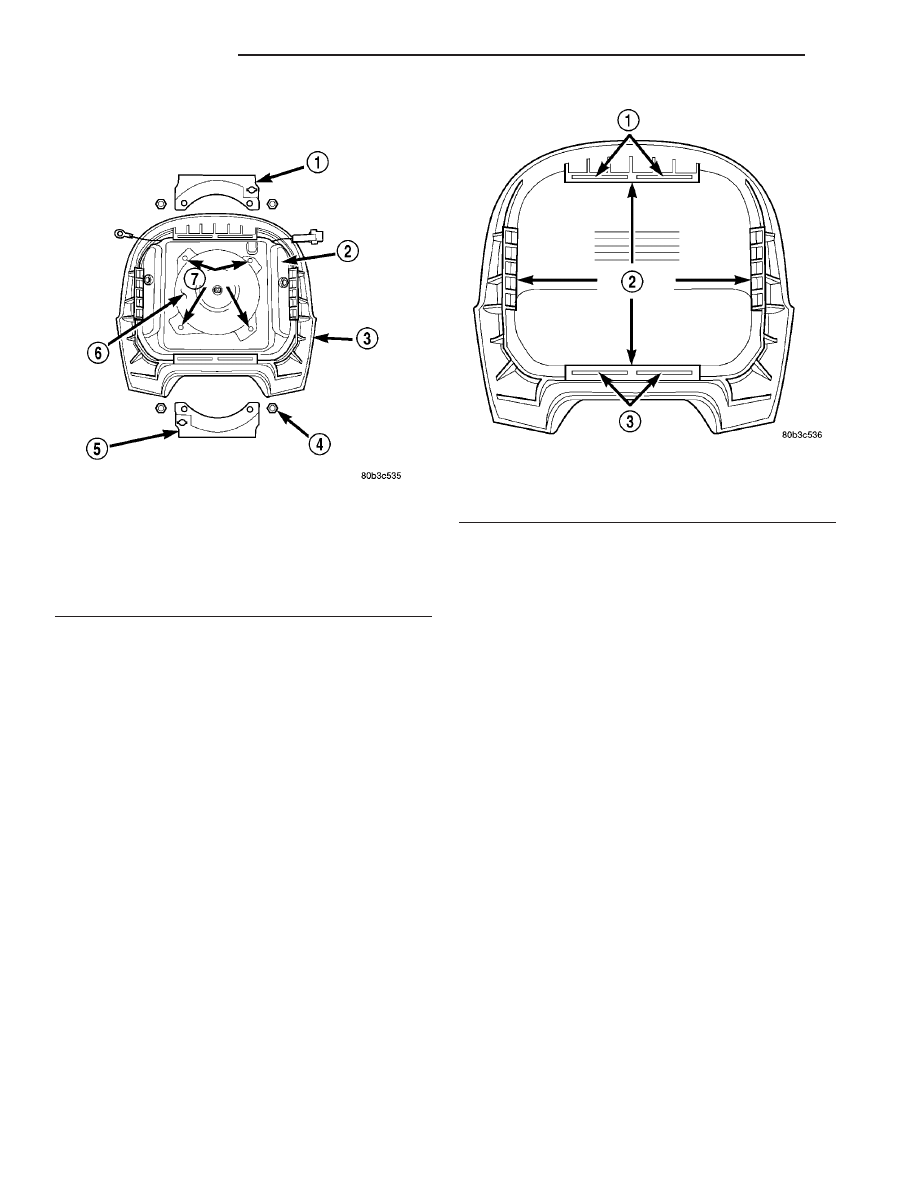

Fig. 24 Driver Airbag Trim Cover

1 - UPPER RETAINER
2 - AIRBAG HOUSING
3 - TRIM COVER
4 - NUT (4)
5 - LOWER RETAINER
6 - INFLATOR
7 - STUD (4)

Fig. 25 Driver Airbag Trim Cover Remove/Install

1 - UPPER RETAINER SLOT (2)
2 - LOCKING BLOCK (4)
3 - LOWER RETAINER SLOT (2)

8O - 22

RESTRAINTS

DRIVER AIRBAG (Continued)

WARNING:

AVOID

PERSONAL

INJURY

NOTE: If the horn switch and tray have been
removed from the sewn pouch in the airbag cush-
ion retaining strap, be certain that they are properly
reinstalled with the horn switch feed and ground
pigtail wires properly oriented before assembling
the trim cover onto the airbag housing. (Refer to 8 -
ELECTRICAL/HORN/HORN

SWITCH

INSTALLA-

TION).

(1) Place the new driver airbag trim cover on a

suitable work surface with the airbag receptacle fac-
ing up. Be certain to take the proper precautions to
prevent the trim cover from receiving cosmetic dam-
age during the following procedures.

(2) Carefully position the driver airbag into the

trim cover receptacle. Be certain that the horn switch
feed and ground pigtail wires are not pinched
between the airbag housing and the trim cover lock-
ing blocks.

(3) Engage the upper and lower trim cover locking

blocks with the lip of the driver airbag housing, then
engage the locking blocks on each side of the trim
cover with the lip of the housing. Be certain that
each of the locking blocks is fully engaged on the lip
of the airbag housing (Fig. 26).

(4) Reinstall the horn switch ground pigtail wire

eyelet terminal over the upper right inflator stud on
the back of the driver airbag housing.

(5) Reinstall the upper and lower airbag trim cover

retainers over the inflator studs on the back of the
driver airbag housing. Be certain that the tabs on
each retainer are engaged in the slots of the upper
and lower trim cover locking blocks (Fig. 25).

(6) Install and tighten the four nuts that secure

the trim cover retainers to the inflator studs on the
back of the driver airbag housing. Tighten the nuts
to 7 N·m (60 in. lbs.).

(7) Engage the horn switch feed pigtail wire con-

nector retainer in the mounting hole in the upper
trim cover retainer.

(8) Reinstall the driver airbag onto the steering

wheel. (Refer to 8 - ELECTRICAL/RESTRAINTS/
DRIVER AIRBAG - INSTALLATION).

INSTALLATION

The following procedure is for replacement of a

faulty or damaged driver airbag. If the airbag is
faulty or damaged, but not deployed, review the rec-
ommended procedures for handling non-deployed
supplemental restraints. (Refer to 8 - ELECTRICAL/
RESTRAINTS - STANDARD PROCEDURE - HAN-
DLING

NON-DEPLOYED

SUPPLEMENTAL

RESTRAINTS).

the

driver

airbag

has

been

deployed, review the recommended procedures for
service after a supplemental restraint deployment
before removing the airbag from the vehicle. (Refer to
8 - ELECTRICAL/RESTRAINTS - STANDARD PRO-
CEDURE - SERVICE AFTER A SUPPLEMENTAL
RESTRAINT DEPLOYMENT).

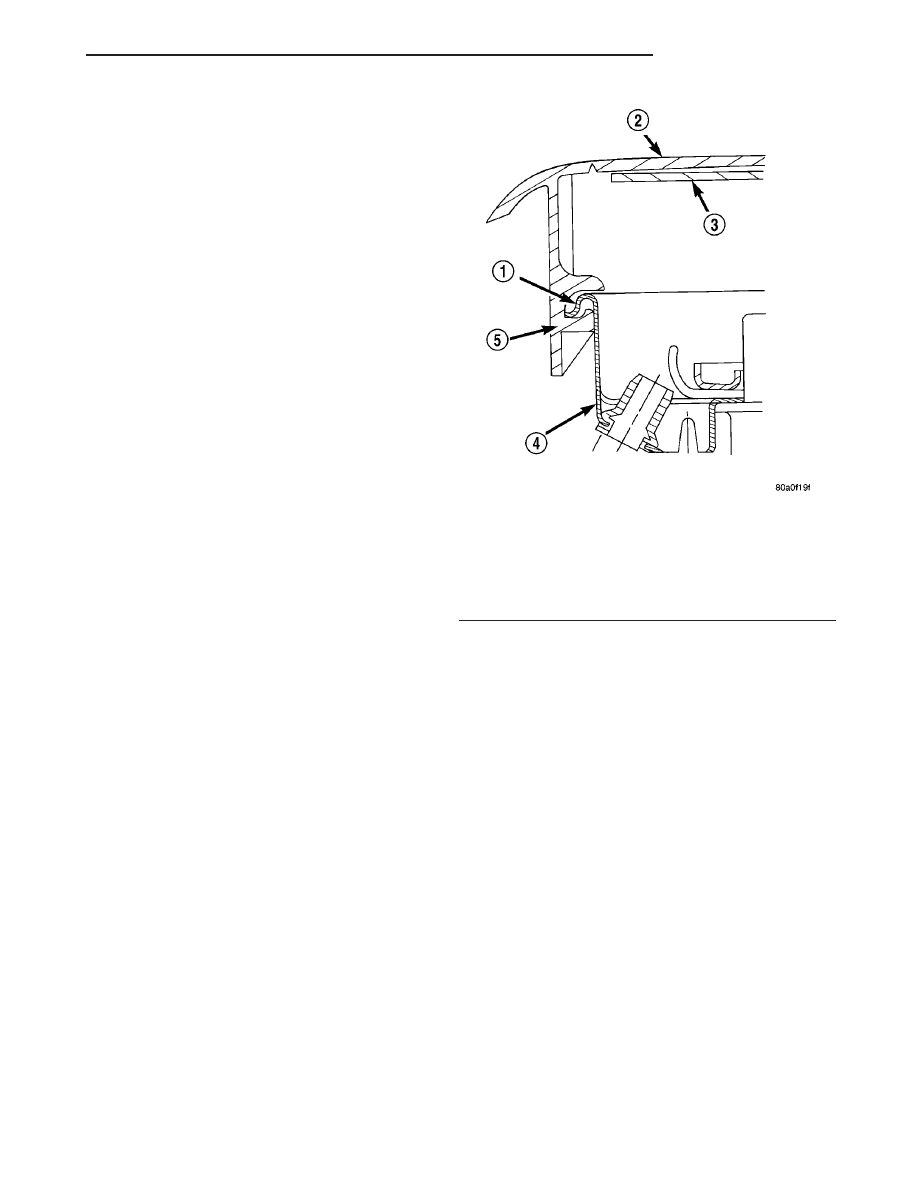

Fig. 26 Driver Airbag Trim Cover Locking Blocks

Engaged

1 - LIP
2 - TRIM COVER
3 - HORN SWITCH
4 - AIRBAG HOUSING
5 - LOCKING BLOCK

RESTRAINTS

8O - 23

DRIVER AIRBAG (Continued)

WARNING:

AVOID

PERSONAL

INJURY

DEATH, ON VEHICLES EQUIPPED WITH AIRBAGS,
DISABLE THE SUPPLEMENTAL RESTRAINT SYS-
TEM

BEFORE

ATTEMPTING

ANY

STEERING

WARNING:

AVOID

PERSONAL

INJURY

WARNING:

AVOID

PERSONAL

INJURY

DEATH, THE DRIVER AIRBAG TRIM COVER MUST
NEVER BE PAINTED. REPLACEMENT AIRBAGS
ARE SERVICED WITH TRIM COVERS IN THE ORIG-
INAL COLORS. PAINT MAY CHANGE THE WAY IN
WHICH THE MATERIAL OF THE TRIM COVER
RESPONDS TO AN AIRBAG DEPLOYMENT. FAIL-
URE TO OBSERVE THIS WARNING COULD RESULT
IN OCCUPANT INJURIES UPON AIRBAG DEPLOY-
MENT.

(1) Position the driver airbag close enough to the

steering wheel to reconnect the two electrical connec-
tions at the back of the airbag housing.

(2) When installing the driver airbag, reconnect

the clockspring driver airbag pigtail wire connector
to the airbag inflator connector receptacle by press-
ing straight in on the connector (Fig. 22). You can be
certain that the connector is fully engaged in its
receptacle by listening carefully for a distinct, audi-
ble click as the connector snaps into place.

(3) Reconnect the clockspring horn switch pigtail

wire connector to the horn switch feed pigtail wire
connector located on the back of the driver airbag
housing.

(4) Carefully position the driver airbag in the

steering wheel. Be certain that the clockspring pig-
tail wires and the steering wheel wire harness in the
steering wheel hub area are not pinched between the
driver airbag and the steering wheel armature.

(5) From the underside of the steering wheel,

install and tighten the two screws that secure the
driver

airbag

the

steering

wheel

armature.

Tighten the screws to 10 N·m (90 in. lbs.).

(6) Do not reconnect the battery negative cable at

this time. The supplemental restraint system verifi-
cation test procedure should be performed following
service of any supplemental restraint system compo-
nent. (Refer to 8 - ELECTRICAL/RESTRAINTS -
STANDARD PROCEDURE - VERIFICATION TEST).

FRONT SEAT BELT &
RETRACTOR

REMOVAL

WARNING:

AVOID

PERSONAL

INJURY

DEATH, DURING AND FOLLOWING ANY SEAT BELT
OR CHILD RESTRAINT ANCHOR SERVICE, CARE-
FULLY INSPECT ALL SEAT

BELTS,

BUCKLES,

MOUNTING HARDWARE, RETRACTORS, TETHER
STRAPS, AND ANCHORS FOR PROPER INSTALLA-
TION, OPERATION, OR DAMAGE. REPLACE ANY
BELT

THAT

CUT,

FRAYED,

TORN.

STRAIGHTEN

ANY

BELT

THAT

TWISTED.

TIGHTEN ANY LOOSE FASTENERS. REPLACE ANY
BELT THAT HAS A DAMAGED OR INOPERATIVE
BUCKLE OR RETRACTOR. REPLACE ANY BELT
THAT HAS A BENT OR DAMAGED LATCH PLATE
OR

ANCHOR

PLATE.

REPLACE

ANY

CHILD

RESTRAINT ANCHOR OR THE UNIT TO WHICH THE
ANCHOR IS INTEGRAL THAT HAS BEEN BENT OR
DAMAGED. NEVER ATTEMPT TO REPAIR A SEAT
BELT

CHILD

RESTRAINT

COMPONENT.

ALWAYS REPLACE DAMAGED OR FAULTY SEAT
BELT AND CHILD RESTRAINT COMPONENTS WITH
THE CORRECT, NEW AND UNUSED REPLACEMENT
PARTS LISTED IN THE DAIMLERCHRYSLER MOPAR
PARTS CATALOG.

(1) Move the front seat to its most forward position

for easiest access to the lower seat belt anchor screw
and retractor and the lower sport bar.

(2) Unsnap and lift the trim cover from the front

seat belt turning loop to access the screw that
secures the turning loop to the height adjuster near
the top on the upper sport bar (Fig. 27).

(3) Remove the screw that secures the shoulder

belt turning loop to the adjuster.

(4) Remove the shoulder belt turning loop and the

support/guide washer from the adjuster.

(5) Remove the screw that secures the retractor

and lower seat belt anchor to the lower sport bar
(Fig. 28).

8O - 24

RESTRAINTS

DRIVER AIRBAG (Continued)

Content .. 322 323 324 325 ..
