Jeep Wrangler TJ. Manual - part 326





WARNING:

TO

AVOID

PERSONAL

INJURY

OR

DEATH, ON VEHICLES EQUIPPED WITH AIRBAGS,
DISABLE THE SUPPLEMENTAL RESTRAINT SYS-
TEM

BEFORE

ATTEMPTING

ANY

STEERING

WHEEL, STEERING COLUMN, AIRBAG, OR INSTRU-
MENT PANEL COMPONENT DIAGNOSIS OR SER-
VICE. DISCONNECT AND ISOLATE THE BATTERY
NEGATIVE (GROUND) CABLE, THEN WAIT TWO
MINUTES FOR THE SYSTEM CAPACITOR TO DIS-
CHARGE BEFORE PERFORMING FURTHER DIAG-
NOSIS OR SERVICE. THIS IS THE ONLY SURE WAY
TO DISABLE THE SUPPLEMENTAL RESTRAINT
SYSTEM. FAILURE TO TAKE THE PROPER PRE-
CAUTIONS COULD RESULT IN ACCIDENTAL AIR-
BAG DEPLOYMENT.

WARNING:

TO

AVOID

PERSONAL

INJURY

OR

DEATH, WHEN REMOVING A DEPLOYED AIRBAG,
RUBBER

GLOVES,

EYE

PROTECTION,

AND

A

LONG-SLEEVED SHIRT SHOULD BE WORN. THERE
MAY BE DEPOSITS ON THE AIRBAG UNIT AND
OTHER INTERIOR SURFACES. IN LARGE DOSES,
THESE DEPOSITS MAY CAUSE IRRITATION TO THE
SKIN AND EYES.

WARNING:

TO

AVOID

PERSONAL

INJURY

OR

DEATH, USE EXTREME CARE TO PREVENT ANY
FOREIGN MATERIAL FROM ENTERING THE PASSEN-
GER

AIRBAG,

OR

BECOMING

ENTRAPPED

BETWEEN THE PASSENGER AIRBAG CUSHION AND
THE

PASSENGER AIRBAG

DOOR.

FAILURE

TO

OBSERVE THIS WARNING COULD RESULT IN OCCU-
PANT INJURIES UPON AIRBAG DEPLOYMENT.

WARNING:

TO

AVOID

PERSONAL

INJURY

OR

DEATH, THE PASSENGER AIRBAG DOOR MUST
NEVER

BE

PAINTED.

REPLACEMENT

AIRBAG

DOORS ARE SERVICED IN THE ORIGINAL COL-
ORS. PAINT MAY CHANGE THE WAY IN WHICH THE
MATERIAL OF THE AIRBAG DOOR RESPONDS TO
AN AIRBAG DEPLOYMENT. FAILURE TO OBSERVE
THIS WARNING COULD RESULT IN OCCUPANT
INJURIES UPON AIRBAG DEPLOYMENT.

(1) Carefully position the passenger airbag onto

the weld studs on the instrument panel structural
support (Fig. 32).

(2) Install and tighten the three nuts that secure

the passenger airbag upper and lower rear mounting
brackets to the weld studs on the instrument panel
structural support. Tighten the nuts to 12 N·m (105
in. lbs.).

(3) Reinstall the instrument panel into the passen-

ger compartment of the vehicle. (Refer to 23 - BODY/
INSTRUMENT PANEL - INSTALLATION). When

installing the instrument panel, be certain the pas-
senger airbag pigtail wire connector is fully engaged
and latched.

(4) Do not reconnect the battery negative cable at

this time. The supplemental restraint system verifi-
cation test procedure should be performed following
service of any supplemental restraint system compo-
nent. (Refer to 8 - ELECTRICAL/RESTRAINTS -
STANDARD PROCEDURE - VERIFICATION TEST).

PASSENGER AIRBAG DOOR

REMOVAL

WARNING:

TO

AVOID

PERSONAL

INJURY

OR

DEATH, ON VEHICLES EQUIPPED WITH AIRBAGS,
DISABLE THE SUPPLEMENTAL RESTRAINT SYS-
TEM

BEFORE

ATTEMPTING

ANY

STEERING

WHEEL, STEERING COLUMN, AIRBAG, OR INSTRU-
MENT PANEL COMPONENT DIAGNOSIS OR SER-
VICE. DISCONNECT AND ISOLATE THE BATTERY
NEGATIVE (GROUND) CABLE, THEN WAIT TWO
MINUTES FOR THE SYSTEM CAPACITOR TO DIS-
CHARGE BEFORE PERFORMING FURTHER DIAG-
NOSIS OR SERVICE. THIS IS THE ONLY SURE WAY
TO DISABLE THE SUPPLEMENTAL RESTRAINT
SYSTEM. FAILURE TO TAKE THE PROPER PRE-
CAUTIONS COULD RESULT IN ACCIDENTAL AIR-
BAG DEPLOYMENT.

(1) Disconnect and isolate the battery negative

cable. Wait two minutes for the system capacitor to
discharge before further service.

(2) Remove the passenger airbag from the instru-

ment

panel.

(Refer

to

8

-

ELECTRICAL/RE-

STRAINTS/PASSENGER AIRBAG - REMOVAL).

(3) Remove the five screws that secure the upper

flange of the passenger airbag door to the top of the
instrument panel structural support (Fig. 33).

(4) Remove the grab handle bezel from the instru-

ment panel. (Refer to 23 - BODY/INSTRUMENT
PANEL/GRAB HANDLE BEZEL - REMOVAL).

(5) Remove the five screws that secure the lower

flange of the passenger airbag door to the upper
glove box opening reinforcement.

(6) Remove the two screws that secure the ends of

the passenger airbag door bracket to the instrument
panel structural support (Fig. 34).

(7) Remove and discard the two passenger airbag

door bracket J-nuts from the instrument panel struc-
tural support. These J-nuts must be replaced with
new parts whenever the passenger airbag door
bracket screws are removed.

(8) Remove the passenger airbag door from the

instrument panel.

TJ

RESTRAINTS

8O - 29

PASSENGER AIRBAG (Continued)

INSTALLATION

WARNING:

TO

AVOID

PERSONAL

INJURY

OR

DEATH, ON VEHICLES EQUIPPED WITH AIRBAGS,
DISABLE THE SUPPLEMENTAL RESTRAINT SYS-
TEM

BEFORE

ATTEMPTING

ANY

STEERING

WHEEL, STEERING COLUMN, AIRBAG, OR INSTRU-
MENT PANEL COMPONENT DIAGNOSIS OR SER-
VICE. DISCONNECT AND ISOLATE THE BATTERY
NEGATIVE (GROUND) CABLE, THEN WAIT TWO
MINUTES FOR THE SYSTEM CAPACITOR TO DIS-
CHARGE BEFORE PERFORMING FURTHER DIAG-
NOSIS OR SERVICE. THIS IS THE ONLY SURE WAY
TO DISABLE THE SUPPLEMENTAL RESTRAINT
SYSTEM. FAILURE TO TAKE THE PROPER PRE-
CAUTIONS COULD RESULT IN ACCIDENTAL AIR-
BAG DEPLOYMENT.

WARNING:

TO

AVOID

PERSONAL

INJURY

OR

DEATH, USE EXTREME CARE TO PREVENT ANY
FOREIGN MATERIAL FROM ENTERING THE PAS-
SENGER AIRBAG, OR BECOMING ENTRAPPED
BETWEEN THE PASSENGER AIRBAG CUSHION
AND THE PASSENGER AIRBAG DOOR. FAILURE TO
OBSERVE

THIS

WARNING

COULD

RESULT

IN

OCCUPANT

INJURIES

UPON AIRBAG

DEPLOY-

MENT.

WARNING:

TO

AVOID

PERSONAL

INJURY

OR

DEATH, THE PASSENGER AIRBAG DOOR MUST
NEVER

BE

PAINTED.

REPLACEMENT

AIRBAG

DOORS ARE SERVICED IN THE ORIGINAL COL-
ORS. PAINT MAY CHANGE THE WAY IN WHICH THE
MATERIAL OF THE AIRBAG DOOR RESPONDS TO
AN AIRBAG DEPLOYMENT. FAILURE TO OBSERVE
THIS WARNING COULD RESULT IN OCCUPANT
INJURIES UPON AIRBAG DEPLOYMENT.

(1) Install two new passenger airbag door bracket

J-nuts onto the instrument panel structural support
(Fig. 34). These J-nuts must be replaced with new
parts whenever the passenger airbag door bracket
screws are removed.

(2) Position the passenger airbag door onto the

instrument panel and align the mounting holes in
each end of the airbag door bracket with the J-nuts
on the instrument panel structural support.

(3) Install and tighten the two screws that secure

the passenger airbag door bracket to the instrument
panel structural support. Tighten the screws to 12
N·m (105 in. lbs.).

(4) Install and tighten the five screws that secure

the lower flange of the passenger airbag door to the
upper glove box opening reinforcement. Tighten the
screws to 2 N·m (20 in. lbs.).

(5) Reinstall the grab handle bezel onto the instru-

ment panel. (Refer to 23 - BODY/INSTRUMENT
PANEL/GRAB HANDLE BEZEL - INSTALLATION).

(6) Install and tighten the five screws that secure

the upper flange of the passenger airbag door to the
top of the instrument panel structural support (Fig.
33). Tighten the screws to 2 N·m (20 in. lbs.).

(7) Reinstall the passenger airbag onto the instru-

ment

panel.

(Refer

to

8

-

ELECTRICAL/RE-

STRAINTS/PASSENGER

AIRBAG

-

INSTALLATION).

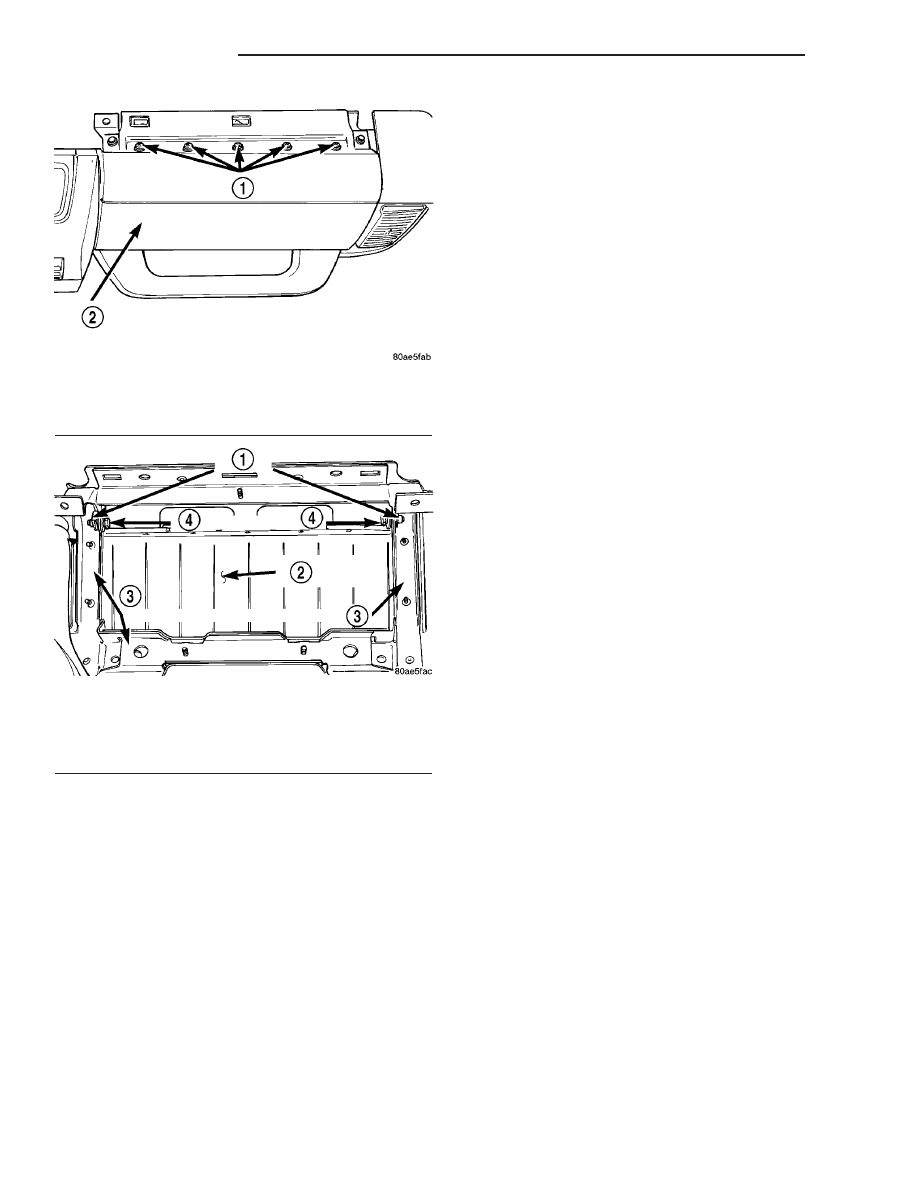

Fig. 33 Passenger Airbag Door Upper Flange

Remove/Install

1 - SCREW (5)
2 - PASSENGER AIRBAG DOOR

Fig. 34 Passenger Airbag Door Remove/Install

1 - J-NUT (2)
2 - PASSENGER AIRBAG DOOR
3 - STRUCTURAL SUPPORT
4 - SCREW (2)

8O - 30

RESTRAINTS

TJ

PASSENGER AIRBAG DOOR (Continued)

PASSENGER AIRBAG ON/OFF
SWITCH

DESCRIPTION

The passenger airbag on/off switch is standard

equipment on all versions of this model that are
equipped with the dual front airbag system, but are
not equipped with a rear seat (Fig. 35). This switch
is a two-position, resistor multiplexed switch with a
single integral red Light-Emitting Diode (LED), and
a non-coded key cylinder-type actuator. The switch is
located on the passenger side end of the accessory
switch bezel near the bottom of the instrument clus-
ter center bezel to make the Off indicator visible to
the front passenger seat occupant. When the switch
is in its installed position, the only component visible
through the dedicated opening of the accessory
switch bezel is the key cylinder actuator. A small,
tethered, molded plastic cap fits into the key cylinder
actuator hole when the switch is not being used. The
switch nomenclature and the Off indicator lens are
integral to the accessory switch bezel. The text of the
9Off9 indicator is illuminated in amber when the Off
position is selected with the ignition switch in the On
position, while the On position of the switch is desig-
nated by text imprinted upon the accessory switch
bezel, but is not illuminated. The remainder of the
switch is concealed behind the accessory switch bezel.

The passenger airbag on/off switch housing is con-

structed of molded plastic and has three integral
mounting tabs (Fig. 36). These mounting tabs are
used to secure the switch to the back of the molded
plastic accessory switch bezel with three small
screws. The accessory switch bezel is secured to the
instrument panel with four screws. A molded plastic
connector receptacle on the back of the switch hous-
ing connects the switch to the vehicle electrical sys-
tem through a dedicated take out of the body wire
harness. The molded plastic harness connector insu-
lator is keyed and latched to ensure proper and
secure switch electrical connections. The passenger
airbag on/off switch cannot be adjusted or repaired
and, if faulty or damaged, the switch must be
replaced.

OPERATION

The passenger airbag on/off switch allows the cus-

tomer to turn the passenger airbag function On or
Off to accommodate certain uses of the right front
seating position where airbag protection may not be
desired. See the owner’s manual in the vehicle glove
box for specific recommendations on when to enable
or disable the passenger airbag. The Off indicator of
the switch will be illuminated whenever the switch is
turned to the Off position and the ignition switch is
in the On position.

The ignition key is the only key or object that

should ever be inserted into the key cylinder actuator
of the switch. The on/off switch requires only a par-
tial key insertion to fully depress a spring-loaded
locking plunger. The spring-loaded locking plunger
prevents the user from leaving the key in the switch.
The key will be automatically ejected when force is

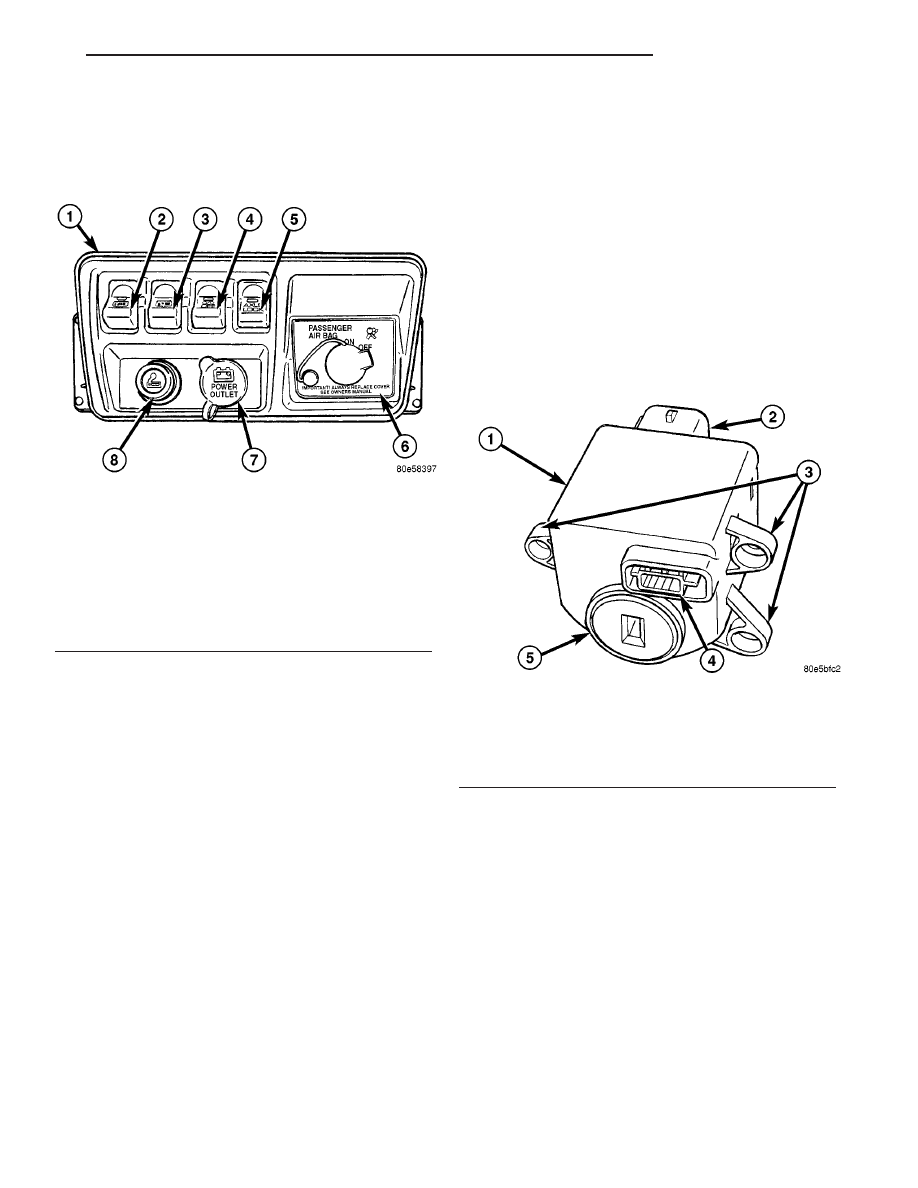

Fig. 35 Accessory Switch Bezel

1 - ACCESSORY SWITCH BEZEL
2 - REAR WINDOW DEFOGGER SWITCH (HARDTOP ONLY)
3 - REAR WIPER/WASHER SWITCH (HARDTOP ONLY)
4 - OVERDRIVE-OFF SWITCH (AUTOMATIC TRANSMISSION
ONLY)
5 - AXLE LOCK SWITCH (OFF ROAD PACKAGE ONLY)
6 - PASSENGER AIRBAG ON/OFF SWITCH (WITHOUT REAR
SEAT ONLY)
7 - ACCESSORY POWER OUTLET
8 - CIGAR LIGHTER

Fig. 36 Passenger Airbag On/Off Switch

1 - HOUSING
2 - CONNECTOR RECEPTACLE
3 - MOUNTING TAB (3)
4 - OFF INDICATOR
5 - KEY CYLINDER ACTUATOR

TJ

RESTRAINTS

8O - 31

not applied. To actuate the passenger airbag on/off
switch, insert the ignition key into the switch key
actuator far enough to fully depress the plunger, then
rotate the actuator to the desired switch position.
When the switch key actuator is rotated to its clock-
wise stop (the key actuator slot will be aligned with
the Off indicator), the Off indicator is illuminated
and the passenger airbag is disabled. When the
switch is rotated to its counterclockwise stop (the key
actuator slot will be in a vertical position), the Off
indicator will be extinguished and the passenger air-
bag is enabled.

The passenger airbag on/off switch connects one of

two internal resistors in series between the passen-
ger airbag mux switch sense and passenger airbag
mux switch return circuits of the Airbag Control
Module (ACM). The ACM continually monitors the
resistance in these circuits to determine the switch
position that has been selected. When the switch is
in the Off position, the ACM provides a ground input
to the switch through the passenger airbag indicator
driver circuit, which energizes the Light-Emitting
Diode (LED) that illuminates the Off indicator of the
switch.

The ACM will also illuminate the Off indicator of

the switch for about seven seconds each time the
ignition switch is turned to the On position as a bulb
test. The ACM will store a Diagnostic Trouble Code
(DTC) for any fault it detects in the passenger airbag
on/off switch or Off indicator circuits, and will illumi-
nate the airbag indicator in the instrument cluster if
a fault is detected. For proper diagnosis of the pas-
senger airbag on/off switch or the ACM, a DRBIII

t

scan tool is required. Refer to the appropriate diag-
nostic information.

REMOVAL

WARNING:

TO

AVOID

PERSONAL

INJURY

OR

DEATH, ON VEHICLES EQUIPPED WITH AIRBAGS,
DISABLE THE SUPPLEMENTAL RESTRAINT SYS-
TEM

BEFORE

ATTEMPTING

ANY

STEERING

WHEEL, STEERING COLUMN, AIRBAG, OR INSTRU-
MENT PANEL COMPONENT DIAGNOSIS OR SER-
VICE. DISCONNECT AND ISOLATE THE BATTERY
NEGATIVE (GROUND) CABLE, THEN WAIT TWO
MINUTES FOR THE SYSTEM CAPACITOR TO DIS-
CHARGE BEFORE PERFORMING FURTHER DIAG-
NOSIS OR SERVICE. THIS IS THE ONLY SURE WAY
TO DISABLE THE SUPPLEMENTAL RESTRAINT
SYSTEM. FAILURE TO TAKE THE PROPER PRE-
CAUTIONS COULD RESULT IN ACCIDENTAL AIR-
BAG DEPLOYMENT.

(1) Disconnect and isolate the battery negative

cable. Wait two minutes for the system capacitor to
discharge before further service.

(2) Remove the passenger airbag on/off switch and

accessory switch bezel from the instrument panel as
a unit. (Refer to 23 - BODY/INSTRUMENT PANEL/
ACCESSORY SWITCH BEZEL - REMOVAL).

(3) From the back of the accessory switch bezel,

remove the three screws that secure the passenger
airbag on/off switch to the back of the bezel (Fig. 37).

(4) Remove the passenger airbag on/off switch

from the accessory switch bezel.

INSTALLATION

WARNING:

TO

AVOID

PERSONAL

INJURY

OR

DEATH, ON VEHICLES EQUIPPED WITH AIRBAGS,
DISABLE THE SUPPLEMENTAL RESTRAINT SYS-
TEM

BEFORE

ATTEMPTING

ANY

STEERING

WHEEL, STEERING COLUMN, AIRBAG, OR INSTRU-
MENT PANEL COMPONENT DIAGNOSIS OR SER-
VICE. DISCONNECT AND ISOLATE THE BATTERY
NEGATIVE (GROUND) CABLE, THEN WAIT TWO
MINUTES FOR THE SYSTEM CAPACITOR TO DIS-
CHARGE BEFORE PERFORMING FURTHER DIAG-
NOSIS OR SERVICE. THIS IS THE ONLY SURE WAY
TO DISABLE THE SUPPLEMENTAL RESTRAINT
SYSTEM. FAILURE TO TAKE THE PROPER PRE-
CAUTIONS COULD RESULT IN ACCIDENTAL AIR-
BAG DEPLOYMENT.

(1) Position the passenger airbag on/off switch to

the back of the accessory switch bezel (Fig. 37).

(2) Install and tighten the three screws that secure

the passenger airbag on/off switch to the back of the
accessory switch bezel. Tighten the screws to 2 N·m
(20 in. lbs.).

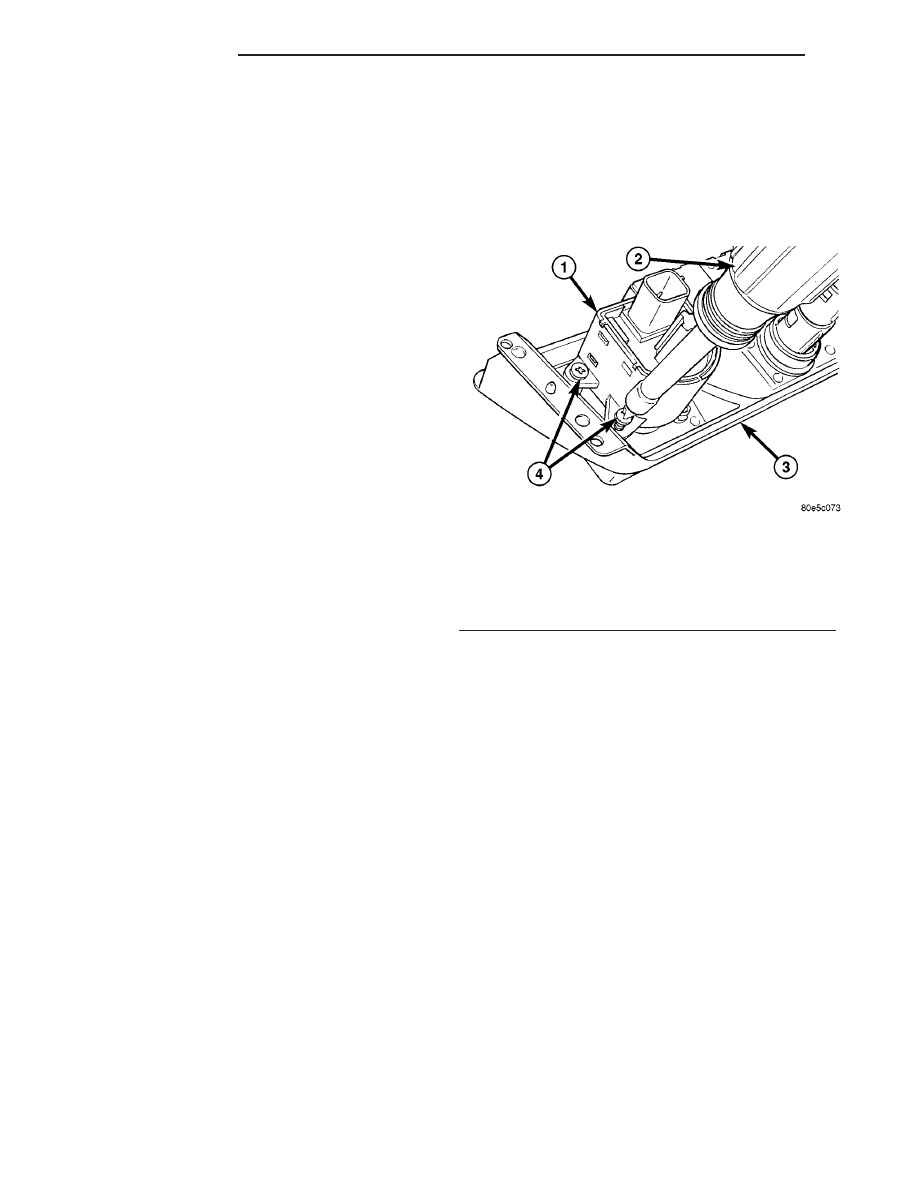

Fig. 37 Passenger Airbag On/Off Switch Remove/

Install

1 - PASSENGER AIRBAG ON/OFF SWITCH
2 - SCREW DRIVER
3 - ACCESSORY SWITCH BEZEL
4 - SCREW (3)

8O - 32

RESTRAINTS

TJ

PASSENGER AIRBAG ON/OFF SWITCH (Continued)















Content   ..  324  325  326  327   ..
