7. Wait a minimum of 90 seconds and try brake action again. Booster should provide two or more vacuum assisted

pedal applications. If vacuum assist is not provided, booster is faulty.

POWER BOOSTER VACUUM TEST

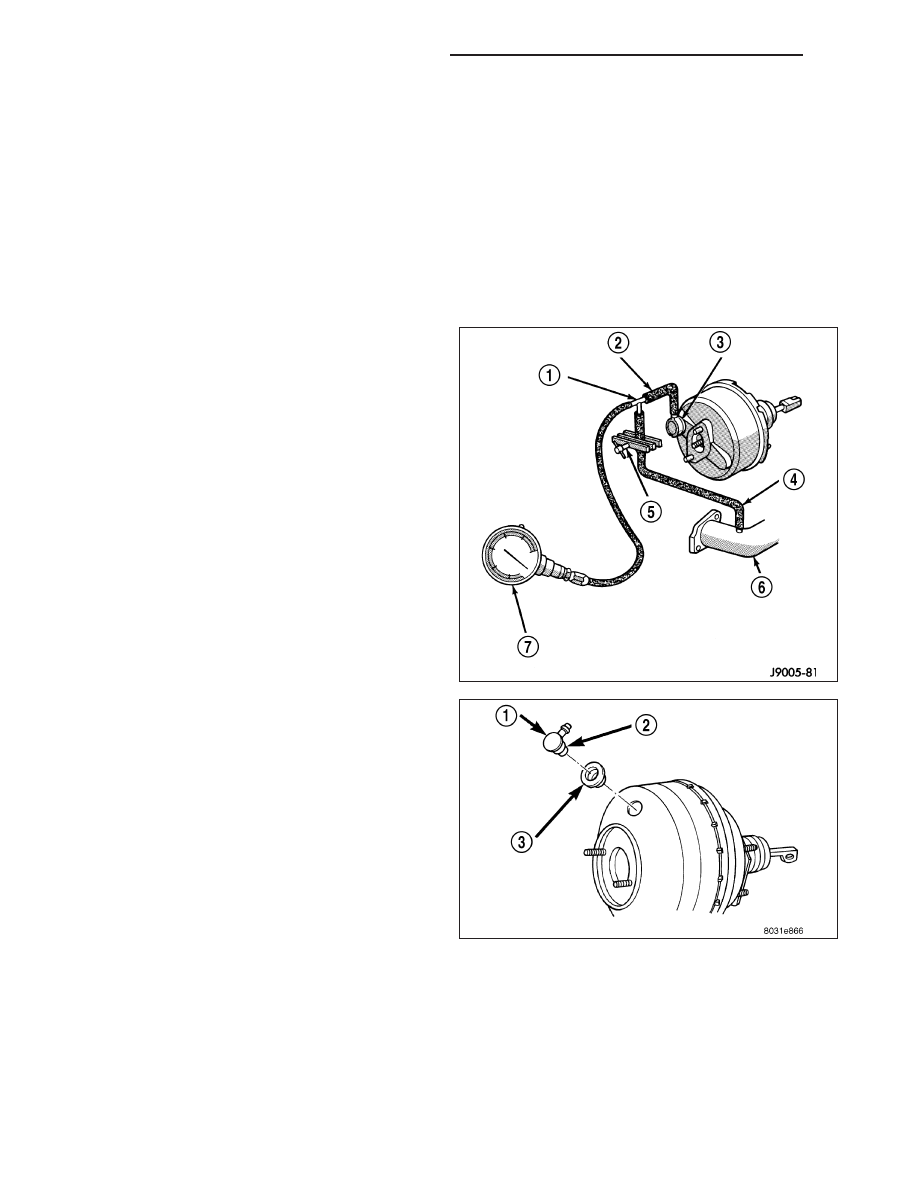

1. Connect vacuum gauge to booster check valve with short length of hose and T-fitting.

2. Start and run engine at curb idle speed for one minute.

3. Observe the vacuum supply. If vacuum supply is not adequate, repair vacuum supply.

4. Clamp hose shut between vacuum source and check valve.

5. Stop engine and observe vacuum gauge.

6. If vacuum drops more than one inch Hg (33 millibars) within 15 seconds, booster diaphragm or check valve is

faulty.

POWER BOOSTER CHECK VALVE TEST

1. Disconnect vacuum hose from check valve.

2. Remove check valve and valve seal from booster.

3. Use a hand operated vacuum pump for test.

4. Apply 15-20 inches vacuum at large end of check

valve.

5. Vacuum should hold steady. If gauge on pump indi-

cates vacuum loss, check valve is faulty and
should be replaced.

REMOVAL

LEFT HAND DRIVE (LHD)

1. Disconnect the wire to the fluid level switch at the

bottom of the reservoir.

2. Remove the master cylinder (Refer to 5 - BRAKES/

HYDRAULIC/MECHANICAL/MASTER CYLINDER -
REMOVAL).

3. Disconnect vacuum hoses from booster check

valve.

4. Remove the brake lines from the master cylinder

and the HCU (abs vehicles only) or the junction
block for clearance.

5. Disconnect the HCU from the mounts and move to the side for clearance of the booster.

6. Remove knee blocker under the steering column, (Refer to 23 - BODY/INSTRUMENT PANEL/KNEE BLOCKER

- REMOVAL).

5 - 32

BRAKES - BASE - SERVICE INFORMATION

KJ

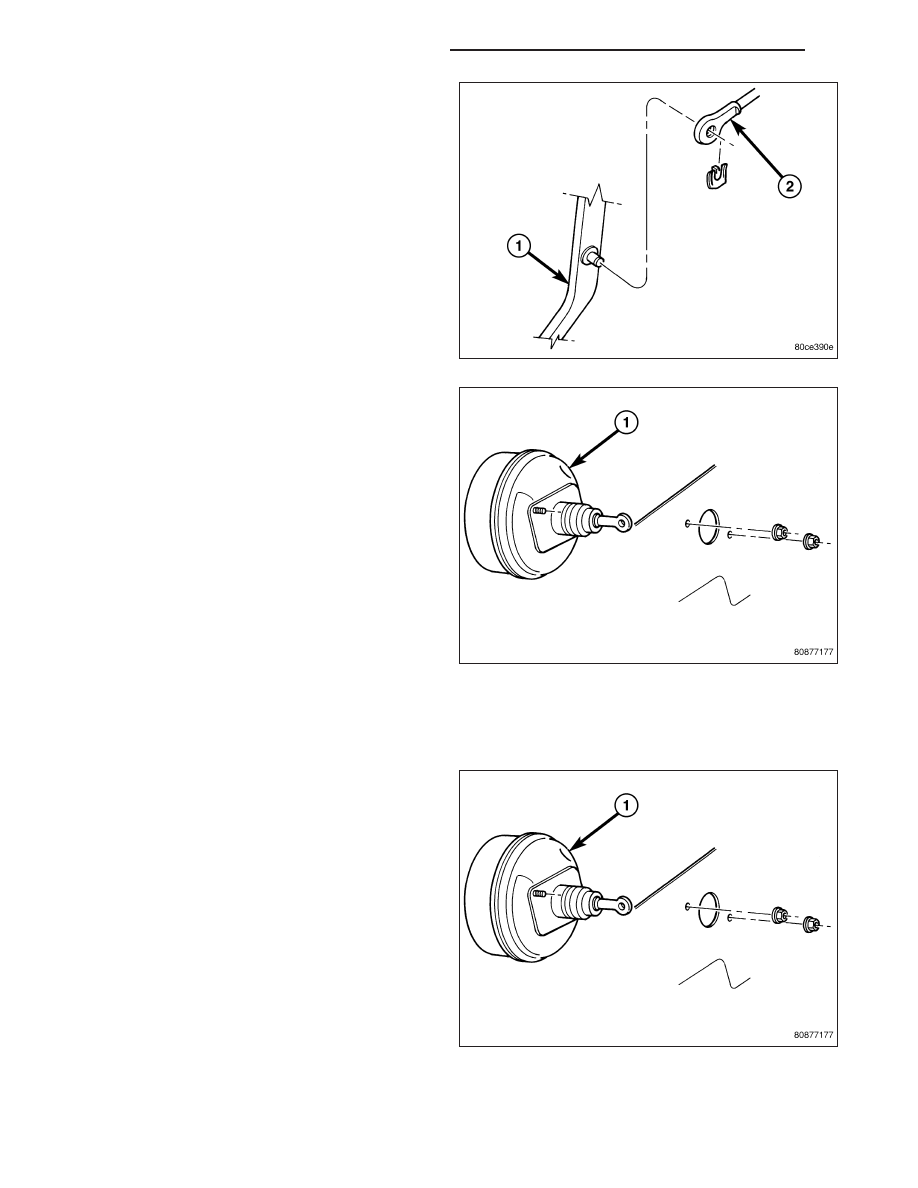

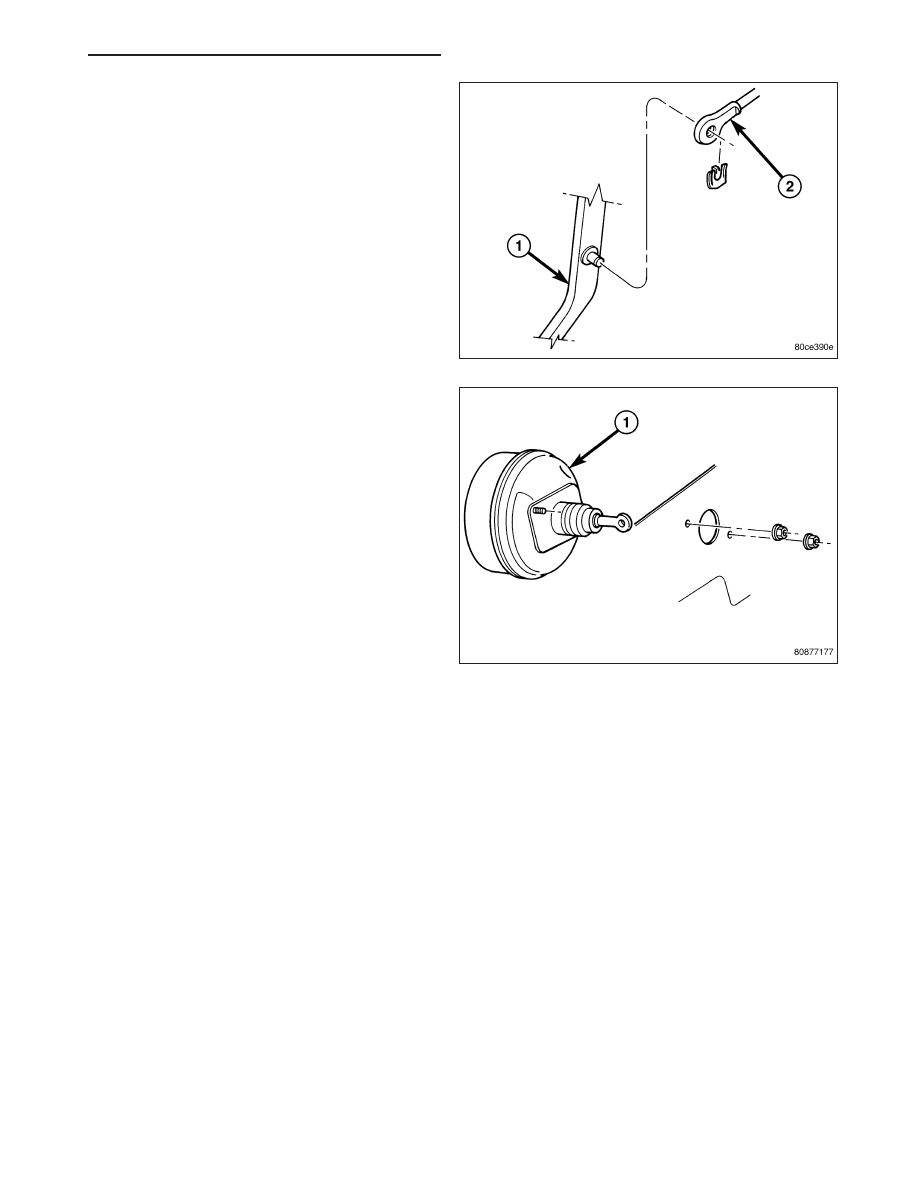

7. Remove the brake light switch and discard, (Refer

to 8 - ELECTRICAL/LAMPS/LIGHTING - EXTERI-
OR/BRAKE LAMP SWITCH - REMOVAL)

8. Remove retaining clip that secures booster push

rod (2) to brake pedal (1).

9. Remove nuts attaching booster (1) to the dash

panel.

10. In engine compartment, slide booster studs out of

dash panel, tilt booster upward, and remove
booster from engine compartment.

RIGHT HAND DRIVE (RHD)

1. Remove the air box (Refer to 9 - ENGINE/AIR INTAKE SYSTEM/AIR CLEANER ELEMENT - REMOVAL).

2. Relocate the cruise control servo to gain access to the booster for removal.

3. Remove the brake lines from the master cylinder.

4. Remove the master cylinder (Refer to 5 - BRAKES/HYDRAULIC/MECHANICAL/MASTER CYLINDER -

REMOVAL).

5. Disconnect vacuum hose from booster check valve.

6. Remove knee blocker under the steering column, (Refer to 23 - BODY/INSTRUMENT PANEL/KNEE BLOCKER

- REMOVAL).

KJ

BRAKES - BASE - SERVICE INFORMATION

5 - 33

7. Remove the brake light switch and discard, (Refer

to 8 - ELECTRICAL/LAMPS/LIGHTING - EXTERI-
OR/BRAKE LAMP SWITCH - REMOVAL)

8. Remove retaining clip that secures booster push

rod (2) to brake pedal (1).

9. Remove nuts attaching booster (1) to the dash

panel.

10. In engine compartment, slide booster studs out of

dash panel, tilt booster upward, and remove
booster from engine compartment.

INSTALLATION

LEFT HAND DRIVE (LHD)

1. Align and position booster (1) on the dash panel.

2. Install booster mounting nuts. Tighten nuts just

enough to hold booster in place.

5 - 34

BRAKES - BASE - SERVICE INFORMATION

KJ

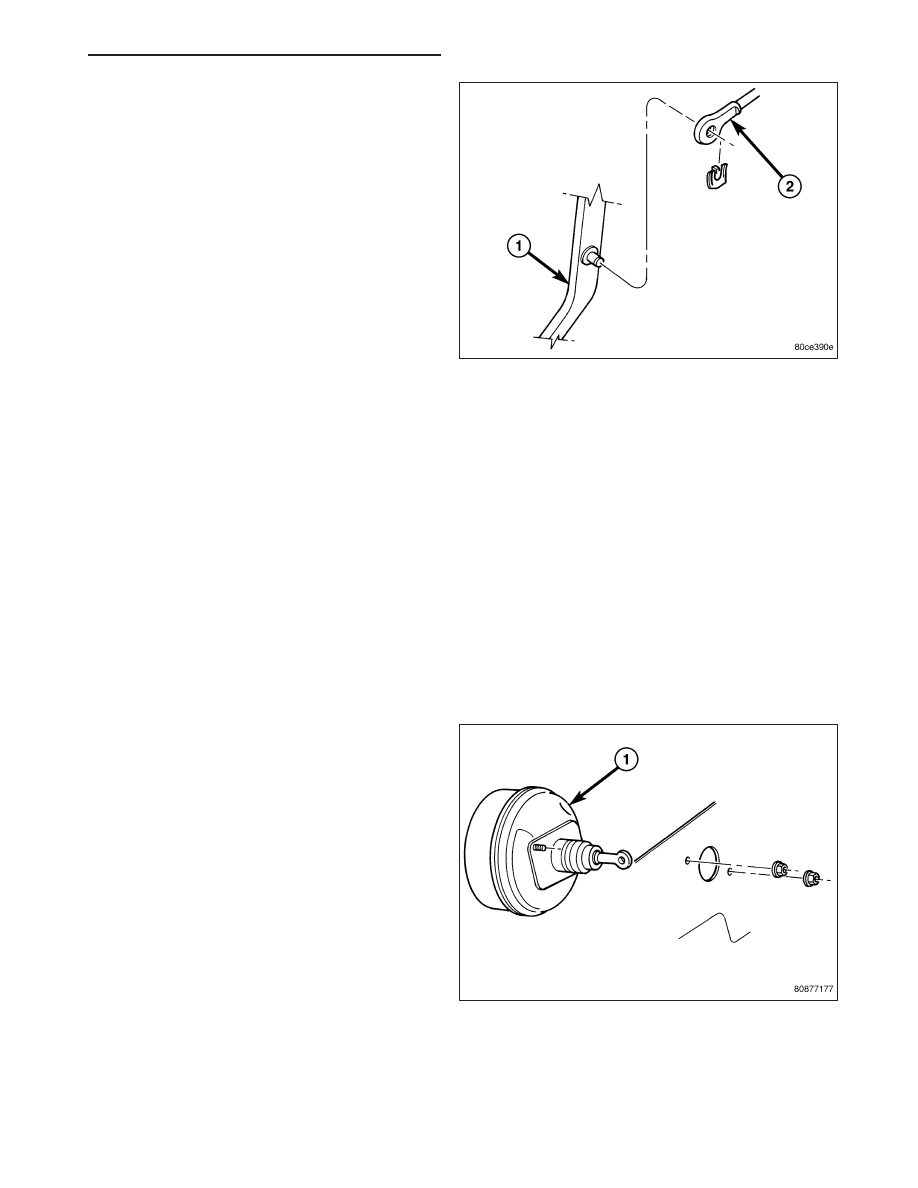

3. Slide booster push rod (2) onto the brake pedal (1).

Then secure push rod to pedal pin with retaining
clip.

NOTE: Lubricate the pedal pin with Mopar multi-
mileage grease before installation.

4. Tighten booster mounting nuts to 25 N·m (220 in.

lbs.).

5. Install a new brake lamp switch and reconnect the electrical connector.

6. Install the knee blocker, (Refer to 23 - BODY/INSTRUMENT PANEL/KNEE BLOCKER - INSTALLATION).

7. If original master cylinder is being installed, check condition of seal at rear of master cylinder. Replace seal if cut,

or torn.

8. Clean cylinder mounting surface of brake booster. Use shop towel wetted with brake cleaner for this purpose.

Dirt, grease, or similar materials will prevent proper cylinder seating and could result in vacuum leak.

9. Align and install master cylinder on the booster studs. Install mounting nuts and tighten to 25 N·m (220 in. lbs.).

10. Connect vacuum hose to booster check valve.

11. Remount the HCU. Tighten bracket mounting nuts to 14 N·m (125 in. lbs.).

12. Connect and secure the brake lines to HCU or junction block and master cylinder. Start all brake line fittings by

hand to avoid cross threading.

13. Connect the wire to fluid level switch at the bottom of the reservoir.

14. Fill and bleed base brake system, (Refer to 5 - BRAKES - STANDARD PROCEDURE).

15. Verify proper brake operation before moving vehicle.

RIGHT HAND DRIVE (RHD)

1. Align and position booster (1) on the dash panel.

2. Install booster mounting nuts. Tighten nuts just

enough to hold booster in place.

KJ

BRAKES - BASE - SERVICE INFORMATION

5 - 35
