The following procedure applies only to vehicles without the Adjustable Pedal Package (code XAP). It also applies
to vehicles not equipped with an accelerator pedal position sensor.

The accelerator pedal is serviced as a complete assembly including the bracket.

14 - 26

FUEL INJECTION

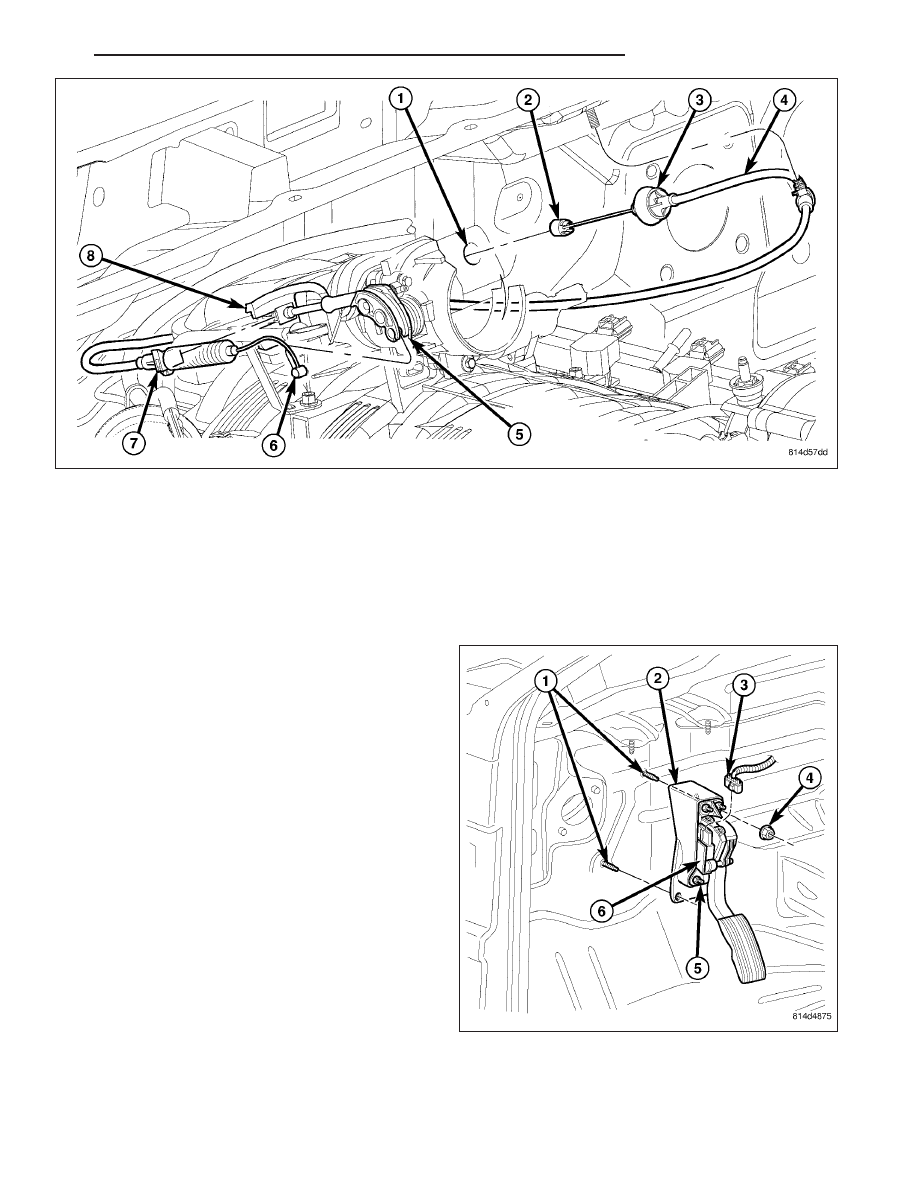

1. From inside the vehicle, hold up accelerator pedal. Remove plastic cable retainer (clip) (2) and throttle cable core

wire from upper end of accelerator pedal arm. Plastic cable retainer (clip) (2) snaps into top of pedal arm.

2. Remove two accelerator pedal mounting bracket

nuts (3). Remove accelerator pedal assembly (2).

FUEL INJECTION

14 - 27

With APPS (Accelerator Pedal Position Sensor)

The following procedure applies only to vehicles with-
out the Adjustable Pedal Package (code XAP). It also
applies to vehicles equipped with an accelerator
pedal position sensor (6).

The accelerator pedal is serviced as a complete
assembly including the bracket.

1. Disconnect electrical connector (3) at APPS (6).

2. Remove two accelerator pedal mounting bracket

nuts (4). Remove accelerator pedal assembly.

3. Remove three sensor-to-pedal nuts (5). Remove

APPS from accelerator pedal assembly.

INSTALLATION

Without APPS (Accelerator Pedal Position Sensor)

The following procedure applies only to vehicles without the Adjustable Pedal Package (code XAP). It also applies
to vehicles not equipped with an accelerator pedal position sensor.

The accelerator pedal is serviced as a complete assembly including the bracket.

1. Place accelerator pedal assembly (2) over two

mounting studs (1).

2. Install and tighten two mounting nuts (3). Refer to

Torque Specifications.

3. Slide throttle cable into opening slot in top of pedal

arm.

14 - 28

FUEL INJECTION

4. Push plastic cable retainer (clip) (2) into accelerator pedal arm opening until it snaps into place.

5. Before starting engine, operate accelerator pedal to check for any binding.

With APPS (Accelerator Pedal Position Sensor)

The following procedure applies only to vehicles without the Adjustable Pedal Package (code XAP). It also applies
to vehicles equipped with an accelerator pedal position sensor.

The accelerator pedal is serviced as a complete assembly including the bracket.

1. Install APPS to pedal assembly and install three

nuts (5).

2. Place accelerator pedal assembly over two mount-

ing studs (1).

3. Install and tighten two mounting nuts (4). Refer to

Torque Specifications.

4. Install electrical connector (3) to APPS (6).

5. Use a scan tool may to learn electrical parameters.

Go to the Miscellaneous menu, and then select
ETC Learn.

6. If the previous step is not performed, a Diagnostic

Trouble Code (DTC) will be set.

7. If necessary, also use a scan tool to erase any

Diagnostic Trouble Codes (DTC’s) from PCM.

8. Before starting engine, operate accelerator pedal to

check for any binding.
