As an alternative procedure, the electric fuel pump may be activated allowing tank to be drained at fuel rail con-
nection. Refer to scan tool for fuel pump activation procedures. Before disconnecting fuel line at fuel rail, release
fuel pressure. Refer to the Fuel System Pressure Release Procedure for procedures. Attach end of special test hose
tool number 6541, 6539, 6631 or 6923 at fuel rail disconnection (tool number will depend on model and/or engine
application). Position opposite end of this hose tool to an approved gasoline draining station. Activate fuel pump and
drain tank until empty.

If electric fuel pump is not operating, fuel must be drained through fuel fill fitting at tank. Refer to following proce-
dures.

1. Release fuel system pressure.

2. Raise vehicle.

3. Thoroughly clean area around fuel fill fitting (7) and rubber fuel fill hose (3) at rear of fuel tank (8).

4. Loosen clamp (9) at tank fitting (7) and disconnect rubber fuel fill hose at fuel tank fitting. Using an approved gas

holding tank, drain fuel tank through this fitting.

Tank Removal

1. Loosen clamp (9) and disconnect rubber fill hose (3) at tank fitting (7).

14 - 22

FUEL DELIVERY

WK

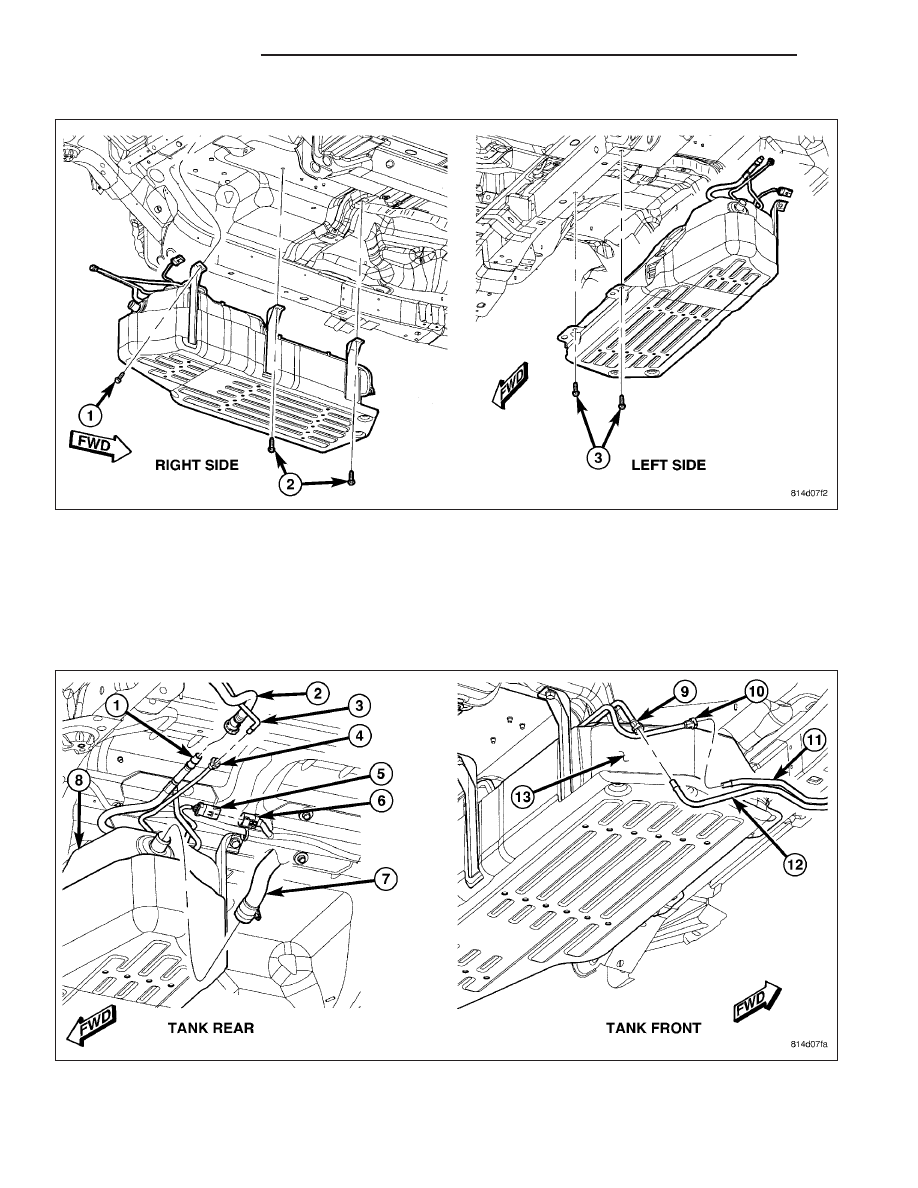

2. At rear of tank, disconnect fuel pump module electrical jumper connector (5) from body connector (6).

3. At rear of tank, disconnect EVAP lines (2) and (3) from lines (1) and (4).

4. At front of tank, disconnect fuel and EVAP lines (9) and (10) from lines (11) and (12).

5. Support tank with a hydraulic jack.

6. Remove bolts (1) and (2) at right side of fuel tank.

7. Remove bolts (3) at left side of fuel tank.

8. Lower tank for removal.

9. If fuel tank is to be replaced, remove fuel pump module from tank. Refer to Fuel Pump Module Removal/Instal-

lation procedures.

WK

FUEL DELIVERY

14 - 23

INSTALLATION

1. If fuel tank is to be replaced, install fuel pump module into tank. Refer to Fuel Pump Module Removal/Installation

procedures.

2. Position fuel tank to hydraulic jack.

3. Raise tank until positioned to body.

4. Install and tighten bolts (1) (2) and (3). Refer to Torque Specifications.

5. Remove hydraulic jack.

6. Connect EVAP, ORVR, fuel and NVLD lines at front and rear of tank.

7. Connect fuel pump module electrical jumper connector (5) to body connector (6).

14 - 24

FUEL DELIVERY

WK

8. Connect rubber fill hose (3) to tank fitting (7) and tighten clamp (9).

9. Lower vehicle.

10. Fill fuel tank with fuel.

11. Start engine and check for fuel leaks near top of module.

FILTER-INLET

DESCRIPTION

Refer to Fuel Pump Module for information.

REGULATOR-FUEL PRESSURE

DESCRIPTION

Refer to Fuel Pump Module for information.

FILTER-FUEL

DESCRIPTION

A separate fuel filter is not used. The fuel filter is built into the fuel pump module.

Refer to Fuel Pump Module for information.

WK

FUEL DELIVERY

14 - 25
