7. Remove spark plug cable tray from engine by

releasing 4 retaining clips (2). Remove tray and
cables from engine as an assembly.

8. Disconnect electrical connectors at all 8 ignition

coils. Refer to Ignition Coil Removal/Installation.

9. Disconnect fuel line latch clip and fuel line at fuel

rail. A special tool will be necessary for fuel line
disconnection. Refer to Quick-Connect Fittings.

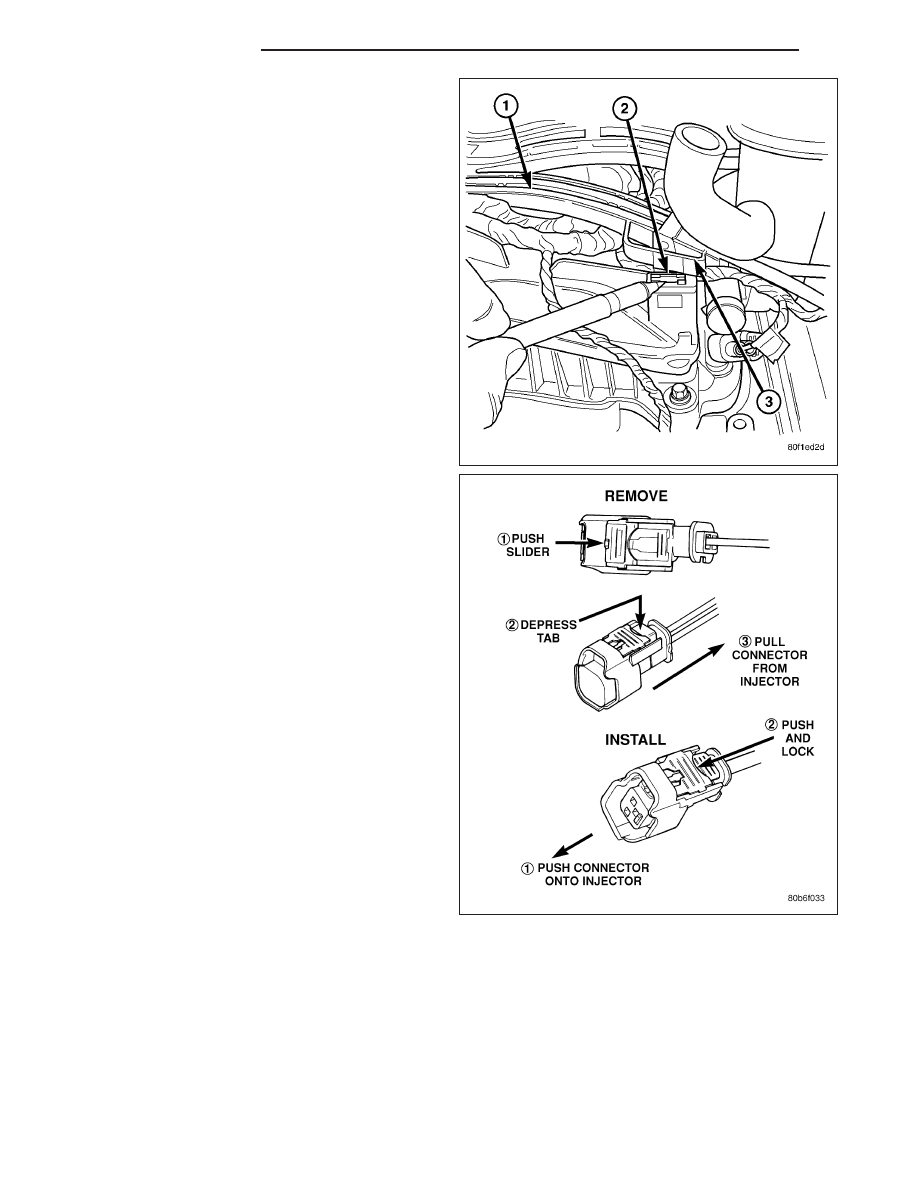

10. Disconnect electrical connectors at all 8 fuel injec-

tors. Refer to graphic.. Push red colored slider
away from injector (1). While pushing slider,
depress tab (2) and remove connector (3) from
injector. The factory fuel injection wiring harness is
numerically tagged (INJ 1, INJ 2, etc.) for injector
position identification. If harness is not tagged,
note wiring location before removal.

11. Disconnect electrical connectors at all throttle

body sensors.

14 - 18

FUEL DELIVERY

WK

12. Remove four fuel rail mounting bolts (2) and hold-

own clamps.

13. Gently rock and pull left side of fuel rail until fuel

injectors just start to clear machined holes in
intake manifold. Gently rock and pull right side of
rail until injectors just start to clear intake manifold
head holes. Repeat this procedure (left/right) until
all injectors have cleared machined holes.

14. Remove fuel rail (with injectors attached) from

engine.

15. If fuel injectors are to be removed, refer to Fuel

Injector Removal/Installation.

INSTALLATION

3.7L V-6

1. If fuel injectors are to be installed, refer to Fuel Injector Removal/Installation.

2. Clean out fuel injector machined bores in intake manifold.

3. Apply a small amount of engine oil to each fuel injector o-ring. This will help in fuel rail installation.

4. Position fuel rail/fuel injector assembly to machined injector openings in cylinder head.

5. Guide each injector into cylinder head. Be careful not to tear injector o-rings.

6. Push right side of fuel rail down until fuel injectors have bottomed on cylinder head shoulder. Push left fuel rail

down until injectors have bottomed on cylinder head shoulder.

7. Install 4 fuel rail mounting bolts and tighten. Refer to torque specifications.

8. Install 6 ignition coils. Refer to Ignition Coil Removal/Installation.

9. Connect electrical connectors to throttle body.

10. Connect electrical connectors at all fuel injectors. Refer to graphic. Push connector onto injector (1) and then

push and lock red colored slider (2). Verify connector is locked to injector by lightly tugging on connector.

11. Connect necessary vacuum lines to throttle body.

12. Install air resonator mounting bracket near front of throttle body (2 bolts).

13. Connect fuel line latch clip and fuel line to fuel rail. Refer to Quick-Connect Fittings.

14. Install air box to throttle body.

15. Install air duct to air box.

16. Connect battery cable to battery.

17. Start engine and check for leaks.

4.7L V-8

1. If fuel injectors are to be installed, refer to Fuel Injector Removal/Installation.

2. Clean out fuel injector machined bores in intake manifold.

3. Apply a small amount of engine oil to each fuel injector o-ring. This will help in fuel rail installation.

4. Position fuel rail/fuel injector assembly to machined injector openings in cylinder head.

5. Guide each injector into cylinder head. Be careful not to tear injector o-rings.

WK

FUEL DELIVERY

14 - 19

6. Push right side of fuel rail down until fuel injectors have bottomed on cylinder head shoulder. Push left fuel rail

down until injectors have bottomed on cylinder head shoulder.

7. Install 4 fuel rail mounting bolts and tighten. Refer to torque specifications.

8. Install 8 ignition coils. Refer to Ignition Coil Removal/Installation.

9. Connect electrical connectors to throttle body.

10. Connect electrical connectors at all fuel injectors. Refer to graphic. Push connector onto injector (1) and then

push and lock red colored slider (2). Verify connector is locked to injector by lightly tugging on connector.

11. Connect necessary vacuum lines to throttle body.

12. Install air resonator mounting bracket near front of throttle body (2 bolts).

13. Connect fuel line latch clip and fuel line to fuel rail. Refer to Quick-Connect Fittings.

14. Install air box to throttle body.

15. Install air duct to air box.

16. Connect battery cable to battery.

17. Start engine and check for leaks.

5.7L V-8

1. If fuel injectors are to be installed, refer to Fuel Injector Removal/Installation.

2. Clean out fuel injector machined bores in intake manifold.

3. Apply a small amount of engine oil to each fuel injector o-ring. This will help in fuel rail installation.

4. Position fuel rail/fuel injector assembly to machined injector openings in intake manifold.

5. Guide each injector into intake manifold. Be careful not to tear injector o-rings.

6. Push right side of fuel rail down until fuel injectors have bottomed on shoulders. Push left fuel rail down until

injectors have bottomed on shoulders.

7. Install 4 fuel rail holdown clamps and 4 mounting bolts. Refer to Torque Specifications.

8. Position spark plug cable tray and cable assembly to intake manifold. Snap 4 cable tray retaining clips into intake

manifold.

9. Install all cables to spark plugs and ignition coils.

10. Connect electrical connector to throttle body.

11. Install electrical connectors to all 8 ignition coils. Refer to Ignition Coil Removal/Installation.

12. Connect electrical connector to throttle body.

13. Connect electrical connectors at all fuel injectors. Refer to graphic. Push connector onto injector (1) and then

push and lock red colored slider (2). Verify connector is locked to injector by lightly tugging on connector.

14. Connect fuel line latch clip and fuel line to fuel rail. Refer to Quick-Connect Fittings.

15. Install air resonator to throttle body (2 bolts).

16. Install flexible air duct to air box.

17. Connect battery cable to battery.

18. Start engine and check for leaks.

14 - 20

FUEL DELIVERY

WK

TANK-FUEL

DESCRIPTION

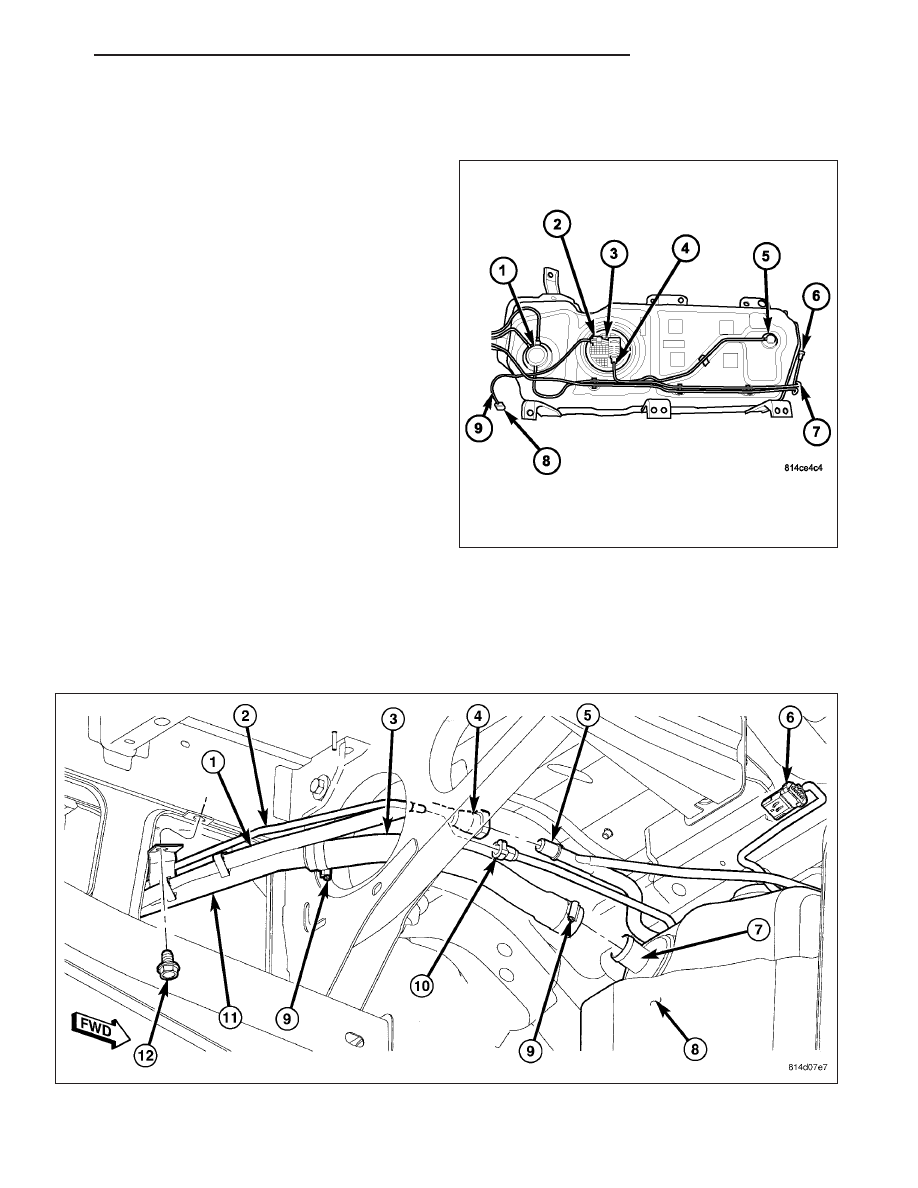

The fuel tank is constructed of a plastic material. Its
main functions are for fuel storage and for placement
of the fuel pump module (3), and (if equipped) certain
EVAP and ORVR components (1) and (5).

REMOVAL

Fuel Tank Draining

WARNING: THE FUEL SYSTEM MAY BE UNDER CONSTANT FUEL PRESSURE EVEN WITH THE ENGINE
OFF. THIS PRESSURE MUST BE RELEASED BEFORE SERVICING FUEL TANK.

Two different procedures may be used to drain fuel tank: through the fuel fill fitting on tank, or using a diagnostic
scan tool.

The quickest draining procedure involves removing the rubber fuel fill hose (3) from fuel tank fitting (7).

WK

FUEL DELIVERY

14 - 21
