JAC S2. Service Manual

Seat and Safety Belt

Seat and Safety Belt 149

V、Front Seat Safety Belt Assembly

（I）Removal

1. Open engine compartment cover

2. Disconnect battery negative electrode

3. Remove front door threshold guard panel assembly Refer to "Front door threshold guard panel assembly"

4. Remove rear threshold guard panel assembly Refer to "Rear threshold guard panel assembly"

5. Remove lower trim panel assembly of B pillar Refer to "Lower trim panel assembly of B pillar"

6. Remove upper trim panel assembly of B pillar Refer to "Upper trim panel assembly of B pillar"

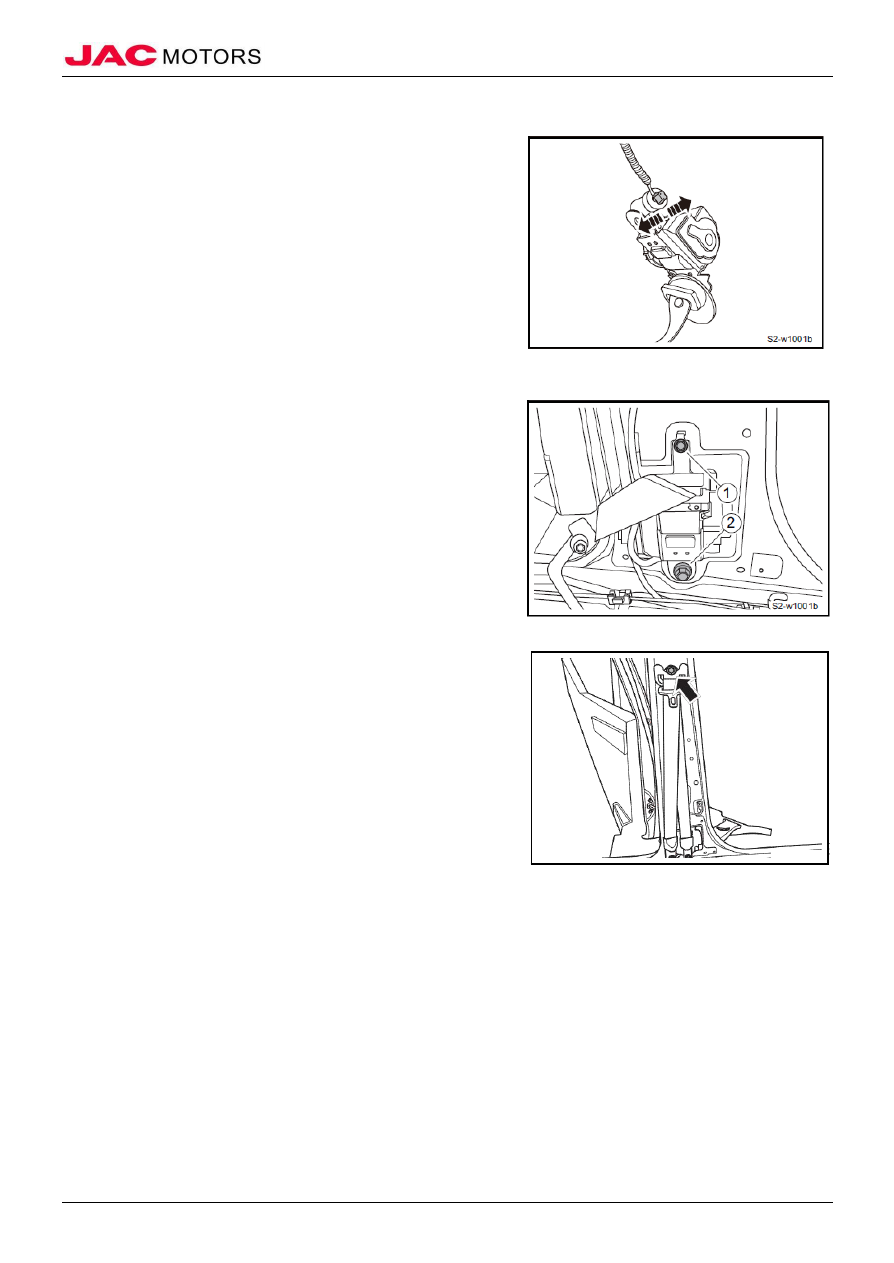

7. Remove front seat safety belt assembly

1). Remove fixed bolt of safety belt guiding ring;

2). Remove 2 fixed bolts of retractor;

3). Disconnect wiring harness of front seat safety belt retractor;

4). Take down front seat safety belt assembly;

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Seat and Safety Belt

Seat and Safety Belt 150

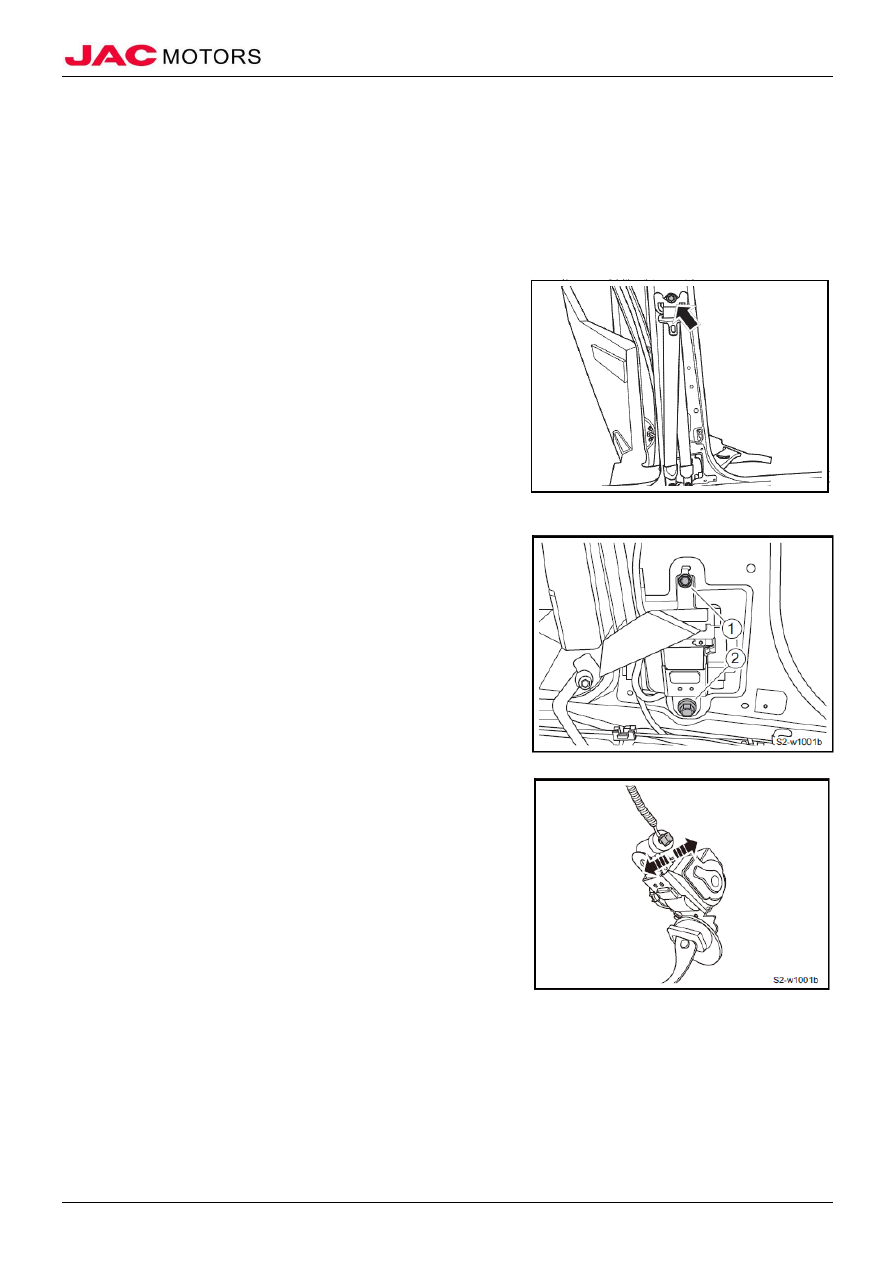

（II）Installation

1. Install front seat safety belt assembly

1). Connect wiring harness connector of front seat safety belt

retractor;

2). Install front seat safety belt retractor, and tighten fixed bolt

①;

Tighten torque

6~8N·m

3). Tighten fixed bolts

②;

Tighten torque

45~55N·m

4). Install safety belt guiding ring and install fixed bolt;

Tighten torque

45~55N·m

2. Install upper trim panel assembly of B pillar

3. Install lower trim panel assembly of B pillar

4. Install rear threshold guard panel assembly

5. Install front door threshold guard panel assembly

6. Connect battery negative electrode

7. Close engine compartment cover

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Seat and Safety Belt

Seat and Safety Belt 151

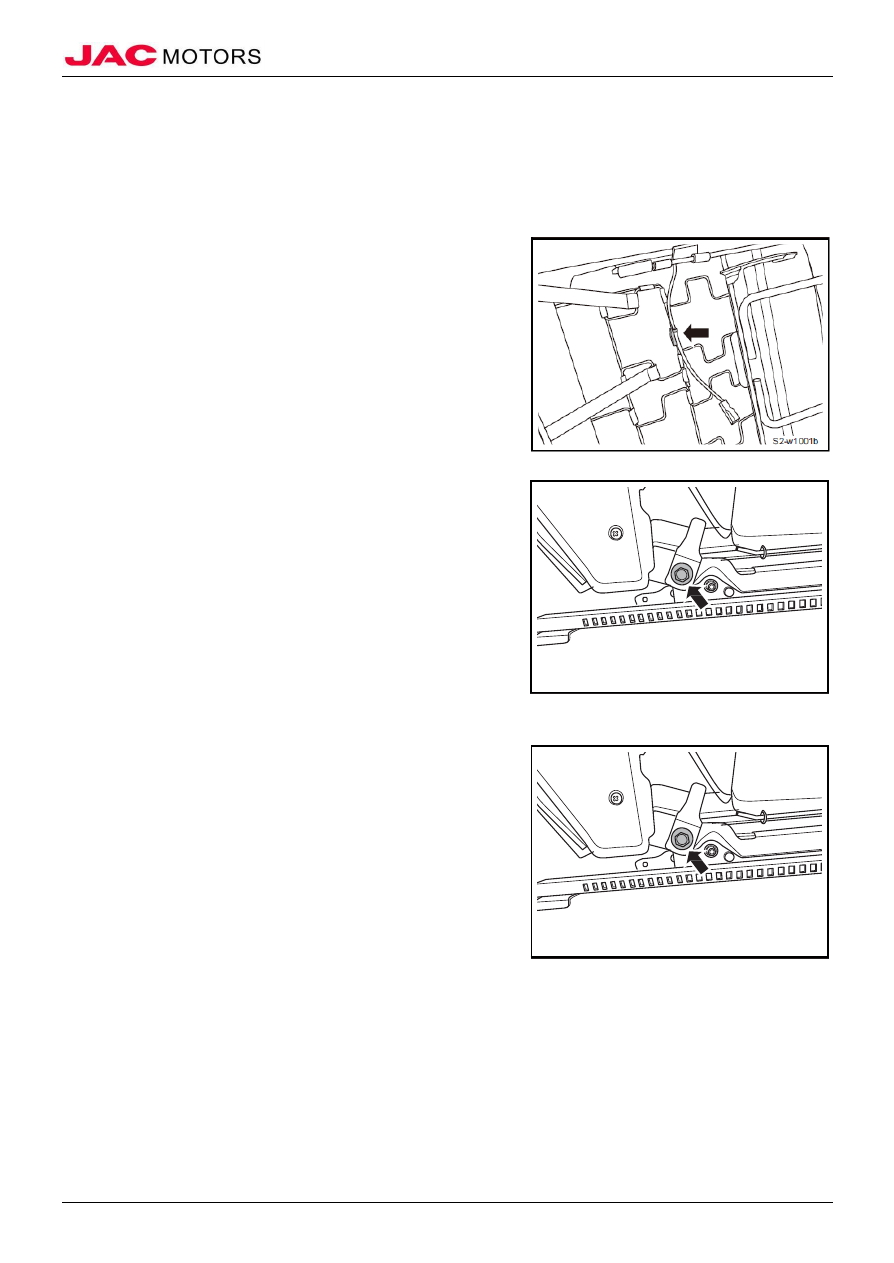

VI、Front Safety Belt Inserting Lock Assembly

（I）Removal

1. Open engine compartment cover

2. Disconnect battery negative electrode

3. Remove front seat assembly Refer to "Front seat assembly"

4. Remove front safety belt inserting lock assembly

1). Rotate seat, disconnect wiring harness from cushion fixed

buckle;

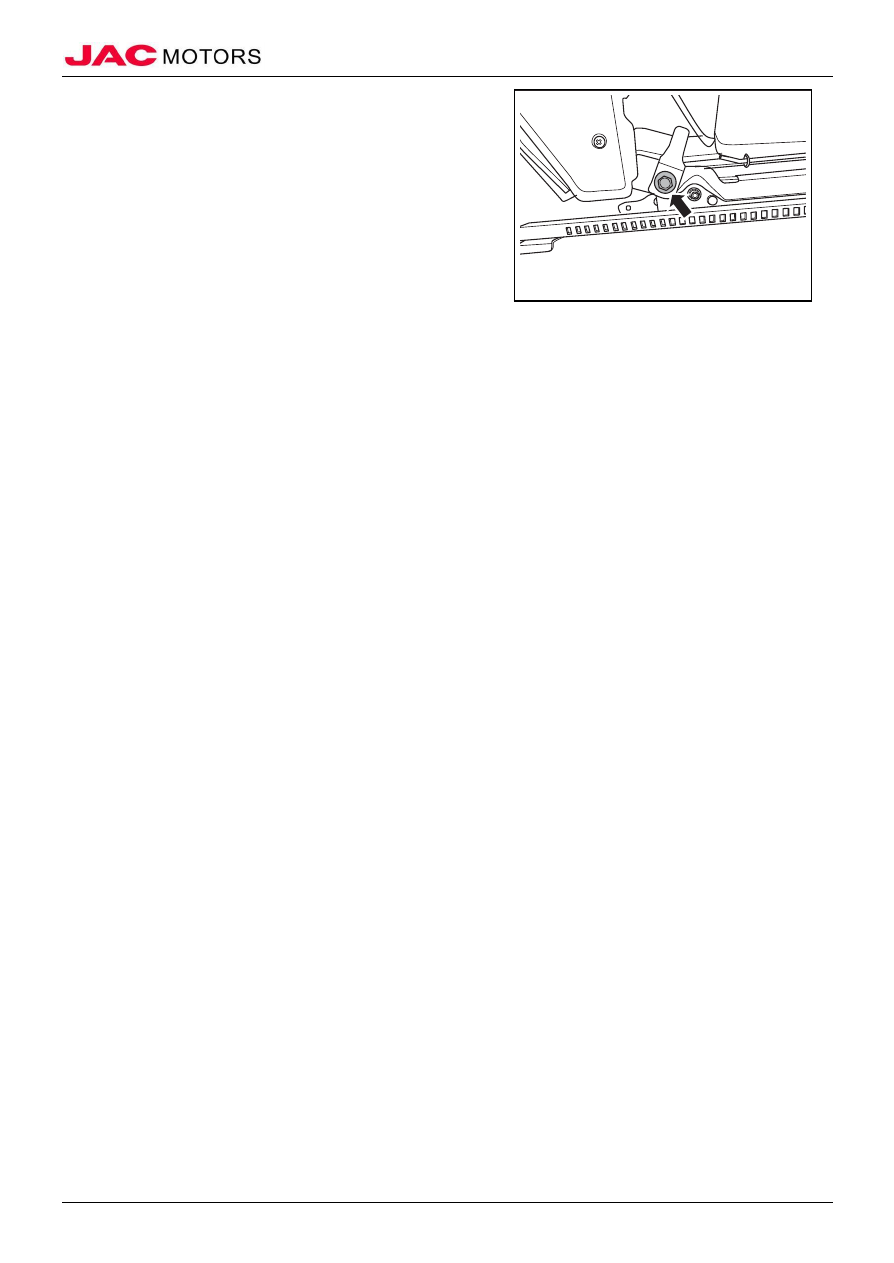

2). Remove fixed bolt of front safety belt inserting lock

assembly;

3). Take down front safety belt inserting lock assembly;

（II）Installation

1. Install front safety belt inserting lock assembly

1). Place front safety belt inserting lock assembly to installation

position, and tighten fixed bolt;

Tighten torque

45~55N·m

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Seat and Safety Belt

Seat and Safety Belt 152

3). Connect wiring harness to relative position of cushion;

2. Install front seat assembly

3. Connect battery negative electrode

4. Close engine compartment cover

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Seat and Safety Belt

Seat and Safety Belt 153

VII、Rear Seat Outside Three-point-type Safety Belt Assembly

（I）Removal

1. Remove rear threshold guard panel assembly Refer to ""rear threshold guard panel assembly

2. Remove rear seat cushion assembly Refer to "Rear seat backrest"

3. Remove rear seat backrest assembly Refer to ""Rear seat backrest

4. Remove lower fixed bracket assembly of rear seat backrest Refer to "Lower trim panel assembly of C pillar"

5. Remove lower trim panel assembly of C pillar

Refer to "Lower trim panel assembly of C pillar"

6. Remove upper trim panel assembly of C pillar

Refer to "Upper trim panel assembly of C pillar"

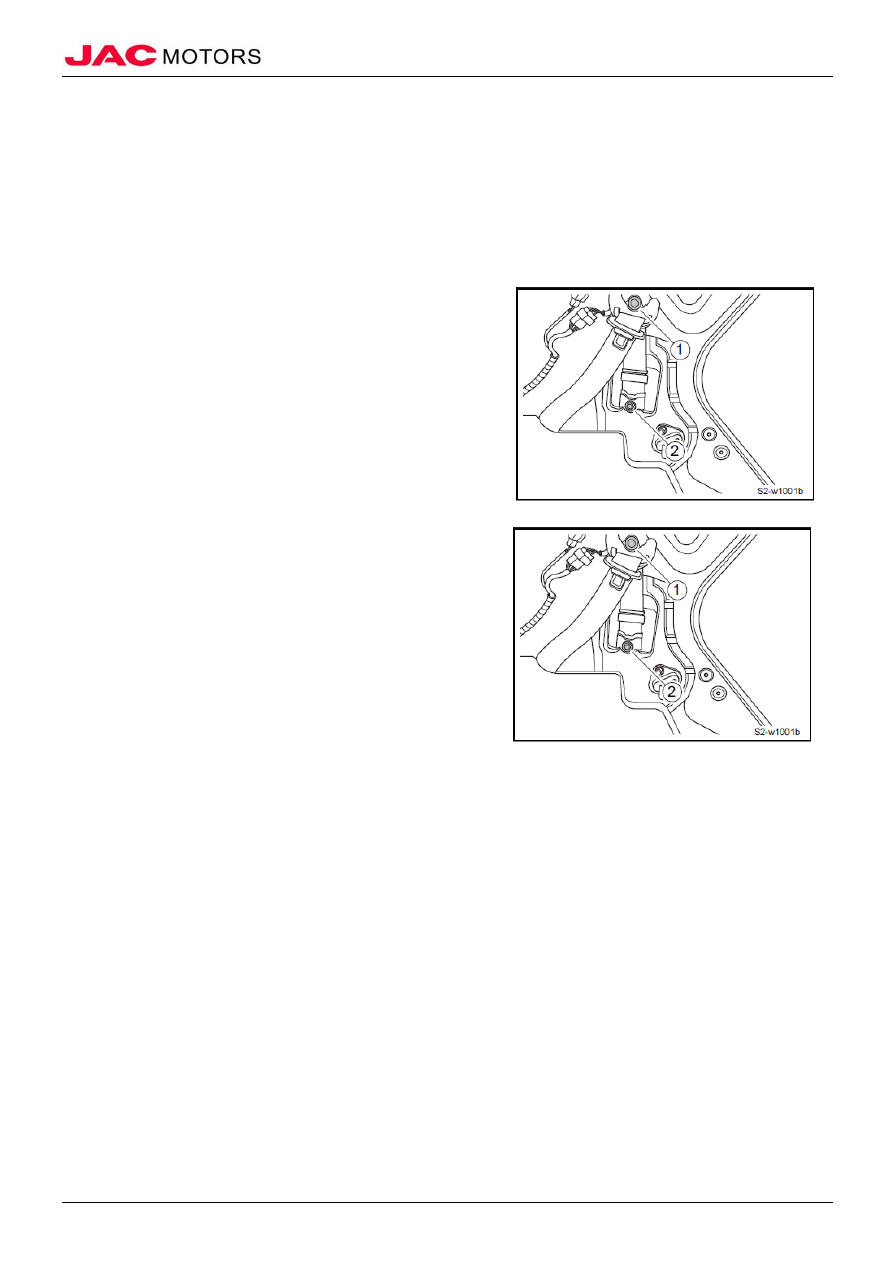

7. Remove rear seat outside three-point-type safety belt assembly

1). Remove fixed bolt

① of safety belt guiding ring;

2). Remove 1 fixed bolt

② of retractor;

3). Take down rear seat safety belt assembly;

（II）Install

1. Install rear seat outside three-point-type safety belt assembly

1). Install retractor and install fixed bolt

② of retractor;

Tighten torque

6~8N·m

2). Tighten fixed bolt

① of safety belt guiding ring;

Tighten torque

45~55N·m

2. Install upper trim panel assembly of C pillar
3. Install lower trim panel assembly of C pillar

4. Install lower fixed bracket assembly of rear seat backrest

5. Install rear seat backrest assembly

6. Install rear seat cushion assembly

7. Install rear threshold guard panel assembly

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Seat and Safety Belt

Seat and Safety Belt 154

Dashboard

I、Summary

（I）Structure Overview

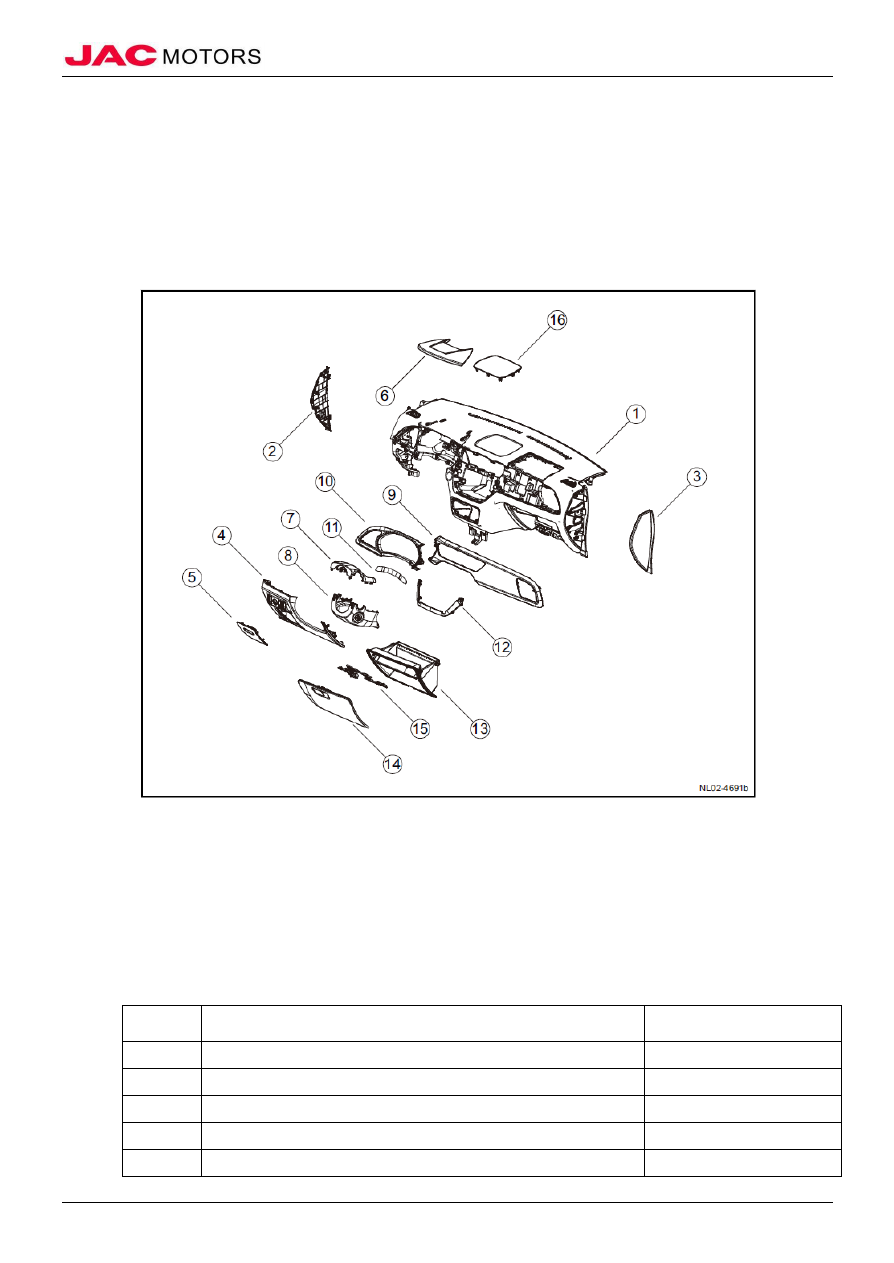

Dashboard Exposed Diagram

1. Dashboard assembly

2. Left end cover of dashboard

3. Right end cover of dashboard

4. Lower guard panel assembly of driver’s side

5. Indoor electrical box cover

6. Combination meter cover assembly

7. Upper jacketing of steering column

8. Lower jacketing of steering column

9. Central right side trim panel assembly

10. Central left side trim panel assembly

11. Decoration panel

12. Radio panel assembly

13. Glove box assembly

14. Exterior cover plate of glove box

15. Glove box lock assembly

16. Central cover plate assembly

（II）Torque Parameter

No.

Item

Torque

（N·m）

Fixed bolt of lower guard panel of driver’s side

1.4

Fixed bolt of radio panel

1.4

Fixed bolt of front part of auxiliary dashboard

1.4

Fixed bolt of rear part and left/right side of auxiliary dashboard

5~7

Fixed nut of dashboard assembly

5~7

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Seat and Safety Belt

Seat and Safety Belt 155

No.

Item

Torque

（N·m）

Fixed bolt of dashboard assembly

5~7

Fixed nut of A/C main host and beam

5~7

Fixed bolt of beam

Fixed bolt of beam and front wall

（III）Maintenance Note

(1). Please observe the handling directions of airbag system strictly, or vehicle damage and personal injury may be caused.
(2). Please dismantle the negative electrode of battery and keep waiting for at least one minutes before removing electric connections,
otherwise damage to the vehicle will be caused.
(3). Please protect the parts with cloth to prevent damage when dismantling and installing the components.
(4). Please wrap the flat-blade of screwdriver with cloth when removing the metal clamp from the trimming
(5). Please guard against damage of the body parts.
(6). Make sure the clamps are fixed into plate hole of the vehicle body securely when installing body trim, and then carefully push
them in.
(7). Two people are needed when a person cannot complete the work of dismantling and installing some components in order to
avoid falling.
(8).Avoid overexertion when dismantling and installing some trims, which may cause deformation of parts.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Seat and Safety Belt

Seat and Safety Belt 156

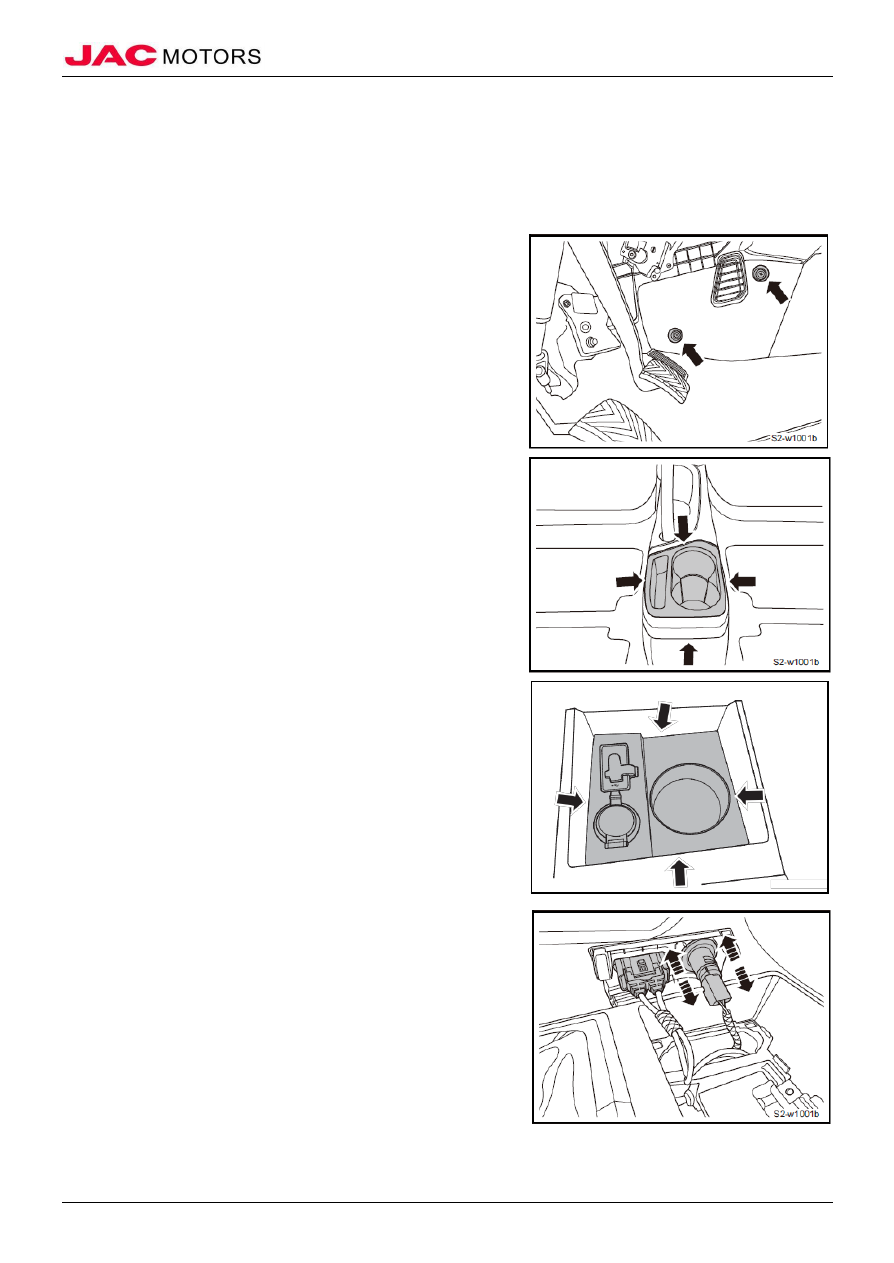

II、Auxiliary Dashboard Assembly

（I）Removal

1. Open engine compartment cover

2. Disconnect battery negative electrode

3. Remove front extension plate assembly

1). Remove 2 expansion buckles in both left and right extension

plate;

2). Disconnect connection of extension plate and auxiliary

dashboard assembly, and take down extension plate;

4. Remove saucer cover plate assembly

1). Pry saucer cover plate assembly in rear part of auxiliary

dashboard;

5. Remove front storage box assembly

1). Pry storage box assembly in front part of auxiliary

dashboard;

2). Disconnect wiring harness connector;

3). Take down front storage box assembly;

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Seat and Safety Belt

Seat and Safety Belt 157

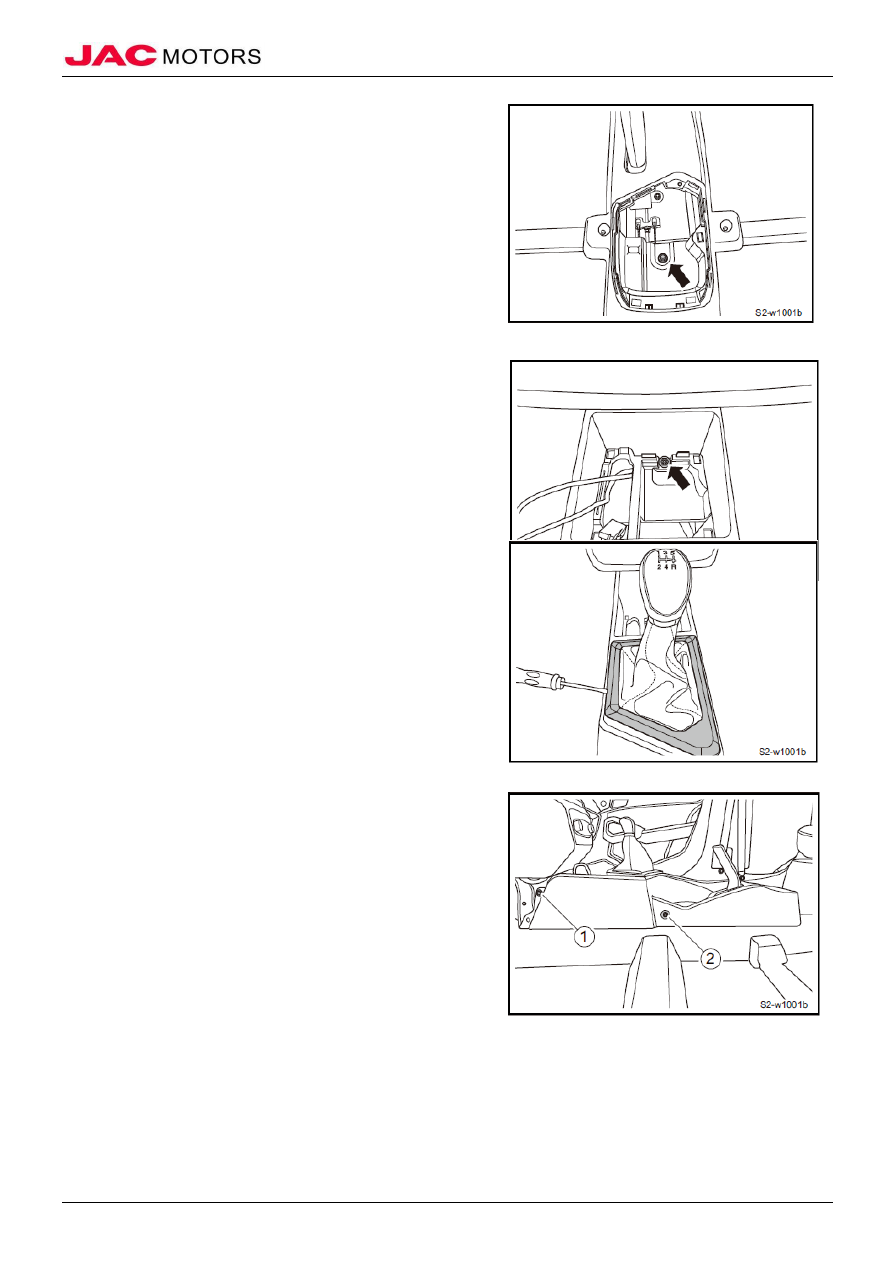

6. Remove auxiliary dashboard assembly

1). Remove fixed bolt below lower saucer cover plate;

2). Remove fixed bolt below front storage box assembly;

3). Disconnect connection of transmission operation panel and

auxiliary dashboard;

4). Remove fixed bolt

① in both sides of front part of

auxiliary dashboard and fixed bolt

② in both sides of

middle part of auxiliary dashboard;

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Seat and Safety Belt

Seat and Safety Belt 158

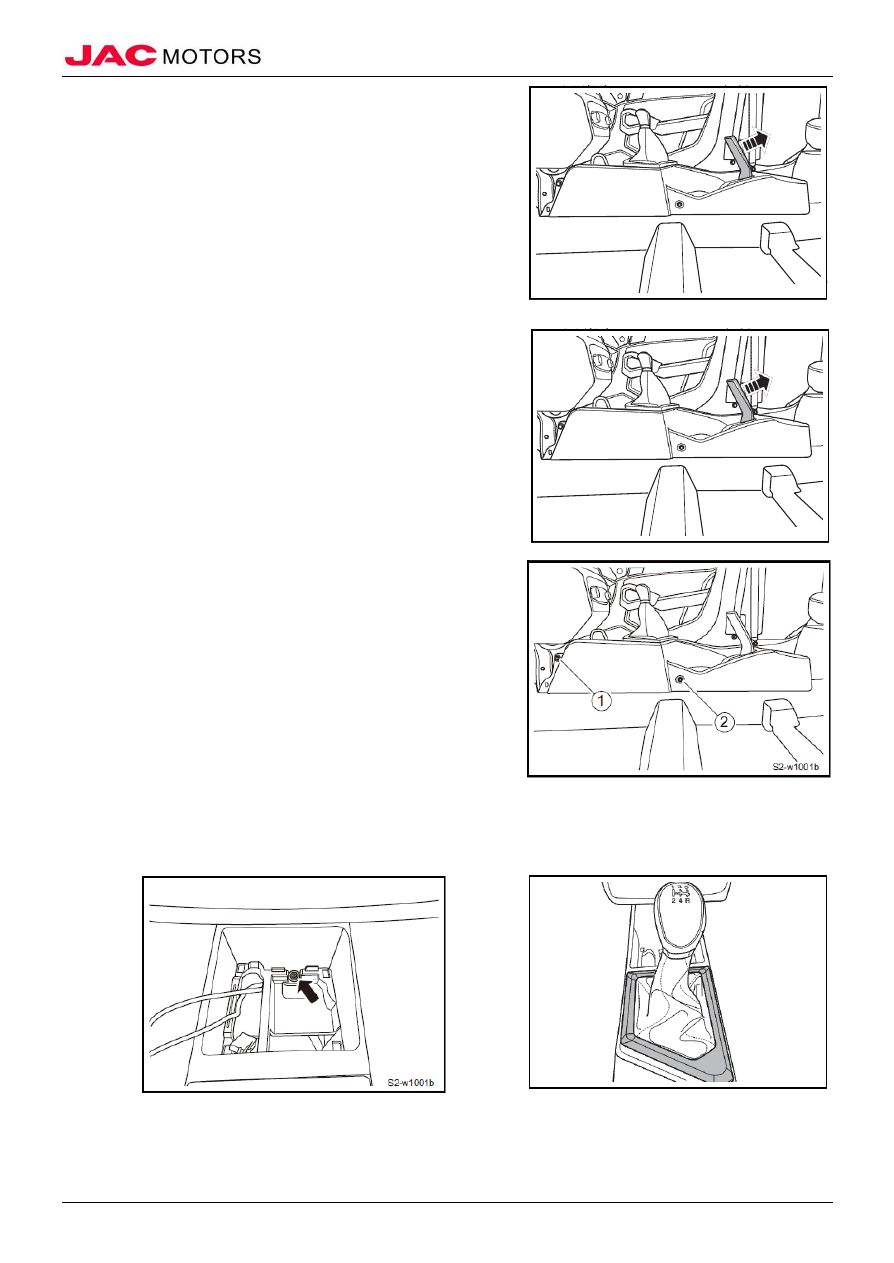

5). Pull manual brake rod to maximum angle, and take down

auxiliary dashboard assembly;

（II）Installation

1. Install auxiliary dashboard assembly

1). Pull manual brake rod to maximum angle, and place

auxiliary dashboard assembly to installation position;

2). Tighten fixed bolt

① in both sides of front part of auxiliary

dashboard ;

Tighten torque

1.4N·m

3). Tighten fixed bolt

② in both sides of middle part of

auxiliary dashboard;

Tighten torque

5~7N·m

4). Connect connection of transmission operation panel and

auxiliary dashboard;

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Seat and Safety Belt

Seat and Safety Belt 159

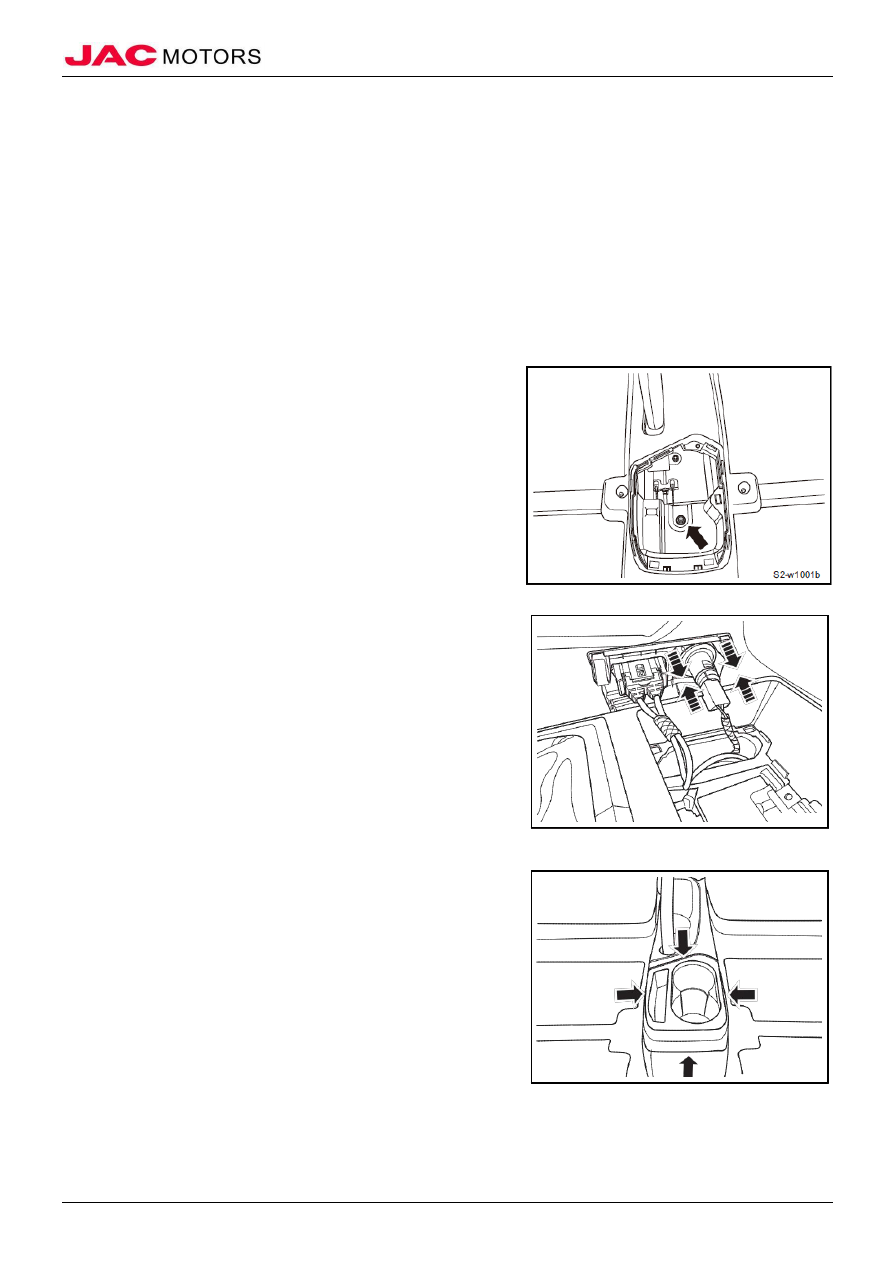

5). Tighten fixed bolt below front storage box assembly;

Tighten torque

1.4N·m

6). Tighten fixed bolt below saucer cover plate;

Tighten torque

5~7N·m

2. Install front storage box assembly

1). Connect storage box wiring harness, place storage box to

installation position and tighten buckles;

3. Install saucer cover plate assembly

1). Place saucer cover plate to installation position and tighten

buckles;

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Seat and Safety Belt

Seat and Safety Belt 160

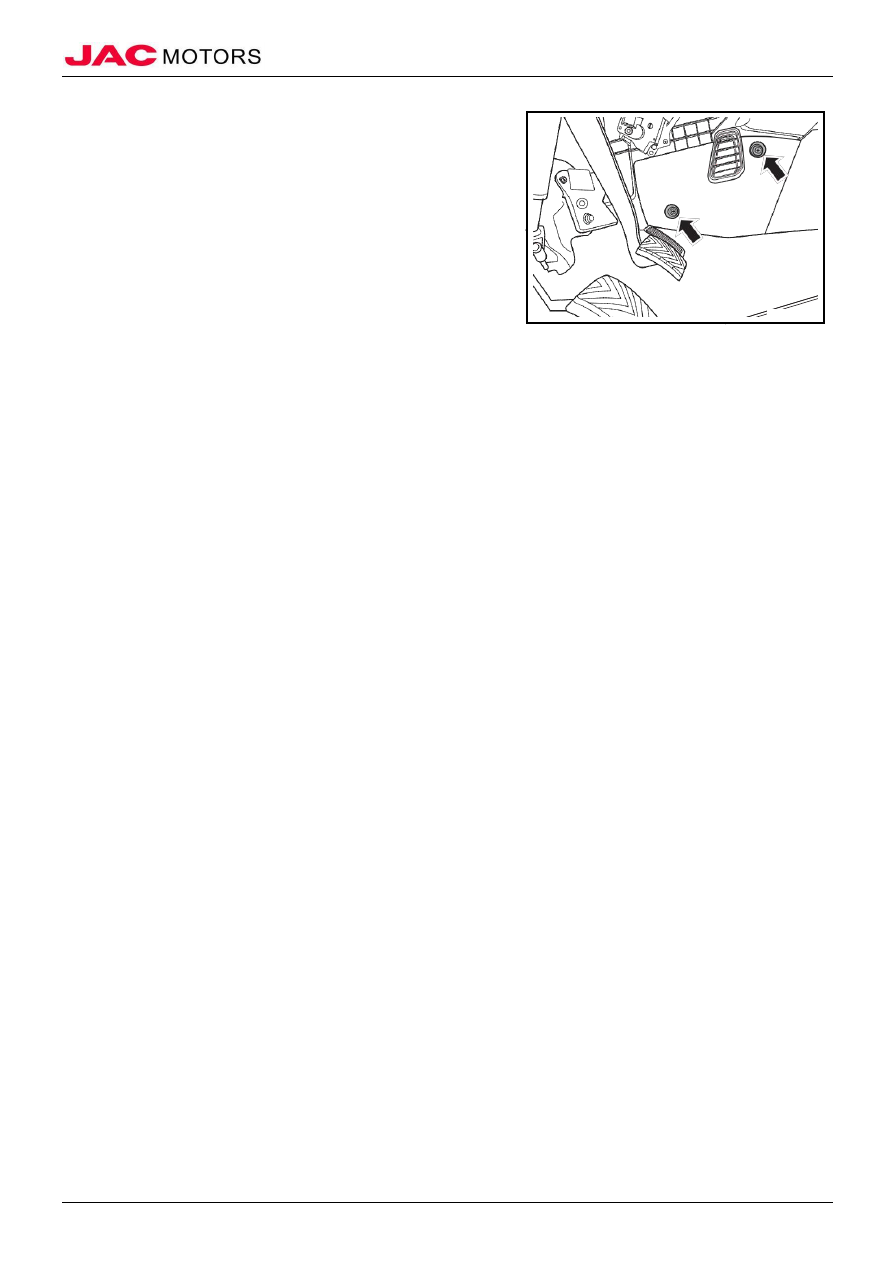

4. Install front extension plate assembly

1). Place front extension plate to installation position;

2). Tighten 2 expansion buckles in both sides of left and right

extension plate;

5. Connect battery negative electrode

6. Close engine compartment cover

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Seat and Safety Belt

Seat and Safety Belt 161

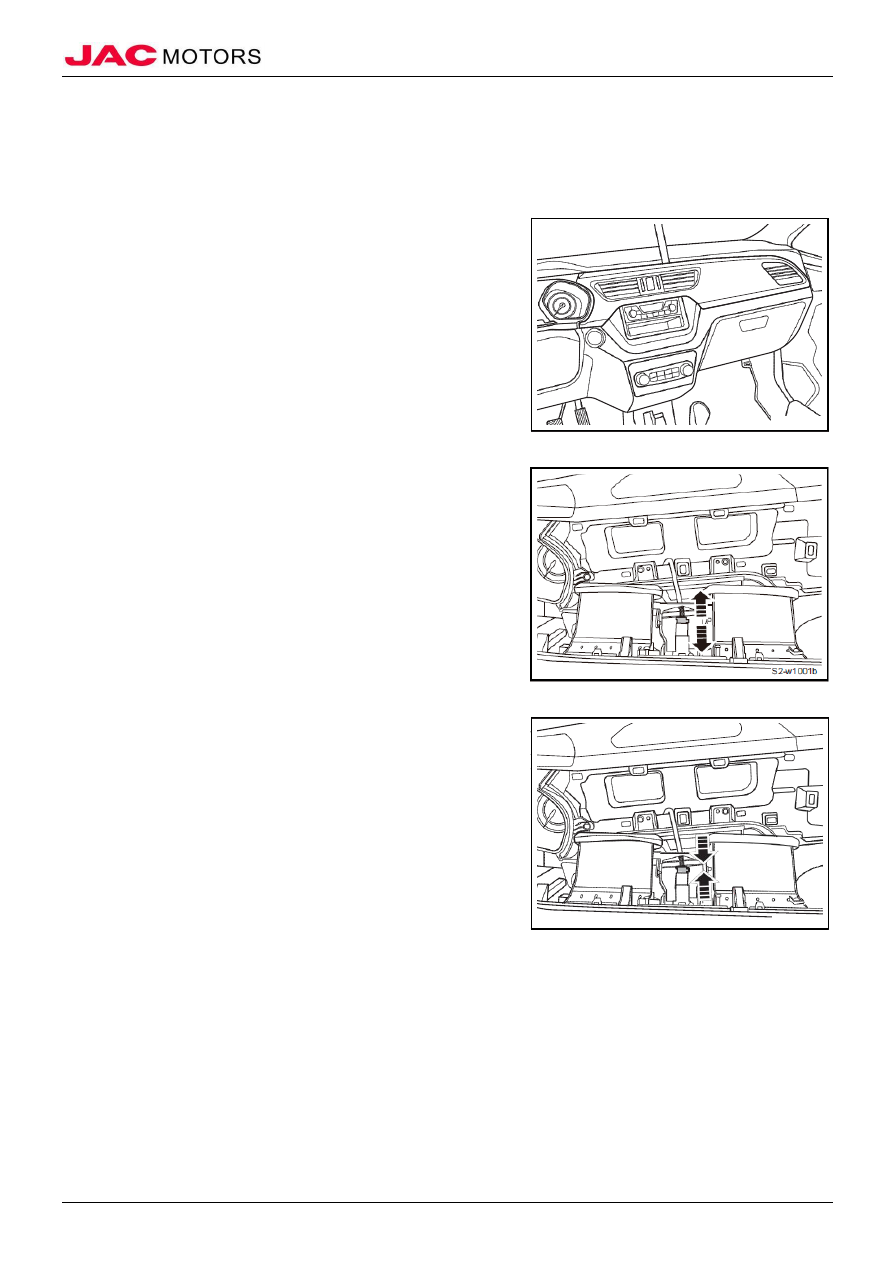

III、Central Right Side Trim Panel Assembly

（I）Removal

1. Open engine compartment cover

2. Disconnect battery negative electrode

3. Remove central right side trim panel assembly

1). Pry buckles connecting central right side trim panel

assembly and dashboard assembly;

2). Disconnect wiring harness connector, and take down central

right side trim panel assembly;

（II）Installation

1. Install central right side trim panel assembly

1). Connect wiring harness connector;

2). Place central right side trim panel assembly to installation,

and tighten buckles;

2. Connect battery negative electrode

3. Close engine compartment cover

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Seat and Safety Belt

Seat and Safety Belt 162

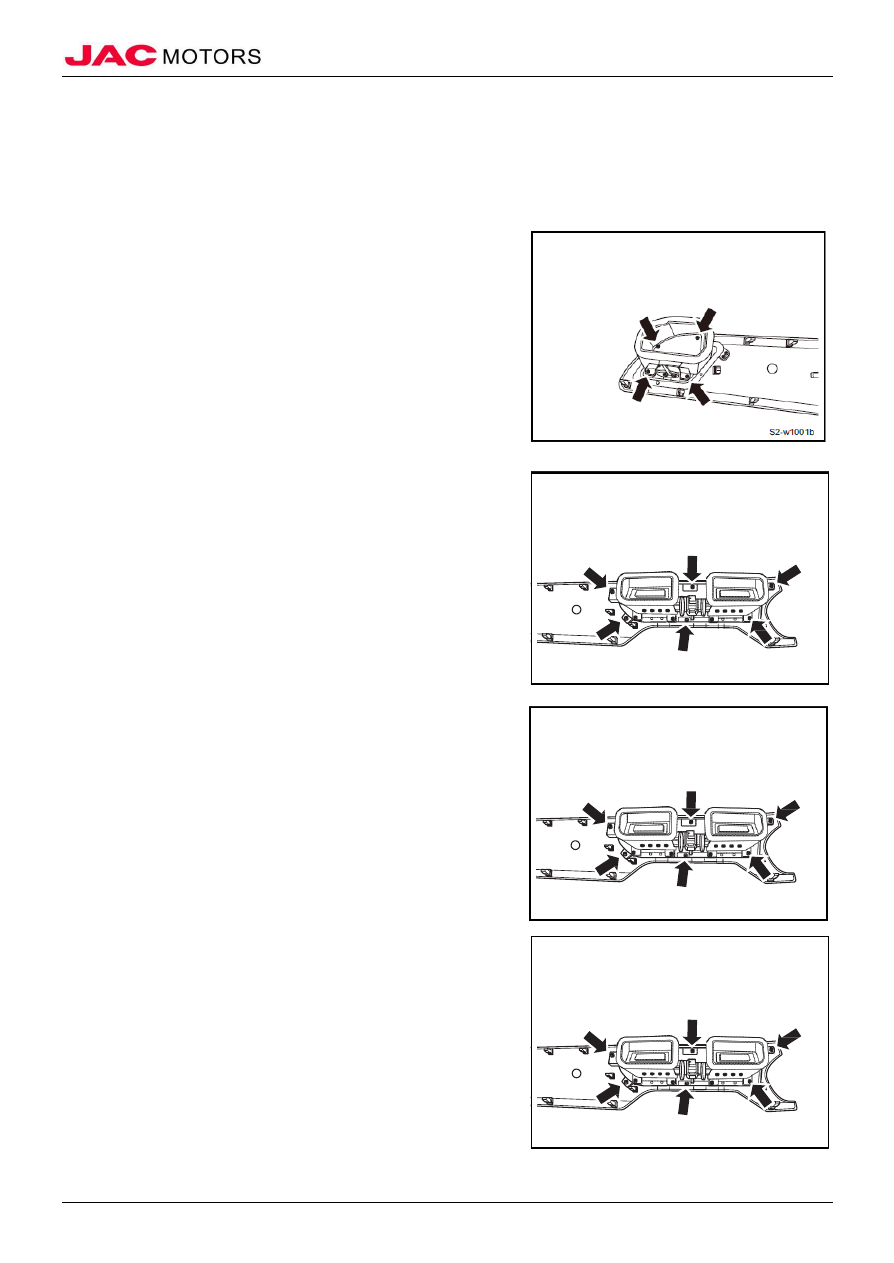

IV、Central Right Side Trim Panel Assembly

（I）Removal

1. Open engine compartment cover

2. Disconnect battery negative electrode

3. Remove central right side trim panel assembly Refer to "Remove central right side trim panel assembly"

4. Remove central right side trim panel assembly

1). Remove 4 fixed bolts of central right side trim panel

assembly and right side air outlet port assembly;

2). Take down right side air outlet port assembly;

3). Remove 6 fixed bolts of central right side trim panel

assembly and central air outlet port assembly;

4). Pry buckles connecting central right side trim panel

assembly and central air outlet port assembly;

5). Take down central right side trim panel assembly;

（II）Installation

1. Install central right side trim panel assembly

1). Connect buckles connecting central right side trim panel

assembly and central air outlet port assembly;

2). Tighten 6 fixed bolts of central right side trim panel

assembly and central air outlet port assembly;

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Seat and Safety Belt

Seat and Safety Belt 163

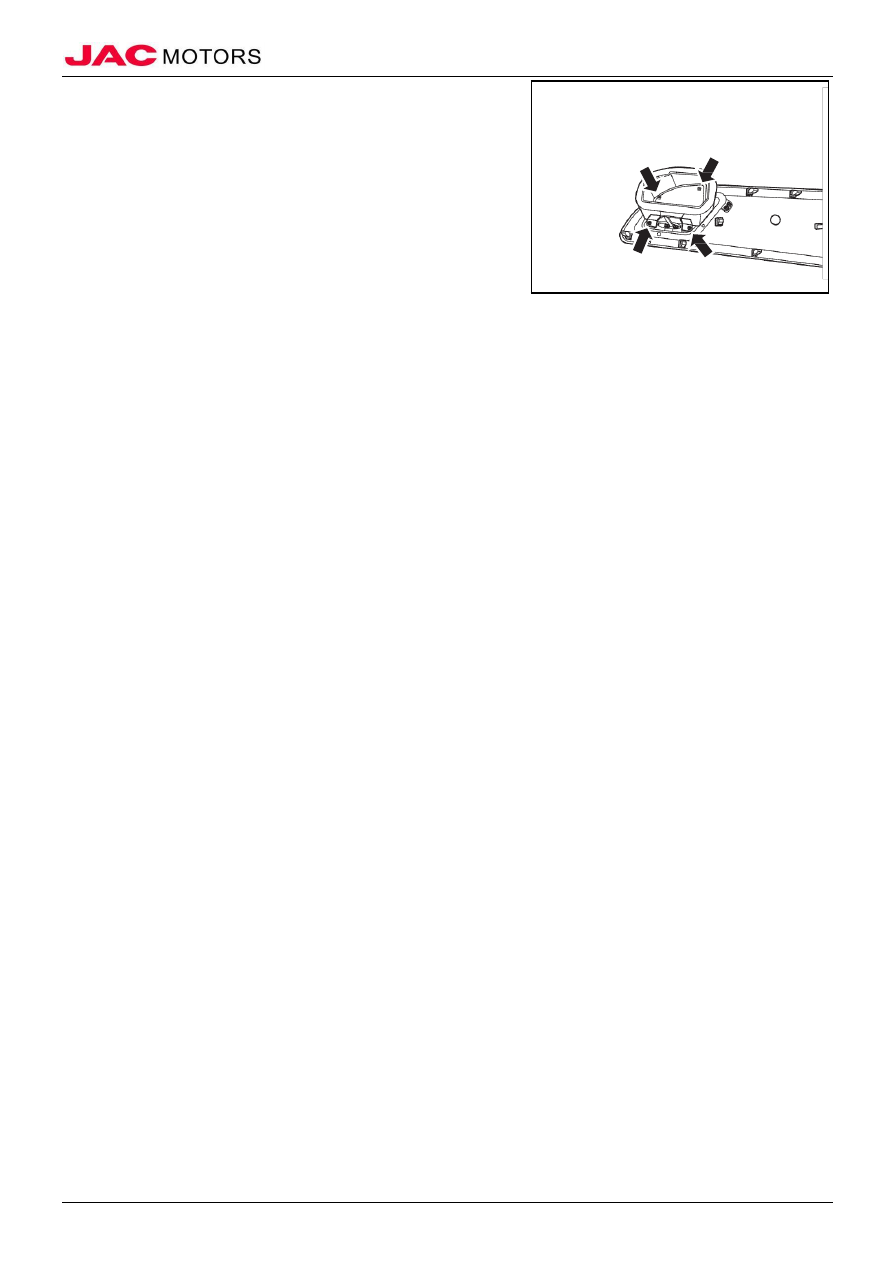

3). Connect buckles connecting central right side trim panel

assembly and right side air outlet port assembly;

4). Tighten 4 fixed bolts of central right side trim panel

assembly and right side air outlet port assembly;

2. Install central right side trim panel assembly

3. Connect battery negative electrode

4. Close engine compartment cover

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Seat and Safety Belt

Seat and Safety Belt 164

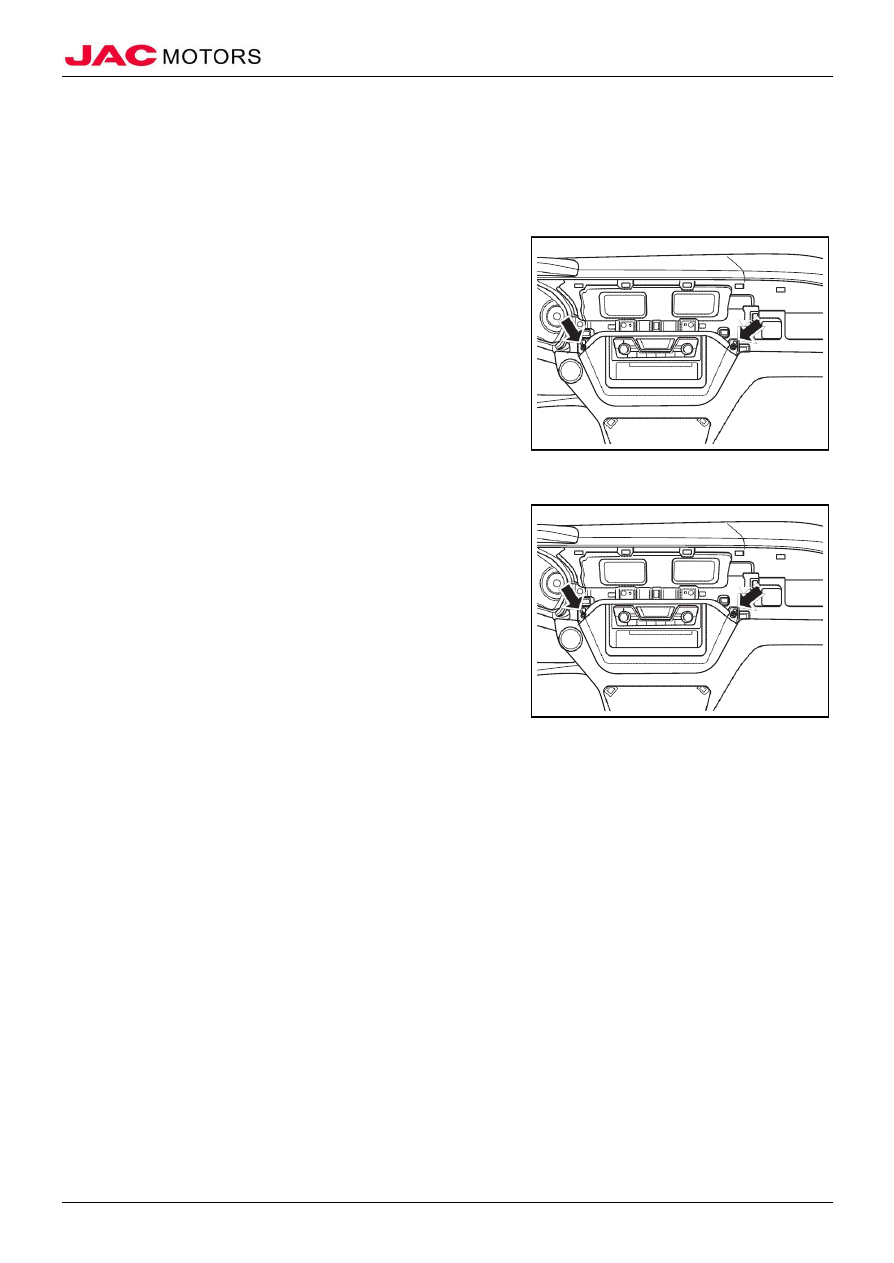

V、Radio Panel Assembly

（I）Removal

1. Open engine compartment cover

2. Disconnect battery negative electrode

3. Remove central right side trim panel assembly Refer to "Central right side trim panel assembly"

4. Remove radio panel assembly

1). Remove fixed bolt in left/right side of radio panel;

2). Pry buckles of radio panel assembly and dashboard

assembly, and take down radio panel assembly;

（II）Installation

1. Install radio panel assembly

1). Place radio panel assembly to installation position and

tighten buckles;

2). Tighten fixed bolts in left and right side of radio panel

assembly;

Tighten torque

1.4N·m

2. Install central right side trim panel assembly

3. Connect battery negative electrode

4. Close engine compartment cover

-------------------------------------------------------------------------------------------------------------------------------------------------------------
