Isuzu Trooper (1998-2002 year). Manual - part 674

7A–80

AUTOMATIC TRANSMISSION (4L30–E)

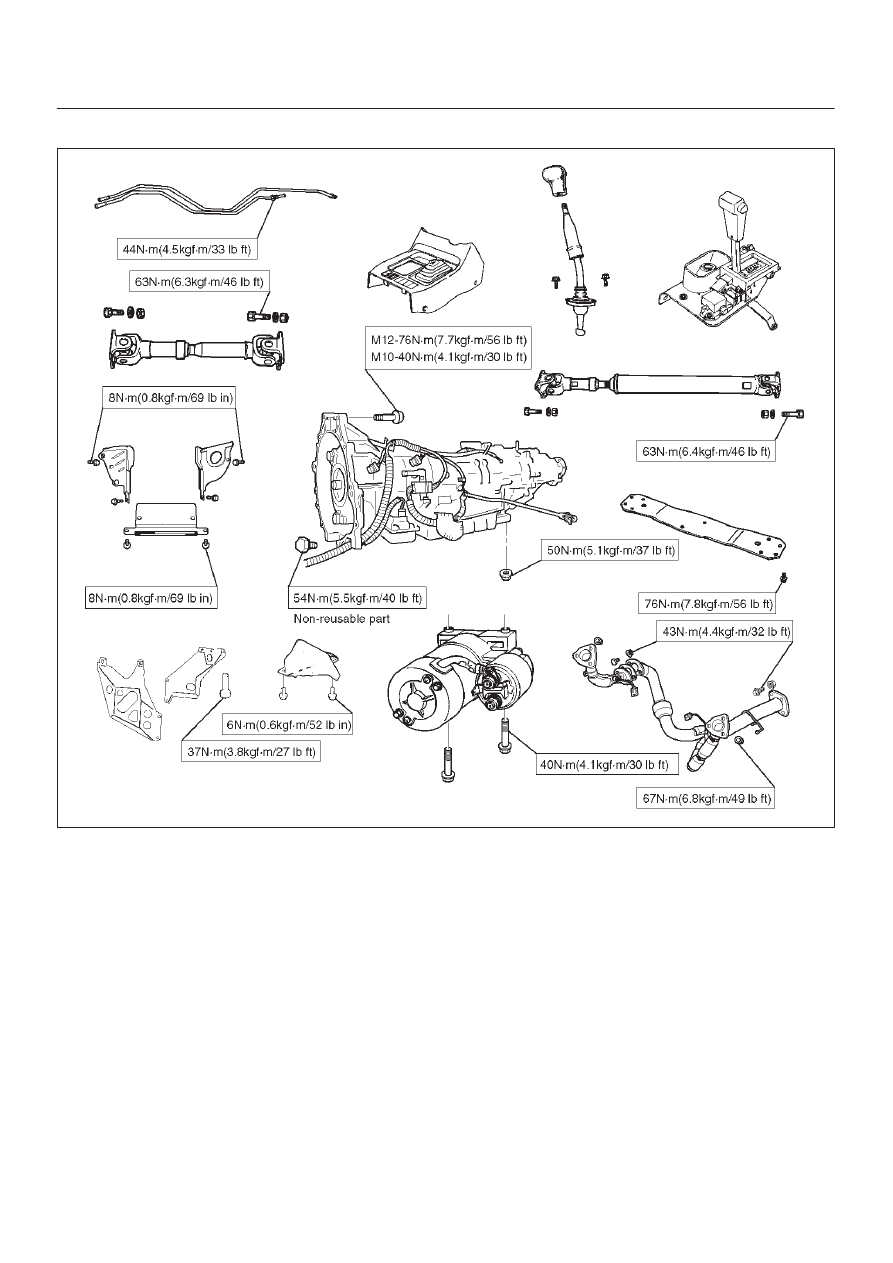

Torque Specifications

E07RY00011

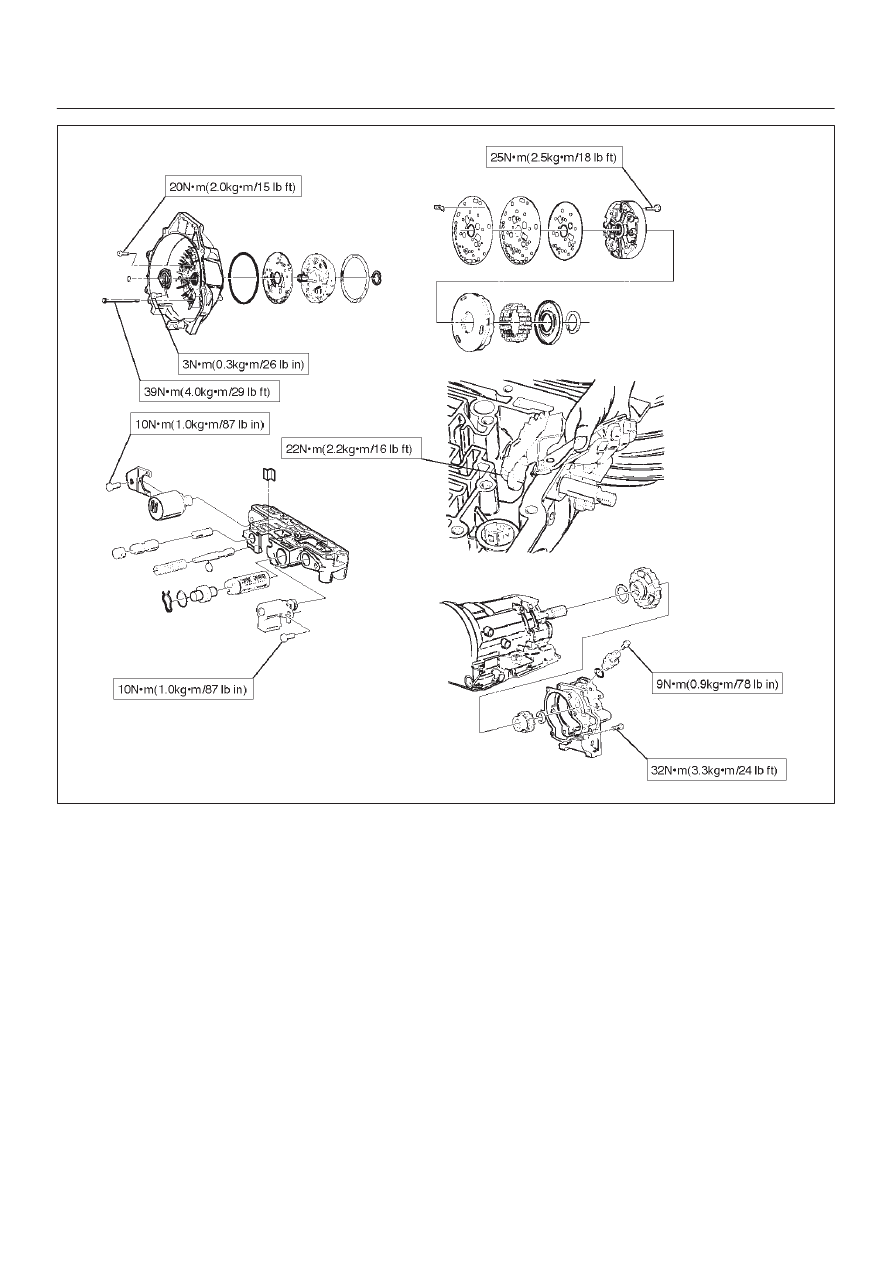

7A–81

AUTOMATIC TRANSMISSION (4L30–E)

E07RW079

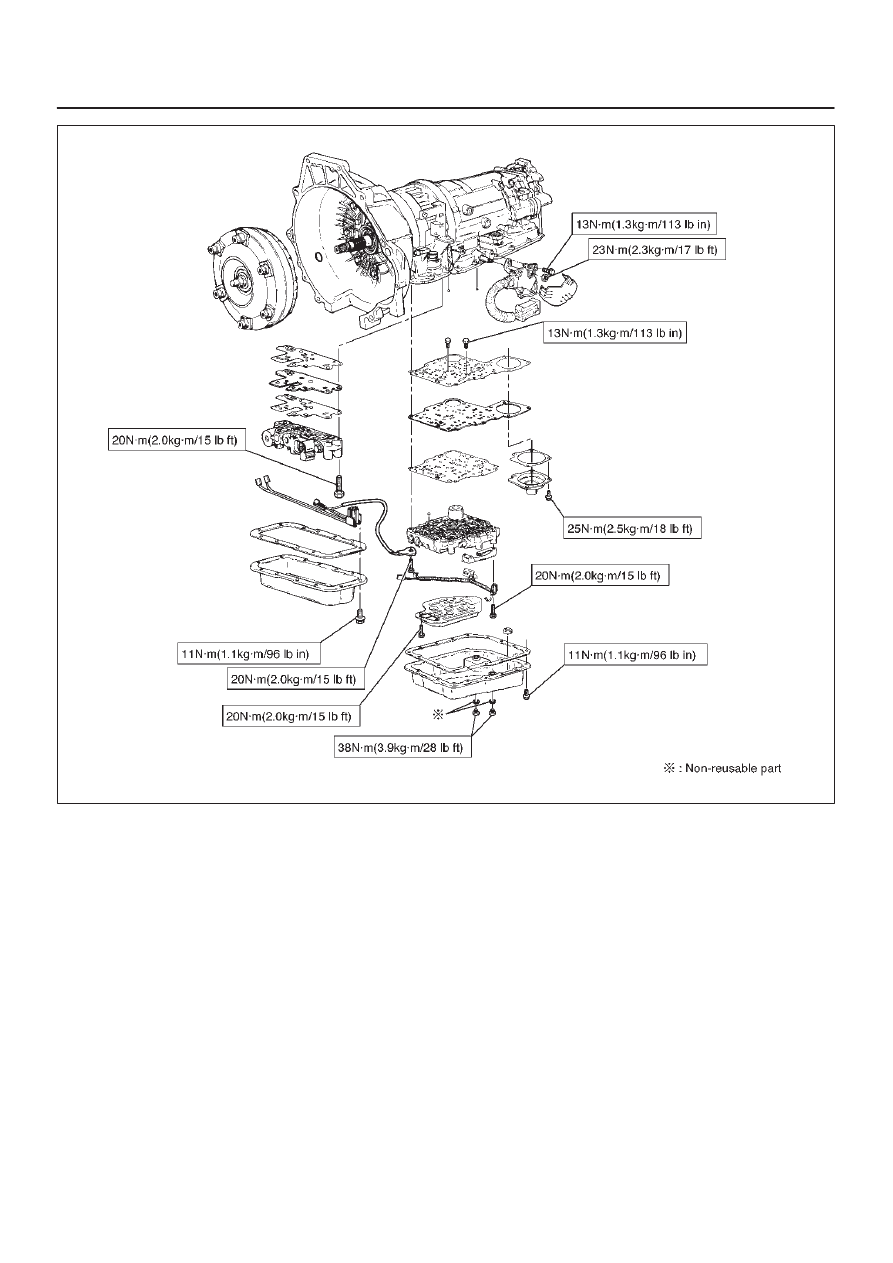

7A–82

AUTOMATIC TRANSMISSION (4L30–E)

E07RW047

7A–83

AUTOMATIC TRANSMISSION (4L30–E)

Special Tools

ILLUSTRATION

TOOL NO.

TOOL NAME

5–8840–0501–0

(J–23075)

Spring compressor (For

servo piston)

5–8840–2258–0

(J–38450–A)

Third clutch snap ring

compressor

5–8840–2259–0

(J–23075–12)

Third clutch spring

compressor adapter

(Use with

5–8840–0501–0

(J–23075))

5–8840–2260–0

(J–23084)

Third clutch piston

installer

5–8840–0195–0

(J–23327)

Third clutch spring

compressor

5–8840–2261–0

(J–23080–A)

Second clutch piston

installer

ILLUSTRATION

TOOL NO.

TOOL NAME

5–8840–2262–0

(J–23085–A)

Selective washer

gauging tool

5–8840–2263–0

(J–23327–90)

Fourth clutch spring

compressor (Use with

5–8840–0195–0

(J–23327))

5–8840–2264–0

(J–38553)

3/4 Accumulator piston

fitter

5–8840–2403–0

(J–41096)

Cover remover (Use

with 5–8840–2266–0

(J–38584))

5–8840–2266–0

(J–38584)

Slide hammer adapter

(Use with

5–8840–0019–0

(J–23907))

5–8840–2267–0

(J–38554)

Fourth clutch piston fitter
