SEATS 8G–13

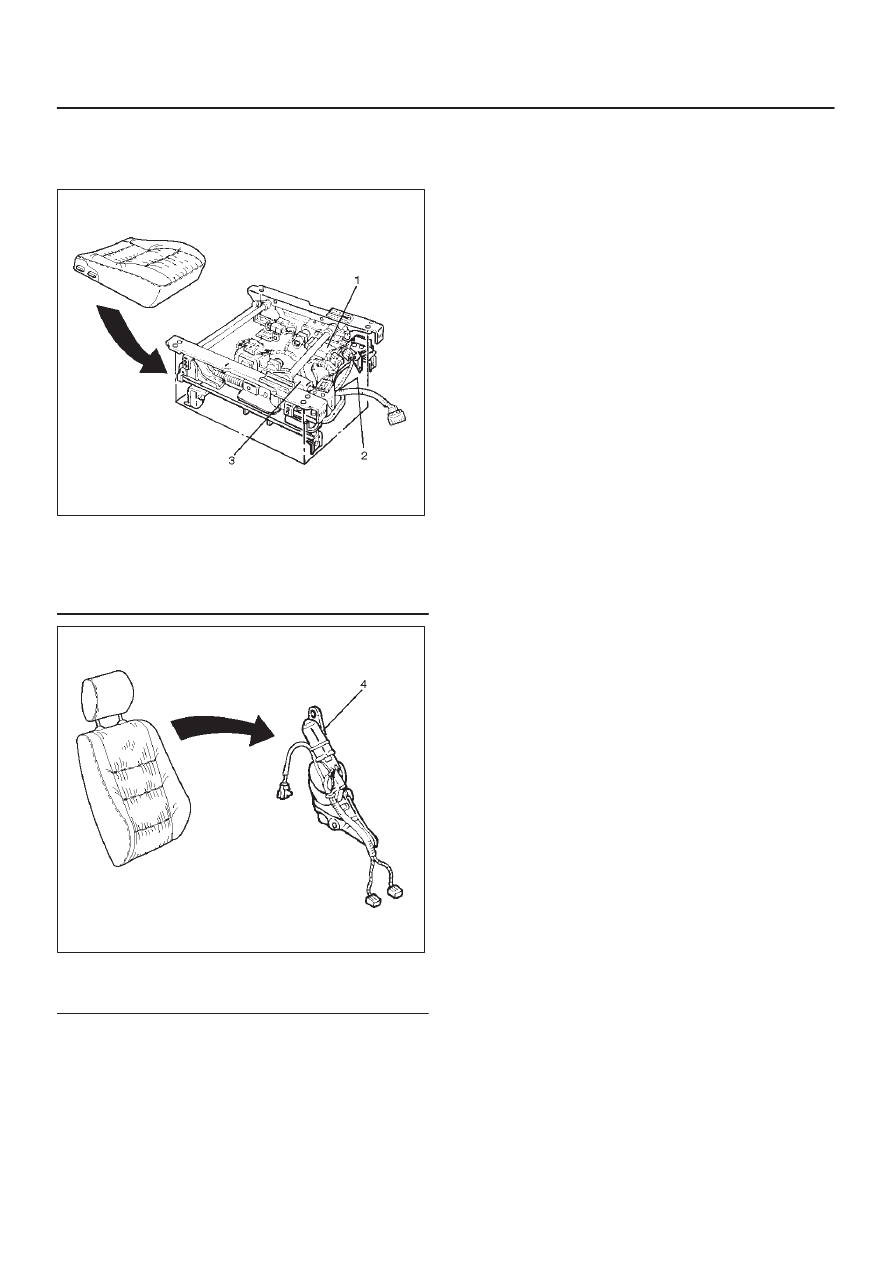

Front Tilt Motor / Rear Tilt Motor / Slide Motor / Recliner Motor

Parts Location

750RS027

Legend

(1) Tilt Motor
(2) Slide Motor
(3) Tilt Motor

750RS028

Legend

(4) Recliner Motor

Removal and Installation

Refer to the Power Seat Assembly in this section.

8G–14 SEATS

Seat Heater System

General Description

The circuit consists of the starter switch, seat heater
switch and the heat unit.
The seat heater is provided in driver’s and front
passenger seats (as option).
When the seat heater switch is ON, the seat heat built in
the seat back and cushion is switched on to warm the
seats.
To prevent the seats from being overheated, the circuit is
fitted with a thermostat.

Seat Heater Switch Removal and
Installation

Refer to the Seat Heater Switch in Lighting System
section.

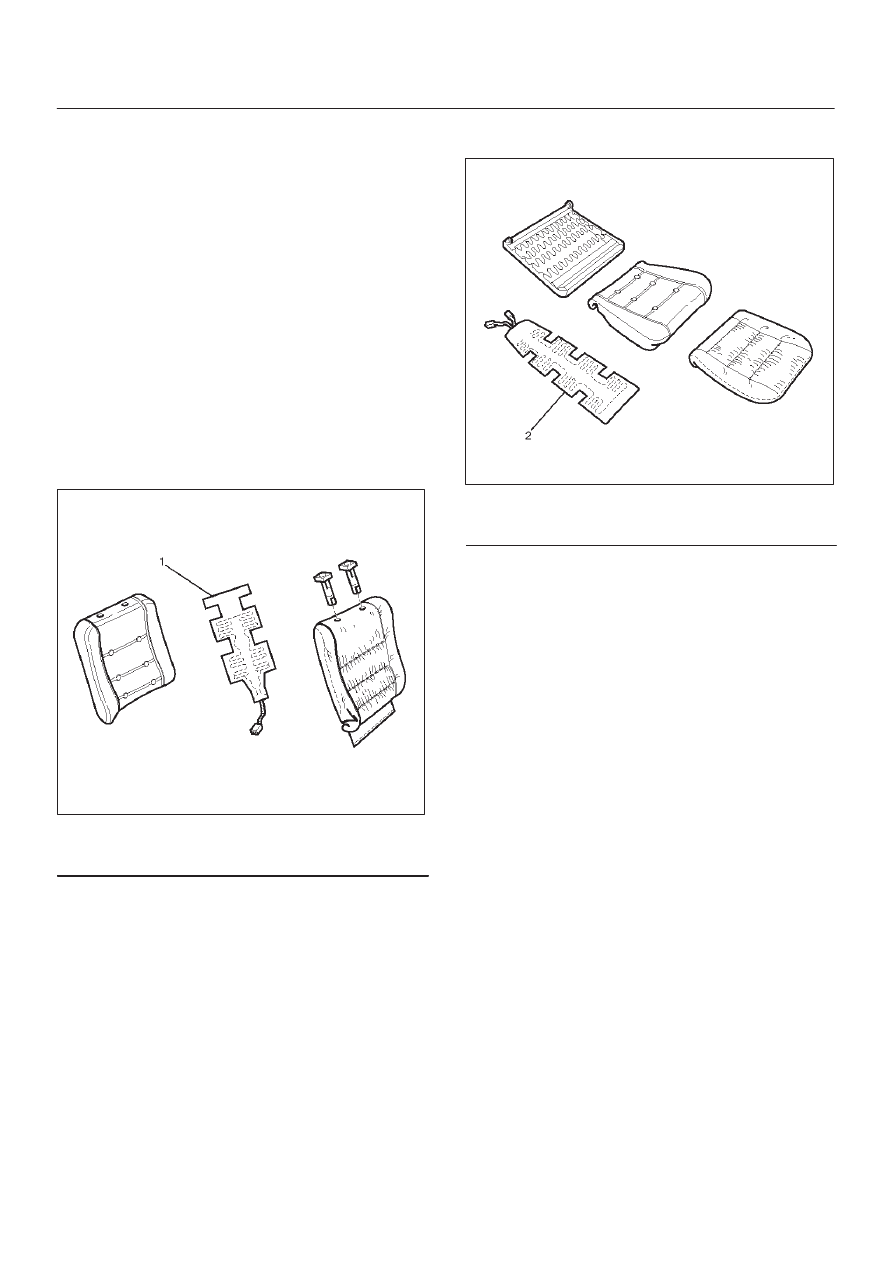

Heat Unit Parts Location

750RS018

Legend

(1) Heat Unit (Seat Back Side)

750RS019

Legend

(2) Heat Unit (Seat Cushion Side)

Heat Unit Removal and Installation

Refer to the Power Seat Assembly in this section.

SEATS 8G–15

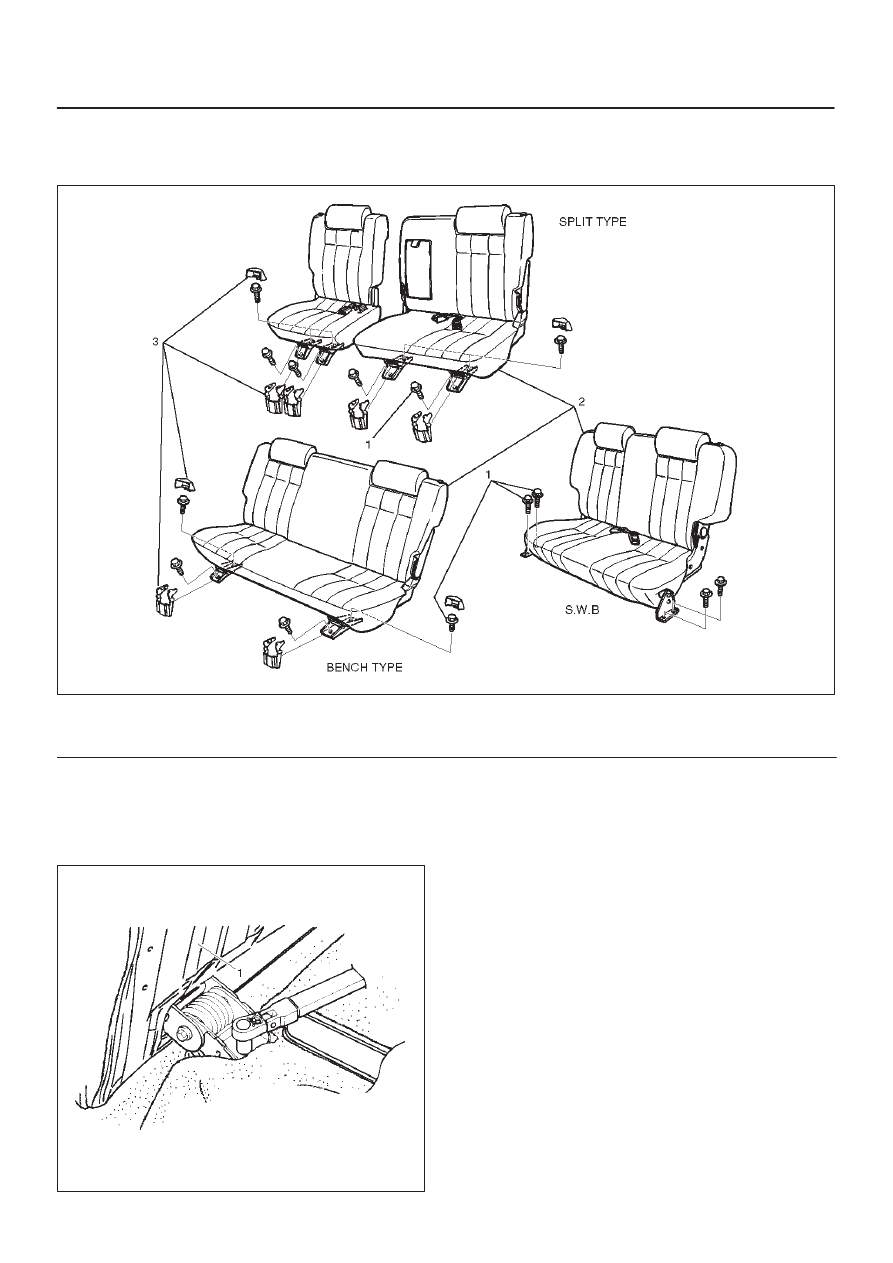

Rear Seat Assembly

Rear Seat Assembly and Associated Parts

755RW031

Legend

(1) Fixing Bolts

(2) Rear Seat Assembly
(3) Mounting Bracket Cover

Removal

1. Unlock the rear seat(1) lock to remove it.
2. Remove the mounting bracket cover.
3. Remove the fixing bolts.

755RS002

4. Remove the rear seat assembly.

Installation

To install, follow the removal steps in the reverse order,
noting the following point.

1. Tighten the rear seat fixing bolts to the specified

torque.

Torque: 19 N·m (1.9kg·m/14 lb ft)

8G–16 SEATS

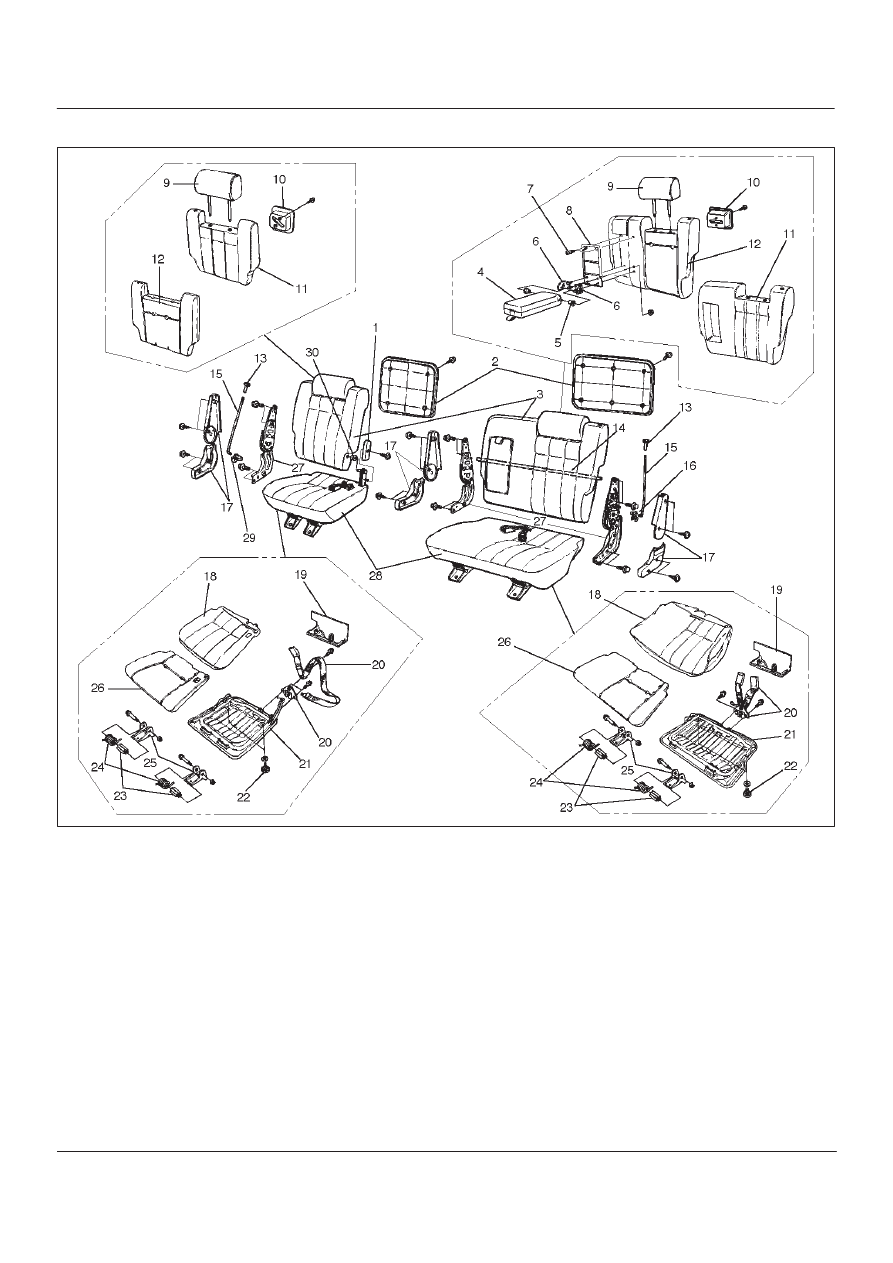

Disassembled View (Split Type)

755RW056

Legend

(1) Free Hinge Cover
(2) Back Board
(3) Seat Back Assembly
(4) Armrest Assembly
(5) Bush
(6) Armrest Set Bracket
(7) Clip
(8) Armrest Board
(9) Pillow Assembly

(10) Band Hook Cover

(11) Trim Cover

(12) Pad & Frame Assembly
(13) Release Knob
(14) Connecting Shaft
(15) Release Rod

(16) Linkage Bush
(17) Device Cover
(18) Trim Cover
(19) Seat Lock Cover
(20) Rear Seat Belt Buckle and Lock Assembly
(21) Frame Assembly
(22) Stopper Rubber
(23) Spring Collar
(24) Return Spring
(25) Mounting Bracket
(26) Pad Assembly
(27) Reclining Device
(28) Seat Cushion Assembly
(29) Linkage Bush
(30) Bush
