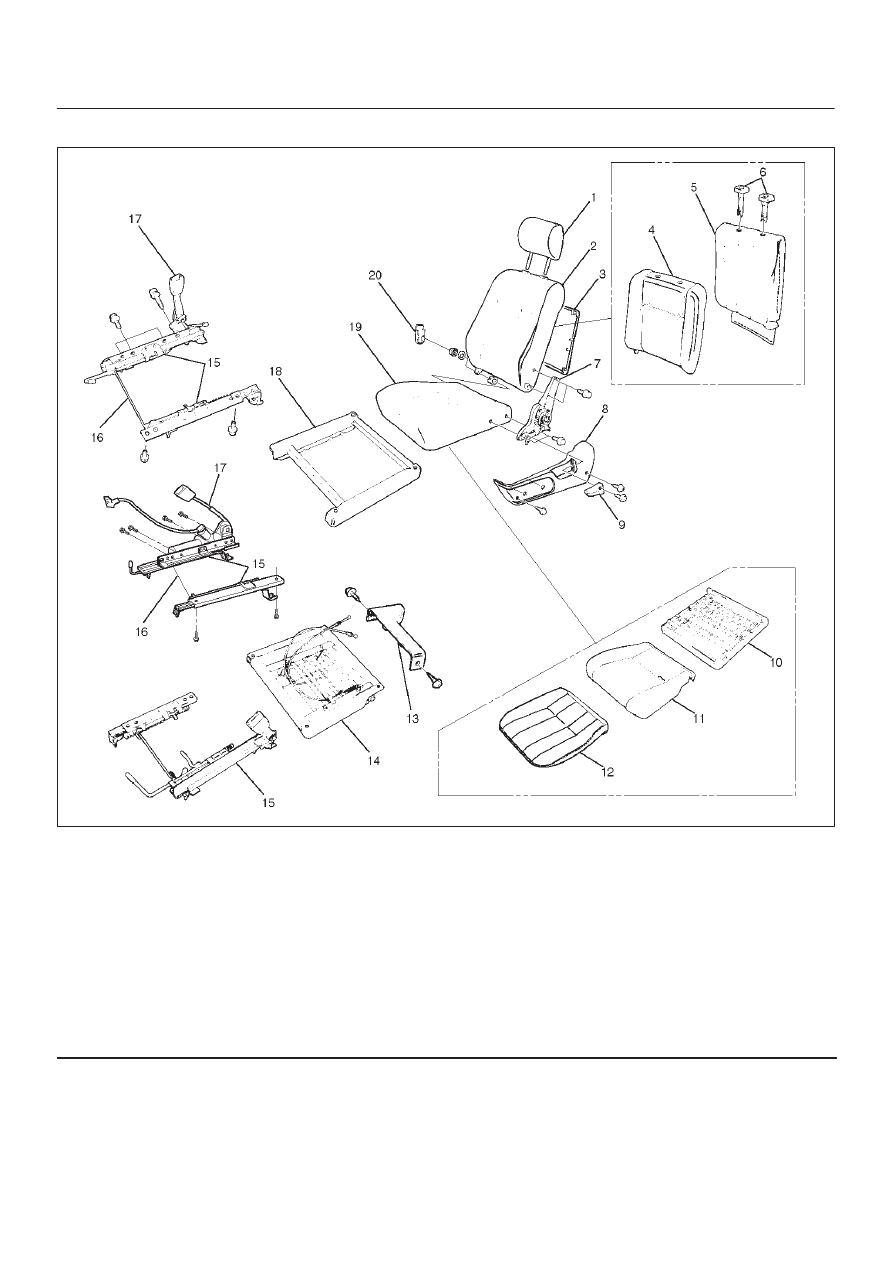

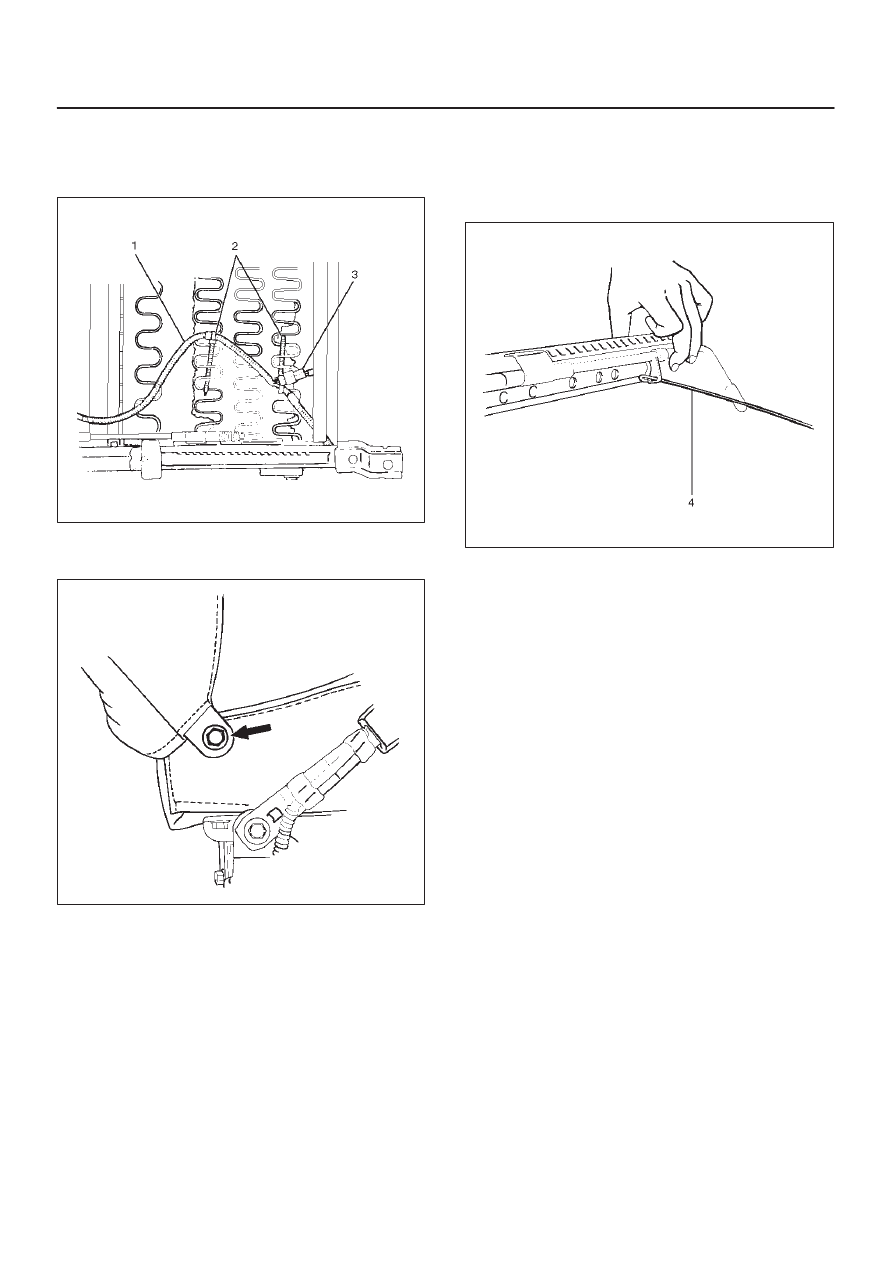

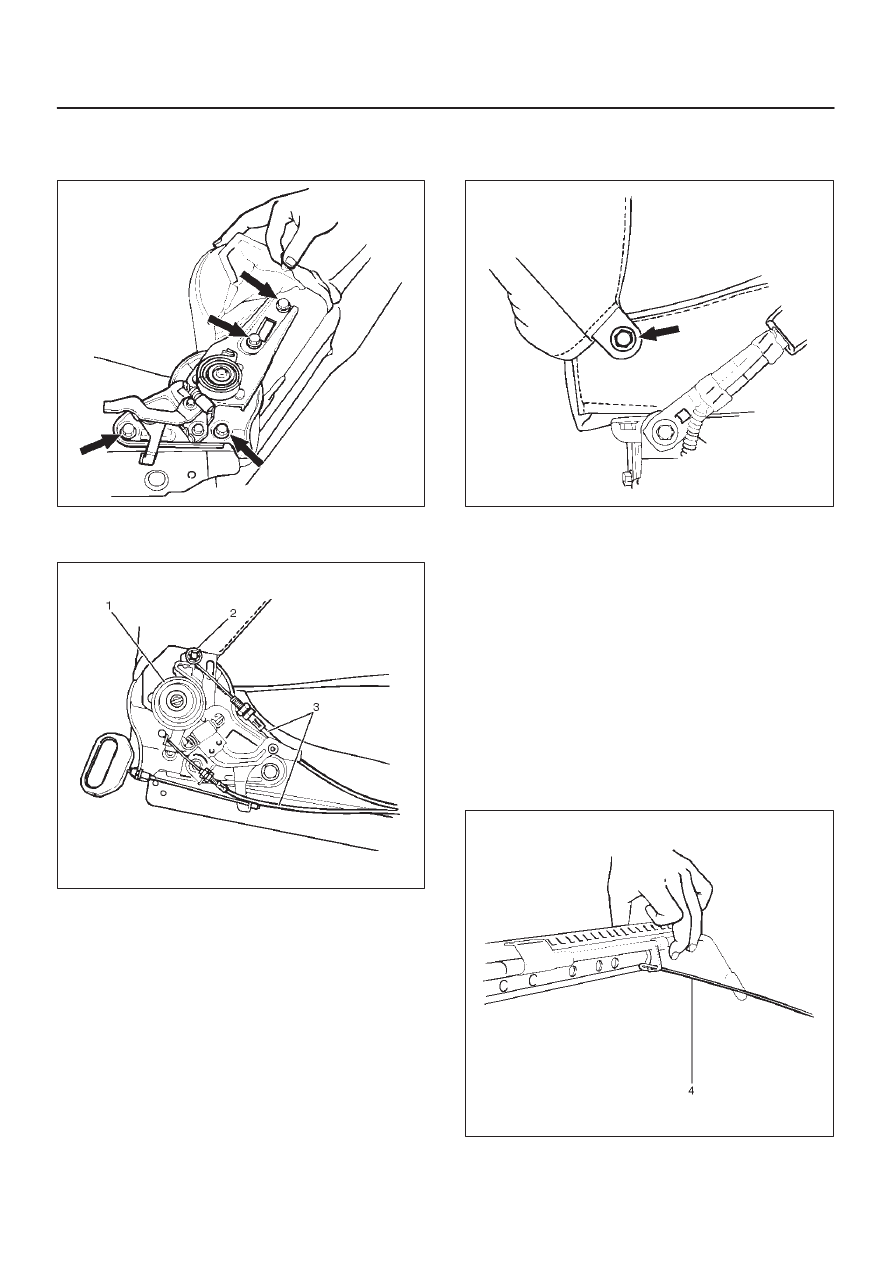

SEATS 8G–5 11. Remove the seat back assembly. D Remove the clips (2) from the seat heater harness 750RW029 D Remove the seat back assembly fixing nut on the 750RS007 12. Remove the guide holder. D Pull the guide holder out by holding the bottom end 13. Remove the trim cover. D Remove the trim cover hog rings from the back side D With close attention paid to the hog rings and the 14. Remove the pad and frame assembly. D Disconnect the release wire(4) and remove the 750RW006 D Remove the seat belt buckle assembly. 17. Remove the height adjuster. D Remove the trim cover hog rings from the back side D With close attention paid to the hog rings and the 21. Remove the frame assembly. Reassembly To reassembly, follow the disassembly steps in the 1. Tighten the armrest assembly fixing bolts to the specified torque. Torque: 18 N·m (1.8 kg·m/13 lb ft) 2. Tighten the reclining device fixing bolts to the specified torque. Torque: 47 N·m (4.8kg·m/35 lb ft) |
