SEATS

8G–1

BODY AND ACCESSORIES

SEATS

CONTENTS

Service Precaution

8G–1

. . . . . . . . . . . . . . . . . . . . . .

Front Seat Assembly

8G–2

. . . . . . . . . . . . . . . . . . . .

Front Seat Assembly and Associated Parts

8G–2

Removal

8G–2

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8G–3

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Disassembled View (LWB)

8G–3

. . . . . . . . . . . . . .

Disassembly

8G–4

. . . . . . . . . . . . . . . . . . . . . . . . . .

Reassembly

8G–5

. . . . . . . . . . . . . . . . . . . . . . . . . .

Disassembled View (SWB)

8G–6

. . . . . . . . . . . . .

Disassembly

8G–6

. . . . . . . . . . . . . . . . . . . . . . . . . .

Reassembly

8G–8

. . . . . . . . . . . . . . . . . . . . . . . . . .

Power Seat Assembly

8G–9

. . . . . . . . . . . . . . . . . . .

General Description

8G–9

. . . . . . . . . . . . . . . . . . . . .

Disassembled View

8G–9

. . . . . . . . . . . . . . . . . . . .

Disassembly

8G–10

. . . . . . . . . . . . . . . . . . . . . . . . . .

Reassembly

8G–12

. . . . . . . . . . . . . . . . . . . . . . . . . .

Power Seat Switch

8G–12

. . . . . . . . . . . . . . . . . . . . . .

Removal

8G–12

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8G–12

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Front Tilt Motor / Rear Tilt Motor /
 Slide Motor / Recliner Motor

8G–13

. . . . . . . . . . . . . .

Parts Location

8G–13

. . . . . . . . . . . . . . . . . . . . . . . .

Removal and Installation

8G–13

. . . . . . . . . . . . . . .

Seat Heater System

8G–14

. . . . . . . . . . . . . . . . . . . . .

General Description

8G–14

. . . . . . . . . . . . . . . . . . . . .

Seat Heater Switch Removal and
 Installation

8G–14

. . . . . . . . . . . . . . . . . . . . . . . . . . .

Heat Unit Parts Location

8G–14

. . . . . . . . . . . . . . . .

Heat Unit Removal and Installation

8G–14

. . . . . .

Rear Seat Assembly

8G–15

. . . . . . . . . . . . . . . . . . . . .

Rear Seat Assembly and Associated Parts

8G–15

Removal

8G–15

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8G–15

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Disassembled View (Split Type)

8G–16

. . . . . . . . .

Disassembly (Split Type)

8G–17

. . . . . . . . . . . . . . .

Reassembly (Split Type)

8G–18

. . . . . . . . . . . . . . . .

Disassembled View (SWB)

8G–19

. . . . . . . . . . . . .

Disassembly

8G–19

. . . . . . . . . . . . . . . . . . . . . . . . . .

Reassembly

8G–20

. . . . . . . . . . . . . . . . . . . . . . . . . .

Disassembled View (Bench Type)

8G–21

. . . . . . .

Disassembly (Bench Type)

8G–22

. . . . . . . . . . . . .

Reassembly (Bench Type)

8G–23

. . . . . . . . . . . . . .

Third Seat Assembly

8G–23

. . . . . . . . . . . . . . . . . . . . .

Parts Location

8G–23

. . . . . . . . . . . . . . . . . . . . . . . .

Removal

8G–23

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8G–24

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Disassembled View

8G–24

. . . . . . . . . . . . . . . . . . . .

Disassembly

8G–25

. . . . . . . . . . . . . . . . . . . . . . . . . .

Reassembly

8G–25

. . . . . . . . . . . . . . . . . . . . . . . . . .

Rear Seat Foot Rest

8G–25

. . . . . . . . . . . . . . . . . . . . .

Rear Seat Foot Rest and Associated Parts

8G–25

Removal

8G–26

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8G–26

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Main Data and Specifications

8G–26

. . . . . . . . . . . . .

Service Precaution

WARNING: IF SO EQUIPPED WITH A
SUPPLEMENTAL RESTRAINT SYSTEM (SRS),
REFER TO THE SRS COMPONENT AND WIRING
LOCATION VIEW IN ORDER TO DETERMINE
WHETHER YOU ARE PERFORMING SERVICE ON OR
NEAR THE SRS COMPONENTS OR THE SRS
WIRING. WHEN YOU ARE PERFORMING SERVICE
ON OR NEAR THE SRS COMPONENTS OR THE SRS
WIRING, REFER TO THE SRS SERVICE
INFORMATION. FAILURE TO FOLLOW WARNINGS
COULD RESULT IN POSSIBLE AIR BAG
DEPLOYMENT, PERSONAL INJURY, OR
OTHERWISE UNNEEDED SRS SYSTEM REPAIRS.

CAUTION: Always use the correct fastener in the
proper location. When you replace a fastener, use
ONLY the exact part number for that application.
ISUZU will call out those fasteners that require a
replacement after removal. ISUZU will also call out
the fasteners that require thread lockers or thread
sealant. UNLESS OTHERWISE SPECIFIED, do not
use supplemental coatings (Paints, greases, or other
corrosion inhibitors) on threaded fasteners or
fastener joint interfaces. Generally, such coatings
adversely affect the fastener torque and the joint
clamping force, and may damage the fastener. When
you install fasteners, use the correct tightening
sequence and specifications. Following these
instructions can help you avoid damage to parts and
systems.

SECTION

8G–2

SEATS

Front Seat Assembly

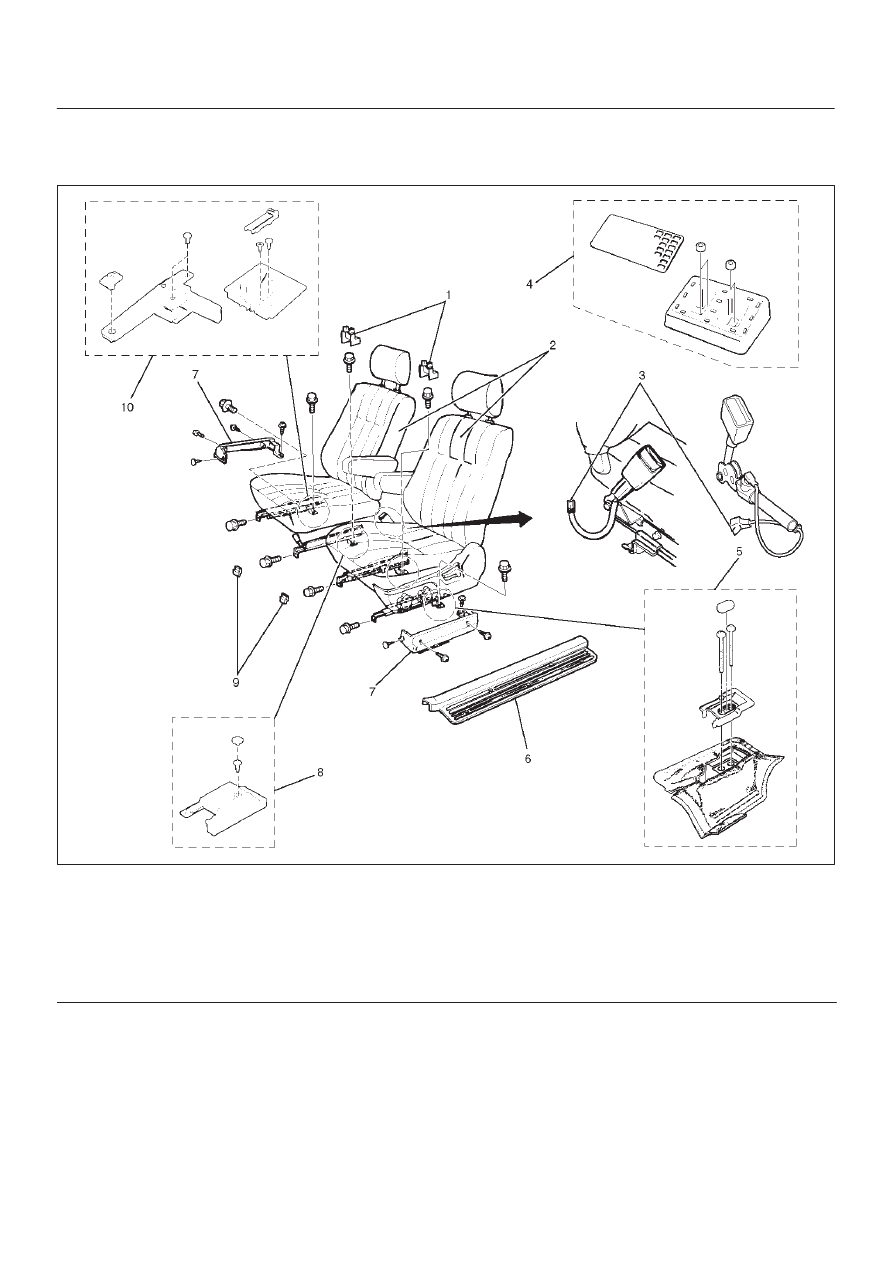

Front Seat Assembly and Associated Parts

750RX016

Legend

(1) Rear Cover
(2) Front Seat Assembly
(3) Seat Belt Warning Connector/Pretensioner

Harness Connector

(4) Rear Seat Foot Rest (LWB)

(5) Seat Rail Cover (SWB)
(6) Door Sill Plate
(7) Riser Cover (LWB)
(8) Seat Slide Cover (SWB)
(9) Front Cover

(10) Seat Rail Cover and Hole Cover (SWB)

Removal

1. Disconnect the battery ground cable.
2. Remove the front cover.
3. Remove the rear cover.

D

Remove the cover fixing screw from the rear inner
cover, if this model is equipped with the power
seats.

4. Remove the door sill plate.

5. Remove the rear seat foot rest.

D

Refer to the Rear Seat Foot Rest in this section.

6. Remove the riser cover.
7. Remove the seat belt warning connector (Driver’s

side only) or pretensioner harness connector.

8. Remove the front seat assembly.

D

Disconnect the power seat connector, if this model
is equipped with the power seats.

SEATS

8G–3

Installation

To install, follow the removal steps in the reverse order,
noting the following points:

1. Tighten the front seat assembly fixing bolts to the

specified torque.

Torque: 40 N·m (4.1 kg·m/30 lb ft)

2. Install the longest bolt to the rear inner side fixing

location, if this model is equipped with power seats.

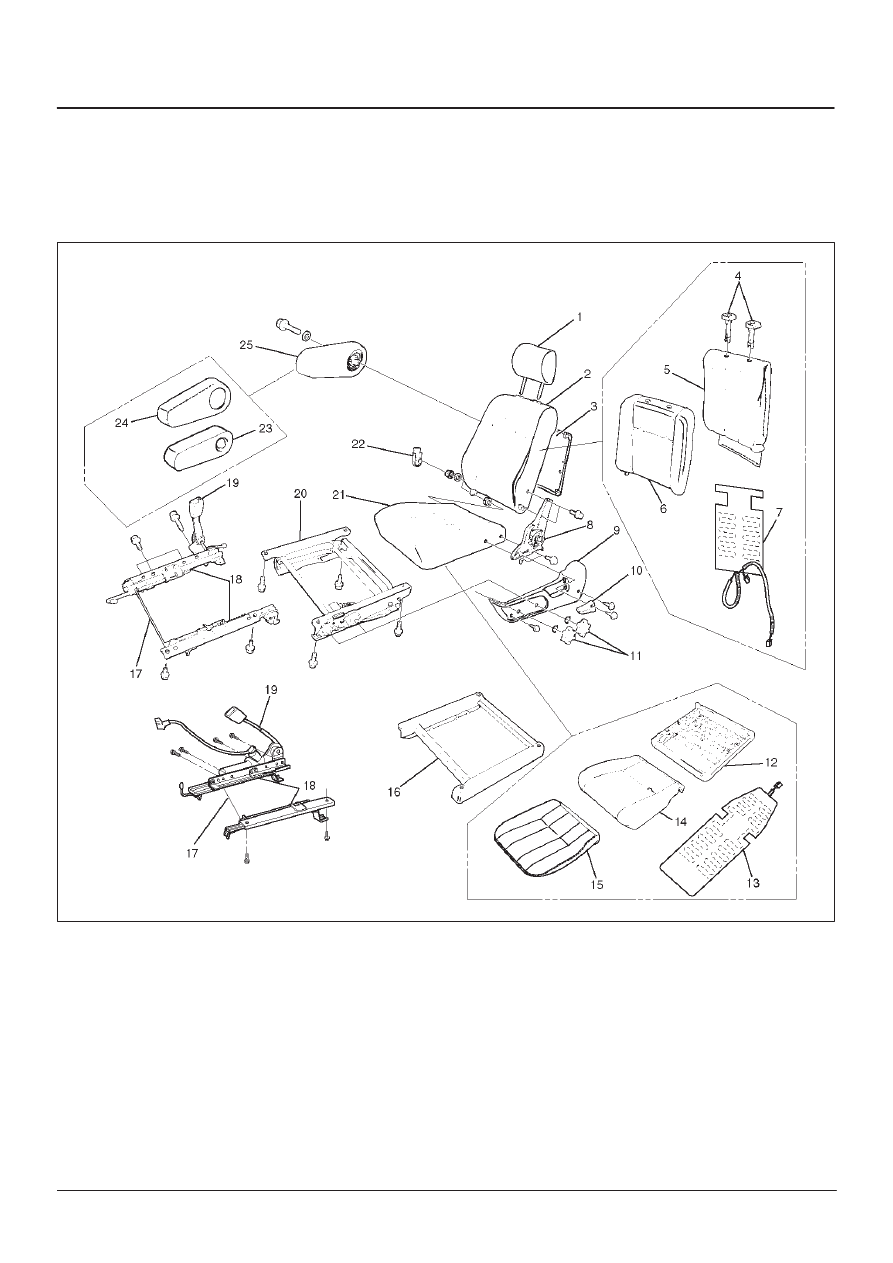

Disassembled View (LWB)

750RX017

Legend

(1) Head Rest
(2) Seat Back Assembly
(3) Back Board Assembly
(4) Guide Holder
(5) Trim Cover
(6) Pad & Frame Assembly
(7) Seat Heater Assembly
(8) Reclining Device
(9) Slide Cover

(10) Reclining Knob

(11) Dial (W/Height Adjuster)

(12) Frame Assembly

(13) Seat Heater Assembly
(14) Pad Assembly
(15) Trim Cover
(16) Spacer (W/O Height Adjuster)
(17) Release Wire
(18) Seat Adjuster/Seat Adjuster (W/Pretensioner)
(19) Seat Belt Buckle Assembly
(20) Height Adjuster
(21) Seat Cushion Assembly
(22) Hinge Cover
(23) Pad & Frame Assembly
(24) Trim Cover
(25) Armrest Assembly

8G–4

SEATS

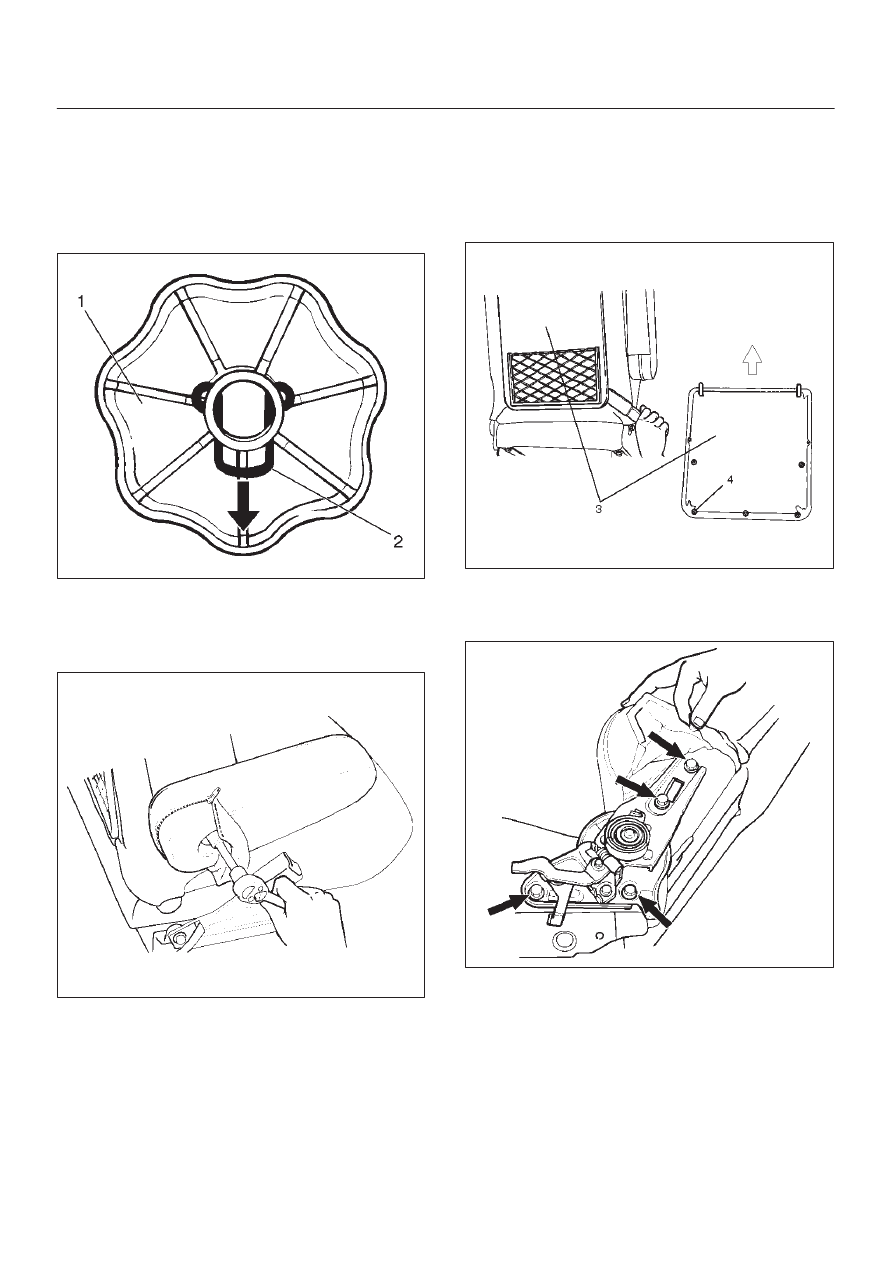

Disassembly

1. Remove the head rest.
2. Remove the reclining knob.
3. Remove the dial(1) (W/height adjuster).

D

Remove the side cover fixing screws and the dial
lock spring(2).

750RW025

4. Remove the side cover.
5. Remove the armrest assembly.

D

Open the armrest fastener and remove the armrest
fixing bolt.

750RS004

6. Remove the trim cover.
7. Remove the pad and frame assembly.
8. Remove the hinge cover.
9. Remove the back board assembly(3).

D

Pull out the back board while prying the clip (4) of
the back board free from the seat back assembly.

750RW032

10. Remove the reclining device.

D

Turn up the seat back trim cover in order to remove
the reclining device fixing bolts.

750RS006
