SEATS
8G–9
Power Seat Assembly
General Description
The circuit consists of the power seat switch, front tilt
motor (driver’s seat only), rear tilt motor (driver’s seat
only), slide motor and the recliner motor.
The power seat switch has a tilt & slide switch and a
recliner switch.
The motor built in the seat can be actuated by operating
these switches to move the seat to desired position,
independent of the position of the starter switch.

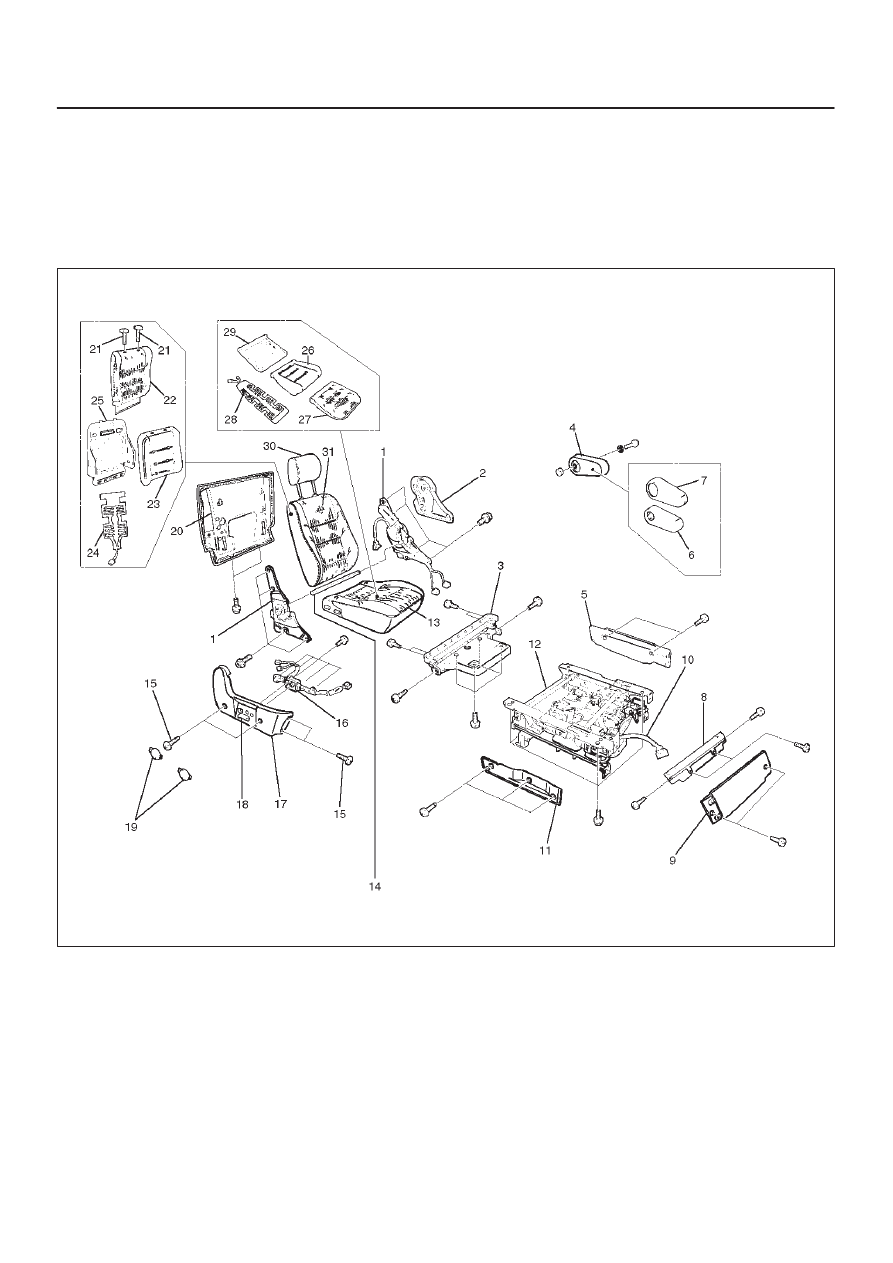

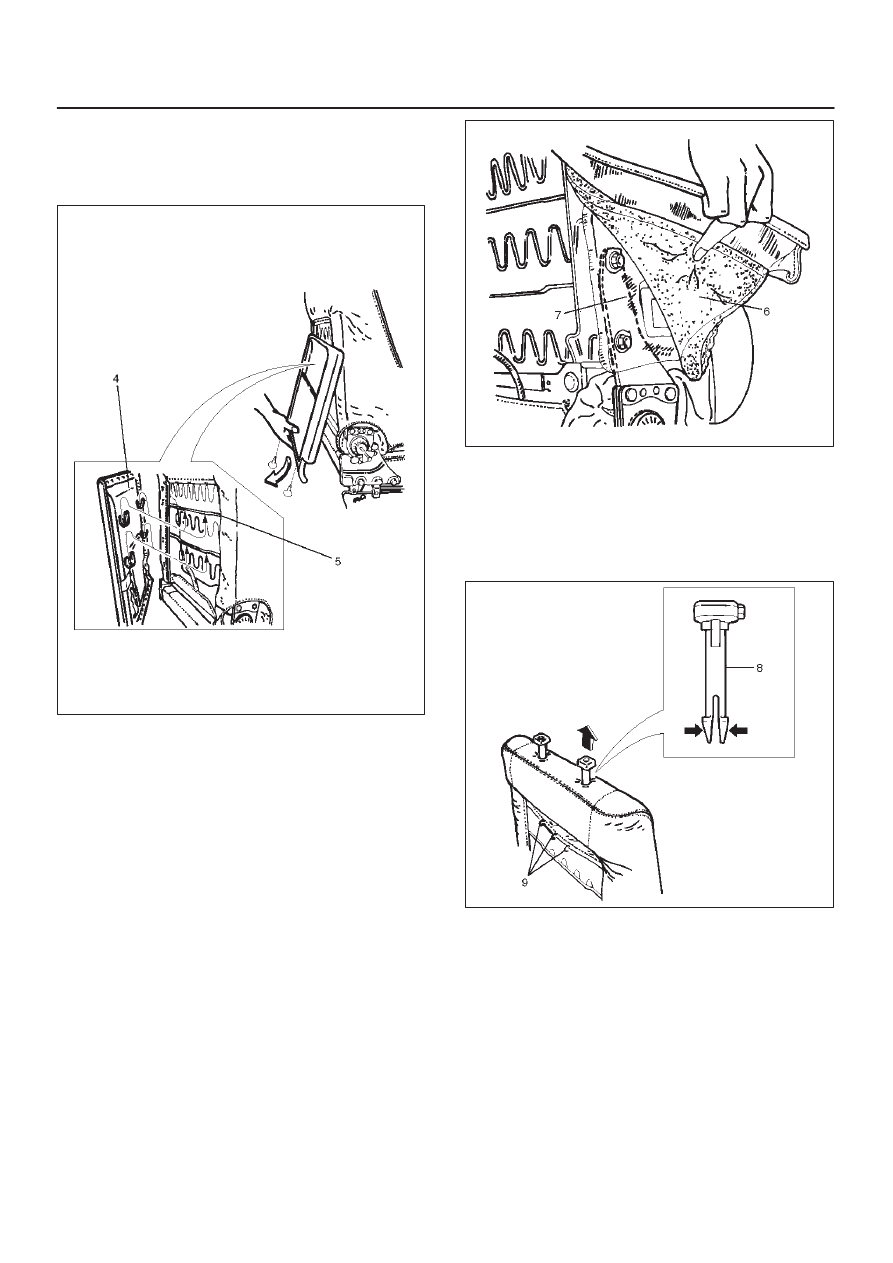

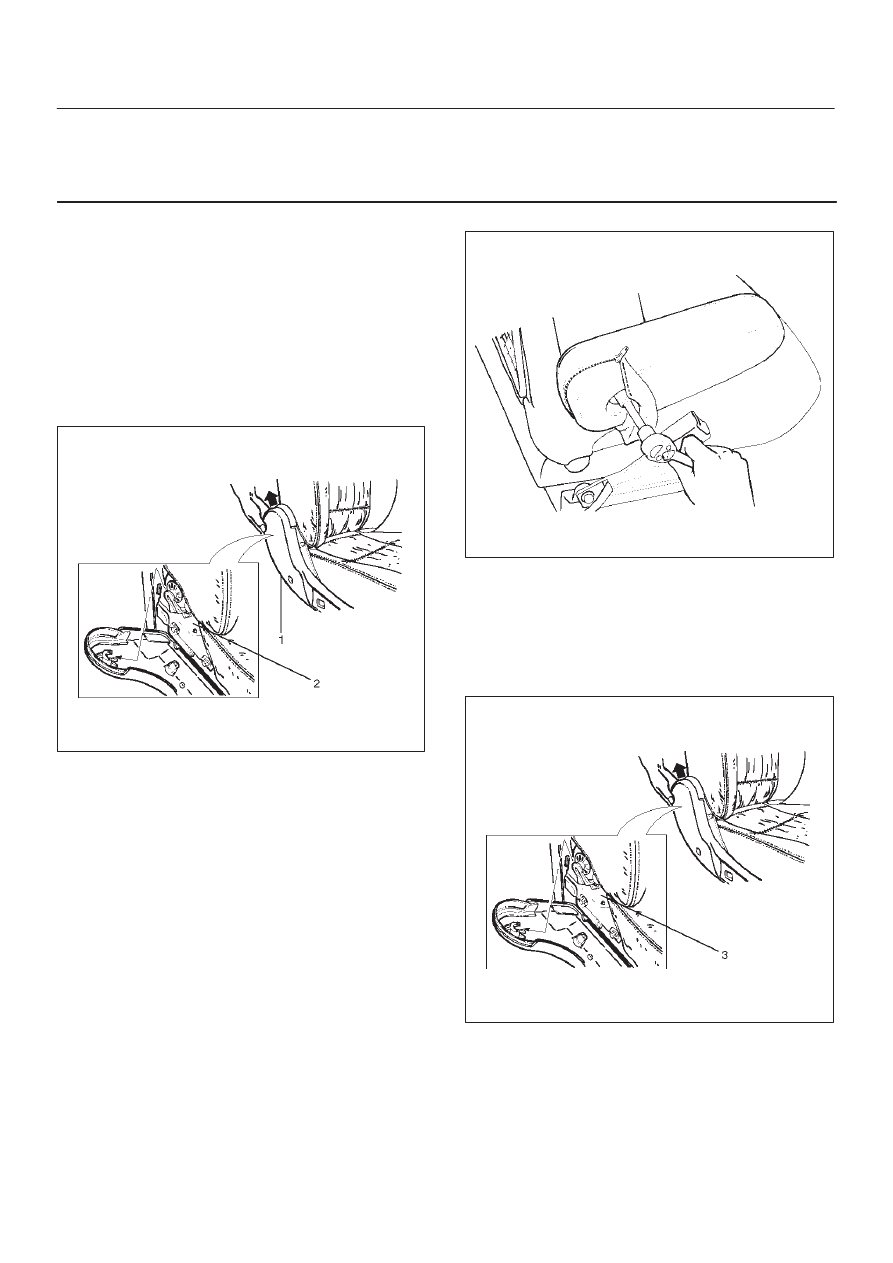

Disassembled View
750RS011
Legend
(1) Reclining Device
(2) Inner Cover
(3) Rear Cover
(4) Armrest Assembly
(5) Inner Lower Cover
(6) Pad & Frame Assembly
(7) Trim Cover
(8) Front Lower Cover
(9) Front Cover
(10) Power Seat Harness
(11) Outer Lower Cover
(12) Adjuster Assembly
(13) Seat Cushion Assembly
(14) Connecting Shaft
(15) Outer Cover Fixing Screws

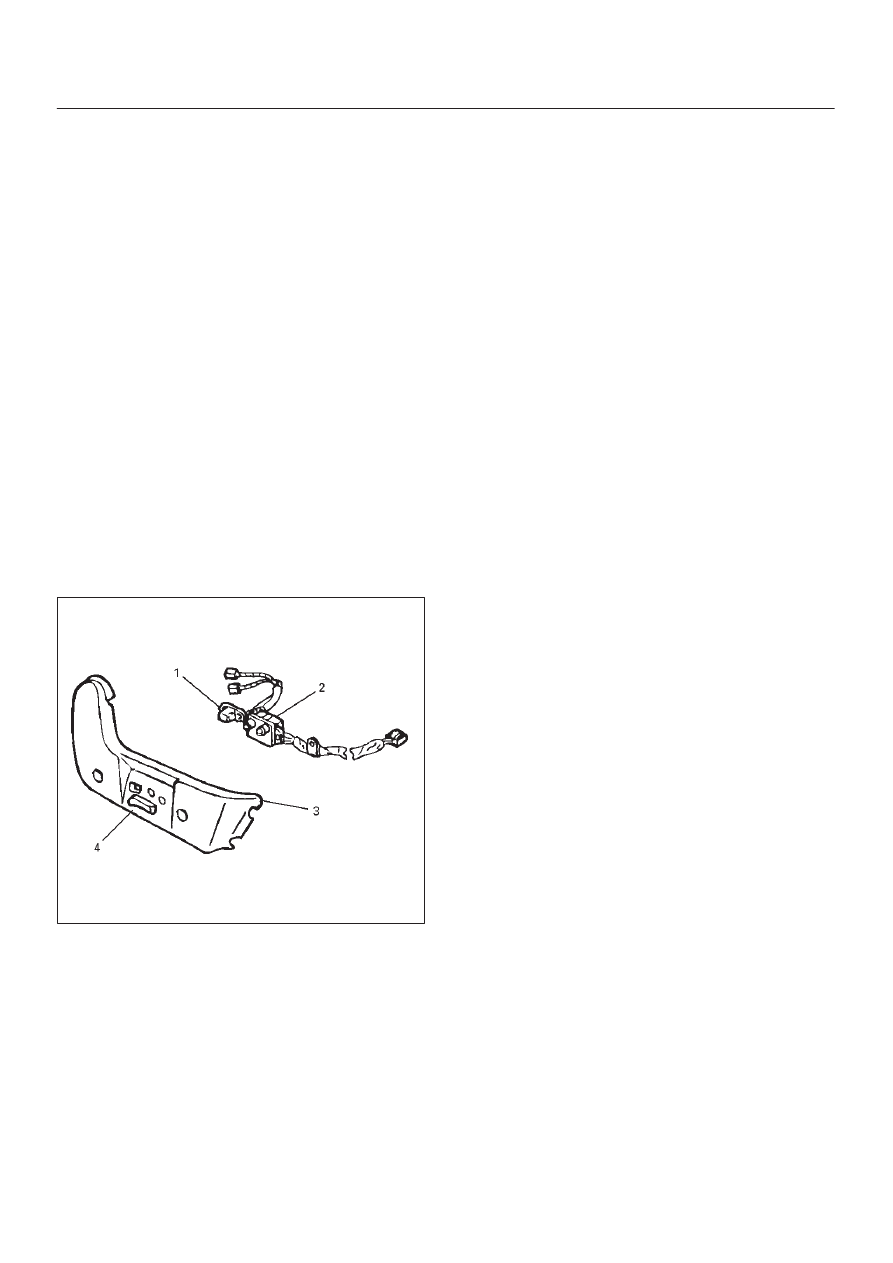

(16) Switch Assembly
(17) Outer Cover
(18) Switch Knob
(19) Outer Cover Cap
(20) Back Board Assembly
(21) Guide Holder
(22) Trim Cover
(23) Pad Assembly
