SEATS 8G–17

Disassembly (Split Type)

1. Remove the back board.

D

Remove the clips and the back board.

2. Remove the device cover.
3. Remove the release knob.

D

Turn the knob counterclockwise to remove it.

4. Remove the release rod.

D

Disconnect the rod from the linkage bush.

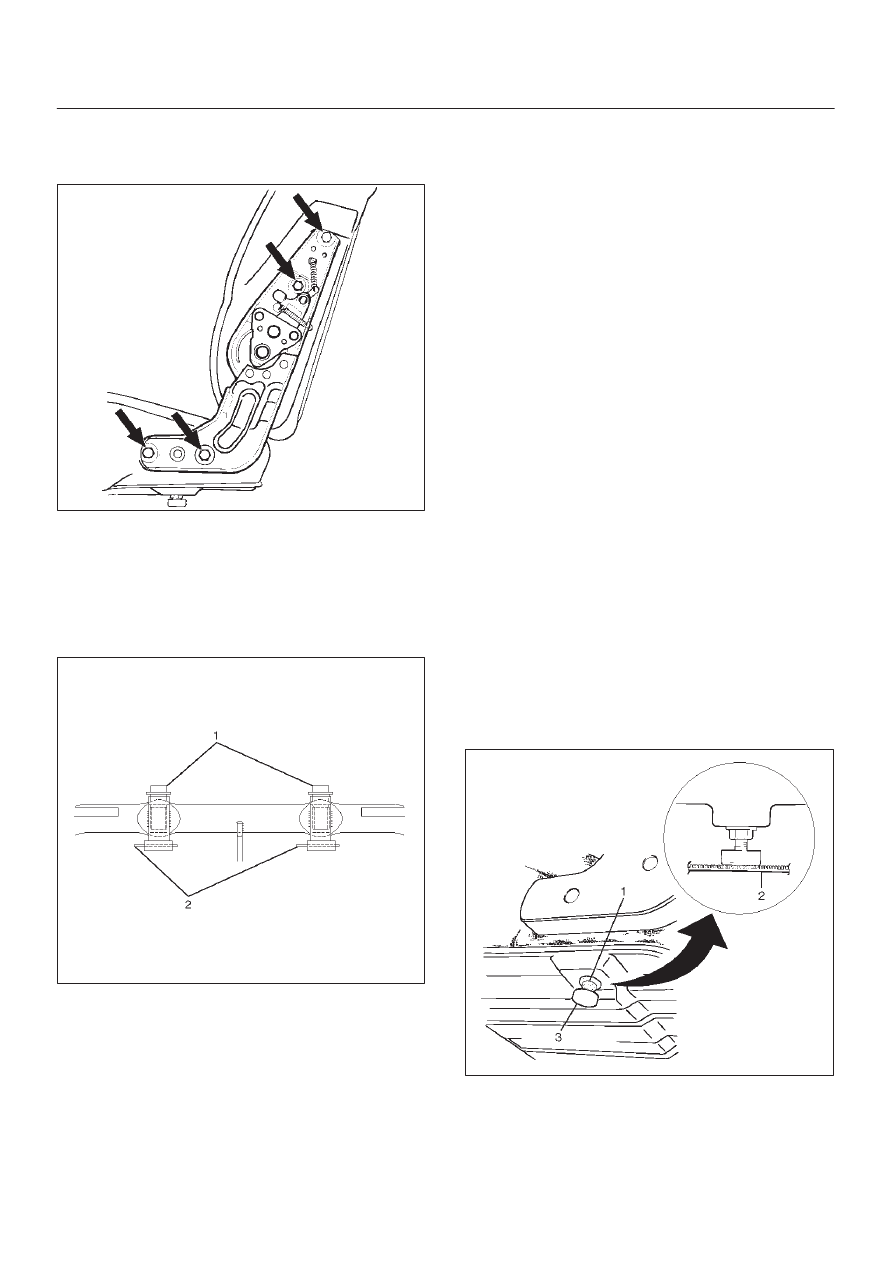

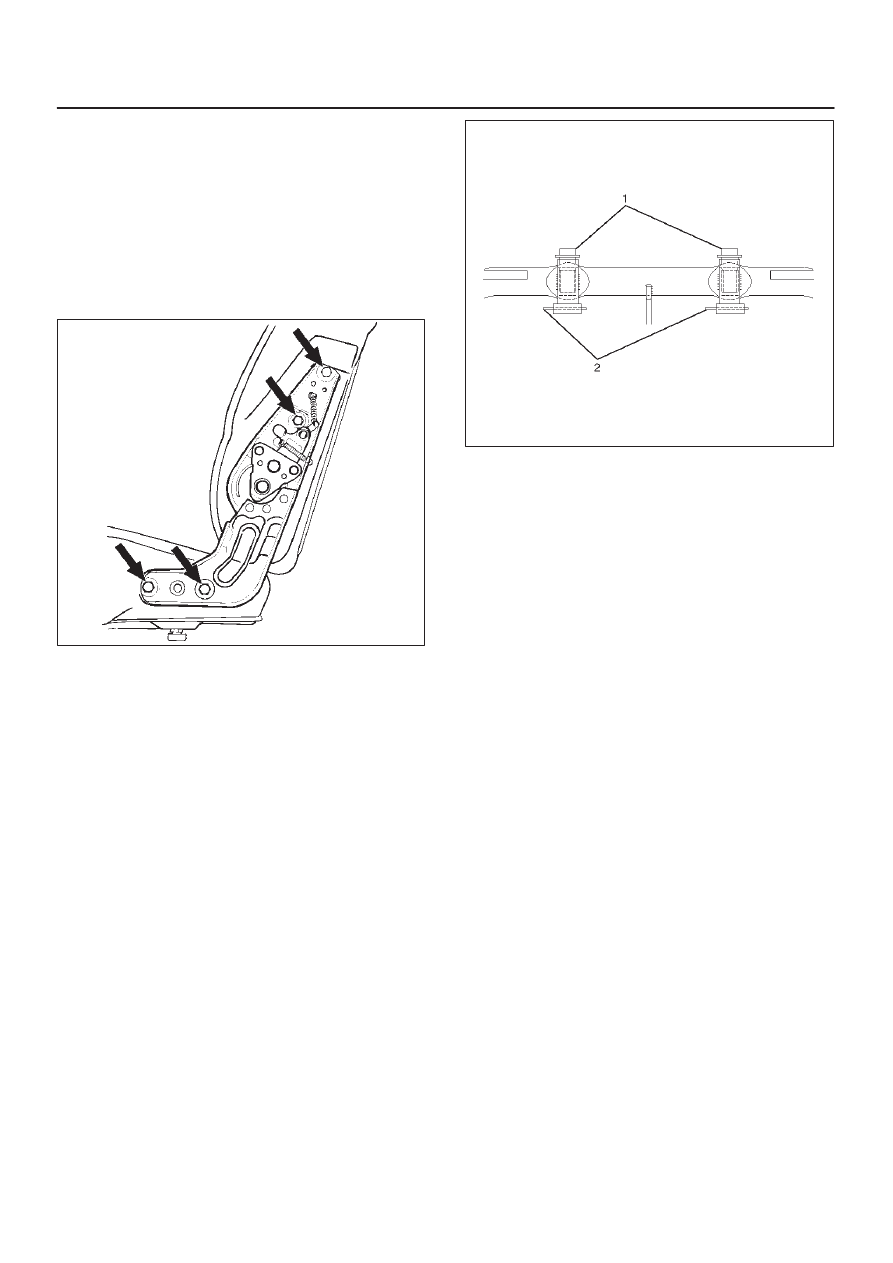

5. Remove the reclining device.

755RS004

6. Remove the connecting shaft.
7. Remove the seat back assembly.
8. Remove the pillow assembly.

D

Turn up the seat back trim cover and slit the pad
from the back around to the place where the lock
spring(2) of the guide bush(1) is.

Then insert a finger through the slit and pull out the
pillow while you are pressing down on the lock spring.

755RS017

9. Remove the band hook cover.

10. Remove the armrest assembly.

D

Turn up the seat back trim cover and remove the
fixing nuts.

11. Remove the armrest set bracket.

12. Remove the armrest board.
13. Remove the trim cover.

D

Remove the trim cover fixing hog rings from the
backside of the seat back.

D

With close attention paid to the hog rings and the
wire which connect the trim cover and the pad and
frame assembly, remove the trim cover while
turning it up.

14. Remove the pad & frame assembly.
15. Remove the seat cushion assembly.
16. Remove the seat lock cover.
17. Remove the rear seat belt buckle and lock assembly.
18. Remove the mounting bracket.
19. Remove the return spring.
20. Remove the spring collar.
21. Remove the trim cover.

D

Remove the hog rings and pull the trim cover out
from the frame assembly groove.

D

With close attention paid to the hog rings and the
wire which connect the trim cover and the pad &
frame assembly, remove the trim cover while
turning it up.

22. Remove the frame assembly.
23. Remove the pad assembly.
24. Remove the stopper rubber.

8G–18 SEATS

Reassembly (Split Type)

To reassemble, follow the disassembly steps in the
reverse order, noting the following point.

1. Tighten the reclining device fixing bolts to the

specified torque.

Torque: 27 N·m (2.8kg·m/20 lb ft)

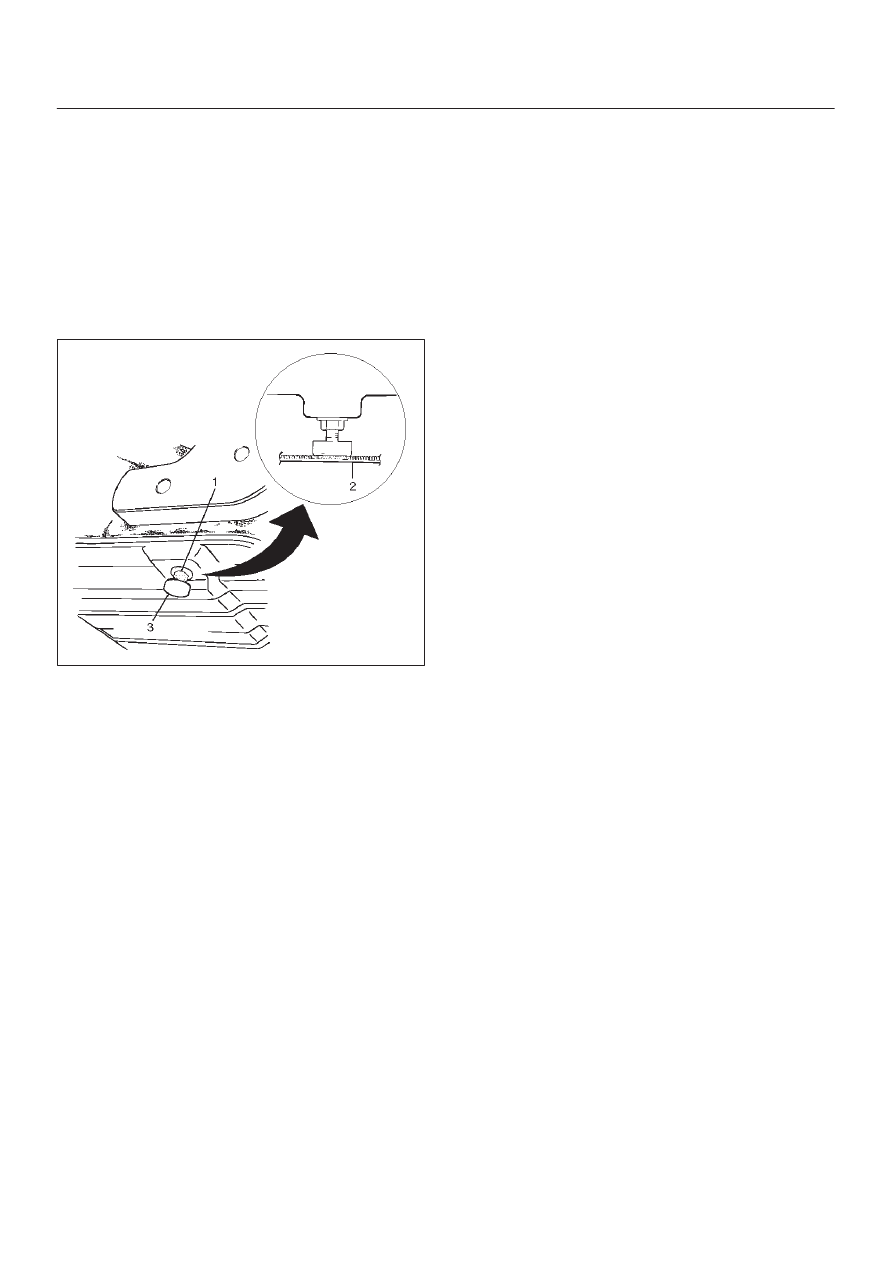

2. Loosen the rubber stopper lock nut(1).  Adjust the

stopper(3) so there is no clearance between the
bottom of the stopper and the carpet(2) while you
make sure the rear seat is firmly locked.
Then tighten the lock nut securely.

755RS005

SEATS 8G–19

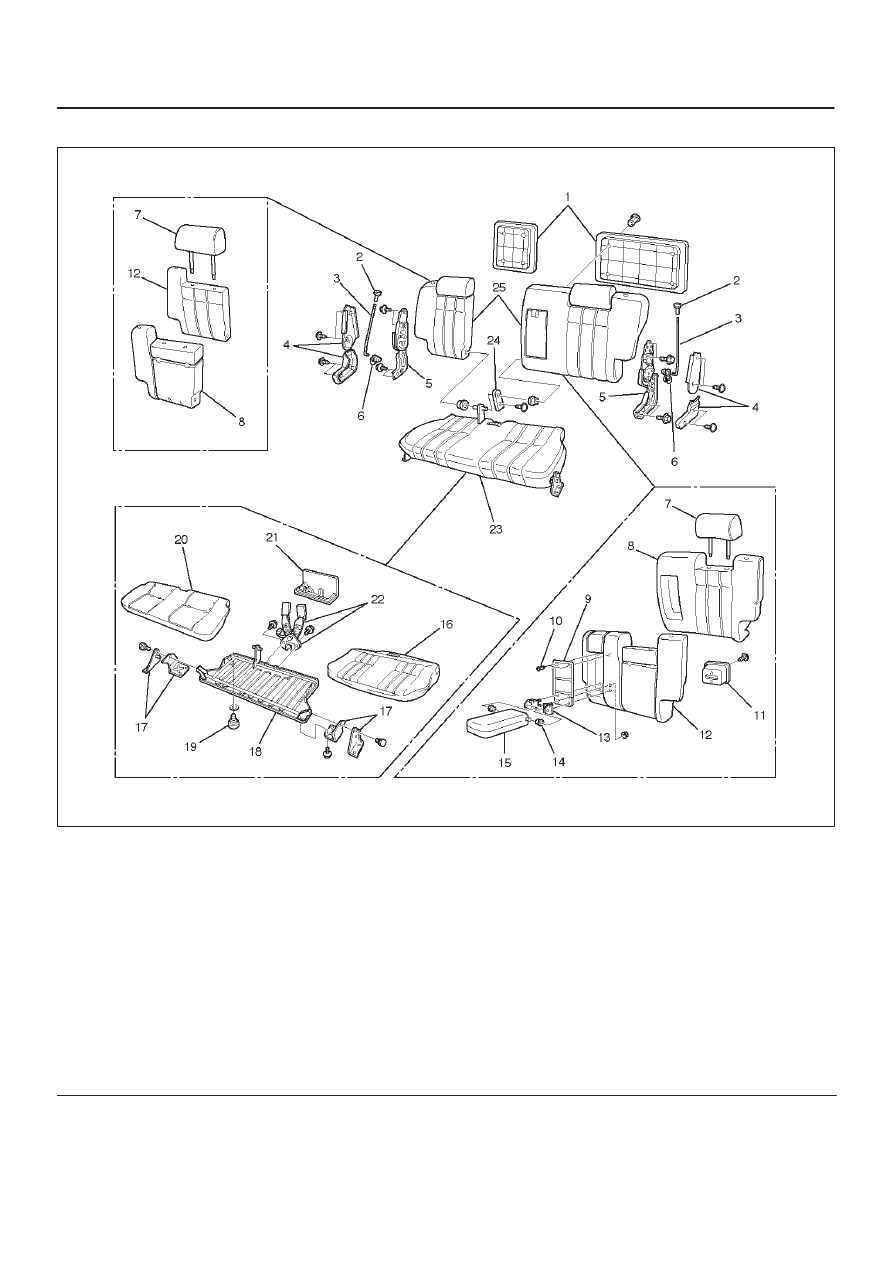

Disassembled View (SWB)

755RW036

Legend

(1) Back Board
(2) Release Knob
(3) Release Rod
(4) Device Cover
(5) Reclining Device
(6) Linkage Bush
(7) Pillow Assembly
(8) Pad & Frame Assembly
(9) Armrest Board

(10) Clip

(11) Band Hook Cover

(12) Trim Cover

(13) Armrest Set Bracket
(14) Bush
(15) Armrest Assembly
(16) Trim Cover
(17) Mounting Bracket
(18) Frame Assembly
(19) Stopper Rubber
(20) Pad Assembly
(21) Seat Lock Cover
(22) Rear seat Belt Bukle and Lock Assembly
(23) Seat Cushion Assembly
(24) Free Hinge Cover
(25) Seat Back Assembly

Disassembly

1. Remove the back board.

D

Remove the clips and the back board.

2. Remove the device cover.
3. Remove the release knob.

D

Turn the knob counterclockwise to remove it.

8G–20 SEATS

4. Remove the release rod.

D

Disconnect the rod from the linkage bush.

5. Remove the reclining device.

755RS004

6. Remove the seat back assembly.
7. Remove the pillow assembly.

D

Turn up the seat back trim cover and slit the pad
from the back around to the place where the lock
spring(2) of the guide bush(1) is.

Then insert a finger through the slit and pull out the
pillow while you are pressing down on the lock spring.

755RS017

8. Remove the band hook cover.
9. Remove the armrest assembly.

D

Turn up the seat back trim cover and remove the
fixing nuts.

10. Remove the armrest set bracket.

11. Remove the armrest board.

12. Remove the trim cover.

D

Remove the trim cover fixing hog rings from the
backside of the seat back.

D

With close attention paid to the hog rings and the
wire which connect the trim cover and the pad and
frame assembly, remove the trim cover while
turning it up.

13. Remove the pad & frame assembly.
14. Remove the free hinge cover.
15. Remove the seat cushion assembly.
16. Remove the seat lock cover.
17. Remove the rear seat belt buckle and lock assembly.
18. Remove the mounting bracket.
19. Remove the trim cover.

D

Remove the hog rings and pull the trim cover out
from the frame assembly groove.

D

With close attention paid to the hog rings and the
wire which connect the trim cover and the pad &
frame assembly, remove the trim cover while
turning it up.

20. Remove the frame assembly.
21. Remove the pad assembly.
22. Remove the stopper rubber.

Reassembly

To reassemble, follow the disassembly steps in the
reverse order, noting the following point.

1. Tighten the reclining device fixing bolts to the

specified torque.

Torque: 27 N·m (2.8kg·m/20 lb ft)

2. Loosen the rubber stopper lock nut(1).  Adjust the

stopper(3) so there is no clearance between the
bottom of the stopper and the carpet(2) while you
make sure the rear seat is firmly locked.
Then tighten the lock nut securely.

755RS005
