Infiniti QX56 (Z62). Manual - part 844





INT-24

< REMOVAL AND INSTALLATION >

FLOOR TRIM

FLOOR TRIM

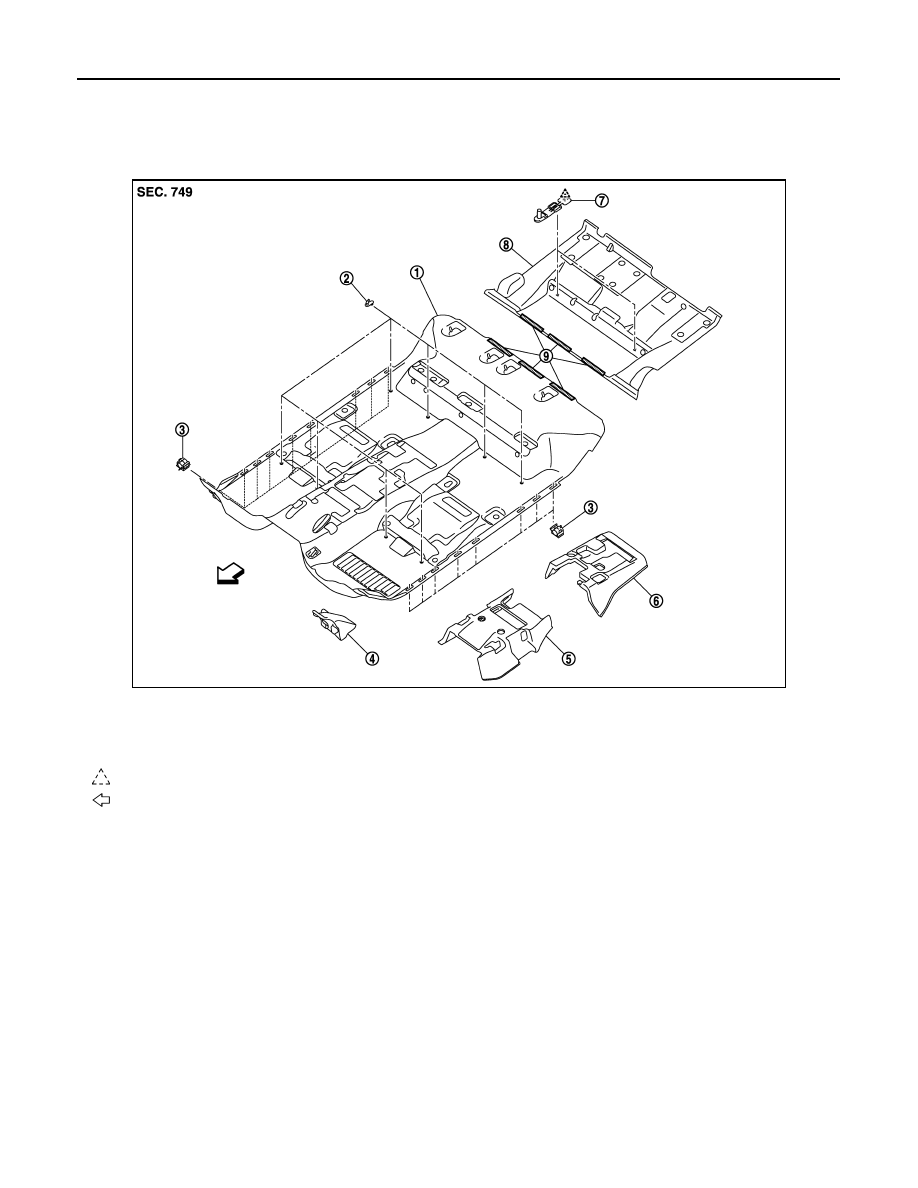

Exploded View

INFOID:0000000006220253

FOR SECOND BENCH SEAT

JMJIA4007ZZ

1.

Front floor carpet

2.

Carpet hook

3.

Fixing clip

4.

Footrest

5.

Front floor spacer front

6.

Front floor spacer rear

7.

Floor hook

8.

Rear floor carpet

9.

Dual lock fastener

: Pawl

: Vehicle front

FLOOR TRIM

INT-25

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

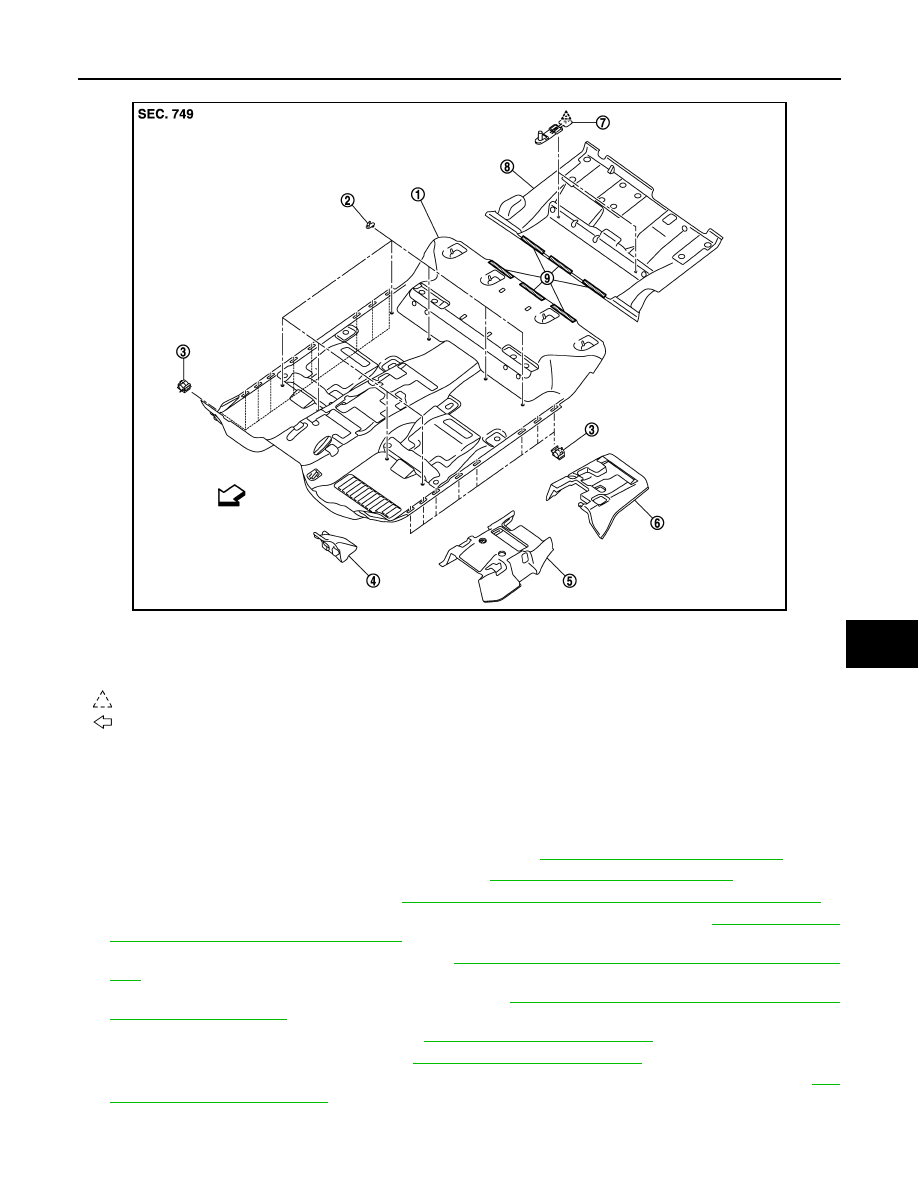

FOR SECOND CAPTAIN SEAT

FRONT FLOOR CARPET

FRONT FLOOR CARPET : Removal and Installation

INFOID:0000000006220254

REMOVAL

1.

Remove front seat assembly (driver and passenger). Refer to

SE-112, "Removal and Installation"

.

2.

Remove second seat assembly (LH and RH). Refer to

SE-125, "Removal and Installation"

.

3.

Remove floor grille (LH and RH). Refer to

VTL-12, "REAR FLOOR GRILLE : Removal and Installation"

.

4.

Remove front kicking plate inner and rear kicking plate inner (LH and RH). Refer to

INT-20, "KICKING

PLATE INNER : Removal and Installation"

.

5.

Remove dash side finisher (LH and RH). Refer to

INT-18, "DASH SIDE FINISHER : Removal and Installa-

tion"

.

6.

Remove center pillar lower garnish (LH and RH). Refer to

INT-22, "CENTER PILLAR LOWER GARNISH :

Removal and Installation"

.

7.

Remove instrument lower panel LH. Refer to

IP-14, "Removal and Installation"

.

8.

Remove center console assembly. Refer to

IP-25, "Removal and Installation"

.

9.

Remove adjusting nut and front cable mounting bolts and nuts, and then remove front cable. Refer to

TM-

176, "Removal and Installation"

.

JMJIA4008ZZ

1.

Front floor carpet

2.

Carpet hook

3.

Fixing clip

4.

Footrest

5.

Front floor spacer front

6.

Front floor spacer rear

7.

Floor hook

8.

Rear floor carpet

9.

Dual lock fastener

: Pawl

: Vehicle front

INT-26

< REMOVAL AND INSTALLATION >

FLOOR TRIM

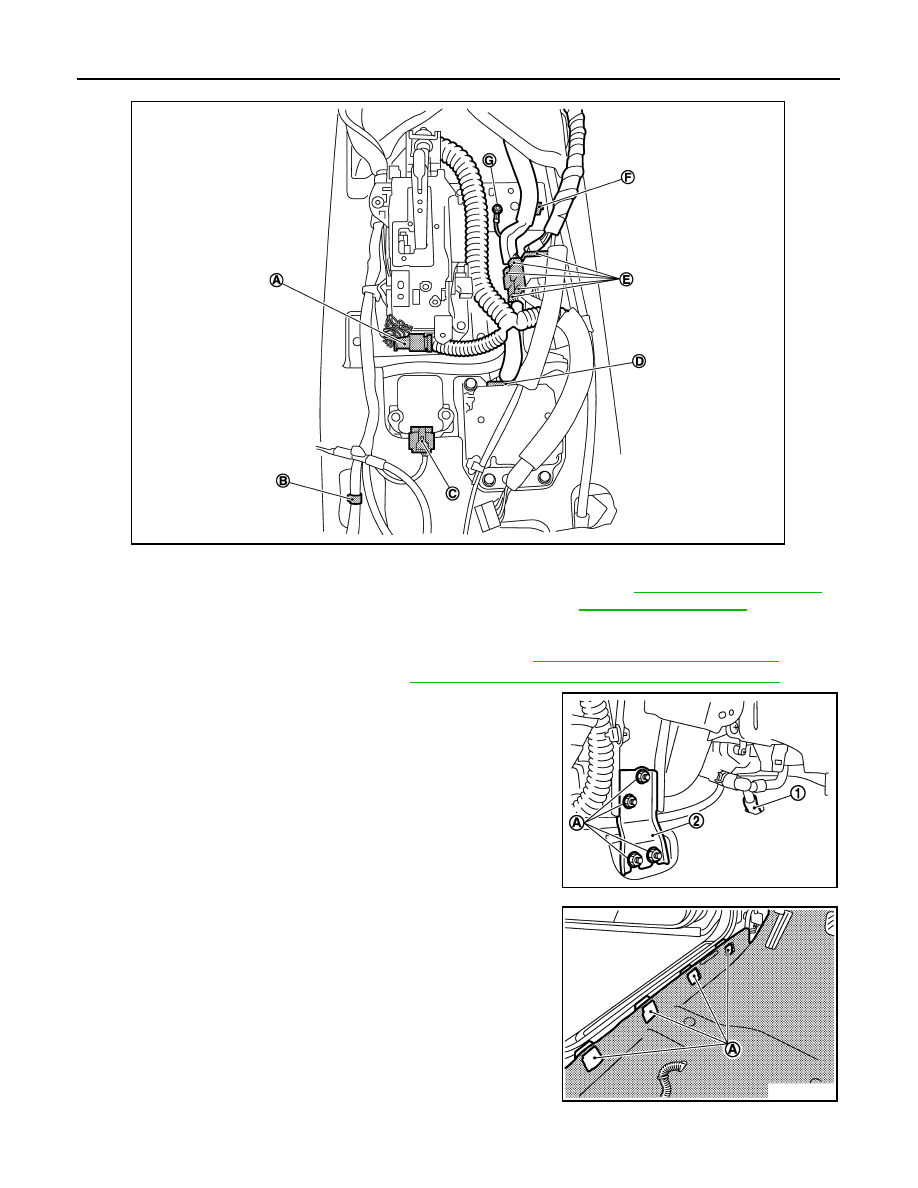

10. Remove the following parts after removing the center console assembly.

• Remove ground bolt (G).
• Disconnect floor harness connectors (A) and (E).
• Disconnect yaw rate/side/decel G sensor harness connector (C). Refer to

BRC-138, "Exploded View"

.

• Disconnect diagnosis sensor unit harness connector (D). Refer to

SR-26, "Exploded View"

.

• Remove floor harness clamps (B) and (F).

11. Remove A/T shift selector assembly mounting bolts. Refer to

TM-176, "Removal and Installation"

.

12. Remove floor duct 1 (LH and RH). Refer to

VTL-11, "FLOOR DUCT 1 : Removal and Installation"

.

13. Disconnect drain hose (1) and remove instrument stay mounting

nuts (A), and then remove instrument stay (2) (LH and RH).

14. Disengage front floor carpet from front floor carpet fixing clips

(A).

JMJIA4226ZZ

JMJIA4225ZZ

JMJIA1560ZZ

FLOOR TRIM

INT-27

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

15. Peel off dual lock fastener between front floor carpet and rear floor carpet, and then remove front floor car-

pet.

INSTALLATION

Install in the reverse order of removal.

REAR FLOOR CARPET

REAR FLOOR CARPET : Removal and Installation

INFOID:0000000006220255

REMOVAL

1.

Remove third seat assembly. Refer to

SE-138, "Removal and Installation"

.

2.

Remove luggage floor rear board. Refer to

INT-34, "LUGGAGE FLOOR REAR BOARD : Removal and

Installation"

.

3.

Remove luggage rear plate. Refer to

INT-35, "LUGGAGE REAR PLATE : Removal and Installation"

.

4.

Remove luggage floor bracket. Refer to

INT-33, "Exploded View"

.

5.

Remove luggage side lower finisher. Refer to

INT-36, "LUGGAGE SIDE LOWER FINISHER : Removal

and Installation"

.

6.

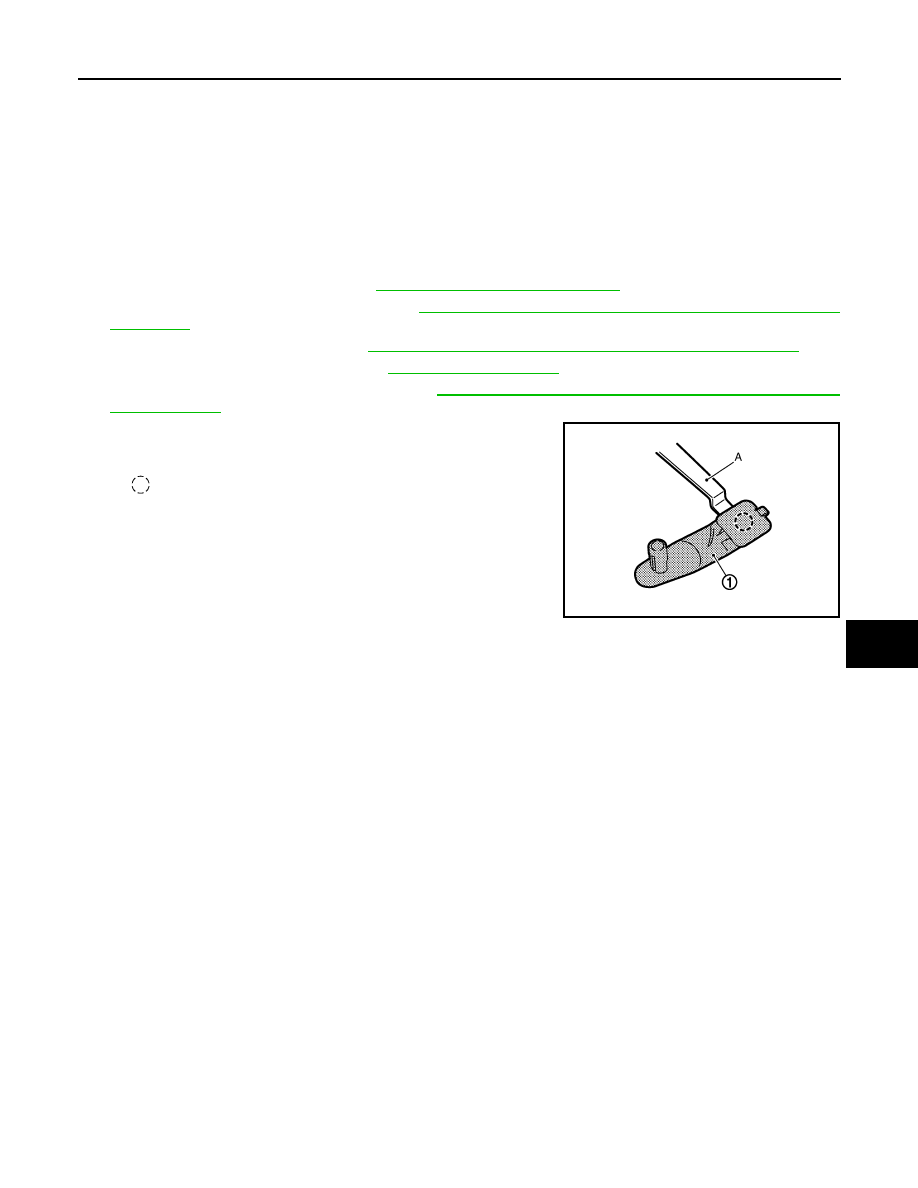

Disengage clip of each floor hook (1) using a remover tool (A),
and then remove each floor hook.

7.

Peel off dual lock fastener between front floor carpet and rear floor carpet, and then remove rear floor car-
pet.

INSTALLATION

Install in the reverse order of removal.

: Clip

JMJIA0092GB
