Infiniti QX56 (Z62). Manual - part 842





INT-16

< REMOVAL AND INSTALLATION >

REAR DOOR FINISHER

REAR DOOR FINISHER

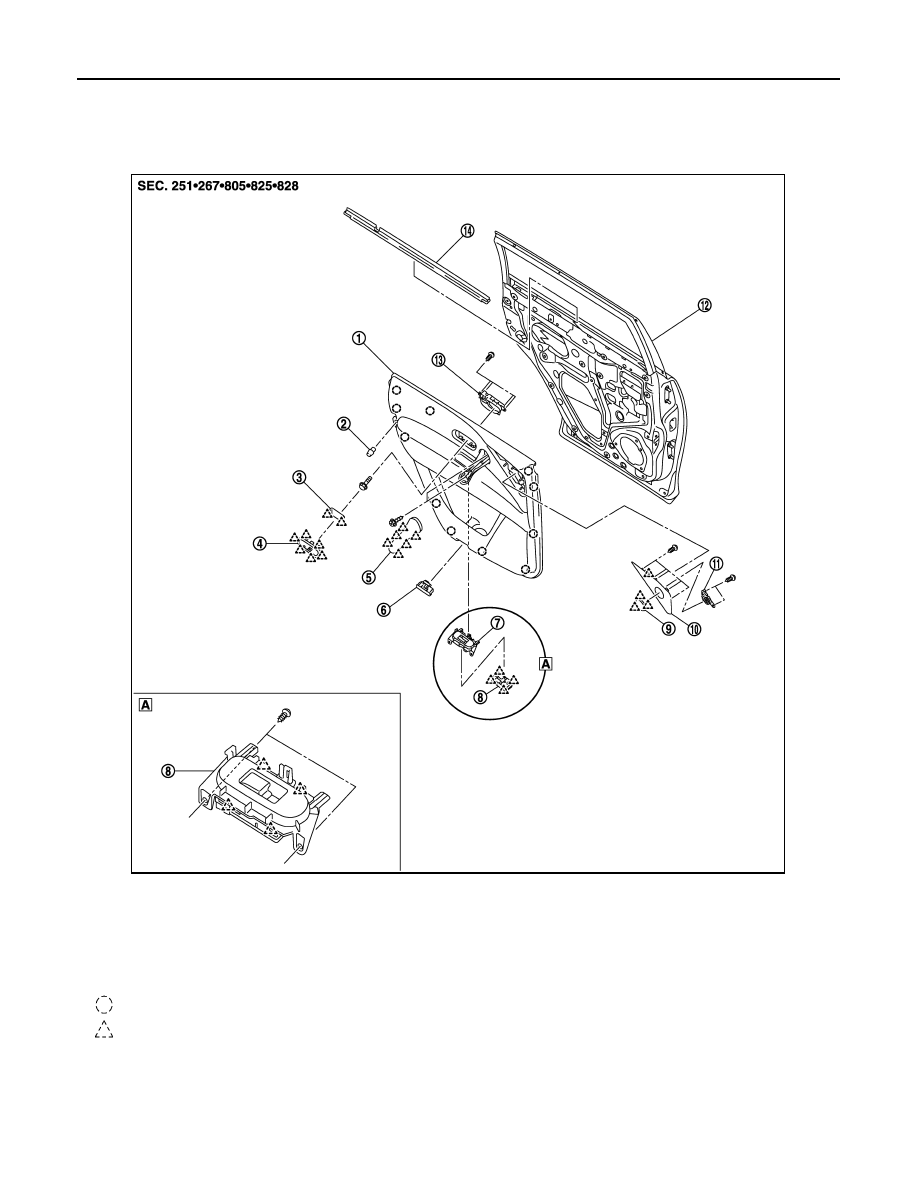

Exploded View

INFOID:0000000006220243

Removal and Installation

INFOID:0000000006220244

CAUTION:

• When removing, always use a remover tool that is made of plastic.
• Never damage the body.

1.

Rear door finisher

2.

Bumper rubber

3.

Door finisher cap

4.

Inside handle escutcheon

5.

Rear door grip cap

6.

Step lamp

7.

Power window switch finisher

8.

Power window switch

9.

Tweeter grille

10. Rear door garnish

11. Rear door tweeter

12. Rear door panel

13. Rear door inside handle

14. Rear door inside seal

: Clip

: Pawl

JMJIA4423ZZ

REAR DOOR FINISHER

INT-17

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

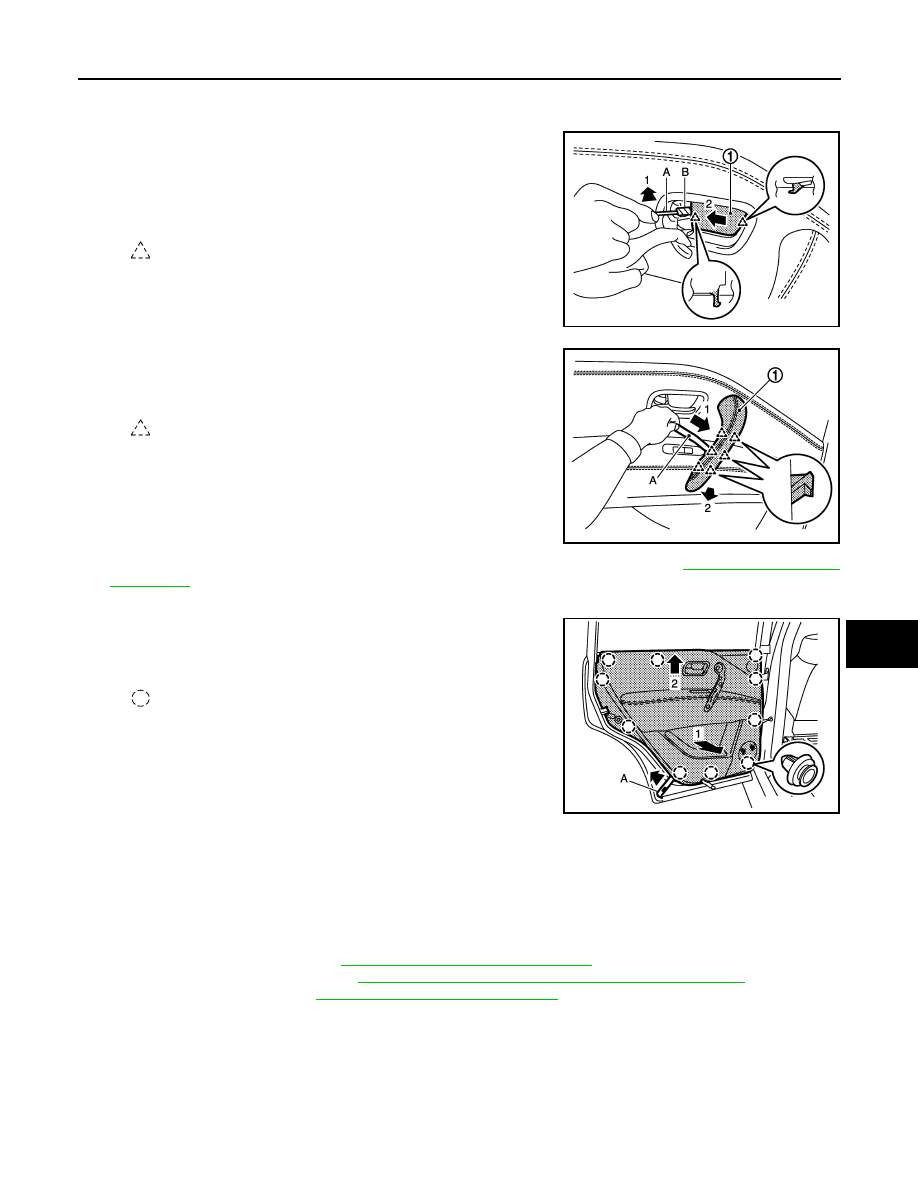

REMOVAL

1.

Fully open door window.

2.

Remove door finisher cap (1) using a small flat-bladed screw-
driver (A) as shown by the arrow in the figure, and then remove
rear door finisher mounting bolt.

CAUTION:

Use a small flat-bladed screwdriver wrapped in tape (B).

3.

Insert a remover tool (A) between rear door grip cap (1) and rear
door grip to disengage rear door grip cap fixing pawls as shown
by the arrow in the figure, and then remove fixing screws.

4.

Remove step lamp, and then disconnect step lamp harness connector. Refer to

INL-74, "Removal and

Installation"

.

5.

Remove bumper rubber.

6.

Insert a remover tool (A) between rear door finisher and rear
door panel to disengage the clips as shown by the arrow in the
figure.

CAUTION:

Insert a remover tool into the part shown in the figure
(between the clips and the door panel).

7.

Disconnect mood lamp harness connector.

8.

Disconnect power window switch harness connector and clamp.

9.

Disconnect lock knob cable and inside handle cable from rear inside handle.

10. Remove rear door finisher from rear door panel.

11. Remove the following parts after removing rear door finisher.

• Mood lamp.
• Power window switch. Refer to

PWC-74, "Removal and Installation"

.

• Rear door inside handle. Refer to

DLK-244, "INSIDE HANDLE : Removal and Installation"

.

• Rear door tweeter. Refer to

AV-218, "Removal and Installation"

.

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:

• Visualy check the clips and pawls for deformation and damage during installation. Replace with new

ones if necessary.

• When installing rear door finisher, check that clips and pawls are securely fitted in body panel holes,

and press them in.

: Pawl

JMJIA4013ZZ

: Pawl

JMJIA4016ZZ

: Clip

JMJIA4017ZZ

INT-18

< REMOVAL AND INSTALLATION >

BODY SIDE TRIM

BODY SIDE TRIM

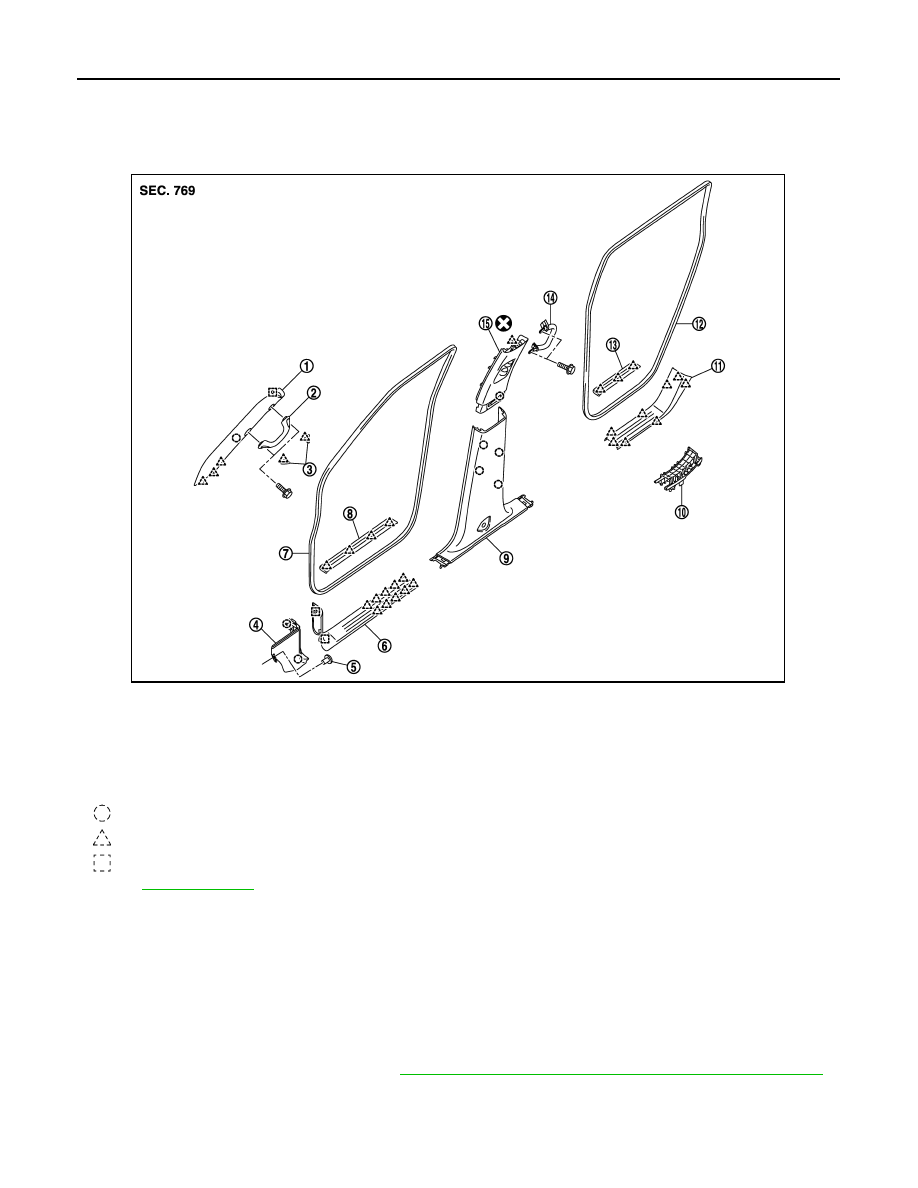

Exploded View

INFOID:0000000006220245

DASH SIDE FINISHER

DASH SIDE FINISHER : Removal and Installation

INFOID:0000000006220246

CAUTION:

• When removing, always use a remover tool that is made of plastic.
• Never damage the body.

REMOVAL

1.

Remove front kicking plate inner. Refer to

INT-20, "KICKING PLATE INNER : Removal and Installation"

.

2.

Remove dash side finisher fixing clip (A).

1.

Front pillar garnish

2.

Assist grip

3.

Assist grip cap

4.

Dash side finisher

5.

Clip

6.

Front kicking plate inner

7.

Front body side welt

8.

Front kicking plate outer

9.

Center pillar lower garnish

10. Rear side bracket

11. Rear kicking plate inner

12. Rear body side welt

13. Rear kicking plate outer

14. Assist grip

15. Center pillar upper garnish

: Clip

: Pawl

: Metal clip

Refer to

GI-4, "Components"

 for symbols in the figure.

JMJIA4307ZZ

BODY SIDE TRIM

INT-19

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

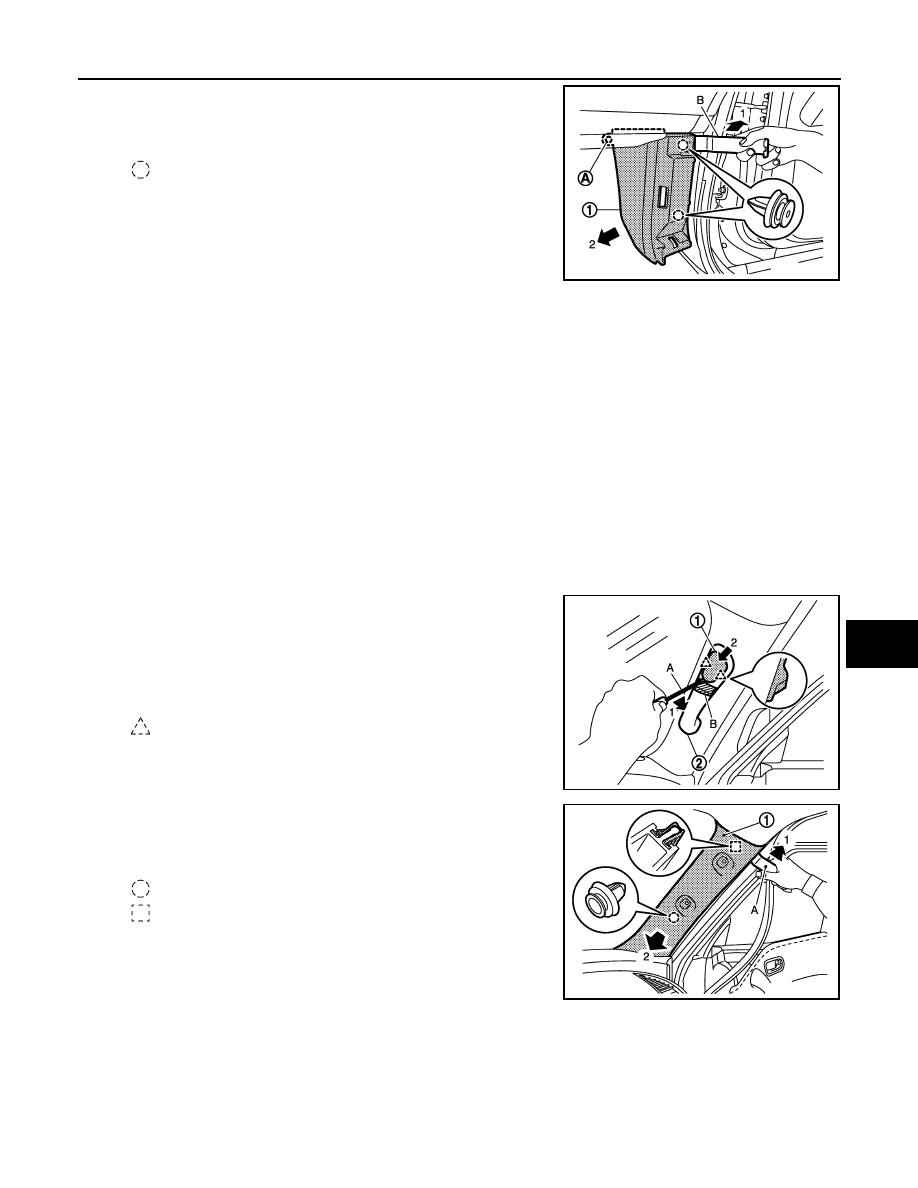

3.

Disengage dash side finisher (1) fixing clips (A) using a remover
tool (B) as shown by the arrow in the figure, and then remove
dash side finisher.

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:

• Visually check the clips for deformation and damage during installation. Replace with new ones if

necessary.

• When installing dash side finisher, check that clips are securely fitted in body panel holes, and press

clips in.

FRONT PILLAR GARNISH

FRONT PILLAR GARNISH : Removal and Installation

INFOID:0000000006220247

CAUTION:

• When removing, always use a remover tool that is made of plastic.
• Never damage the body.

REMOVAL

1.

Release front pillar garnish portion of front body side welt.

2.

Disengage assist grip cap (1) fixing pawls using a flat-bladed
screwdriver (A) as shown in the figure, and then remove assist
grip mounting bolts and assist grip (2).

CAUTION:

Apply protective tape (B) to the assist grip to protect from
damage.

3.

Disengage front pillar garnish (1) fixing clip and metal clip using
a remover tool (A) as shown by the arrow in the figure, and then
remove front pillar garnish.

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:

• Visually check the clip, pawls and metal clip for deformation and damage during installation.

Replace with new ones if necessary.

• When installing front pillar garnish, check that clip and metal clip are securely fitted in body panel

holes, and press them in.

: Clip

JMJIA4020ZZ

: Pawl

JMJIA4018ZZ

: Clip

: Metal clip

JMJIA4019ZZ
