Infiniti QX56 (Z62). Manual - part 841





INT-12

< SYMPTOM DIAGNOSIS >

SQUEAK AND RATTLE TROUBLE DIAGNOSES

PIIB8742E

FRONT DOOR FINISHER

INT-13

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

REMOVAL AND INSTALLATION

FRONT DOOR FINISHER

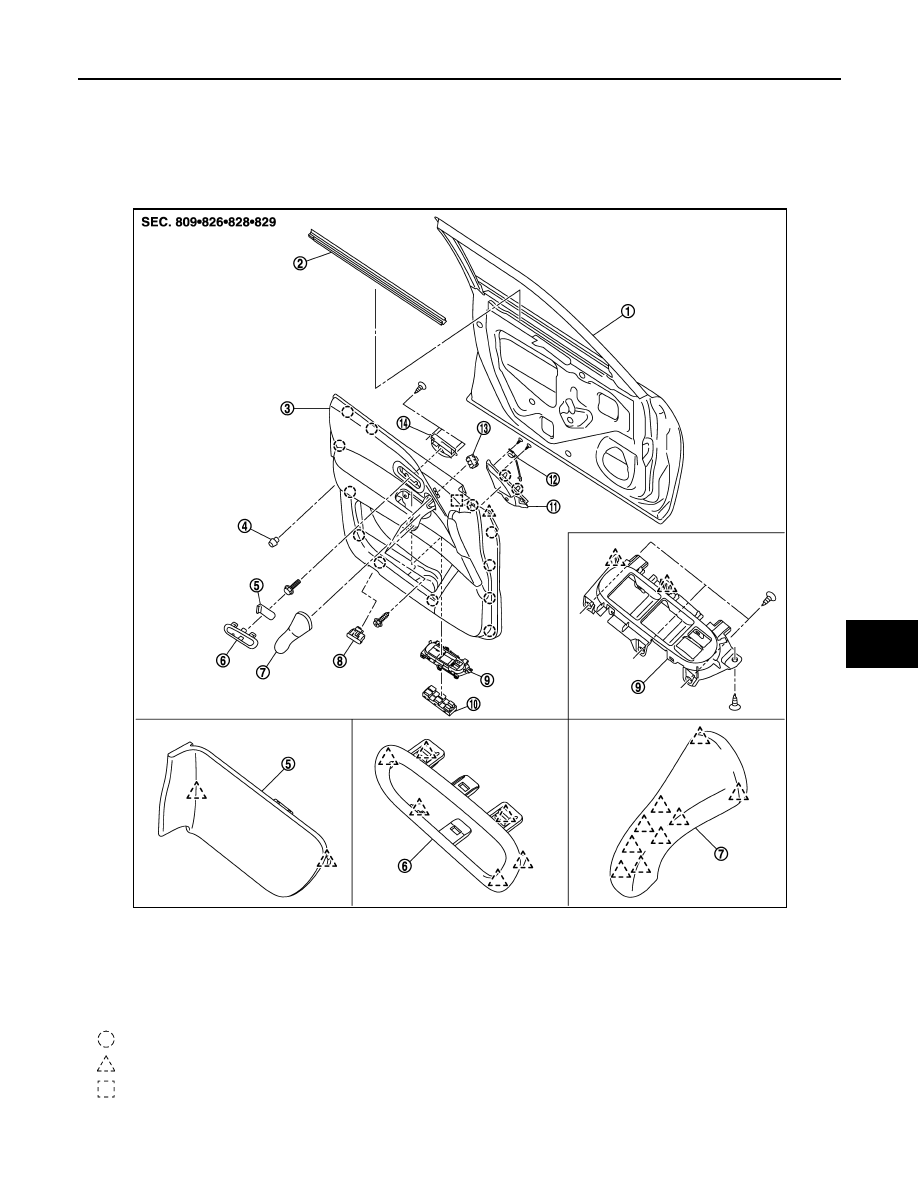

Exploded View

INFOID:0000000006220241

1.

Front door panel

2.

Front inside door seal

3.

Front door finisher

4.

Bumper rubber

5.

Door finisher cap

6.

Inside handle escutcheon

7.

Front door grip cap

8.

Step lamp

9.

Power window switch finisher

10. Power window switch

11. Door mirror corner cover

12. BSW/BSI indicator

13. Seat memory switch

14. Front door inside handle

: Clip

: Pawl

: Metal clip

JMJIA4235ZZ

INT-14

< REMOVAL AND INSTALLATION >

FRONT DOOR FINISHER

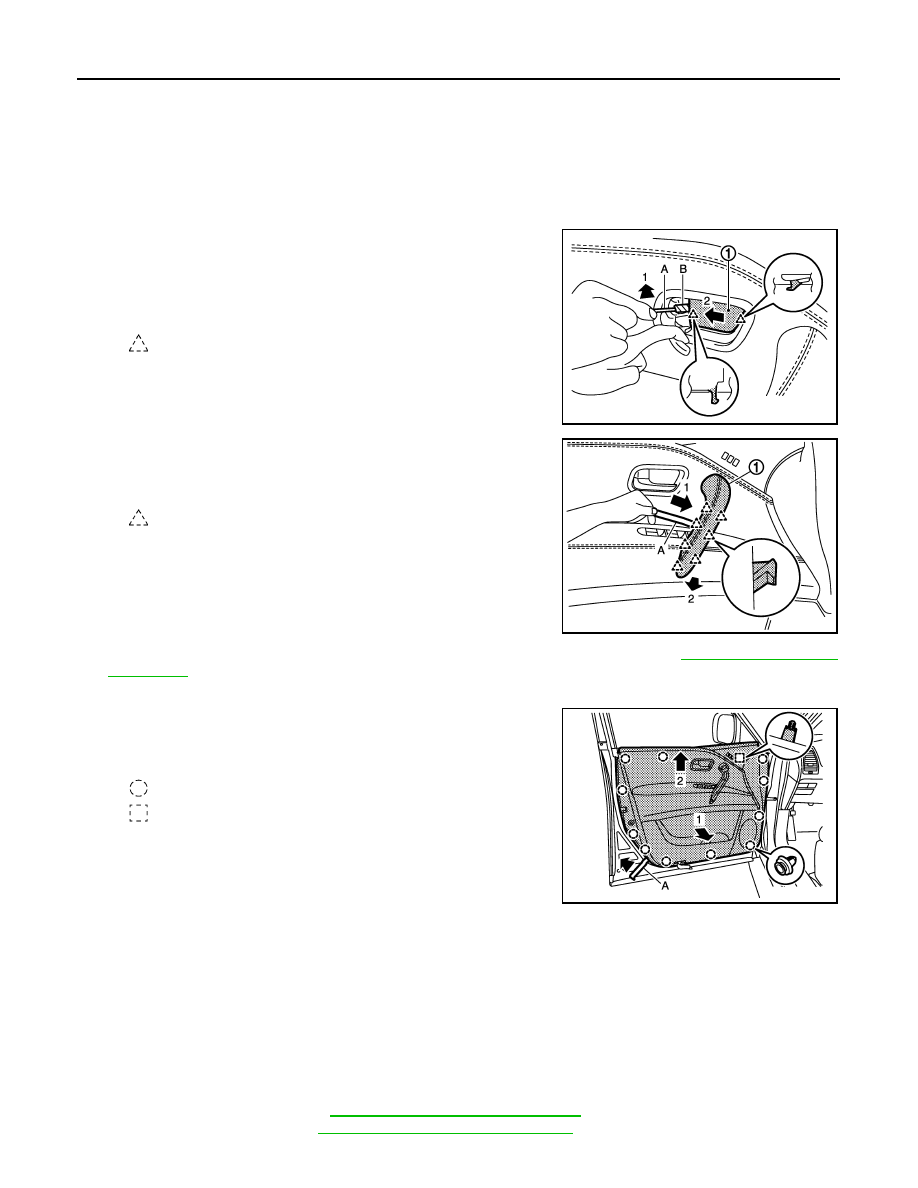

Removal and Installation

INFOID:0000000006220242

CAUTION:

• When removing, always use a remover tool that is made of plastic.
• Never damage the body.

REMOVAL

1.

Fully open door window.

2.

Remove door finisher cap (1) using a small flat-bladed screw-
driver (A) as shown by the arrow in the figure, and then remove
front door finisher mounting bolt.

CAUTION:

Use a small flat-bladed screwdriver wrapped in tape (B).

3.

Insert a remover tool (A) between front door grip cap (1) and
front door grip to disengage front door grip cap fixing pawls as
shown by the arrow in the figure, and then remove fixing screws

4.

Remove step lamp, and then disconnect step lamp harness connector. Refer to

INL-74, "Removal and

Installation"

5.

Remove bumper rubber.

6.

Insert a remover tool (A) between door finisher and door panel
to disengage fixing clips and metal clip as shown by the arrow in
the figure.

CAUTION:

Insert a remover tool into the part shown in the figure
(between the clips and the door panel).

7.

Disconnect BSW/BSI indicator harness connector.

8.

Disconnect seat memory switch harness connector.

9.

Disconnect mood lamp harness connector.

10. Disconnect power window switch harness connector and clamp.
11. Disconnect lock knob cable and inside handle cable from front door inside handle.

12. Remove front door finisher from front door panel.

13. Remove the following parts after removing front door finisher.

• Mood lamp.
• Door mirror corner cover.
• Power window switch.Refer to

PWC-74, "Removal and Installation"

.

• BSW/BSI indicator. Refer to

DAS-525, "Removal and Installation"

.

: Pawl

JMJIA4013ZZ

: Pawl

JMJIA4014ZZ

: Clip

: Metal clip

JMJIA4015ZZ

FRONT DOOR FINISHER

INT-15

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

• Seat memory switch. Refer to

ADP-137, "Removal and Installation"

.

• Front door inside handle. Refer to

DLK-241, "INSIDE HANDLE : Removal and Installation"

.

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:

• Visually check the clips, pawls and metal clip for deformation and damage during installation.

Replace with new ones if necessary.

• When installing front door finisher, check that clips, pawls and metal clip are securely fitted in body

panel holes, and press them in.
