INT-28

< REMOVAL AND INSTALLATION >

HEADLINING

HEADLINING

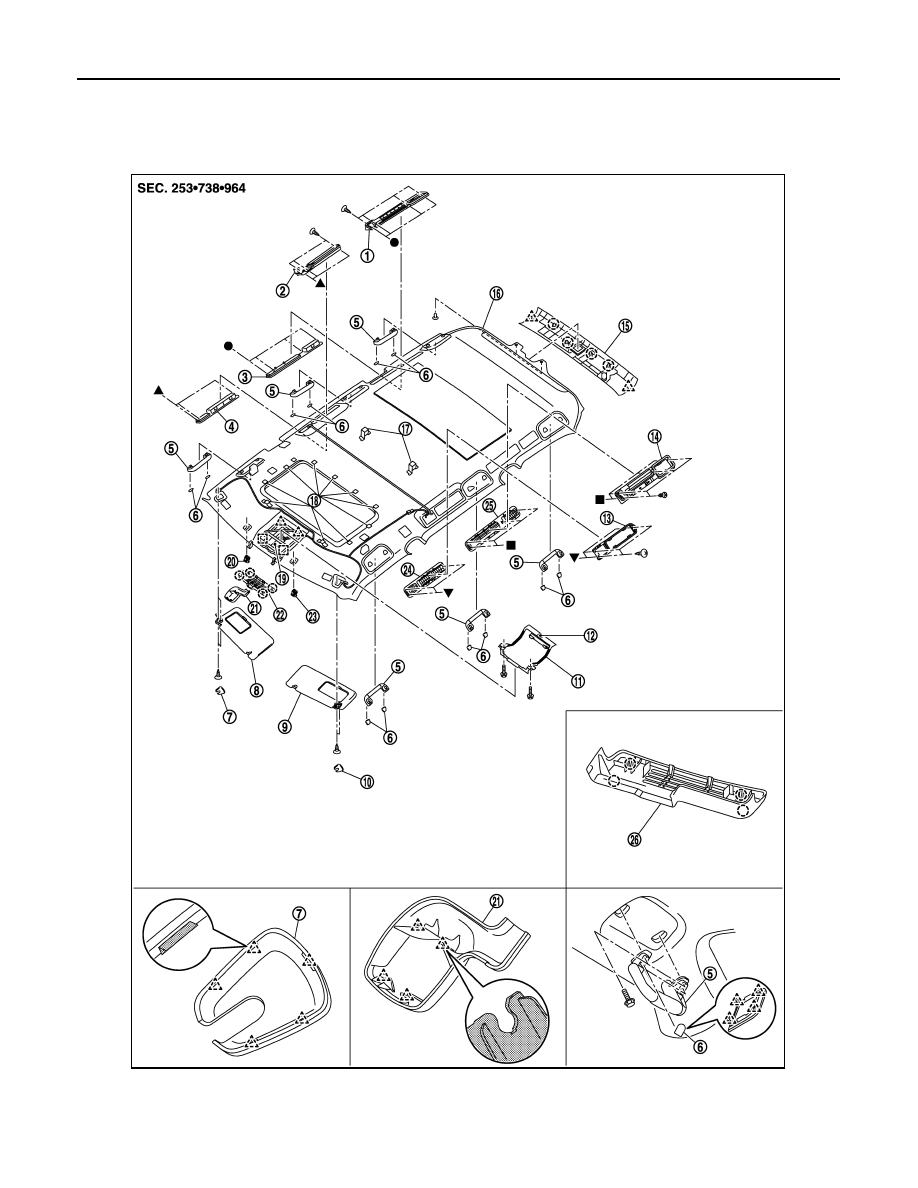

Exploded View

INFOID:0000000006220256

1.

Rear ventilator grille RH

2.

Rear ventilator base RH

3.

Rear ventilator garnish B RH

4.

Rear ventilator garnish A RH

5.

Assist grip

6.

Assist grip cap

7.

Sun visor cover RH

8.

Sun visor assembly RH

9.

Sun visor assembly LH

JMJIA4236ZZ

HEADLINING

INT-29

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

Removal and Installation

INFOID:0000000006220257

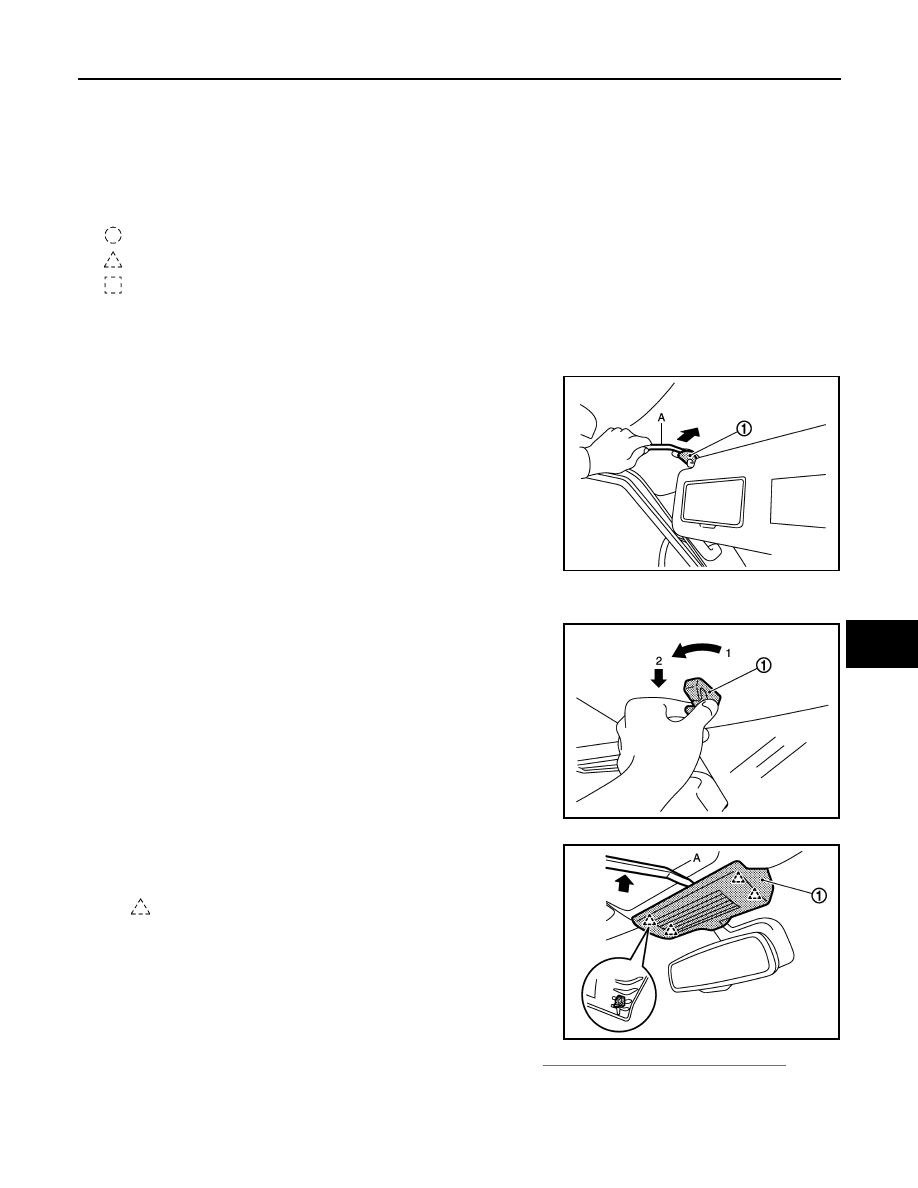

REMOVAL

1.

Remove sun visor cap (1) using a remover tool (A), and then
remove sunvisor assembly fixing TORX screws.

2.

Disconnect vanity mirror lamp harness connector, and then remove sun visor assembly (LH and RH).

3.

Rotate sun visor holder (1) (LH and RH) at approximately 90
degrees, and then pull it out to remove.

4.

Insert a remover tool (A) into the gap between lane camera fin-
isher (1), and then remove lane camera finisher (if equipped).

5.

Remove light & rain sensor cover / rain sensor cover. Refer to

WW-72, "Removal and Installation"

.

10. Sun visor cover LH

11. Map lamp bracket

12. Dual lock fastener

13. Rear ventilator base LH

14. Rear ventilator grille LH

15. Roof garnish

16. Headlining assembly

17. Dual lock fastener

18. Dual lock fastener

19. Map lamp assembly

20. Sum visor holder RH

21. Rain sensor cover

22. Front camera finisher

23. Sum visor holder LH

24. Rear ventilator garnish A LH

25. Rear ventilator garnish B LH

26. Front camera finisher

(with LDP/LDW)

: Clip

: Pawl

: Metal clip

JMJIA4055ZZ

JMJIA4061ZZ

: Pawl

JMJIA4053ZZ

INT-30

< REMOVAL AND INSTALLATION >

HEADLINING

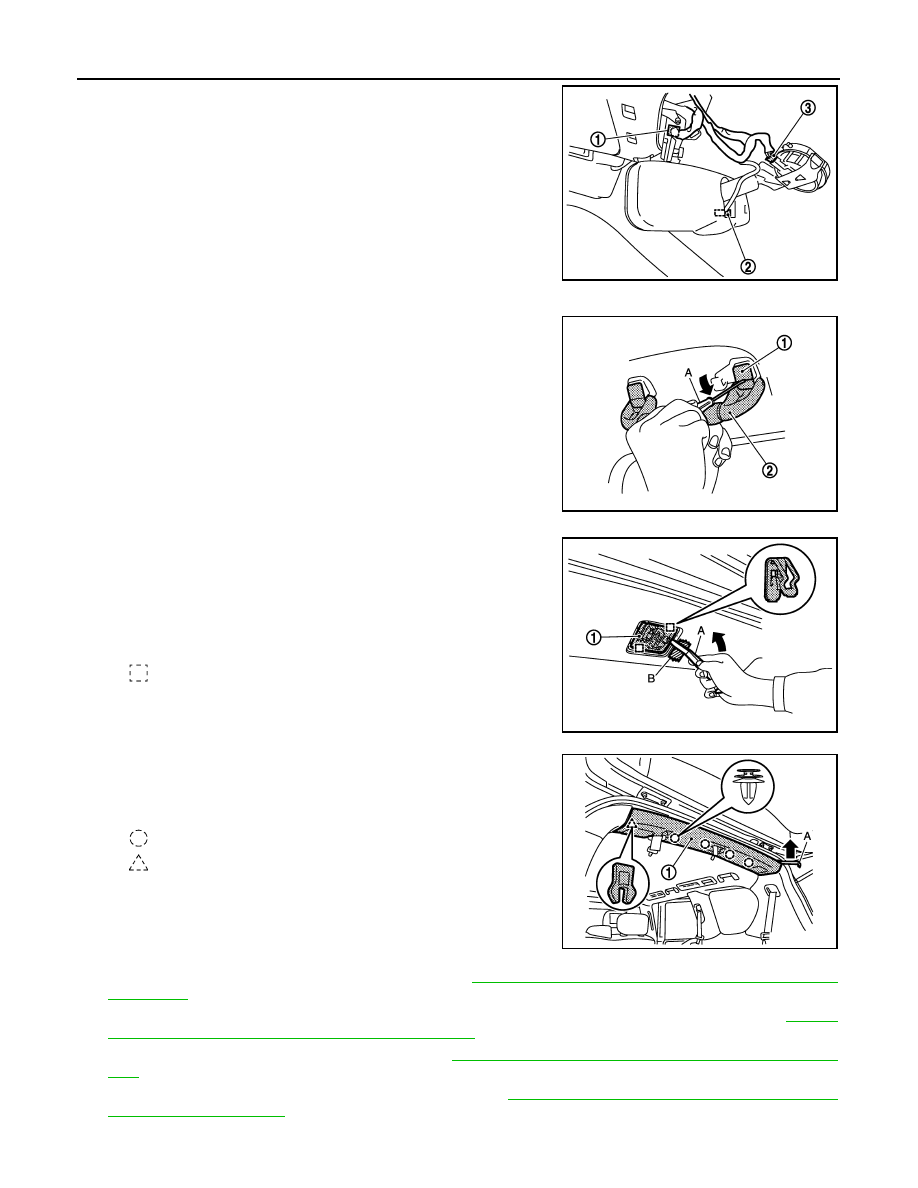

6.

Disconnect harness connectors.
• Lane camera unit harness connector (1) (if equipped).
• Inside mirror harness connector (2).
• Light & rain sensor harness connector / rain sensor harness

connector (3).

7.

Remove assist grips
• Insert a small flat-bladed screwdriver (A) into the gap between

assist grip cap (1), and then remove assist grip cap.

• Remove assist grip mounting bolts, and then remove assist

grips (2).

8.

Insert a remover tool (A) between luggage room lamp (1) and
roof garnish to disengage the fixing metal clips, and then discon-
nect luggage room lamp harness connector.

CAUTION:

Apply protective tape (B) to the roof garnish to protect from
damage.

9.

Insert a remover tool (A) between roof garnish (1) and body
panel to disengage the fixing clips and pawls, and then remove
roof garnish.

10. Remove front pillar garnish (LH and RH). Refer to

INT-19, "FRONT PILLAR GARNISH : Removal and

Installation"

.

11. Remove front kicking plate inner (LH and RH) and rear kicking plate inner (LH and RH). Refer to

INT-20,

"KICKING PLATE INNER : Removal and Installation"

.

12. Remove dash side finisher (LH and RH). Refer to

INT-18, "DASH SIDE FINISHER : Removal and Installa-

tion"

.

13. Remove center pillar lower garnish (LH and RH). Refer to

INT-22, "CENTER PILLAR LOWER GARNISH :

Removal and Installation"

.

JMJIA4054ZZ

JMJIA4063ZZ

: Metal clip

JMLIA1059ZZ

: Clip

: Pawl

JMJIA4066ZZ

HEADLINING

INT-31

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

14. Remove luggage side lower finisher (LH and RH). Refer to

INT-36, "LUGGAGE SIDE LOWER FINISHER

: Removal and Installation"

.

15. Remove front body side welt (LH and RH) and rear body side welt (LH and RH). Refer to

INT-20, "BODY

SIDE WELT : Removal and Installation"

.

16. Remove center pillar upper garnish (LH and RH). Refer to

INT-22, "CENTER PILLAR UPPER GARNISH :

Removal and Installation"

.

17. Remove rear pillar finisher (LH and RH). Refer to

INT-37, "REAR PILLAR FINISHER : Removal and

Installation"

.

18. Remove back pillar garnish (LH and RH). Refer to

INT-37, "BACK PILLAR GARNISH : Removal and

Installation"

.

19. Remove luggage side upper finisher (LH and RH). Refer to

INT-38, "LUGGAGE SIDE UPPER FINISHER

: Removal and Installation"

.

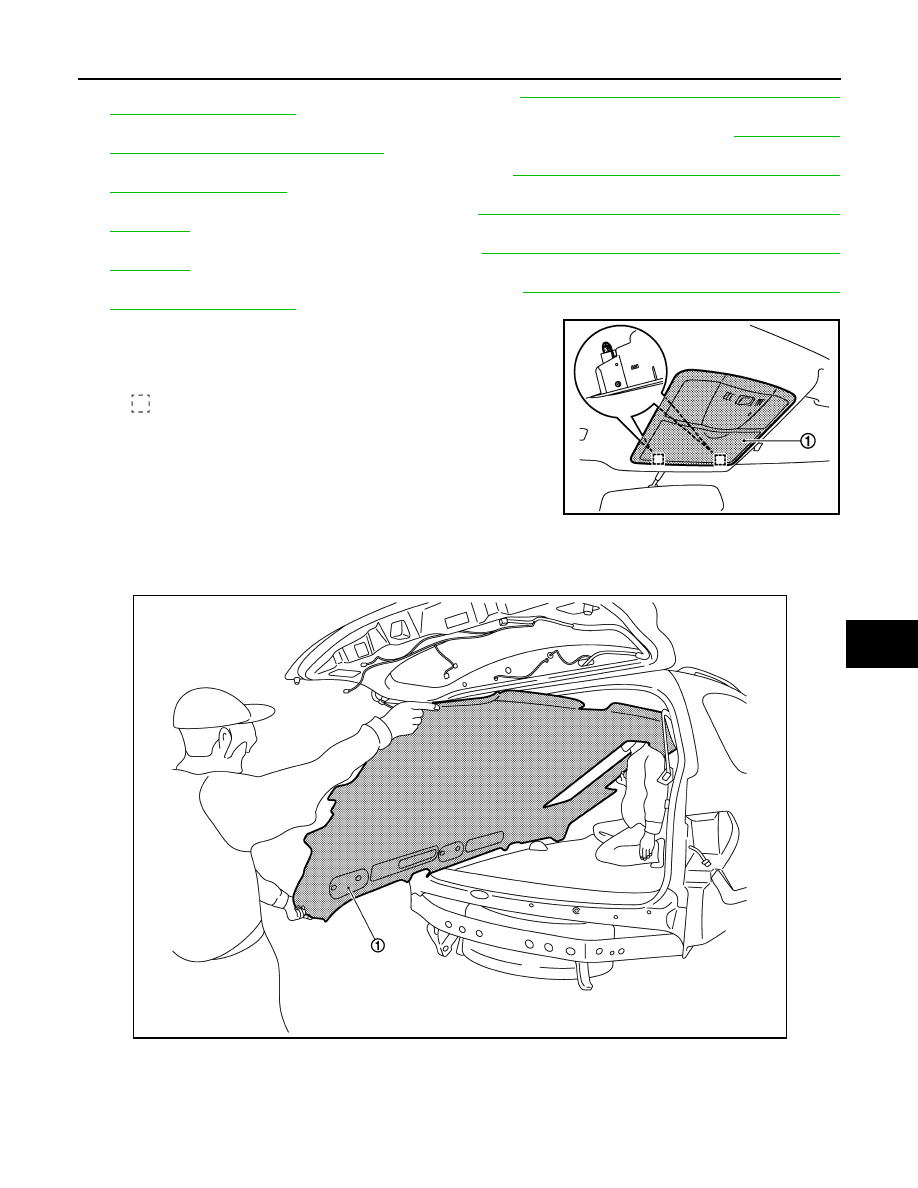

20. Insert a remover tool between map lamp assembly (1) and

headlining assembly to disengage the fixing metal clips, and
then remove map lamp assembly.

21. Peel off dual lock fastener between headlining assembly and roof panel.
22. Remove headlining clips located at the rear side

23. Remove headlining assembly (1) through the back door.

CAUTION:

• When removing, 2 workers are required.
• Never bend headlining when removing.
• Be careful not to scratch or damage any part of the body while taking out the headlining.

24. Remove the following parts after removing headlining assembly.

: Metal clip

JMJIA4062ZZ

JMJIA4068ZZ
