BACK DOOR LOCK

BACK DOOR LOCK

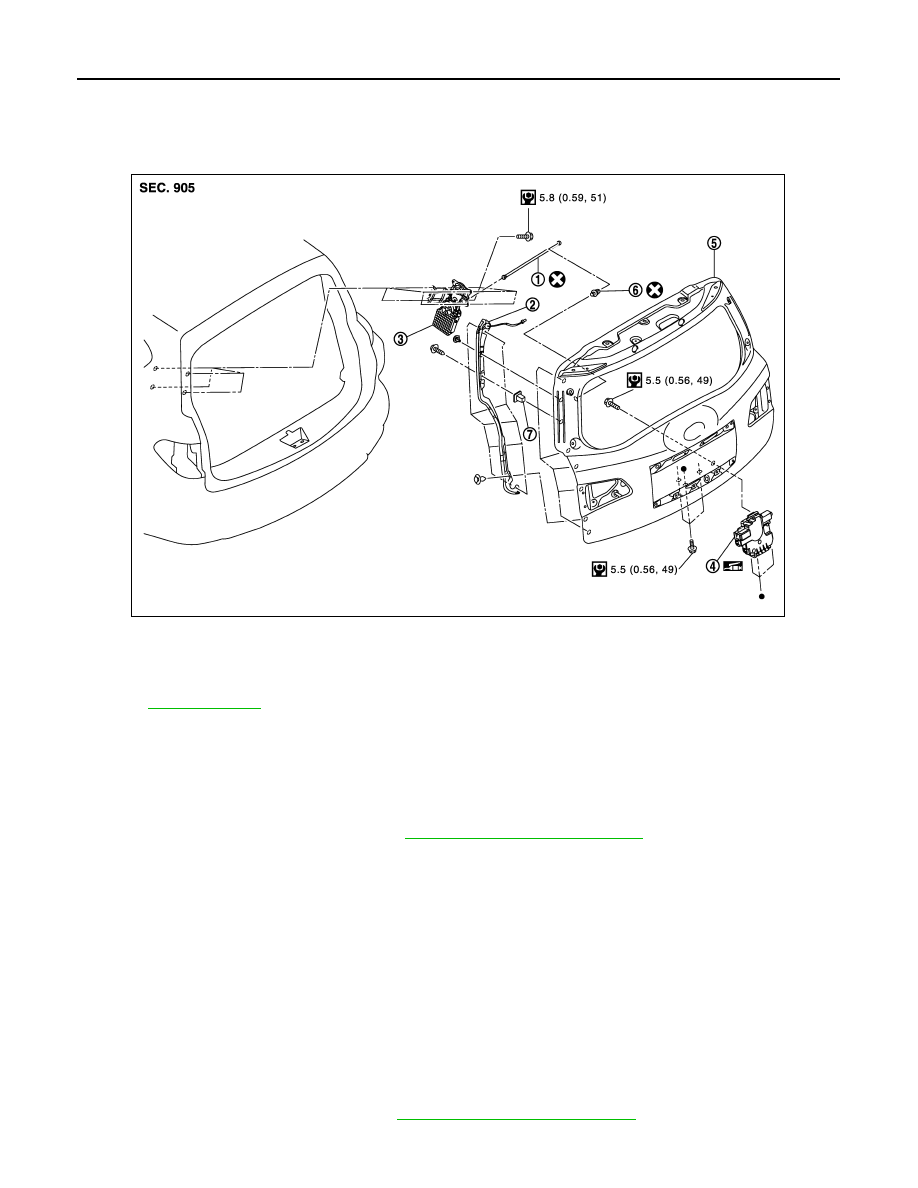

Exploded View

INFOID:0000000006226105

DOOR LOCK

DOOR LOCK : Removal and Installation

INFOID:0000000006226106

REMOVAL

1.

Remove back door finisher lower. Refer to

INT-39, "Removal and Installation"

.

2.

Disconnect back door lock assembly harness connector.

3.

Remove back door lock mounting bolts, and then remove back door lock assembly.

INSTALLATION

Note the following item, and then install in the reverse order of removal.

CAUTION:

Check back door open/close, lock/unlock operation after installation.

TOUCH SENSOR

TOUCH SENSOR : Removal and Installation

INFOID:0000000006226107

CAUTION:

Take care not to bend touch sensor.

REMOVAL

1.

Remove back door finisher side. Refer to

INT-39, "Removal and Installation"

.

2.

Disconnect touch sensor connector.

1.

Back door support rod

2.

Touch sensor

3.

Automatic back door control module

4.

Back door lock assembly

5.

Back door assembly

6.

Stud ball

7.

Screw grommet

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA5484GB

BACK DOOR LOCK

DLK-247

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

3.

Remove clips and TORX screws of touch sensor.

4.

Pull harness of touch sensor out of back door and remove touch sensor.

INSTALLATION

Note the following item, and then install in the reverse order of removal.

CAUTION:

Check back door open/close operation after installation.

BACK DOOR SUPPORT ROD

BACK DOOR SUPPORT ROD : Removal and Installation

INFOID:0000000006226108

REMOVAL

1.

Remove cap of back door finisher side (LH). Refer to

INT-39, "Exploded View"

.

2.

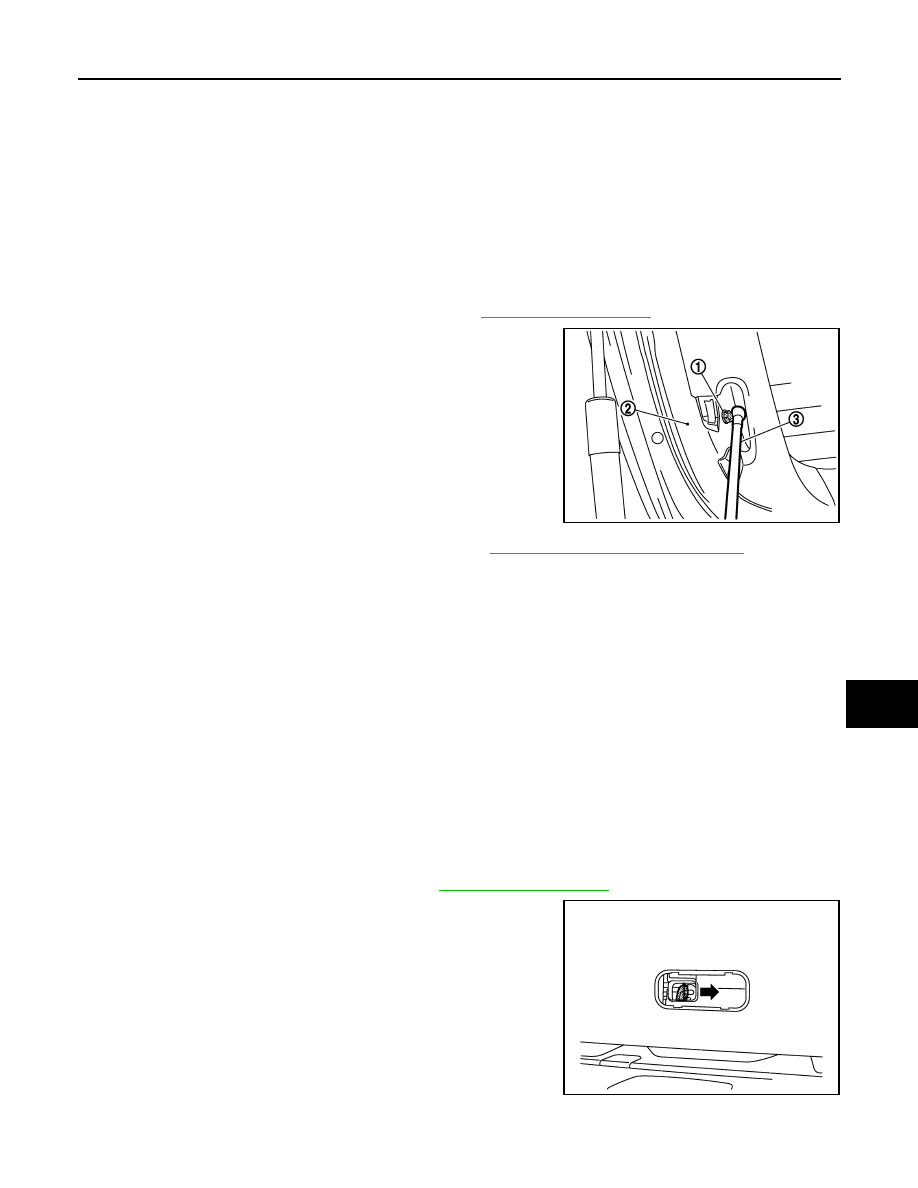

Remove stud ball (1) of back door support rod (3) from back
door assembly (2).

3.

Remove automatic back door control module. Refer to

DLK-262, "Removal and Installation"

.

NOTE:
When replacing back door support rod, replace stud ball and automatic back door control module as a set,
since back door support rod is engaged and connected to stud ball and automatic back door control mod-
ule.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• When reusing stud ball, always apply locking sealant before installing stud ball to back door.
• Check back door open/close operation after installation.

EMERGENCY LEVER

EMERGENCY LEVER : Unlock procedures

INFOID:0000000006226109

UNLOCK PROCEDURES

NOTE:
If back door lock cannot be unlocked due to a malfunction or battery discharge, follow the procedures to
unlock back door.

1.

Remove the emergency handle mask. Refer to

INT-39, "Exploded View"

.

2.

From inside the vehicle, rotate emergency lever toward lower
direction and unlock.

JMKIA5442ZZ

JMKIA5264ZZ

DLK-248

< REMOVAL AND INSTALLATION >

FUEL FILLER LID OPENER

FUEL FILLER LID OPENER

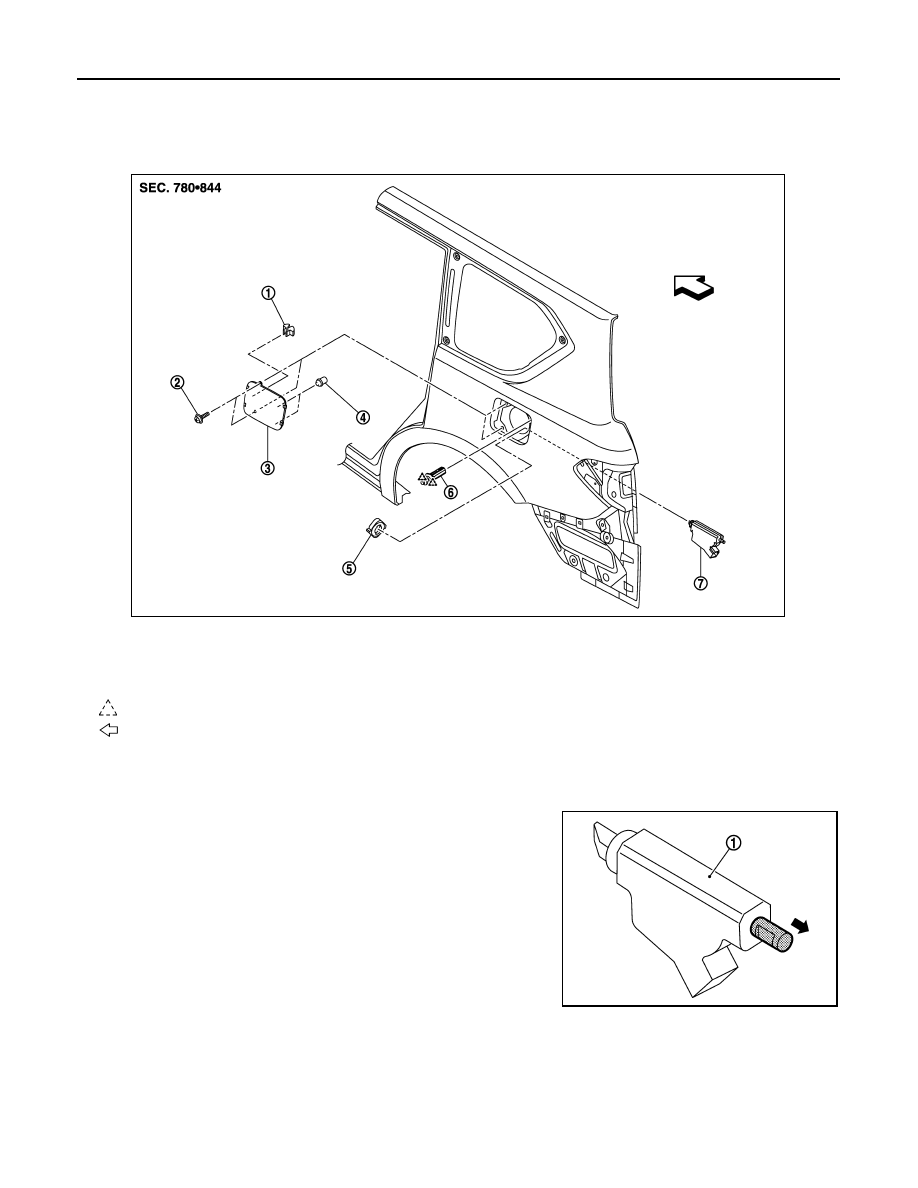

Exploded View

INFOID:0000000006226110

Removal and Installation

INFOID:0000000006226111

NOTE:

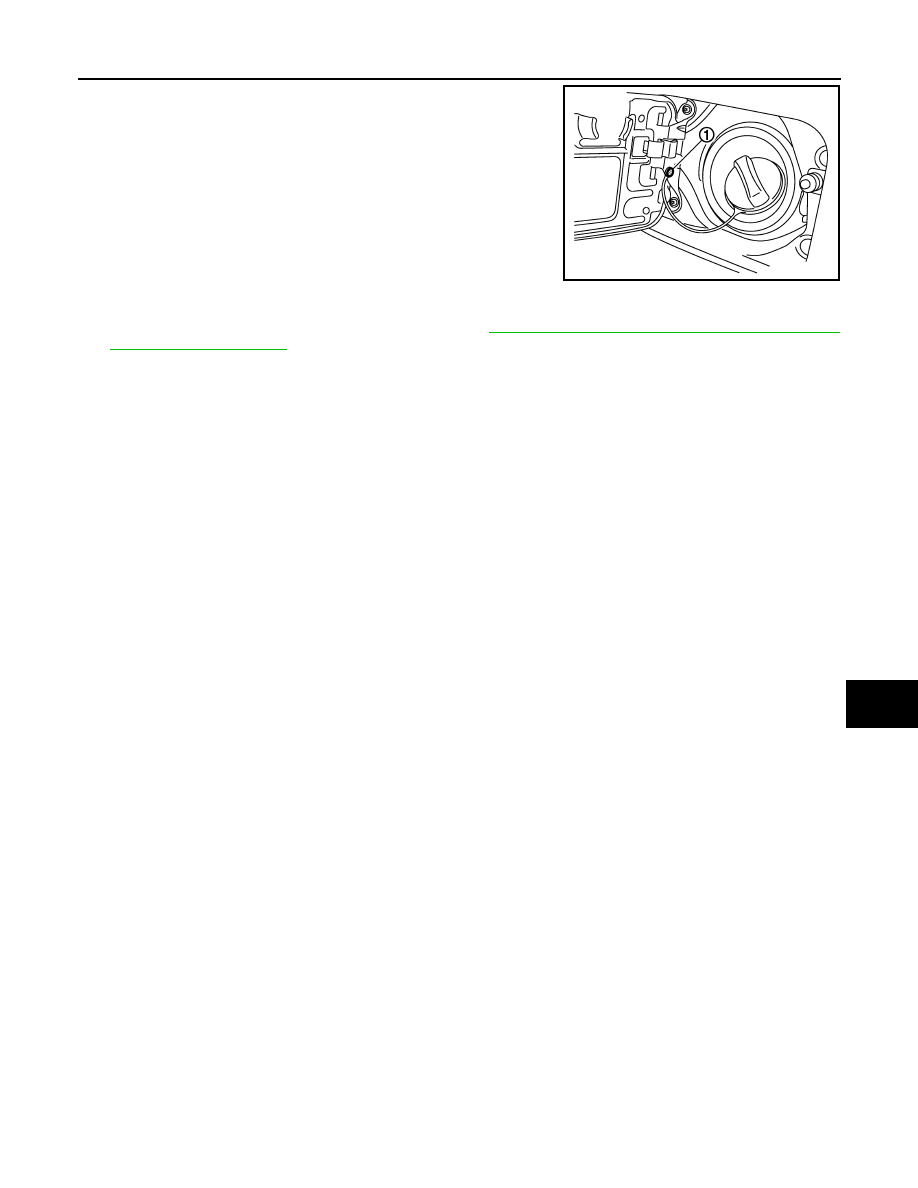

When fuel filler lid lock actuator (1) is a defective operation, pull the
rod to open fuel filler lid.

REMOVAL

1.

Fuel filler spring

2.

TORX bolt

3.

Fuel filler lid assembly

4.

Fuel lid bumper rubber

5.

Lock nut

6.

Lock & rod assembly

7.

Fuel filler lid lock actuator

: Pawl

: Vehicle front

JMKIA5269ZZ

JMKIA1960ZZ

FUEL FILLER LID OPENER

DLK-249

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

1.

Remove fuel mounting pin (1).

2.

Remove mounting TORX bolts, and then remove fuel filler lid.

3.

Remove luggage side lower finisher LH. Refer to

INT-36, "LUGGAGE SIDE LOWER FINISHER :

Removal and Installation"

.

4.

Disconnect woofer connector.

5.

Remove woofer mounting bolts, and then remove woofer.

6.

Rotate lock nut counterclockwise, and then remove lock nut.

7.

Push fuel filler lid lock actuator behind the vehicle, while pushing the pawl.

8.

Disconnect harness connector and remove fuel filler lid lock actuator.

9.

Pull and remove lock & rod assembly forward, while pushing the pawls.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• After installation, check fuel filler lid assembly open/close, lock/unlock operation.
• After installation, apply touch-up paint (the body color) onto the head of fuel filler lid mounting

screws.

JMKIA5270ZZ
