DLK-242

< REMOVAL AND INSTALLATION >

FRONT DOOR LOCK

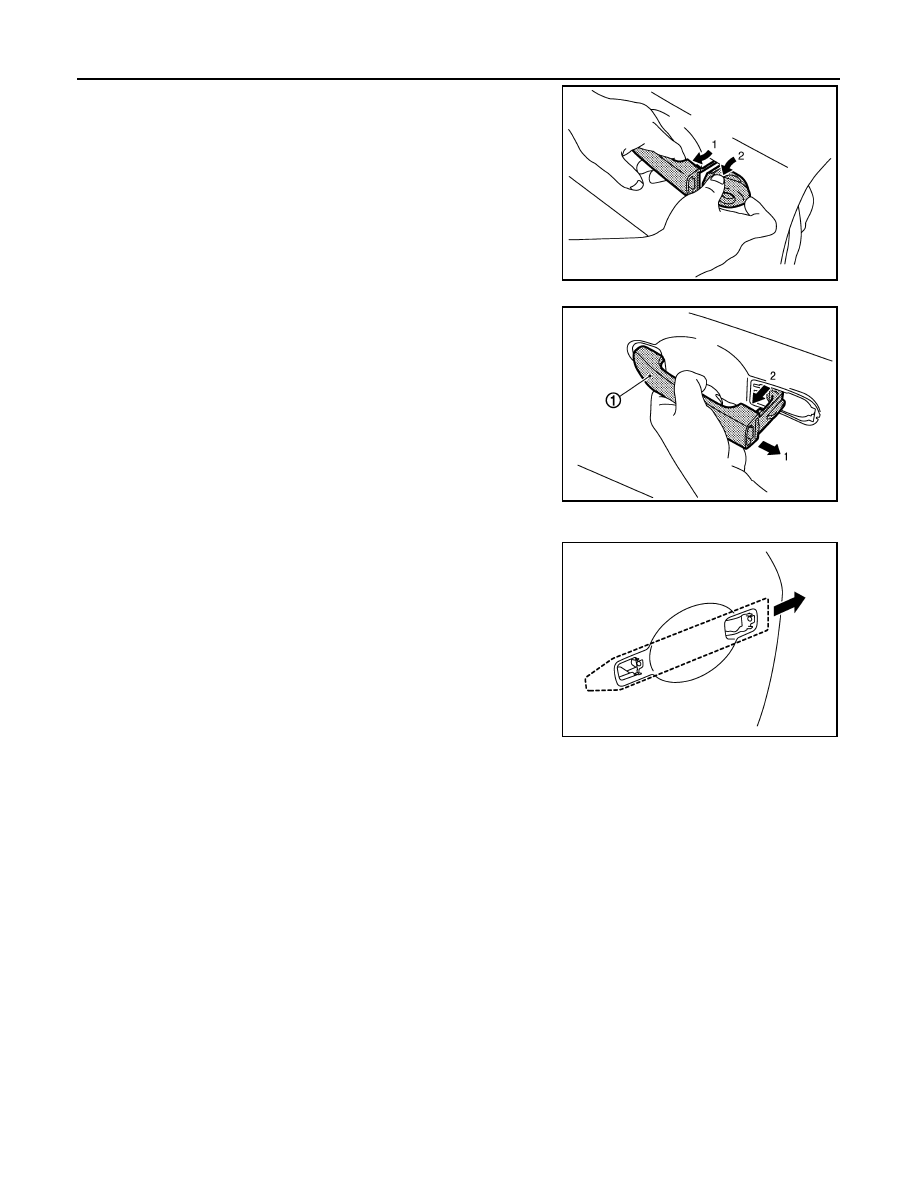

7.

While pulling outside handle, remove door key cylinder assem-
bly (driver side) or outside handle escutcheon (passenger side).

8.

While pulling outside handle (1), slide toward rear of vehicle to
remove outside handle.

9.

Remove front gasket and rear gasket.

10. Slide toward rear of vehicle to remove outside handle bracket.

11. Disconnect door lock cable from outside handle bracket.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• When installing key rod, rotate key rod holder until a click is felt.
• Check door lock cable is properly engaged with outside handle bracket.
• After installation, check door open/close, lock/unlock operation.

JMKIA0560ZZ

JMKIA0524ZZ

JMKIA2652ZZ

REAR DOOR LOCK

DLK-243

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

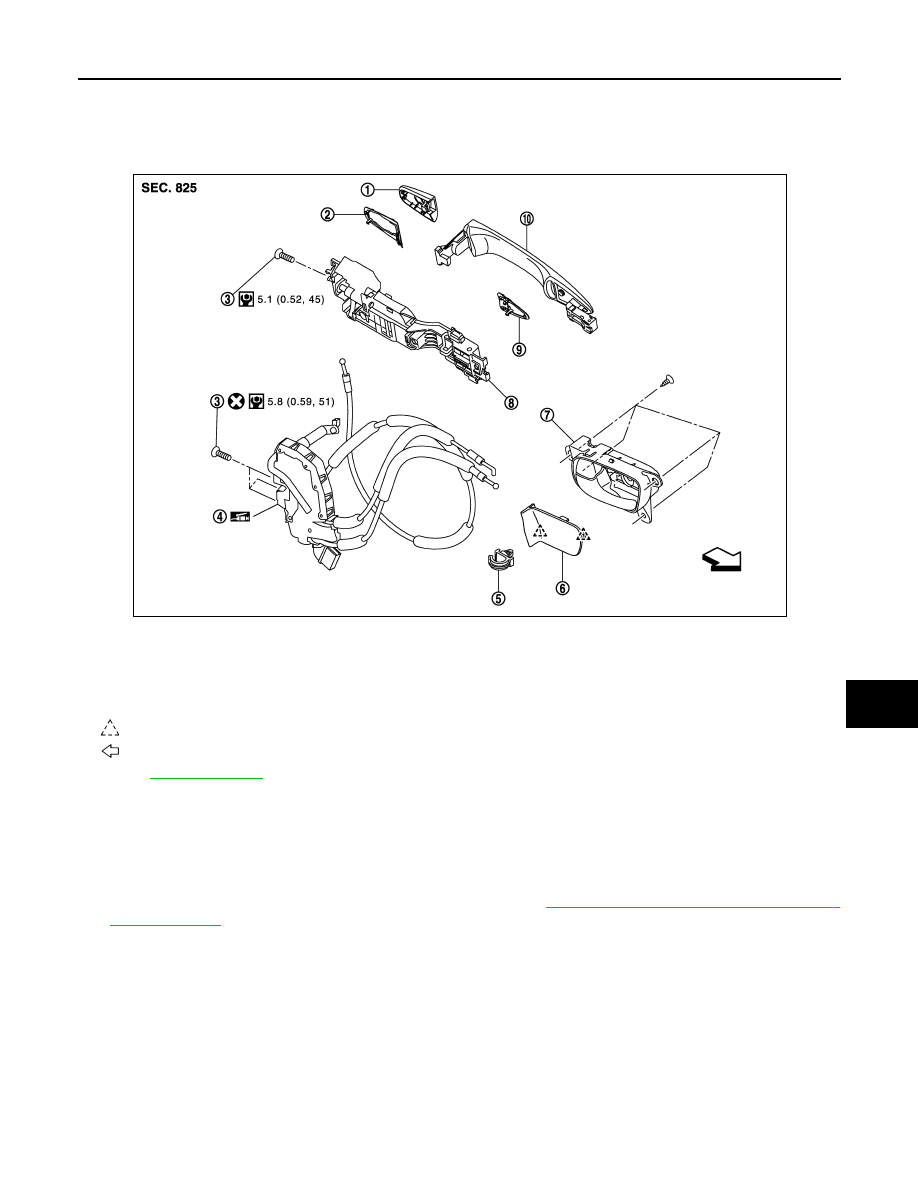

REAR DOOR LOCK

Exploded View

INFOID:0000000006226101

DOOR LOCK

DOOR LOCK : Removal and Installation

INFOID:0000000006226102

REMOVAL

1.

Remove outside handle and outside handle bracket. Refer to

DLK-244, "OUTSIDE HANDLE : Removal

and Installation"

.

2.

Remove door lock assembly TORX bolts.

3.

Disconnect door lock actuator connector, and then remove door lock assembly.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Check door lock cables are properly engaged with inside handle and outside handle.
• After installation, check door open/close, lock/unlock operation.

INSIDE HANDLE

1.

Outside handle escutcheon

2.

Rear gasket

3.

TORX bolt

4.

Door lock assembly

5.

Cable clip

6.

Door finisher cap

7.

Inside handle

8.

Outside handle bracket

9.

Front gasket

10. Outside handle

: Pawl

: Vehicle front

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA5267GB

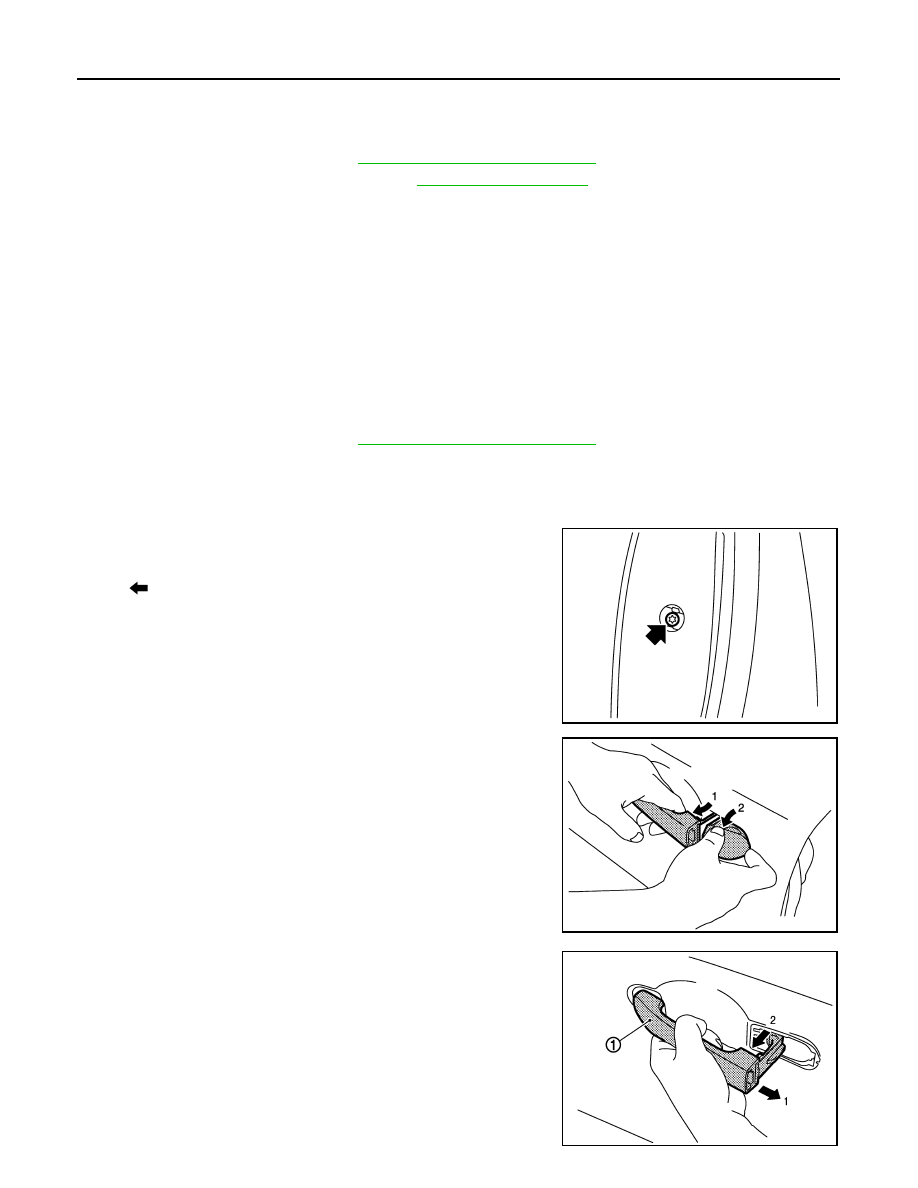

DLK-244

< REMOVAL AND INSTALLATION >

REAR DOOR LOCK

INSIDE HANDLE : Removal and Installation

INFOID:0000000006226103

REMOVAL

1.

Remove rear door finisher. Refer to

INT-16, "Removal and Installation"

.

2.

Remove inside handle escutcheon. Refer to

INT-16, "Exploded View"

3.

Remove inside handle mounting screws, and then remove inside handle.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Check door lock cables are properly engaged with inside handle.
• After installation, check door open/close, lock/unlock operation.

OUTSIDE HANDLE

OUTSIDE HANDLE : Removal and Installation

INFOID:0000000006226104

REMOVAL

1.

Fully close rear door glass.

2.

Remove rear door finisher. Refer to

INT-16, "Removal and Installation"

.

3.

Remove sealing screen.
NOTE:
Cat the buty-tape so that some parts of the buty-tape do not remain on the sealing screen, if the sealing
screen is reused.

4.

Remove door side grommet, and loosen TORX bolt from grom-
met hole.

5.

While pulling outside handle, remove outside handle escutch-
eon.

6.

While pulling outside handle (1), slide toward rear of vehicle to
remove outside handle.

: TORX bolt

JMKIA0025ZZ

JMKIA5342ZZ

JMKIA0524ZZ

REAR DOOR LOCK

DLK-245

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

7.

Remove front gasket and rear gasket.

8.

Slide toward rear of vehicle to remove outside handle bracket.

9.

Disconnect door lock cable from outside handle bracket.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Check door lock cable is properly engaged with outside handle bracket.
• After installation, check door open/close, lock/unlock operation.

JMKIA2652ZZ
